面向电流源型PWM整流器的双矢量模型预测直接功率控制*

doi:10.11985/2024.01.023

摘要/Abstract

摘要：

电流源型脉宽调制(Pulse width modulation，PWM)整流器因其网侧存在LC滤波器，系统的控制难度增加。传统直接功率控制策略下的整流器功率波形存在脉动，因模型预测控制具有卓越的动态特性以及直观的控制规律，采用模型预测直接功率控制(Model predictive direct power control，MPDPC)对传统控制策略进行改进。首先建立了三相PWM整流器的数学模型，给出了每个采样周期内的功率变化率，并推导出相邻采样周期之间的功率关系，然后给出基于单矢量的模型预测直接功率控制策略，提出了基于双矢量的模型预测直接功率控制策略，并优选出两个电流矢量，计算在一个采样周期内的作用时间，并对其进行修正。最后，在Matlab/Simulink仿真软件验证了所提控制策略的可行性和有效性。

关键词: 电流源型整流器, 模型预测控制, 双矢量, 功率控制

Abstract:

Current source pulse width modulation(PWM) rectifier is difficult to control because of LC filter in its network side. The power waveform of rectifier based the traditional direct power control is pulsatile. Model predictive direct power control(MPDPC) is adopted to improve the traditional control strategy because of its excellent dynamic performances and intuitive control law. Firstly, the mathematical model of three-phase PWM rectifier is established, the power change rate in each sampling period is given, and the power relationship between adjacent sampling periods is derived. Then, single-vector-based model predictive direct power control strategy is given, and two-vectors-based model predictive direct power control strategy is proposed. The two current vectors are optimized, and the acting time in one sampling period is calculated and corrected. Finally, the feasibility and effectiveness of the proposed control strategy are verified by Matlab/Simulink.

Key words: Current source rectifier, model predictive control, two-vectors, power control

中图分类号:

TM46

王森, 杨奕, 郭强, 马雯, 黄勇军. 面向电流源型PWM整流器的双矢量模型预测直接功率控制^*[J]. 电气工程学报, 2024, 19(1): 216-225.

WANG Sen, YANG Yi, GUO Qiang, MA Wen, HUANG Yongjun. Two-vectors-based Model Prediction Direct Power Control of Current Source PWM Rectifier[J]. Journal of Electrical Engineering, 2024, 19(1): 216-225.

图/表 13

图1

表1

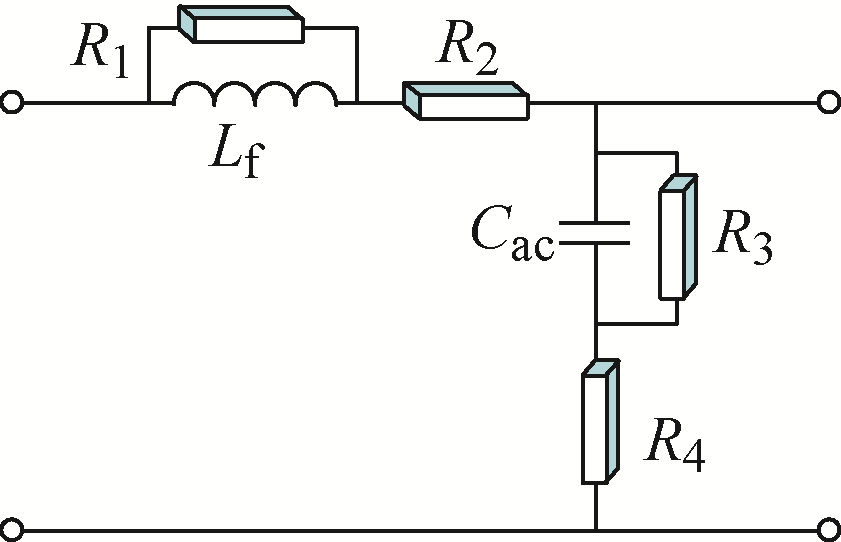

图2

图3

图4

图5

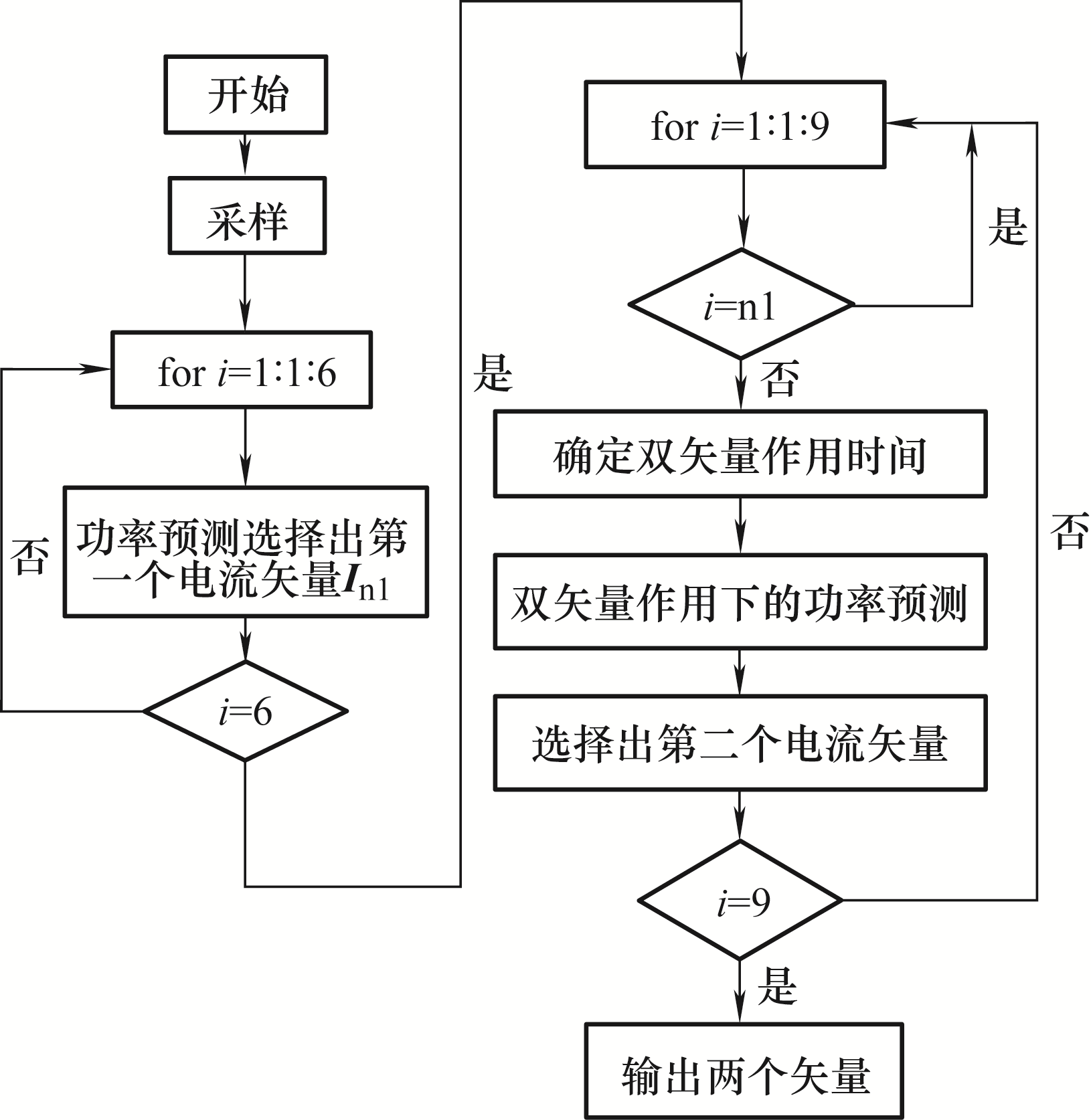

图6

表2

图7

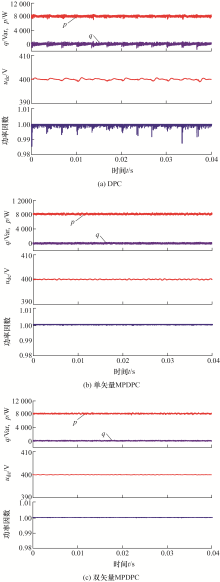

图8

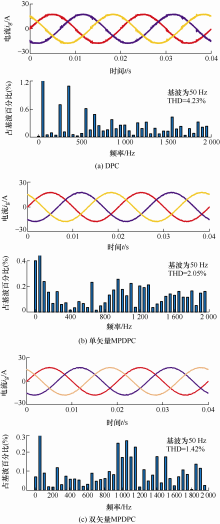

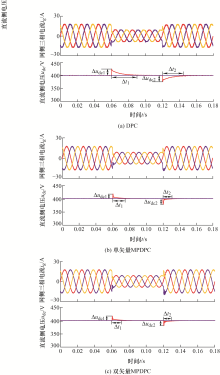

图9

表3

表4

参考文献 20

[1]	XU Qianming, MA Fujun, HE Zhixing, et al. Analysis and comparison of modular railway power conditioner for high-speed railway traction system[J]. IEEE Transactions on Power Electronics, 2017, 32(8):6031-6048. doi: 10.1109/TPEL.2016.2616721
[2]	陈杰, 沈禹廷, 沈佳茜, 等. 三相VIENNA整流器的混合空间矢量脉宽调制策略[J]. 电工技术学报, 2021, 36(S2):665-675.
	CHEN Jie, SHEN Yuting, SHEN Jiaqian, et al. Hybrid space vector pulse width modulation strategy for three-phase VIENNA rectifier[J]. Transactions of China Electrotechnical Society, 2021, 36(S2):665-675.
[3]	刘碧, 宋文胜, 孙可心, 等. 基于调制电压椭圆轨迹优化的单相脉冲整流器模型预测电流控制[J]. 中国电机工程学报, 2018, 38(17):5177-5188,5315.
	LIU Bi, SONG Wensheng, SUN Kexin, et al. Model predictive current control of single-phase PWM rectifiers with elliptic trajectory optimization of the modulated voltage vector[J]. Proceedings of the CSEE, 2018, 38(17):5177-5188,5315.
[4]	肖雄, 武玉娟, 孙广达, 等. 基于自适应神经网络观测的无电压传感器PWM整流器功率预测控制[J]. 中国电机工程学报, 2021, 41(3):1135-1146.
	XIAO Xiong, WU Yujuan, SUN Guangda, et al. Voltage-sensorless model predictive power control of PWM rectifier based on adaptive neural network observation[J]. Proceedings of the CSEE, 2021, 41(3):1135-1146.
[5]	郭强, 刘和平, 彭东林, 等. 静止坐标系下电流型PWM整流器电流环控制策略研究及其参数设计[J]. 中国电机工程学报, 2014, 34(15):2353-2361.
	GUO Qiang, LIU Heping, PENG Donglin, et al. A novel control strategy and its parameter design of the current-loop in a stationary frame for current-source PWM rectifiers[J]. Proceedings of the CSEE, 2014, 34(15):2353-2361.
[6]	GE Junjie, ZHAO Zhengming, YUAN Liqiang, et al. Direct power control based on natural switching surface for three-phase PWM rectifiers[J]. IEEE Transactions on Power Electronics, 2015, 30(6):2918-2922. doi: 10.1109/TPEL.2014.2377048
[7]	VAZQUEZ S, SANCHEZ J A, CARRASCO J M, et al. A model-based direct power control for three-phase power converters[J]. IEEE Transactions on Industrial Electronics, 2008, 55(4):1647-1657. doi: 10.1109/TIE.2008.917113
[8]	GAO Hang, WU Bin, XU Dewei, et al. A model predictive power factor control scheme with active damping function for current source rectifiers[J]. IEEE Transactions on Power Electronics, 2017, 33(3):2655-2667. doi: 10.1109/TPEL.2017.2693340
[9]	齐昕, 苏涛, 周珂, 等. 交流电机模型预测控制策略发展概述[J]. 中国电机工程学报, 2021, 41(18):6408-6419.
	QI Xin, SU Tao, ZHOU Ke, et al. Development of AC motor model predictive control strategy:An overview[J]. Proceedings of the CSEE, 2021, 41(18):6408-6419.
[10]	韩坤, 陈津辉, 李桂虎, 等. 单相PWM整流器两矢量有限集模型预测电流控制[J]. 电源学报, 2021, 19(4):63-68. doi: 10.13234/j.issn.2095-2805.2021.4.63
	HAN Kun, CHEN Jinhui, LI Guihu, et al. Two-vector-based finite-control-set model predictive current control of single-phase PWM converter[J]. Journal of Power Supply, 2021, 19(4):63-68. doi: 10.13234/j.issn.2095-2805.2021.4.63
[11]	SUN Qiuye, LI Yuyang, MA Dazhong, et al. Model predictive direct power control of three-port solid-state transformer for hybrid AC/DC zonal microgrid applications[J]. IEEE Transactions on Power Delivery, 2022, 37(1):528-538. doi: 10.1109/TPWRD.2021.3064418
[12]	CHOI D, LEE K. Dynamic performance improvement of AC/DC converter using model predictive direct power control with finite control set[J]. IEEE Transactions on Industrial Electronics, 2015, 62(2):757-767. doi: 10.1109/TIE.2014.2352214
[13]	史婷娜, 杨雨要, 周湛清, 等. 基于二次型价值函数的双电机转矩同步系统有限集模型预测控制[J]. 中国电机工程学报, 2019, 39(15):4531-4541.
	SHI Tingna, YANG Yuyao, ZHOU Zhanqing, et al. FCS-MPC for dual-motor torque synchronization system based on quadratic form cost function[J]. Proceedings of the CSEE, 2019, 39(15):4531-4541.
[14]	夏长亮, 仇旭东, 王志强, 等. 基于矢量作用时间的新型预测转矩控制[J]. 中国电机工程学报, 2016, 36(11):3045-3053.
	XIA Changliang, QIU Xudong, WANG Zhiqiang, et al. Predictive torque control based on optimal operating time of vector[J]. Proceedings of the CSEE, 2016, 36(11):3045-3053.
[15]	SONG Wensheng, DENG Zhixian, WANG Shunliang, et al. A simple model predictive power control strategy for single-phase PWM converters with modulation function optimization[J]. IEEE Transactions on Power Electronics, 2016, 31(7):5279-5289.
[16]	徐艳平, 王极兵, 王建渊, 等. 考虑预测误差的改进双矢量模型预测电流控制[J]. 电气传动, 2018, 48(9):62-66.
	XU Yanping, WANG Jibing, WANG Jianyuan, et al. Improved two-vector model predictive current control considering prediction errors[J]. Electric Drive, 2018, 48(9):62-66.
[17]	JIN Nan, CHEN Mo, GUO Leilei, et al. Double-vector model-free predictive control method for voltage source inverter with visualization analysis[J]. IEEE Transactions on Industrial Electronics, 2022, 69(10):10066-10078. doi: 10.1109/TIE.2021.3128905
[18]	ZHANG Yongchang, HUANG Lanlan, XU Donglin, et al. Performance evaluation of two-vector-based model predictive current control of PMSM drives[J]. Chinese Journal of Electrical Engineering, 2018, 4(2):65-81.
[19]	ZHANG Xiaoguang, HOU Benshuai. Double vectors model predictive torque control without weighting factor based on voltage tracking error[J]. IEEE Transactions on Power Electronics, 2018, 33(3):2368-2380. doi: 10.1109/TPEL.2017.2691776
[20]	ZHANG Yongchang, PENG Yubin, YANG Haitao. Performance improvement of two-vectors-based model predictive control of PWM rectifier[J]. IEEE Transactions on Power Electronics, 2016, 31(8):6016-6030. doi: 10.1109/TPEL.2015.2498306

三值逻辑函数 σ_aσ_bσ_c	调制系数		电流矢量序号I_z
三值逻辑函数 σ_aσ_bσ_c	m_rα	m_rβ	电流矢量序号I_z
1 0 -1	1	${\sqrt{\text{3}}}/{\text{3}}\;$	I₁
0 1 -1	0	${\text{2}\sqrt{\text{3}}}/{\text{3}}\;$	I₂
-1 1 0	-1	${\sqrt{\text{3}}}/{\text{3}}\;$	I₃
-1 0 1	-1	-${\text{2}\sqrt{\text{3}}}/{\text{3}}\;$	I₄
0 -1 1	0	-${\sqrt{\text{3}}}/{\text{3}}\;$	I₅
1 -1 0	1	-${\sqrt{\text{3}}}/{\text{3}}\;$	I₆
0 0 0	0	0	I₇
	0	0	I₈
	0	0	I₉

参数	数值
电网频率/Hz	50
电网电压有效值/V	220
直流侧输出电压/V	400
开关频率/kHz	16
滤波电感L_f/mH	0.5
滤波电容C_ac/μF	12
虚拟电阻R₃/Ω	5
直流侧电感L_dc/mH	4.5
直流侧电容C_dc/μF	120
负载R_L/Ω	20,40
控制器比例系数P	1.5
控制器比例系数I	200

参数变化	DPC	单矢量 MPDPC	双矢量 MPDPC
网侧有功功率纹波p_r/W	1 000	660	440
网侧无功功率纹波q_r/Var	1 200	600	420
