基于模型预测的光伏参与电网调频方法研究*

doi:10.11985/2023.03.037

电气工程学报 ›› 2023, Vol. 18 ›› Issue (3): 348-357.doi: 10.11985/2023.03.037

• 新能源发电与电能存储 • 上一篇下一篇

扫码分享

基于模型预测的光伏参与电网调频方法研究^*

吴馥云¹(), 程卫²(), 李高宁²(), 吕建国²()

1.三江学院机械与电气工程学院南京 210012
2.南京理工大学自动化学院南京 210094

收稿日期:2022-08-08 修回日期:2023-05-24 出版日期:2023-09-25 发布日期:2023-10-23
通讯作者: 程卫，男，1997年生，硕士研究生。主要研究方向为分布式发电与微电网技术。E-mail：1803255993@qq.com
作者简介:吴馥云，女，1988年生，讲师。主要研究方向为分布式发电与微电网技术。E-mail：wufuyun0606@163.com
李高宁，男，1998年生，硕士研究生。主要研究方向为分布式发电与微电网技术。E-mail：li15256971761@163.com
吕建国，男，1987年生，博士，副教授。主要研究方向为分布式发电与微电网技术、电力电子变换器控制技术。E-mail：jianguolyu@njust.edu.cn
基金资助:
* 江苏省高等学校自然科学研究资助项目(20KJB470029)

Research on the Method of Photovoltaic Participation in Grid Frequency Regulation Based on Model Prediction Control

WU Fuyun¹(), CHENG Wei²(), LI Gaoning²(), LÜ Jianguo²()

1. School of Mechanical and Electrical Engineering, Sanjiang University, Nanjing 210012
2. School of Automation, Nanjing University of Science and Technology, Nanjing 210094

Received:2022-08-08 Revised:2023-05-24 Online:2023-09-25 Published:2023-10-23

摘要/Abstract

摘要：

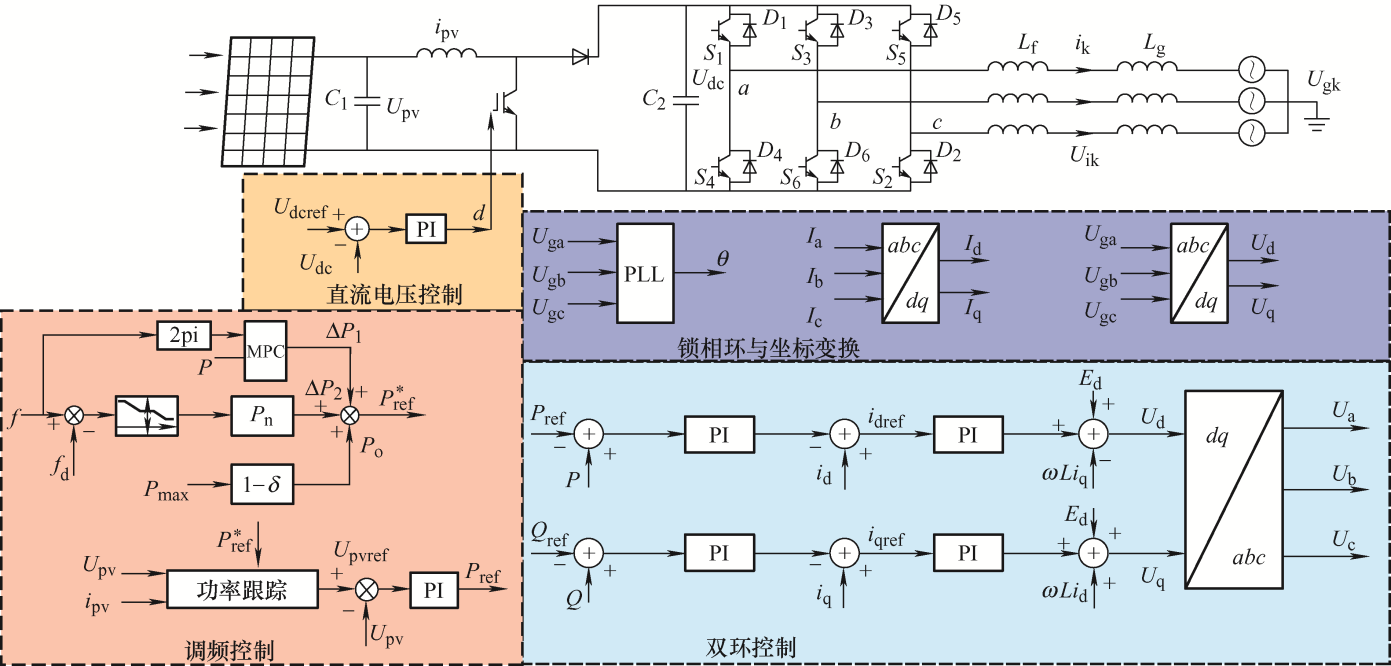

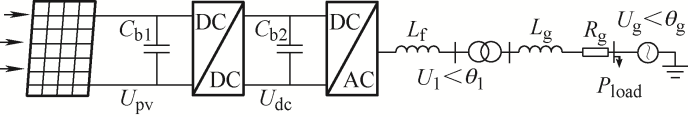

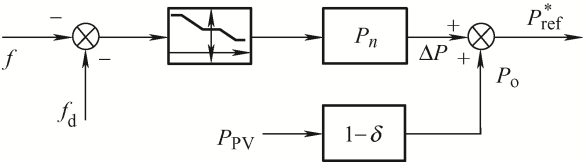

针对大规模光伏并网导致电力系统一次调频能力不足的问题，光伏发电主动参与电网频率调节是解决这一问题的重要手段。首先介绍了两级式光伏发电系统的拓扑结构与控制策略，然后考虑到下垂控制对电网频率暂态调节有限，提出了一种模型预测控制与下垂控制相结合的调频控制策略。该控制策略在光伏发电保留一定有功功率的基础上，通过频率差值改变下垂控制的输出增量与频率偏差率改变模型预测控制的输出增量，进而改变光伏发电的有功输出功率，使其参与系统调频。最后在Matlab/Simulink平台上搭建了一套含光伏发电的区域电网仿真模型，通过仿真分析验证了调频控制策略的可行性与有效性。仿真结果表明，该控制策略不仅对电网频率的稳态起到调节作用，还改善了电网频率的暂态与动态效果。

关键词: 两级式光伏发电系统, 频率调节, 下垂控制, 模型预测控制

Abstract:

Aiming at the problem of insufficient primary frequency regulation ability of the power system caused by large-scale photovoltaic grid connection, photovoltaics actively participate in grid frequency regulation is an important means to solve this problem. Firstly, the topology structure and control strategy of two-stage photovoltaic power generation system are introduced. Then, considering that droop control has limited effect on frequency transient regulation of power grid, a frequency regulation control strategy combining model predictive control and droop control is proposed. On the basis of active power reserve, the strategy changes the output increment of droop control by frequency difference and the output increment of model predictive control by frequency deviation rate, so as to change the output power of photovoltaic power generation and make it participate in system frequency regulation. Finally, a simulation model of a regional grid with PV power generation is built on Matlab/Simulink platform, the feasibility and effectiveness of the frequency regulation control strategy are verified. The simulation results show that the control strategy not only regulates the steady state of grid frequency, but also improves the transient and dynamic effects of grid frequency.

Key words: Two-stage photovoltaic power generation system, frequency regulation, droop control, model predictive control

中图分类号:

TM761

吴馥云, 程卫, 李高宁, 吕建国. 基于模型预测的光伏参与电网调频方法研究^*[J]. 电气工程学报, 2023, 18(3): 348-357.

WU Fuyun, CHENG Wei, LI Gaoning, LÜ Jianguo. Research on the Method of Photovoltaic Participation in Grid Frequency Regulation Based on Model Prediction Control[J]. Journal of Electrical Engineering, 2023, 18(3): 348-357.

图/表 21

表1

图1

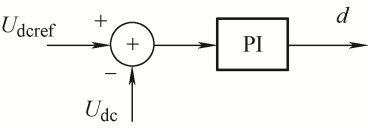

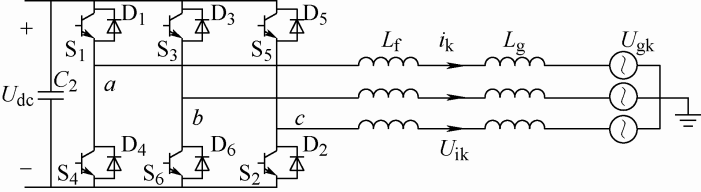

图2

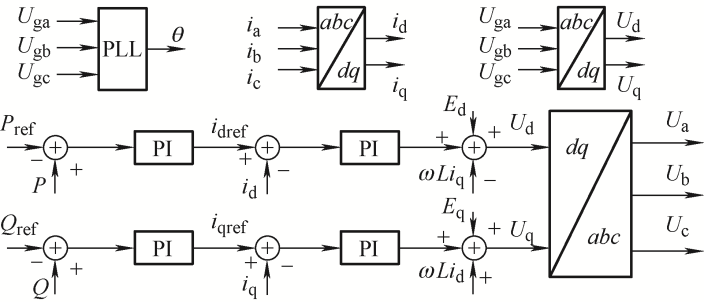

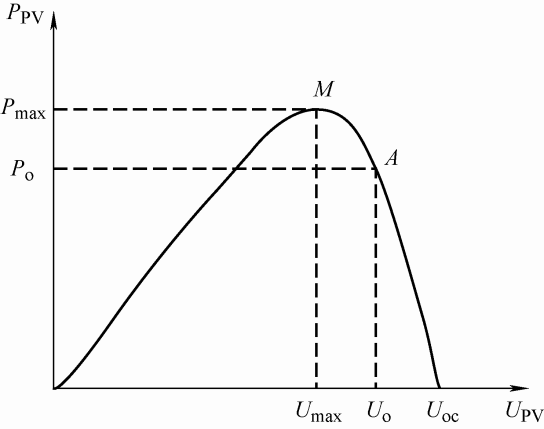

图3

图4

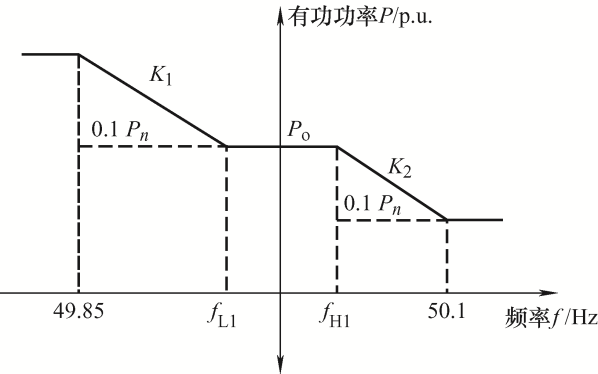

图5

图6

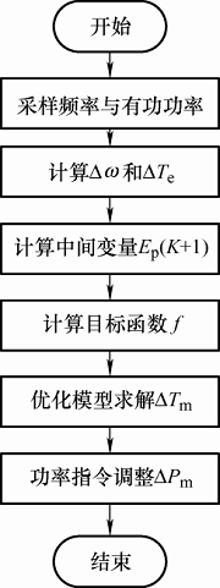

图7

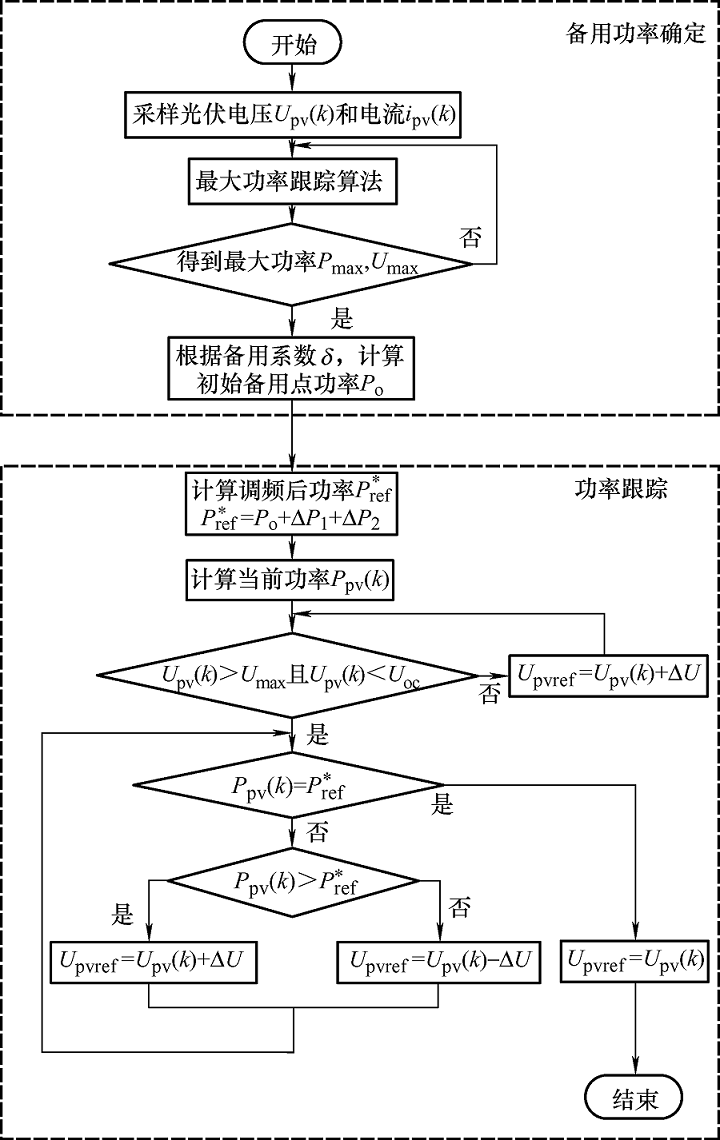

图8

图9

图10

图11

图12

图13

表2

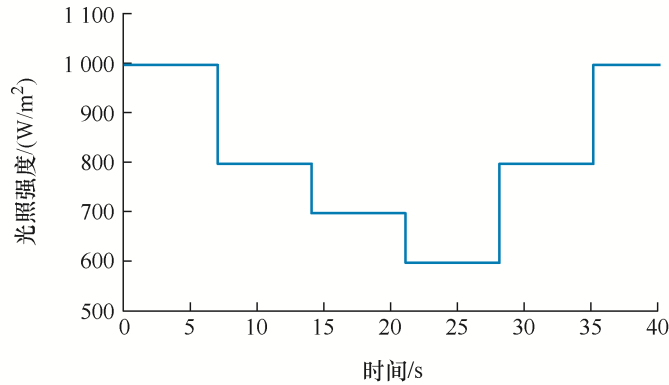

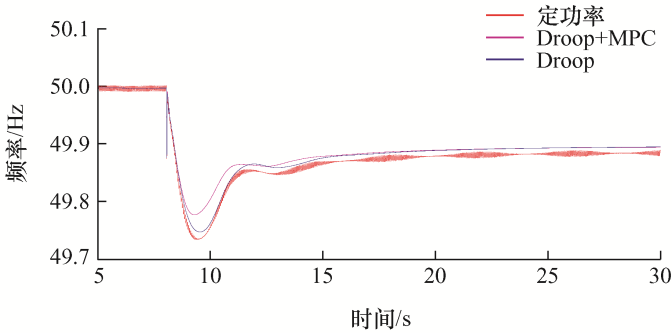

图14

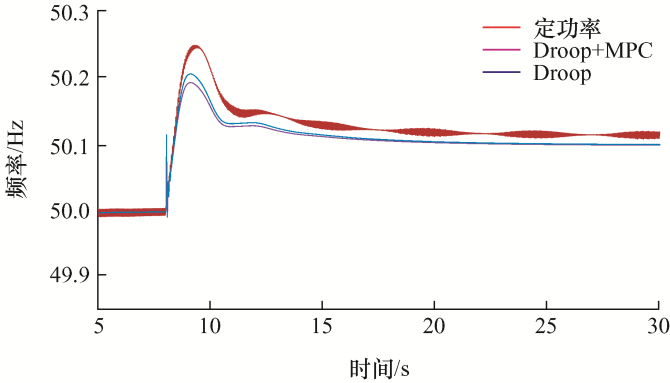

图15

图16

图17

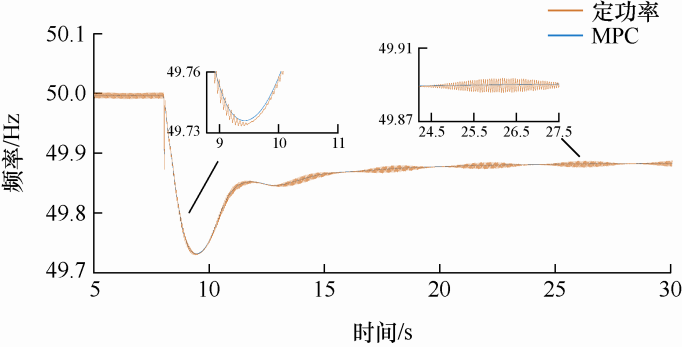

图18

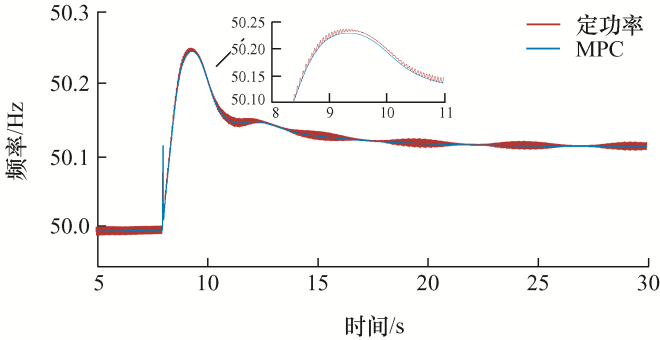

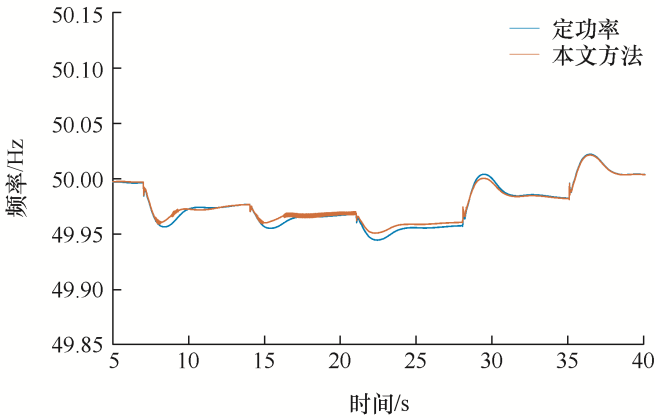

图19

参考文献 24

[1]	国家能源局. 2018年可再生能源并网运行情况介绍[EB/OL]. [2019-01-28]. http://www.nea.gov.cn/2019-01/28/c_137780519.htm.
	National Energy Administration. Introduction to the operation of grid-connected renewable energy in 2018[EB/OL]. [2019-01-28]. http://www.nea.gov.cn/2019-01/28/c_137780519.htm.
[2]	国家发展和改革委员会能源研究所. 中国2050高比例可再生能源发展情景暨路径研究[R]. 北京: 国家发展和改革委员会能源研究所, 2015.
	Energy Research Institute National Development and Reform Commission. China 2050 high renewable energy penetration scenario and road map study[R]. Beijing: Energy Research Institute National Development and Reform Commission, 2015.
[3]	严干贵, 张善峰, 贾祺, 等. 光伏发电主动参与电网频率调节的机理分析[J]. 太阳能学报, 2021, 42(8):191-199.
	YAN Gangui, ZHANG Shanfeng, JIA Qi, et al. Mechanism of PV generation actively participating in power grid frequency regulation[J]. Acta Energiae Solaris Sinica, 2021, 42(8):191-199.
[4]	丁明, 王伟胜, 王秀丽, 等. 大规模光伏发电对电力系统影响综述[J]. 中国电机工程学报, 2014, 34(1):1-14.
	DING Ming, WANG Weisheng, WANG Xiuli, et al. A review on the effect of large-scale PV generation on power systems[J]. Proceedings of the CSEE, 2014, 34(1):1-14.
[5]	周孝信, 陈树勇, 鲁宗相, 等. 能源转型中我国新一代电力系统的技术特征[J]. 中国电机工程学报, 2018, 38(7):1893-1904.
	ZHOU Xiaoxin, CHEN Shuyong, LU Zongxiang, et al. Technology features of the new generation power system in China[J]. Proceedings of the CSEE, 2018, 38(7):1893-1904.
[6]	DATTA M, SENJYU T, YONA A, et al. A frequency-control approach by photovoltaic generator in a PV-diesel hybrid power system[J]. IEEE Transactions on Energy Conversion, 2011, 26(2):559-571. doi: 10.1109/TEC.2010.2089688
[7]	李洪宇, 鞠平, 余一平, 等. 随机激励下系统频率动态安全性量化评估及半解析分析[J]. 中国电机工程学报, 2017, 37(7):1955-1963.
	LI Hongyu, JU Ping, YU Yiping, et al. Quantitative assessment and semi-analytical analysis for system frequency dynamic security under stochastic excitation[J]. Proceedings of the CSEE, 2017, 37(7):1955-1963.
[8]	钟诚, 周顺康, 严干贵, 等. 基于变减载率的光伏发电参与电网调频控制策略[J]. 电工技术学报, 2019, 34(5):1013-1024.
	ZHONG Cheng, ZHOU Shunkang, YAN Gangui, et al. A new frequency regulation control strategy for photovoltaic power plant based on variable power reserve level control[J]. Transactions of China Electrotechnical Society, 2019, 34(5):1013-1024.
[9]	OMRAN W A, KAZERANI M, SALAMA M M A. Investigation of methods for reduction of power fluctuations generated from large grid-connected photovoltaic systems[J]. IEEE Transactions on Energy Conversion, 2011, 26(1):318-327. doi: 10.1109/TEC.2010.2062515
[10]	张海峥, 张兴, 李明, 等. 一种有功备用式光伏虚拟同步控制策略[J]. 电网技术, 2019, 43(2):514-520.
	ZHANG Haizheng, ZHANG Xing, LI Ming, et al. A photovoltaic virtual synchronous generator control strategy based on active power reserve[J]. Power System Technology, 2019, 43(2):514-520.
[11]	张海峥, 张兴, 李明, 等. 基于变步长功率跟踪的有功备用式 PV-VSG 控制策略[J]. 电力系统自动化, 2019, 43(5):92-100.
	ZHANG Haizheng, ZHANG Xing, LI Ming, et al. Control strategy of PV-VSG in active power reserve mode based on power tracking with variable step[J]. Automation of Electric Power Systems, 2019, 43(5):92-100.
[12]	石荣亮, 张兴, 刘芳, 等. 虚拟同步发电机及其在多能互补微电网中的运行控制策略[J]. 电工技术学报, 2016, 31(20):170-180.
	SHI Rongliang, ZHANG Xing, LIU Fang, et al. Control technologies of multi-energy complementary microgrid operation based on virtual synchronous generator[J]. Transactions of China Electrotechnical Society, 2016, 31(20):170-180.
[13]	程冲, 杨欢, 曾正, 等. 虚拟同步发电机的转子惯量自适应控制方法[J]. 电力系统自动化, 2015, 39(19):82-89.
	CHENG Chong, YANG Huan, ZENG Zheng, et al. Rotor inertia adaptive control method of VSG[J]. Automation of Electric Power Systems, 2015, 39(19):82-89.
[14]	张卫红, 佟宗超, 许鑫. 基于VSG的分布式光伏系统运行与控制[J]. 电力电子技术, 2013, 47(8):38-40.
	ZHANG Weihong, TONG Zongchao, XU Xin. Control and operation of distributed photovoltaic system based on virtual synchronous generator[J]. Power Electronics, 2013, 47(8):38-40.
[15]	田春光, 田利, 李德鑫, 等. 基于混合储能系统跟踪光伏发电输出功率的控制策略[J]. 电工技术学报, 2016, 31(14):75-83.
	TIAN Chunguang, TIAN Li, LI Dexin, et al. Control strategy for tracking the output power of photovoltaic power generation based on hybrid energy storage system[J]. Transactions of China Electrotechnical Society, 2016, 31(14):75-83.
[16]	蔡国伟, 孔令国, 潘超, 等. 风光储联合发电系统的建模及并网控制策略[J]. 电工技术学报, 2013, 28(9):196-204.
	CAI Guowei, KONG Lingguo, PAN Chao, et al. System modeling of wind-PV-ES hybrid power system and its control strategy for grid-connected[J]. Transactions of China Electrotechnical Society, 2013, 28(9):196-204.
[17]	HILL C A, SUCH M C, CHEN D, et al. Battery energy storage for enabling integration of distributed solar power generation[J]. IEEE Transactions on Smart Grid, 2012, 3(2):850-857. doi: 10.1109/TSG.2012.2190113
[18]	ZARINA P P, MISHRA S, SEKHAR P C. Exploring frequency control capability of a PV system in a hybrid PV-rotating machine-without storage system[J]. International Journal of Electrical Power & Energy Systems, 2014, 60:258-267. doi: 10.1016/j.ijepes.2014.02.033
[19]	黄际元, 李欣然, 常敏, 等. 考虑储能电池参与一次调频技术经济模型的容量配置方法[J]. 电工技术学报, 2017, 32(21):112-121.
	HUANG Jiyuan, LI Xinran, CHANG Min, et al. Capacity allocation of BESS in primary frequency regulation considering its technical-economic model[J]. Transactions of China Electrotechnical Society, 2017, 32(21):112-121.
[20]	JIBJI B F, ANAYA L O. Frequency support from photovoltaic power plants using offline maximum power point tracking and variable droop control[J]. IET Renewable Power Generation, 2019, 13(13):2278-2286. doi: 10.1049/rpg2.v13.13
[21]	CRACIUN B, KEREKES T, SERA D, et al. Frequency support functions in large PV power plants with active power reserves[J]. IEEE Journal of Emerging and Selected Topics in Power Electronics, 2014, 2(4):849-858. doi: 10.1109/JESTPE.2014.2344176
[22]	杨慧彪, 贾祺, 项丽, 等. 双级式光伏发电虚拟惯量控制策略[J]. 电力系统自动化, 2019, 43(10):87-102.
	YANG Huibiao, JIA Qi, XIANG Li, et al. Virtual inertia control strategies for double-stage grid-connected photovoltaic generation[J]. Automation of Electric Power Systems, 2019, 43(10):87-102.
[23]	吴俊鹏, 杨晓栋, 翟学, 等. 并网光伏电站的一次调频特性分析[J]. 电测与仪表, 2016, 53(19):88-92.
	WU Junpeng, YANG Xiaodong, ZHAI Xue, et al. Analysis on primary frequency regulation of grid-connected PV station in power system[J]. Electrical Measurement & Instrumentation, 2016, 53(19):88-92.
[24]	陈虹. 模型预测控制[M]. 北京: 科学出版社, 2013.
	CHEN Hong. Model predictive control[M]. Beijing: Science Press, 2013.

调频类型	优点	缺点
减载控制	不需要额外设备，调频成本较低	一般需要弃光，有能量损失
虚拟同步控制	提供更好的惯性，改善动态特性	通常与储能结合，忽略光伏源端特性
光储联合控制	功率稳定，消除功率波动	储能单元的造价与维护成本昂贵

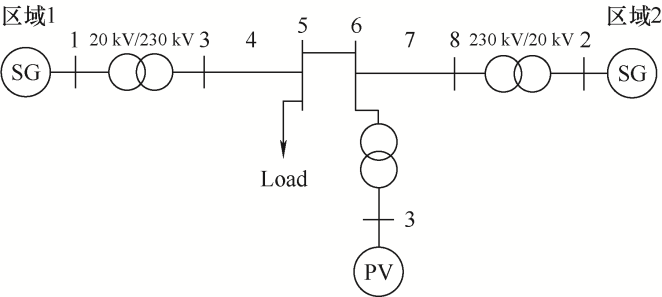

参数	数值
区域1发电机容量/MW	198
区域2发电机容量/MW	198
光伏容量/MW	125
负载消耗有功功率/MW	480
有功备用δ	0.2
转动惯量J	0.1
阻尼系数D	10
Boost 电压环的PI参数	(1, 100)
调频电压环的PI参数	(0.2, 100)
逆变器无功功率外环的PI参数	(7, 800)
逆变器有功功率外环的PI参数	(7, 800)
逆变器有功电流内环的PI参数	(0.3, 20)
逆变器无功电流内环的PI参数	(0.3, 20)
输出量权重系数q	100
控制量权重系数r	1
