一种改进的同步磁阻电机无模型预测电流控制*

doi:10.11985/2023.02.001

电气工程学报 ›› 2023, Vol. 18 ›› Issue (2): 1-8.doi: 10.11985/2023.02.001

• 电机与电器 • 下一篇

扫码分享

一种改进的同步磁阻电机无模型预测电流控制^*

石国航¹(), 张永昌²(), 杨海涛¹()

1.电力电子与电气传动北京市工程研究中心(北方工业大学) 北京 100144
2.华北电力大学电气与电子工程学院北京 102206

收稿日期:2021-12-27 修回日期:2022-04-15 出版日期:2023-06-25 发布日期:2023-07-12
作者简介:石国航，女，1997年生，硕士研究生。主要研究方向为同步磁阻电机控制。E-mail：hope9456@163.com
张永昌，男，1982年生，教授，博士研究生导师。主要研究方向为模型预测控制在电力电子与电机控制中的应用。E-mail：zhangdavid37@gmail.com
杨海涛，男，1987年生，副教授，硕士研究生导师。主要研究方向为异步电机模型预测控制。E-mail：yhtseaky@gmail.com
基金资助:
国家自然科学基金资助项目(52077002)

An Improved Model-free Predictive Current Control for Synchronous Reluctance Motor Drives

SHI Guohang¹(), ZHANG Yongchang²(), YANG Haitao¹()

1. Power Electronics and Motor Drive Engineering Research Center of Beijing (North China University of Technology), Beijing 100144
2. School of Electrical and Electronic Engineering, North China Electric Power University, Beijing 102206

Received:2021-12-27 Revised:2022-04-15 Online:2023-06-25 Published:2023-07-12

摘要/Abstract

摘要：

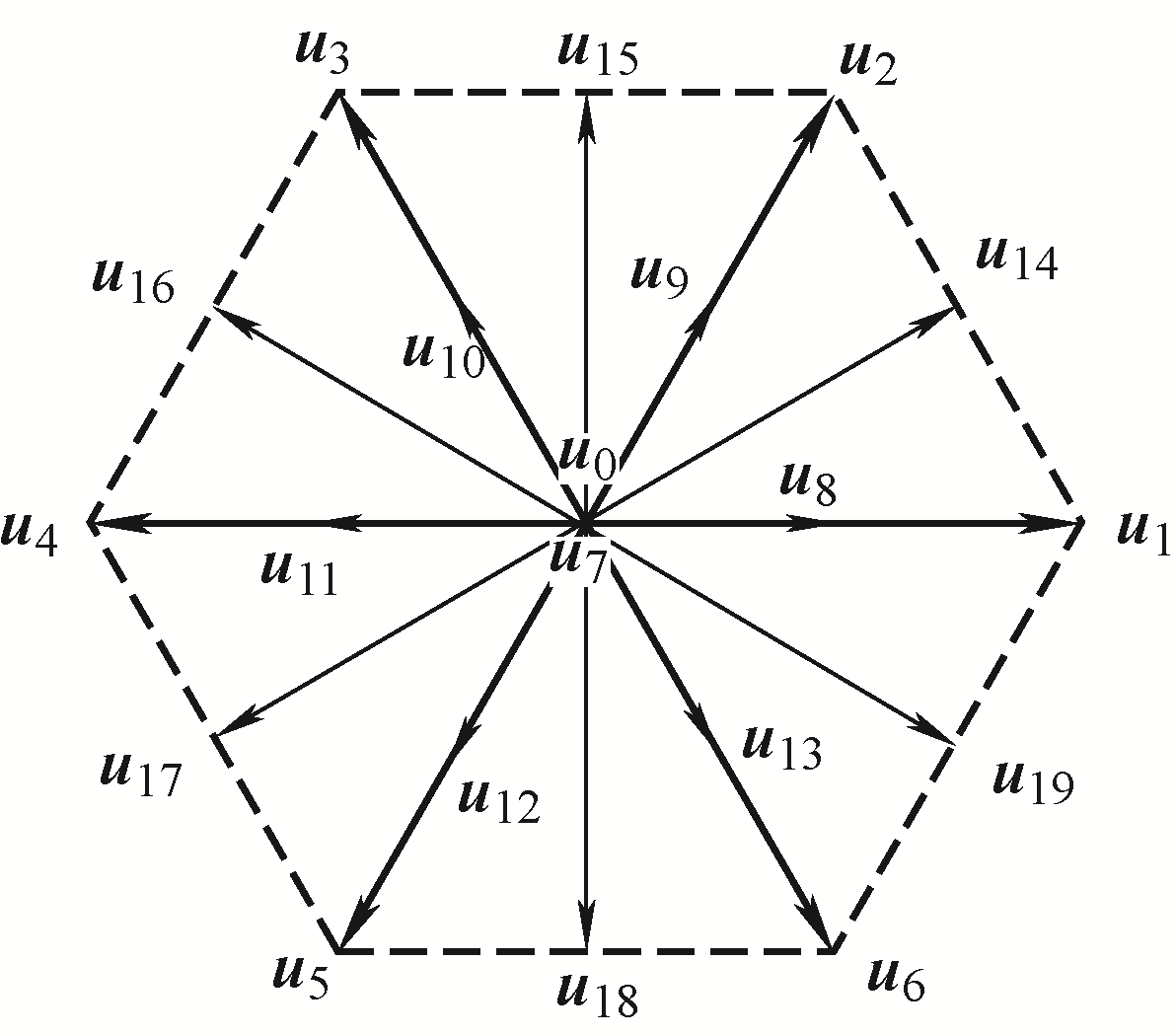

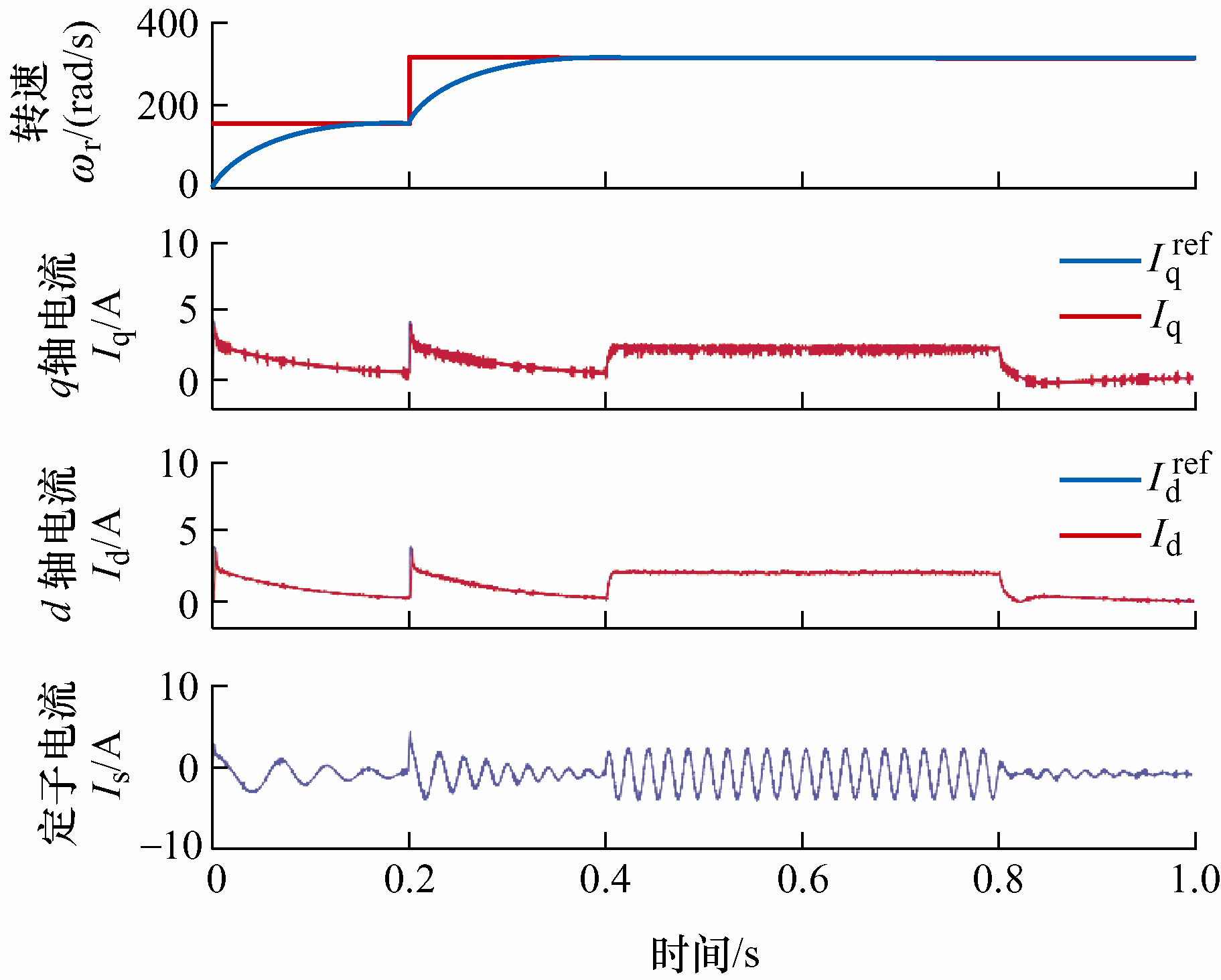

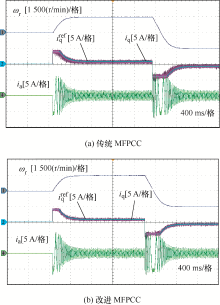

无模型预测电流控制(Model-free predictive current control, MFPCC)由于本质上对系统内外扰动具有鲁棒性，在电机驱动领域得到广泛的研究，能够实现同步磁阻电机(Synchronous reluctance motor, SynRM)的高性能控制。传统的MFPCC方法把各时刻电压矢量对应的电流差分存储在查找表(Lookup table, LUT)中，进而预测下一时刻的最优电压矢量，但存在电流差分更新停滞和稳态性能不理想的问题。针对这些问题，提出一种改进的MFPCC方法，将电机模型用超局部模型表示，通过在线估计增益项和扰动项来及时更新LUT，解决了电流差分更新停滞的问题。另外利用扩展的有限状态集，得到更精确的电压矢量，改善了系统稳态性能。最后将所提方法与传统的MFPCC方法进行对比，仿真和试验结果表明该方法可以有效解决电流更新停滞的问题，并在全速范围内具有良好的动静态性能。

关键词: 同步磁阻电机, 无模型预测控制, 超局部模型, 扩展有限状态集

Abstract:

Model-free predictive current control(MFPCC) has been widely studied in the field of motor drive because of its intrinsic robustness to internal and external disturbances of the system, and can achieve high performance control of synchronous reluctance motor(SynRM). The traditional MFPCC method stores the current difference corresponding to the voltage vector at each time in the lookup table(LUT), and then predicts the optimal voltage vector at the next time, but there are problems of current difference update stagnation and unsatisfactory steady-state performance. To solve these problems, an improved MFPCC method is proposed. The motor model is expressed as an ultra-local model, and the LUT is updated timely by estimating the gain term and disturbance term online, which solves the current differential update stagnation problem. In addition, a more accurate voltage vector is obtained by using the extended finite state set to improve the steady-state performance. Finally, the proposed method is compared with the traditional MFPCC method, and the simulation and experimental results show that the proposed method effectively solves the problem of current update stagnation, and has good dynamic and static performance in the full speed range.

Key words: Synchronous reluctance motor, model-free predictive control, ultra-local model, extended finite state set

中图分类号:

TM352

石国航, 张永昌, 杨海涛. 一种改进的同步磁阻电机无模型预测电流控制^*[J]. 电气工程学报, 2023, 18(2): 1-8.

SHI Guohang, ZHANG Yongchang, YANG Haitao. An Improved Model-free Predictive Current Control for Synchronous Reluctance Motor Drives[J]. Journal of Electrical Engineering, 2023, 18(2): 1-8.

图/表 10

图1

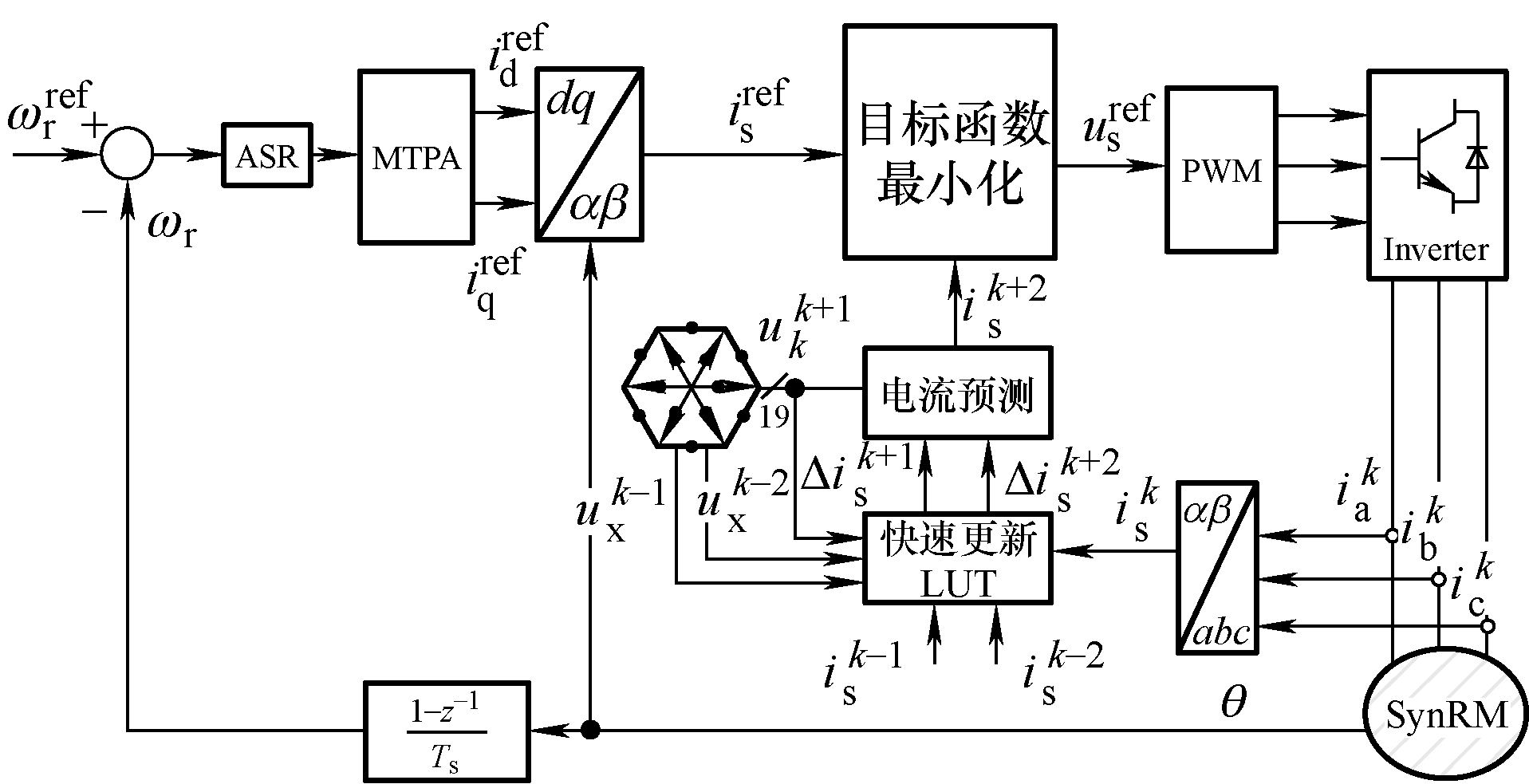

图2

表1

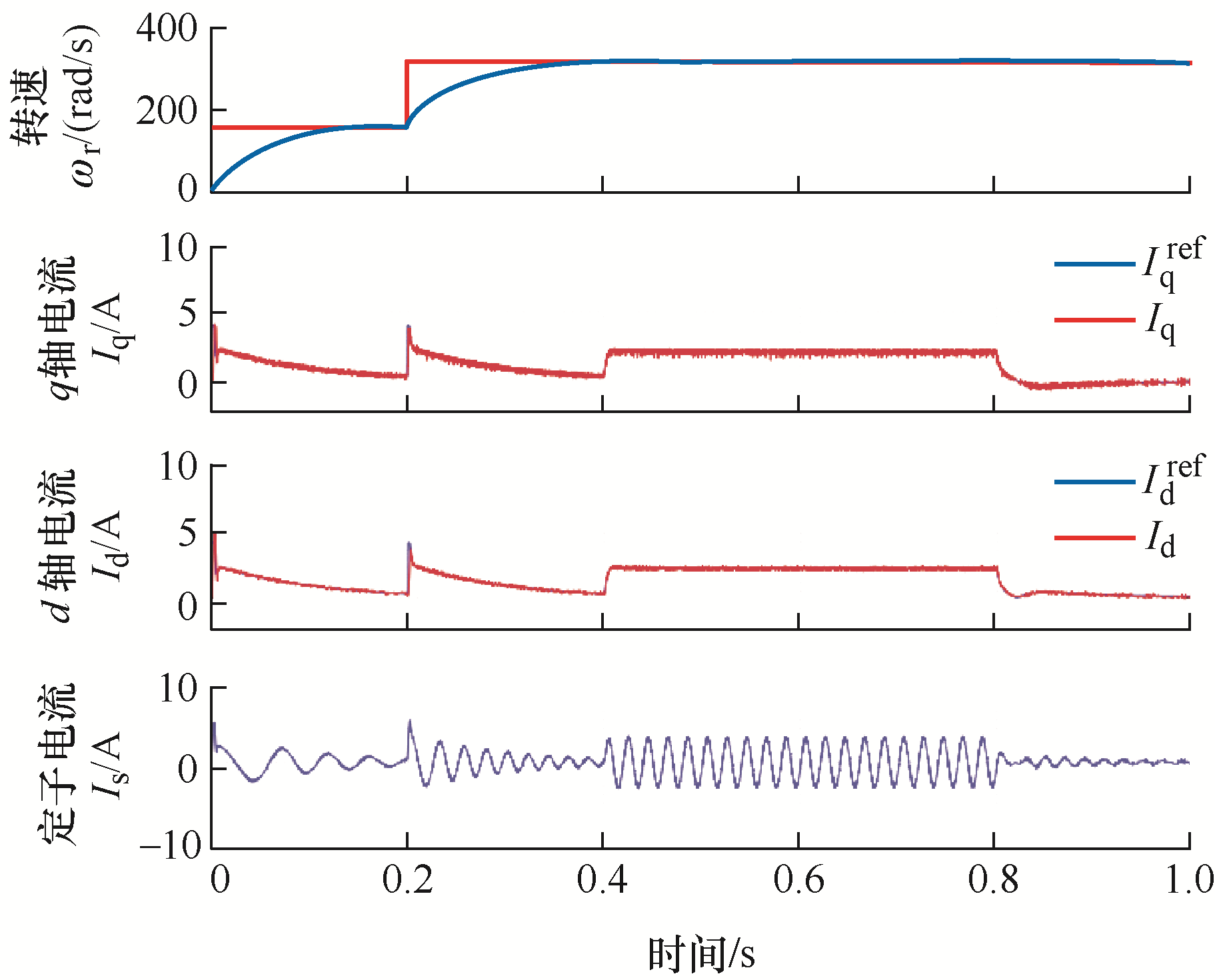

图3

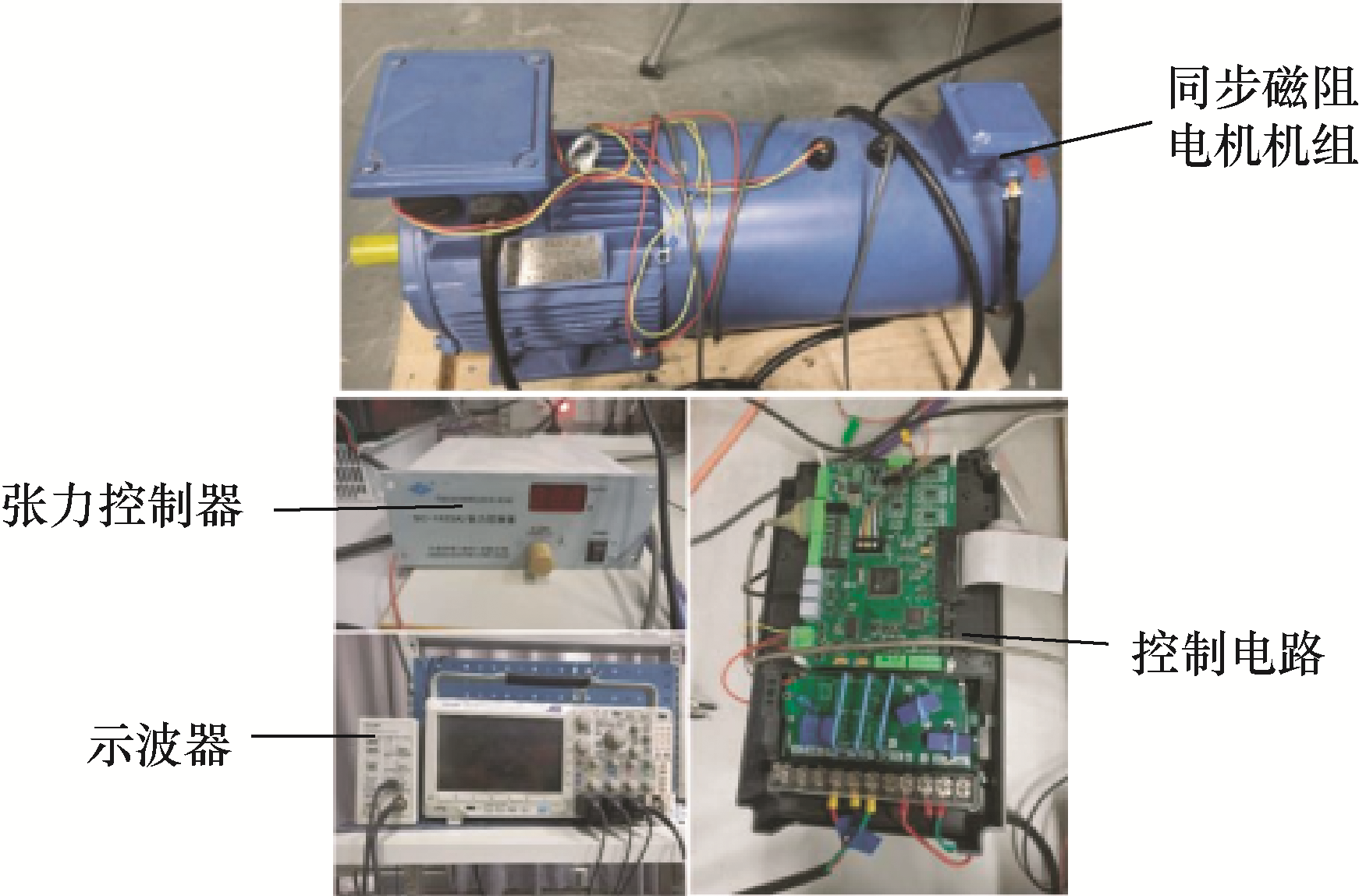

图4

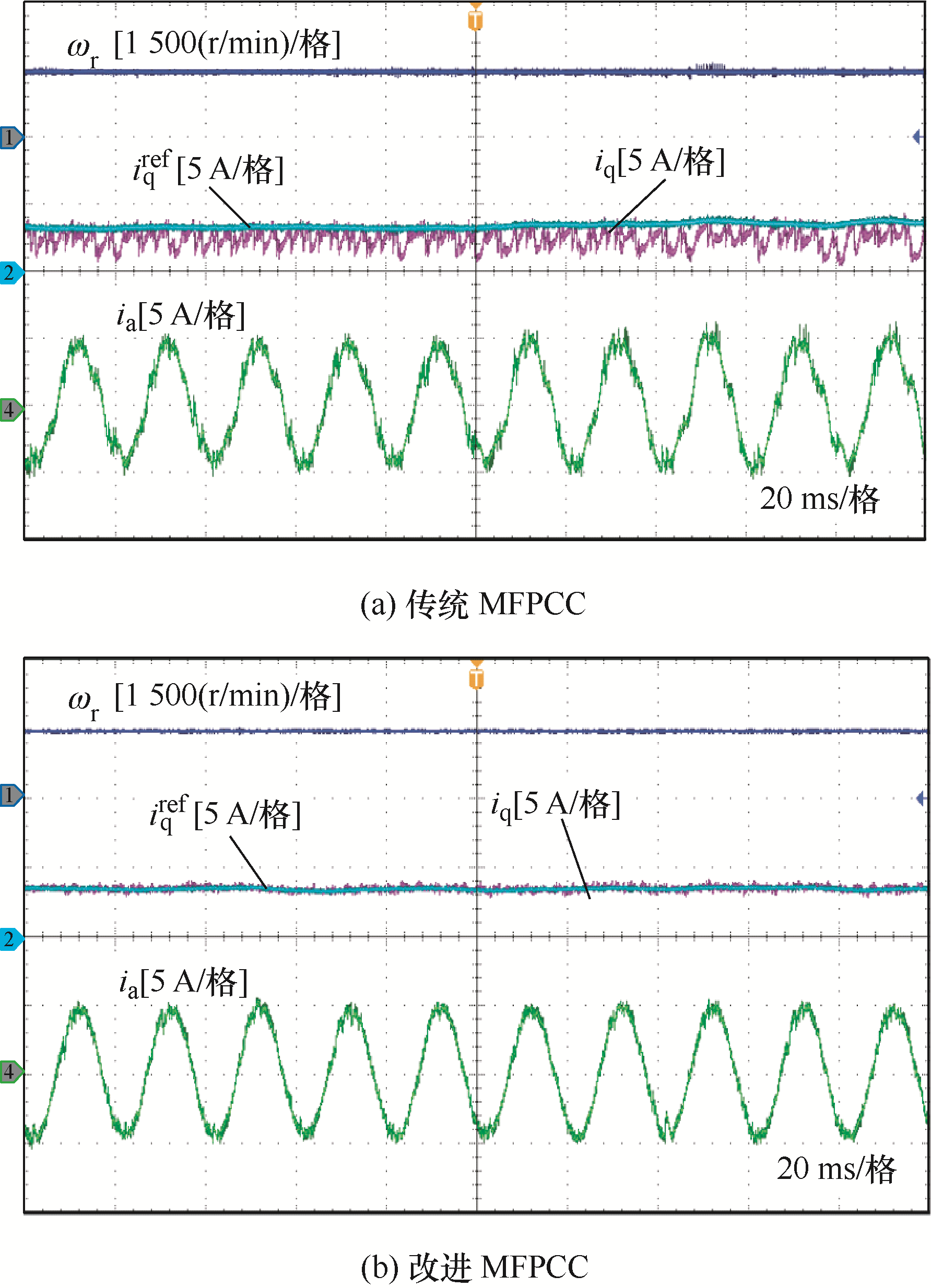

图5

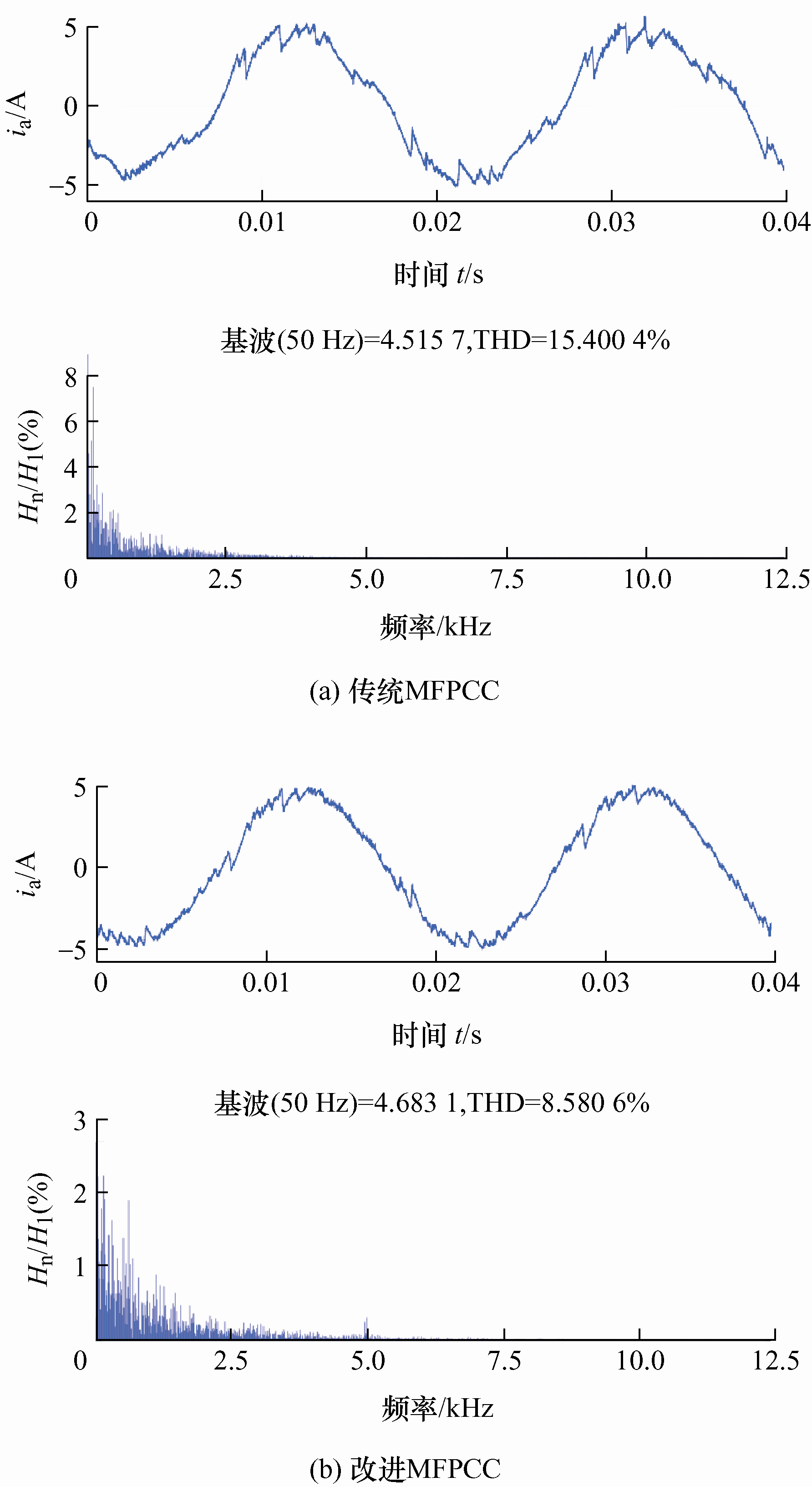

图6

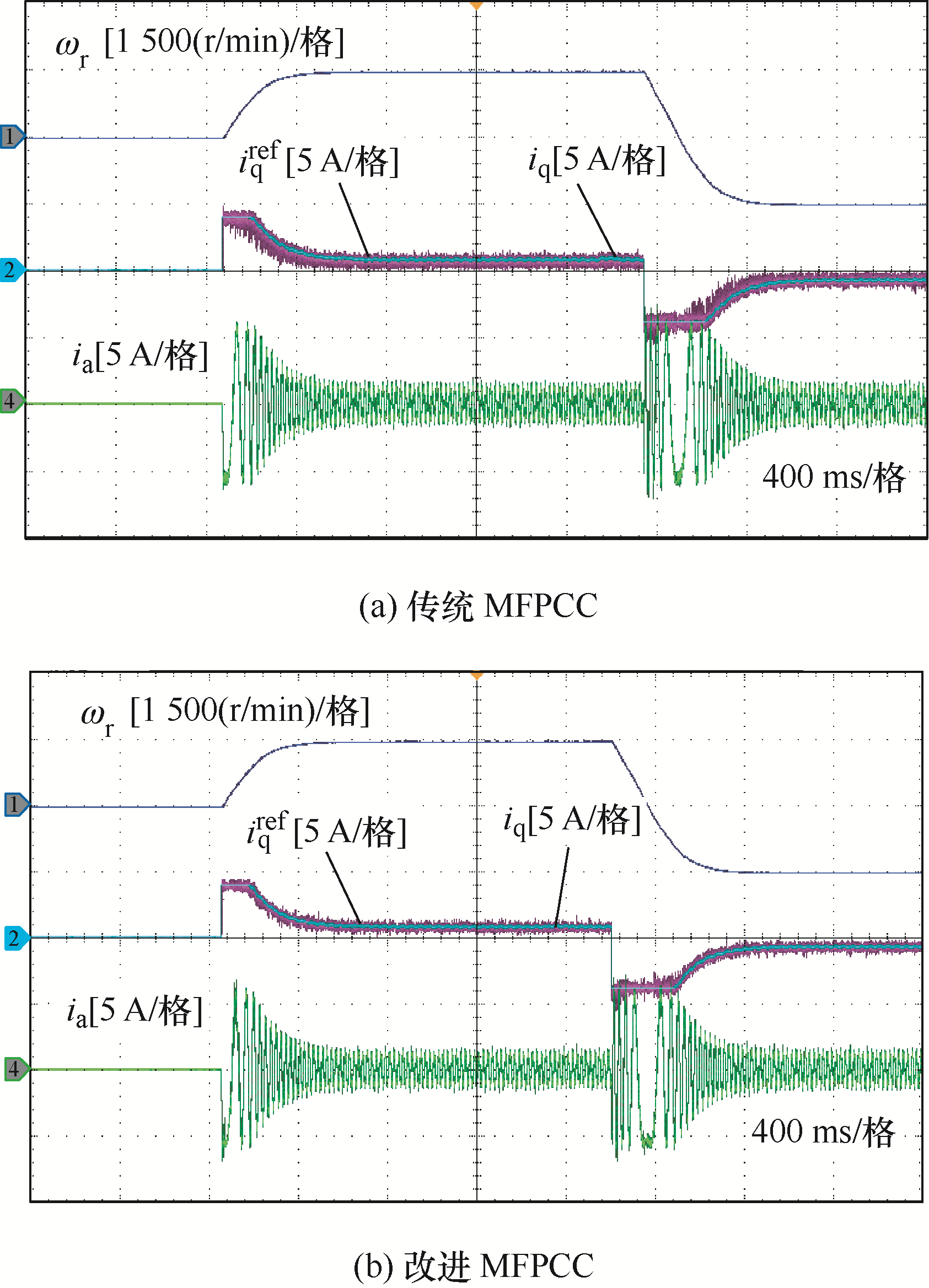

图7

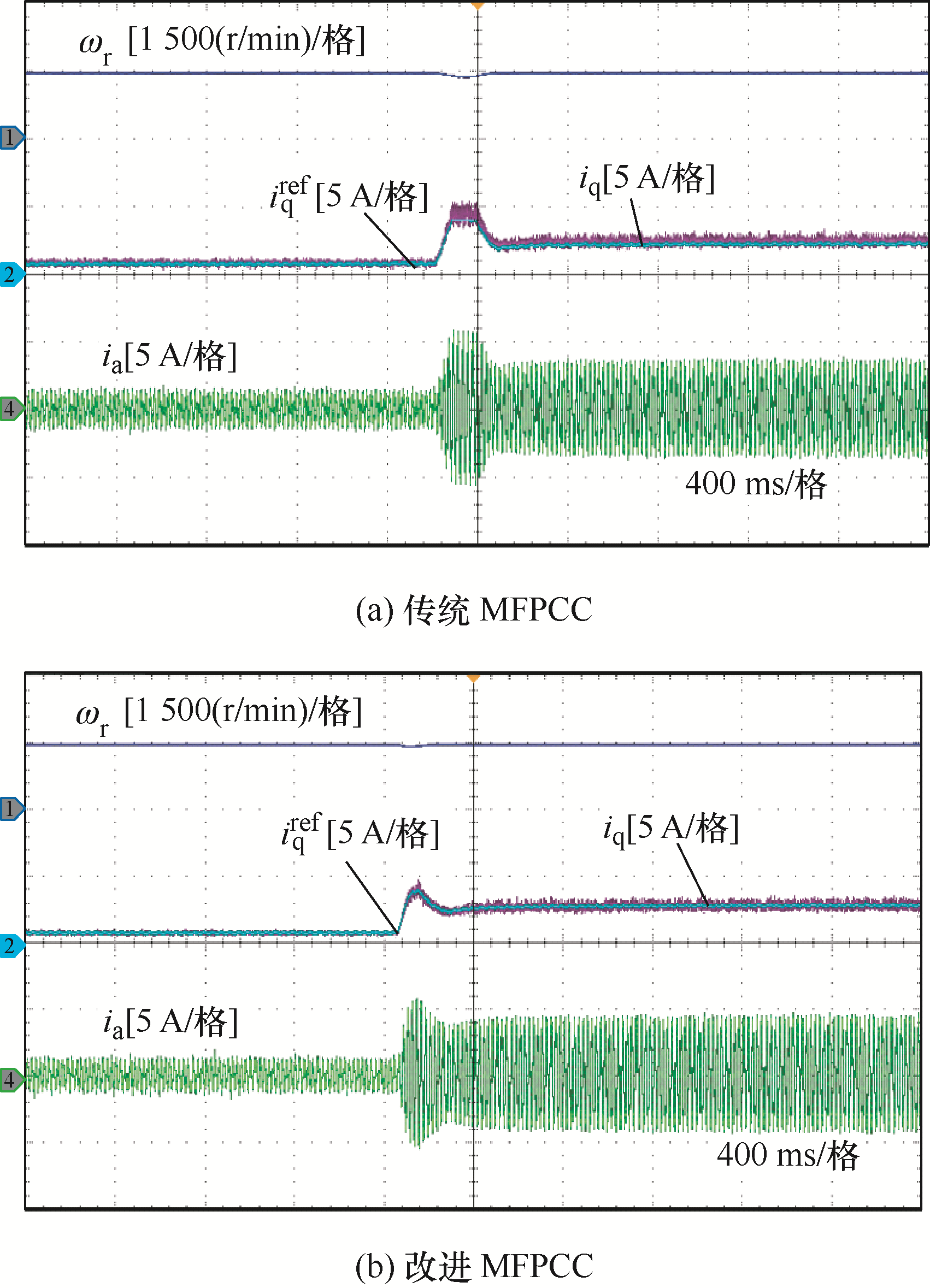

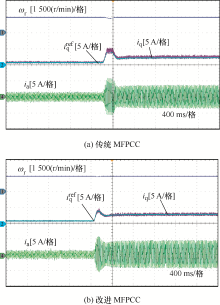

图8

图9

参考文献 31

[1]	MALEKIAN K, SHARIF M R, MILIMONFARED J. An optimal current vector control for synchronous reluctance motors incorporating field weakening[C]// 2008 10th IEEE International Workshop on Advanced Motion Control,Trento,Italy, 2008.
[2]	王洪武, 陈业明, 陈磊, 等. 同步磁阻电机矢量控制研究[J]. 微特电机, 2015, 43(4):74-76.
	WANG Hongwu, CHEN Yeming, CHEN Lei, et al. Research on vector control of synchronous reluctance motor[J]. Micro and Special Motors, 2015, 43(4):74-76.
[3]	张永昌, 夏波, 白宇宁, 等. 一种新型的交流电机离散电流调节器设计[J]. 电气工程学报, 2017, 12(3):24-32.
	ZHANG Yongchang, XIA Bo, BAI Yuning, et al. A novel design method of AC motor current regulator in discrete-time domain[J]. Journal of Electrical Engineering, 2017, 12(3):24-32.
[4]	周立求, 朱建华, 辜承林. 轴向叠片各向异性转子同步磁阻电机直接转矩控制的研究[J]. 中国电机工程学报, 2006, 4(4):154-158.
	ZHOU Liqiu, ZHU Jianhua, GU Chenglin. Research on direct torque control of synchronous reluctance motor with axially layered anisotropic rotors[J]. Proceedings of the CSEE, 2006, 4(4):154-158.
[5]	程启明, 程尹曼, 王映斐, 等. 交流电机控制策略的发展综述[J]. 电力系统保护与控制, 2011, 39(9):145-154.
	CHENG Qiming, CHENG Yinman, WANG Yingfei, et al. Review of development of AC motor control strategy[J]. Power System Protection and Control, 2011, 39(9):145-154.
[6]	VAZQUEZ S, RODRIGUEZ J, RIVERA M, et al. Model predictive control for power converters and drives:Advances and trends[J]. IEEE Trans. on Industrial Electronics, 2017, 64(2):935-947. doi: 10.1109/TIE.2016.2625238
[7]	ZHANG Yongchang, JIANG Hao, YANG Haitao. Model predictive control of PMSM drives based on general discrete space vector modulation[J]. IEEE Trans. on Energy Conversion, 2021, 36(2):1300-1307. doi: 10.1109/TEC.60
[8]	张永昌, 夏波, 杨海涛. 感应电机三矢量模型预测磁链控制[J]. 电气工程学报, 2017, 12(3):1-9.
	ZHANG Yongchang, XIA Bo, YANG Haitao. A three-vectors-based model predictive flux control of induction motor drives[J]. Journal of Electrical Engineering, 2017, 12(3):1-9.
[9]	ZHANG Yongchang, XIA Bo, YANG Haitao, et al. Overview of model predictive control for induction motor drives[J]. Chinese Journal of Electrical Engineering, 2016, 2(1):62-76.
[10]	ZHANG Yongchang, HUANG Lanlan, XU Donglin, et al. Performance evaluation of two-vector-based model predictive current control of PMSM drives[J]. Chinese Journal of Electrical Engineering, 2018, 4(2):65-81.
[11]	AROS N, MORA V, ALARCÓN C. Model predictive control for synchronous reluctance motor drive[C]// 2017 CHILEAN Conference on Electrical,Electronics Engineering,Information and Communication Technologies (CHILECON),Pucon,Chile, 2017.
[12]	XU Longya, XU Xingyi, LIPO T A, et al. Vector control of a synchronous reluctance motor including saturation and iron loss[J]. IEEE Transactions on Industry Applications, 1991, 27(5):977-985. doi: 10.1109/28.90356
[13]	LI Chengrui, WANG Gaolin, ZHANG Guoqiang, et al. Review of parameter identification and sensorless control methods for synchronous reluctance machines[J]. Chinese Journal of Electrical Engineering, 2020, 6(2):7-18. doi: 10.23919/CJEE.7873788
[14]	ODHANO S A, PESCETTO P, AWAN H A A, et al. Parameter identification and self-commissioning in AC motor drives:A technology status review[J]. IEEE Trans. on Power Electronics, 2019, 34(4):3603-3614. doi: 10.1109/TPEL.2018.2856589
[15]	ZHANG Xiaoguang, ZHAO Zhihao, CHENG Yu, et al. Robust model predictive current control based on inductance and flux linkage extraction algorithm[J]. IEEE Transactions on Vehicular Technology, 2020, 69(12):14893-14902. doi: 10.1109/TVT.25
[16]	ERROUISSI R, AL-DURRA A, MUYEEN S M, et al. Offset-free direct power control of DFIG under continuous-time model predictive control[J]. IEEE Transactions on Power Electronics, 2017, 32(3):2265-2277. doi: 10.1109/TPEL.2016.2557964
[17]	HE Long, WANG Fengxiang, WANG Junxiao, et al. Zynq implemented Luenberger disturbance observer based predictive control scheme for PMSM drives[J]. IEEE Transactions on Power Electronics, 2020, 35(2):1770-1778. doi: 10.1109/TPEL.63
[18]	LIN F, CHEN S, HUANG M, et al. Adaptive complementary sliding mode control for synchronous reluctance motor with direct-axis current control[J]. IEEE Transactions on Industrial Electronics, 2022, 69(1):141-150. doi: 10.1109/TIE.2021.3050373
[19]	PETRIĆ I Z, GALASSINI A, WANG S, et al. A robust current controller design method for highly nonlinear synchronous reluctance motors[C]// The 10th International Conference on Power Electronics,Machines and Drives (PEMD 2020),2020.
[20]	LIN Chengkai, LIU Tianhua, YU Jente, et al. Model-free predictive current control for interior permanent-magnet synchronous motor drives based on current difference detection technique[J]. IEEE Transactions on Industrial Electronics, 2014, 61(2):667-681. doi: 10.1109/TIE.2013.2253065
[21]	张虎, 张永昌, 刘家利, 等. 基于单次电流采样的永磁同步电机无模型预测电流控制[J]. 电工技术学报, 2017, 32(2):180-187.
	ZHANG Hu, ZHANG Yongchang, LIU Jiali, et al. Model-free predictive current control for permanent magnet synchronous motor based on single current sampling[J]. Transactions of China Electrotechnical Society, 2017, 32(2):180-187.
[22]	LIN Chengkai, YU Jente, LAI Yenshin, et al. Improved model-free predictive current control for synchronous reluctance motor drives[J]. IEEE Transactions on Industrial Electronics, 2016, 63(6):3942-3953. doi: 10.1109/TIE.41
[23]	CARLET P G, TINAZZI F, BOLOGNANI S, et al. An effective model-free predictive current control for synchronous reluctance motor drives[J]. IEEE Transactions on Industry Applications, 2019, 55(4):3781-3790. doi: 10.1109/TIA.28
[24]	FLIESS M, JOIN C. Model-free control and intelligent PID controllers:Towards a possible trivialization of nonlinear control[J]. IFAC Proceedings Volumes, 2009, 42(10):1531-1550. doi: 10.3182/20090706-3-FR-2004.00256
[25]	JOIN C, CHAXEL F, FLIESS M. “Intelligent” controllers on cheap and small programmable devices[C]// 2013 Conference on Control and Fault-Tolerant Systems (SysTol),Nice,France, 2013.
[26]	FLIESS M, JOIN C. Model-free control[J]. INT Journal of Control, 2013, 86(12):2228-2252. doi: 10.1080/00207179.2013.810345
[27]	ZHANG Yongchang, JIN Jialin, HUANG Lanlan, et al. Model-free predictive current control of PMSM drives based on ultra-local model[C]// 2019 22nd International Conference on Electrical Machines and Systems (ICEMS),Harbin,China, 2019.
[28]	ZHANG Yongchang, JIN Jialin, HUANG Lanlan. Model-free predictive current control of PMSM drives based on extended state observer using ultra-local model[J]. IEEE Transactions on Industrial Electronics, 2021, 68(2):993-1003. doi: 10.1109/TIE.41
[29]	赵凯辉, 戴旺坷, 周瑞睿, 等. 基于扩展滑模扰动观测器的永磁同步电机新型无模型滑模控制[J]. 中国电机工程学报, 2022, 42(6):2375-2385.
	ZHAO Kaihui, DAI Wangke, ZHOU Ruirui, et al. New model-free sliding mode control of permanent magnet synchronous motor based on extended sliding mode disturbance observer[J]. Proceedings of the CSEE, 2022, 42(6):2375-2385.
[30]	WANG Tianshi, ZHU Jianguo. Finite-control-set model predictive direct torque control with extended set of voltage space vectors[C]// 2017 20th International Conference on Electrical Machines and Systems (ICEMS),2017.
[31]	ZHANG Yongchang, WANG Xing, YANG Haitao, et al. Robust predictive current control of induction motors based on linear extended state observer[J]. Chinese Journal of Electrical Engineering, 2021, 7(1):94-105. doi: 10.23919/CJEE.2021.000009

参数	数值
直流母线电压U_dc/V	540
额定功率P_n/kW	2.2
额定电压U_n/V	380
额定频率f_n/Hz	50
极对数N_p	2
d轴电感L_d/mH	196.2
q轴电感L_q/mH	89.25
定子电阻R_s/Ω	2.532
额定转矩T_n/(N·m)	14
