数字电源浪涌抑制方法研究*

doi:10.11985/2024.01.024

摘要/Abstract

摘要：

对于通过前端浪涌防护模块对数字电源浪涌冲击进行抑制的方法，当浪涌能量过高时，存在浪涌防护模块通常无法有效抑制全部浪涌能量的问题。针对该问题，分析了浪涌的产生原因及特性，研究了浪涌在数字电源中的传递路径及在不同观测点的浪涌波形，进而提出了印刷电路板(Printed circuit board，PCB)布局优化、电路优化及磁屏蔽等数字电源浪涌抑制新方法。所提新方法原理简单、可靠性高，能使数字电源获得良好的浪涌抑制能力。研制了1.2 kW试验样机并进行浪涌测试试验，试验结果表明所提出的浪涌抑制新方法可抗4级浪涌试验，能够保障数字电源正常工作。

关键词: 数字电源, 浪涌抑制, PCB布局优化, 电路优化

Abstract:

For the method of suppressing surge impact in digital power through the front-end surge protection module, when the surge energy is too high, there is the problem that the surge protection module usually unable effectively suppress all surge energy. Aim at this problem, the causes and characteristics of surge are analyzed, the transmission path and waveform at different observation points of surge in digital power are studied, and then some new methods of digital power surge suppression such as printed circuit board(PCB) layout optimization, circuit optimization and magnetic shielding are proposed. The new method is simple in principle and high in reliability, it can make the digital power obtain good surge suppression ability. A 1.2 kW experimental prototype is developed and surge tested, the experimental results show that the proposed new surge suppression method can resist level 4 surge test, and it can guarantee the digital power regular work.

Key words: Digital power, surge suppression, PCB layout optimization, circuit optimization

中图分类号:

TM46

胡经纬, 王久和, 曲秋莳. 数字电源浪涌抑制方法研究^*[J]. 电气工程学报, 2024, 19(1): 226-234.

HU Jingwei, WANG Jiuhe, QU Qiushi. Research on Surge Suppression Method of Digital Power[J]. Journal of Electrical Engineering, 2024, 19(1): 226-234.

图/表 22

表1

图1

图2

图3

图4

图5

图6

图7

图8

图9

图10

图11

表2

图12

表3

表4

图13

图14

图15

图16

图17

图18

参考文献 20

[1]	徐丽青, 余华武, 陈庆旭, 等. 基于IGBT的快速开关电路抗雷击浪涌设计[J]. 电器与能效管理技术, 2017(5):67-69.
	XU Liqing, YU Huawu, CHEN Qingxu, et al. Design of rapid switch circuit anti-lightning surge based on IGBT[J]. Electrical & Energy Management Technology, 2017(5):67-69.
[2]	赵炜. 大型集中式并网光伏发电系统内部雷电过电压保护研究[D]. 北京: 北京交通大学, 2020.
	ZHAO Wei. Research on internal lightning over-voltage protection of large centralized grid connected photovoltaic power generation system[D]. Beijing: Beijing Jiaotong University, 2020.
[3]	蒋伟, 余明友, 胡沛, 等. 单相交流电源隔离防护设备设计[J]. 电瓷避雷器, 2014(6):133-138.
	JIANG Wei, YU Mingyou, HU Pei, et al. Design of single-phase protecting device for isolation from alternating current supply[J]. Insulators and Surge Arresters, 2014(6):133-138.
[4]	张耀辉, 谢彦召, 黄刘宏, 等. 电源线纳秒级电磁脉冲骚扰防护模块设计[J]. 高电压技术, 2018, 44(3):1034-1040.
	ZHANG Yaohui, XIE Yanzhao, HUANG Liuhong, et al. Design of protection module against disturbance induced by nanosecond electromagnetic pulse on powerline[J]. High Voltage Engineering, 2018, 44(3):1034-1040.
[5]	吴建军. 直流电源引入端浪涌抑制技术研究[J]. 自动化与仪器仪表, 2017(4):113-115.
	WU Jianjun. Research on surge suppression technology at the inlet of DC power supply[J]. Automation and Instrumentation, 2017(4):113-115.
[6]	王力, 吴建超, 王杰, 等. 航天器开关上电脉冲抑制方法研究[J]. 电源学报, 2022, 20(5):60-67.
	WANG Li, WU Jianchao, WANG Jie, et al. Research on power-on pulse suppression method for spacecraft switch[J]. Journal of Power Supply, 2022, 20(5):60-67. doi: 10.13234/j.issn.2095-2805.2022.5.60
[7]	ALTIMANIA M, ALZAHRANI A, FERDOWSI M, et al. Operation and analysis of non-isolated high-voltage-gain DC-DC boost converter with voltage multiplier in the DCM[C]// 2019 IEEE Power and Energy Conference at Illinois (PECI),February 28-March 01, 2019,Champaign,IL,USA. Champaign:IEEE,2019:1-6.
[8]	IEC 61000-4-5. Electromagnetic compatibility(EMC),part 4-5:Testing and measurement techniques-surge immunity test[S]. Geneva:International Electrotechnical Commission, 2014.
[9]	全国电磁兼容标准化技术委员会. GB/T 17626.5—2019电磁兼容试验和测量技术浪涌(冲击)抗扰度试验[S]. 北京: 中国标准出版社, 2019.
	National Electromagnetic Compatibility Standardization Technical Committee. GB/T 17626.5—2019 Electromagnetic compatibility-testing and measurement techniques-Surge immunity test[S]. Beijing: Standards Press of China, 2019.
[10]	杨敏, 陈俊武, 熊军. 浪涌抑制技术研究[J]. 电瓷避雷器, 2005(6):28-30.
	YANG Min, CHEN Junwu, XIONG Jun. Study on the surge suppression[J]. Insulators and Surge Arresters, 2005(6):28-30.
[11]	罗全明, 黄健, 何青青, 等. 基本直流/直流变换器及直流分布式电源系统拓扑分析[J]. 中国电机工程学报, 2019, 39(S1):297-306.
	LUO Quanming, HUANG Jian, HE Qingqing, et al. Topology analysis of the basic DC to DC converter and DC distributed power system[J]. Proceedings of the CSEE, 2019, 39(S1):297-306.
[12]	夏亮, 杨江平, 邓斌, 等. 雷达站电源综合防雷系统研究与设计[J]. 电力系统保护与控制, 2019, 47(16):143-150.
	XIA Liang, YANG Jiangping, DENG Bin, et al. Study and design of comprehensive lightning protection system for power supply of radar station[J]. Power System Protection and Control, 2019, 47(16):143-150.
[13]	许斌, 汤伟, 田宏强, 等. 基于差模共模保护模式下的交流电源端口浪涌防护对比分析[J]. 电瓷避雷器, 2018(2):83-87.
	XU Bin, TANG Wei, TIAN Hongqiang, et al. Comparison and analysis of surge protection for AC power port based on the protection mode of differential mode common mode[J]. Insulators and Surge Arresters, 2018(2):83-87.
[14]	ZHANG Huan, WANG Shuo, LI Yiming, et al. Two-capacitor transformer winding capacitance models for common-mode EMI noise analysis in isolated DC-DC converters[J]. IEEE Transactions on Power Electronics, 2017, 32(11):8458-8469. doi: 10.1109/TPEL.2017.2650952
[15]	HUANG Qian, FENG Gang. Impact of parasitic inductance on effectiveness of TVS diodes[C]∥IEEE International Symposium on Electromagnetic Compatibility,August 05-09,2013,Denver CO,USA. Denver:IEEE,2013:677-681.
[16]	陈云帆, 周中山, 张云峰. 瞬态抑制二极管(TVS)的试验分析与应用[J]. 电瓷避雷器, 2016(3):58-63,69.
	CHEN Yunfan, ZHOU Zhongshan, ZHANG Yunfeng. Experimental analysis and application of transient voltage suppressor[J]. Insulators and Surge Arresters, 2016(3):58-63,69.
[17]	ZHAO Jun, ZHANG Jiangong, LIU Zhenhuan, et al. Immunity requirements for secondary equipment with regard to switching operations of disconnectors in substations[C]// 2016 IEEE International Conference on Power and Renewable Energy (ICPRE),Shanghai,China,2016:135-138.
[18]	武奇. 基于Ansoft的空心电抗器磁屏蔽研究[J]. 电气工程学报, 2019, 14(2):61-65.
	WU Qi. Magnetic shielding research of air-core reactor based on Ansoft[J]. Journal of Electrical Engineering, 2019, 14(2):61-65.
[19]	赵志刚, 尹赛宁, 郭莹, 等. 谐波激励下变压器铜屏蔽杂散损耗的计算和验证[J]. 电力自动化设备, 2019, 39(6):212-223.
	ZHAO Zhigang, YIN Saining, GUO Ying, et al. Calculation and verification for stray loss of transformer copper shield under harmonic excitation[J]. Electric Power Automation Equipment, 2019, 39(6):212-223.
[20]	张忠明, 邓智泉, 孙权贵, 等. 铜屏蔽层对高速永磁无刷直流电机转子涡流损耗和应力的影响分析[J]. 中国电机工程学报, 2018, 38(8):2476-2486.
	ZHANG Zhongming, DENG Zhiquan, SUN Quangui, et al. Influences of copper shield on eddy-current loss and stress for a rotor of high-speed PM BLDC motor[J]. Proceedings of the CSEE, 2018, 38(8):2476-2486.

参数	定义
T_w	波形上升至50%峰值后下降其峰值50%的时间间隔
T	电压波形由30%峰值上升至90%峰值所对应的时间间隔
T_r	电流波形由10%峰值上升至90%峰值所对应的时间间隔
T_f	“波前时间”，对于电压波形来说，T_f=1.67T，对于电流波形来说，T_f=1.25T_r
T_d	“半峰值时间”，对于电压波形来说，T_d=T_w，对于电流波形来说，T_d=1.18T_w

参数	数值/型号	备注
输入电压/V	AC220
主路输出电压/V	DC54
辅路输出电压/V	DkC12
开关频率/kHz	240
负载功率/kW	1.2
PFC电路开关管	IPW60R080P7	INFINEON公司
DC/DC部分原边开关管	IPW60R037P7	INFINEON公司
DC/DC部分副边整流管及续流管	FDMS86 350	Fairchild公司
AC/DC部分控制芯片	UCD3 138	TI公司
DC/DC部分控制芯片	UCD3 138	TI公司

测试电压/kV	L与N相位差/(°)
测试电压/kV	0	90	180	270
1	工作正常	工作正常	工作正常	工作正常
1.5	工作正常	工作正常	工作正常	工作正常
2	工作正常	工作正常	工作正常	工作正常

测试电压/ kV	L与N相位差/(°)				备注
测试电压/ kV	0	90	180	270	备注
1	工作正常	工作正常	工作正常	工作正常
2	工作正常	工作正常	工作正常	工作正常
3	工作正常	工作正常	工作正常	工作正常
3.5	工作正常	PFC电路MOSFET管损坏，主路电压无输出	工作正常	工作正常	优化PFC电路的PCB布局后通过该电压等级测试

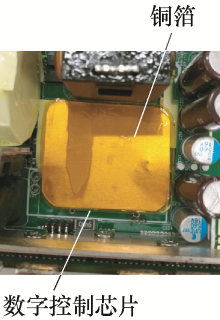

4	工作正常	主路电压输出重启，数字控制芯片重启	工作正常	工作正常	对DC/DC部分数字芯片进行磁屏蔽后通过该电压等级测试
