基于CEEMDAN功率分解的火电厂混合储能容量优化配置

doi:10.11985/2024.01.006

摘要/Abstract

摘要：

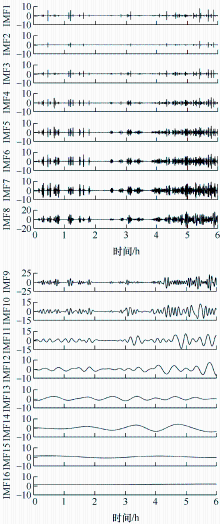

为了解决火电机组跟随自动发电量指令(Automatic generation control, AGC)响应延迟大、超调大等问题，提出一种基于完全噪声辅助聚合经验模态分解(Complete ensemble empirical mode decomposition with adaptive noise, CEEMDAN)的混合储能系统容量优化配置方法。首先，通过某时间段火电机组跟随AGC指令输出曲线，获得混合储能系统需要提供的功率。在此基础上，利用CEEMDAN将需求功率进行分解，获得不同频率下火电机组与AGC指令之间的误差。选择合适的储能元件，构建火电厂响应AGC指令的混合储能系统结构模型，在考虑能量型储能元件磷酸铁锂电池与功率型储能元件飞轮储能系统两类不同储能设备工作特性的情况下进行功率分配。在考虑储能系统荷电状态(State of charge, SOC)、容量与充放电功率等约束下，建立以综合成本最小为目标的容量优化配置模型，将功率分解结果与容量配置模型联合优化，获得最优功率分配情况和对应的储能配置方案。提供工程案例分析，结果表明所提方法可以有效弥补火电机组跟随AGC指令的延迟功率响应，提高火电机组供电可靠性和经济效益，同时相较于单一储能元件，本方案所设计混合储能系统拥有更优经济性。

关键词: AGC指令, 混合储能, CEEMDAN, 容量配置

Abstract:

In order to solve the problem of considerable delay and error in response to automatic generation control(AGC) instructions in thermal power generating units, a method for optimizing the capacity configuration of a hybrid energy storage system based on complete ensemble empirical mode decomposition with adaptive noise(CEEMDAN) is developed. First, the power required by the hybrid energy storage system is obtainedby following the AGC instructionand its response curve of the thermal power generating units over a certain period of time. Based on this, the demand power is decomposed by using CEEMDAN to yield the error between the AGC instruction and its response curve of the thermal power generating units at different frequencies. By selecting the appropriate energy storage components, a hybrid energy storage system structure model that cooperates in the response of the AGC instructions in the thermal power plant is constructed, and the power distribution is carried outunder the condition of considering the working characteristics of two different types of energy storage equipment: energy-type lithium iron phosphate battery and power-type flywheel battery. Finally, a capacity optimization configuration model is established with the objective of minimizing overall costs while accounting for constraints such as the state of charge(SOC) of the energy storage system, capacity, and charge/discharge power. The results of the power decomposition are optimized synergistically with the capacity configuration model to determine the optimal power allocation and corresponding energy storage configuration scheme. An example is demonstrated to verify the effectiveness of the proposed method in compensating for the delayed power response resulting in thermal power generating units with high reliability and economic efficiency. And compared with a single energy storage element, the hybrid energy storage system designed in this scheme has better economy.

Key words: AGC instruction, hybrid energy storage, complete ensemble empirical mode decomposition with adaptive noise, capacity confirguration

中图分类号:

TM761

戴申华, 王琨玥, 曹蓓, 张啸天, 高萧, 刘旭. 基于CEEMDAN功率分解的火电厂混合储能容量优化配置[J]. 电气工程学报, 2024, 19(1): 57-66.

DAI Shenhua, WANG Kunyue, CAO Bei, ZHANG Xiaotian, GAO Xiao, LIU Xu. Optimal Configuration of Hybrid Energy Storage Capacity in Thermal Power Plants Based on CEEMDAN Power Decomposition[J]. Journal of Electrical Engineering, 2024, 19(1): 57-66.

图/表 17

图1

表1

图2

图3

图4

图5

图6

图7

图8

表2

图9

图10

图11

图12

图13

图14

表3

参考文献 20

[1]	陈沛, 张新松, 郭晓丽, 等. 考虑AGC指令随机特性的火-储混合电站二次调频研究[J]. 电力系统保护与控制, 2023, 51(12):168-177.
	CHEN Pei, ZHANG Xinsong, GUO Xiaoli, et al. Research on secondary frequency modulation of thermal-storage hybrid power stations considering the random characteristics of AGC commands[J]. Power System Protection and Control, 2023, 51(12):168-177.
[2]	王灿, 张羽, 田福银, 等. 基于双向主从博弈的储能电站与综合能源系统经济运行策略[J]. 电工技术学报, 2023, 38(13):3436-3446,3472.
	WANG Can, ZHANG Yu, TIAN Fuyin, et al. Economic operation of energy storage power stations and integrated energy systems based on bidirectional master-slave game[J]. Transactions of China Electrotechnical Society, 2023, 38(13):3436-3446,3472.
[3]	李斌, 叶季蕾, 张宇, 等. 含分布式新能源和机电混合储能接入的微网协调控制策略[J]. 储能科学与技术, 2023, 12(5):1510-1515. doi: 10.19799/j.cnki.2095-4239.2023.0075
	LI Bin, YE Jilei, ZHANG Yu, et al. Coordinated control strategy for microgrid with access to distributed new energy and electromechanical hybrid energy storage[J]. Energy Storage Science and Technology, 2023, 12(5):1510-1515. doi: 10.19799/j.cnki.2095-4239.2023.0075
[4]	闫群民, 刘语忱, 董新洲, 等. 基于CEEMDAN-HT的平抑光伏出力混合储能容量优化配置[J]. 电力系统保护与控制, 2022, 50(21):43-53.
	YAN Qunmin, LIU Yuchen, DONG Xinzhou, et al. Optimal allocation of hybrid energy storage capacity for stabilizing photovoltaic output based on CEEMDAN-HT[J]. Power System Protection and Control, 2022, 50(21):43-53.
[5]	赵峰, 张帆, 陈小强, 等. 基于VMD-APSO的风电场混合储能系统容量优化配置[J]. 高压电器, 2023, 59(6):120-127.
	ZHAO Feng, ZHANG Fan, CHEN Xiaoqiang, et al. Capacity optimization configuration of wind farm hybrid energy storage system based on VMD-APSO[J]. High Voltage Apparatus, 2023, 59(6):120-127.
[6]	MOUSAVIG S M, FARAIIF, MAJAZI A, et al. A comprehensive review of flywheel energy storage system technology[J]. Renewable and Sustainable Energy Reviews, 2017,67:477-490.
[7]	SHARMA P, KUMAR V. Current technology of supercapacitors:A review[J]. Journal of Electronic Materials, 2020, 49(6):3520-3532. doi: 10.1007/s11664-020-07992-4
[8]	张宇涵, 杜贵平, 雷雁雄, 等. 直流微网混合储能系统控制策略现状及展望[J]. 电力系统保护与控制, 2021, 49(3):177-187.
	ZHANG Yuhan, DU Guiping, LEl Yanxiong, et al. Current status and prospects of control strategy for a DC micro grid hybrid energy storage system[J]. Power System Protection and Control, 202l, 49(3):177-187.
[9]	张梦田, 田书, 曾志辉. 基于变分模态分解的混合储能容量优化配置[J]. 储能科学与技术, 2020, 9(1):170-177. doi: 10.19799/j.cnki.2095-4239.2019.0170
	ZHANG Mengtian, TIAN Shu, ZENG Zhihui. Optimal configuration of hybrid energy storage capacity based on variational mode decomposition[J]. Energy Storage Science and Technology, 2020, 9(1):170-177. doi: 10.19799/j.cnki.2095-4239.2019.0170
[10]	宋杰, 耿林霄, 桑永福, 等. 基于EMD分解的混合储能辅助火电机组一次调频容量规划[J]. 储能科学与技术, 2023, 12(2):2095-4239.
	SONG Jie, GENG Linxiao, SANG Yongfu, et al. Primary frequency regulation capacity planning of hybrid energy storage auxiliary thermal power units based on EMD decomposition[J]. Energy Storage Science and Technology, 2023, 12(2):2095-4239.
[11]	CUI Y, GENG Z, ZHU Q, et al. Multi-objective optimization methods and application in energy saving[J]. Energy, 2017,125:681-704.
[12]	王依妍, 陈景文. 基于ISSA的光储微网混合储能容量优化配置[J]. 智慧电力, 2023, 51(4):23-29,53.
	WANG Yiyan, CHEN Jingwen. Optimal configuration of hybrid energy storage capacity based on ISSA[J]. Smart Power, 2023, 51(4):23-29,53.
[13]	李鑫, 王娟, 邱亚, 等. 基于VMD的混合储能容量优化配置[J]. 太阳能学报, 2022, 43(2):88-96. doi: 10.19912/j.0254-0096.tynxb.2020-0276
	LI Xin, WANG Juan, QIU Ya, et al. Hybrid energy storage capacity optimization configuration based on VMD[J]. Solar Energy Sinica, 2022, 43(2):88-96.
[14]	TORRES M E, COLOMINAS M A, SCHLOTTHAUER G, et al. A complete ensemble empirical mode decomposition with adaptive noise[C]// IEEE International Conference on Acoustics,Speech and Signal Processing (ICASSP), May 22-27,2011,Prague Congress Centre,Czechia Republic,IEEE,2011:4144-4147.
[15]	LI Ke, HUANG Wei, HU Gaoyuan, et al. Ultra-short term power load forecasting based on CEEMDAN-SE and LSTM neural network[J]. Energy and Buildings, 2023,279:112666.
[16]	OMAR N, MONEM M A, FIROUZ Y, et al. Lithium iron phosphate-based battery:Assessment of the aging parameters and development of cycle life model[J]. Applied Energy, 2014,113:1575-1585.
[17]	李忠瑞, 聂子玲, 艾胜, 等. 一种基于非线性扰动观测器的飞轮储能系统优化充电控制策略[J]. 电工技术学报, 2023, 38(6):1506-1518.
	LI Zhongrui, NIE Ziling, AI Sheng, et al. An optimized charging control strategy for flywheel energy storage system based on nonlinear disturbance observe[J]. Transactions of China Electrotechnical Society, 2023, 38(6):1506-1518.
[18]	涂伟超, 李文艳, 张强, 等. 飞轮储能在电力系统的工程应用[J]. 储能科学与技术, 2020, 9(3):869-877. doi: 10.19799/j.cnki.2095-4239.2019.0255
	TU Weichao, LI Wenyan, ZHANG Qiang, et al. Engineering application of flywheel energy storage in power systems[J]. Energy Storage Science and Technology, 2020, 9(3):869-877. doi: 10.19799/j.cnki.2095-4239.2019.0255
[19]	郭怿, 明波, 黄强, 等. 考虑输电功率平稳性的水-风-光-储多能互补日前鲁棒优化调度[J]. 电工技术学报, 2023, 38(9):2350-2363.
	GUO Yi, MING Bo, HUANG Qiang, et al. Day-ahead robust optimal scheduling of hydro-wind-PV-storage complementary system considering the steadiness of power delivery[J]. Transactions of China Electrotechnical Society, 2023, 38(9):2350-2363.
[20]	陈海东, 庄平, 夏建矿, 等. 基于改进萤火虫算法的分布式电源优化配置[J]. 电力系统保护与控制, 2016, 44(1):149-154.
	CHEN Haidong, ZHUANG Ping, XIA Jiankuang, et al. Optimal configuration of distributed power based on improved firefly algorithm[J]. Power System Protection and Control, 2016, 44(1):149-154.

放电深度(%)	循环寿命/次
20	34 957
40	19 985
60	10 019
80	3 221
100	2 600

对象	性能指标	数值
蓄电池	单位功率成本/(元/kW)	5 000
	单位容量成本/[元/(kW·h)]	2 000
	运维成本/[元/(kW·h)]	5×10^-3
	处置成本/(元/kW)	1
	处置成本/[元/(kW·h)]	1
	SOC上下限	(0.2, 0.8)
飞轮储能系统	单位功率成本/(元/kW)	2 000
	单位容量成本/[元/(kW·h)]	10 000
	运维成本/[元/(kW·h)]	7.5×10^-3
	SOC上下限	(0.50, 0.95)

参数	蓄电池	飞轮储能系统	CEEMDAN
P_bN/MW	30	—	18.57
C_bN/(MW·h)	30	—	18.57
P_fN/MW	—	30	36.03
C_fN/(MW·h)	—	27.40	4.94
成本/ (×10⁸ 元)	2.29	3.34	2.19
