高铁新能源混合储能系统低碳经济优化运行研究*

doi:10.11985/2024.01.007

摘要/Abstract

摘要：

随着“双碳”目标的全面推进，对新能源的需求日益增加，迫切需要推进铁路、新能源、储能的耦合互联，推动铁路低碳绿色发展。为此，提出一种高铁新能源混合储能系统低碳经济优化运行模型。首先，为进一步调动铁路行业的减碳积极性，将碳收益纳入到高铁系统运行模型中，并建立由钒电池和超级电容组成的混合储能系统数学模型；然后，采用拉丁超立方机会约束规划法处理新能源的不确定性，提出一种混合储能系统能量管理策略，以钒电池停止充放电阈值与储能容量配置参数为优化变量，以新能源混合储能系统在全寿命周期内为高铁系统带来的总净收益最大为优化目标，采用基于柯西变异的自适应粒子群算法对实际算例进行求解；最后，通过对比与分析，验证了所提方案和算法的有效性和优越性。

关键词: 高铁, 新能源, 碳收益, 混合储能, 不确定性

Abstract:

With the comprehensive promotion of the “dual carbon” goal, the demand for new energy is increasing day by day. It is urgent to promote the coupling and interconnection of railways, new energy, and energy storage, and promote railways’ low-carbon and green development. Therefore, a low-carbon economic optimization operation model of high-speed rail new energy hybrid energy storage system is proposed. Firstly, in order to further mobilize the enthusiasm of the railway industry for carbon reduction, the carbon benefits is incorporated into the operating model of the high-speed rail system, and a mathematical model of the hybrid energy storage system composed of vanadium batteries and supercapacitors is established. Then, the Latin hypercube random chance constrained programming method is used to deal with the uncertainty of new energy, an energy management strategy of hybrid energy storage system is proposed, the stop charging and discharging threshold of vanadium battery and the configuration parameters of energy storage capacity are taken as the optimization variables, and the maximum total net benefit of new energy hybrid energy storage system for the high-speed rail system in the whole life cycle is taken as the optimization objective, the adaptive particle swarm optimization algorithm based on Cauchy mutation is used to solve the practical example. Finally, the effectiveness and superiority of the proposed scheme and algorithm are verified through comparison and analysis.

Key words: High-speed railway, new energy, carbon benefits, hybrid energy storage, uncertainty

中图分类号:

TM922
TM61

李光耀, 袁佳歆, 甘栋良, 杨爱民. 高铁新能源混合储能系统低碳经济优化运行研究^*[J]. 电气工程学报, 2024, 19(1): 67-78.

LI Guangyao, YUAN Jiaxin, GAN Dongliang, YANG Aimin. Research on Low-carbon Economy Optimization Operation of High-speed Railway New Energy Hybrid Energy Storage System[J]. Journal of Electrical Engineering, 2024, 19(1): 67-78.

图/表 18

图1

图2

图3

图4

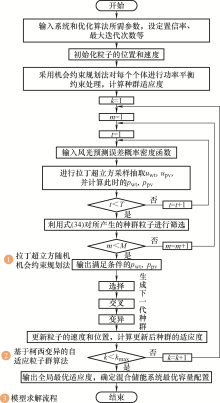

图5

表1

表2

表3

图6

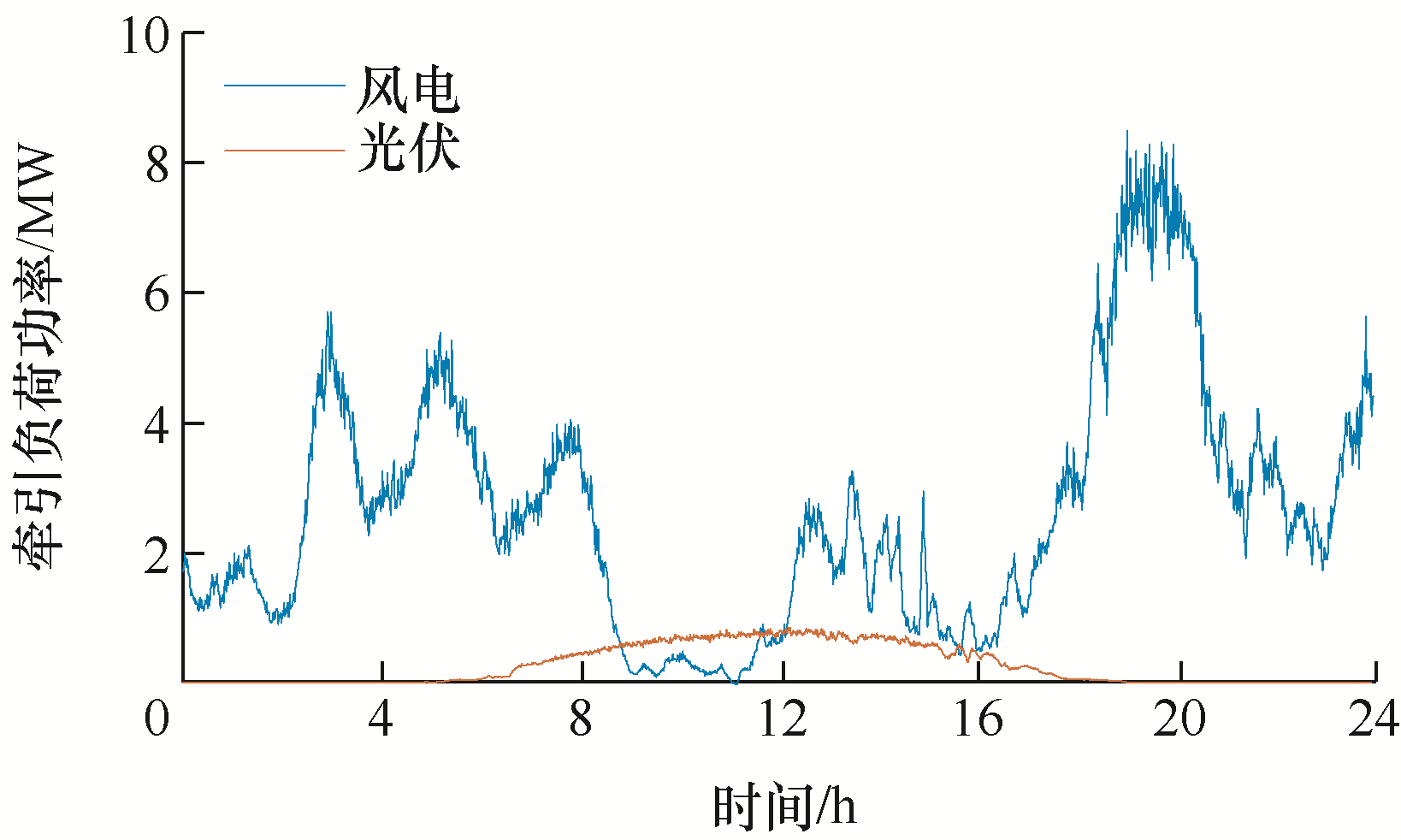

图7

图8

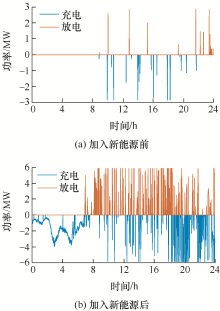

图9

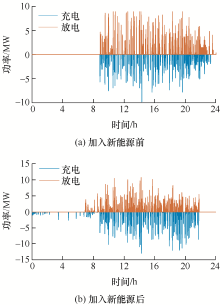

图10

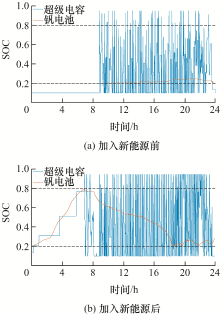

图11

表4

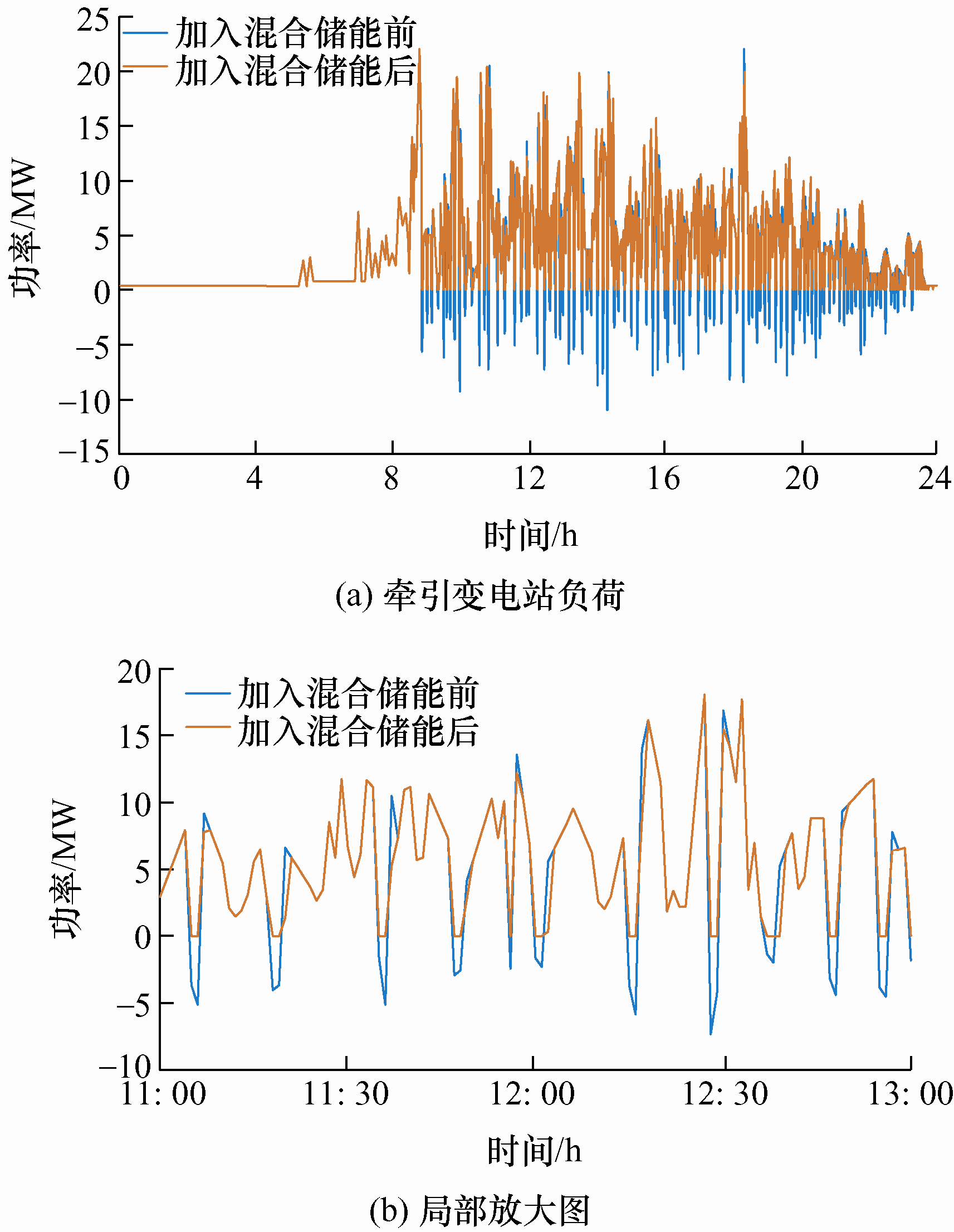

图12

表5

图13

参考文献 22

[1]	胡海涛, 陈俊宇, 葛银波, 等. 高速铁路再生制动能量储存与利用技术研究[J]. 中国电机工程学报, 2020, 40(1):246-256,391.
	HU Haitao, CHEN Junyu, GE Yinbo, et al. Research on regenerative braking energy storage and utilization technology for high-speed railways[J]. Proceedings of the CSEE, 2020, 40(1):246-256,391.
[2]	KHODAPARASTAN M, MOHAMED A A, SPANOS C. Regenerative braking energy in electric railway systems[M]. Hoboken: Wiley-IEEE Press, 2022.
[3]	张育维, 胡海涛, 耿安琪, 等. 考虑削峰填谷的电气化铁路混合储能系统容量优化配置[J]. 电力自动化设备, 2023, 43(2):44-50.
	ZHANG Yuwei, HU Haitao, GENG Anqi, et al. Capacity optimization configuration of hybrid energy storage system for electrified railway considering peak shaving and valley filling[J]. Electric Power Automation Equipment, 2023, 43(2):44-50.
[4]	胡海涛, 葛银波, 黄毅, 等. 电气化铁路“源-网-车-储”一体化供电技术[J]. 中国电机工程学报, 2022, 42(12):4374-4391.
	HU Haitao, GE Yinbo, HUANG Yi, et al. Source-network-train-storage integrated power supply system for electric railways[J]. Proceedings of the CSEE, 2022, 42(12):4374-4391.
[5]	ZHONG Z, ZHANG Y, SHEN H, et al. Optimal planning of distributed photovoltaic generation for the traction power supply system of high-speed railway[J]. Journal of Cleaner Production, 2020, 12(13):121-134.
[6]	郑政. 含光伏发电的牵引供电系统混合储能优化配置研究[D]. 成都: 西南交通大学, 2018.
	ZHENG Zheng. Research on optimal configuration of hybrid energy storage in traction power supply systems with photovoltaic power generation[D]. Chengdu: Southwest Jiaotong University, 2018.
[7]	高锋阳, 宋志翔, 高建宁, 等. 计及光伏和储能接入的牵引供电系统能量管理策略[J]. 电工技术学报, 2024, 39(3):745-757.
	GAO Fenyang, SONG Zhixiang, GAO Jianning, et al. Energy management strategies for traction power systems with PV and energy storage access[J]. Transactions of China Electrotechnical Society, 2024, 39(3):745-757.
[8]	廖海朱, 胡海涛, 黄毅, 等. 电气化铁路“源-网-车-储”协同供能系统日前能量优化与调度策略[J]. 机车电传动, 2022(3):1-9.
	LIAO Haizhu, HU Haitao, HUANG Yi, et al. Day-ahead energy optimization and scheduling strategy of “source-network-train-storage” coordinated power supply system for electrified railways[J]. Electric Drive for Locomotives, 2022(3):1-9.
[9]	刘元立, 李群湛. 含光伏和混合储能的同相牵引供电系统日前优化调度[J]. 西南交通大学学报, 2023, 58(1):30-39.
	LIU Yuanli, LI Qunzhan. Day-ahead optimal scheduling of co-phase traction power supply system with photovoltaic and hybrid energy storage[J]. Journal of Southwest Jiaotong University, 2023, 58(1):30-39.
[10]	PARK S, SALKUTI S R. Optimal energy management of railroad electrical systems with renewable energy and energy storage systems[J]. Sustainability, 2019, 11(22):6293-6309. doi: 10.3390/su11226293
[11]	FENG D, ZHU H, SUN X, et al. Evaluation of power supply capability and quality for traction power supply system considering the access of distributed generations[J]. IET Renewable Power Generation, 2020, 14(18):3644-3652. doi: 10.1049/rpg2.v14.18
[12]	邓韦斯, 孟子超, 王皓怀, 等. 新能源功率预测特性分析及精度提升措施[J]. 南方电网技术, 2023, 17(2):11-23.
	DENG Weisi, MENG Zichao, WANG Gaohuai, et al. Renewable energy power prediction characteristics analyses and accuracy improvement measures[J]. Southern Power System Technology, 2023, 17(2):11-23.
[13]	乔亮波, 张晓虎, 孙现众, 等. 电池-超级电容器混合储能系统研究进展[J]. 储能科学与技术, 2022, 11(1):98-106. doi: 10.19799/j.cnki.2095-4239.2021.0229
	QIAO Liangbo, ZHANG Xiaohu, SUN Xianzhong, et al. Advances in battery-supercapacitor hybrid energy storage system[J]. Energy Storage Science and Technology, 2022, 11(1):98-106. doi: 10.19799/j.cnki.2095-4239.2021.0229
[14]	陈崇德, 郭强, 宋子秋, 等. 计及碳收益的风电场混合储能容量优化配置[J]. 中国电力, 2022, 55(12):22-33.
	CHEN Chongde, GUO Qiang, SONG Ziqiu, et al. Optimal configuration of hybrid energy storage capacity for wind farms considering carbon trading revenue[J]. Electric Power, 2022, 55(12):22-33.
[15]	杨贤东, 袁旭峰, 熊炜, 等. 考虑源荷不确定性的风光火储系统低碳经济调度[J]. 智慧电力, 2022, 50(8):22-29,53.
	YANG Xiandong, YUAN Xufeng, XIONG Wei, et al. Low-carbon economic dispatch of wind-solar-fired- storage system considering source-load uncertainty[J]. Smart Power, 2022, 50(8):22-29,53.
[16]	ZENG Nianyin, WANG Zidong, LIU Weibo, et al. A dynamic neighborhood-based switching particle swarm optimization algorithm[J]. IEEE Transactions on Cybernetics, 2020, 52(9):9290-9301. doi: 10.1109/TCYB.2020.3029748
[17]	卢梦蝶, 鲁海燕, 侯新宇, 等. 融合柯西变异的鸟群与算术混合优化算法[J]. 计算机工程与应用, 2023, 59(14):62-75. doi: 10.3778/j.issn.1002-8331.2208-0463
	LU Mengdie, LU Haiyan, HOU Xinyu, et al. Hybrid algorithm of bird swarm algorithm and arithmetic optimization algorithm based on Cauchy mutation[J]. Computer Engineering and Applications, 2023, 59(14):62-75. doi: 10.3778/j.issn.1002-8331.2208-0463
[18]	南斌, 姜春娣, 董树锋, 等. 计及源荷不确定性的综合能源系统日前-日内协调优化调度[J]. 电网技术, 2023, 47(9):3669-3683.
	NAN Bin, JIANG Chundi, DONG Shufeng, et al. Day-ahead and intra-day coordinated optimal scheduling of integrated energy system considering uncertainties in source and load[J]. Power System Technology, 2023, 47(9):3669-3683.
[19]	王苏蓬, 张新慧, 吴文浩, 等. 用于风电平抑的混合储能选型和容量优化配置方法[J]. 智慧电力, 2021, 49(9):16-23.
	WANG Supeng, ZHANG Xinhui, WU Wenhao, et al. Hybrid energy storage selection and capacity optimization configuration method for wind power smoothing[J]. Smart Power, 2021, 49(9):16-23.
[20]	LI Q, DUAN H, XIE M, et al. Life cycle assessment and life cycle cost analysis of a 40 MW wind farm with consideration of the infrastructure[J]. Renewable and Sustainable Energy Reviews, 2021,138:110499.
[21]	冯奕, 应展烽, 颜建虎. 考虑碳排放成本的多能互补微能源网储能装置优化运行[J]. 电力系统保护与控制, 2021, 49(8):92-99.
	FENG Yi, YING Zhanfeng, YAN Jianhu. Optimized operation of energy storage in a multi-energy complementary micro-energy network considering carbon emission cost[J]. Power System Protection and Control, 2021, 49(8):92-99.
[22]	魏夕凯, 谭效时, 林明, 等. 2005—2035年全国电网碳排放因子的计算与预测[J/OL]. 综合智慧能源:1-7[2023-12-21]. http://kns.cnki.net/kcms/detail/41.1461.tk.20231027.0944.004.html.
	WEI Xikai, TAN Xiaoshi, LIN Ming, et al. Calculation and prediction of carbon emission factors for the national power grid from 2005 to 2035[J/OL]. Integrated Intelligent Energy:1-7[2023-12-21]. http://kns.cnki.net/ kcms/detail/41.1461.tk.20231027.0944.004.html.

参数	钒电池	超级电容
单位功率成本/(元/kW)	9 300	1 860
单位容量成本/[元/(kW·h)]	10 000	12 400
单位功率运维成本/[元/(kW·年)]	124	80.6
单位容量运维成本/[元/(kW·h)]	0.013 4	0.013 4
单位容量替换成本/[元/(kW·h)]	10 000	12 400
单位功率报废成本/(元/kW)	500	93
单位容量报废成本/[元/(kW·h)]	0	0
循环使用寿命	13 000次	20年
充放电效率	0.75	0.95
SOC上下限	0.2~0.8	0.1~0.95

设备	参数	数值
风电	单位容量投资成本c_wt/(元/kW)	5 350
风电	运维成本c_wto/[元/(kW·h)]	0.05
光伏	单位容量投资成本c_pv/(元/kW)	3 000
光伏	运维成本c_pvo/[元/(kW·h)]	0.06
电费收益	电度电价c_e/[元/(kW·h)]	0.6
电费收益	基本电价c_o/[元/(kV·A)/天]	0.6

参数	方案一	方案二
钒电池额定容量/(kW·h)	5 700	14 040
钒电池额定功率/kW	2 850	5 850
超级电容额定容量/(kW·h)	161.57	183.74
超级电容额定功率/kW	9 863.72	12 661.6
碳收益/元	1.75×10⁷	9.5×10⁷
电度电费收益/元	4.35×10⁸	2.37×10⁹
基本电费收益/元	2.3×10⁷	3.52×10⁷
总净收益/元	-6.83×10⁷	1.37×10⁹
钒电池停止放电阈值/kW	2 850	5 850
钒电池停止充电阈值/kW	2 850	5 850

参数	方案一	方案二
钒电池额定容量/(kW·h)	5 700	14 040
钒电池额定功率/kW	2 850	5 850
超级电容额定容量/(kW·h)	161.57	183.74
超级电容额定功率/kW	9 863.72	12 661.6
碳收益/元	1.61×10⁷	8.74×10⁷
电度电费收益/元	4.35×10⁸	2.37×10⁹
基本电费收益/元	2.3×10⁷	3.52×10⁷
总净收益/元	-7.66×10⁷	1.35×10⁹
钒电池停止放电阈值/kW	2 850	5 850
钒电池停止充电阈值/kW	2 850	5 850

参数	PSO	AIWPSO	CMAPSO
运行次数	1 500	1 500	1 500
最优值/(×10⁹ 元)	1.28	1.36	1.37
平均值/(×10⁹ 元)	1.25	1.31	1.34
方差/×10¹⁵	5.33	5.37	4.95
