基于IPMOCSA的光伏微网混合储能容量优化配置*

doi:10.11985/2021.03.021

摘要/Abstract

摘要：

针对光伏微网中混合储能的容量优化配置问题,以经济性为目标考虑微电网和大电网的交互功率成本建立系统经济优化模型,并提出一种改进的多目标乌鸦算法进行求解,获得优化配置结果。考虑分时电价设计微电网的系统运行策略,建立系统的运行成本模型,在此基础上建立不同类型储能介质的投资模型。利用以经济最优为目标,获得不同类型储能介质的容量优化配置占比,并对比多目标粒子群算法进行算例验证。结果表明提出的IPMOCSA求解精确度更高、收敛速度更快,混合储能配置成本节省了5.13%,配置方法对实际应用有一定参考性。

关键词: 微电网, 混合储能, 容量配置, 乌鸦算法

Abstract:

Aiming at the capacity optimization allocation problem of hybrid energy storage in photovoltaic micro-grid, the system economic optimization model was established by taking the interactive power cost of micro-grid and large grid as the objective, and an improved multi-objective crow search algorithm is proposed to solve the problem and obtain the optimal allocation results. Considering the time-of-use electricity price to design the system operation strategy of the micro-grid, establish the operating cost model of the system, and build the investment model of different types of energy-storing media. Using improved multi-objective crow search algorithm as the goal of economic optimization, the optimal allocation ratio of different types of energy storage media is obtained, and the multi-objective particle swarm optimization is used to verify the examples. The results show that the proposed improved multi-objective crow search algorithm solution has higher accuracy and convergence speed. The cost of hybrid energy storage configuration is saved by 5.13%, and the configuration method has certain reference for practical applications.

Key words: Micro-grid, hybrid energy storage, capacity configuration, crow search algorithm

中图分类号:

TM761

王红艳, 王依妍, 陈景文, 肖妍, 莫瑞瑞. 基于IPMOCSA的光伏微网混合储能容量优化配置^*[J]. 电气工程学报, 2021, 16(3): 152-160.

WANG Hongyan, WANG Yiyan, CHEN Jingwen, XIAO Yan, MO Ruirui. Optimal Configuration of Optical Storage Micro-grid Hybrid Energy Storage Capacity Based on IPMOCSA[J]. Journal of Electrical Engineering, 2021, 16(3): 152-160.

图/表 13

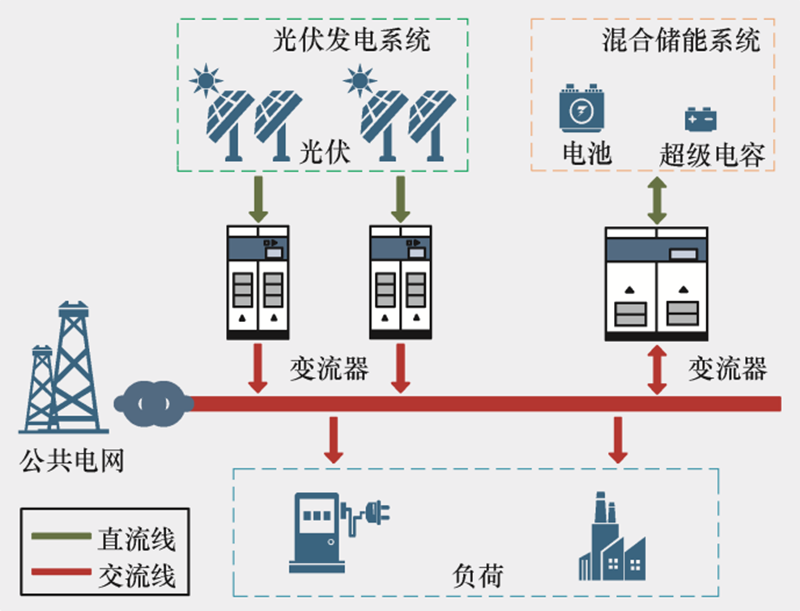

图1

表1

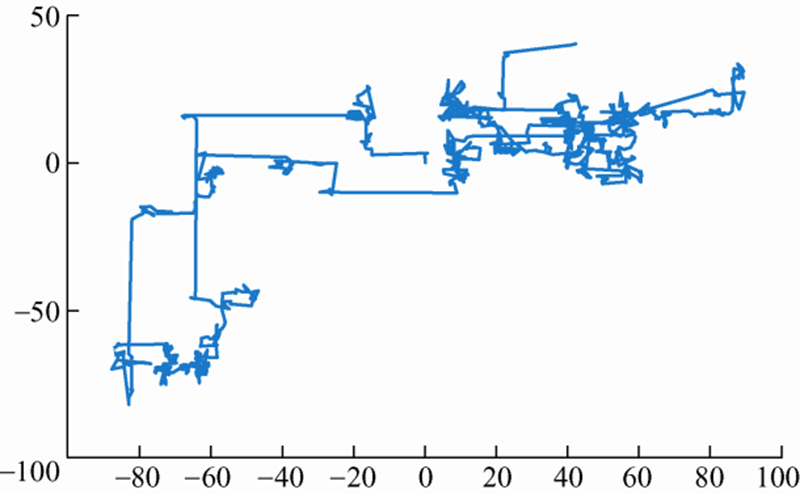

图2

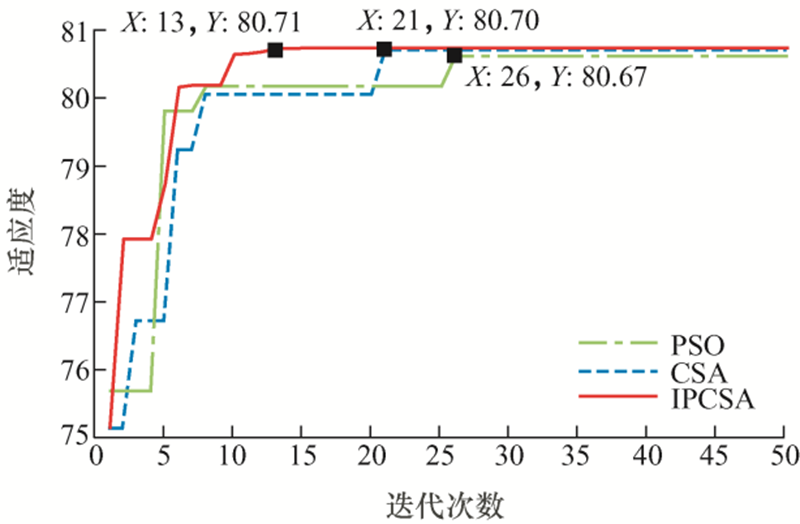

图3

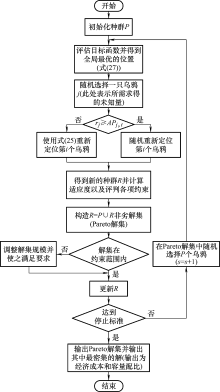

图4

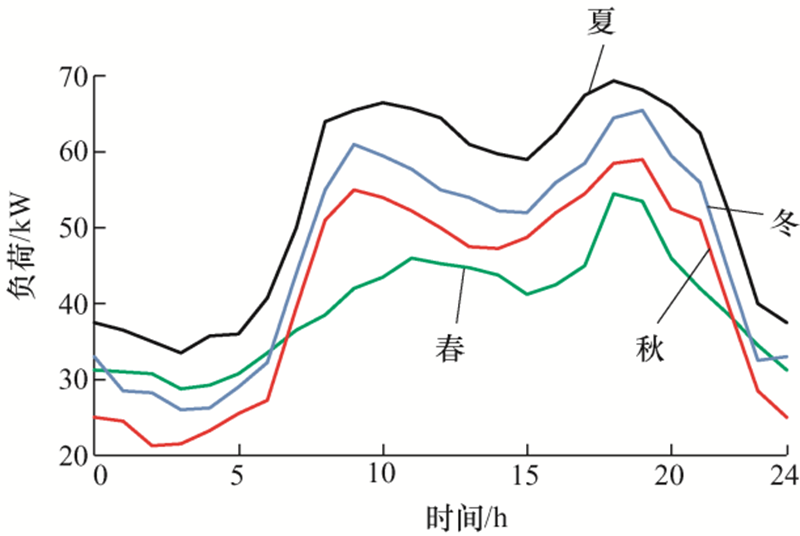

图5

图6

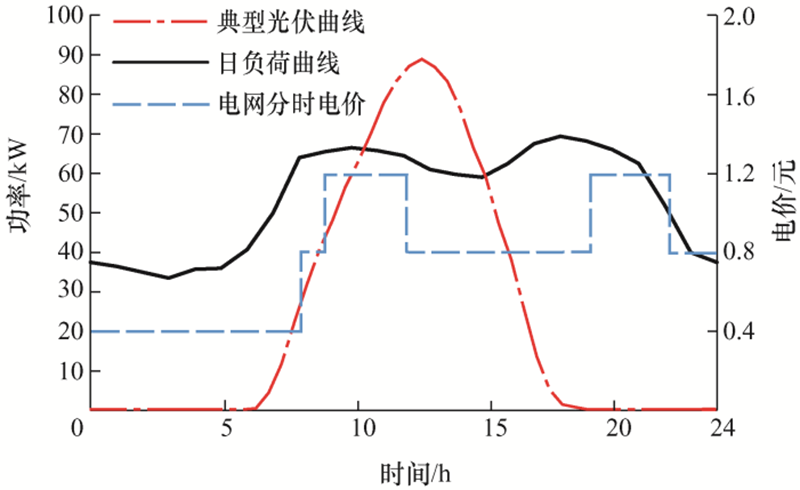

图7

表2

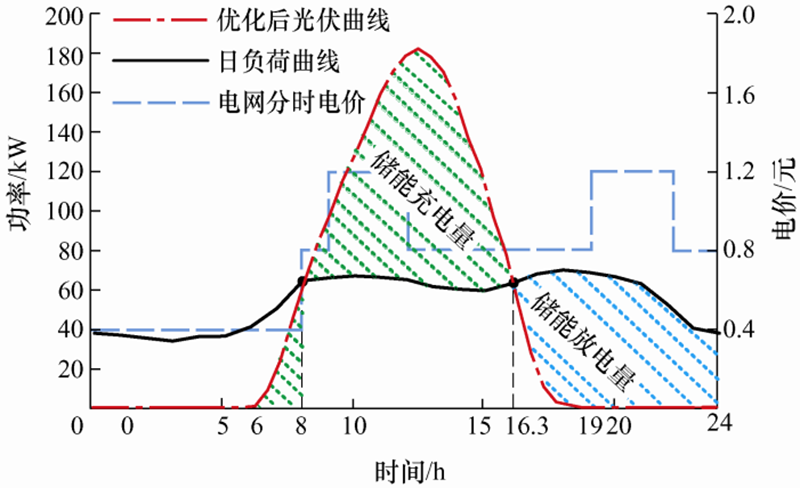

图8

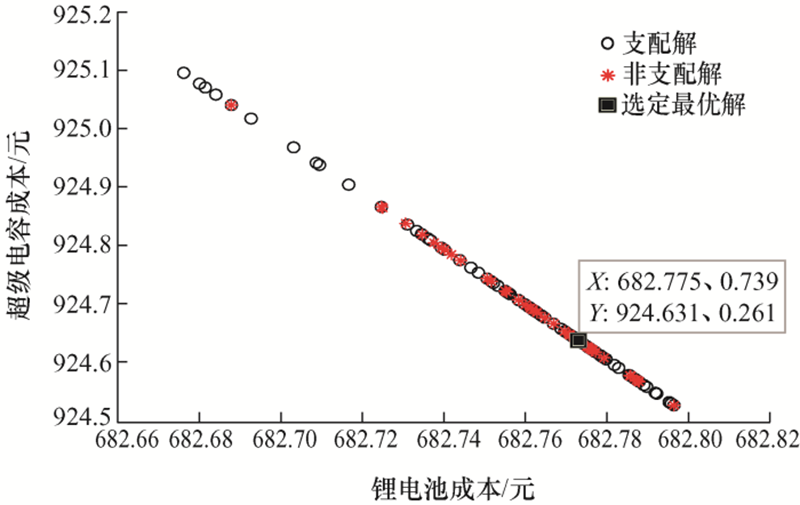

图9

图10

表3

参考文献 19

[1]	徐海亮, 张禹风, 聂飞, 等. 微电网运行控制技术要点及展望[J]. 电气工程学报, 2020, 15(1):1-15.
	XU Hailiang, ZHANG Yufeng, NIE Fei, et al. Microgrid operation and control technologies[J]. Journal of Electrical Engineering, 2020, 15(1):1-15.
[2]	应飞祥, 汪宇航, 李琰, 等. 计及可靠性的含风光机组小型发电系统经济性评估[J]. 电气工程学报, 2020, 15(3):13-21.
	YING Feixiang, WANG Yuhang, LI Yan, et al. Economic evaluation of small power generation system containing wind and solar generating unit considering reliability[J]. Journal of Electrical Engineering, 2020, 15(3):13-21.
[3]	CHEN X, MENGXUAN S, JIANYU Z, et al. Distributed cooperative control of multiple hybrid energy storage systems in a DC microgrid using consensus protocol[J]. IEEE Transactions on Industrial Electronics, 2020, 67(3):1968-1979. doi: 10.1109/TIE.41
[4]	王开科, 南东亮, 李勇, 等. 虚拟电厂参与大规模新能源系统的储能侧双层优化运行策略[J]. 电气工程学报, 2020, 15(2):24-33.
	WANG Kaike, NAN Dongliang, LI Yong, et al. Bi-level optimal operation strategy of energy storage with large-scale new energy system under the participation of virtual power plant[J]. Journal of Electrical Engineering, 2020, 15(2):24-33.
[5]	BIAN H, WANG X, DING M, et al. Optimal hybrid capacity configuration for distributed energy storage systems[J]. International Journal of Simulation:Systems, 2016, 17(37):2.1-2.8.
[6]	李斐, 黎灿兵, 孙凯, 等. 微电网中混合储能系统的规划运行一体化配置方法[J]. 控制理论与应用, 2019, 36(3):453-460.
	LI Fei, LI Canbing, SUN Kai, et al. Integrated planning and configuration method for hybrid energy storage system in microgrid[J]. Control Theory and Applications, 2019, 36(3):453-460.
[7]	武志锴, 许言路, 蒋理, 等. 基于离散傅里叶变换的微电网混合储能容量优化[J]. 华北电力大学学报, 2018, 45(2):32-38.
	WU Zhikai, XU Yanlu, JIANG Li, et al. Optimization of hybrid energy storage capacity of microgrid based on discrete Fourier transform[J]. Journal of North China Electric Power University, 2018, 45(2):32-38.
[8]	YAN N, ZHANG B, LI W, et al. Hybrid energy storage capacity allocation method for active distribution network considering demand side response[J]. IEEE Transactions on Applied Superconductivity, 2019, 29(2):1-4.
[9]	谭兴国, 王辉, 张黎, 等. 微电网复合储能多目标优化配置方法及评价指标[J]. 电力系统自动化, 2014, 38(8):7-14.
	TAN Xingguo, WANG Hui, ZHANG Li, et al. Multi-objective optimization of hybrid energy storage and assessment indices in microgrid[J]. Automation of Electric Power Systems, 2014, 38(8):7-14.
[10]	WANG H, WANG T, XIE X, et al. Optimal capacity configuration of a hybrid energy storage system for an isolated microgrid using quantum-behaved particle swarm optimization[J]. Energies, 2018, 11(2):454. doi: 10.3390/en11020454
[11]	王宁, 张建成. 基于能量协调控制的混合储能系统容量配置方法[J]. 电力建设, 2016, 37(8):72-77.
	WANG Ning, ZHANG Jiancheng. Capacity configuration method of hybrid energy storage system based on energy coordinated control[J]. Electric Power Construction, 2016, 37(8):72-77.
[12]	WU T, SHI X, LI L, et al. A capacity configuration control strategy to alleviate power fluctuation of hybrid energy storage system based on improved particle swarm optimization[J]. Energies, 2019, 12(4):642. doi: 10.3390/en12040642
[13]	ABBASSI A, DAMI M A, JEMLI M. A statistical approach for hybrid energy storage system sizing based on capacity distributions in an autonomous PV/wind power generation system[J]. Renewable Energy, 2017, 103:81-93. doi: 10.1016/j.renene.2016.11.024
[14]	PAPARI B, EDRINGTON C S, BHATTACHARYA I, et al. Effective energy management of hybrid AC-DC microgrids with storage devices[J]. IEEE Transactions on Smart Grid, 2019, 10(1):193-203. doi: 10.1109/TSG.2017.2736789
[15]	周楠, 樊玮, 刘念, 等. 基于需求响应的光伏微网储能系统多目标容量优化配置[J]. 电网技术, 2016, 40(6):1709-1716.
	ZHOU Nan, FAN Wei, LIU Nian, et al. Multi-objective capacity optimization configuration of photovoltaic micro-grid energy storage system based on demand response[J]. Power System Technology, 2016, 40(6):1709-1716.
[16]	韩晓娟, 程成, 籍天明, 等. 计及电池使用寿命的混合储能系统容量优化模型[J]. 中国电机工程学报, 2013, 33(34):91-97,16.
	HAN Xiaojuan, CHENG Cheng, JI Tianming, et al. Capacity optimization model of hybrid energy storage system considering battery life[J]. Proceedings of the Chinese Society for Electrical Engineering, 2013, 33(34):91-97,16.
[17]	ASKARZADEH A. A novel metaheuristic method for solving constrained engineering optimization problems:Crow search algorithm[J]. Computers and Structures, 2016, 169:1-12. doi: 10.1016/j.compstruc.2016.03.001
[18]	SAYED G I, HASSANIEN A E, AZAR A T. Feature selection via a novel chaotic crow search algorithm[J]. Neural Computing and Applications, 2019, 31(1):171-188. doi: 10.1007/s00521-017-2988-6
[19]	李建林, 牛萌, 田立亭, 等. 光伏扶贫电站光-储协同配置方法研究[J]. 太阳能学报, 2019, 40(1):79-86.
	LI Jianlin, NIU Meng, TIAN Liting, et al. Research on light-storage cooperative configuration method of photovoltaic poverty alleviation power station[J]. Acta Energiae Solaris Sinica, 2019, 40(1):79-86.

Price(t)	ΔP(t)	SOC_G(t)<SOC_G_max SOC_N(t)<SOC_N_max	SOC_G(t)>SOC_G_max SOC_N(t)>SOC_N_max	SOC_G(t)>SOC_G_min SOC_N(t)>SOC_N_min	SOC_G(t)<SOC_G_min SOC_N(t)<SOC_N_min
Price_min	ΔP<0	M1：电网给负荷供电,同时给储能充电,若光伏存在,将光伏能量存储	M2：将光伏供给负荷	—	—
Price_ave Price_max	ΔP>0	M3：光伏优先给负荷供电,余电给储能充电	M4：余电上网	—	—
Price_ave Price_max	ΔP<0	—	—	M5：光伏+储能给负荷供电	M6：电网给负荷供电

性能指标	锂电池	超级电容
c_c/[元/(kW·h)]	3 500	6 000
c_g/(元/kW)	1 050	1 050
SOC_min	0.25	0.2
SOC_max	0.9	0.9
η_c(%)	0.9	0.9
η_f(%)	0.9	0.9
放电深度(%)	80	85
c_h/(元/kW)	1 085	550
c_q/[元/(kW·h)]	0	310
维护成本/[元/(kW·a)]	170	120
理论寿命/a	10	10

配置项		粒子群算法		改进乌鸦算法
配置项		锂电池	超级电容	锂电池			超级电容
光伏总容量/kW		181		181
占比		0.706	0.294	0.739		0.261
储能容量/(kW·h)		444.78	133.77	223.25		118.76
最大负荷日成本/元		1 839.792		1 752.934
日均投资总成本/元	1 694.264			1 607.406
年投资总成本/元		618 406.360			586 703.190
