一种双负载VIENNA型整流器控制

电气工程学报 ›› 2015, Vol. 10 ›› Issue (7): 41-47.

一种双负载VIENNA型整流器控制

翟丹丹,王久和,厍冬瑾

北京信息科技大学自动化学院北京 100192

收稿日期:2015-03-24 出版日期:2015-07-25 发布日期:2015-07-25
作者简介:翟丹丹女 1990年生,硕士研究生,研究方向为电力电子与电力传动。|王久和男 1959年生,工学博士,教授,博士生导师,研究方向为电力电子技术和电力传动、非线性控制理论与应用。
基金资助:
国家自然科学基金项目(51477011);北京市自然科学基金重点项目(KZ201511232035);北京市属高校科技创新能力提升计划项目(TJSHG201310772024)

Control Study of a Double-Load VIENNA-Type Rectifier

Zhai Dandan,Wang Jiuhe,She Dongjin

Beijing Information Science & Technology University Beijing 100192 China

Received:2015-03-24 Online:2015-07-25 Published:2015-07-25

摘要/Abstract

摘要：

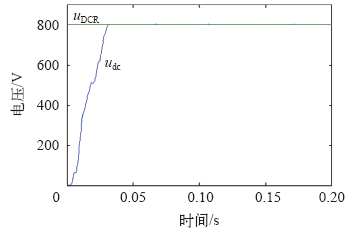

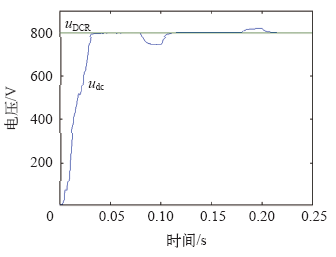

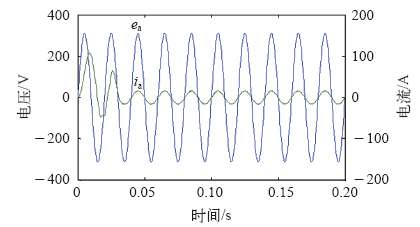

根据双负载VIENNA型整流器拓扑结构,建立了基于端口受控的耗散哈密顿（PCHD）数学模型。提出了利用无源控制器控制交流电流,PI控制器控制直流电压的无源混合控制策略。基于PCHD数学模型,采用互联和阻尼配置方法设计了无源电流控制器,实现了交流电流快速跟踪期望值,并保证整流器的稳定性。Matlab/Simulink仿真结果表明,基于PCHD模型的无源混合控制策略能够使直流侧电压快速跟踪期望值,网侧电流正弦化及单位功率因数,并对负载变化具有良好的鲁棒性。

关键词: VIENNA型整流器, PCHD, 双负载, 无源混合控制, 中点电位平衡

Abstract:

PCHD mathematical model was established according to the topology of double-load VIENNA-type rectifier. A passive hybrid-control strategy between passive controller for grid AC current and PI controller for DC voltage was presented. Based on PCHD mathematical model, the passive current-controller was designed with the method of interconnection and damping assignment, thus grid AC current can be fast to given value and ensure the stability of the rectifier. Simulation results show that passive hybrid-control strategy based on PCHD mathematical model not only make DC voltage to be a given value fast, but also can achieve sinusoidal grid AC current, the unity power factor and good robustness to load change.

Key words: VIENNA-type rectifier, PCHD, double-load, passive hybrid-control, neutral-point voltage balance

中图分类号:

TM461

翟丹丹,王久和,厍冬瑾. 一种双负载VIENNA型整流器控制[J]. 电气工程学报, 2015, 10(7): 41-47.

Zhai Dandan,Wang Jiuhe,She Dongjin. Control Study of a Double-Load VIENNA-Type Rectifier[J]. Journal of Electrical Engineering, 2015, 10(7): 41-47.

图/表 8

图1

图2

图3

图4

图5

图6

图7

图8

参考文献 13

[1]	Zhang Ming, Hang Lijun, Yao Wenxi . A novel strategy for three-phase/switch/level(vienna) rectiﬁer under severe unbalanced grids[J]. IEEE Transactions on Industrial Electronics, 2013,60(10):4243-4252. doi: 10.1109/TIE.2012.2217721
[2]	Thiago B Soeiro, Johann W Kolar . Analysis of high-efficiency three-phase two- and three-level unidirectional hybrid rectifiers[J]. IEEE Transactions on Industrial Electronics, 2013,60(9):3589-3601. doi: 10.1109/TIE.2012.2205358
[3]	韦徵, 陈新, 樊轶 , 等. 单周期控制的三相三电平VIENNA整流器输出中点电位分析及控制方法研究[J]. 中国电机工程学报, 2013,33(15):29-37.
	Wei Zheng, Chen Xin, Fan Yi , et al. Study and analysis of neutral-point potential and control methods for one-cycle controlled three-phase three-level VIENNA rectifiers[J]. Proceedings of the CSEE, 2013,33(15):29-37.
[4]	Ansari R, Feyzi M R, Hamed K Akbari , et al. Input-output linearization of a fourth-order input-affine system describing the evolution of a three-phase/switch/level (Vienna) rectifier[J]. IET Power Electronics, 2011,4(8):867-883. doi: 10.1049/iet-pel.2010.0158
[5]	林渭勋 . 现代电力电子技术[M]. 北京: 机械工业出版社, 2005.
[6]	Kanaan H, Al Haddad K, Fnaiech F . Modelling and control of three-phase/switch/level fixed-frequency PWM rectifier: state-space averaged model[J]. IEEE Proceedings Electric Power Applications, 2005,152(3):551-557. doi: 10.1049/ip-epa:20041042
[7]	王久和, 慕小斌 . 基于无源性的光伏并网逆变器电流控制[J]. 电工技术学报, 2012,27(11):176-182.
	Wang Jiuhe, Mu Xiaobin . Current control strategy of photovoltaic grid-connected inverter based on passivity[J]. Transactions of China Electrotechnical Society, 2012,27(11):176-182.
[8]	姜海鹏, 刘永强 . 带中点电位平衡控制的VIENNA整流器简化SVPWM双闭环控制[J]. 电机与控制学报, 2014,18(2):35-41.
	Jiang Haipeng, Liu Yongqiang . Simplified SVPWM dual closed loop vector control method for VIENNA rectifier with midpoint potential balance control[J]. Electric Machines and Control, 2014,18(2):35-41.
[9]	王久和 . 电能变换器及其无源控制[M]. 北京: 科学出版社, 2014.
[10]	滕兆博, 于海生, 于金鹏 . 具有阻感性负载PWM整流器的PCH建模与控制[J]. 青岛大学学报(工程技术版), 2012,27(2):36-42. doi: 10.1016/j.clnu.2019.11.039 pmid: 31882231
	Teng Zhaobo, Yu Haisheng, Yu Jinpeng . PCH modeling and control of PWM rectifier with resistive inductive load[J]. Journal of Qingdao University Engineering & Technology Edition, 2012,27(2):36-42. doi: 10.1016/j.clnu.2019.11.039 pmid: 31882231
[11]	李新瑞, 马文忠 . NPC型三电平逆变器中点电位平衡算法的研究[J]. 电气应用, 2010,29(2):58-62.
	Li Xinrui, Ma Wenzhong . Research on neutral-point potential balance of three-level NPC-type inverter[J]. Electrotechnical Application, 2010,29(2):58-62.
[12]	张豪, 侯圣语 . 基于SVPWM的Vienna整流器矢量控制策略的研究[J]. 华北电力大学学报(自然科学版), 2012,39(5):54-58.
	Zhang Hao, Hou Shengyu . Research of vector control strategy of the vienna rectifier based on SVPWM[J]. Journal of North China Electric Power University(Natural Science), 2012,39(5):54-58.
[13]	潘鸣宇, 焦然, 孙舟 , 等. 基于空间矢量控制的VIENNA整流器特性及控制研究[J]. 电气应用, 2013,32(22):50-53.
	Pan Mingyu, Jiao Ran, Sun Zhou , et al. Vienna rectifier characteristics and control research based on space vector control[J]. Electrotechnical Application, 2013,32(22):50-53.
