爪极发电机转子磁极间铜焊降低电磁激振力波研究

doi:10.11985/2016.06.001

电气工程学报 ›› 2016, Vol. 11 ›› Issue (6): 1-8.doi: 10.11985/2016.06.001

• 理论研究 • 下一篇

爪极发电机转子磁极间铜焊降低电磁激振力波研究

鲍晓华¹,李佳庆¹,魏琼¹,杨帆¹,唐奎²

1.合肥工业大学电气与自动化工程学院合肥 230009
2.中国人民解放军69223部队阿克苏拜城 842300

收稿日期:2015-10-30 出版日期:2016-06-25 发布日期:2019-12-31
作者简介:鲍晓华男 1972年生,教授,研究方向为特种电机与电机优化设计。|李佳庆男 1989年生,硕士,研究方向为新型电机与特种电机。
基金资助:
国家自然科学基金资助项目(51177033)

Reducing Exciting Force Waves of Claw Pole Alternator with Copper Welding Rotor Poles

Bao Xiaohua¹,Li Jiaqing¹,Wei Qiong¹,Yang Fan¹,Tang kui²

1.Hefei University of Technology Hefei 230009 China
2.Chinese People's Liberation Army 69223 Baicheng Akesu 842300 China

Received:2015-10-30 Online:2016-06-25 Published:2019-12-31

摘要/Abstract

摘要：

爪极发电机作为汽车上用电器的电源系统,其振动噪声问题,特别是电磁振动噪声受到广泛关注。电机定转子间的气隙磁场产生的径向电磁力波作用在定子铁心上,使定子铁心发生振动,向周边辐射电磁噪声。根据电磁场理论,在保证发电机稳定输出的前提下,提出了用铜焊连接转子磁极,以减小磁极的离心变形,达到降低发电机电磁噪声的目的。通过试验验证了本文所提出的削弱电磁振动力波方法的有效性。

关键词: 爪极发电机, 电磁振动, 径向电磁力, 降噪措施

Abstract:

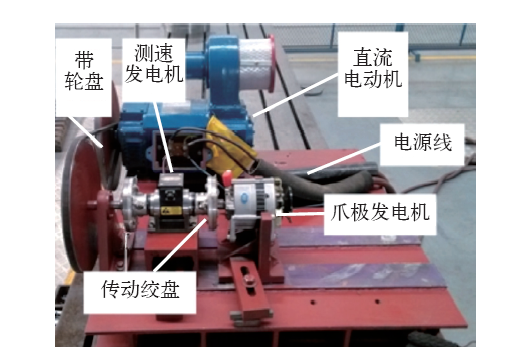

As the power supply system for automobile electric appliance, claw pole alternator’s vibration and noise problems, especially the electromagnetic vibration and noise began to receive widespread attention. The radial electromagnetic force waves generated by the air gap magnetic field acts on the stator core, and makes stator core vibrate and then radiate noise to the surrounding. Based on the theory of electromagnetic field, the method based on brazing poles to reduce the centrifugal distortion and electromagnetic noise through fastening claw poles is put forward. An experiment platform is designed and the effectiveness of the proposed denoising methods is verified.

Key words: Claw pole alternator, electromagnetic vibration, radial electromagnetic force, noise reduction measure

中图分类号:

TM310

鲍晓华,李佳庆,魏琼,杨帆,唐奎. 爪极发电机转子磁极间铜焊降低电磁激振力波研究[J]. 电气工程学报, 2016, 11(6): 1-8.

Bao Xiaohua,Li Jiaqing,Wei Qiong,Yang Fan,Tang kui. Reducing Exciting Force Waves of Claw Pole Alternator with Copper Welding Rotor Poles[J]. Journal of Electrical Engineering, 2016, 11(6): 1-8.

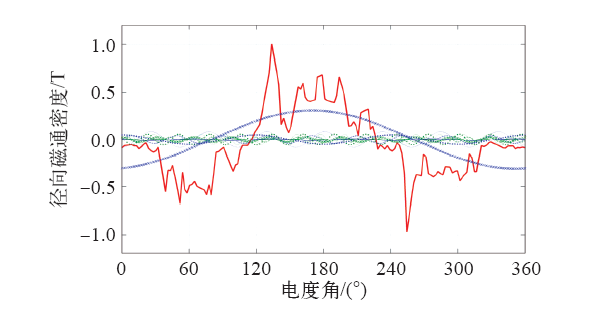

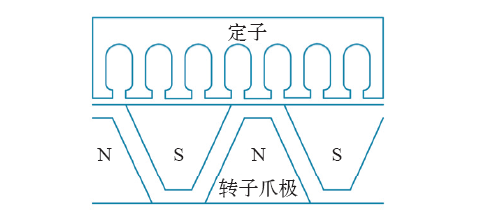

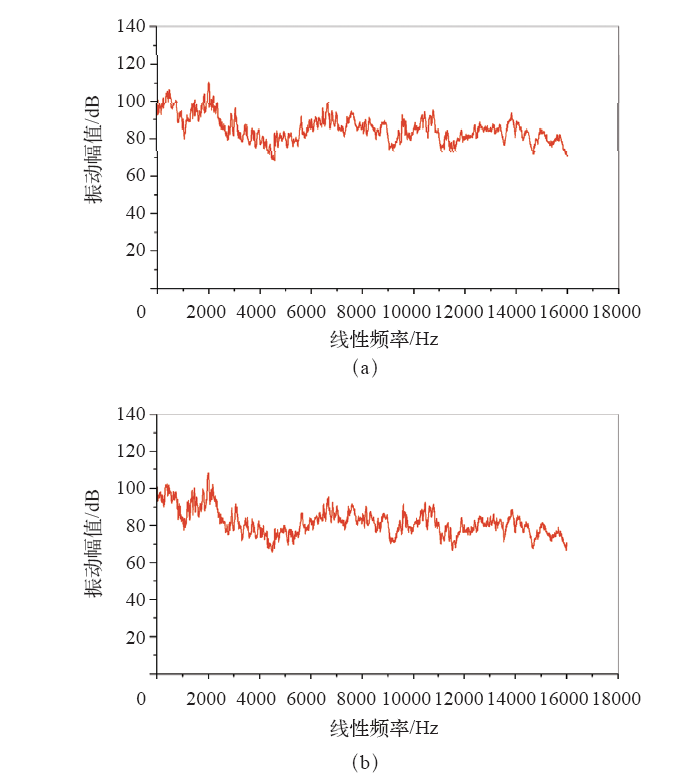

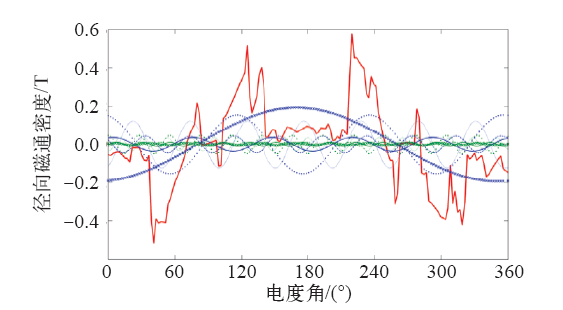

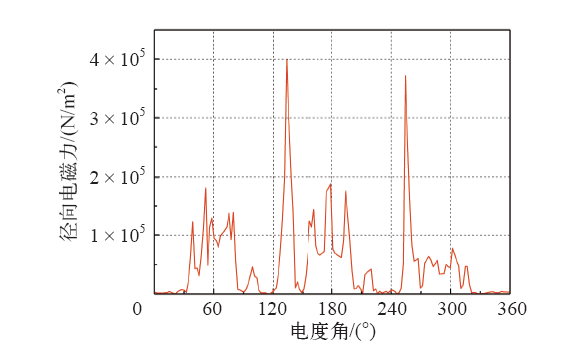

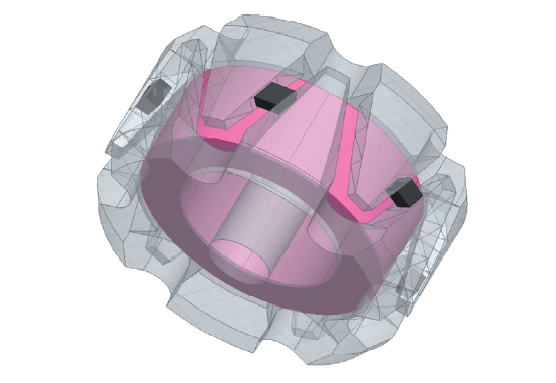

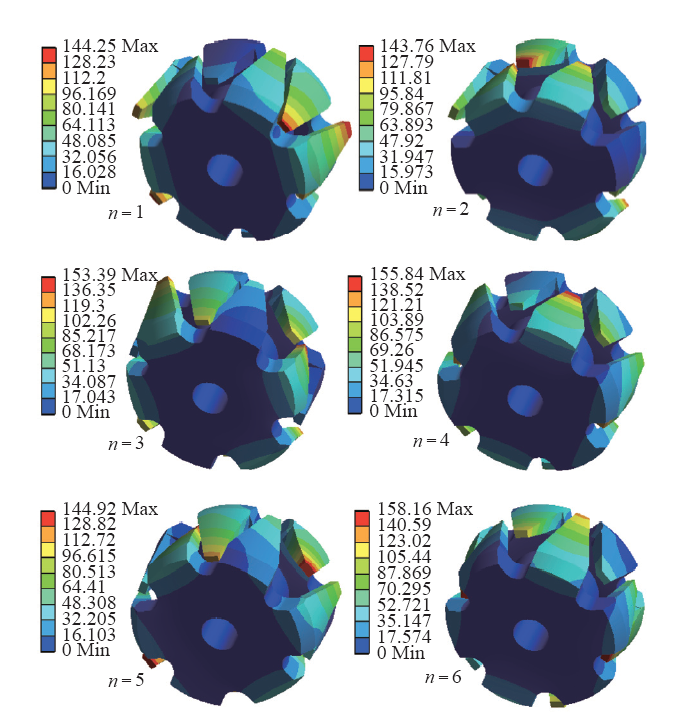

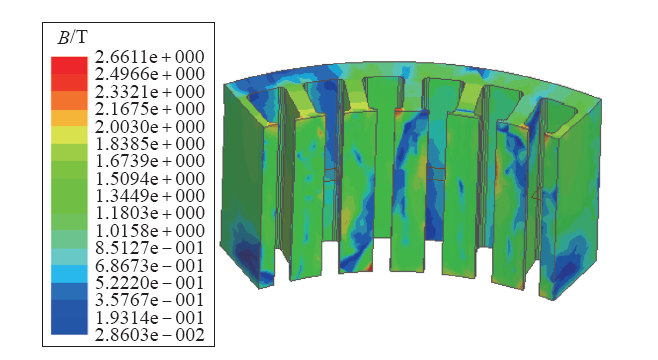

图/表 18

图1

表1

表2

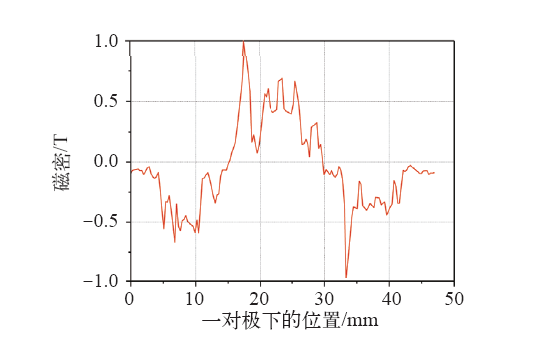

图2

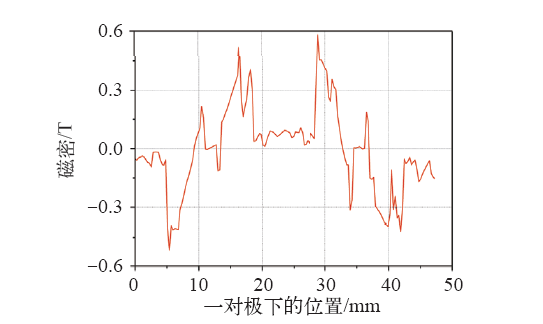

图3

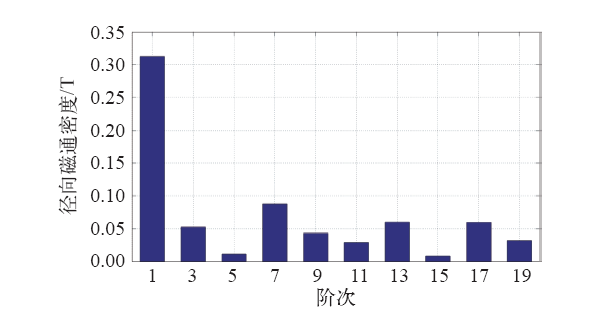

图4

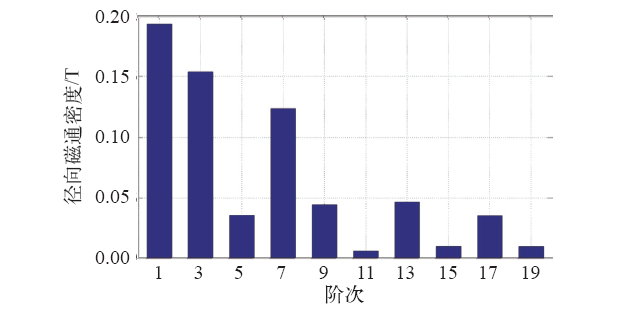

图5

图6

图7

图8

图9

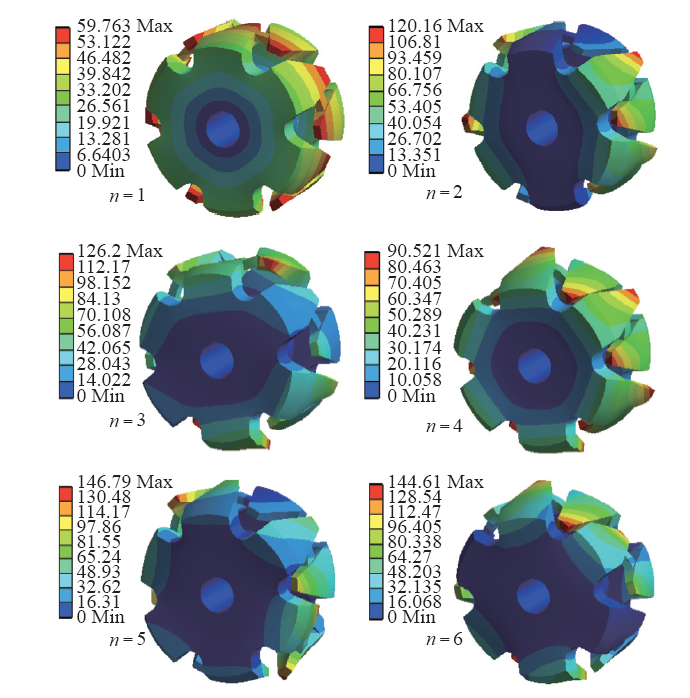

图10

图11

图12

图13

图14

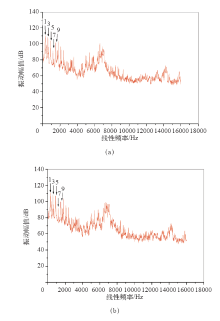

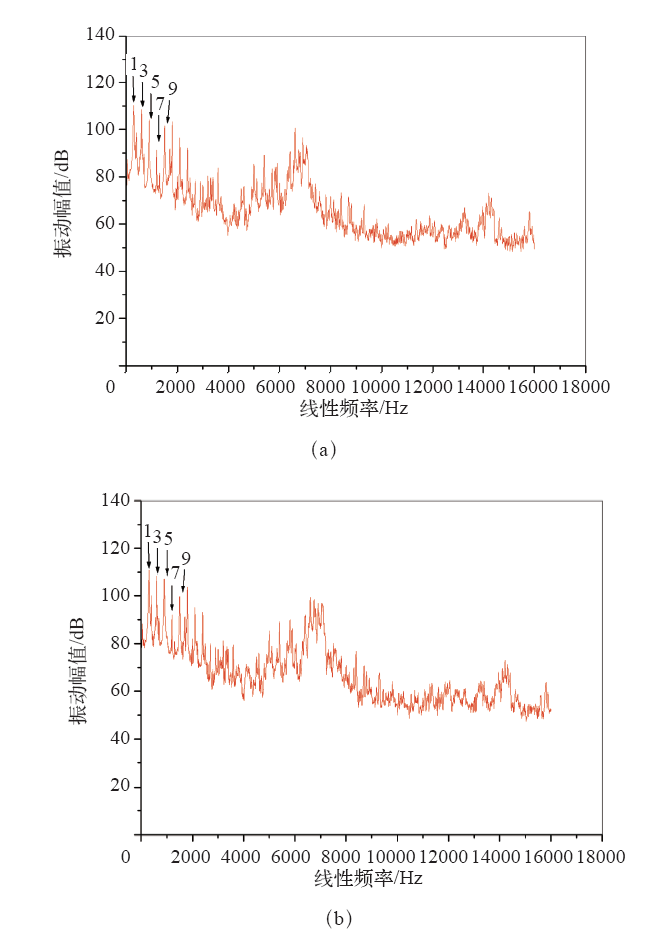

图15

图16

参考文献 13

[1]	Eversman W, Burns S, Pekarek S , et al. Noise generation mechanisms in claw pole alternators[J]. Journal of Sound and Vibration, 2004,280:369-400.
[2]	何海波, 刘海龙 . 异步电机径向电磁力的分析[J]. 微电机, 2011,44(8):26-31.
	He Haibo, Liu Hailong . Radial electromagnetic radial force analysis in induction motors[J]. Micromotors, 2011,44(8):26-31.
[3]	王荀, 邱阿瑞 . 笼型异步电动机径向电磁力波的有限元计算[J]. 电工技术学报, 2012,27(7):109-117.
	Wang Xun, Qiu Arui . Finite element calculation of radial electromagnetic force wave in squirrel-cage asynchronous motors[J]. Transactions of China Electrotechnical Society, 2012,27(7):109-117.
[4]	唐任远, 宋志环, 于慎波 , 等. 变频器供电对永磁电机振动噪声源的影响研究[J]. 电机与控制学报, 2010,14(3):12-17.
	Tang Renyuan, Song Zhihuan, Yu Shenbo , et al. Study on source of vibration and acoustic noise of permanent magnet machines by inverter[J]. Electric Machines and Control, 2010,14(3):12-17.
[5]	Ruiz Gonzalez A, Meco-Gutierrez M J, Perez-Hidalgo F , et al. Reducing acoustic noise radiatedby inverter-fed induction motors controlled by a new PWM strategy[J]. IEEE Transactions on Industrial Electronics, 2010,57(1):228-236. doi: 10.1109/TIE.2009.2031185
[6]	Xu Yongxiang, Yuan Qingbing, Zou Jibin , et al. Analysis of triangular periodic carrier frequency modulation on reducing electromagnetic noise of permanent magnet synchronous motor[J]. IEEE Transactions on Magnetics, 2012,48(11):4424-4427. doi: 10.1109/TMAG.2012.2195643
[7]	Sun T, Kim J M, Lee G H , et al. Effect of pole and slot combination on noise and vibration in permanent magnet synchronous motor[J]. IEEE Trans. Magn., 2011,47(5):1038-1041. doi: 10.1109/TMAG.20
[8]	Wang D H, Wang X H, Qiao D W , et al. Reducing cogging torque in surface-mounted permanent-magnet motors by nonuniformly distributed teeth method[J]. IEEE Trans. Magn., 2011,47(9):2231-2239. doi: 10.1109/TMAG.2011.2144612
[9]	He G H, Huang Z Y, Chen D Y . Two-dimensional field analysis on electromagnetic vibration and noise sources in permanent-magnet direct current commutator motors[J]. IEEE Trans. Magn., 2011,47(4):787-794. doi: 10.1109/TMAG.2010.2103382
[10]	He G H, Huang Z Y, Qin R , et al. Numerical prediction of electromagnetic vibration and noise of permanent-magnet direct current commutator motors with rotor eccentricities and glue effects[J]. IEEE Trans. Magn., 2012,48(5):1924-1931. doi: 10.1109/TMAG.2011.2178100
[11]	Bao X H, Liu M Z . Parameter analysis and optimal design for mobile claw-pole alternator[C]. 3rd International Conference on Mechanical and Electronics Engineering, 2011: 658-661.
[12]	刘谋志, 鲍晓华, 吴锋 , 等. 基于气隙磁场谐波分析的汽车发电机爪极优化选择[J]. 微特电机, 2013,41(2):1-4.
	Liu Mouzhi, Bao Xiaohua, Wu Feng , et al. Claw size selection of automobile generator based on harmonic analysis of the air-gap magnetic field[J]. Small & Special Electrical Machines, 2013,41(2):1-4.
[13]	Liu J, Bao X H, Liu B , et al. Method for vibration prediction of claw pole alternator[C]. 2011 International Conference on DOI, 2011: 4174-4177.

分项	力波频率	力波阶数
①	2μf	2μp
②	(μ₂±μ₁)f	(μ₂±μ₁)p
③	2μf	2μp
④	2μf	2μp
⑤	2μf	2μp±(k₂±k₁)Z₁
⑥	(μ₂±μ₁)f	(μ₂±μ₁)p±2kZ₁
⑦	(μ₂±μ₁)f	(μ₂±μ₁)p
⑧	(μ₂±μ₁)f	(μ₂±μ₁)p±(k₂±k₁)Z₁
⑨	(μ₂±μ₁)f	(μ₂±μ₁)p±kZ₁

参数	数值
额定功率因数	0.6
极对数	6
定子槽数	36
定子外径/mm	115
定子内径/mm	90.2
气隙长度/mm	0.3
极轭直径/mm	45.6
磁极长度/mm	27.2
