一种基于模型预测控制的T型三电平逆变器中点电位平衡控制方法

doi:10.11985/2015.09.011

摘要/Abstract

摘要：

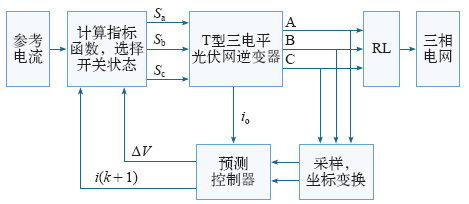

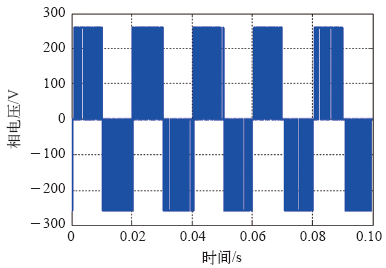

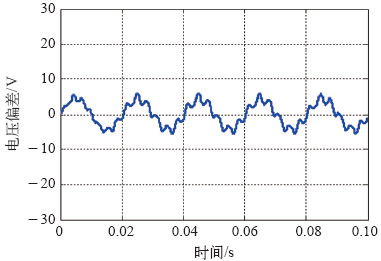

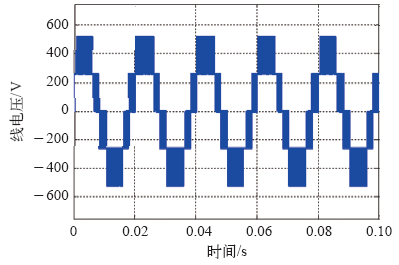

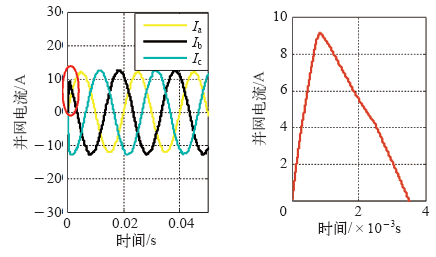

中点电位的平衡控制是T型三电平光伏并网逆变器系统首要解决的问题。本文建立了T型三电平逆变器的主电路数学模型及负载模型,并分析了中点电位不平衡的主要原因,在传统预测电流控制方法的基础上,研究了一种基于模型预测控制的中点电位平衡控制方法：首先对负载电流进行采样,用采样值计算出预测值,同时检测直流母线中点电流,得到中点电位的偏差值;然后优化由预测电流与参考电流之间的平方误差及中点电位的偏差值构成的性能指标函数,选择使性能指标函数最小的开关状态,在下一个采样周期作用于逆变器,从而实现中点电位的平衡控制。最后采用Matlab/Simulink进行仿真验证,仿真结果表明,该方法具有快速的动态响应,实现了中点电位的平衡控制,且输出了高质量的电压波形。

关键词: 中点电位平衡, T型三电平, 模型预测控制, 光伏并网

Abstract:

The neutral-point voltage balancing control of the T-type three-level inverter system is the primary problem. The main circuit mathematical model and the load model of the T-type three-level inverter are set up, and the main reasons of neutral-point voltage unbalancing are analyzed, then based on the traditional predictive current control method, a neutral-point voltage balancing control method based on model predictive control (MPC) is proposed. Firstly, the load current is sampled used to calculate predictive value, meanwhile the DC bus neutral-point current is sampled to get the neutral-point voltage deviation; then minimize the quality function composed of the squared error between the predictive and reference current values and the neutral-point voltage deviation by choosing the appropriate state's switching signals and then applied to the inverter, the neutral-point voltage balancing control is achieved. Finally the results obtained through the Matlab/Simulink simulation verify that the proposed method ensures fast dynamic response and keeps the neutral-point voltage balancing, and the quality of its output voltage is high.

Key words: Neutral-point voltage balancing, T-type three-level, model predictive control, photovoltaic grid-connected

中图分类号:

TM464

王美龄,王丽梅,孙永亮. 一种基于模型预测控制的T型三电平逆变器中点电位平衡控制方法[J]. 电气工程学报, 2015, 10(9): 66-72.

Wang Meiling,Wang Limei,Sun Yongliang. A Neutral-Point Voltage Balancing Control Method Based on Model Predictive Control for T-Type Three-Level Inverter[J]. Journal of Electrical Engineering, 2015, 10(9): 66-72.

图/表 10

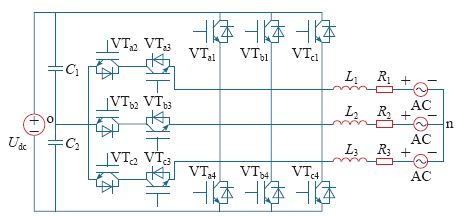

图1

表1

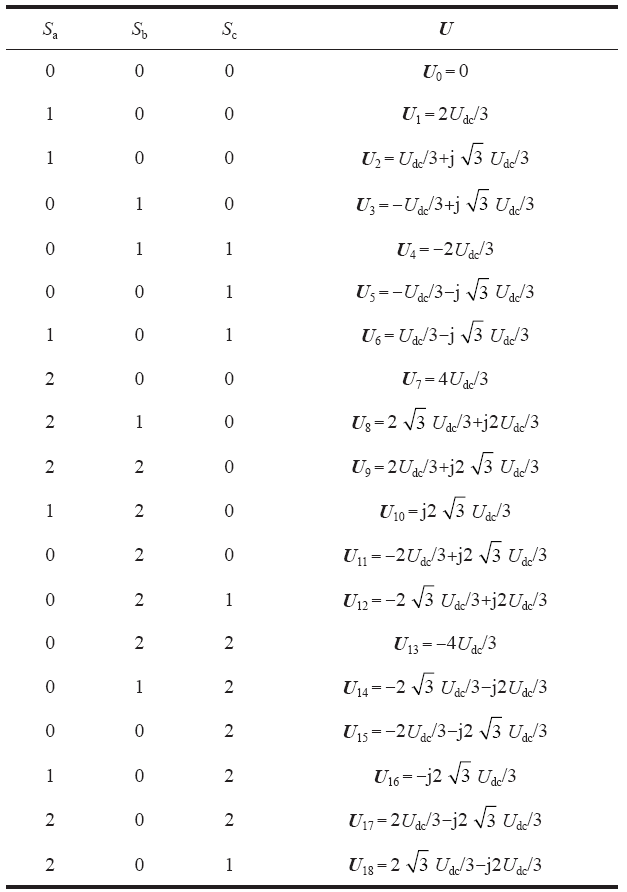

表2

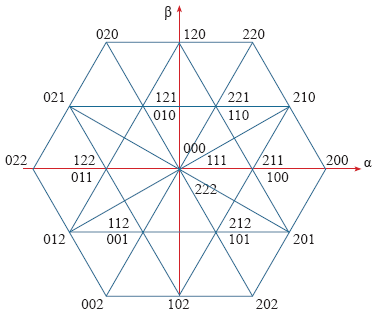

图2

图3

图4

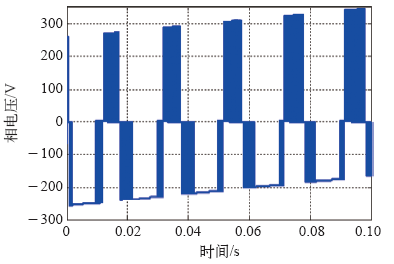

图5

图6

图7

图8

参考文献 14

[1]	谢路耀, 金新民, 吴学智 . 基于零序注入的NPC 三电平变流器中点电位反馈控制[J]. 电工技术学报, 2012,27(12):117-128.
	Xie Luyao, Jin Xinmin, Wu Xuezhi . Neutral point voltage feedback control based on zero sequence injection for NPC three-level converter[J]. Transactions of China Electrotechnical Society, 2012,27(12):117-128.
[2]	DL, JB . Comparison of a soft switched TCM T-type inverter to hard switched inverters for a 3 phase PV grid interface[C]. IEEE Power Electronics and Motion Control Conference(EPE/PEMC), 2012: 1-8.
[3]	姜卫东, 杨柏旺, 黄静 , 等. 不同零序电压注入的NPC 三电平逆变器中点电位平衡算法的比较[J]. 中国电机工程学报, 2013,33(33):17-25.
	Jiang Weidong, Yang Bowang, Huang Jing , et al. Comparisons of the neutral point voltage balancing algorithm for NPC three-level inverters based on different zero-sequence voltage injection[J]. Proceedings of the CSEE, 2013,33(33):17-25.
[4]	Rodriguez J, Pontt J, Silva C A , et al. Predictive current control of a voltage source inverter[J]. IEEE Trans. Ind. Electron., 2007,54(1):495-503. doi: 10.1016/j.isatra.2015.10.007 pmid: 26549566
[5]	于蓉蓉, 魏学业, 吴小进 , 等. 一种改进型预测电流控制算法[J]. 电工技术学报, 2010,25(7):100-107.
	Yu Rongrong, Wei Xueye, Wu Xiaojin , et al. An improved predictive current control algorithm[J]. Transactions of China Electrotechnical Society, 2010,25(7):100-107.
[6]	沈坤, 章兢, 王玲 , 等. 三相电压型逆变器模型预测控制[J]. 电工技术学报, 2013,28(12):283-289.
	Shen Kun, Zhang Jing, Wang Ling , et al. Model predictive control of three-phase voltage source inverter[J]. Transactions of China Electrotechnical Society, 2013,28(12):283-289.
[7]	朱玲, 符晓巍, 胡晓波 , 等. 模块化多电平变流器 HVDC 系统的模型预测控制[J]. 电力系统保护与控制, 2014,42(16):1-8. doi: 10.7667/j.issn.1674-3415.2014.16.001
	Zhu Ling, Fu Xiaowei, Hu Xiaobo , et al. Model predictive control of modular multilevel converter for HVDC system[J]. Power System Protection and Control, 2014,42(16):1-8. doi: 10.7667/j.issn.1674-3415.2014.16.001
[8]	王鹿军, 王仕韬, 周峰武 , 等. 中点钳位型三电平并网逆变器有限集最优预测控制[J]. 电力系统自动化, 2013,37(21):190-195. doi: 10.7500/AEPS201209014
	Wang Lujun, Wang Shitao, Zhou Fengwu , et al. Three-level neutral point clamped inverter grid finite set of optimal predictive control[J]. Automation of Electric Power Systems, 2013,37(21):190-195. doi: 10.7500/AEPS201209014
[9]	王峰, 张旭隆, 何凤有 , 等. 基于复合模型预测控制策略的三电平APF研究[J], 电力系统保护与控制, 2014,42(11):79-85.
	Wang Feng, Zhang Xulong, He Fengyou , et al. Research of three-level shunt APF control method based on composite model predictive control strategy[J]. Power System Protection and Control, 2014,42(11):79-85.
[10]	Mario S . Design and implementation of a highly efficient three level T-type converter for low voltage applications[J]. IEEE Transactions on Power Electronics, 2013,28(2):899-907. doi: 10.1109/TPEL.2012.2203151
[11]	刘凤君 . 多电平逆变技术及其应用[M]. 北京: 机械工业出版社, 2007.
[12]	孙超 . 三电平T型并网逆变系统设计[D]. 杭州:浙江大学, 2013.
[13]	童鸣庭 . 三相T型三电平非隔离并网逆变器的研究[D]. 安徽:合肥工业大学, 2013.
[14]	张伦健, 谭国俊, 陈利萍 . 基于双调制波技术的三电平Z 源逆变器中点电位平衡控制[J]. 电力系统保护与控制, 2013,41(7):91-96. doi: 10.7667/j.issn.1674-3415.2013.07.015
	Zhang Lunjian, Tan Guojun, Chen Liping . Neutral-point potential balance control for three-level Z-source inverters based on double modulation wave technique[J]. Power System Protection and Control, 2013,41(7):91-96. doi: 10.7667/j.issn.1674-3415.2013.07.015

	S_a1	S_a2	S_a3	S_a4	输出电平
P	on	on	off	off	+U_dc/2
O	off	on	on	off	0
N	off	off	on	on	-U_dc/2
