添加陶瓷粉对复合绝缘子微观电特性的影响

摘要/Abstract

摘要：

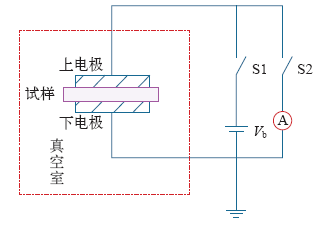

陶瓷绝缘子大量退运后对性能良好的瓷体采取掩埋措施,不仅浪费资源而且污染环境,基于此本文将瓷体研磨后添加到硅橡胶材料中,替代了部分铝粉和气相法白炭黑,且对其进行了耐漏电起痕、热刺激电流（TSC）以及傅里叶变换红外光谱分析的试验,比较了不同比例的陶瓷粉对硅橡胶的电特性的影响,试验结果表明陶瓷粉可以明显改善硅橡胶的电特性。

关键词: 硅橡胶, 复合绝缘子, 老化, 退运, 陶瓷

Abstract:

What the porcelain body of good performance was buried not only waste resources but also pollute the environment after a large number of ceramic insulators returned. Based on these, we added grinded ceramic body into the silicon rubber material for replacing some of the aluminum powder and fumed silica. And it’s used to make Experimental. The measurements include tracking resistant, thermally stimulated current (TSC) and Fourier transform infrared spectroscopy. The effects of adding different proportions of ceramic powder on the electrical characteristics of silicone rubber are compared. The results showed that the ceramic part can significantly improve the electrical characteristics of the silicone rubber.

Key words: Silicone rubber, composite insulators, aging, return shipment, ceramics

中图分类号:

TM85

梁培松,刘云鹏,梁英. 添加陶瓷粉对复合绝缘子微观电特性的影响[J]. 电气工程学报, 2015, 10(6): 71-77.

Liang Peisong,Liu Yunpeng,Liang Ying. Effect of Adding Ceramic Powder to Micro-electrical Characteristics of Composite Insulators[J]. Journal of Electrical Engineering, 2015, 10(6): 71-77.

图/表 9

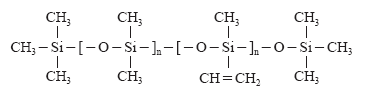

图1

表1

图2

图3

表2

表3

图4

表4

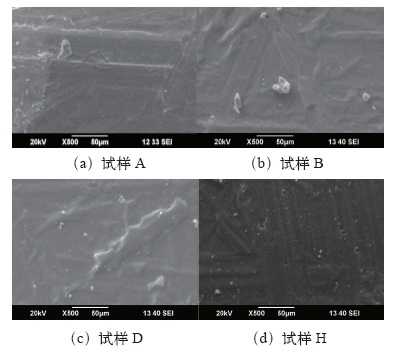

图5

参考文献 19

[1]	谢从珍 . 硅橡胶复合绝缘子伞裙优化研究[D]. 广州:华南理工大学, 2010.
[2]	关志成, 彭功茂, 王黎明 , 等. 复合绝缘子的应用及关键技术研究[J]. 高电压技术, 2011,37(3):513-519.
	Guan Zhicheng, Peng Gongmao, Wang Liming , et al. Application and key technical study of composite insulators[J]. High Voltage Engineering, 2011,37(3):513-519.
[3]	贾志东, 方苏, 杨翠茹 , 等. ATH对复合绝缘子用硅橡胶性能影响的分析[J]. 陕西电力, 2007,35(8):1-3.
	Jia Zhidong, Fang Su, Yang Cuiru , et al. Analysis about influence of ATH upon performance of composite insulator using silicone rubber[J]. Shanxi Power, 2007,35(8):1-3.
[4]	姚喜年, 陈林山 . 复合绝缘子伞裙配方设计中的几个问题及解决办法[J]. 电瓷避雷器, 2003,193(3):11-13.
	Yao Xinian, Chen Linshan . A few questions and solu-tion in designing the shed formula of composite insulator[J]. Insulators and Surge Arresters, 2003,193(3):11-13.
[5]	赖亮庆, 钱黄海, 苏正涛 , 等. 蒙脱土/硅橡胶复合材料的力学和阻燃性能研究[J]. 有机硅材料, 2008,22(1):24-27.
	Lai Liangqing, Qian Huanghai, Su Zhengtao , et al. Study on mechanical properties and flammability of montmorillonite/silicone rubber composites[J]. Silicone Material, 2008,22(1):24-27.
[6]	蓝磊, 文习山, 蔡登科 , 等. RTV/纳米层状硅酸盐复合绝缘的抗电痕性[J]. 高电压技术, 2005,31(4):19-20,26.
	Lan Lei, Wen Xishan, Cai Dengke , et al. Tracking resistance of composite insulation of RTV silicone rubber with nano-layered silicate[J]. High Voltage Engineering, 2005,31(4):19-20, 26.
[7]	轩胜, 张友南 . 电力系统复合绝缘子用硅橡胶材料配方[J]. 合成橡胶工业, 2012,35(4):295-299.
	Xuan Sheng, Zhang Younan . Formula of silicone rubber material for composite insulator in power system[J]. China Synthetic Rubber Industry, 2012,35(4):295-299.
[8]	屠幼萍, 罗梅馨, 应高峰 , 等. 硅橡胶电晕老化热刺激电流特性的正交试验研究[J]. 中国电机工程学报, 2012,32(7):139-144.
	Tu Youping, Luo Meixin, Ying Gaofeng , et al. Research on TSC characteristics of corona aging of silicone rubber with orthogonal test method[J]. Proceedings of the CSEE, 2012,32(7):139-144.
[9]	李盛涛, 黄奇峰, 孙健 , 等. 聚集态和陷阱对交联聚乙烯真空沿面闪络特性的影响[J]. 物理学报, 2010,59(1):422-428. doi: 10.7498/aps.59.422
	Li Shengtao, Huang Qifeng, Sun Jian , et al. Influence of aggregation structure and traps on surface flashover of XLPE in vacuum[J]. Acta Physica Sinica, 2010,59(1):422-428. doi: 10.7498/aps.59.422
[10]	吕金壮, 李成榕, 丁立健 , 等. 陷阱分布对Al₂O₃陶瓷介质在真空中沿面闪络特性的影响[J]. 中国电机工程学报, 2003,23(2):77-81.
	Lu Jinzhuang, Li Chengrong, Ding Lijian , et al. Infuence of the trap distribution on surface flashover performance of Alumina ceramic[J]. Proceedings of the CESS, 2003,23(2):77-81.
[11]	梁英, 丁立健, 李成榕 , 等. 基于热刺激电流的硅橡胶合成绝缘子老化诊断方法初探[J]. 中国电机工程学报, 2007,27(21):7-12.
	Liang Ying, Ding Lijian, Li Chengrong , et al. Primary research on the diagnosis of aging silicone rubber insulators using the thermally stimulation current[J]. Proceedings of the CSEE, 2007,27(21):7-12.
[12]	陈晓春, 郑敏聪, 李建华 , 等. 合成绝缘子硅橡胶伞群材料的老化特性及其红外光谱研究[J]. 中国电机工程学报, 2012,32(12):57-62.
	Chen Xiaochun, Zhang Mincong, Li Jianhua . Aging characteristics of silicone rubber composite insulator sheds studied by infrared spectroscopy[J]. Proceedings of the CSEE, 2012,32(12):57-62.
[13]	王丽莉 . 白炭黑补强硅橡胶的红外光谱模拟[J]. 有机硅材料, 2009,23(1):41-46.
	Wang Lili . Infrared spectral simulation of silica-reinforced silicone rubber[J]. Silicone Material, 2009,23(1):41-46.
[14]	郝艳捧, 谢恒堃 . 红外光谱法研究运行23年大电机定子绝缘中环氧的老化机理[J]. 电工技术学报, 2008,23(3):19-23.
	Hao Yanpeng, Xie Hengkun . Degradation behavior of epoxy in stator insulation of large generators in service for 23 years based on infrared spectrometric analysis[J]. Transactions of China Electrotechnical Society, 2008,23(3):19-23.
[15]	Iman Ahmadi Joneidi, Alireza Majzoobi, AmirAbbas Shayegani Akmal , et al. Aging evaluation of silicone rubber insulators using leakage current and flashover voltage analysis[J]. IEEE Transactions on Dielectrics and Electrical Insulation, 2013,2:212-220.
[16]	Kulik VM, Boiko A V, Bardakhanov S P , et al. Viseoelastic propertics of silicone rubber with admixture of SiO₂ nanoparticles[J]. Materials Science and Engineering, 2011,528(18):5729-5732.
[17]	Dai J J, Liang X D, Yao X F , et al. Study of cracked unidirectional glass fiber-reinforced composites by digital speckled correlation method[J]. Journal of Reinforced Plastics and Composites, 2005,24(16):1737-1746. doi: 10.1177/0731684405051656
[18]	Blackmore P D, Birtwhistle D, Cash G A , et al. Condition assessment of EPDM composite insulators using FTIR spectroscopy[J]. IEEE Transactions on Dielectrics and Electrical Insulation, 1998,5(1):132-141. doi: 10.1109/94.660819
[19]	Rowland S M, Robertson J, Xiong Y , et al. Electrical and material characterization of field-aged 400kV silicone rubber composite insulators[J]. IEEE Transactions on Dielectrics and Electrical Insulation, 2010,17(2):375-383. doi: 10.1109/TDEI.2010.5448091

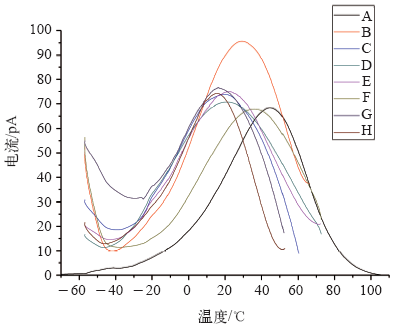

试样编号	电流峰值/pA	释放电荷量/nC	陷阱能级/eV
A	69.93	120.19	0.332 9
B	95.63	189.15	0.322 7
C	73.85	154.75	0.279 4
D	70.70	163.80	0.240 8
E	75.01	162.74	0.280 3
F	67.89	147.34	0.306 9
G	76.62	163.79	0.290 3
H	74.20	123.26	0.369 1

编号	最大漏电腐蚀深度/mm	平均漏电腐蚀深度/mm	漏电腐蚀深度方差
A	1.18	1.115	0.008 6
D	0.98	0.875	0.014 8
H	2.68	1.425	0.749 0

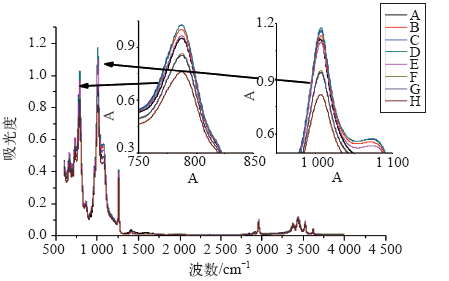

	Si(CH₃)₂	Si-O-Si	Si-CH₃	C-H	-OH
A	100%	100%	100%	100%	100%
B	105.3%	101.8%	101.1%	105.6%	114.7%
C	107.7%	104.2%	103.2%	106.5%	111.8%
D	108.0%	105.5%	102.5%	106.0%	110.5%
E	101.4%	98.7%	99.5%	105.8%	126.1%
F	90.6%	84.8%	88.6%	98.3%	122.1%
G	89.7%	83.9%	90.2%	99.3%	119.8%
H	79.8%	73.3%	85.6%	92.7%	111.2%
