基于DG无功参与的配电网综合无功优化

doi:10.11985/2023.03.028

摘要/Abstract

摘要：

基于碳达峰碳中和的理念，配电网系统中分布式电源(Distributed generation，DG)的占比越来越高，探讨DG对于配电网的无功优化具有实际意义。基于配电网的经济性与安全性，提出了计及DG无功出力的配电网综合优化模型，采用基于组合损失函数的BP神经网络(BP neural network)来预测风电出力曲线，用标准日的数据来生成光伏出力曲线，考虑风机与光伏共同参与无功优化。根据风机和光伏机组的结构，得出其无功出力的上下限。为了克服粒子群算法(Particle swarm optimization，PSO)容易陷入局部最优值的情况，采用了改进的粒子群算法。算例测试结果验证了DG无功出力对于配电网的影响，提出的模型可以进一步降低损耗，提高电压质量，并可以实现DG与静止无功补偿器(Static var compensator，SVC)的共同优化。

关键词: 分布式电源, 无功优化, 改进粒子群算法, 静止无功补偿器

Abstract:

Based on the concept of emission peak and carbon neutrality, the proportion of distributed generation in distribution network system is higher and higher, so it is of practical significance to explore DG for reactive power optimization of distribution network. Based on the economy and safety of distribution network, a comprehensive optimization model of distribution network considering DG reactive power output is proposed. BP neural network based on combined loss function is used to predict the wind power output curve, and the photovoltaic output curve is generated with the data of standard day. The participation of wind turbine and photovoltaic in reactive power optimization is considered. According to the structure of fan and photovoltaic unit, the upper and lower limits of reactive power output are obtained. In order to overcome the situation that particle swarm optimization algorithm is easy to fall into local optimal value, an improved particle swarm optimization algorithm is adopted. The example test results verify the influence of DG reactive power output on distribution network. The proposed model can further reduce loss and improve voltage quality, and realize the joint optimization of DG and static var compensator.

Key words: Distributed generation, reactive power optimization, improve particle swarm optimization, static var compensator

中图分类号:

TM561

万晓东, 马平, 万东红. 基于DG无功参与的配电网综合无功优化[J]. 电气工程学报, 2023, 18(3): 260-267.

WAN Xiaodong, MA Ping, WAN Donghong. Comprehensive Reactive Power Optimization of Distribution Network Based on DG Reactive Power Participation[J]. Journal of Electrical Engineering, 2023, 18(3): 260-267.

图/表 9

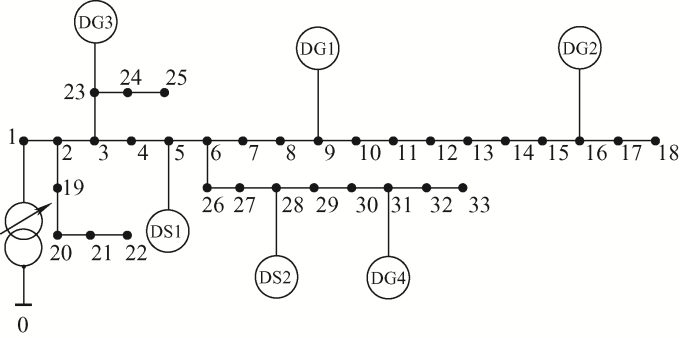

图1

表1

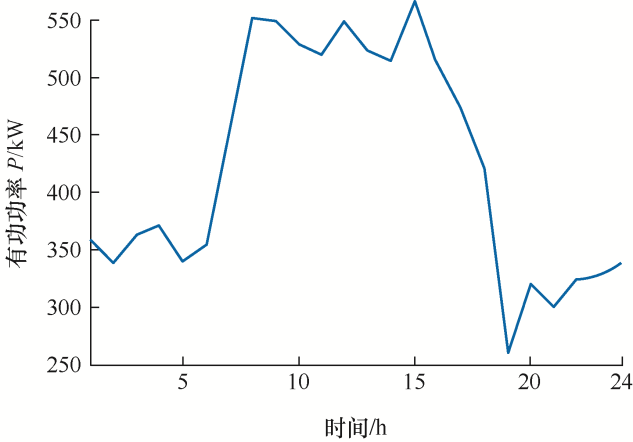

图2

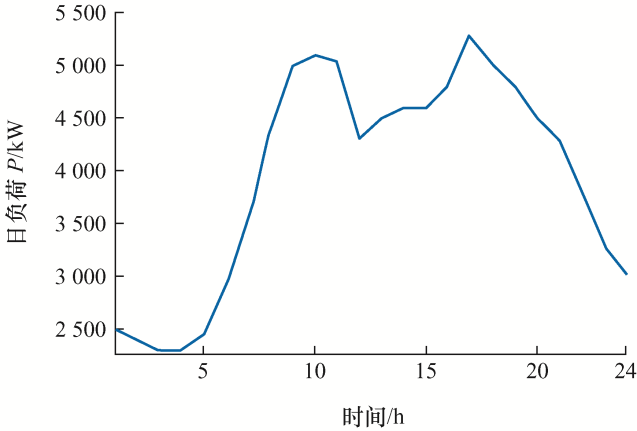

图3

表2

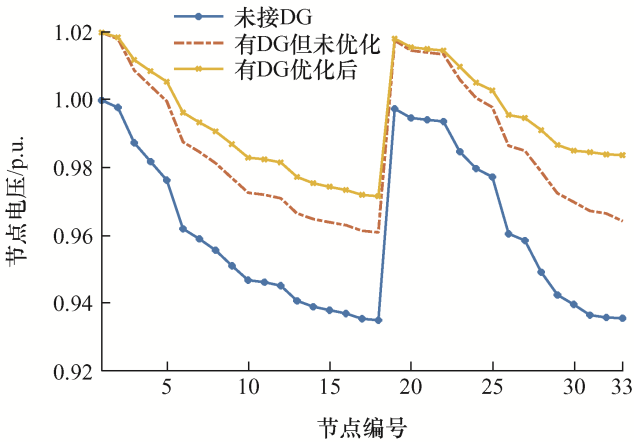

图4

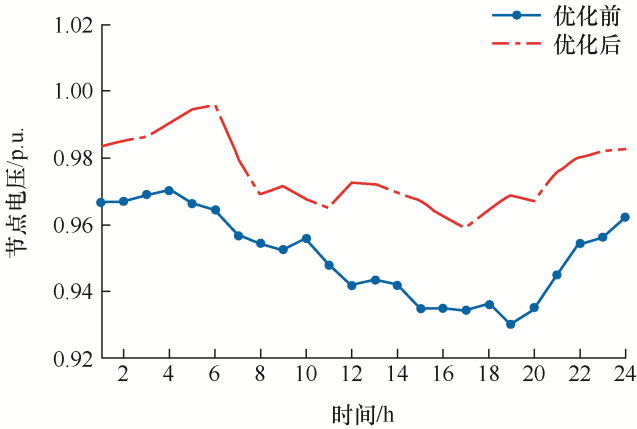

图5

表3

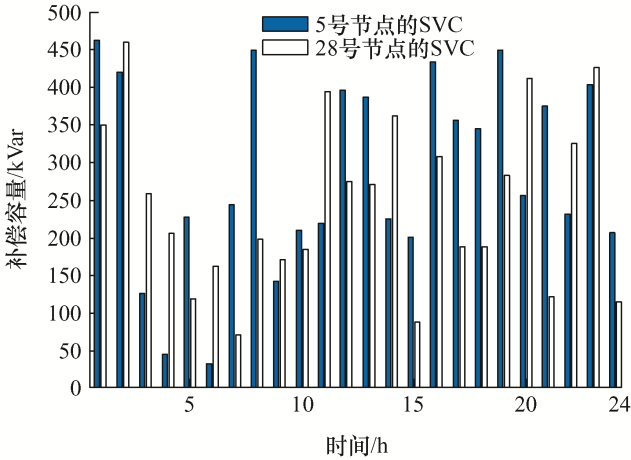

图6

参考文献 20

[1]	柳想, 王芳禄. 分布式光伏电源接入对配电网保护的影响[J]. 农业科技与装备, 2020(5):37-39,43.
	LIU Xiang, WANG Fanglu. Influence of distributed photovoltaic power access on distribution network protection[J]. Agricultural Science & Technology and Equipment, 2020(5):37-39,43.
[2]	LIU J, ZHANG J, ZHANG D. Effect of distributed generation on power supply reliability of distribution network[C]// 2015 8th International Conference on Grid and Distributed Computing (GDC),Jeju,Republic of Korea, 2015:32-35.
[3]	康重庆, 姚良忠. 高比例可再生能源电力系统的关键科学问题与理论研究框架[J]. 电力系统自动化, 2017, 44(9):2-11.
	KANG Chongqing, YAO Liangzhong. Key scientific issues and theoretical research framework of high proportion renewable energy power system[J]. Automation of Electric Power Systems, 2017, 44(9):2-11.
[4]	鲁裕婷, 赵天乐, 都洪基, 等. 基于改进粒子群算法的含DG配电网无功优化[J]. 电力工程技术, 2018, 37(6): 69-74.
	LU Yuting, ZHAO Tianle, DU Hongji, et al. Reactive power optimization of distribution network with DG based on improved particle swarm optimization algorithm[J]. Electric Power Engineering Technology, 2018, 37(6):69-74.
[5]	刘永前, 王函, 韩爽, 等. 考虑风光出力波动性的实时互补性评价方法[J]. 电网技术, 2020, 44(9):3211-3220.
	LIU Yongqian, WANG Han, HAN Shuang, et al. Real time complementarity evaluation method considering the fluctuation of wind and solar output[J]. Power System Technology, 2020, 44(9):3211-3220.
[6]	刘梦依, 邱晓燕, 张志荣, 等. 计及风光出力相关性的配电网多目标无功优化[J]. 电网技术, 2020, 44(5):1892-1899.
	LIU Mengyi, QIU Xiaoyan, ZHANG Zhirong, et al. Multi objective reactive power optimization of distribution network considering the correlation between wind and solar output[J]. Power System Technology, 2020, 44(5):1892-1899.
[7]	张庭场, 耿光飞. 基于改进粒子群算法的中压配电网无功优化[J]. 电网技术, 2012, 36(2):158-162.
	ZHANG Tingchang, GENG Guangfei. Reactive power optimization of medium voltage distribution network based on improved particle swarm optimization[J]. Power System Technology, 2012, 36(2):158-162.
[8]	LI M, YANG M, YU Y, et al. Wind power probabilistic forecasting based on wind correction using weather research and forecasting model[C]// 2020 IEEE 3rd Student Conference on Electrical Machines and Systems (SCEMS),Jinan,China. IEEE, 2020:19-624.
[9]	刘芳, 汪震, 刘睿迪, 等. 基于组合损失函数的BP神经网络风力发电短期预测方法[J]. 浙江大学学报, 2021, 55(3):594-600.
	LIU Fang, WANG Zhen, LIU Ruidi, et al. BP neural network short-term prediction method of wind power generation based on combined loss function[J]. Journal of Zhejiang University, 2021, 55(3):594-600.
[10]	RABIEE A, SOROUDI A, MOHAMADI-IVATLOO B, et al. Corrective voltage control scheme considering demand response and stochastic wind power[J]. IEEE Transactions on Power Systems, 2014, 29(6):2965-2973. doi: 10.1109/TPWRS.2014.2316018
[11]	WU W, ZHANG C, SU J, et al. The design of new high efficiency photovoltaic grid and independent power supply inverter[C]// 2015 International Conference on Computational Intelligence and Communication Networks (CICN),Jabalpur,India. IEEE, 2015:1579-1582.
[12]	石晓东. 风机发电机中电力电子技术的应用[J]. 中国新技术新产品, 2020(16):37-38.
	SHI Xiaodong. Application of power electronic technology in fan generator[J]. New Technology & New Products of China, 2020(16):37-38.
[13]	HUANG W, ZHANG W. Research on distributed wind power reactive voltage coordinated control strategy connected to distribution network[C]// 2021 4th International Conference on Energy,Electrical and Power Engineering (CEEPE),Chongqing,China, 2021: 529-534.
[14]	赵文芳, 王京丽, 尚敏, 等. 基于粒子群优化和支持向量机的花粉浓度预测模型[J]. 计算机应用, 2019, 39(1):98-104. doi: 10.11772/j.issn.1001-9081.2018071626
	ZHAO Wenfang, WANG Jingli, SHANG Min, et al. Pollen concentration prediction model based on particle swarm optimization and support vector machine[J]. Journal of Computer Applications, 2019, 39(1):98-104. doi: 10.11772/j.issn.1001-9081.2018071626
[15]	强国栋, 高锋阳, 乔垚, 等. 基于改进粒子群算法的配电网无功优化[J]. 电测与仪表, 2018, 55(14):21-26.
	QIANG Guodong, GAO Fengyang, QIAO Yao, et al. Reactive power optimization of distribution network based on improved particle swarm optimization[J]. Electrical Measurement and Instrumentation, 2018, 55(14):21-26.
[16]	李妍, 马平, 孙晓. 基于三点估计法的含分布式电源配电网无功优化[J]. 广东电力, 2020, 33(7):19-25.
	LI Yan, MA Ping, SUN Xiao. Reactive power optimization of distribution network with distributed generation based on three-point estimation method[J]. Guangdong Electric Power, 2020, 33(7):19-25.
[17]	陶志东, 顾浩, 丁晓群. 基于电压稳定影响的多目标无功优化研究[J]. 智慧电力, 2018, 46(10):63-70.
	TAO Zhidong, GU Hao, DING Xiaoqun. Research on multi-objective reactive power optimization based on the influence of voltage stability[J]. Smart Power, 2018, 46(10):63-70.
[18]	颜湘武, 徐韵, 李若瑾, 等. 基于模型预测控制含可再生分布式电源参与调控的配电网多时间尺度无功动态优化[J]. 电工技术学报, 2019, 34(10):2022-2037.
	YAN Xiangwu, XU Yun, LI Ruojin, et al. Multi time scale reactive power dynamic optimization of distribution network with renewable distributed generation based on model predictive control[J]. Transaction of China Electrotechnial Scoiety, 2019, 34(10):2022-2037.
[19]	CHU Y, FEI J, HOU S. Adaptive global sliding-mode control for dynamic systems using double hidden layer recurrent neural network structure[J]. IEEE Transactions on Neural Networks and Learning Systems, 2019, 31(4):1297-1309. doi: 10.1109/TNNLS.5962385
[20]	康勇, 林新春, 潘辰, 等. 弱电网下采用SVC与SVG补偿后新能源并网变换器的功率传输特性分析[J]. 中国电机工程学报, 2021, 41(6):2115-2125.
	KANG Yong, LIN Xinchun, PAN Chen, et al. Analysis of power transmission characteristics of new energy grid connected converter after SVC and SVG compensation in weak current network[J]. Proceedings of the CSEE, 2021, 41(6):2115-2125.

训练样本数	训练时间/s	平均绝对误差	均方根误差
900	3.1	0.121 5	0.151 7
1 800	4.5	0.136 2	0.165 2
4 500	8.8	0.119 7	0.155 2
7 200	13.8	0.098 6	0.135 5

方案	全天总网损/kW	减少率(%)
未接入DG	5 648.39	—
接入DG未优化	4 582.79	18.9
接入DG优化后	4 378.25	22.5

名称	收敛到最优解的次数	平均迭代次数
传统PSO	4	65.7
改进PSO	10	52.5
