分布式电源并网标准发展与对比

doi:10.11985/2016.04.001

摘要/Abstract

摘要：

随着分布式电源技术的发展和在电网中渗透率的提高,各个国际组织和国家都颁布和修订了自己的分布式电源并网标准。为了探究中外分布式电源并网标准的发展趋势,互相学习分布式标准制定和修订的经验,本文主要介绍了在国际上被广泛接受的IEEE 1547标准和我国国内分布式电源并网标准, 针对标准中有关异常状况响应、功率控制和电压调节、低电压穿越等方面的内容进行了比较,选取了分布式电源中有代表性且发展较快的风力发电与光伏发电为例进行了具体介绍。通过对IEEE 1547原始标准与修订版本的纵向比较,以及我国不同分布式电源并网标准和国外组织与国家标准的横向比较,分析了各标准之间的差异成因,探讨了分布式电源标准未来的发展方向,为国际分布式电源并网标准和我国国内标准的进一步完善提供了参考借鉴,也为并网逆变器设备制造商和并网保护装置生产厂家提供了设计依据。

关键词: 分布式电源, 并网标准, 异常状况响应, 功率控制, 电压调节, 低压穿越

Abstract:

Along with the development of the distributed resources technology and the increase of the distributed resources penetration on the grid, many international organizations and countries have promulgated and revised their own standards for interconnecting distributed resources with electric power systems. In order to explore the development trend of the Chinese and foreign standards for interconnecting distributed resources with electric power systems, and to learn the experience of formulating and revising the standards for interconnecting distributed resources with electric power systems, the international standards IEEE 1547 series of interconnection standards and Chinese standards for interconnecting distributed resources with electric power systems are mainly introduced in the paper, and the contents of response to abnormal conditions, power control, voltage regulation and the ability of low-voltage ride-through are compared. The standards for representative and rapidly developed wind power generation and photovoltaic power generation are concretely introduced. Through the vertical comparison of the original version and revised version of IEEE Std 1547, as well as the horizontal comparison of Chinese own different standards for grid-integration of distributed resources and foreign organizational and national standards, the cause of the difference between the standards is analyzed, and the development trend of the future standards for interconnecting distributed resources with electric power systems is discussed. The reference for the further improvement of the international standards and Chinese standards for grid-integration of distributed resources are provided. A foundation is also provided for the design of grid-integration inverter equipment and protection device.

Key words: Distributed resources, standard for grid-integration, response to abnormal conditions, power control, voltage regulation, low-voltage ride-through

中图分类号:

TM91

陶维青,李嘉茜,丁明,王乐勤,顾芝瑕. 分布式电源并网标准发展与对比[J]. 电气工程学报, 2016, 11(4): 1-8.

Tao Weiqing,Li Jiaxi,Ding Ming,Wang Leqin,Gu Zhixia. Development and Comparison on Standard for Interconnecting Distributed Resources with Electric Power Systems[J]. Journal of Electrical Engineering, 2016, 11(4): 1-8.

图/表 6

图1

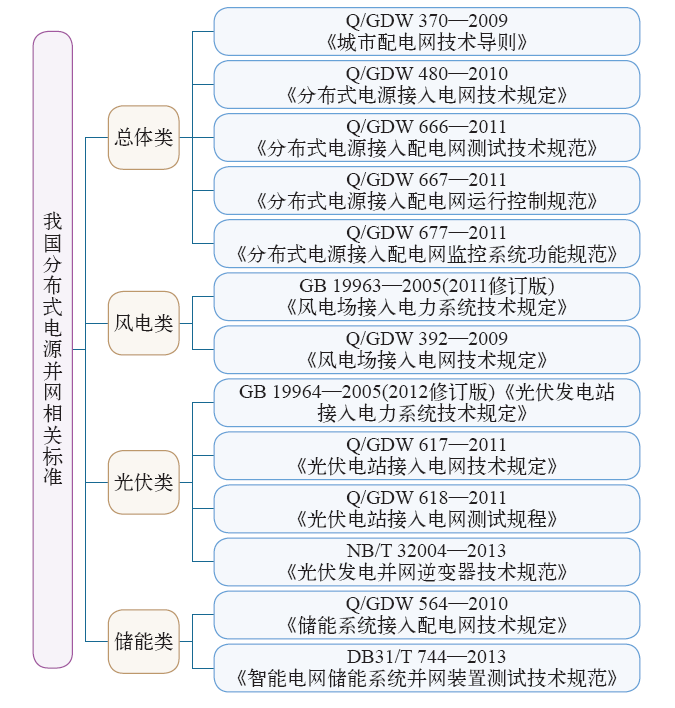

图2

表1

表2

表3

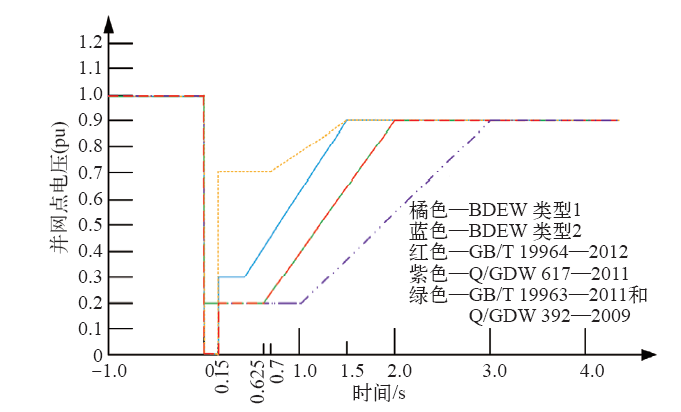

图3

参考文献 32

[1]	薛迎成, 邰能灵 . 国际上分布式电源的互连标准介绍[J]. 南方电网技术, 2008,2(6):1-17.
	Xue Yingcheng, Tai Nengling . Introduction to the existing DG interconnection standards worldwide[J]. Southern Power System Technology, 2008,2(6):1-17.
[2]	薛迎成, 邰能灵, 杨兴武 , 等. 美国和欧洲的分布式发电互联技术准则比较[J]. 华东电力, 2009,37(3):406-411.
	Xue Yingcheng, Tai Nengling, Yang Xingwu , et al. Comparison of distributed generation interconnection technical criteria between america and europe[J]. East China Electric Power, 2009,37(3):406-411.
[3]	鲍薇, 胡学浩, 何国庆 , 等. 分布式电源并网标准研究[J]. 电网技术, 2012,36(11):46-52.
	Bao Wei, Hu Xuehao, He Guoqing , et al. Study on standard for grid-integration of distributed resources[J]. Power System Technology, 2012,36(11):46-52.
[4]	汪诗怡, 艾芊 . 国际上微网和分布式电源并网标准的分析研究[J]. 华东电力, 2013,41(6):1170-1174.
	Wang Shiyi, Ai Qian . Worldwide standards for integration of microgrids and distributed generations[J]. East China Electric Power, 2013,41(6):1170-1174.
[5]	王继东, 张小静, 杜旭浩 , 等. 光伏发电与风力发电的并网技术标准[J]. 电力自动化设备, 2012,31(11):1-7.
	Wang Jidong, Zhang Xiaojing, Du Xuhao , et al. Standards of grid-connection technology for photovoltaic and wind power generations[J]. Electric Power Automation Equipment, 2012,31(11):1-7.
[6]	杨大为, 黄秀琼, 杨建华 , 等. 微电网和分布式电源系列标准IEEE 1547述评[J]. 南方电网技术, 2012,6(5):7-12.
	Yang Dawei, Huang Xiuqiong, Yang Jianhua , et al. Introduction to and analysis on IEEE 1574 standard series for microgrids and distributed resources[J]. Southern Power System Technology, 2012,6(5):7-12.
[7]	IEEE Std 1547—2003 IEEE standard for intercon-necting distributed resources with electric power systems[S]. 2003.
[8]	IEEE Std 1547.1—2005 IEEE standard conformance test procedures for equipment interconnecting distributed resources with electric power systems[S]. 2005.
[9]	IEEE Std 1547. 2—2008 IEEE application guide for IEEE Std 1547TM, IEEE standard for interconnecting distributed resources with electric power systems[S]. 2008.
[10]	IEEE Std 1547.3—2007 IEEE guide for monitoring, information exchange, and control of distributed resources interconnected with electric power systems[S]. 2007.
[11]	IEEE Std 1547. 4—2011 IEEE guide for design, operation and integration of distributed resource island systems with electric power systems[S]. 2011.
[12]	IEEE Std 1547. 6—2011 IEEE recommended practice for interconnecting distributed resources with electric power systems distribution secondary networks[S]. 2011.
[13]	IEEE Std 1547. 7—2013 IEEE guide to conducting distribution impact studies for distributed resource interconnection[S]. 2013.
[14]	IEEE Std 1547. 5 IEEE draft technical guidelines for interconnection of electric power sources greater than 10MVA to the power transmission grid[S].
[15]	IEEE Std 1547. 8 IEEE recommended practice for establishing methods and procedures that provide supplemental support for implementation strategies for expanded use of IEEE standard 1547[S].
[16]	IEEE Std 1547a—2014 IEEE standard for interconnecting distributed resources with electric power systems[S]. 2014.
[17]	Q/GDW 370—2009 城市配电网技术导则[S]. 2009.
[18]	Q/GDW 480—2010 分布式电源接入电网技术规定[S]. 2010.
[19]	Q/GDW 666—2011 分布式电源接入配电网测试技术规范[S]. 2011.
[20]	Q/GDW 667—2011 分布式电源接入配电网运行控制规范[S]. 2011.
[21]	Q/GDW 677—2011 分布式电源接入配电网监控系统功能规范[S]. 2011.
[22]	GB/Z 19963—2005 风电场接入电力系统技术规定[S]. 2005.
[23]	GB/T 19963—2011 风电场接入电力系统技术规定[S]. 2011.
[24]	Q/GDW 392—2009 风电场接入电网技术规定[S]. 2009.
[25]	GB/Z 19964—2005 光伏发电站接入电力系统技术规定[S]. 2005.
[26]	GB/T 19964—2012 光伏发电站接入电力系统技术规定[S]. 2012.
[27]	Q/GDW 617—2011 光伏电站接入电网技术规定[S]. 2011.
[28]	Q/GDW 618—2011 光伏电站接入电网测试规程[S]. 2011.
[29]	NB/T 32004—2013 光伏发电并网逆变器技术规范[S]. 2013.
[30]	Q/GDW 564—2010 储能系统接入配电网技术规定[S]. 2010.
[31]	DB31/T 744—2013 智能电网储能系统并网装置测试技术规范[S]. 2013.
[32]	BDEW. Technical guideline: generating plants connected to the medium-voltage network[S].

标准	并网点电压（额定电压百分比）（%）	切除时间/s	可调切除时间上限/s
IEEE 1547—2003	U<50	0.16	–
	50≤U<88	2.00	–
	110<U<120	1.00	–
	120≤U	0.16	–
IEEE 1547a—2014	U<45	0.16	0.16
	45≤U<60	1	11
	60≤U<88	2	21
	110<U<120	1	13
	120≤U	0.16	0.16
Q/GDW 480—2010 Q/GDW 617—2011	U<50	0.2 (光伏 0.1)	–
	50≤U<85	2	–
	110≤U<135	2	–
	135≤U	0.2 (光伏 0.05)	–

标准	DR容量	频率/Hz	切除时间/s或要求	可调频率范围 /Hz	可调切除时间上限 /s
IEEE 1547—2003	≤30kW	>60.5	0.16	–	–
	≤30kW	<59.3	0.16	–	–
	>30kW	>60.5	0.16	–	–
		<{59.8~57.0}	0.16~300可调	–	–
		（可调设定点）
		<57.0	0.16	–	–
IEEE 1547a—2014	–	<57.0	0.16	56~60	10
		<59.5	2	56~60	300
		>60.5	2	60~64	300
		>62	0.16	60~64	10
Q/GDW 480—2010 Q/GDW 617—2011 Q/GDW 392—2009	10(6)~35kV （风电和大型光伏110(66)kV及以上）	<48	运行 60s以上（同步机和感应电机）	–	–
		48~49.5	运行至少10min（风机运行30min）	–	–
		50.2~50.5	减小有功功率输出（光伏、风机运行2min）	–	–
		>50.5	离网（光伏0.2）	–	–
	380V	<49.5	0.2	–	–
	380V	>50.2	0.2	–	–

标准	风电场装机容量/MW	10min最大变化量/MW	1min最大变化量/MW
GB/Z 19963—2005	<30	20	6
	30~150	装机容量/ 1.5	装机容量/5
	>150	100	30
GB/T 19963—2011	<30	10	3
	30~150	装机容量/3	装机容量/10
	>150	50	15
