基于柯西变异改进粒子群算法的无功优化 *

doi:10.11985/2021.01.008

电气工程学报 ›› 2021, Vol. 16 ›› Issue (1): 55-61.doi: 10.11985/2021.01.008

扫码分享

基于柯西变异改进粒子群算法的无功优化 ^*

苏福清¹(), 匡洪海¹, 钟浩²(), 匡威¹(), 陶成¹

1.湖南工业大学电气与信息工程学院株洲 412007
2.三峡大学梯级水电站运行与控制湖北省重点实验室宜昌 443002

收稿日期:2020-08-08 修回日期:2021-01-18 出版日期:2021-03-25 发布日期:2021-03-25
通讯作者: 匡威 E-mail:su_fuqing@163.com;zhonghao022@163.com;khhzyz@163.com
作者简介:匡洪海,女,1972年生,博士,教授。主要研究方向为分布式发电技术和配电网停电管理。E-mail：khhzyz@163.com
苏福清,男,1995年生,硕士研究生。主要研究方向为电力系统优化运行与控制。E-mail：su_fuqing@163.com
钟浩,男,1983年生,博士,副教授。主要研究方向为电力系统运行与控制,梯级水电站运行与控制。E-mail：zhonghao022@163.com
基金资助:
* 湖南省自然科学基金(2018JJ4076);湖北省重点实验室开放基金资助项目(2019KJX06)

Reactive Power Optimization Based on Cauchy Mutation and Improved Adaptive Particle Swarm Optimization

SU Fuqing¹(), KUANG Honghai¹, ZHONG Hao²(), KUANG Wei¹(), TAO Cheng¹

1. College of Electrical and Information Engineering, Hunan University of Technology, Zhuzhou 412007
2. Hubei Key Laboratory of Cascaded Hydropower Stations Operation & Control, China Three Gorges University, Yichang 443002

Received:2020-08-08 Revised:2021-01-18 Online:2021-03-25 Published:2021-03-25
Contact: KUANG Wei E-mail:su_fuqing@163.com;zhonghao022@163.com;khhzyz@163.com

摘要/Abstract

摘要：

针对粒子群算法用于无功优化问题求解时存在早熟收敛,易陷入局部最优的现象,提出了基于柯西变异的自适应混沌粒子群算法。该算法在引入自适应调整策略和对最佳粒子采用混沌搜索的基础上,对算法陷入早熟收敛状态时引入柯西变异操作,将适应度值排名位于前20%的最优粒子进行柯西扰动,以保证粒子群的多样性,有效地提高了算法后期跳出局部最优解的能力。以有功网损为目标函数,并入电压和无功出力约束的惩罚函数项,对IEEE 14和IEEE 30节点标准算例进行仿真计算,验证了该算法的正确性和可行性。

关键词: 混沌搜索, 粒子群优化算法, 柯西变异, 无功优化

Abstract:

Aiming at the phenomenon of premature convergence and easy to fall into local optimum when the particle swarm algorithm is used to solve reactive power optimization problems, an adaptive chaotic particle swarm algorithm based on Cauchy mutation is proposed. Based on the introduction of adaptive adjustment strategies and chaotic search for the best particles, Cauchy mutation operation is led in when the algorithm falls into a premature convergence state, and performs Cauchy perturbation on the best particles with fitness values ranked in the top 20% to ensure the diversity of particle swarms, thus the ability of the algorithm to jump out of the local optimal solution is enhanced effectively in the later stage. Taking the active power loss as the objective function and incorporating the penalty function terms of the voltage and reactive power output constraints, the simulation calculations of IEEE 14 and IEEE 30 node standard examples have verified the correctness and feasibility of the algorithm.

Key words: Chaotic search, particle swarm optimization, Cauchy mutation, reactive power optimization

中图分类号:

TM711

苏福清, 匡洪海, 钟浩, 匡威, 陶成. 基于柯西变异改进粒子群算法的无功优化 ^*[J]. 电气工程学报, 2021, 16(1): 55-61.

SU Fuqing, KUANG Honghai, ZHONG Hao, KUANG Wei, TAO Cheng. Reactive Power Optimization Based on Cauchy Mutation and Improved Adaptive Particle Swarm Optimization[J]. Journal of Electrical Engineering, 2021, 16(1): 55-61.

图/表 10

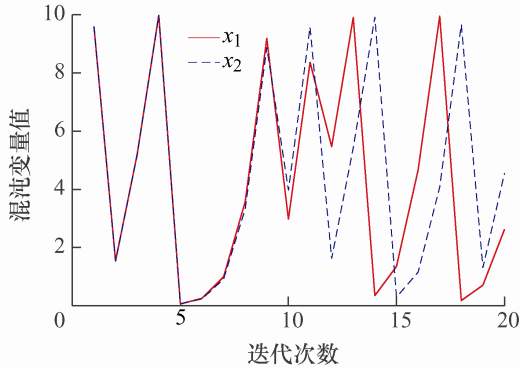

图1

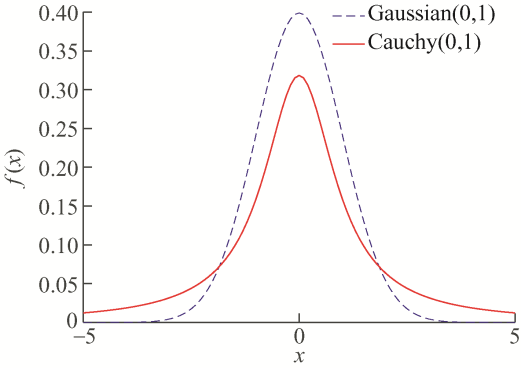

图2

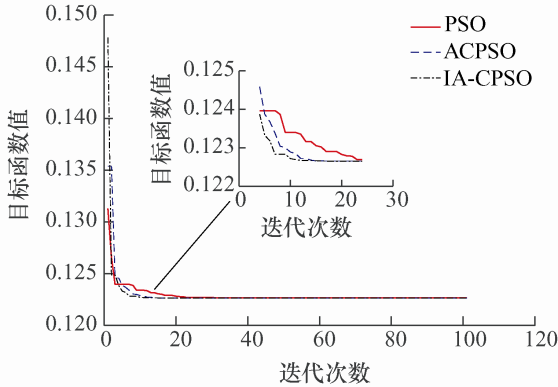

图3

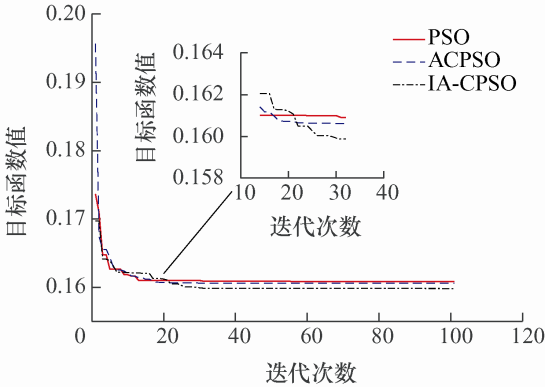

图4

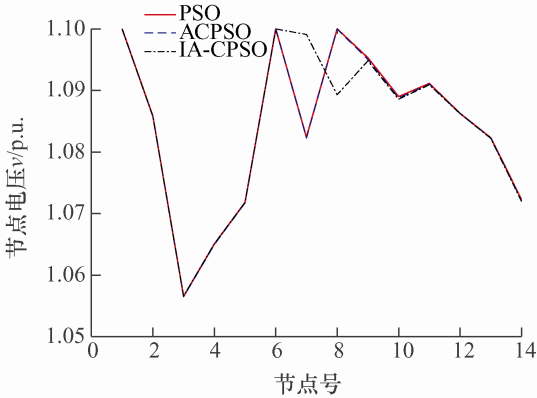

图5

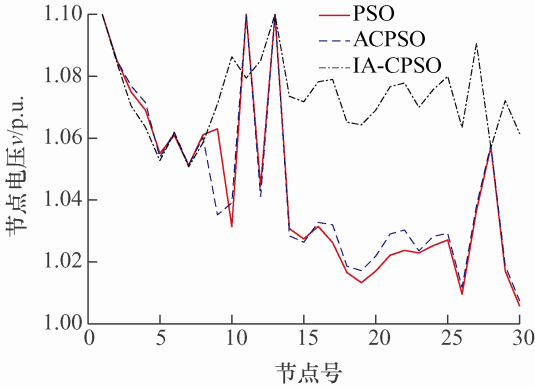

图6

表1

表2

表3

表4

参考文献 22

[1]	DAI Chaohua, CHEN Weirong, ZHU Yunfang, et al. Seeker optimization algorithm for optimal reactive power dispatch[J]. IEEE Transactions on Power Systems, 2009,24(3):1218-1231.
[2]	赵晋泉, 居俐洁, 戴则梅, 等. 基于分支定界—原对偶内点法的日前无功优化[J]. 电力系统自动化, 2015,39(15):55-60.
	ZHAO Jinquan, JU Lijie, DAI Zemei, et al. Day-to-day reactive power optimization based on branch and bound-primary interior point method[J]. Power System Automation, 2015,39(15):55-60.
[3]	冷永杰, 张路寅, 赵建峰, 等. 基于多线程遗传算法的目标分级地区电网电压无功优化控制[J]. 电力系统保护与控制, 2015,43(18):37-41.
	LENG Yongjie, ZHANG Luyin, ZHAO Jianfeng, et al. Optimal control of voltage and reactive power in target grading area based on multithread genetic algorithm[J]. Power System Protection and Control, 2015,43(18):37-41.
[4]	周鑫, 诸弘安, 马爱军. 基于多种群蚁群算法的多目标动态无功优化[J]. 电网技术, 2012,36(7):231-236.
	ZHOU Xin, ZHU Hongan, MA Aijun. Multi-objective dynamic reactive power optimization based on multiple colony ant colony algorithm[J]. Power System Technology, 2012,36(7):231-236.
[5]	杨东海, 刘洋, 王毅, 等. 基于二进制蚁群模糊神经网络的光伏系统MPPT控制算法研究[J]. 电气工程学报, 2017,12(6):41-46.
	YANG Donghai, LIU Yang, WANG Yi, et al. Research on MPPT control algorithm of photovoltaic system by binary ant colony algorithm and fuzzy neural network[J]. Journal of Electrical Engineering, 2017,12(6):41-46.
[6]	刘前进, 许慧铭, 施超. 基于人工蜂群算法的多目标最优潮流问题的研究[J]. 电力系统保护与控制, 2015,43(8):1-7.
	LIU Qianjin, XU Huiming, SHI Chao. Research on multi-objective optimal power flow based on artificial bee colony algorithm[J]. Power System Protection and Control, 2015,43(8):1-7.
[7]	李珂, 邰能灵, 张沈习. 基于改进粒子群算法的配电网综合运行优化[J]. 上海交通大学学报, 2017,51(8):897-902.
	LI Ke, TAI Nengling, ZHANG Shenxi. Comprehensive operation optimization of distribution network based on improved particle swarm algorithm[J]. Journal of Shanghai Jiaotong University, 2017,51(8):897-902.
[8]	WANG Yixiao, LI Yong, LI Jiang, et al. PSO-based optimization for constant-current charging pattern for Li-ion battery[J]. Chinese Journal of Electrical Engineering, 2019,5(2):72-78.
[9]	SHI Y, EBERHART R C. A modified particle swarm optimizer[C]// Proceedings of the IEEE Conference on Evolutionary Computation. Piscataway, NJ: IEEE Press, 1998: 69-73.
[10]	CLERC M. The swarm and the queen:Towards a deterministic and adaptive particles swarm optimization[J]. Proc. of IEEE Congress on Evolutionary Computation, 1999(8):1951-1957.
[11]	蒋晓屾, 任佳, 顾敏明. 多维度惯性权重衰减混沌化粒子群算法及应用[J]. 仪器仪表学报, 2015,36(6):1333-1341.
	JIANG Xiaofen, REN Jia, GU Minming. Multi-dimensional inertial weight attenuation chaotic particle swarm optimization algorithm and its application[J]. Chinese Journal of Scientific Instrument, 2015,36(6):1333-1341.
[12]	葛朝晖, 王颖, 刘梦怡, 等. 基于自适应粒子群优化算法的有源配电网多目标动态无功优化[J]. 电力系统及其自动化学报, 2018,30(11):44-51.
	GE Zhaohui, WANG Ying, LIU Mengyi, et al. Multi-objective dynamic reactive power optimization of active distribution network based on adaptive particle swarm optimization algorithm[J]. Journal of Electric Power System and Automation, 2018,30(11):44-51.
[13]	HE Yuyan, WANG Aihu, SU Hailiang, et al. Particle swarm optimization using neighborhood-based mutation operator and intermediate disturbance strategy for outbound container storage location assignment problem[J]. Mathematical Problems in Engineering, 2019: 1-13.
[14]	张进, 丁胜, 李波. 改进的基于粒子群优化的支持向量机特征选择和参数联合优化算法[J]. 计算机应用, 2016,36(5):1330-1335.
	ZHANG Jin, DING Sheng, LI Bo. Improved support vector machine feature selection and parameter joint optimization algorithm based on particle swarm optimization[J]. Computer Applications, 2016,36(5):1330-1335.
[15]	吴小刚, 刘宗歧, 田立亭, 等. 基于改进多目标粒子群算法的配电网储能选址定容[J]. 电网技术, 2014,38(12):3405-3411.
	WU Xiaogang, LIU Zongqi, TIAN Liting, et al. Energy storage location and distribution of distribution network based on improved multi-objective particle swarm optimization algorithm[J]. Power System Technology, 2014,38(12):3405-3411.
[16]	张燕, 许伟伟. 基于粒子群-差异进化混合算法的电力系统无功优化[J]. 电工电能新技术, 2014,33(9):48-51,67.
	ZHANG Yan, XU Weiwei. Reactive power optimization of power system based on particle swarm optimization-differential evolution hybrid algorithm[J]. New Technology of Electrical Engineering and Energy, 2014,33(9):48-51,67.
[17]	贠保记, 白森珂, 张国. 基于混沌自适应粒子群算法的冷热电联供系统优化[J]. 电力系统保护与控制, 2020,48(10):123-130.
	YUN Baoji, BAI Senke, ZHANG Guo. Optimization of combined cooling, heating and power cogeneration system based on chaotic adaptive particle swarm optimization[J]. Power System Protection and Control, 2020,48(10):123-130.
[18]	李娟, 杨琳, 刘金龙, 等. 基于自适应混沌粒子群优化算法的多目标无功优化[J]. 电力系统保护与控制, 2011,39(9):26-31.
	LI Juan, YANG Lin, LIU Jinlong, et al. Multi-objective reactive power optimization based on adaptive chaotic particle swarm optimization algorithm[J]. Power System Protection and Control, 2011,39(9):26-31.
[19]	王宇鹏, 王致杰, 刘琦, 等. 基于动态柯西蜂群算法优化支持向量机的风机叶片故障诊断[J]. 电气工程学报, 2018,13(1):16-22.
	WANG Yupeng, WANG Zhijie, LIU Qi, et al. Fault diagnosis of wind turbine blade based on Cauchy artificial bee colony algorithm optimized support vector machine[J]. Journal of Electrical Engineering, 2018,13(1):16-22.
[20]	PENG G, FANG Y, CHAI D, et al. Multi-objective particle swarm optimization algorithm based on sharing-learning and cauchy mutation[C]// Control Conference,IEEE, 2016, 9155-9160.
[21]	龚纯, 王正林. 精通MATLAB最优化计算[M]. 北京: 电子工业出版社, 2012.
	GONG Chun, WANG Zhenglin. Proficient in MATLAB optimization calculation[M]. Beijing: Electronic Industry Press, 2012.
[22]	侯硕楠. 改进的粒子群算法及其在电力系统无功优化中的应用[D]. 沈阳:东北大学, 2014.
	HOU Shuonan. Improved particle swarm optimization algorithm and its application in power system reactive power optimization[D]. Shenyang:Northeastern University, 2014.

	PSO	ACPSO	IA-CPSO
V_G2	1.086	1.086	1.086
V_G3	1.057	1.057	1.057
V_G4	1.100	1.100	1.100
V_G5	1.100	1.100	1.089
K_T1	1.025	1.025	0.950
K_T2	0.900	0.900	1.050
K_T3	1.000	1.000	1.000
Q_C1	0.200	0.200	0.300

	PSO	ACPSO	IA-CPSO
V_G2	1.086	1.086	1.084
V_G3	1.055	1.054	1.052
V_G4	1.061	1.060	1.058
V_G5	1.100	1.100	1.079
V_G6	1.100	1.100	1.100
K_T1	0.975	1.100	1.025
K_T2	1.100	0.900	1.025
K_T3	1.075	1.100	0.975
K_T4	1.075	1.000	0.950
Q_C1	0	0	0.400
Q_C2	0.100	0.100	0.100

	有功网损/p.u.	降损率(%)
初始潮流	0.133 930	?
PSO	0.122 657	8.42
ACPSO	0.122 657	8.42
IA-CPSO	0.122 650	8.42

	有功网损/p.u.	降损率(%)
初始潮流	0.175 57	?
PSO	0.160 841	8.39
ACPSO	0.160 612	8.52
IA-CPSO	0.159 815	8.97
