聚丙烯载流子输运与能量积累调制直流击穿威布尔分布特性仿真研究

doi:10.11985/2021.02.007

电气工程学报 ›› 2021, Vol. 16 ›› Issue (2): 50-59.doi: 10.11985/2021.02.007

• 特邀专栏：高压电工装备绝缘 • 上一篇下一篇

扫码分享

聚丙烯载流子输运与能量积累调制直流击穿威布尔分布特性仿真研究

蔡姝娆¹(), 高梓巍¹, 纪民尊¹, 姚佳池¹, 李鹏新¹, 闵道敏¹(), 李盛涛¹, 武庆周²

1.西安交通大学电力设备电气绝缘国家重点实验室西安 710049
2.中国工程物理研究院流体物理研究所绵阳 621900

收稿日期:2021-03-01 修回日期:2021-04-28 出版日期:2021-06-25 发布日期:2021-08-05
通讯作者: 闵道敏 E-mail:3386726546@qq.com;forrestmin@xjtu.edu.cn
作者简介:闵道敏,男,1985年生,副教授,博士研究生导师。主要研究方向为聚合物纳米复合电介质击穿机理与储能性能提升方法、聚合物纳米复合电介质界面区介观性质和击穿/储能特性的计算与仿真。E-mail： forrestmin@xjtu.edu.cn
蔡姝娆,女,1998年生,硕士研究生。主要研究方向为聚合物基纳米复合电介质的界面区性质、高温击穿与储能性能的提升方法。E-mail： 3386726546@qq.com

Simulation of Carrier Transport and Energy Accumulation Modulated DC Breakdown Weibull Distribution in Polypropylene

CAI Shurao¹(), GAO Ziwei¹, JI Minzun¹, YAO Jiachi¹, LI Pengxin¹, MIN Daomin¹(), LI Shengtao¹, WU Qingzhou²

1. State Key Laboratory of Electrical Insulation and Power Equipment, Xi’an Jiaotong University, Xi’an 710049
2. Institute of Fluid Physics, China Academy of Engineering Physics, Mianyang 621900

Received:2021-03-01 Revised:2021-04-28 Online:2021-06-25 Published:2021-08-05
Contact: MIN Daomin E-mail:3386726546@qq.com;forrestmin@xjtu.edu.cn

摘要/Abstract

摘要：

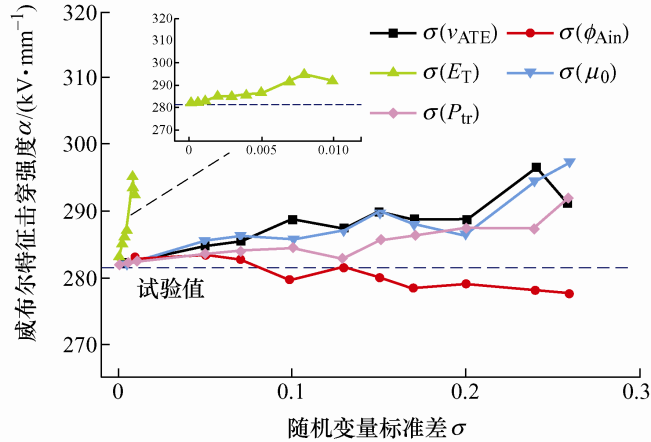

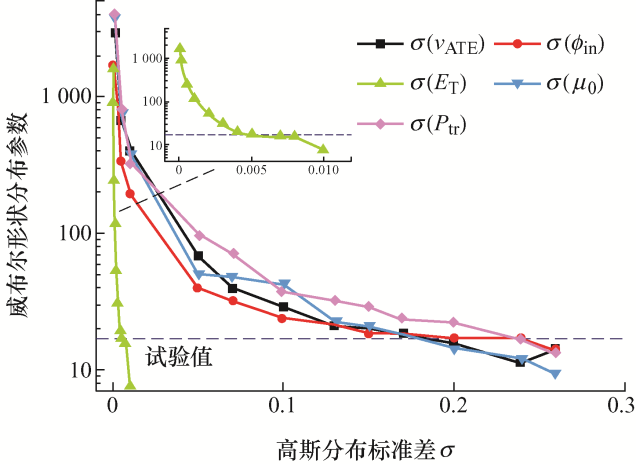

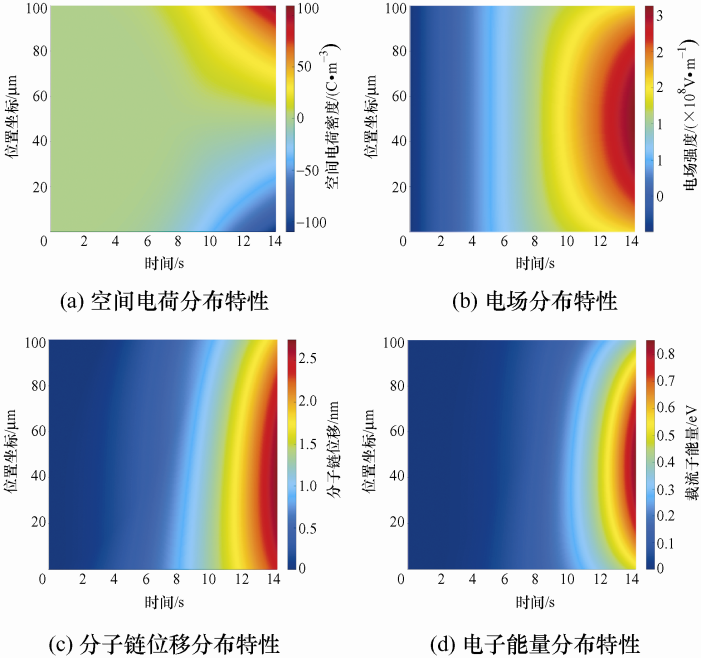

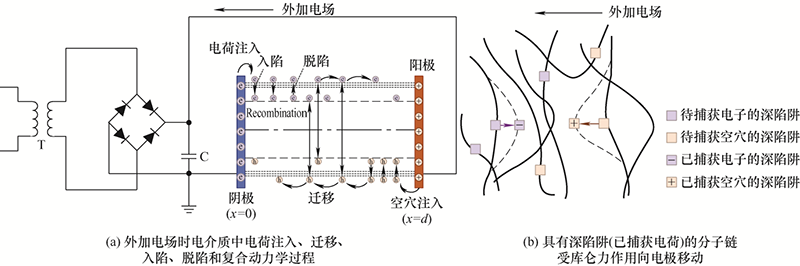

聚丙烯因其优异的电气和化学性能被广泛应用于薄膜电容器,但直流电场中电介质的击穿是制约电容器储能密度提高的关键因素。外施强电场作用下,电极/绝缘电介质界面注入的电荷在电场力驱动下输运并积累能量,形成泄漏电流,积聚空间电荷、畸变电场,最终导致绝缘电介质发生击穿破坏。从载流子输运和能量积累造成绝缘电介质击穿的物理过程,提炼出决定击穿场强分散性的电荷注入势垒、试图逃逸频率、载流子迁移率、陷阱能级、陷阱密度和陷阱捕获概率六个电荷输运特征参数。将电荷输运特征参数设置为随机变量,采用电荷输运和分子链位移调制击穿模型仿真了载流子输运与能量积累过程,得到的击穿强度计算结果服从威布尔分布。建立了威布尔特征击穿强度与形状分布参数随不同电荷输运随机变量方差的变化关系：随着方差的增大,特征击穿强度基本稳定在试验值附近,形状分布参数由于击穿数据分散性增大而下降。对比各输运参数方差与威布尔分布的关系,发现威布尔分布对陷阱能级的依赖性较强,对试图逃逸频率和迁移率的依赖性较弱,对注入势垒和陷阱捕获概率的依赖性最弱。研究结果阐释了电荷输运随机变量通过调控载流子输运与能量积累改变击穿威布尔分布特性的作用机理。

关键词: 直流击穿威布尔分布, 形状分布参数, 电荷输运随机变量, 载流子输运与能量积累, 分子链位移与自由体积扩张

Abstract:

Polypropylene is widely used in thin-film capacitors for its excellent electrical and chemical properties. However, the dielectric breakdown under DC electrical field is the key factor restricting the improvement of the energy storage density of capacitors. Under the action of the external strong electric field, the charge injected from the electrode/dielectric interface is driven by the electric field force to transport and accumulate energy, forming leakage current, accumulating space charge, and distorting electric field, which eventually leads to the breakdown of the dielectric. Based on the physical process of dielectric breakdown caused by carrier transport and energy accumulation, six characteristic parameters of charge transport, including charge injection barrier, attempted escape frequency, carrier mobility, trap energy level, trap density, and trap capture probability, are extracted. The charge transport characteristic parameters are set as random variables, and the carrier transport and energy accumulation process are simulated by carrier transport and molecular displacement modulated electrical breakdown model. The calculated breakdown strength follows Weibull distribution. The relationship between Weibull characteristic electrical breakdown strength and shape distribution parameter with the variance of different charge transport random variables is established: with the increase of variance, the characteristic electrical breakdown strength is basically stable near the experimental value, and the shape distribution parameter decreases due to the increase of dispersion of breakdown data. Comparing the relationship between the variance of transport parameters and Weibull distribution, it is found that Weibull distribution has a strong dependence on trap energy level, a weak dependence on escape frequency and mobility, and the weakest dependence on injection barrier and trap capture probability. The results explain the mechanism of charge transport random variables changing the breakdown Weibull distribution by regulating carrier transport and energy accumulation.

Key words: Weibull distribution of DC breakdown, shape distribution parameter, charge transport random variables, carrier transport and energy accumulation, chain displacement and free volume expansion

中图分类号:

TM85

蔡姝娆, 高梓巍, 纪民尊, 姚佳池, 李鹏新, 闵道敏, 李盛涛, 武庆周. 聚丙烯载流子输运与能量积累调制直流击穿威布尔分布特性仿真研究[J]. 电气工程学报, 2021, 16(2): 50-59.

CAI Shurao, GAO Ziwei, JI Minzun, YAO Jiachi, LI Pengxin, MIN Daomin, LI Shengtao, WU Qingzhou. Simulation of Carrier Transport and Energy Accumulation Modulated DC Breakdown Weibull Distribution in Polypropylene[J]. Journal of Electrical Engineering, 2021, 16(2): 50-59.

图/表 10

图1

表1

图2

图3

图4

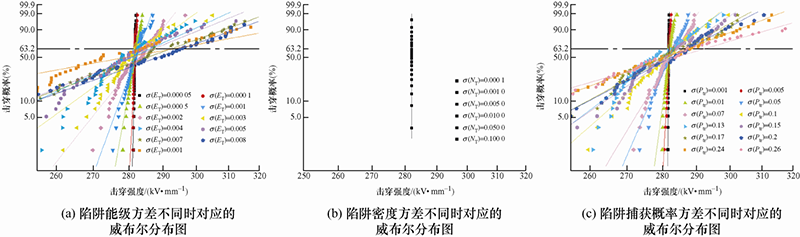

图5

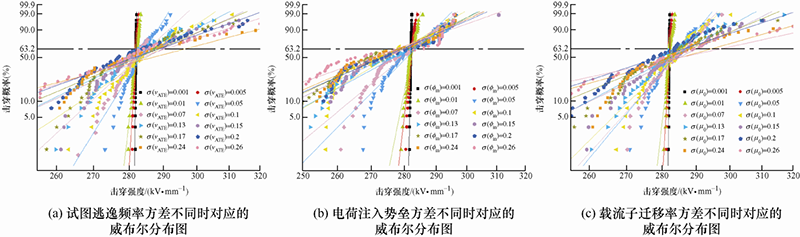

图6

图7

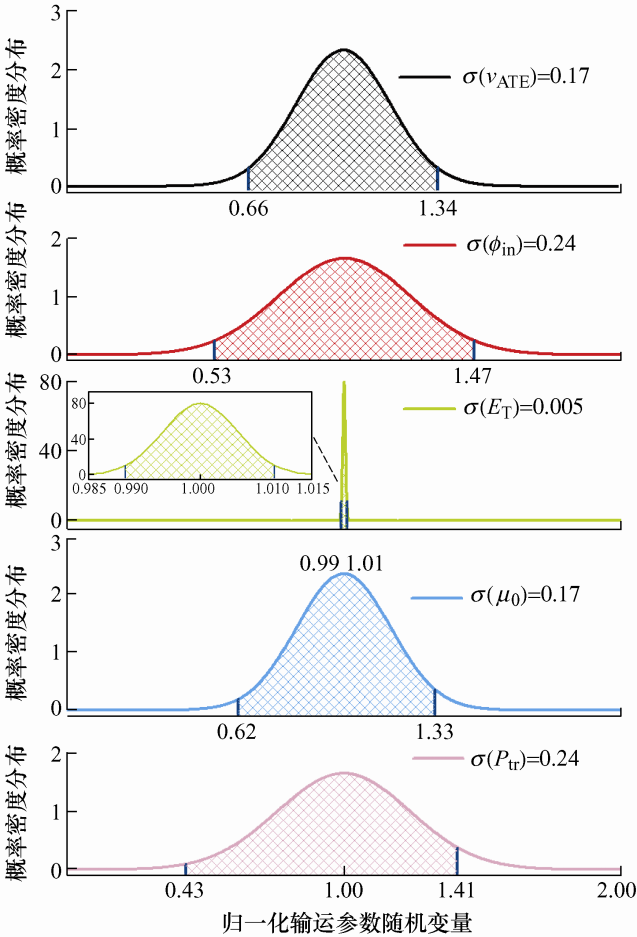

图8

表2

参考文献 25

[1]	TAN D Q. Review of polymer-based nanodielectric exploration and film scale-up for advanced capacitors[J]. Advanced Functional Materials, 2020, 30(18):1808567. doi: 10.1002/adfm.v30.18
[2]	PAN Zhongbin, YAO Lingmin, ZHAI Jiwei, et al. Interfacial coupling effect in organic/inorganic nanocomposites with high energy density[J]. Advanced Materials, 2018, 30(17):1705662. doi: 10.1002/adma.v30.17
[3]	ZHA Junwei, WU Yunhui, WANG Sijiao, et al. Improvement of space charge suppression of polypropylene for potential application in HVDC cables[J]. IEEE Transactions on Dielectrics and Electrical Insulation, 2016, 23(4):2337-2343. doi: 10.1109/TDEI.2016.7556511
[4]	DIAO Jinchao, HUANG Xingyi, JIA Qingchao, et al. Thermoplastic isotactic polypropylene/ethylene-octene polyolefin copolymer nanocomposite for recyclable HVDC cable insulation[J]. IEEE Transactions on Dielectrics and Electrical Insulation, 2017, 24(3):1416-1429. doi: 10.1109/TDEI.2017.006208
[5]	TANAKA T, KOZAKO M, FUSE N, et al. Proposal of a multi-core model for polymer nanocomposite dielectrics[J]. IEEE Transactions on Dielectrics and Electrical Insulation, 2005, 12(4):669-681. doi: 10.1109/TDEI.2005.1511092
[6]	李吉晓, 张冶文, 夏钟福, 等. 空间电荷在聚合物老化和击穿过程中的作用[J]. 科学通报, 2000, 45(23):2469-2475.
	LI Jixiao, ZHANG Yewen, XIA Zhongfu, et al. The effect of space charge in polymer aging and breakdown[J]. Chinese Science Bulletin, 2000, 45(23):2469-2475.
[7]	周远翔, 王宁华, 王云杉, 等. 固体电介质空间电荷研究进展[J]. 电工技术学报, 2008(9):16-25.
	ZHOU Yuanxiang, WANG Ninghua, WANG Yunshan, et al. Review of research on space charge in solid dielectrics[J]. Transactions of China Electrotechnical Society, 2008(9):16-25.
[8]	张冶文, 赵晖, 李宗泽, 等. 聚乙烯与聚丙烯中空间电荷注入特性的比较[J]. 高电压技术, 2014, 40(9):2613-2618.
	ZHANG Yewen, ZHAO Hui, LI Zongze, et al. Comparison of space charge injection behaviors between polythene and polypropylene[J]. High Voltage Engineering, 2014, 40(9):2613-2618.
[9]	吴锴, 朱庆东, 陈曦, 等. 温度梯度效应对油纸绝缘材料空间电荷分布特性的影响[J]. 高电压技术, 2011, 37(4):823-827.
	WU Kai, ZHU Qingdong, CHEN Xi, et al. Effect of temperature gradient on space charge distribution in oil impregnated papers[J]. High Voltage Engineering, 2011, 37(4):823-827.
[10]	LI Shengtao, MIN Daomin, WANG Weiwang, et al. Modelling of dielectric breakdown through charge dynamics for polymer nanocomposites[J]. IEEE Transactions on Dielectrics and Electrical Insulation, 2016, 23(6):3476-3485. doi: 10.1109/TDEI.2016.006051
[11]	MIN Daomin, LI Shengtao, OHKI Y. Numerical simulation on molecular displacement and DC breakdown of LDPE[J]. IEEE Transactions on Dielectrics and Electrical Insulation, 2016, 23(1):507-516. doi: 10.1109/TDEI.2015.005402
[12]	MIN Daomin, LI Yuwei, YAN Chenyu, et al. Thickness-dependent DC electrical breakdown of polyimide modulated by charge transport and molecular displacement[J]. Polymers, 2018, 10(9):1012. doi: 10.3390/polym10091012
[13]	MIN Daomin, YAN Chenyu, MI Rui, et al. Carrier transport and molecular displacement modulated DC electrical breakdown of polypropylene nanocomposites[J]. Polymers, 2018, 10(11):1207. doi: 10.3390/polym10111207
[14]	SCOTT J C, MALLIARAS G G. Charge injection and recombination at the metal-organic interface[J]. Chemical Physics Letters, 1999, 299(2):115-119. doi: 10.1016/S0009-2614(98)01277-9
[15]	MIN Daomin, WANG Weiwang, LI Shengtao. Numerical analysis of space charge accumulation and conduction properties in LDPE nanodielectrics[J]. IEEE Transactions on Dielectrics and Electrical Insulation, 2015, 22(3):1483-1491. doi: 10.1109/TDEI.2015.7116341
[16]	CHEN G, ZHAO Junwei, LI Shengtao, et al. Origin of thickness dependent DC electrical breakdown in dielectrics[J]. Applied Physics Letters, 2012, 100(22):222904. doi: 10.1063/1.4721809
[17]	WANG Weiwang, MIN Daomin, LI Shengtao. Understanding the conduction and breakdown properties of polyethylene nanodielectrics:Effect of deep traps[J]. IEEE Transactions on Dielectrics and Electrical Insulation, 2016, 23(1):564-572. doi: 10.1109/TDEI.2015.004823
[18]	闵道敏. 聚合物介质材料电荷捕获输运特性和机理的研究[D]. 西安:西安交通大学, 2017.
	MIN Daomin. Investigation into charge trapping transport properties and mechanisms in polymeric insulating materials[D]. Xi’an:Xi’an Jiaotong University, 2017.
[19]	HOLST J J M V D, OOST F W A V, COEHOORN R, et al. Electron-hole recombination in disordered organic semiconductors:Validity of the Langevin formula[J]. Physical Review B, 2009, 80(23):235202. doi: 10.1103/PhysRevB.80.235202
[20]	SHOCKLEY W, READ W T. Statistics of the recombinations of holes and electrons[J]. Physical Review, 1952, 87(5):835-842. doi: 10.1103/PhysRev.87.835
[21]	KUIK M, KOSTER L J A, WETZELAER G A H, et al. Trap-assisted recombination in disordered organic semiconductors[J]. Physical Review Letters, 2011, 107(25):256805. doi: 10.1103/PhysRevLett.107.256805
[22]	LOWELL J. Absorption and conduction currents in polymers:A unified model[J]. Journal of Physics D-Applied Physics, 1990, 23(2):205-210. doi: 10.1088/0022-3727/23/2/011
[23]	COLLINS G, FEDERICI J, IMURA Y, et al. Charge generation,charge transport,and residual charge in the electrospinning of polymers:A review of issues and complications[J]. Journal of Applied Physics, 2012, 111(4):044701. doi: 10.1063/1.3682464
[24]	LAU K Y, VAUGHAN A S, CHEN G, et al. Polyethylene/silica nanocomposites:Absorption current and the interpretation of SCLC[J]. Journal of Physics D-Applied Physics, 2016, 49(29):295305. doi: 10.1088/0022-3727/49/29/295305
[25]	SIMMONS J G, TAYLOR G W. Nonequilibrium steady-state statistics and associated effects for insulators and semiconductors containing an arbitraty distribution of traps[J]. Physical Review B-Solid State, 1971, 4(2):502-511. doi: 10.1103/PhysRevB.4.502

参数	期望值
温度T/℃	33
样品厚度d/mm	100
升压速率k_ramp/(V/s)	2 000
相对介电常数ε_r	2.3(1 MHz)
陷阱能级E_T/eV	0.86
陷阱密度N_T/m^-3	1.0×10²¹
陷阱捕获概率P_tr/s^-1	0.085
试图逃逸频率v_ATE/s^-1	1.727×10⁸
注入势垒ϕ_in/eV	0.86
载流子迁移率μ₀/(m²·V^-1·s^-1)	1.0×10^-13

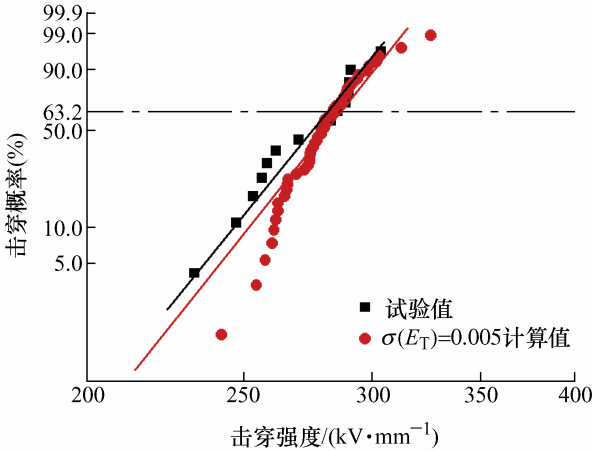

数值	威布尔参数
数值	α/(kV·mm^-1)	β
试验值	281.5	17.0
计算值-σ(E_T)=0.005	287.0	17.3
