不平衡情况下逆变型分布式电源并网控制策略研究

doi:10.11985/2016.07.005

摘要/Abstract

摘要：

在电网不平衡情况下,基于传统控制策略的并网逆变器将在直流侧和交流侧产生大量谐波,导致功率大幅波动,系统性能恶化,因此并网逆变器的有效控制,对提高逆变型分布式电源并网能力具有重要意义。针对上述问题,本文提出了一种电压不平衡跌落下的线性无功功率控制策略。首先分析了不同控制目标对逆变器并网输出功率和电流的影响,建立统一参考电流矢量表达式,然后结合正负序双电流独立内环控制,应用瞬时功率理论,实现所提出的控制策略。该控制策略在电网不平衡跌落情况下能有效抑制并网电流谐波,调整并网点电压,降低系统不平衡度,从而提高逆变器并网能力。仿真结果验证了所提出方法的有效性和适用性。

关键词: 电网不平衡, 并网逆变器, 功率脉动, 并网控制, 正负序电流控制

Abstract:

In the case of unbalanced power grid, the grid-connected inverter with traditional control strategies will produce a large amount of harmonics at both the dc side and ac side, and then lead to fluctuations in power and performance deterioration. Therefore, more effective control is needed to improve the capability and functionality of grid-connected inverter interfaced distribute generator (IIDG). To overcome the problem, this paper analyzes the impacts of different control objectives on the inverter output power and grid-connected current, presents a unified reference current vector expression, and proposes a control method that combines the dual current control loop for positive and negative sequence and linear reactive power control. The control strategy can effectively suppress the grid current harmonic, adjust the voltage at the point of common coupling, reduce the unbalance of the system, and the ability of the inverter is enhanced. The simulation results validated the effectiveness of the proposed method.

Key words: Unbalanced power grid, grid-connected inverter, power ripple, grid-connected control, positive and negative sequence current control

中图分类号:

TM727

陶维青,顾芝瑕,丁明,王乐勤,李嘉茜. 不平衡情况下逆变型分布式电源并网控制策略研究[J]. 电气工程学报, 2016, 11(7): 32-38.

Weiqing Tao,Zhixia Gu,Ming Ding,Leqin Wang,Jiaxi Li. Research on Control Strategy of Grid-Connected Inverter under Unbalanced Voltage Conditions[J]. Journal of Electrical Engineering, 2016, 11(7): 32-38.

图/表 12

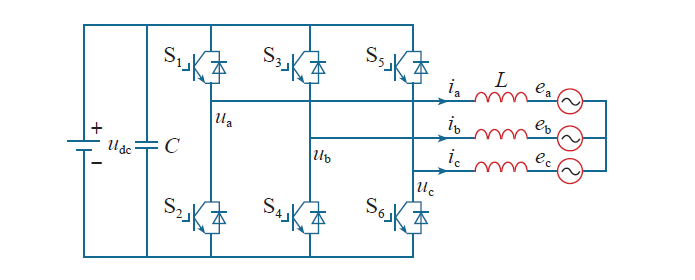

图1

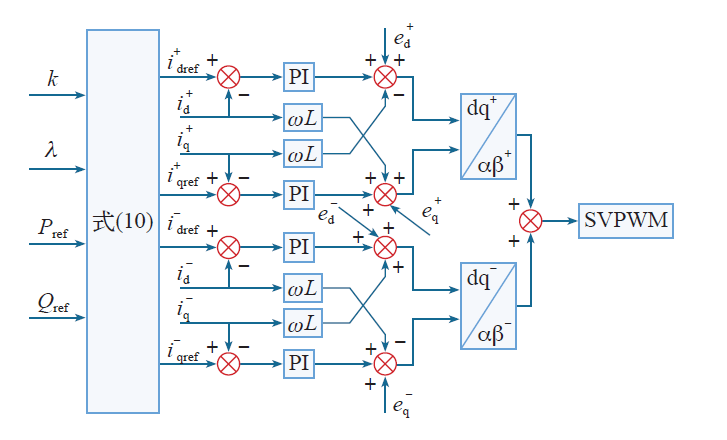

图2

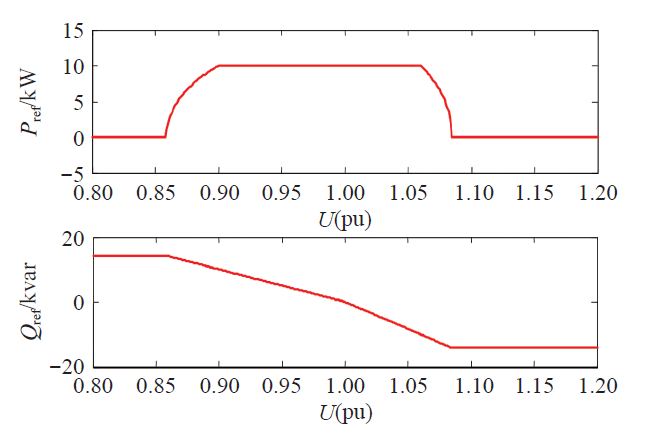

图3

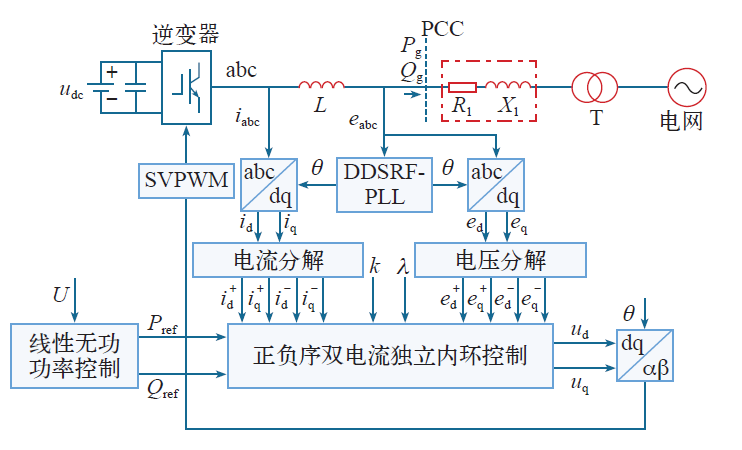

图4

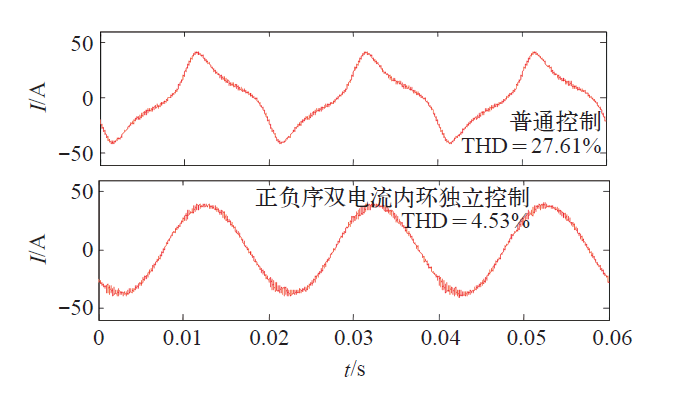

图5

图6

表1

表2

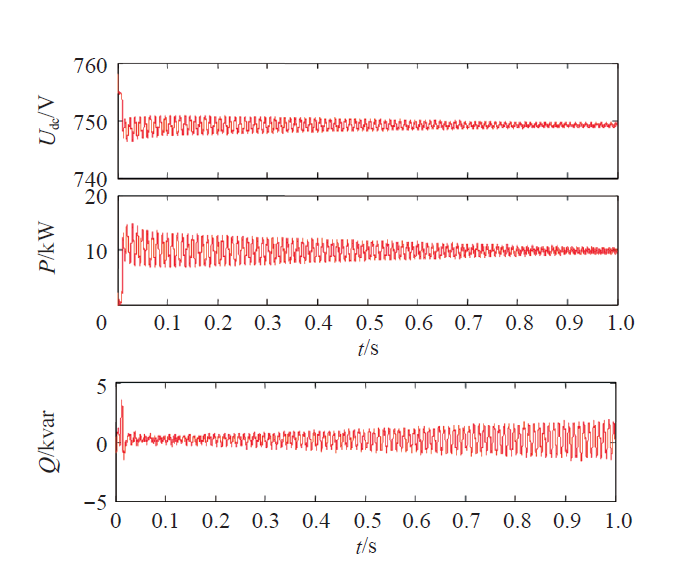

图7

图8

图9

表3

参考文献 16

[1]	冬雷, 廖晓钟, 刘广忱 , 等. 分布式风光互补发电系统及其多目标优化控制策略研究[J]. 仪器仪表学报, 2005,26(sup2):750-753.
	Dong Lei, Liao Xiaozhong, Liu Guangchen , et al. Muti-index optimization control strategy based on distributed PV and wind energy complemental generation system[J]. Chinese Journal of Scientific Instrument, 2005,26(sup2):750-753.
[2]	张兴, 季建强, 张崇巍 , 等. 基于内模控制的三相电压型PWM整流器不平衡控制策略研究[J]. 中国电机工程学报, 2005,25(13):51-56.
	Zhang Xing, Ji Jianqiang, Zhang Chongwei , et al. Study of internal model control based three-phase PWM rectifier under unbalanced input voltage condition[J]. Proceedings of the CSEE, 2005,25(13):51-56.
[3]	刘伟增, 周洪伟, 张磊 , 等. 电网不平衡条件下光伏并网控制策略研究[J]. 太阳能学报, 2013,34(4):647-653.
	Liu Weizeng, Zhou Hongwei, Zhang Lei , et al. Study on control strategy of grid connected PV inverter under unbalance grid conditions[J]. Acta Energiae Solaris Sinica, 2013,34(4):647-653.
[4]	Lee K, Jahns T M, Berkopec W E , et al. Closed-form analysis of adjustable-speed drive performance under input-voltage unbalance and sag conditions[J]. IEEE Transactions on Industry Applications, 2006,42(3):733-741. doi: 10.1109/TIA.2006.872953
[5]	耿强, 夏长亮, 阎彦 , 等. 电网电压不平衡情况下PWM整流器恒频直接功率控制[J]. 中国电机工程学报, 2010,30(36):79-85.
	Geng Qiang, Xia Changliang, Yan Yan , et al. Direct power control in constant switching frequency for pwm rectifier under unbalanced grid voltage conditions[J]. Proceedings of the CSEE, 2010,30(36):79-85.
[6]	Rioual P, Pouliquen H, Louis J P . Regulation of a PWM rectifier in the unbalanced network state using a generalized model[J]. IEEE Transactions on Power Electronics, 1996,11(3):495-502. doi: 10.1109/TPEL.63
[7]	Yin B, Oruganti R, Panda S K , et al. An Output-power-control strategy for a three-phase PWM rectifier under unbalanced supply conditions[J]. IEEE Transactions on Industrial Electronics, 2008,55(5):2140-2151. doi: 10.1109/TIE.2008.918643
[8]	Camacho A, Castilla M, Miret J , et al. Flexible voltage support control for three-phase distributed generation inverters under grid fault[J]. IEEE Transactions on Industrial Electronics, 2013,60(4):1429-1441. doi: 10.1109/TIE.2012.2185016
[9]	Song H S, Nam K . Dual current control scheme for PWM converter under unbalanced input voltage conditions[J]. IEEE Transactions on Industrial Electronics, 1999,46(5):953-959. doi: 10.1109/41.793344
[10]	章玮, 王宏胜, 任远 , 等. 不对称电网电压条件下三相并网型逆变器的控制[J]. 电工技术学报, 2010,25(12):103-110.
	Zhang Wei, Wang Hongsheng, Ren Yuan , et al. Investigation on control of three-phase grid-connected inverters under unbalanced grid voltage conditions[J]. Transactions of China Electrotechnical Society, 2010,25(12):103-110.
[11]	Chen S Z, Cheung N C, Zhang Y , et al. Improved grid synchronization control of doubly fed induction generator under unbalanced grid voltage[J]. IEEE Transactions on Energy Conversion, 2011,26(3):799-810. doi: 10.1109/TEC.2011.2158580
[12]	安志龙 . 光伏并网控制策略与低电压穿越技术研究[D]. 北京:华北电力大学, 2012.
[13]	赵新, 金新民, 周飞 , 等. 基于比例积分-降阶谐振调节器的并网逆变器不平衡控制[J]. 中国电机工程学报, 2013,33(19):84-92.
	Zhao Xin, Jin Xinmin, Zhou Fei , et al. Unbalanced control of grid-connected inverters based on proportion integral and reduced order resonant controllers[J]. Proceeding of the CSEE, 2013,33(19):84-92.
[14]	阳同光, 桂卫华 . 电网不平衡情况下并网逆变器多目标协调控制策略研究[J]. 电工技术学报, 2015,30(11):148-157.
	Yang Tongguang, Gui Weihua . Research on multi-objective coordinated control strategies of grid-connected inverter under unbalanced voltage conditions[J]. Transactions of China Electrotechnical Society, 2015,30(11):148-157.
[15]	王强钢, 周念成, 颜伟 , 等. 电网电压不平衡下光伏发电系统的改进功率控制[J]. 中国电机工程学报, 2013,33(sup1):30-37.
	Wang Qianggang, Zhou Niancheng, Yan Wei , et al. Improved power control of photovoltaic generation system under unbalanced grid voltage conditions[J]. Proceedings of the CSEE, 2013,33(sup1):30-37.
[16]	Mogos E F, Guillaud X. A voltage regulation system for distributed generation[C]. IEEE Power Systems Conference and Exposition, 2004: 787-794.

参数	数值
网侧电压/V	380
直流侧电压/V	750
直流侧电容/mF	1
滤波电感/mH	3
额定容量/kW	10

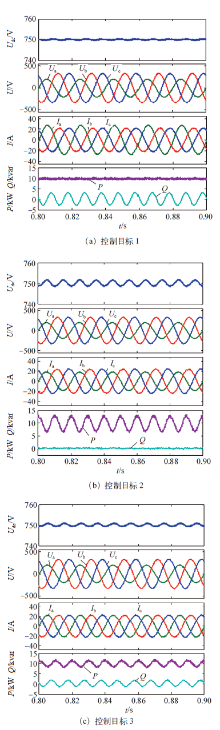

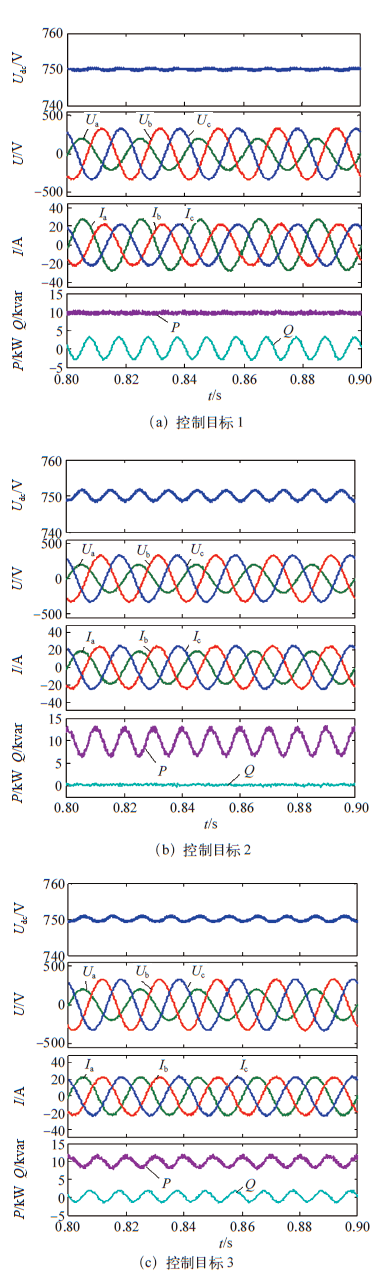

控制目标	控制参数	并网电流 THD(%)	并网电流不平衡度 (%)	直流侧电压2倍频脉动(%)	有功功率 2倍频脉动(%)	无功功率 2倍频脉动(%)
1	k=1	1.71	14.32	±0.04	±2.0	±32.5
1	λ=0	1.71	14.32	±0.04	±2.0	±32.5
2	k=0	3.28	16.25	±0.24	±31.5	±1.8
2	λ=0	3.28	16.25	±0.24	±31.5	±1.8
3	k=1	2.27	0.27	±0.15	±17.6	±18.4
3	λ=1	2.27	0.27	±0.15	±17.6	±18.4

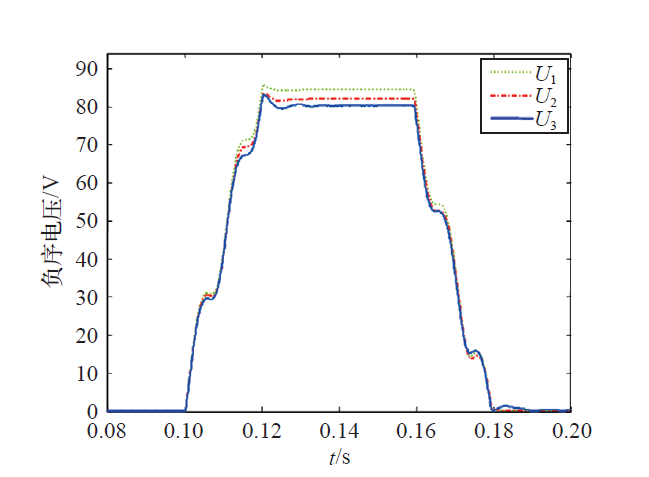

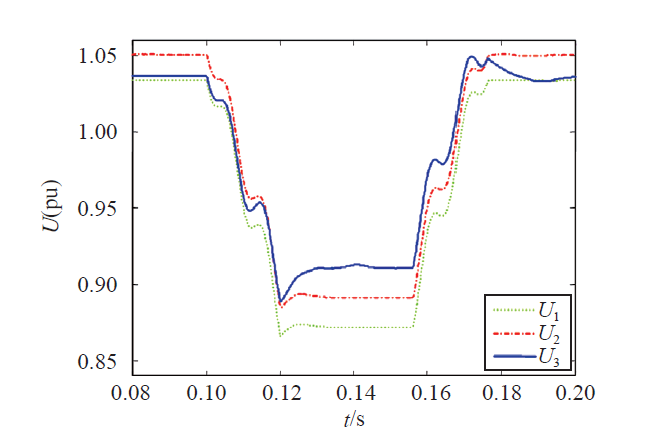

控制策略	电压正序分量方均根值	电压负序分量方均根值	负序电压不平衡度ε_U2(%)
1	242.7	84.5	34.82
2	250.15	82.14	32.84
3	257.3	80.28	31.20
