微电网中虚拟同步发电机的荷电状态控制策略

doi:10.11985/2016.04.005

电气工程学报 ›› 2016, Vol. 11 ›› Issue (4): 29-34.doi: 10.11985/2016.04.005

• 合肥工业大学电气与自动化工程学院专刊（一） • 上一篇下一篇

微电网中虚拟同步发电机的荷电状态控制策略

郭礼治,张兴,胡超,刘芳

合肥工业大学电气与自动化工程学院合肥 230009

收稿日期:2016-01-06 出版日期:2016-04-25 发布日期:2020-01-02
作者简介:郭礼治男 1989年生,硕士研究生,研究方向为新能源发电技术。|张兴男 1963年生,教授,博士生导师,研究方向为电力电子电力传动、新能源发电技术等。
基金资助:
国家“十二五”科技支撑计划资助(2014BAA04B02)

State of Charge Control Strategy of VSG in Microgrid

Guo Lizhi,Zhang Xing,Hu Chao,Liu Fang

Hefei University of Technology Hefei 230009 China

Received:2016-01-06 Online:2016-04-25 Published:2020-01-02

摘要/Abstract

摘要：

微电网中虚拟同步机（VSG）需要搭配储能模块满足持续的供电需求,如何对储能模块的荷电状态（SOC）进行控制就非常重要。针对该问题,本文在传统VSG控制的基础上,增加了基于比例积分（PI）调节器的SOC控制环节,并在建立小信号模型的基础上,通过极点配置的方式设计了调节器参数,使得系统具有良好的动态性能,最后通过仿真验证了该控制策略的正确性和可行性。

关键词: 虚拟同步发电机, 荷电状态, 极点配置

Abstract:

Virtual synchronous generator (VSG) in microgrid requires storage module to meet the needs of continuous power supply demand. It is vital to control the state of charge (SOC) of the storage module. To solve this problem, based on the traditional VSG control, SOC control section is added on the basis of proportional integral (PI) controller, and regulator parameter is established through pole assignment on the basis of small signal model, which makes the system a good dynamic performance. At last, the correctness and feasibility of the control strategy is verified by simulation.

Key words: Virtual synchronous generator, state of charge, pole assignment

中图分类号:

TM464

郭礼治,张兴,胡超,刘芳. 微电网中虚拟同步发电机的荷电状态控制策略[J]. 电气工程学报, 2016, 11(4): 29-34.

Guo Lizhi,Zhang Xing,Hu Chao,Liu Fang. State of Charge Control Strategy of VSG in Microgrid[J]. Journal of Electrical Engineering, 2016, 11(4): 29-34.

图/表 10

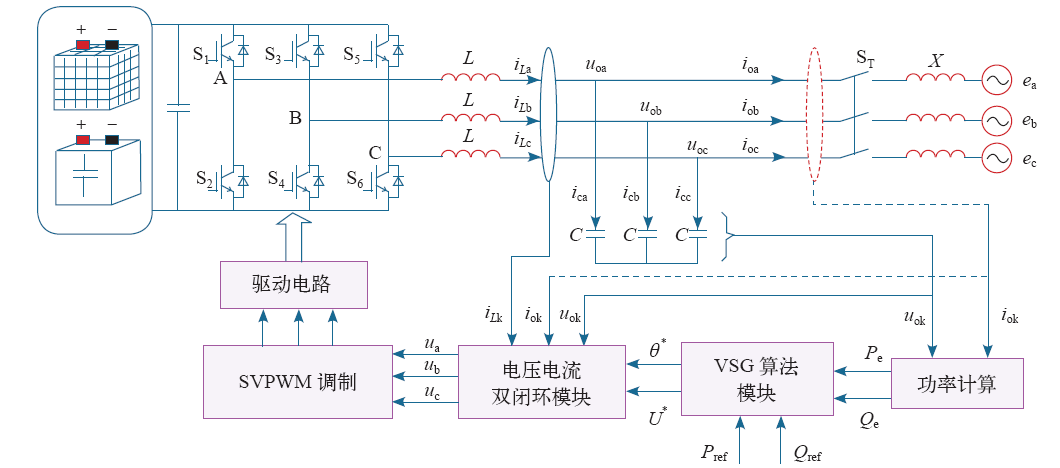

图1

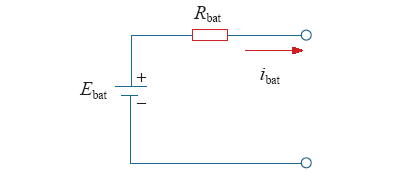

图2

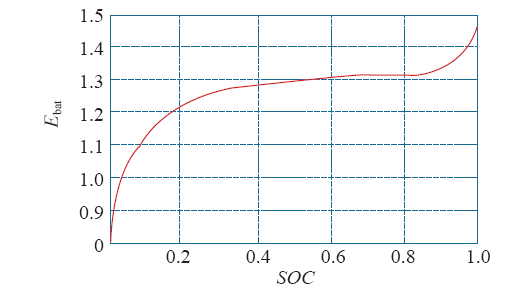

图3

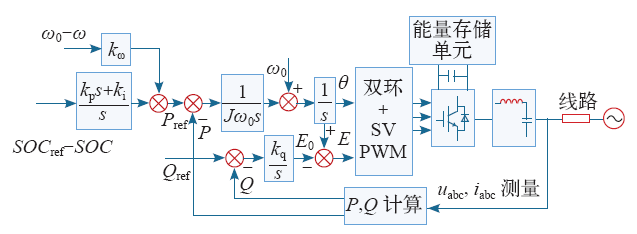

图4

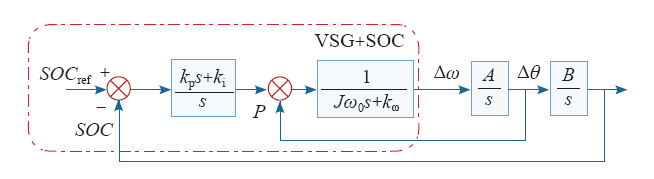

图5

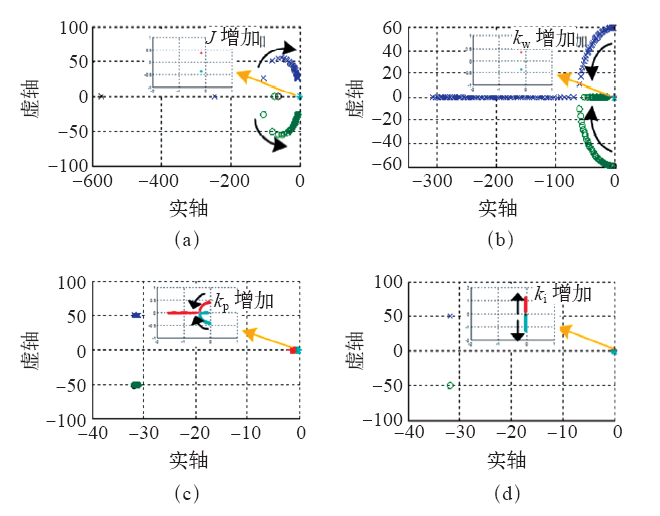

图6

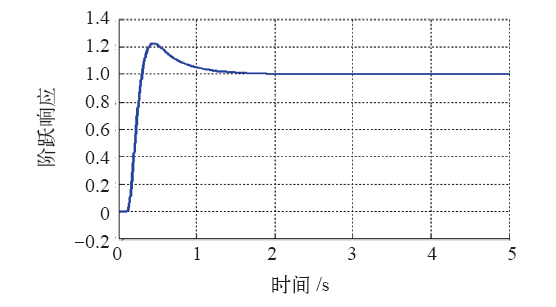

图7

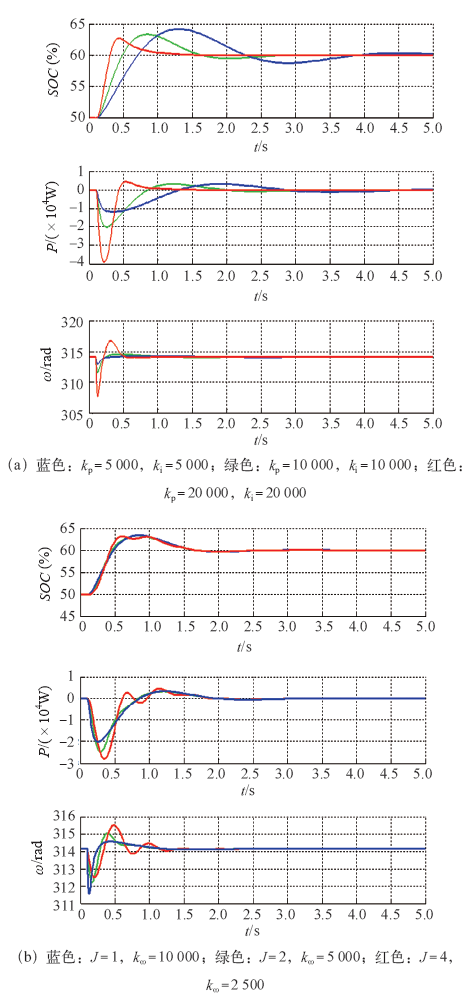

图8

表

图9

参考文献 9

[1]	曾正, 赵荣祥, 汤胜清 , 等. 可再生能源分散接入用先进并网逆变器研究综述[J]. 中国电机工程学报, 2013,33(24):1-12.
	Zeng Zheng, Zhao Rongxiang, Tang Shengqing , et al. An overview on advanced grid-connected inverters used for decentralized renewable energy resources[J]. Proceedings of the CSEE, 2013,33(24):1-12.
[2]	Torres M, Lopes L A C . An optimal virtual inertia controller to support frequency regulation in autonomous diesel power systems with high penetration of renewables[C]. Proceedings of the International Conference on Renewable Energies and Power Quality, Spain, 2011.
[3]	Zhong Q, Weiss G . Synchronverters: inverters that mimic synchronous generators[J]. IEEE Transactions on Industrial Electronics, 2011,58(4):1259-1267. doi: 10.1109/TIE.2010.2048839
[4]	张兴, 朱德斌, 徐海珍 . 分布式发电中的虚拟同步发电机技术[J]. 电源学报, 2012,10(3):1-6.
	Zhang Xing, Zhu Debin, Xu Haizhen . Review of virtual synchronous generator technology in distributed generation[J]. Journal of Power Supply, 2012,10(3):1-6.
[5]	Kaoru Koyanagi, Yusuke Hida, Yuki Ito . A smart photovoltaic generation system integrated with lithiumion[C]. 46th International Universities Power Engineering Conference, Soest, Germany, 2011.
[6]	Lu Xiaonan . State-of-charge balance using adaptive droopcontrol for distributed energy storage systems in DC microgrid applications[J]. IEEE Transactions on Industrial Electronics, 2014,61(6):2804-2815. doi: 10.1109/TIE.2013.2279374
[7]	曾正, 邵伟华, 冉立 , 等. 虚拟同步发电机的模型及储能单元优化配置[J]. 电力系统自动化, 2015,39(13):22-31.
	Zeng Zheng, Shao Weihua, Ran Li , et al. Mathematical model and strategic energy storage selection of virtual synchronous generators[J]. Automation of Electric Power System, 2015,39(13):22-31.
[8]	Tremblay O, Dessaint L A, Dekkiche A I . A generic battery model for the dynamic simulation of hybrid electric vehicles[C]. IEEE Vehicle Power & Propulsion Conference, 2007: 284-289.
[9]	荆龙, 黄杏, 吴学智 . 改进型微源下垂控制策略研究[J]. 电工技术学报, 2014,29(2):145-152.
	Jing Long, Huang Xing, Wu Xuezhi . Research on improved microsource droop control method[J]. Transactions of China Electrotechnical Society, 2014,29(2):145-152.

参数名称	数值	参数名称	数值
额定功率/kW	20	滤波电感L/mH	0.9
额定线电压/V	380	滤波电容C/μF	10
频率/Hz	50	虚拟惯性J/kg·m²	1.1
采样频率/kHz	16	调频系数k_ω	8 000
开关频率/kHz	16	SOC比例系数k_p	10 000
储能容量/A·s	600	SOC比例系数k_i	12 500
