含SVC电力系统的IPEBS法暂态稳定分析*

doi:10.11985/2023.03.030

电气工程学报 ›› 2023, Vol. 18 ›› Issue (3): 277-284.doi: 10.11985/2023.03.030

扫码分享

含SVC电力系统的IPEBS法暂态稳定分析^*

胡继磊¹(), 刘雪粲²(), 江宁强³, 葛晨阳¹, 邱殿成¹

1.国网江苏省电力有限公司连云港供电分公司连云港 222100
2.国网江苏省电力有限公司徐州供电分公司徐州 221000
3.南京理工大学自动化学院南京 210094

收稿日期:2022-07-26 修回日期:2023-02-06 出版日期:2023-09-25 发布日期:2023-10-23
作者简介:胡继磊，男，1995年生，硕士，助理工程师。主要研究方向为新能源发电与电力系统稳定控制。E-mail：njust_hujl@163.com
刘雪粲，男，1995年生，硕士。主要研究方向为电力系统稳定与控制、电力电子技术在电力系统中的应用。E-mail：liuxuecan@hotmail.com
基金资助:
* 国家自然科学基金资助项目(51577092)

IPEBS Method for Transient Stability Analysis of Power System with SVC

HU Jilei¹(), LIU Xuecan²(), JIANG Ningqiang³, GE Chenyang¹, QIU Diancheng¹

1. State Grid Lianyungang Power Supply Company of Jiangsu Electric Power Co., Ltd., Lianyungang 222100
2. State Grid Xuzhou Power Supply Company of Jiangsu Electric Power Co., Ltd., Xuzhou 221000
3. School of Automation, Nanjing University of Science and Technology, Nanjing 210094

Received:2022-07-26 Revised:2023-02-06 Online:2023-09-25 Published:2023-10-23

摘要/Abstract

摘要：

研究了含静止无功补偿器(Static var compensator，SVC)的多机电力系统的暂态稳定性。首先建立了含SVC的多机电力系统模型，并基于等效负荷概念，构造出含SVC的电力系统的能量函数，验证了能量函数在故障后单调下降的特性。将SVC势能用并网电压和功率表示，克服了SVC模型复杂给构建能量函数带来的困难。采用提出的能量函数，在修改的3机9节点系统和10机39节点系统中验证了迭代势能界面法(Iterative potential energy boundary surface，IPEBS)的有效性。计算结果表明，与时域仿真法相比较，所得故障临界清除时间(Critical clearing time，CCT)的误差较小。

关键词: 静止无功补偿器, 暂态稳定, 能量函数, 迭代势能界面法

Abstract:

The transient stability of multi-machine power system with static var compensator(SVC) is proposed. First, the multi-machine power system model with SVC is established. Then, based on the concept of equivalent load, the energy function of the power system with SVC is proposed. And it is verified for the monotonic decreasing property of the energy function after fault-clearing. The potential energy due to SVC is expressed by the voltage of the grid-connection point and the power injected into it, which overcomes the difficulty brought by the complicate structure of SVC. Using the proposed energy function, the transient stability is analyzed by the PEBS method. The iterative potential energy boundary surface method(IPEBS) is validated on a modified 3-machine 9-nodes system and 10-machine 39-nodes system. Compared with the time domain simulation, the calculation results show that the error of the critical clearing time(CCT) is down.

Key words: Static var compensator, transient stability, energy function, iterative potential energy boundary surface

中图分类号:

TM712

胡继磊, 刘雪粲, 江宁强, 葛晨阳, 邱殿成. 含SVC电力系统的IPEBS法暂态稳定分析^*[J]. 电气工程学报, 2023, 18(3): 277-284.

HU Jilei, LIU Xuecan, JIANG Ningqiang, GE Chenyang, QIU Diancheng. IPEBS Method for Transient Stability Analysis of Power System with SVC[J]. Journal of Electrical Engineering, 2023, 18(3): 277-284.

图/表 14

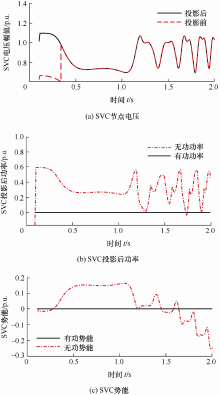

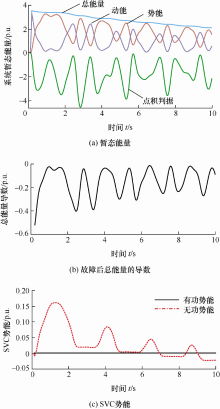

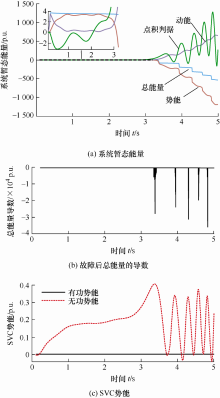

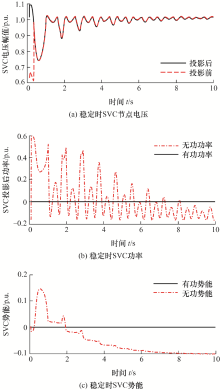

图1

图2

图3

图4

图5

图6

图7

图8

图9

表1

图10

图11

图12

表2

参考文献 17

[1]	王仲鸿, 沈斐, 吴铁铮. FACTS技术研究现状及其在中国的应用与发展[J]. 电力系统自动化, 2000, 24(23):1-5.
	WANG Zhonghong, SHEN Fei, WU Tiezheng. FACTS applications in China and its developing trends[J]. Automation of Electric Power Systems, 2000, 24(23):1-5.
[2]	付俊, 赵军, 乔治•迪米罗夫斯基. 静态无功补偿器鲁棒控制的一种新自适应逆推方法[J]. 中国电机工程学报, 2006, 26(10):7-11.
	FU Jun, ZHAO Jun, DIMIROVSK G M. Robust control of SVC:A new adaptive backstepping method[J]. Proceedings of the CSEE, 2006, 26(10):7-11.
[3]	PADIYAR K R. Structure preserving energy functions in power systems:Theory and applications[M]. Boca Raton: CRC Press, 2018.
[4]	LIU Y, LIN Z, XIAHOU K, et al. On the state-dependent switched energy functions of DFIG-based wind power generation systems[J]. CSEE Journal of Power and Energy Systems, 2020, 6(2):318-328.
[5]	SEBASTIAN B, GARG R. Transient stability analysis of multi-machine power system and first swing stability analysis using SVC[C]// International Conference on Advances in Electrical Engineering, January 9-11,2014, Vellore,India. IEEE, 2014:1-6.
[6]	江宁强, 王晓. 考虑静止无功补偿器限幅特性的临界清除时间启发式算法[J]. 南京理工大学学报, 2017, 41(6):725-729.
	JIANG Ningqiang, WANG Xiao. Heuristic algorithm of critical clearing time considering limiting characteristics of static var compensator[J]. Journal of Nanjing University of Science and Technology, 2017, 41(6):725-729.
[7]	雷邦军, 费树岷, 翟军勇, 等. 多机电力系统发电机自动电压调节器与SVC的协调控制[J]. 电工技术学报, 2015, 30(18):131-139.
	LEI Bangjun, FEI Shumin, ZHAI Junyong, et al. Coordinated control of automatic voltage regulator and SVC in multi-machine power system[J]. Transactions of China Electrotechnical Society, 2015, 30(18):131-139.
[8]	倪以信, 陈寿孙. 动态电力系统的理论和分析[M]. 北京: 清华大学出版社, 2002.
	NI Yixin, CHEN Shousun. Theory and analysis of dynamic power system[M]. Beijing: Tsinghua University Press, 2002.
[9]	SAUER P W, PAI M A, CHOW J H. Power system dynamics and stability:With synchrophasor measurement and power system toolbox[M]. Hoboken: John Wiley & Sons, 2017.
[10]	CHIANG H D. Direct methods for stability analysis of electric power systems:Theoretical foundation,BCU methodologies,and applications[M]. Hoboken: John Wiley & Sons, 2011.
[11]	ZHI Y, VENKATASUBRAMANIAN V. Analysis of energy flow method for oscillation source location[J]. IEEE Transactions on Power Systems, 2020, 36(2):1338-1349. doi: 10.1109/TPWRS.59
[12]	GRIGSBY L L. The electric power engineering handbook-five volume set[M]. Boca Raton: CRC Press, 2018.
[13]	陈乾, 沈沉, 刘锋. 端口能量及其在风电系统暂态稳定分析中的应用[J]. 电力系统自动化, 2015, 39(15):9-16.
	CHEN Qian, SHEN Chen, LIU Feng. Port energy and its application to transient stability analysis of power systems with wind generation[J]. Automation of Electric Power Systems, 2015, 39(15):9-16.
[14]	江宁强, 宋文忠, 戴先中. 暂态能量函数中不可积项积分路径的探讨[J]. 电力系统自动化, 2004, 28(20):12-16,42.
	JIANG Ningqiang, SONG Wenzhong, DAI Xianzhong. Discussions on the integration path of non-integrable term in transient energy function[J]. Automation of Electric Power Systems, 2004, 28(20):12-16,42.
[15]	江宁强. 电力系统暂态稳定性分析若干问题的研究[D]. 南京: 东南大学, 2005.
	JIANG Ningqiang. Research on several problems of power system transient stability analysis[D]. Nanjing: Southeast University, 2005.
[16]	陈厚合, 长江, 姜涛, 等. 基于端口能量的含 VSC-HVDC 的交直流混合系统暂态稳定评估[J]. 电工技术学报, 2018, 33(3):498-511.
	CHEN Houhe, CHANG Jiang, JIANG Tao, et al. Transient stability evaluation of AC-DC hybrid system with VSC-HVDC based on port energy[J]. Transactions of China Electrotechnical Society, 2018, 33(3):498-511.
[17]	HU J, WANG T, WANG Z. Transient stability margin assessment of AC/DC hybrid system with commutation failure involved[J]. International Journal of Electrical Power & Energy Systems, 2021, 131:107056. doi: 10.1016/j.ijepes.2021.107056

故障场景	TDS/s	IPEBS/s	绝对误差/s	相对误差(%)
4#	0.174	0.169	-0.005	-2.87
5#	0.230	0.227	-0.003	-1.30
7#	0.176	0.172	-0.004	-2.27
8#	0.236	0.233	-0.003	-1.27
9#	0.208	0.207	-0.001	-0.48
4#-5	0.140	0.138	-0.002	-1.43
8#-9	0.199	0.189	-0.010	-5.03
7#-8	0.115	0.110	-0.005	-4.35
9#-8	0.199	0.194	-0.005	-2.51

故障场景	TDS/s	IPEBS/s	绝对误差/s	相对误差(%)
11#	0.22	0.22	0	0.00
12#	0.088	0.086	-0.002	-2.27
20#	0.105	0.105	0	0.00
32#	0.098	0.092	-0.006	-6.12
11#-12	0.1	0.094	-0.006	-6.00
13#-28	0.079	0.078	-0.001	-1.27
17#-18	0.111	0.111	0	0.00
20#-21	0.091	0.09	-0.001	-1.10
20#-23	0.099	0.096	-0.003	-3.03
32#-33	0.095	0.091	-0.004	-4.21
