基于电动汽车V2G技术的多端口集成车载变换器研究*

doi:10.11985/2022.01.008

电气工程学报 ›› 2022, Vol. 17 ›› Issue (1): 56-62.doi: 10.11985/2022.01.008

所属专题：特邀专栏：电力电子化配电网关键设备和运行控制

• 特邀专栏: 电力电子化配电网关键设备和运行控制 • 上一篇下一篇

扫码分享

基于电动汽车V2G技术的多端口集成车载变换器研究^*

李春杰¹(), 陈心雨¹, 黄文新², 赵明伟¹(), 张宏涛¹

1.江苏师范大学电气工程及自动化学院徐州 221116
2.南京航空航天大学自动化学院南京 211106

收稿日期:2021-09-18 修回日期:2022-11-07 出版日期:2022-03-25 发布日期:2022-05-06
通讯作者: 赵明伟 E-mail:lcj_85@163.com;xznu_zmw@jsnu.edu.cn
作者简介:李春杰,女,1985 年生,博士,副教授。主要研究方向为电力电子变换器。E-mail： lcj_85@163.com
基金资助:
*国家自然科学基金资助项目(51707085)

Multiport Integrated Onboard Converter Based on V2G Technique

LI Chunjie¹(), CHEN Xinyu¹, HUANG Wenxin², ZHAO Mingwei¹(), ZHANG Hongtao¹

1. School of Electrical Engineering and Automation, Jiangsu Normal University, Xuzhou 221116
2. College of Automation Engineering, Nanjing University of Aeronautics and Astronautics, Nanjing 211106

Received:2021-09-18 Revised:2022-11-07 Online:2022-03-25 Published:2022-05-06
Contact: ZHAO Mingwei E-mail:lcj_85@163.com;xznu_zmw@jsnu.edu.cn

摘要/Abstract

摘要：

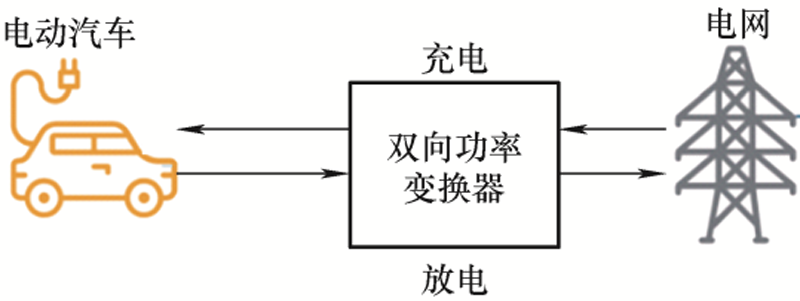

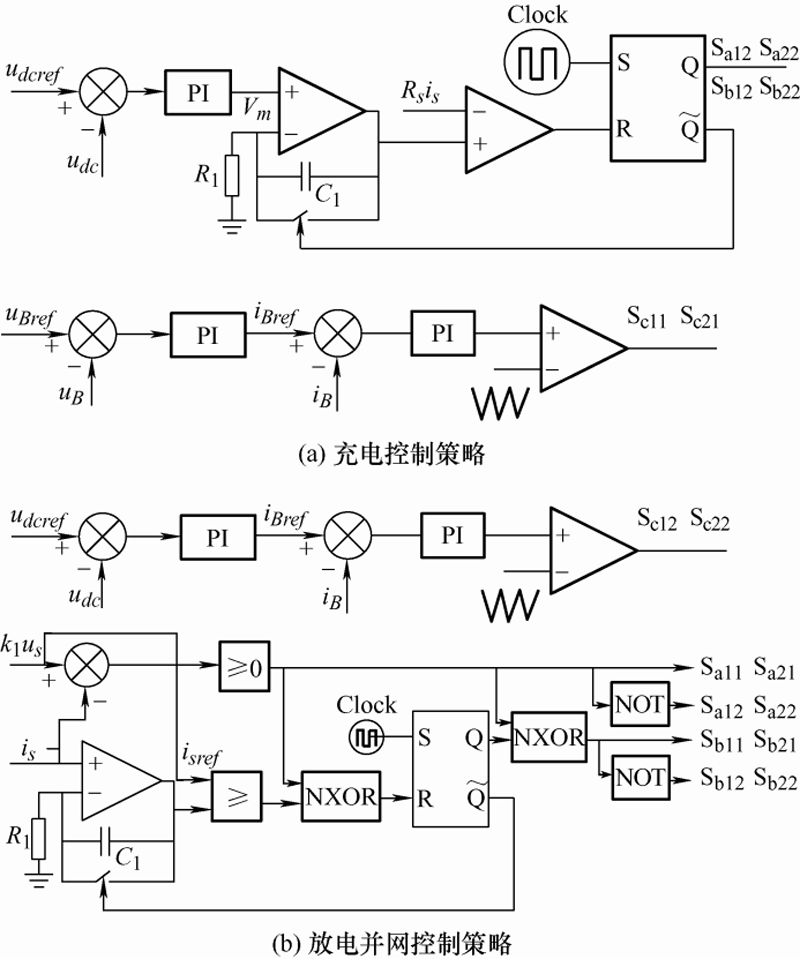

双向功率变换器是实现电动汽车V2G(Vehicle to grid)技术的关键性设备。引入集成技术,利用共享车载驱动电机和驱动电力电子变换装置,提出一种新的集成式双向车载功率变换器。它既可以将电动汽车蓄电池能量回馈给电网,又可完成蓄电池充电功能。集成式功率变换器具有单相、三相充/放电接口,实现了一机多口,增强了车载系统的紧凑性。分析不同充/放电模式下的集成功率变换器拓扑,给出了充/放电模式下的控制策略。最后,给出了仿真和试验结果,验证了多端口集成车载功率变换器的可行性。

关键词: V2G(Vehicle to grid)技术, 充/放电模式, 集成车载变换器

Abstract:

Bidirectional power converter is the key device to realize vehicle to grid(V2G) technique. Introducing integration technique, a new integrated onboard power converter is proposed by sharing the driving motor and the driving power electronic conversion device. It can feed the battery storage energy into the grid and charge the battery. The integrated converter has singe-phase charging and three-phase charging interface, realizes one charger with many ports, and enhances the compactness of the onboard system. The integrated converters under different charging modes are analyzed, and the control strategies under different charging and discharging modes are given. Finally, the simulation and experimental results are given to verify the feasibility of the multi-port integrated converter.

Key words: V2G(Vehicle to grid), charging/discharging mode, integrated onboard converter

中图分类号:

TM46

李春杰, 陈心雨, 黄文新, 赵明伟, 张宏涛. 基于电动汽车V2G技术的多端口集成车载变换器研究^*[J]. 电气工程学报, 2022, 17(1): 56-62.

LI Chunjie, CHEN Xinyu, HUANG Wenxin, ZHAO Mingwei, ZHANG Hongtao. Multiport Integrated Onboard Converter Based on V2G Technique[J]. Journal of Electrical Engineering, 2022, 17(1): 56-62.

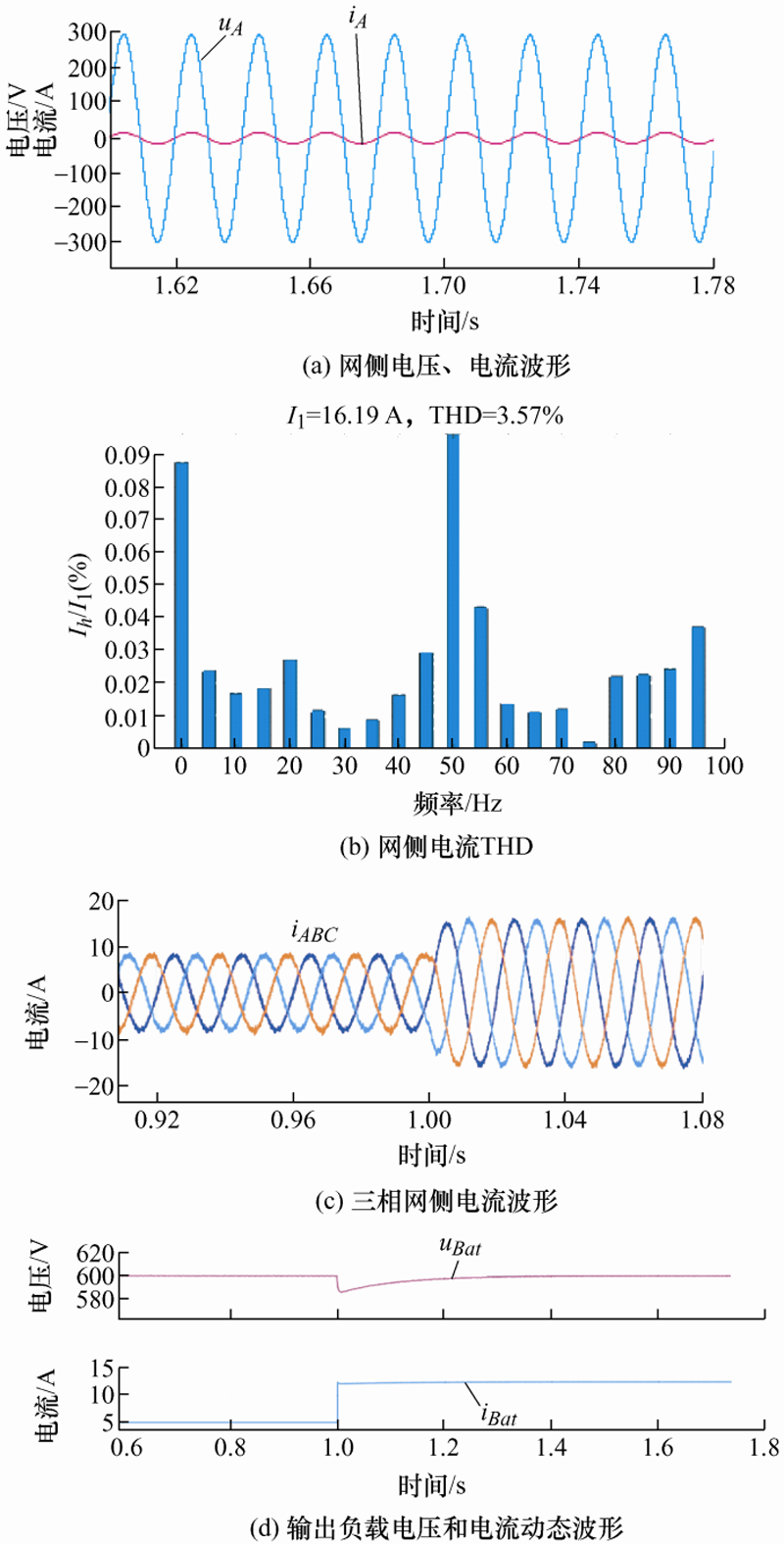

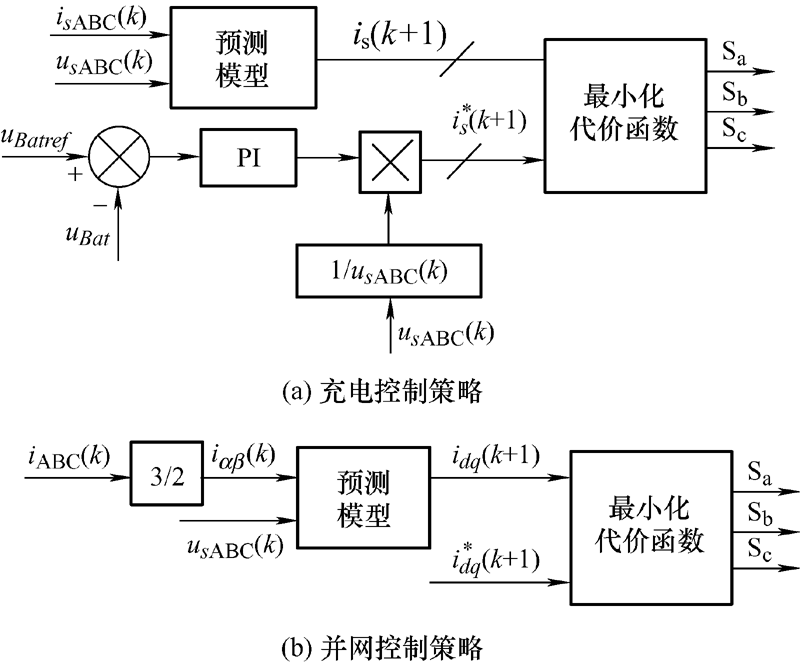

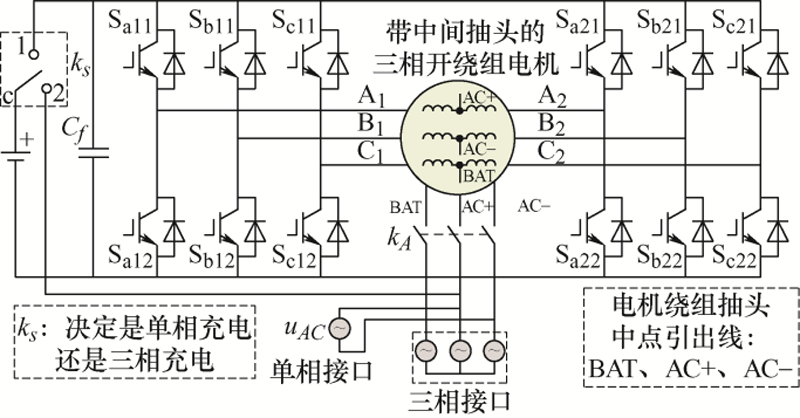

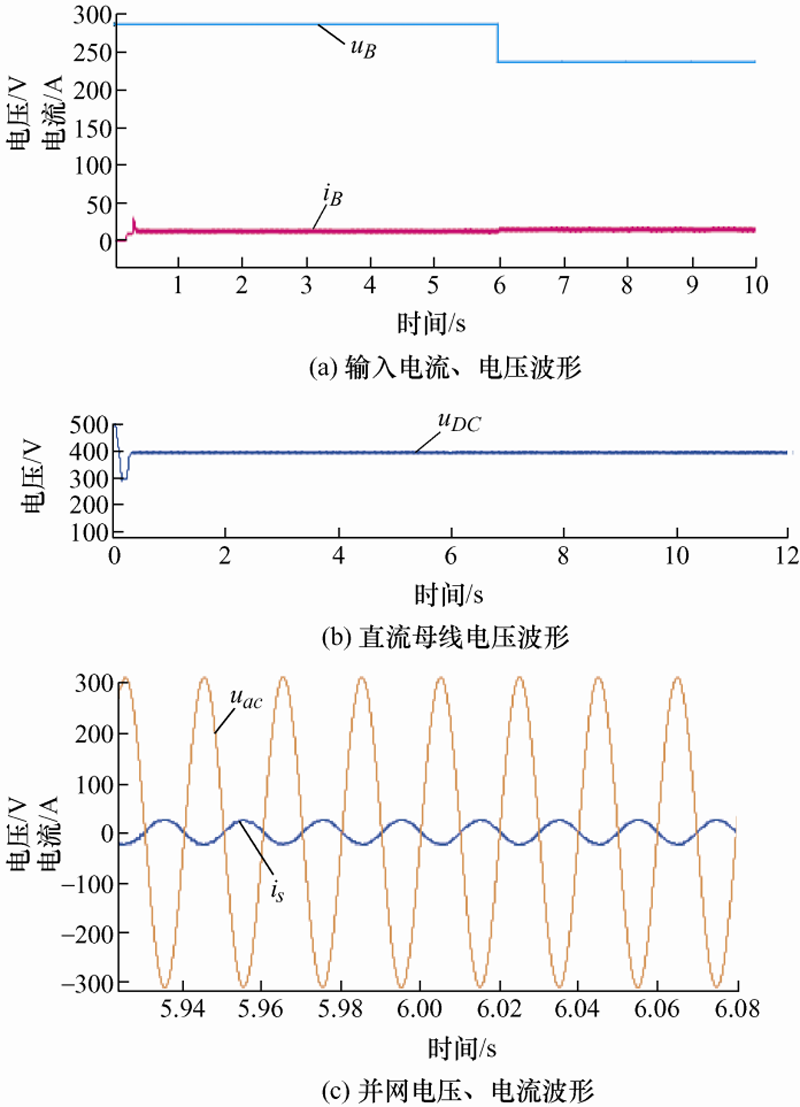

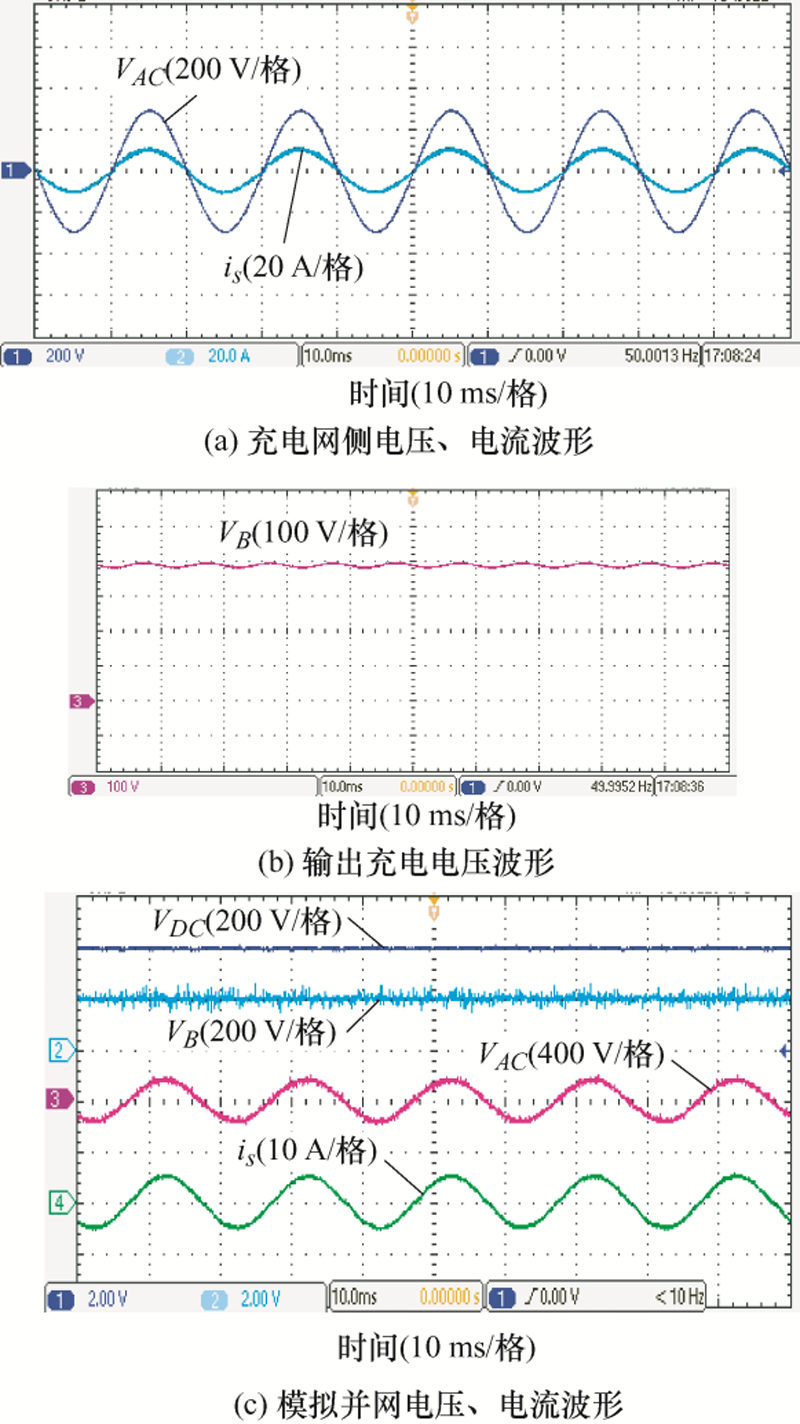

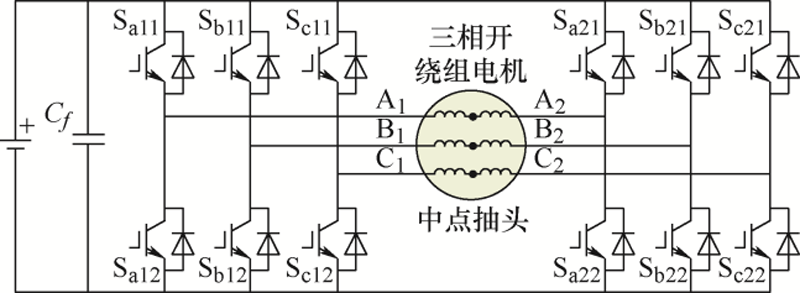

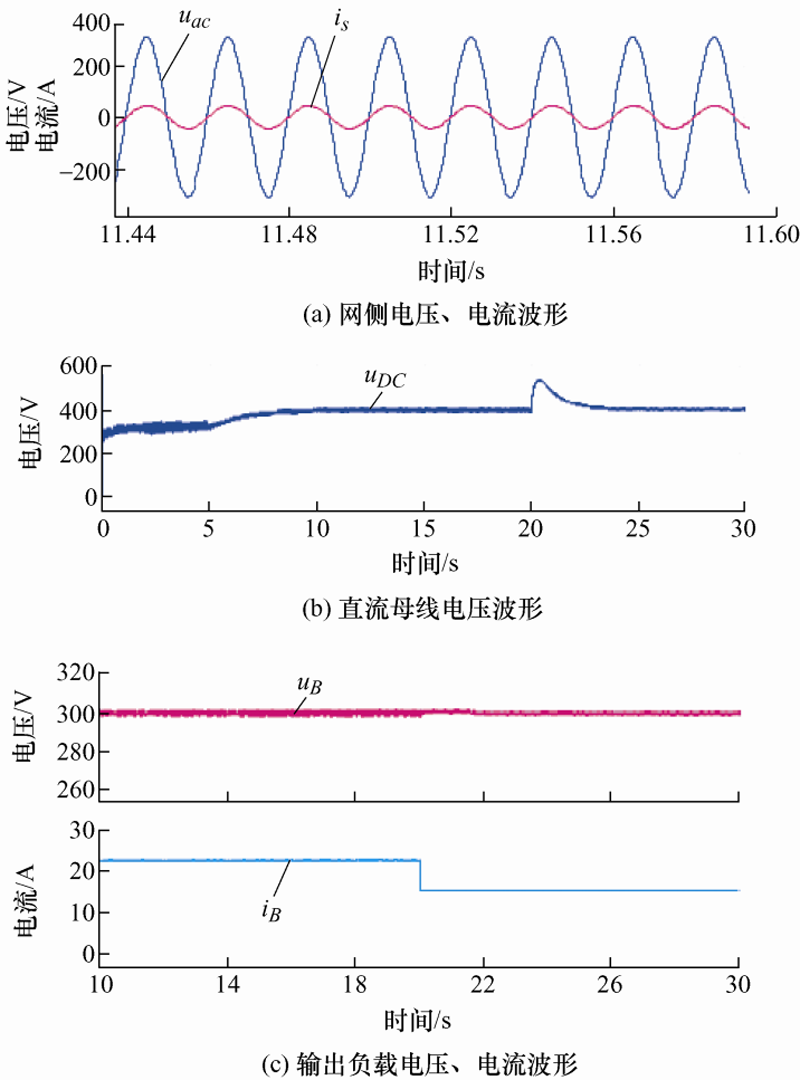

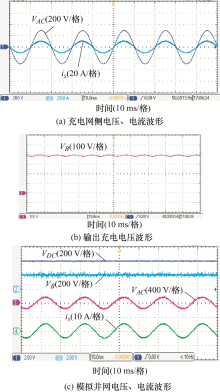

图/表 13

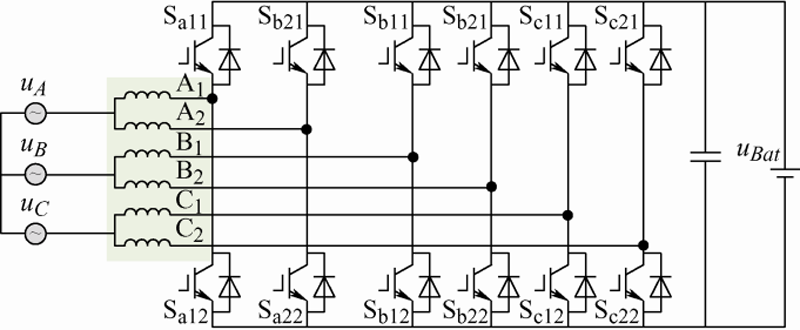

图1

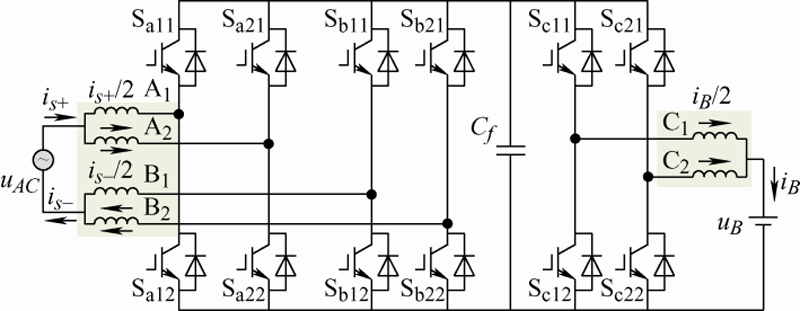

图2

图3

图4

图5

图6

图7

图8

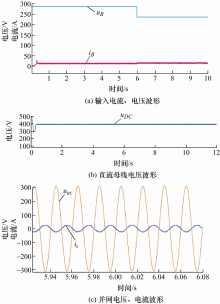

图9

图10

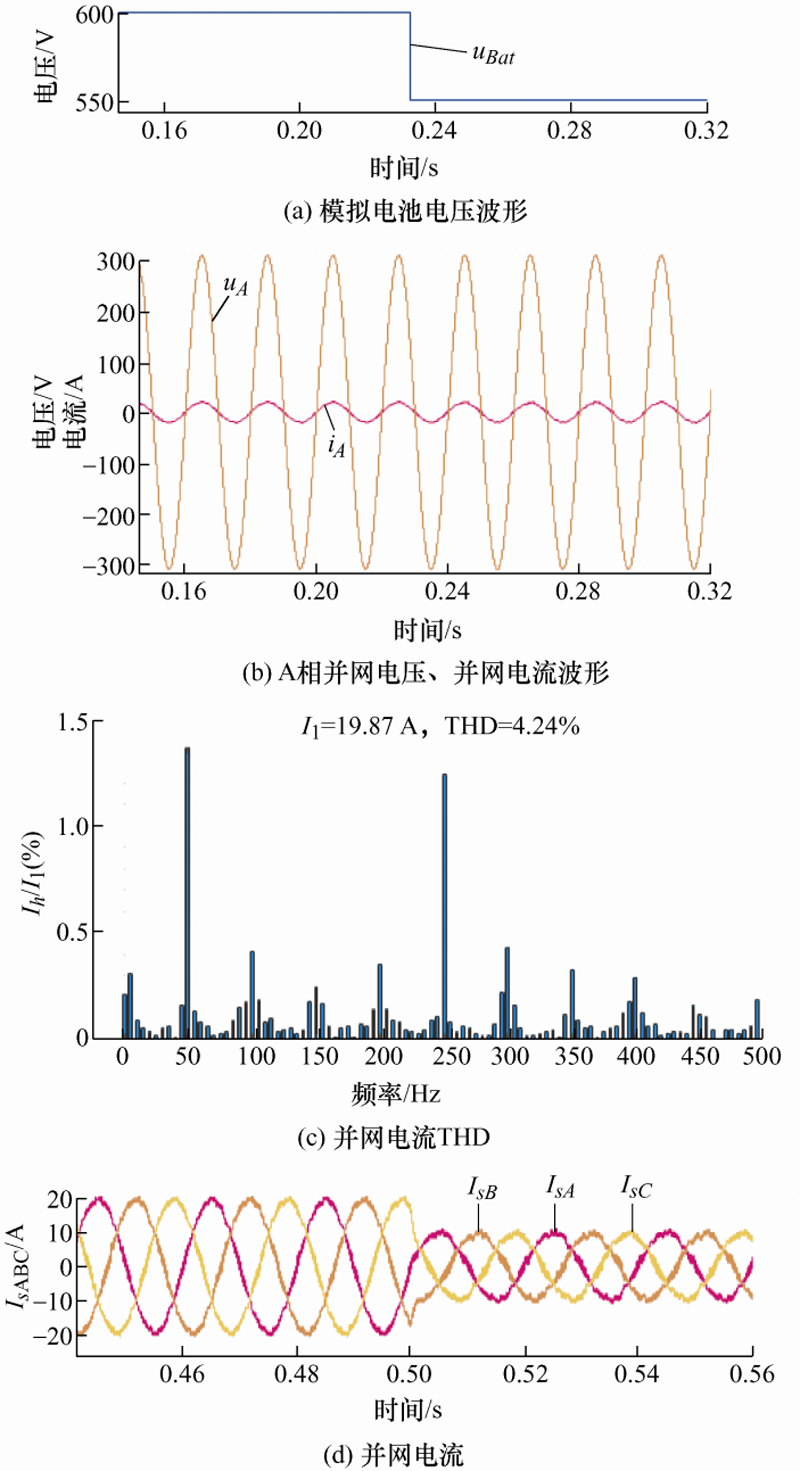

图11

图12

表1

参考文献 14

[1]	荆嘉. 基于V2G的两级式双向AC/DC变换器的研究[D]. 杭州: 浙江大学, 2019.
	JING Jia. Research on two-stage bidirectional AC/DC converter based on V2G[D]. Hangzhou: Zhejiang University, 2019.
[2]	李春杰, 黄文新, 卜飞飞, 等. 电动汽车充电与驱动集成化拓扑[J]. 电工技术学报, 2017, 32(10):1-8.
	LI Chunjie, HUANG Wenxin, BU Feifei, et al. The integrated topology of charging and drive for electric vehicles[J]. Transactions of China Electrotechnical Society, 2017, 32(10):1-8.
[3]	王金鑫. 基于交错并联DC-DC的EV驱动-充电集成系统关键问题研究[D]. 哈尔滨: 哈尔滨工业大学, 2020.
	WANG Jinxin. The key research of electric vehicle drive-charging integrated system based on inteleaved DC-DC converter[D]. Harbin: Harbin Institute of Technology, 2020.
[4]	袁子墨. 车载双向DC-DC变换器-充电机集成系统的研究[D]. 哈尔滨: 哈尔滨工业大学, 2019.
	YUAN Zimo. Research on integrated bi-directional DC-DC converter-on-board charger system[D]. Harbin: Harbin Institute of Technology, 2019.
[5]	ALI S Q, MASCARELLA D, JOOS G, et al. Torque cancelation of integrated battery charger based on six-phase permanent magnet synchronous motor drives for electric vehicles[J]. IEEE Transactions on Transportation Electrfication, 2018, 4(2):344-353.
[6]	XIAO Yang, LIU Chunhua, YU Feng. An integrated on-board EV charger with safe charging operation for three-phase IPM motor[J]. IEEE Transactions on Industrial Electronics, 2019, 66(10):7551-7560. doi: 10.1109/TIE.2018.2880712
[7]	王乐. 电动汽车充电和驱动集成控制器的研究[D]. 南京: 南京航空航天大学, 2018.
	WANG Le. Research on electric vehicle charging and drive integrated controller[D]. Nanjing: Nanjing University of Aeronautics and Astronautics, 2018.
[8]	RAHERIMIHAJA H J, ZHANG Qianfan, NA Tuopu, et al. A three-phase integrated battery charger for EVs based on six-phase open-end winding machine[J]. IEEE Transactions on Power Electronics, 2020, 35(11):12122-12129. doi: 10.1109/TPEL.2020.2986798
[9]	SHARMA S, AWARE M V, BHOWATE A. Integrated battery charger for EV by using three-phase induction motor stator windings as filter[J]. IEEE Transactions on Transportation Electrification, 2020, 6(1):83-93. doi: 10.1109/TTE.2020.2972765
[10]	RAHERIMIHAJA H J, ZHANG Qianfan, XU Guoqiang, et al. Integration of battery charging process for EVs into segmented three-phase motor drive with V2G-mode capability[J]. IEEE Transactions on Industrial Electronics, 2021, 68(4):2834-2844. doi: 10.1109/TIE.2020.2978684
[11]	FOTI S, TESTA A, SCELBA G, et al. A V2G integrated battery charger based on an open end winding multilevel configuration[J]. IEEE Open Journal of Industry Application, 2020, 1:216-226. doi: 10.1109/OJIA.2020.3035851
[12]	梅继超, 廖冬初, 蔡华锋. 光伏并网逆变器电流控制策略的研究[J]. 电气传动, 2017, 47(10):48-53.
	MEI Jichao, LIAO Dongchu, CAI Huafeng. Research on current control strategy in photovoltaic grid inverter[J]. Electric Drive, 2017, 47(10):48-53.
[13]	温泉, 朱凌, 杜新. 基于电流预测控制的三相PWM整流器研究[J]. 电测与仪表, 2013, 50(12):83-86.
	WEN Quan, ZHU Ling, DU Xin. Research of PWM voltage source rectifier based on predictive current control strategy[J]. Electrical Measurement & Instrumentation, 2013, 50(12):83-86.
[14]	徐红城. 基于模型预测控制的并网逆变器控制策略[D]. 淮南: 安徽理工大学, 2018.
	XU Hongcheng. Research on grid-connected inverter control strategy based on model predictive control[D]. Huainan: Anhui University of Science &Technology, 2018.

电机参数	数值	充电参数	数值
额定电流/A	20	输入交流源频率/Hz	50
额定转速/(r/min)	1 000	充电功率/kW	1.6
额定转矩/(N·m)	10	开关频率/kHz	40
绕组自感/mH	0.848	恒压充电电压/V	400
定子电阻/Ω	0.218
