一种级联Boost和Luo变换器的新型组合式单开关变换器*

doi:10.11985/2022.01.020

电气工程学报 ›› 2022, Vol. 17 ›› Issue (1): 156-163.doi: 10.11985/2022.01.020

扫码分享

一种级联Boost和Luo变换器的新型组合式单开关变换器^*

刘小荻(), 岳舟(), 姚绍华, 杨佳霖

湖南人文科技学院能源与机电工程学院娄底 417000

收稿日期:2021-09-08 修回日期:2022-02-23 出版日期:2022-03-25 发布日期:2022-05-06
通讯作者: 岳舟 E-mail:1724081234@qq.com;yuezhou2000@163.com
作者简介:刘小荻,女,2001年生。主要研究方向为电力电子变换器控制技术。E-mail： 1724081234@qq.com
基金资助:
*国家自然科学基金(61702182);湖南省教育厅优秀青年(20B328);湖南省创新训练(S202110553023)

Novel Combined Single Switch Converter with Cascade Boost and Luo Converters

LIU Xiaodi(), YUE Zhou(), YAO Shaohua, YANG Jialin

College of Energy, Mechanical and Electrical Engineering, Hunan University of Humanities, Science and Technology, Loudi 417000

Received:2021-09-08 Revised:2022-02-23 Online:2022-03-25 Published:2022-05-06
Contact: YUE Zhou E-mail:1724081234@qq.com;yuezhou2000@163.com

摘要/Abstract

摘要：

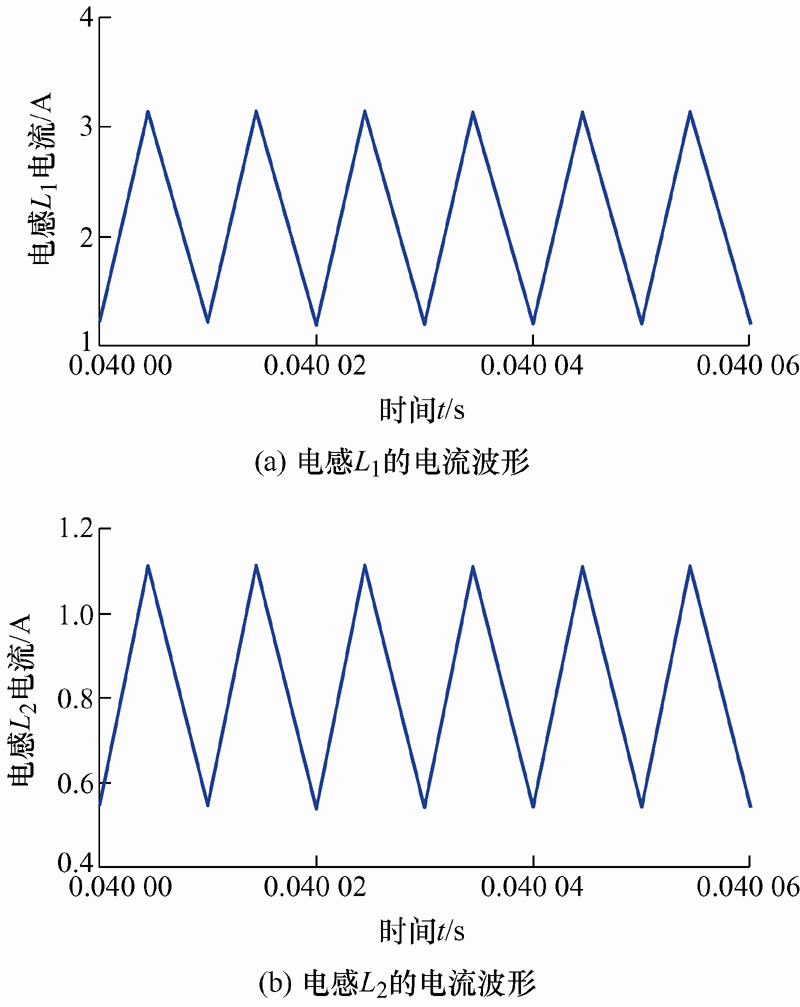

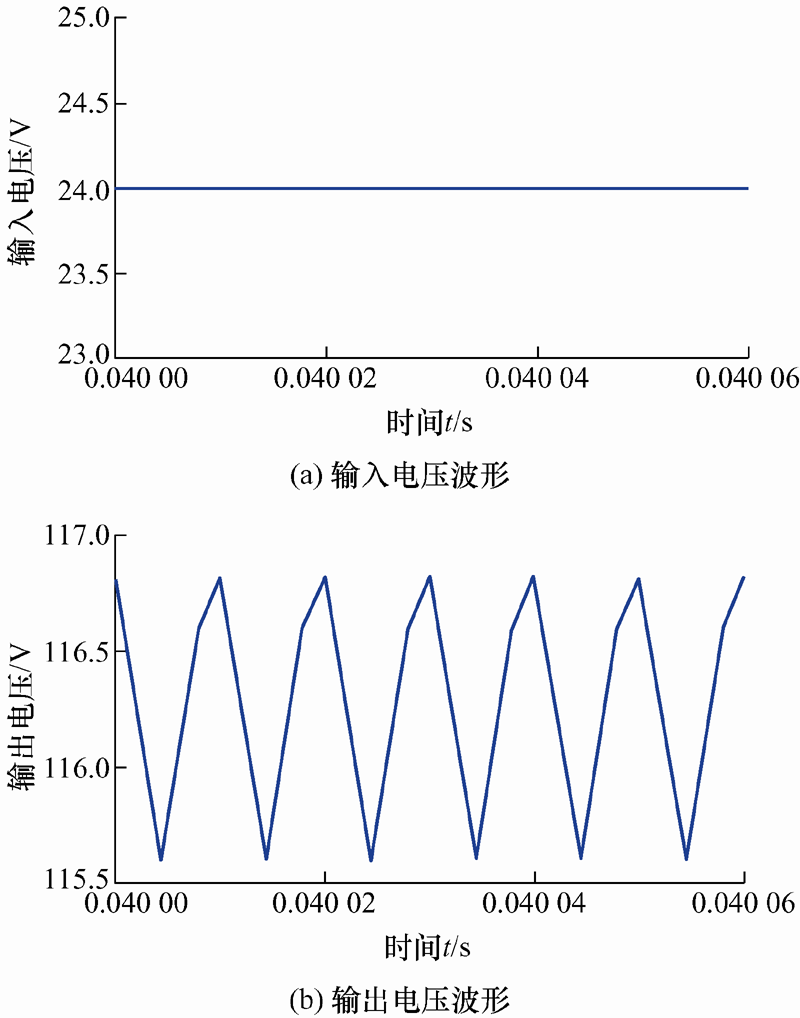

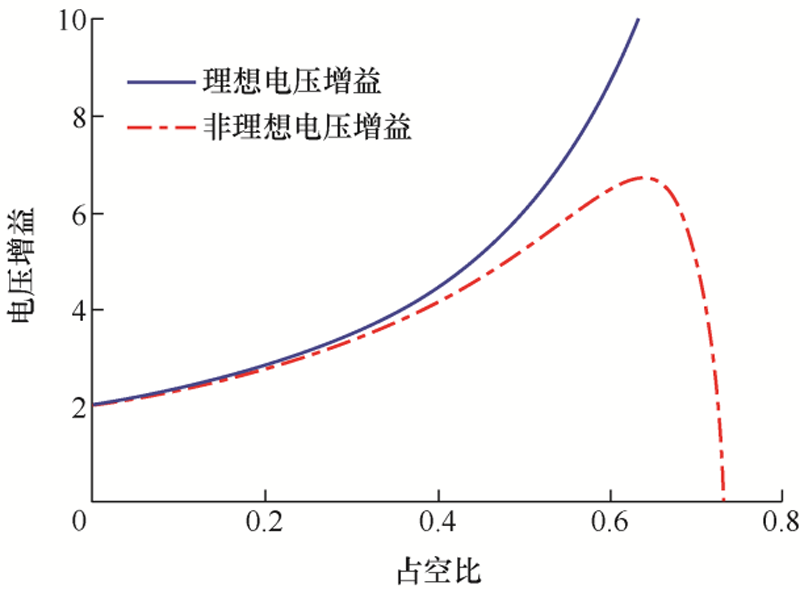

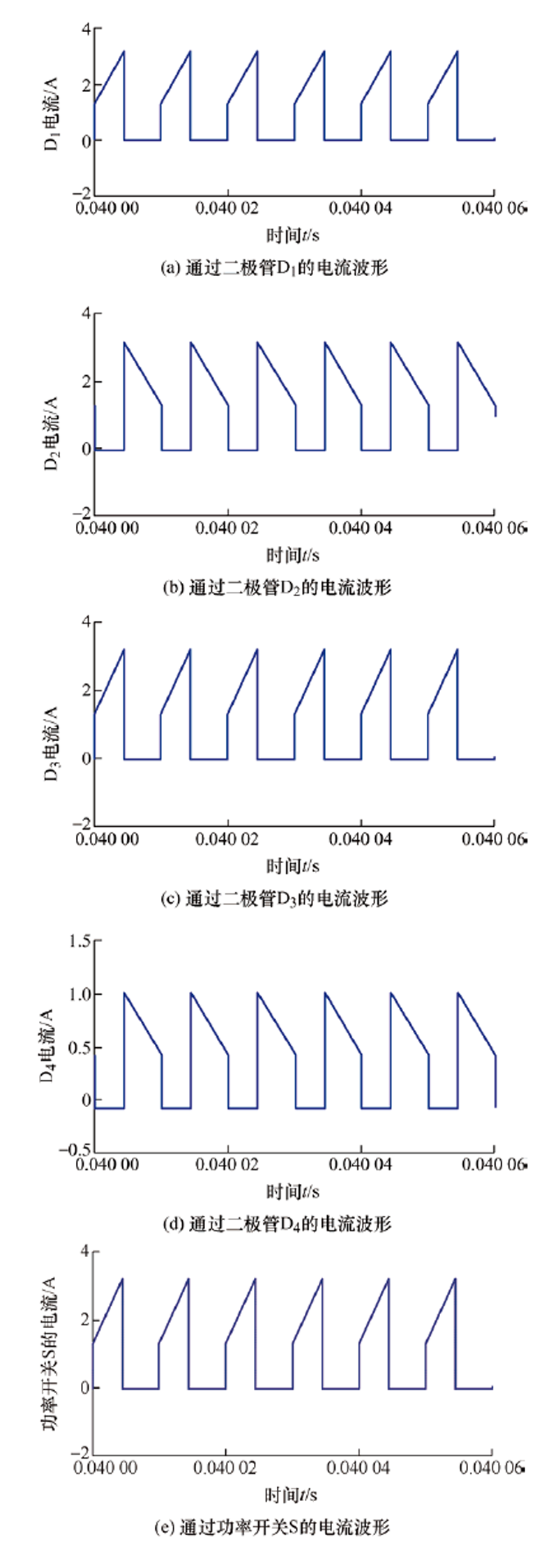

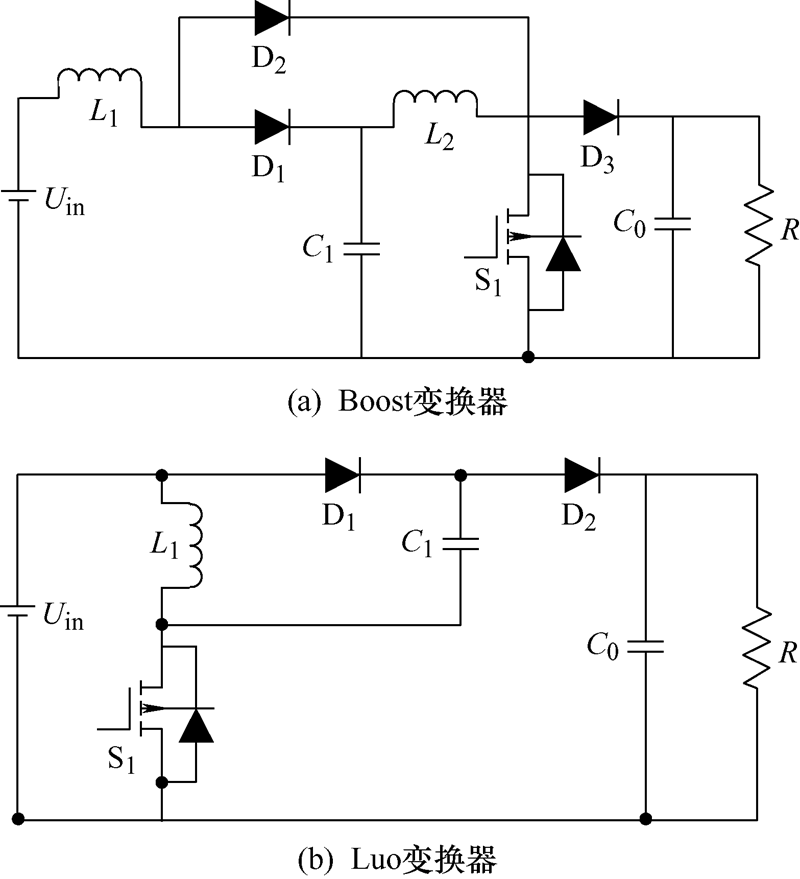

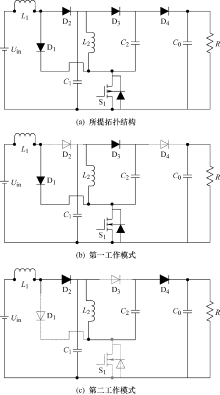

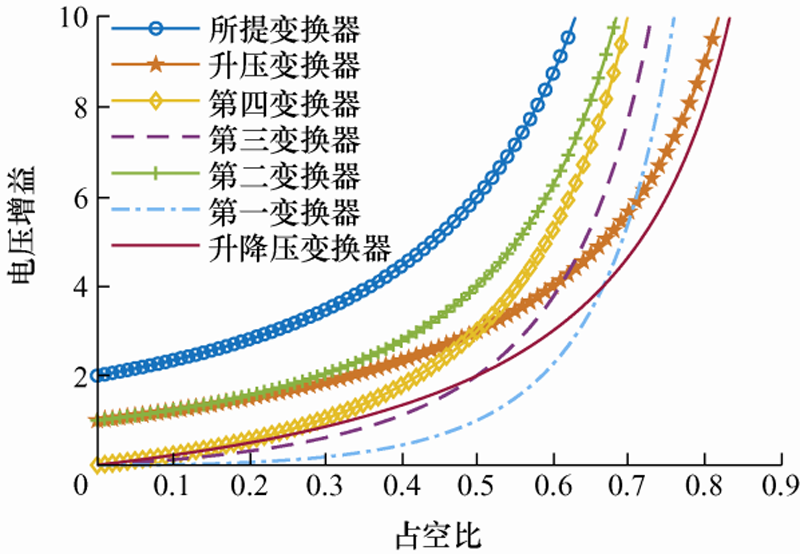

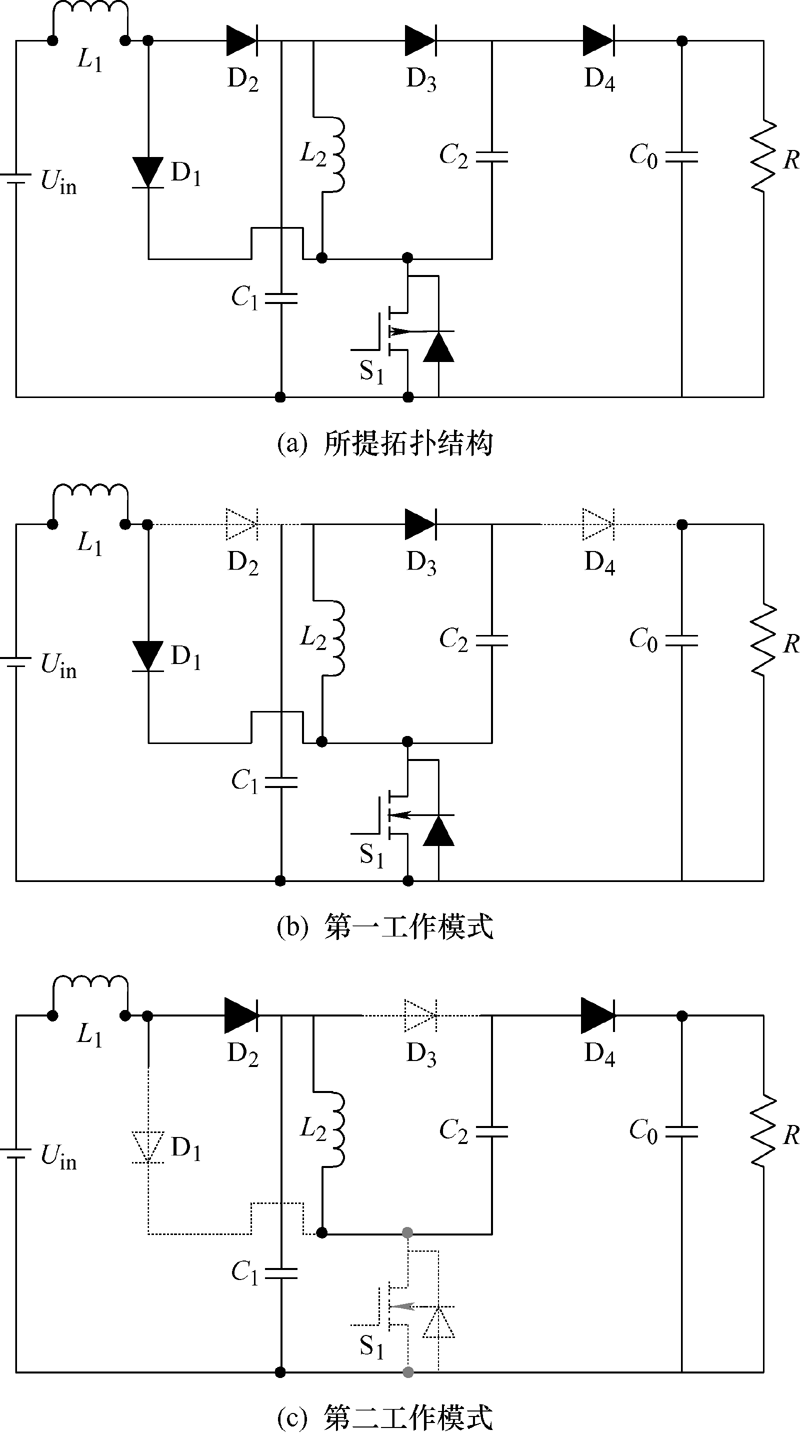

高增益DC-DC变换器正越来越多地应用于太阳能光伏或其他可再生能源发电系统。良好的稳态和动态性能以及更高的效率是为上述应用选取变换器的先决条件。为此设计并实现一种级联Boost和Luo变换器的新型组合式单开关升压DC-DC变换器。首先,详细阐述该新型组合式变换器的拓扑结构与工作原理;然后,将所提变换器与其他类似变换器在各种性能参数上进行比较;最后,采用Matlab建立系统仿真模型,仿真结果验证了理论分析的正确性。所提变换器只使用一个功率开关,具有连续的输入电流,同时能够降低开关器件间的电压和电流应力,并且在较低的占空比下可以获得较高的电压增益。输入电流连续是DC-DC变换器的一个理想特性,所提变换器适合太阳能光伏应用等场合。

关键词: Boost变换器, 级联变换器, 高电压增益, Luo变换器

Abstract:

High gain DC-DC converters are increasingly being used in solar PV and other renewable generation systems. Satisfactory steady-state and dynamic performance, along with higher efficiency, are pre-requirement for selecting the converter for these applications. For this reason, a novel combined single switch boost DC-DC converter with cascade boost and Luo converters is designed and implemented. Firstly, the topology and working principle of the new combined converter are described in detail. Then, the proposed converter is compared with other similar converters in various performance parameters. Finally, the system simulation model is established by Matlab, and the simulation results verify the correctness of the theoretical analysis. The proposed converter only uses one power switch, which has continuous input current, can reduce the voltage stress and current stress between switching devices, and can obtain high voltage gain at low duty cycle. Continuous input current is an ideal characteristic of DC-DC converter. The proposed converter is suitable for solar photovoltaic applications.

Key words: Boost converter, cascaded converter, high voltage gain, Luo converter

中图分类号:

TM464

刘小荻, 岳舟, 姚绍华, 杨佳霖. 一种级联Boost和Luo变换器的新型组合式单开关变换器^*[J]. 电气工程学报, 2022, 17(1): 156-163.

LIU Xiaodi, YUE Zhou, YAO Shaohua, YANG Jialin. Novel Combined Single Switch Converter with Cascade Boost and Luo Converters[J]. Journal of Electrical Engineering, 2022, 17(1): 156-163.

图/表 9

图1

图2

图3

图4

表1

图5

图6

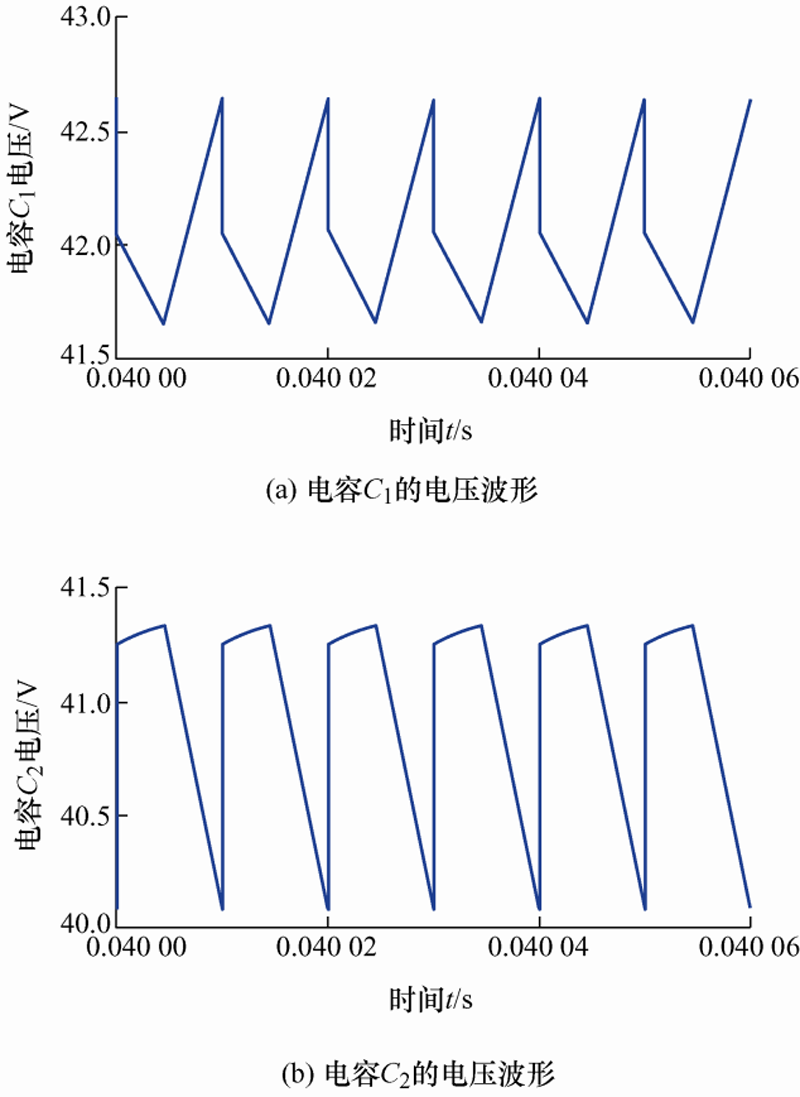

图7

图8

参考文献 22

[1]	LI W, LÜ X, DEBG Y, et al. A review of non-isolated High step-up DC/DC converters in renewable energy applications[C]// Proceedings of the 2009 Twenty-Fourth Annual IEEE Applied Power Electronics Conference and Exposition,Washington,DC,USA, 2009:364-369.
[2]	MARJABI J, IMANI A, HEKMATI A, et al. A new dual output DC-DC converter based on SEPIC and Cuk converters[C]// Proceedings of the 2016 International Symposium on Power Electronics,Electrical Drives,Automation and Motion (SPEEDAM),Capri,Italy, 2016:946-950.
[3]	GOPI R R, SREEJITH S. Converter topologies in photovoltaic applications:A review[J]. Renewable and Sustainable Energy Reviews, 2018, 94:1-14. doi: 10.1016/j.rser.2018.05.047
[4]	雷浩东, 郝瑞祥, 游小杰, 等. 基于开关电容和三绕组耦合电感的高电压增益DC-DC变换器[J]. 电工技术学报, 2020, 35(17):3666-3677.
	LEI Haodong, HAO Ruixiang, YOU Xiaojie, et al. High voltage gain DC-DC converter based on switched capacitor and three winding coupled inductor[J]. Transactions of China Electrotechnical Society, 2020, 35(17):3666-3677.
[5]	TEWARI N, SREEDEVI V. A novel single switch DC-DC converter with high voltage gain capability for solar PV based power generation systems[J]. Solar Energy, 2018, 171:466-477. doi: 10.1016/j.solener.2018.06.081
[6]	REVATHI B S, PRABHAKAR M. Non isolated high gain DC-DC converter topologies for PV applications:A comprehensive review[J]. Renewable and Sustainable Energy Reviews, 2016, 66:920-933. doi: 10.1016/j.rser.2016.08.057
[7]	TAGHVAEE M, RADZI M, MOOSAVAIN S, et al. A current and future study on non-isolated DC-DC converters for photovoltaic applications[J]. Renewable and Sustainable Energy Reviews, 2013, 17:216-227. doi: 10.1016/j.rser.2012.09.023
[8]	FOROUZESH M, SIWAKOTI Y P, GORJI S A, et al. Step-up DC-DC converters:A comprehensive review of voltage-boosting techniques,topologies,and applications[J]. IEEE Trans. Power Electron., 2017, 32:9143-9178. doi: 10.1109/TPEL.2017.2652318
[9]	GOLIZEDEH H, HASHEMI M R, RAFIEE Z, et al. A quadratic boost converter with continuous input current and suitable for photo voltaic solar panels[C]// Proceedings of the 2020 28th Iranian Conference on Electrical Engineering (ICEE),Tabriz,Iran, 2020:1-5.
[10]	GHOLIZADEH H, SALEHI M, RAFIEE Z, et al. A transformer less quadratic Buck-Boost converter with wide range of output voltage and low switch stresses[C]// Proceedings of the 2020 11th Power Electronics,Drive Systems,and Technologies Conference (PEDSTC),Tehran,Iran, 2020:1-6.
[11]	MIAO S, WANG F, MA X. A new transformerless Buck-Boost converter with positive output voltage[J]. IEEE Trans. Ind. Electron., 2016, 63:2965-2975. doi: 10.1109/TIE.2016.2518118
[12]	SARIKHANI A, ALLAHVERDINEJAD B, HAMZEH M, et al. A continuous input and output current quadratic buck-boost converter with positive output voltage for photovoltaic applications[J]. Energy, 2019, 188:19-27.
[13]	GHOLIZADEH H, SARIKHANI A, HAMZEH M. A transformerless quadratic Buck-Boost converter suitable for renewable applications[C]// Proceedings of the 2019 10th International Power Electronics,Drive Systems and Technologies Conference (PEDSTC),Shiraz,Iran, 2019:470-474.
[14]	贾志东, 姜久春, 程龙, 等. 适用于Boost变换器的自适应模型预测控制算法[J]. 中国电机工程学报, 2018, 38(19):5838-5845,5941.
	JIA Zhidong, JIANG Jiuchun, CHENG Long, et al. Adaptive model predictive control algorithm for Boost converter[J]. Proceedings of the CSEE, 2018, 38(19):5838-5845,5941.
[15]	GARO J C, RESENDIZ J E, MALDONADO J C, et al. Quadratic buck-boost converter with positive output voltage and minimum ripple point design[J]. IET Power Electron, 2018, 11:1306-1313. doi: 10.1049/iet-pel.2017.0090
[16]	GARO J C, SANCHEZ V M, RESENDIZ J E, et al. Quadratic buck-boost converter with positive output- voltage and continuous input-current[C]// Proceedings of the 2018 International Conference on Electronics,Communications and Computers (CONIELECOMP),Cholula,Mexico, 2018:152-158.
[17]	TOTONCHI N, GHOLIZADEH H, AFJEI E, et al. A novel transformer less high gain DC-DC converter with continuous input current and suitable for photo voltaic panels[C]// Proceedings of the 2020 11th Power Electronics,Drive Systems,and Technologies Conference (PEDSTC),Tehran,Iran, 2020:1-6.
[18]	GHOLIZADEH H, ABOUFAZELI S, RAFIEE Z, et al. A non-isolated high gain DC-DC converters with positive output voltage and reduced current stresses[C]// Proceedings of the 2020 11th Power Electronics,Drive Systems,and Technologies Conference (PEDSTC),Tehran,Iran, 2020:1-6.
[19]	VITE P M, RANGEL C A, CARO J C, et al. A DC-DC converter with quadratic gain and input current ripple cancelation at a selectable duty cycle[J]. Renewable and Sustainable Energy Reviews, 2017, 10:431-436.
[20]	李洪珠, 刘飞扬, 刘艳, 等. 一种新型磁集成高增益耦合电感倍压Boost变换器[J]. 电工技术学报, 2020, 35(S2):450-460.
	LI Hongzhu, LIU Feiyang, LIU Yan, et al. A novel magnetically integrated high gain coupled inductive voltage doubling Boost converter[J]. Transactions of China Electrotechnical Society, 2020, 35(S2):450-460.
[21]	DING S, WANG F. A new negative output Buck-Boost converter with wide conversion ratio[J]. IEEE Trans. Ind. Electron., 2017, 64:9322-9333. doi: 10.1109/TIE.2017.2711541
[22]	GHOLIZADEH H, DIZAJI R, HAMZEH M. High-gain Buck-Boost converter suitable for renewable applications[C]// Proceedings of the 2019 27th Iranian Conference on Electrical Engineering (ICEE),Yazd,Iran, 2019:777-781.

参考文献	U_S₁/U₀	U_S₂/U₀	U_D₁/U₀	U_D₂/U₀	I_S₁/I_in	I_S₂/I_in	I_D₁/I_in	I_D₂/I_in	D
[10]	0.57	1.00	0.57	1.40	1.00	0.41	0.41	0.17	0.71
[11]	0.57	1.40	0.57	1.40	1.00	0.41	0.41	0.17	0.71
[12]	1.96	1.40	0.57	1.40	1.00	0.60	0.60	0.17	0.71
[13]	0.57	1.40	0.57	1.40	1.00	0.41	0.41	0.17	0.71
[14]	0.57	1.40	0.57	1.40	1.00	0.41	0.41	0.17	0.71
[15]	0.57	1.40	0.57	1.40	1.00	0.41	0.41	0.17	0.71
[16]	0.57	1.40	0.57	1.40	1.00	0.41	0.41	0.17	0.71
[17]	0.73	0.51	0.49	1.00	1.33	0.33	0.49	0.16	0.67
[18]	0.49	1.50	0.49	1.50	0.67	0.33	0.33	0.16	0.67
[19]	0.49	1.00	0.49	1.00	1.00	0.33	0.49	0.16	0.67
[20]	0.49	1.50	0.49	1.50	0.67	0.33	0.33	0.16	0.67
[21]	0.72	1.84	0.72	1.84	1.84	0.28	0.72	0.28	0.61
[22]	0.72	1.84	0.72	1.64	0.72	0.28	0.28	0.28	0.61
[9]	0.40	1.00	0.40	1.40	0.60	0.24	0.24	0.16	0.60
