双管正激变换器多种导磁材料电磁集成*

doi:10.11985/2022.01.019

电气工程学报 ›› 2022, Vol. 17 ›› Issue (1): 148-155.doi: 10.11985/2022.01.019

扫码分享

双管正激变换器多种导磁材料电磁集成^*

李洪珠(), 范茏茏()

辽宁工程技术大学电气与控制工程学院葫芦岛 125105

收稿日期:2021-10-04 修回日期:2022-01-10 出版日期:2022-03-25 发布日期:2022-05-06
通讯作者: 范茏茏 E-mail:lhz_98@163.com;fll_97@163.com
作者简介:李洪珠,男,1974年生,博士,教授。主要研究方向为电力电子及磁集成技术。E-mail： lhz_98@163.com
基金资助:
*辽宁省自然科学基金资助项目(2019-M5-159(19-1062))

Dual-tube Forward Converter with Electromagnetic Integration of Various Magnetic Materials

LI Hongzhu(), FAN Longlong()

School of Electrical and Control Engineering, Liaoning Technical University, Huludao 125105

Received:2021-10-04 Revised:2022-01-10 Online:2022-03-25 Published:2022-05-06
Contact: FAN Longlong E-mail:lhz_98@163.com;fll_97@163.com

摘要/Abstract

摘要：

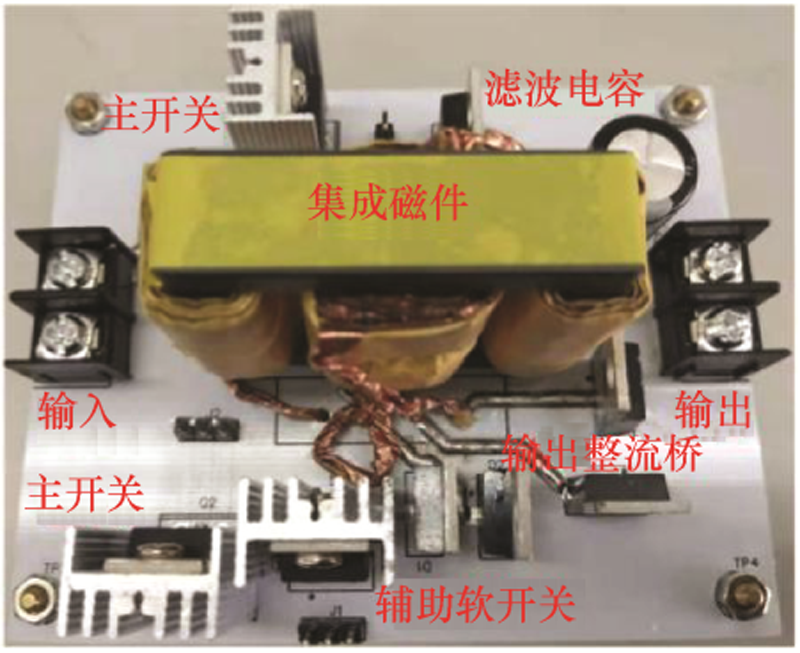

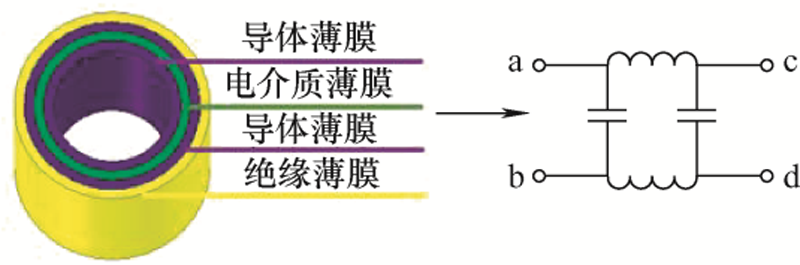

传统的软开关双管正激变换器,由于其无源元件数量较多,存在样机体积较大、磁件损耗较高的缺点。为解决这一问题,首先,采用柔性多层带材(Flexible multi-layer foil, FMLF)集成技术实现将体积较大的电容器和电路中的磁元件进行电磁集成,相比于传统磁集成技术,可以进一步缩小无源元件体积,提高磁心的利用率;其次,利用坡莫合金带材分段填充中柱气隙,将其分割为多个等距小气隙,既限制了中柱绕组的漏磁,又缩小了气隙处扩散磁通,有效减少了涡流损耗和扩散磁通产生的绕组损耗,从而有效提高电源的功率密度,满足新能源发展轻量化、小型化、高效化的需求。最后搭建一台60 W的样机,验证了该磁件应用的合理性。

关键词: 双管正激变换器, 电磁集成, 多种导磁材料, 软开关

Abstract:

Due to the large number of passive components, the traditional double switch forward soft switching converter has the disadvantages of larger prototype size and higher magnetic component loss. In order to solve this problem, firstly, the flexible multi-layer foil (FMLF) integration technology is used to realize the electromagnetic integration of large capacitors and magnetic components in circuits. Compared with the traditional magnetic integration technology, the volume of passive components can be further reduced and the utilization ratio of magnetic cores can be improved. Secondly, the use of permalloy strips section fill in column of air gap, it divided into multiple isometric stingy gap, both limits the magnetic leakage of the middle column winding, and narrowed the air-gap diffusion flux, effectively reduce the eddy current loss and winding losses caused by diffused flux, so as to effectively improve the power density of power supply and meet the demand of lightweight, miniaturization and high efficiency of new energy development. Finally, a 60 W prototype is built to verify the rationality of the application of the magnetic component.

Key words: Double switch forward converter, electromagnetic integration, a variety of magnetic materials, soft switch

中图分类号:

TM46

李洪珠, 范茏茏. 双管正激变换器多种导磁材料电磁集成^*[J]. 电气工程学报, 2022, 17(1): 148-155.

LI Hongzhu, FAN Longlong. Dual-tube Forward Converter with Electromagnetic Integration of Various Magnetic Materials[J]. Journal of Electrical Engineering, 2022, 17(1): 148-155.

图/表 17

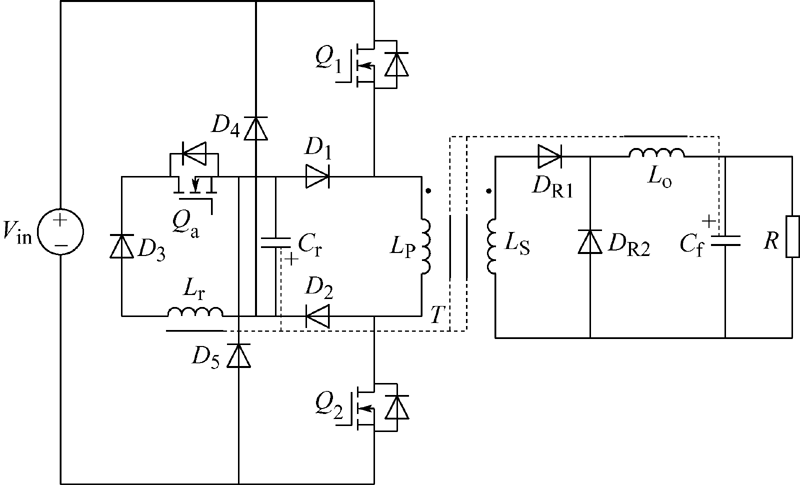

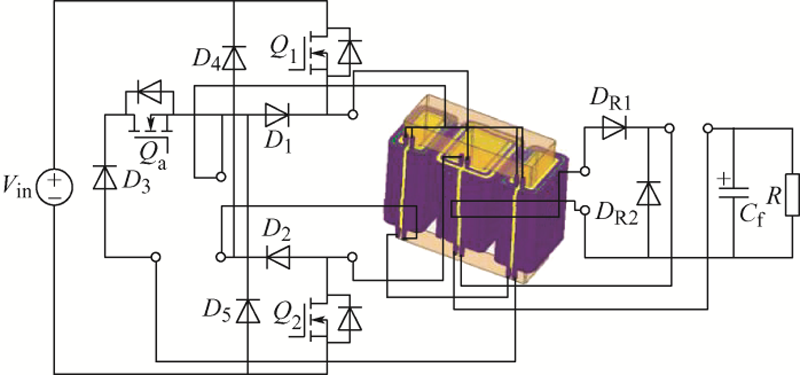

图1

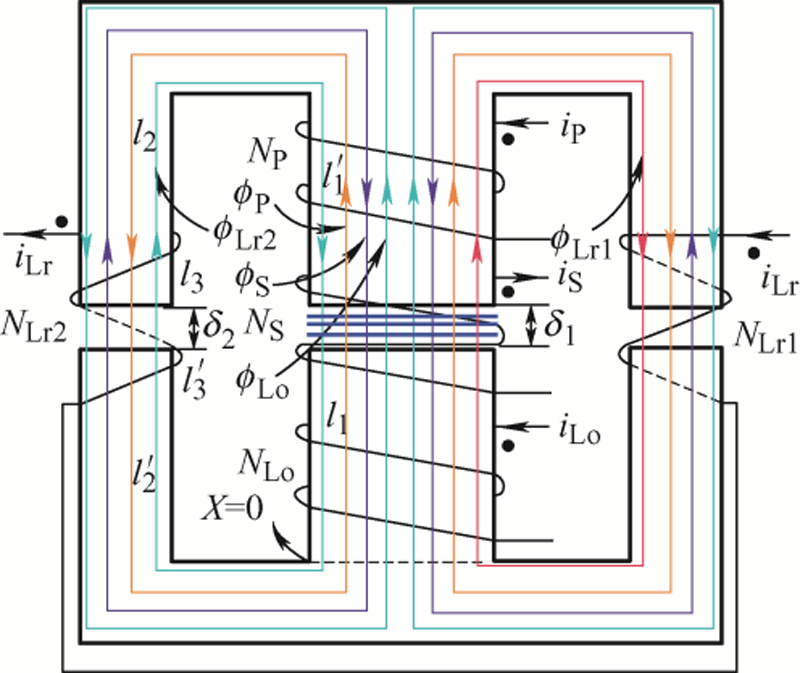

图2

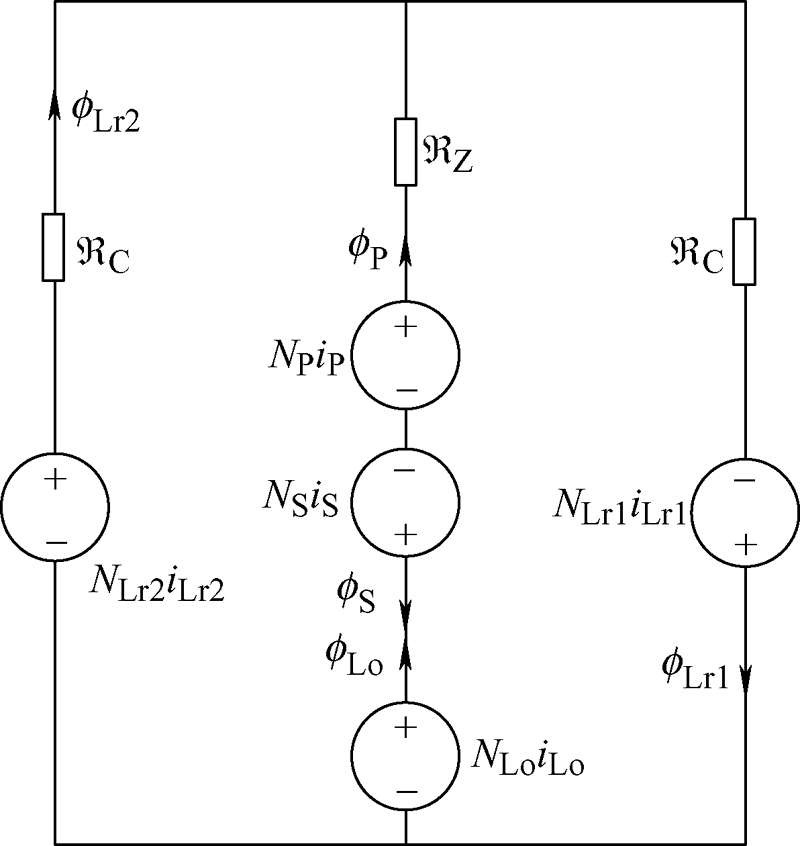

图3

图4

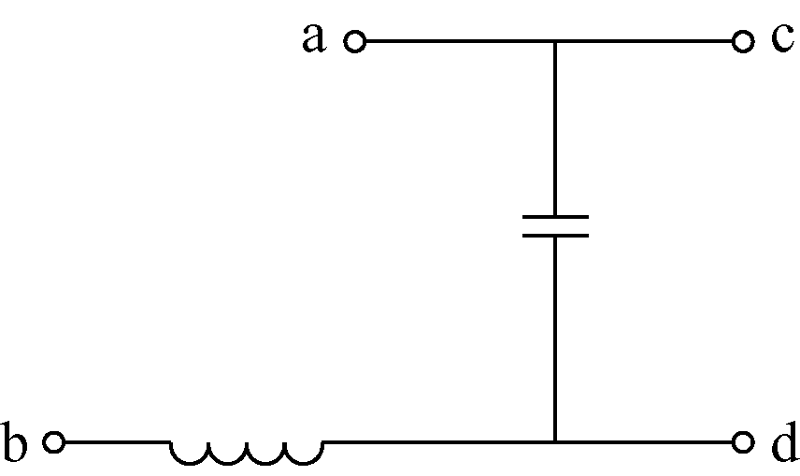

图5

图6

表1

表2

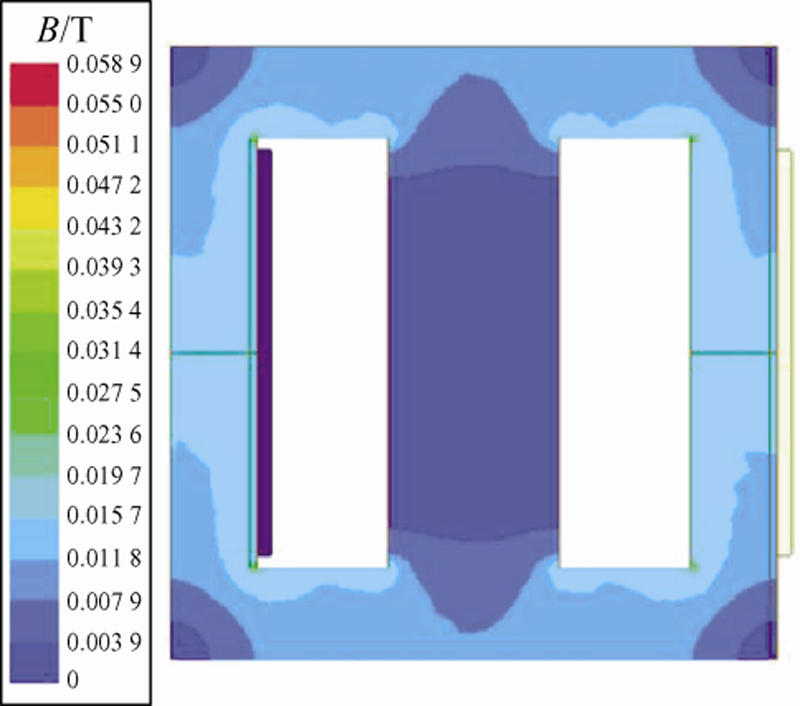

图7

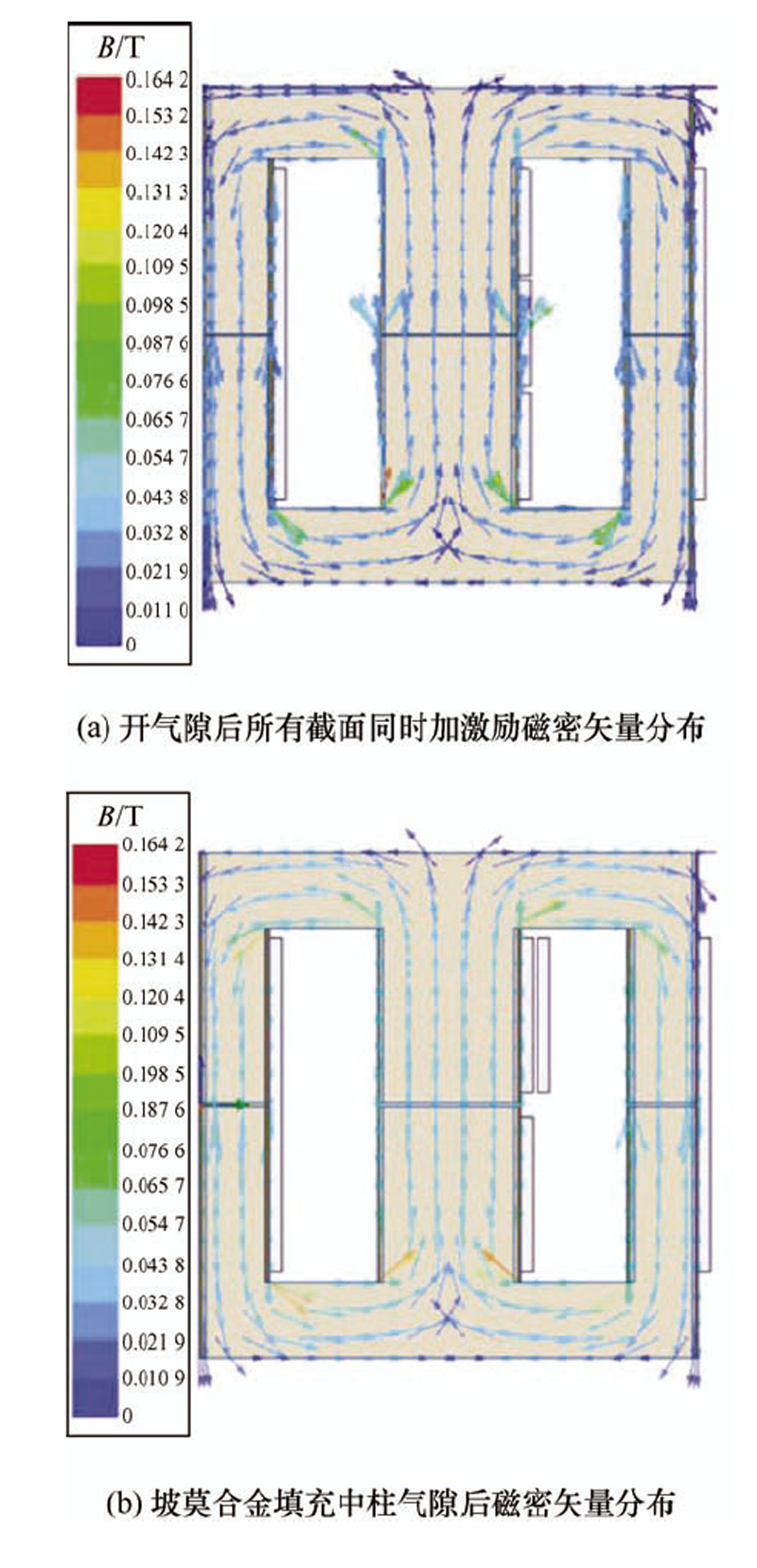

图8

表3

图9

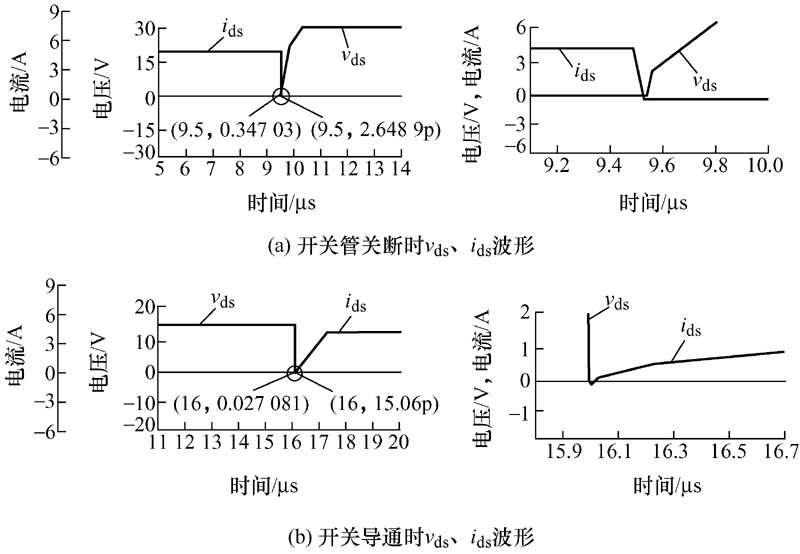

图10

图11

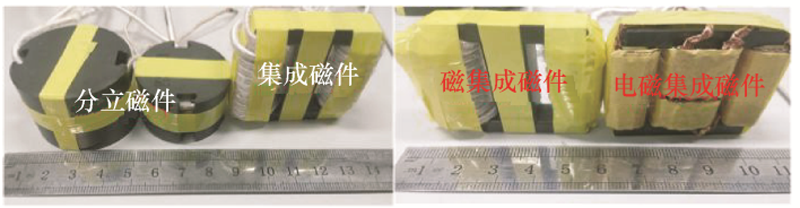

图12

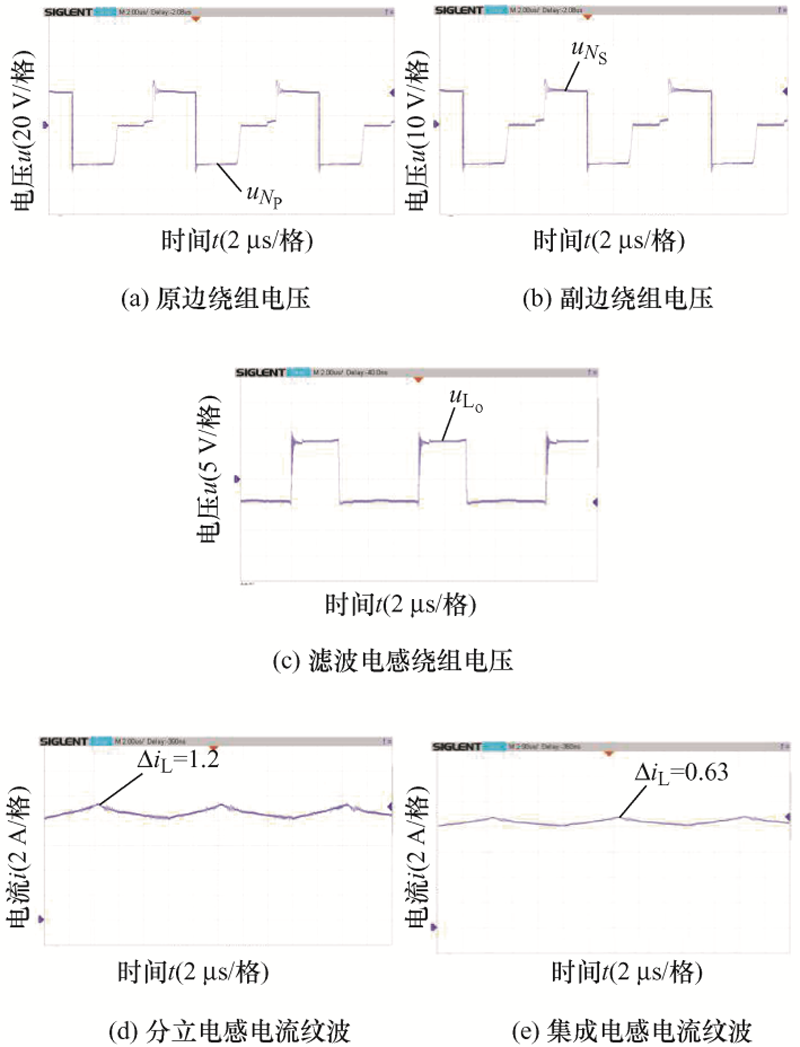

图13

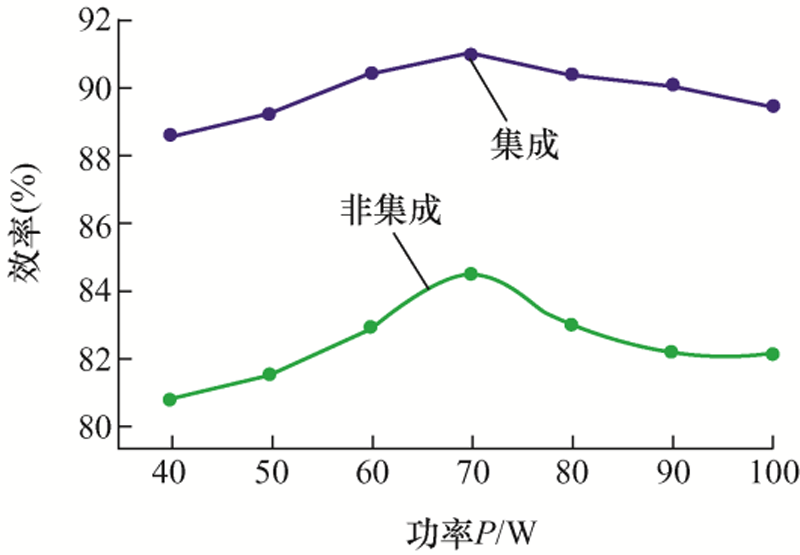

图14

参考文献 15

[1]	李洪珠, 刘歆俣, 李洪璠, 等. 正激变换器磁集成分析与设计准则[J]. 中国电机工程学报, 2019, 39(12):3667-3676.
	LI Hongzhu, LIU Xinyu, LI Hongfan, et al. Analysis and design criteria for magnetic integration of forward converters[J]. Proceedings of the CSEE, 2019, 39(12):3667-3676.
[2]	刘昌咏, 赵晋斌, 毛玲, 等. 一种高降压比DC-DC变换器[J]. 电工技术学报, 2019, 34(20):4264-4271.
	LIU Changyong, ZHAO Jinbin, MAO Ling, et al. A high buck ratio DC-DC converter[J]. Transactions of China Electrotechnical Society, 2019, 34(20):4264-4271.
[3]	杨玉岗, 万冬, 张凯强. “目”字形耦合电感器的设计及应用[J]. 电工技术学报, 2016, 31(5):35-43.
	YANG Yugang, WAN Dong, ZHANG Kaiqiang. Design and application of“Mesh”coupled inductor[J]. Transactions of China Electrotechnical Society, 2016, 31(5):35-43.
[4]	LESLÉ J L, CAILLAUDET R, MOREL F, et al. Optimum design of a single-phase power pulsating buffer (PPB) with PCB-integrated inductor technologies[C]// 2018 IEEE International Conference on Industrial Technology (ICIT),2018:782-787.
[5]	蒋启文. 基于柔性多层带材电磁元件集成技术若干应用[D]. 湘潭: 湘潭大学, 2019.
	JIANG Qiwen. Several applications of electromagnetic element integration technology based on flexible multilayer foil[D]. Xiangtan: Xiangtan University, 2019.
[6]	马杰. 并网逆变器电磁元件集成方法研究[D]. 杭州: 浙江大学, 2020.
	MA Jie. Research on integrated method of electromagnetic components for grid-connected inverters[D]. Hangzhou: Zhejiang University, 2020.
[7]	雍马思倩. 应用于光伏能源拓扑的电磁元件集成[D]. 湘潭: 湘潭大学, 2020.
	YONGMA Siqian. Electromagnetic component integration applied to photovoltaic energy topology[D]. Xiangtan: Xiangtan University, 2020.
[8]	邓成. 柔性多层带材电磁元件集成方法及应用[D]. 杭州: 浙江大学, 2014.
	DENG Cheng. Integration method and application of flexible multilayer foil electromagnetic components[D]. Hangzhou: Zhejiang University, 2014.
[9]	王永强, 郑志宏, 欧阳宝龙, 等. 基于有限元耦合算法的变压器铁芯损耗计算[J]. 系统仿真学报, 2016, 28(8):1757-1763.
	WANG Yongqiang, ZHENG Zhihong, OUYANG Baolong, et al. Transformer core loss calculation based on finite element coupling algorithm[J]. Journal of System Simulation, 2016, 28(8):1757-1763.
[10]	张黎, 王国政, 董攀婷, 等. 基于磁致伸缩本征特性的晶粒取向性变压器铁心振动模型[J]. 中国电机工程学报, 2016, 36(14):3990-4001.
	ZHANG Li, WANG Guozheng, DONG Panting, et al. Vibration model of grain oriented transformer core based on magnetostrictive characteristic[J]. Proceedings of the CSEE, 2016, 36(14):3990-4001.
[11]	王迎迎, 袁建生. 铁心材料饱和磁化强度的偏差对求解变压器涌流的影响[J]. 电工技术学报, 2019, 34(12):2452-2459.
	WANG Yingying, YUAN Jiansheng. Influence of the errorof saturation magnetization of core material on solving inge current of transformer[J]. Transactions of China Electrotechnical Society, 2019, 34(12):2452-2459.
[12]	张昊然. 低输出电流脉动的IM-TTF变换器[D]. 南京: 南京航空航天大学, 2009.
	ZHANG Haoran. IM-TTF converter with low output current fluctuation[D]. Nanjing: Nanjing University of Aeronautics and Astronautics, 2009.
[13]	郭瑞, 王磊, 杨玉岗. 一种新型单元耦合阵列化可变耦合度集成磁件的研究及应用[J]. 中国电机工程学报, 2016, 36(18):5009-5020,5126.
	GUO Rui, WANG Lei, YANG Yugang. Research and application of a novel element coupling array variable coupling degree integrated magnetic element[J]. Proceedings of the CSEE, 2016, 36(18):5009-5020,5126.
[14]	DENG C, LI S, TANG J. A review of flexible multilayer foil integration technology for passive components[J]. IEEE Transactions on Power Electronics, 2021, 36(11):13025-13038. doi: 10.1109/TPEL.2021.3078125
[15]	LI B, LI Q, LEE F C. High-frequency PCB winding transformer with integrated inductors for a bi-directional resonant converter[J]. IEEE Transactions on Power Electronics, 2019, 34(7):6123-6135. doi: 10.1109/TPEL.2018.2874806

参数	数值
中柱有效截面积A_ez/cm²	0.597
边柱有效截面积A_ec/cm²	0.35
磁心体积V_e/cm³	3.92
磁心常数C₁/mm^-1	1.089
无气隙等效电感因数A_L/(nH/N²)	2 400

参数	数值
参数	原边绕组	副边绕组	电感绕组
匝数	28	14	7
励磁线线径	0.1×130	0.1×400	0.1×400
最大耐流值/A	5.105	15.705	15.705

参数	计算值	仿真值
变压器原边电感L_p/μH	227.26	229.97
变压器副边电感L_s/μH	56.815	56.947
滤波电感L_o/μH	14.400	15.434
谐振电感L_r/μH	19.900	19.765
谐振电容C_r/nF	3.000	2.991
铁心损耗P_core-loss/W	1.435	1.465
绕组损耗P_ohmic-loss/W	2.063	2.301
