一种基于开关电容倍压单元的新型浮地并联高增益变换器*

doi:10.11985/2021.02.023

摘要/Abstract

摘要：

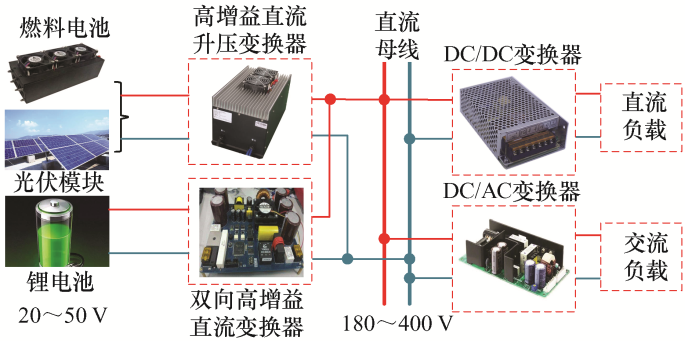

针对传统Boost变换器电压增益低、开关器件电压应力大不适用于燃料电池/光伏发电系统的问题,提出一种新型非隔离高增益DC/DC变换器。该拓扑采用浮地并联结构,主电路上下对称,并结合开关电容单元有效提高了变换器的电压增益;此外变换器还具有开关器件低电压应力、低电流应力、电感电流自动均流的优点,多电感并联的结构则有利于提升变换器的功率等级。详细分析了所提变换器的工作原理与稳态特性,并设计了相应的高阶滑模控制策略以提高变换器的鲁棒性。最后,通过仿真与试验验证了理论分析的正确性。

关键词: 光伏/燃料电池, 高增益, 开关电容, 电压应力

Abstract:

A novel non-isolated high-gain DC/DC converter is proposed to solve the problems of low voltage gain and high voltage stress of traditional Boost converter in fuel cell/PV power generation system. In this topology, the main circuit of floating parallel structure is symmetrical and combined with switched capacitor units, which improves the voltage gain of the converter effectively. In addition, the converter has the advantages of low voltage stress and low current stress on switches and diodes, automatic current sharing of inductors, and the structure of multiple inductors in parallel is beneficial to improve the power level of the converter. The operating principle and steady-state characteristics of the proposed converter are analyzed in detail, and the corresponding high-order sliding mode control strategy is designed to improve the robustness of the converter. Finally, the validity of the theoretical analysis is verified by simulation and experiments.

Key words: Fuel cell/PV, high voltage gain, switched capacitor, voltage stress

中图分类号:

TM46

马雨辉, 皇甫宜耿, 徐良材, 许佳妮. 一种基于开关电容倍压单元的新型浮地并联高增益变换器^*[J]. 电气工程学报, 2021, 16(2): 181-189.

MA Yuhui, HUANGFU Yigeng, XU Liangcai, XU Jiani. A Novel Floating Parallel High-gain Converter Based on Switched Capacitor Voltage Doubler[J]. Journal of Electrical Engineering, 2021, 16(2): 181-189.

图/表 15

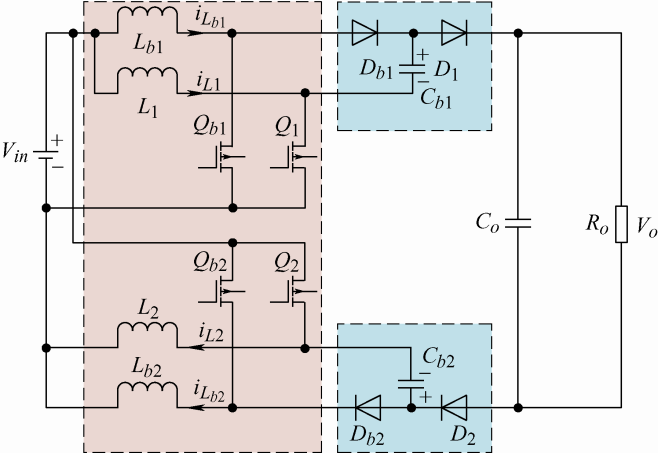

图1

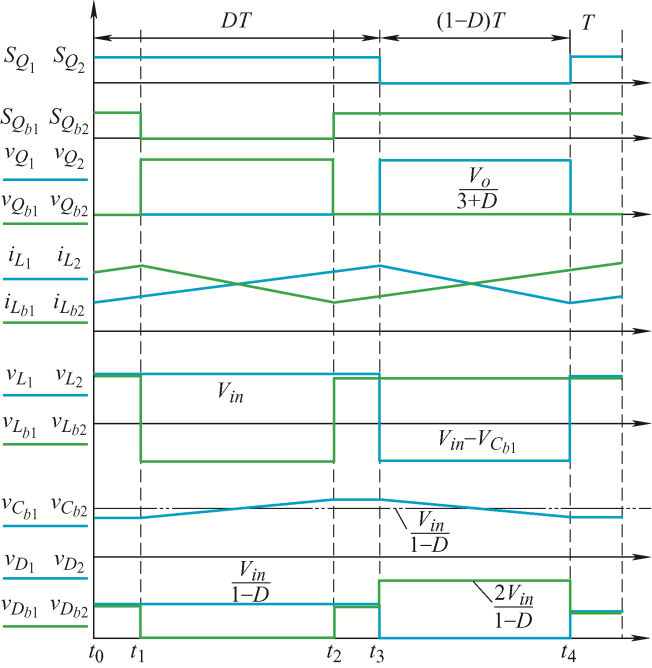

图2

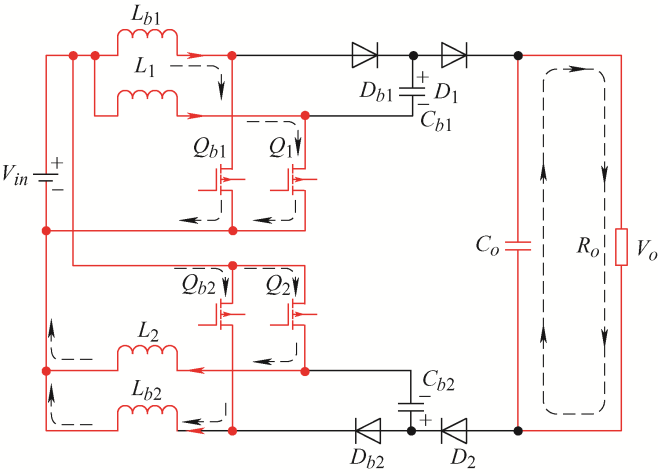

图3

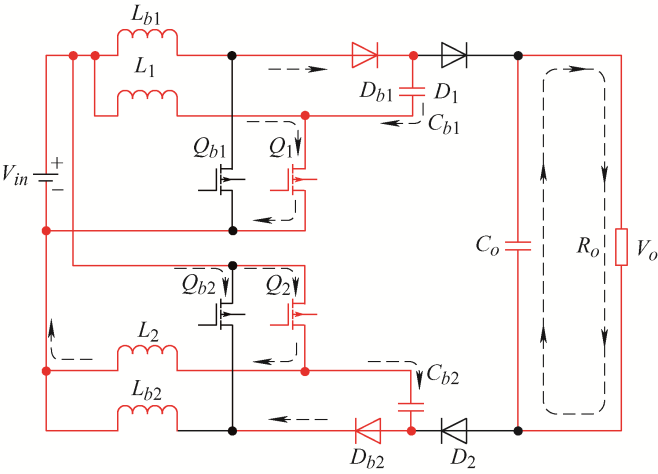

图4

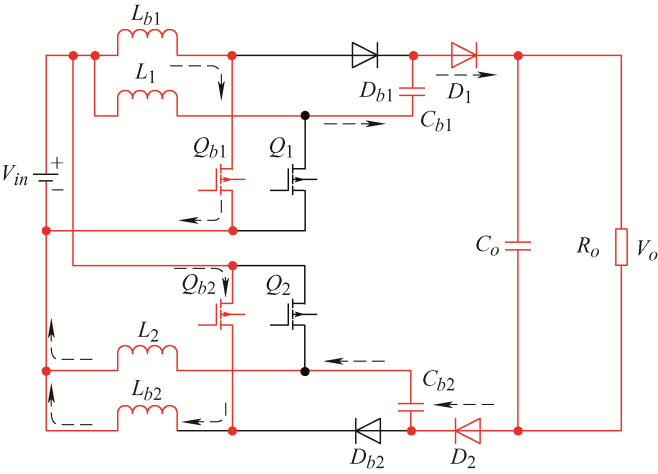

图5

图6

图7

表1

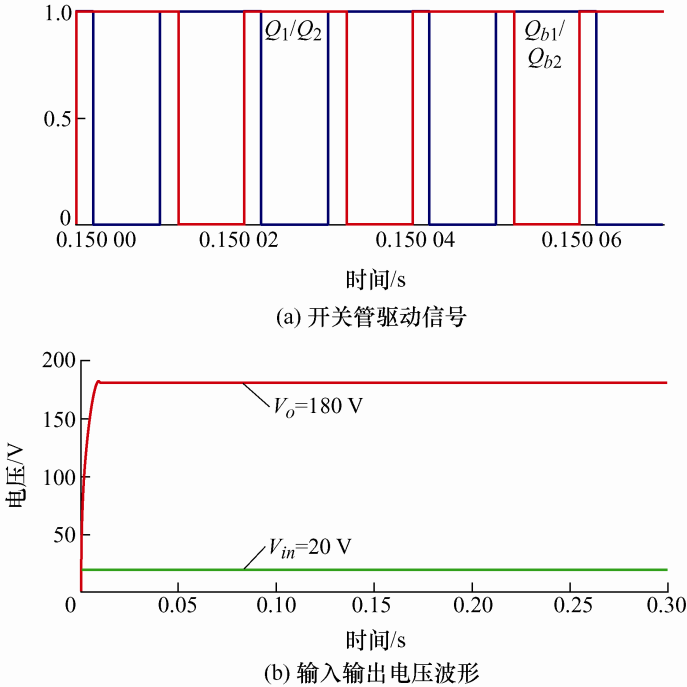

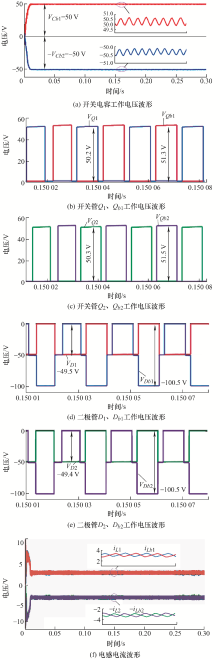

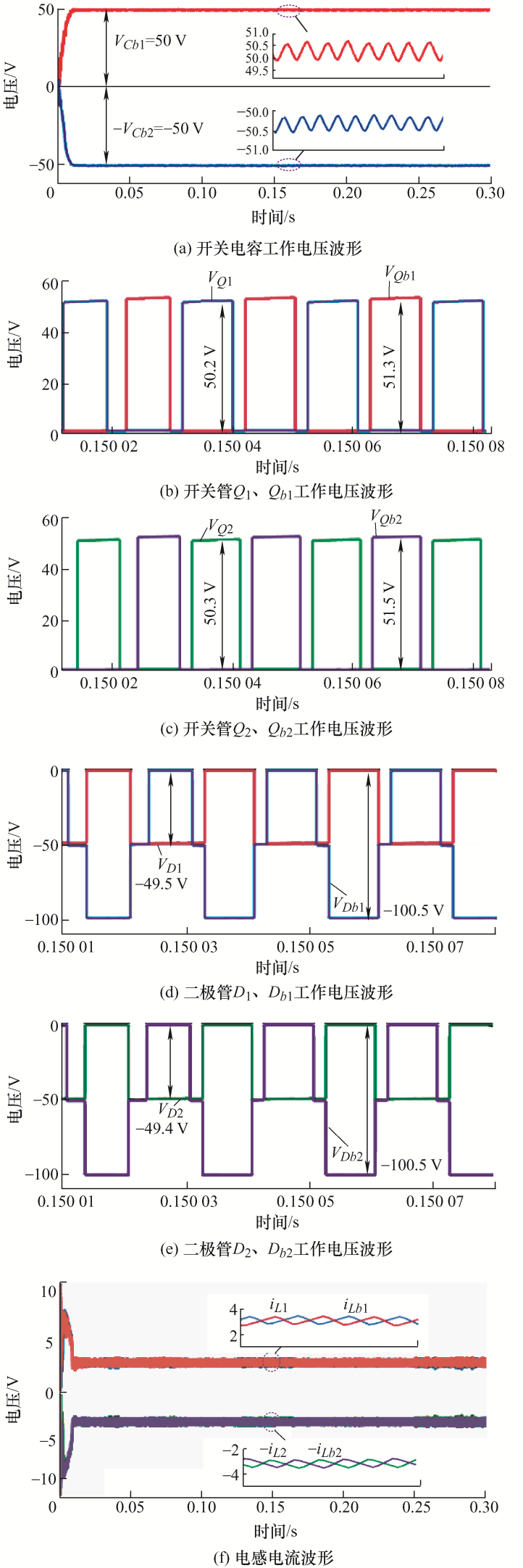

图8

表2

图9

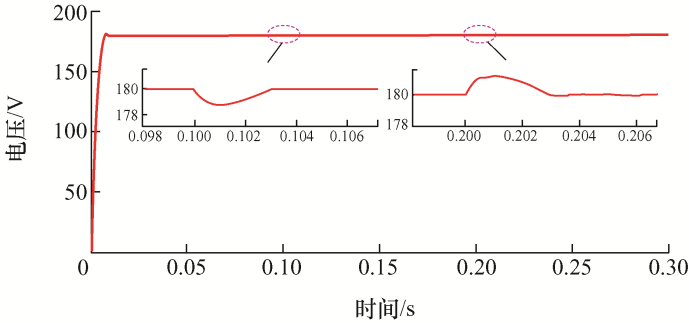

图10

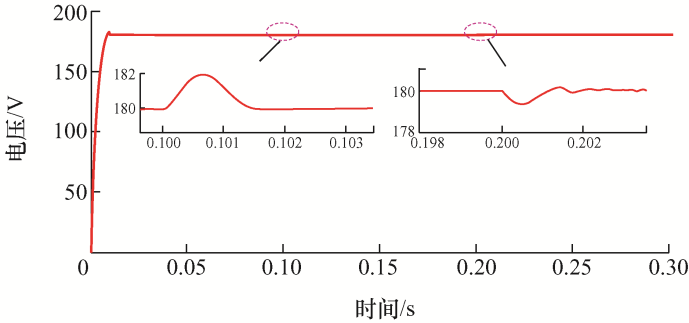

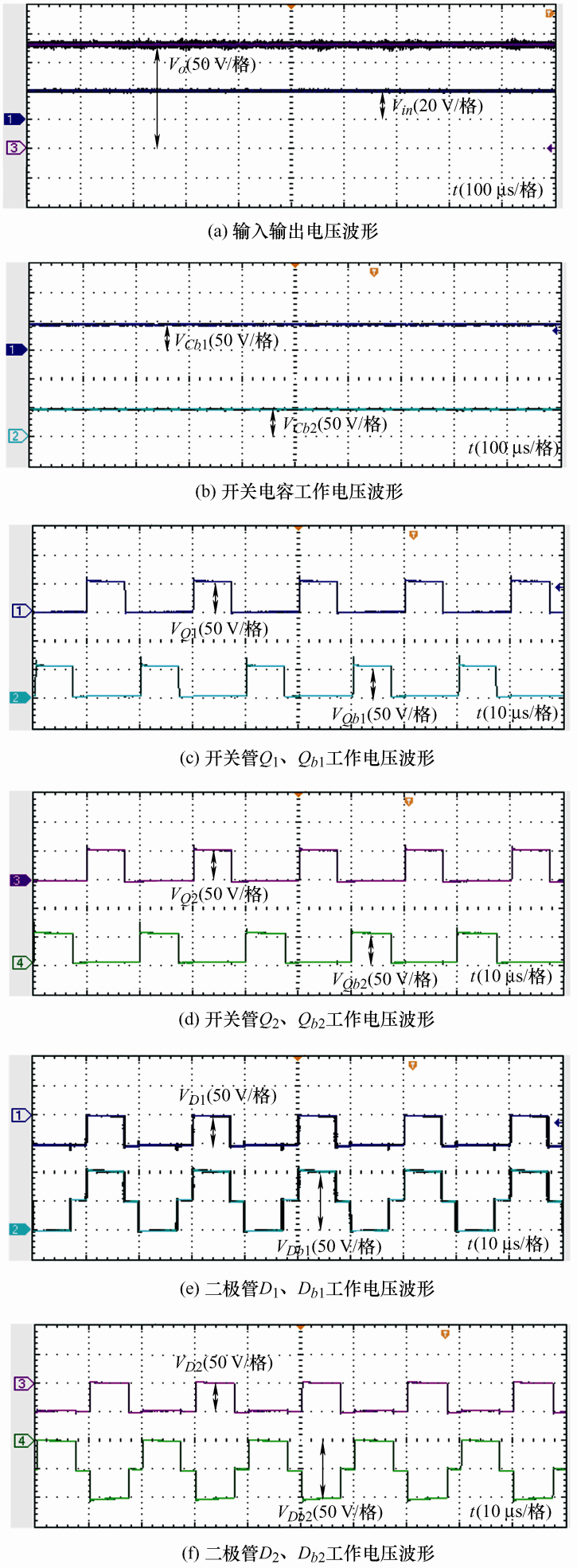

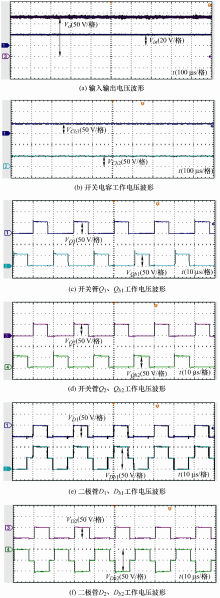

图11

图12

图13

参考文献 24

[1]	LI Q, HUANGFU Y G, XU L C, et al. An improved floating interleaved Boost converter with the zero-ripple input current for fuel cell applications[J]. IEEE Transactions on Energy Conversion, 2019, 34(4):2168-2179. doi: 10.1109/TEC.60
[2]	丁敏, 吴桂清, 李心怡. 单开关新型非隔离高变换比DC-DC变换器[J]. 电气工程学报, 2019, 14(2):12-16.
	DING Min, WU Guiqing, LI Xinyi. New single switch non-isolated high transform ratio DC-DC converter[J]. Journal of Electrical Engineering, 2019, 14(2):12-16.
[3]	周悦, 孙孝峰. 带CD单元的两相交错并联高增益Boost直流变换器拓扑分析[J]. 中国电机工程学报, 2020, 40(15):5000-5011.
	ZHOU Yue, SUN Xiaofeng. Topology analysis of two-phase interleaved high gain Boost DC converter with CD unit[J]. Proceedings of the CSEE, 2020, 40(15):5000-5011.
[4]	董卓, 张岩, 刘进军, 等. 多单元二极管电容电感网络高增益直流变换器统一模型研究[J]. 中国电机工程学报, 2018, 38(18):5527-5537.
	DONG Zhuo, ZHANG Yan, LIU Jinjun, et al. Unified model of high step-up DC-DC converter with multi-cell diode-capacitor/inductor network[J]. Proceedings of the CSEE, 2018, 38(18):5527-5537.
[5]	LI W, HE X. Review of nonisolated high-step-up DC/DC converters in photovoltaic grid-connected applications[J]. IEEE Transactions on Industrial Electronics, 2010, 58(4):1239-1250. doi: 10.1109/TIE.2010.2049715
[6]	PRABHALA V A K, FAJRI P, GOURIBHATLA V S P, et al. A DC-DC converter with high voltage gain and two input boost stages[J]. IEEE Transactions on Power Electronics, 2016, 31(6):4206-4215. doi: 10.1109/TPEL.2015.2476377
[7]	YANG L, YU W, ZHANG J. High voltage gain ratio isolated resonant switched-capacitor converter for sustainable energy[J]. IEEE Access, 2019, 7:23055-23067. doi: 10.1109/ACCESS.2019.2893981
[8]	高帅, 张兴, 赵文广, 等. 双有源桥DC-DC变换器最小回流功率控制策略[J]. 电气工程学报, 2019, 14(2):24-29.
	GAO Shuai, ZHANG Xing, ZHAO Wenguang, et al. Minimum reactive power control strategy for dual active bridge DC-DC converter[J]. Journal of Electrical Engineering, 2019, 14(2):24-29.
[9]	丁奇, 杨海涛, 刘聪. 平均电流控制型移相全桥DC/DC变换器设计方法的研究[J]. 电气工程学报, 2018, 13(9):32-37.
	DING Qi, YANG Haitao, LIU Cong. Research on design method for average current model control phase-shift full bridge DC-DC converter[J]. Journal of Electrical Engineering, 2018, 13(9):32-37.
[10]	周磊, 张宇妍, 秦岭, 等. 低电应力无变压器单管高增益Boost变换器族[J]. 中国电机工程学报, 2020, 40(21):7036-7047.
	ZHOU Lei, ZHANG Yuyan, QIN Ling, et al. A family of transformerless single-switch high gain Boost converters with low electric stress[J]. Proceedings of the CSEE, 2020, 40(21):7036-7047.
[11]	胡雪峰, 戴国瑞, 龚春英, 等. 一种高增益低开关应力改进交错型Boost变换器[J]. 电工技术学报, 2014, 29(12):80-87.
	HU Xuefeng, DAI Guorui, GONG Chunying, et al. An improved interleaved Boost converter with high gain and low switch voltage stress[J]. Transactions of China Electrotechnical Society, 2014, 29(12):80-87.
[12]	罗全明, 高伟, 吕星宇, 等. 耦合电感型高增益Boost变换器拓扑分析[J]. 中国电机工程学报, 2017, 37(24):7266-7275,7441.
	LUO Quanming, GAO Wei, LÜ Xingyu, et al. Topology analysis of high step-up Boost converters with coupled inductors[J]. Proceedings of the CSEE, 2017, 37(24):7266-7275,7441.
[13]	ZHANG X J, SUN L, GUAN Y S, et al. Novel high step-up soft-switching DC-DC converter based on switched capacitor and coupled inductor[J]. IEEE Transactions on Power Electronics, 2020, 35(9):9471-9481. doi: 10.1109/TPEL.63
[14]	李洪珠, 史清晨, 刘艳, 等. 磁集成LCL倍压单元高增益变换器[J]. 电气工程学报, 2019, 14(1):52-60.
	LI Hongzhu, SHI Qingchen, LIU Yan, et al. Magnetic integrated staggered parallel high gain converter with LCL voltage doubling unit[J]. Journal of Electrical Engineering, 2019, 14(1):52-60.
[15]	SHEN M, PENG F Z, TOLBERT L M. Multilevel DC-DC power conversion system with multiple DC sources[J]. IEEE Transactions on Power Electronics, 2008, 23(1):420-426. doi: 10.1109/TPEL.2007.911875
[16]	GUO Z Y, LI H, LIU C, et al. Stability-improvement method of cascaded DC-DC converters with additional voltage-error mutual feedback control[J]. Chinese Journal of Electrical Engineering, 2019, 5(2):63-71. doi: 10.23919/CJEE.2019.000012
[17]	BUSSA V K, SINGH R K, MAHANTY R. A two switch non-isolated high gain DC-DC converter[C]// IEEE International Conference on Power Electronics,Drives and Energy Systems (PEDES),Chennai,India, 2018.
[18]	KABALO M, PAIRE D, BLUNIER B, et al. Experimental evaluation of four-phase floating interleaved boost converter design and control for fuel cell applications[J]. IET Power Electronics, 2013, 6(2):215-226. doi: 10.1049/pel2.v6.2
[19]	LAKSHMI M, HEMAMALINI S. Nonisolated high gain DC-DC converter for DC microgrids[J]. IEEE Transactions on Industrial Electronics, 2018, 65(2):1205-1212. doi: 10.1109/TIE.2017.2733463
[20]	SALVADOR M A, LAZZARIN T B, COELHO R F. High step-up DC-DC converter with active switched-inductor and passive switched-capacitor networks[J]. IEEE Transactions on Industrial Electronics, 2017, 65(7):5644-5654. doi: 10.1109/TIE.2017.2782239
[21]	SON Y I, KIM I H. Complementary PID controller to passivity-based nonlinear control of Boost converters with inductor resistance[J]. IEEE Transactions on Control Systems Technology, 2012, 20(3):826-834. doi: 10.1109/TCST.2011.2134099
[22]	贾志东, 姜久春, 程龙, 等. 适用于Boost变换器的自适应模型预测控制算法[J]. 中国电机工程学报, 2018, 38(19):5838-5845,5941.
	JIA Zhidong, JIANG Jiuchun, CHENG Long, et al. An adaptive model predictive control for DC-DC Boost converters[J]. Proceedings of the CSEE, 2018, 38(19):5838-5845,5941.
[23]	SILAA M Y, DERBELI M, BARAMBONES O, et al. Design and implementation of high order sliding mode control for PEMFC power system[J]. Energies, 2020, 13(17):4317. doi: 10.3390/en13174317
[24]	皇甫宜耿, 郭亮, 梁艳, 等. 一种鲁棒双向直流变换装置的高阶滑模控制器[J]. 控制理论与应用, 2019, 36(3):389-398.
	HUANGFU Yigeng, GUO Liang, LIANG Yan, et al. A high-order sliding mode controller for a robust bi-directional DC-DC converter[J]. Control Theory & Applications, 2019, 36(3):389-398.

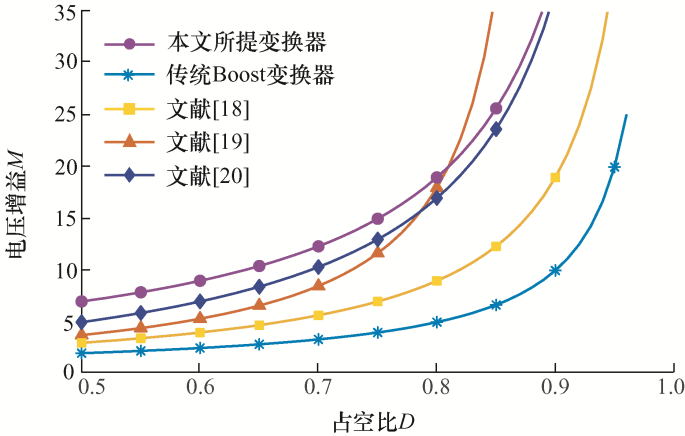

拓扑	电压增益	开关管电压应力	二极管电压应力
传统Boost	$\frac{1}{1-D}$	${{\text{V}}_{\text{o}}}$	${{\text{V}}_{\text{o}}}$
FIBC^[18]	$\frac{1\text{+}D}{1-D}$	$\frac{{{\text{V}}_{\text{o}}}}{1\text{+D}}$	$\frac{{{\text{V}}_{\text{o}}}}{1\text{+D}}$
HGBC^[19]	$\frac{1\text{+}{{D}_{1}}}{1-{{D}_{1}}-{{D}_{2}}}$	$\frac{{{V}_{\text{o}}}\text{+}{{V}_{\text{in}}}}{2}$/${{\text{V}}_{\text{o}}}$	${{V}_{\text{o}}}\text{+}{{V}_{\text{in}}}$/${{V}_{\text{in}}}$
ASL-SU2C^[20]	$\frac{1\text{+}3\text{D}}{1-D}$	$\frac{{{\text{V}}_{\text{o}}}}{1\text{+}3\text{D}}$	$\frac{2{{\text{V}}_{\text{o}}}}{1\text{+}3\text{D}}$
所提变换器	$\frac{3\text{+}D}{1-D}$	$\frac{{{\text{V}}_{\text{o}}}}{3\text{+D}}$	$\frac{{{\text{V}}_{\text{o}}}}{3\text{+D}}$/$\frac{2{{\text{V}}_{\text{o}}}}{3\text{+D}}$

物理量	数值	物理量	数值
输入电压/V	20~25	输出电容${{\text{C}}_{\text{o}}}$/μF	470
额定输出电压/V	180	开关电容${{\text{C}}_{\text{b}1}}、 {{\text{C}}_{\text{b}2}}$/μF	68

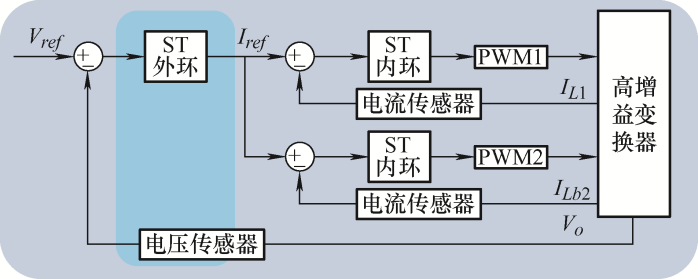

开关频率/kHz	50	内环控制器参数	$\lambda \text{=}0.06, \alpha \text{=}150$
电感/μH	330	外环控制器参数	${{\lambda }_{0}}\text{=}0.8, {{\alpha }_{0}}\text{=}500$
