电极旋转情况下真空电弧阳极熔蚀过程的数值仿真与分析*

doi:10.11985/2021.02.014

电气工程学报 ›› 2021, Vol. 16 ›› Issue (2): 108-114.doi: 10.11985/2021.02.014

扫码分享

电极旋转情况下真空电弧阳极熔蚀过程的数值仿真与分析^*

马涛¹(), 侯磊¹(), 许杨勇²(), 祁天星¹(), 杨天阔¹(), 齐庆峰³(), 刘学识⁴(), 娄博威⁴()

1.河北省电力有限公司雄安新区供电公司雄安新区 071000
2.浙江省电力有限公司检修分公司杭州 310000
3.许继集团有限公司许昌 461000
4.沈阳工业大学电气工程学院沈阳 110870

收稿日期:2020-10-10 修回日期:2021-04-12 出版日期:2021-06-25 发布日期:2021-08-05
作者简介:马涛,男,1979年生,工程师。主要研究方向为电气工程及其自动化。E-mail： xa_mat@he.sgcc.com.cn
侯磊,男,1986年生,男,硕士。主要研究方向为能源互联网、综合能源和智能用电。E-mail： 705608320@qq.com
许杨勇,男,1980年生,硕士,高级工程师。主要从事超(特)高压输电线路检修运维工作。E-mail： 823802645@qq.com
祁天星,男,1993年生,硕士。主要研究方向电力系统及其自动化。E-mail： 920519860@qq.com
杨天阔,男,1991年生,硕士研究生,工程师。主要研究方向为电气工程及其自动化。E-mail： xa_yangtk@he.sgcc.com.cn
齐庆峰,男,1977年生。主要研究方向为新能源及节能技术。E-mail： qqfboy@126.com
刘学识,男,1997年生,硕士。主要研究方向为电器智能化。E-mail： 383675768@qq.com
娄博威,男,1997年生,硕士。主要研究方向为电器电弧理论。E-mail： 806608947@qq.com
基金资助:
* 国网河北省电力有限公司科技资助项目(kj2019-013-Ⅱ)

Numerical Simulation and Analysis of the Anodic Etching Process of Vacuum Arc under the Condition of Electrode Rotation

MA Tao¹(), HOU Lei¹(), XU Yangyong²(), QI Tianxing¹(), YANG Tiankuo¹(), QI Qingfeng³(), LIU Xueshi⁴(), LOU Bowei⁴()

1. Xiong’an New Area Power Supply Company of Hebei Electric Power Co., Ltd., Xiong’an New Area 071000
2. Maintenance Branch of Zhejiang Electric Power Co., Ltd., Hangzhou 310000
3. Xuji Group Co., Ltd., Xuchang 461000
4. School of Electrical Engineering, Shenyang University of Technology, Shenyang 110870

Received:2020-10-10 Revised:2021-04-12 Online:2021-06-25 Published:2021-08-05

摘要/Abstract

摘要：

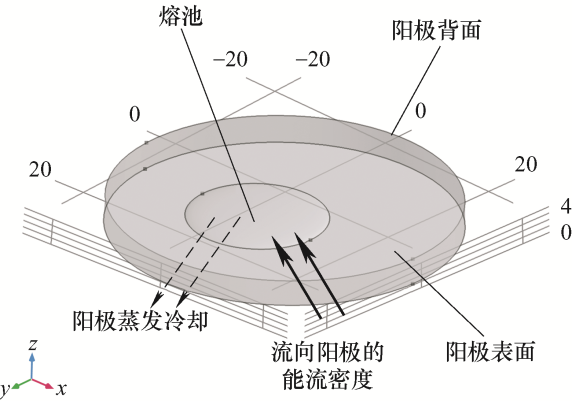

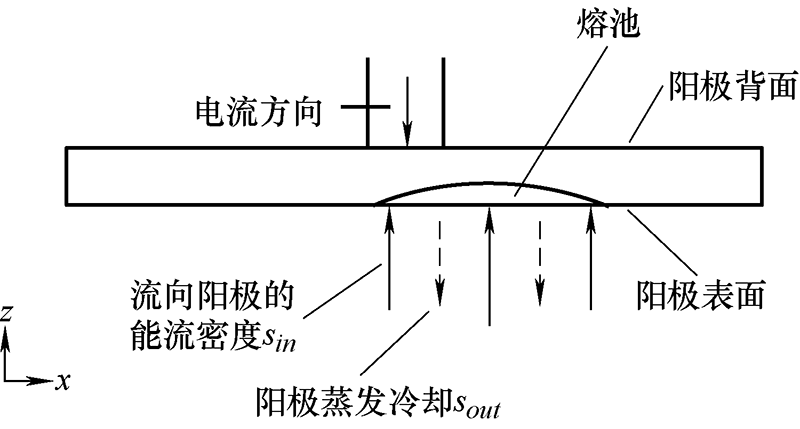

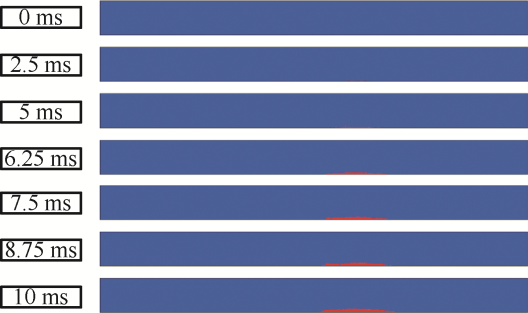

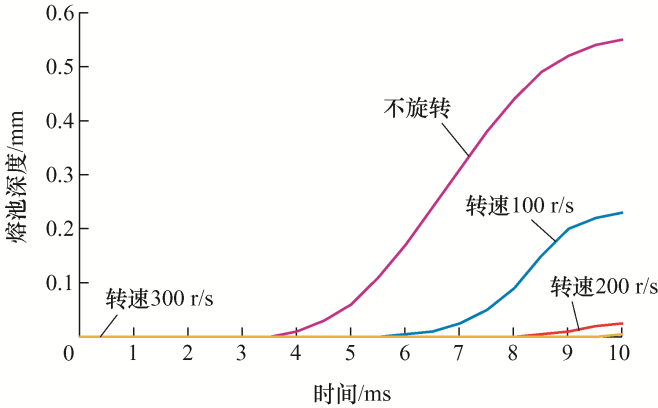

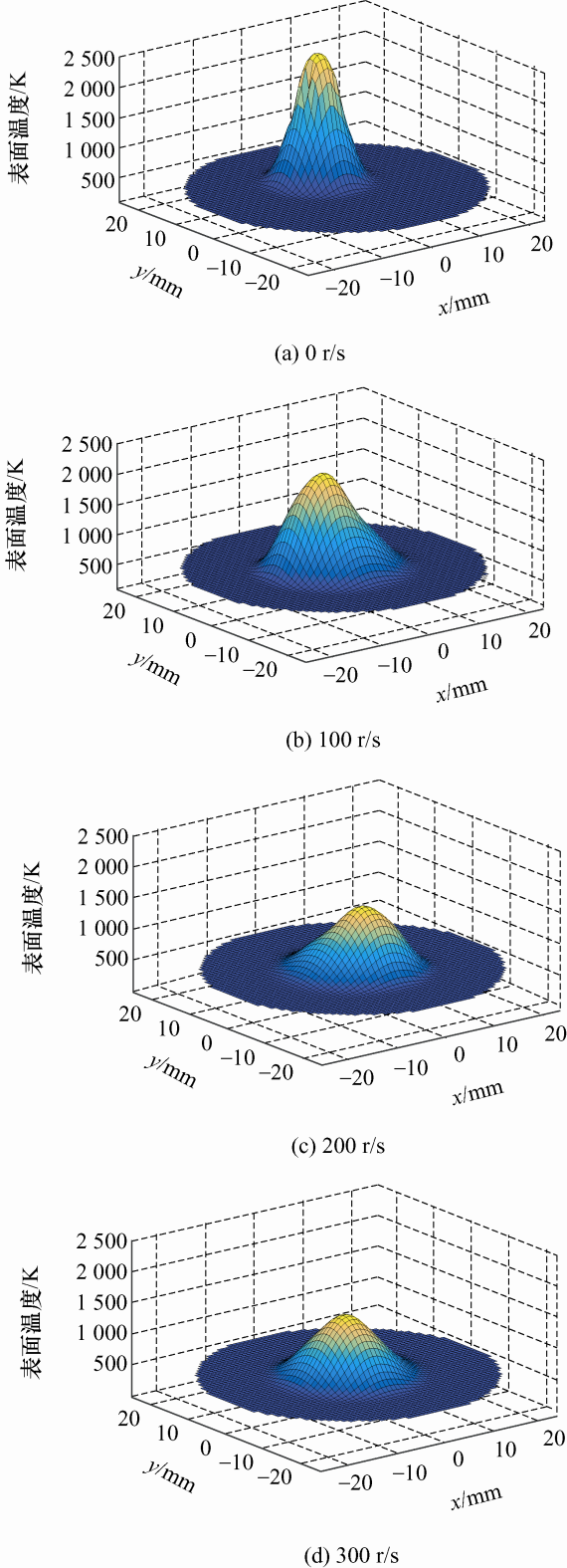

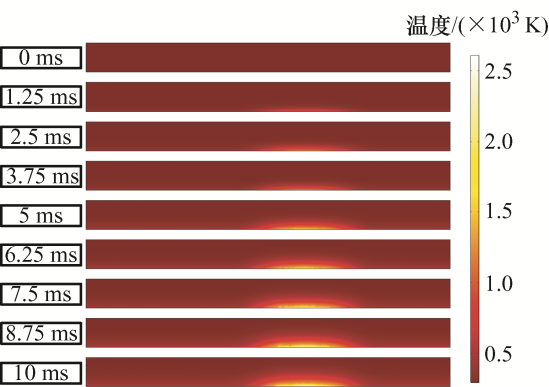

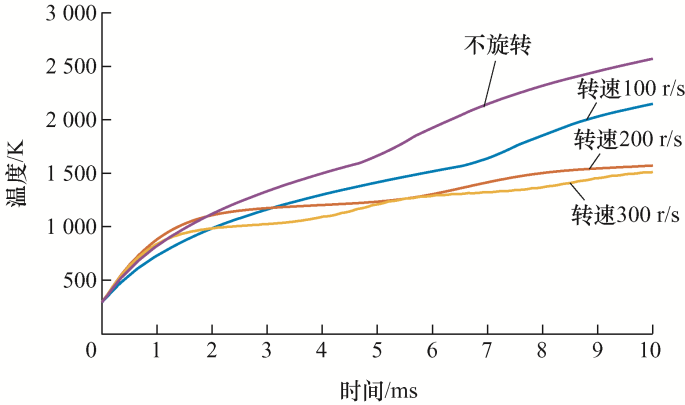

对真空灭弧室中阳极触头的三维几何模型进行建模与分析,为了讨论电极旋转对真空电弧及阳极热过程的影响,建立了数学模型来模拟阳极表面熔化、蒸发时的相变过程,采用多孔介质描述方法以便于对固-液混合区域进行处理。由热过程的数值模拟可知,旋转电极表面温度、熔池面积以及熔池深度与热过程的时间呈正相关;电极转速越快,则阳极表面最高温度以及阳极表面熔池面积越小,阳极表面温度分布更加均匀,以此仿真模型为评估断路器的开断容量提供理论依据。

关键词: 真空电弧, 阳极烧蚀, 表面温度, 仿真研究

Abstract:

A three-dimensional geometric model of anode contact of vacuum circuit breaker is established and analyzed in this paper. To analyze the influence of electrode rotation on vacuum arc and anode thermal process, a physical model of phase transformation process is established for the melting and evaporation of anode surface. The solid-liquid mixing area is treated by the description method of porous media, and the numerical simulation of anode thermal process is carried out, concluding that with the increase of time, the anode surface temperature is increasing, molten pool is developing, molten pool depth is deepening, in addition, with the increase of electrode speed, the highest temperature on the surface of the contact and the size of the molten pool are reducing, and the temperature distribution is more uniform. This simulation model can be an academic foundation to research the breaking capacity of circuit breaker.

Key words: Vacuum arc, anodic ablation, surface temperature, simulation research

中图分类号:

TM561

马涛, 侯磊, 许杨勇, 祁天星, 杨天阔, 齐庆峰, 刘学识, 娄博威. 电极旋转情况下真空电弧阳极熔蚀过程的数值仿真与分析^*[J]. 电气工程学报, 2021, 16(2): 108-114.

MA Tao, HOU Lei, XU Yangyong, QI Tianxing, YANG Tiankuo, QI Qingfeng, LIU Xueshi, LOU Bowei. Numerical Simulation and Analysis of the Anodic Etching Process of Vacuum Arc under the Condition of Electrode Rotation[J]. Journal of Electrical Engineering, 2021, 16(2): 108-114.

图/表 8

图1

图2

表1

图3

图4

图5

图6

图7

参考文献 22

[1]	BOXMAN R L, SANDERS D M, MARTIN P J, et al. Handbook of vacuum arc science and technology fundamentals and applications[M]. New Jersey:Noyes Publications, 1996.
[2]	MILLER H C. Discharge modes at the anode of a vacuum arc[J]. IEEE Transactions on Plasma Science, 1983, 11(3):122-127. doi: 10.1109/TPS.1983.4316238
[3]	MATSUI Y, SANO A, KOMATSU H, et al. Vacuum arc phenomena under various axial magnetic field and anode melting[C]// 24th International Symposium on Discharge and Electrical Insulation in Vacuum. Braunschweig,Germany:IEEE, 2010:324-327.
[4]	BEILIS I I, BOXMAN R L, GOLDSMITH S. A hot refractory anode vacuum arc:Nonstationary plasma model[J]. IEEE Transactions on Plasma Science, 2001, 29(5):690-694. doi: 10.1109/27.964455
[5]	BEILIS I I, BOXMAN R L, GOLDSMITH S. Interelectrode plasma evolution in a hot refractory anode vacuum arc:Theory and comparison with experiment[J]. Physics of Plasmas, 2002, 9(7):3159-3170. doi: 10.1063/1.1483844
[6]	NIWA Y, SATO J, YOKOKURA K. The effect of contact material on temperature and melting of anode surface in the vacuum interrupter[C]// International Symposium on Discharges and Electrical Insulation in Vacuum. Xi’an,China:IEEE, 2000:524-527.
[7]	SCHADE E, SHMELEV D, KLEBERG I. Numerical modeling of the heat flux to the anode of high-current vacuum arcs[C]// 21st International Conference on Electrical Contacts(ICEC2002). Zurich,Switzerland:IEEE, 2002:518-525.
[8]	SHASHURIN A, BEILIS I I, BOXMAN R L. Heat flux to an asymmetric anode in a hot refractory anode vacuum arc[J]. Plasma Sources Science and Technology, 2010, 19(015002):1-8.
[9]	SHI Z, JIA S, DONG H, et al. Simulation of the thermal process of anode in drawn vacuum arc[J]. IEEE Transactions on Plasma Science, 2007, 35(4):920-924. doi: 10.1109/TPS.2007.896911
[10]	黄小龙, 王立军, 贾申利, 等. 纵向磁场和外部横向磁场共同作用下真空电弧偏移与阳极偏烧现象的仿真研究[J]. 中国电机工程学报, 2014, 34(6):941-946.
	HUANG Xiaolong, WANG Lijun, JIA Shenli, et al. Simulation research of deflection phenomenon of vacuum arc and anode erosion under the combined action of axial magnetic field and external transverse magnetic field[J]. Proceedings of the CSEE, 2014, 34(6):941-946.
[11]	王立军, 贾申利, 史宗谦, 等. 真空电弧磁流体动力学模型与仿真研究[J]. 中国电机工程学报, 2005, 25(4):113-118.
	WANG Lijun, JIA Shenli, SHI Zongqian, et al. MHD model and simulation research of vacuum arc[J]. Proceedings of the CSEE, 2005, 25(4):113-118.
[12]	BRANDES E A, BROOK G B. Smithells metals reference book[M]. Burlington:Elsevier Butterworth Heinemann, 1998.
[13]	WANG Y, DAMSTRA G C. Noise arc voltage and dynamic constriction of high-current vacuum arcs[J]. Journal of Physics D:Applied Physics, 1991, 24(12):2179-2189. doi: 10.1088/0022-3727/24/12/008
[14]	ECKER G. Anode spot instability I:The homogeneous short gap instability[J]. IEEE Transactions on Plasma Science, 1974, 2(3):130-146. doi: 10.1109/TPS.1974.4316826
[15]	李国明. 大电流真空电弧阳极熔蚀过程的数值仿真与分析[J]. 电气工程学报, 2019, 14(1):41-45.
	LI Guoming. Numerical simulation and analysis of anode erosion process under high-current vacuum arcs[J]. Journal of Electrical Engineering, 2019, 14(1):41-45.
[16]	胡秋生, 贺家敏, 张鑫, 等. 真空断路器触头电磨损在线检测系统研究[J]. 电气工程学报, 2018, 13(1):43-48.
	HU Qiusheng, HE Jiamin, ZHANG Xin, et al. The on-line monitoring application study of vacuum circuit breakers contact system[J]. Journal of Electrical Engineering, 2018, 13(1):43-48.
[17]	WANG Zhenxing, TIAN Yunbo, MA Hui, et al. Decay modes of anode surface temperature after current zero in vacuum arcs-part II:Theoretical study of dielectric recovery strength[J]. IEEE Transactions on Plasma Science, 2015, 43(10):3734-3743. doi: 10.1109/TPS.2015.2467158
[18]	WANG Lijun, JIA Shenli, LIU Yu, et al. Modeling and simulation of anode melting pool flow under the action of high-current vacuum arc[J]. Journal of Applied Physics, 2010, 107(11):113-306.
[19]	YAO X, WANG J, GENG Y, et al. An influence of an ambient magnetic field induced by a nearby parallel conductor on high-current vacuum arcs[C]// Proceedings of the 25th International Symposium on Discharges and Electrical Insulation in Vacuum. Tomsk, Russia: Institute of High-current Electronics Siberian Branch Russian Academy of Sciences, 2012:337-340.
[20]	HAUSER A, HARTMANN W, LAWALL A, et al. Development of a FEM simulation of axial magnetic field vacuum arcs[C]// Proceedings of the 23rd International Symposium on Discharges and Electrical Insulation in Vacuum. Bucharest, Rumania: University “POLITEHNICA” of Bucharest, 2008:398-401.
[21]	GENTSCH D, SHANG W K. High-speed observations of arc modes and material erosion on RMF- and AMF-contact electrodes[J]. IEEE Transactions on Plasma Science, 2005, 33(5):1605-1610. doi: 10.1109/TPS.2005.856514
[22]	李显哲. 电极旋转情况下真空电弧磁流体动力学模型的仿真研究[D]. 沈阳:沈阳工业大学, 2020.
	LI Xianzhe. Simulation study on the MHD model of vacuum arc with rotating electrodes[D]. Shenyang:Shenyang University of Technology, 2020.

物理参数	数值
固相温度(熔点)T_s/K	1 356
液相温度T_l/K	1 489
固液相变潜热L/(J/kg)	3.3×10⁴
固相比热容C_ps /[J/(kg·K)]	380
液相比热容C_pl /[J/(kg·K)]	494
固相热导率λ_s /[W/(m·K)]	372
液相热导率λ_l /[W/(m·K)]	174
固相密度ρ_s /(kg/m³)	8 960
液相密度ρ_l /(kg/m³)	8 000
