基于掉电保持的LLC变换器研究综述

doi:10.11985/2021.02.015

摘要/Abstract

摘要：

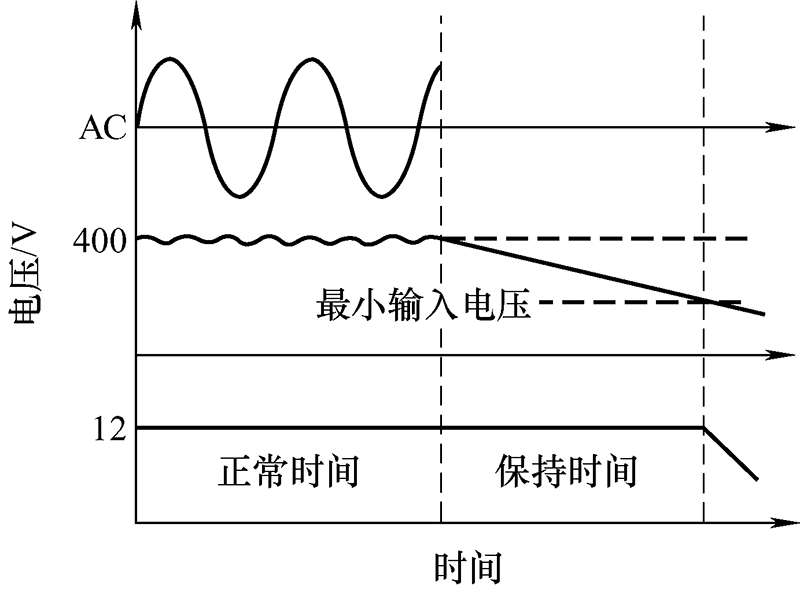

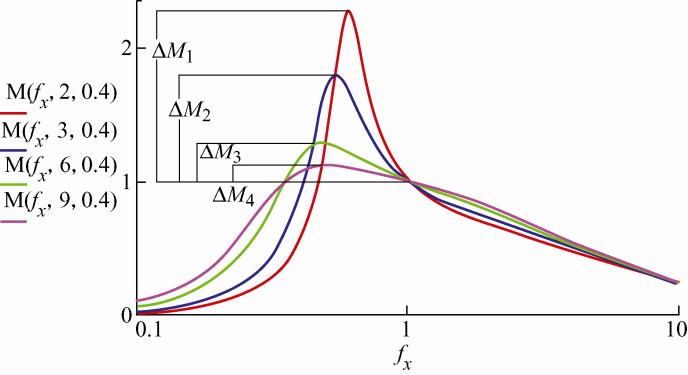

LLC变换器因其软开关的优点在近年来得到了广泛应用。传统LLC变换器采用变频控制,在开关频率范围受到约束的情况下难以实现宽电压输入,从而导致LLC变换器掉电后保持时间短,在UPS等领域应用时受限。针对此类问题,国内外已有许多可用于掉电保持的宽电压输入范围LLC变换器的研究成果。对传统LLC增益范围窄的问题进行了简单的分析,从控制策略上和电路结构上对这些研究成果进行了归纳并分析其优缺点。

关键词: LLC, 软开关, 掉电保持时间, 宽电压输入范围

Abstract:

LLC converters have been widely used in recent years because of their soft switching advantages. Traditional LLC converters use variable frequency control. It is difficult to achieve a wide voltage input when the switching frequency range is constrained. As a result, LLC converter has a short hold-up time after power failure, and is limited in applications such as UPS. In response to this kind of problem, many domestic and foreign research results of wide-voltage input range LLC converters that can be used for hold-up emerge. The problems of the narrow range of the traditional LLC gain are analyzed, the research results from the control strategy and circuit structure are summarized, and the advantages and disadvantages of them are analyzed.

Key words: LLC, soft-switching, hold-up time, wide voltage input range

中图分类号:

TM46

熊宣, 赵慧, 陈宗祥. 基于掉电保持的LLC变换器研究综述[J]. 电气工程学报, 2021, 16(2): 115-121.

XIONG Xuan, ZHAO Hui, CHEN Zongxiang. Review on LLC Converter Based on Hold-up[J]. Journal of Electrical Engineering, 2021, 16(2): 115-121.

图/表 16

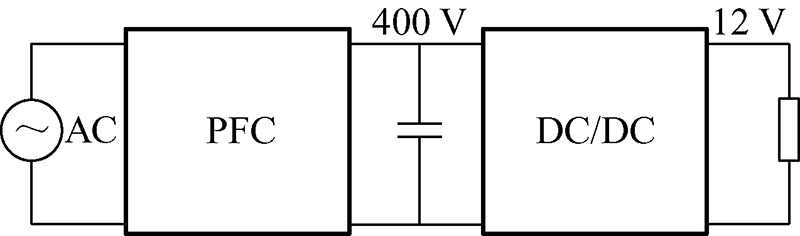

图1

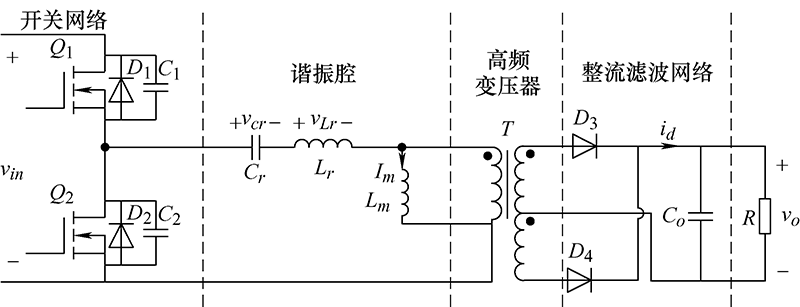

图2

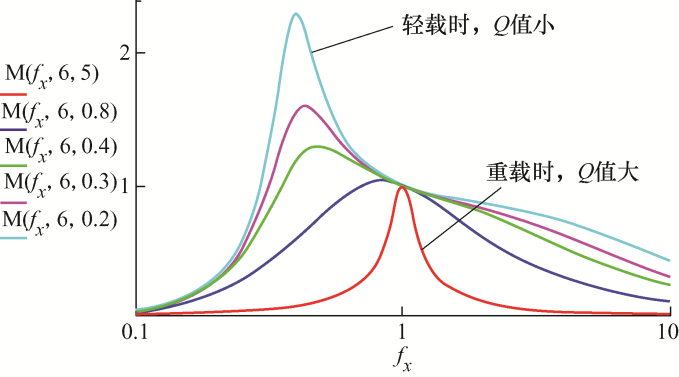

图3

图4

图5

表1

图6

图7

图8

图9

图10

图11

图12

图13

图14

图15

参考文献 36

[1]	LAI Y S, SU Z J, CHEN W S. New hybrid control technique to improve light load efficiency while meeting the hold-up time requirement for two-stage server power[J]. IEEE Transactions on Power Electronics, 2013, 29(9):4763-4775. doi: 10.1109/TPEL.2013.2283747
[2]	CHO I H, CHO K M, KIM J W, et al. A new phase-shifted full-bridge converter with maximum duty operation for server power system[J]. IEEE Transactions on Power Electronics, 2011, 26(12):3491-3500. doi: 10.1109/TPEL.2011.2129532
[3]	KIM Y D, CHO K M, KIM D Y, et al. Wide-range ZVS phase-shift full-bridge converter with reduced conduction loss caused by circulating current[J]. IEEE Transactions on Power Electronics, 2013, 28(7):3308-3316. doi: 10.1109/TPEL.2012.2227280
[4]	李洪珠, 史清晨, 刘艳, 等. 磁集成LCL倍压单元高增益变换器[J]. 电气工程学报, 2019, 14(1):52-60.
	LI Hongzhu, SHI Qingchen, LIU Yan, et al. Magnetic integrated LCL voltage doubler unit high gain converter[J]. Journal of Electrical Engineering, 2019, 14(1):52-60.
[5]	杨玉岗, 代少杰, 赵若冰, 等. DC-DC变换器的交错并联磁集成技术研究综述[J]. 电气工程学报, 2015, 10(8):1-13,85.
	YANG Yugang, DAI Shaojie, ZHAO Ruobing, et al. Overview of research on interleaved parallel magnetic integration technology of DC-DC converters[J]. Journal of Electrical Engineering, 2015, 10(8):1-13,85.
[6]	CHEN Y, WANG H, HU Z, et al. LCLC resonant converter for hold up mode operation[C]// Energy Conversion Congress & Exposition. IEEE, 2015.
[7]	KIM J H, KIM C E, KIM J K, et al. Analysis for LLC resonant converter considering parasitic components at very light load condition[C]// 8th International Conference on Power Electronics-ECCE Asia. IEEE, 2011:1863-1868.
[8]	YE Y, YAN C, ZENG J, et al. A novel light load solution for LLC series resonant converter[C]// INTELEC 07-29th International Telecommunications Energy Conference. IEEE, 2007:61-65.
[9]	DENG J, LI S, HU S, et al. Design methodology of LLC resonant converters for electric vehicle battery chargers[J]. IEEE Transactions on Vehicular Technology, 2013, 63(4):1581-1592. doi: 10.1109/TVT.2013.2287379
[10]	BEIRANVAND R, RASHIDIAN B, ZOLGHADRI M R, et al. A design procedure for optimizing the LLC resonant converter as a wide output range voltage source[J]. IEEE Transactions on Power Electronics, 2012, 27(8):3749-3763. doi: 10.1109/TPEL.2012.2187801
[11]	MUSAVI F, CRACIUN M, GAUTAM D S, et al. An LLC resonant DC-DC converter for wide output voltage range battery charging applications[J]. IEEE Transactions on Power Electronics, 2013, 28(12):5437-5445. doi: 10.1109/TPEL.2013.2241792
[12]	FANG Z, CAI T, DUAN S, et al. Optimal design methodology for LLC resonant converter in battery charging applications based on time-weighted average efficiency[J]. IEEE Transactions on Power Electronics, 2014, 30(10):5469-5483. doi: 10.1109/TPEL.2014.2379278
[13]	KIM B C, PARK K B, KIM C E, et al. LLC resonant converter with adaptive link-voltage variation for a high-power-density adapter[J]. IEEE Transactions on Power Electronics, 2010, 25(9):2248-2252. doi: 10.1109/TPEL.2010.2050906
[14]	WANG H, DUSMEZ S, KHALIGH A. Maximum efficiency point tracking technique for LLC-based PEV chargers through variable DC link control[J]. IEEE Transactions on Industrial Electronics, 2014, 61(11):6041-6049. doi: 10.1109/TIE.2014.2311399
[15]	KIM B C, PARK K B, MOON G W. Asymmetric PWM control scheme during hold-up time for LLC resonant converter[J]. IEEE Transactions on Industrial Electronics, 2011, 59(7):2992-2997. doi: 10.1109/TIE.2011.2166237
[16]	黄佐流. 电力变压器直流偏磁试验研究[J]. 电气工程学报, 2015, 10(12):69-75.
	HUANG Zuoliu. Research on DC bias of power transformer[J]. Journal of Electrical Engineering, 2015, 10(12):69-75.
[17]	LIANG Z, GUO R, WANG G, et al. A new wide input range high efficiency photovoltaic inverter[C]// 2010 IEEE Energy Conversion Congress and Exposition. IEEE, 2010.
[18]	JOVANOVIC M M, IRVING B T. On-the-fly topology-morphing control-efficiency optimization method for LLC resonant converters operating in wide input-and/or output-voltage range[J]. IEEE Transactions on Power Electronics, 2016, 31(3):2596-2608. doi: 10.1109/TPEL.2015.2440099
[19]	INAM W, AFRIDI K K, PERREAULT D J. Variable frequency multiplier technique for high efficiency conversion over a wide operating range[J]. IEEE Journal of Emerging & Selected Topics in Power Electronics, 2015, 4(2):335-343.
[20]	HAGA H, KUROKAWA F. Modulation method of a full-bridge three-level LLC resonant converter for battery charger of electrical vehicles[J]. IEEE Transactions on Power Electronics, 2016, 32(4):2498-2507. doi: 10.1109/TPEL.2016.2570800
[21]	JEONG Y, KIM J K, LEE J B, et al. An asymmetric half-bridge resonant converter having a reduced conduction loss for DC/DC power applications with a wide range of low input voltage[J]. IEEE Transactions on Power Electronics, 2016, 32(10):7795-7804. doi: 10.1109/TPEL.2016.2639069
[22]	SUN X, SHEN Y, ZHU Y, et al. Interleaved boost-integrated LLC resonant converter with fixed-frequency PWM control for renewable energy generation applications[J]. Power Electronics IEEE Transactions on, 2015, 30(8):4312-4326. doi: 10.1109/TPEL.2014.2358453
[23]	HAN H G, CHOI Y J, CHOI S Y, et al. A high efficiency LLC resonant converter with wide ranged output voltage using adaptive turn ratio scheme for a Li-ion battery charger[C]// 2016 IEEE Vehicle Power and Propulsion Conference (VPPC). IEEE, 2016:1-6.
[24]	GU Y, HANG L, LU Z. A flexible converter with two selectable topologies[J]. IEEE Transactions on Industrial Electronics, 2009, 56(12):4854-4861. doi: 10.1109/TIE.2009.2026767
[25]	SHAHZAD M I, IQBAL S, TAIB S. A wide output range HB-2LLC resonant converter with hybrid rectifier for PEV battery charging[J]. IEEE Transactions on Transportation Electrification, 2017, 3(2):520-531. doi: 10.1109/TTE.2017.2698243
[26]	WU H, LI Y, XING Y. LLC resonant converter with semi-active variable-structure rectifier (SA-VSR) for wide output voltage range application[J]. IEEE Transactions on Power Electronics, 2015, 31(5):3389-3394. doi: 10.1109/TPEL.2015.2499306
[27]	KIM J W, MOON G W. A new LLC series resonant converter with a narrow switching frequency variation and reduced conduction losses[J]. IEEE Transactions on Power Electronics, 2013, 29(8):4278-4287. doi: 10.1109/TPEL.2013.2285733
[28]	汤欣喜, 邢岩, 吴红飞, 等. 兼顾稳态效率和暂态升压能力的LLC变换器[J]. 电工技术学报, 2020, 35(4):767-774.
	TANG Xinxi, XING Yan, WU Hongfei, et al. LLC converter considering both steady state efficiency and transient boost capacity[J]. Transactions of China Electrotechnical Society, 2020, 35(4):767-774.
[29]	余致远, 吴红飞, 花文敏, 等. 矩阵变压器+移相控制宽电压范围LLC变换器[J]. 中国电机工程学报, 2019, 39(12):3638-3646.
	YU Zhiyuan, WU Hongfei, HUA Wenmin, et al. Matrix transformer+phase shifting control wide voltage range LLC converter[J]. Proceedings of the CSEE, 2019, 39(12):3638-3646.
[30]	SUN W, WU H, HU H, et al. Modified LLC resonant converter with secondary paralleled bidirectional switch for applications with hold-up time requirement[J]. IET Power Electronics, 2017, 10(3):398-404. doi: 10.1049/pel2.v10.3
[31]	HU H, FANG X, CHEN F, et al. A modified high-efficiency LLC converter with two transformers for wide input-voltage range applications[J]. IEEE Transactions on Power Electronics, 2013, 28(4):1946-1960. doi: 10.1109/TPEL.2012.2201959
[32]	JEONG Y, MOON G W, KIM J K. Analysis on half-bridge LLC resonant converter by using variable inductance for high efficiency and power density server power supply[C]// 2017 IEEE Applied Power Electronics Conference and Exposition (APEC). IEEE, 2017:170-177.
[33]	LEE J B, KIM J K, BAEK J I, et al. Resonant capacitor on/off control of half-bridge LLC converter for high-efficiency server power supply[J]. IEEE Transactions on Industrial Electronics, 2016, 63(9):5410-5415. doi: 10.1109/TIE.2016.2558481
[34]	HU Z, QIU Y, LIU Y F, et al. A control strategy and design method for interleaved LLC converters operating at variable switching frequency[J]. IEEE Transactions on Power Electronics, 2014, 29(8):4426-4437. doi: 10.1109/TPEL.2014.2300165
[35]	WANG H, YANG C, PENG F, et al. An LLC converter family with auxiliary switch for hold up mode operation[J]. IEEE Transactions on Power Electronics, 2016, 32(6):4291-4306. doi: 10.1109/TPEL.2016.2604368
[36]	杨东江, 段彬, 丁文龙, 等. 一种带辅助双向开关单元的宽输入电压范围LLC谐振变换器[J]. 电工技术学报, 2020, 35(4):775-785.
	YANG Dongjiang, DUAN Bin, DING Wenlong, et al. A wide input voltage range LLC resonant converter with auxiliary bidirectional switch unit[J]. Transactions of China Electrotechnical Society, 2020, 35(4):775-785.

改进方案		参数				优缺点
种类	关键点	额定电压/功率/(V/W)	输入电压范围/V	开关频率范围/kHz	谐振频率/kHz	优缺点
控制策略	调节PFC^[13,14]	310.5/1 000	320~420	~200	200	无需附加电路,但可调范围有限
	不对称控制^[15]	18.5/85	300~400	61~100	100	不对称控制引起偏置电流
	全桥半桥切换^[17]	500/2 000	125~550	40~120	60	参数设计相对复杂

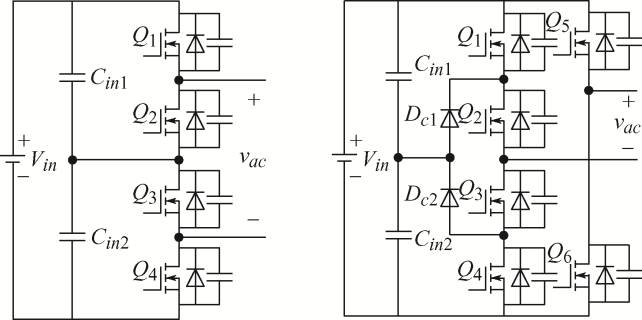

初级侧网络	初级侧附加开关^[19]	20/50	85~340	~500	500	开关管过多,控制相对复杂
	初级侧附加开关^[20]	385/6 600	225~378	90	78	开关管过多,控制相对复杂

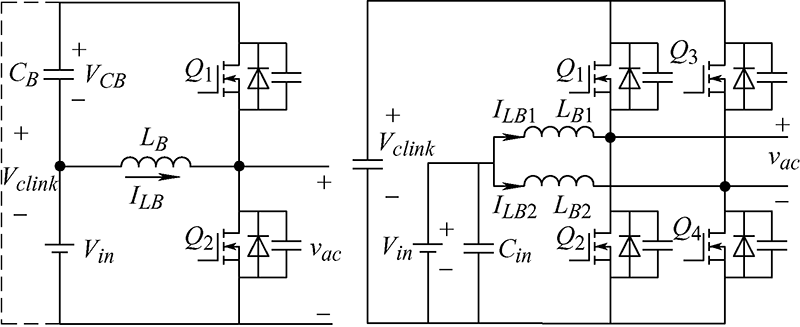

	Boost前级^[21]	15/300	36~72	80~100	100	不对称控制引起偏置电流
	交错Boost前级^[22]	24/600	120~240	~100	100	不对称控制引起偏置电流

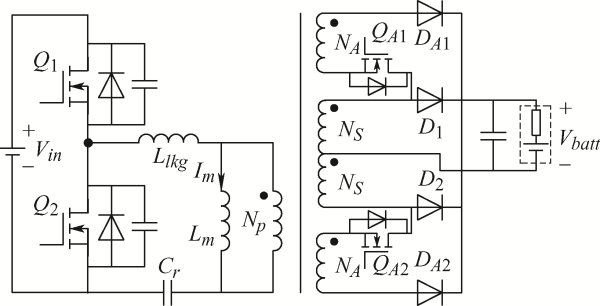

副边整流器	附加绕组^[23]	311/300	25~42	~130	130	变压器相对较大

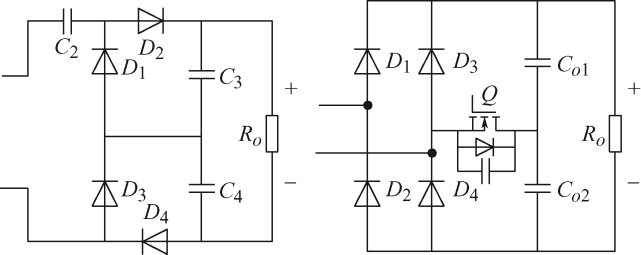

	整流器切换^[25]	400/1 500	100~420	94.37~236.6	170	增益较大,但参数设计相对复杂
	四倍整流切换^[26]	400/1 500	100~500	70~150	100	增益较大,但参数设计相对复杂
	副边短路^[27]	200/300	250~400	34~75	75	电路结构改变小,切换过程没有过大的过冲问题,并控制简单
	副边短路^[28]	12/300	250~400	120~200	200	电路结构改变小,切换过程没有过大的过冲问题,并控制简单

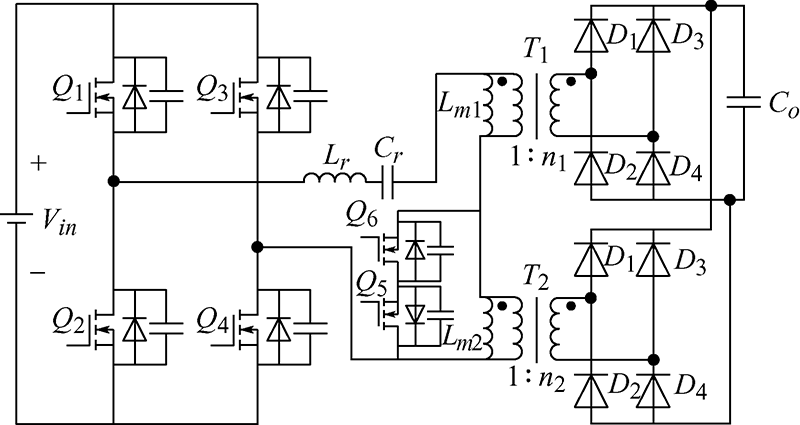

谐振腔	附加变压器^[29]	210/250	25~100	80~140	140	切换过程有较大的过冲问题,参数设计也相对复杂

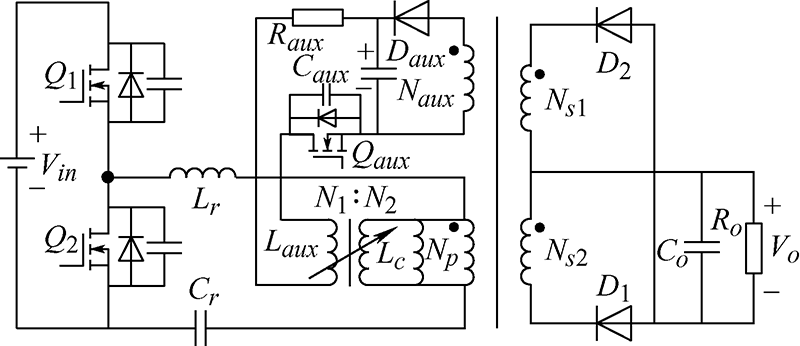

	可变电感^[32]	56/350	290~405	75~110	110

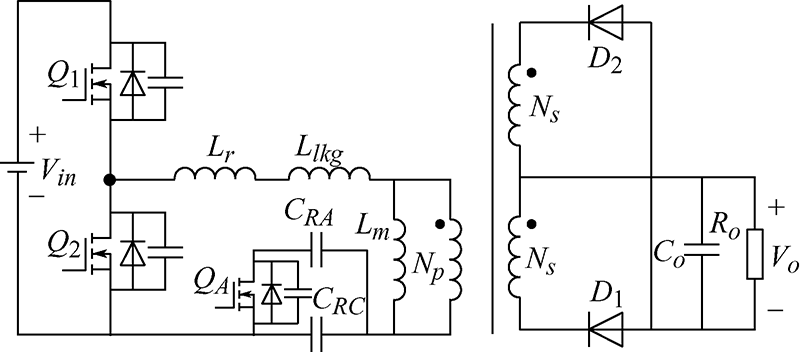

	可变电容^[33]	56/350	325~385	34~106	90

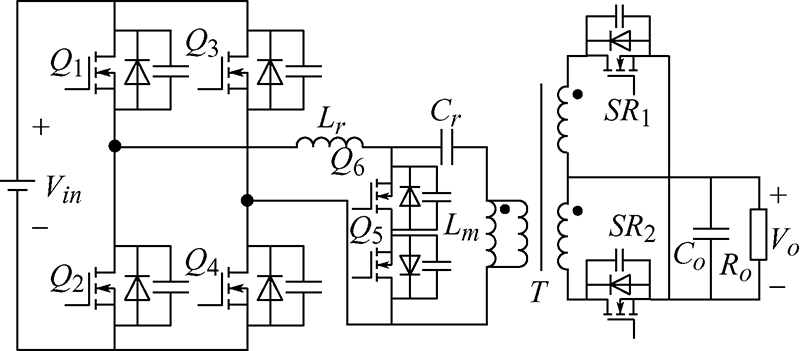

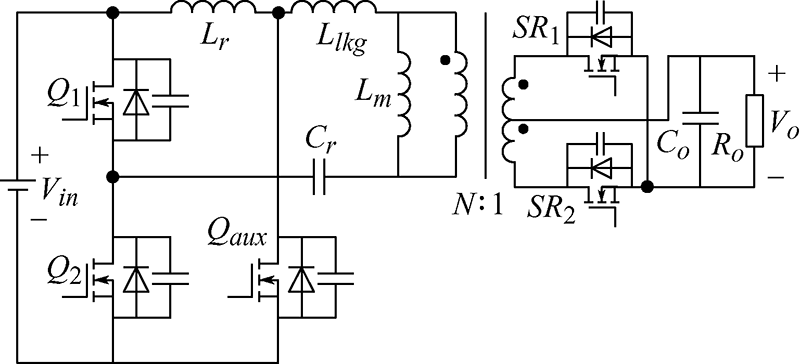

	谐振腔附加开关^[35]	12/300	250~400	150~260	260	不对称控制引起偏置电流
	谐振腔附加开关^[36]	48/1 000	200~390	70~100	100	增益较大,控制简单
