兆瓦级可编程电网模拟电源

电气工程学报 ›› 2015, Vol. 10 ›› Issue (7): 57-62.

兆瓦级可编程电网模拟电源

马亮¹,卢远宏²,孙琳琳¹,袁中正¹

1.北京京仪绿能电力系统工程有限公司北京 100009
2.北京交通大学电气工程学院北京 100044

收稿日期:2015-03-24 出版日期:2015-07-25 发布日期:2015-07-25
作者简介:马亮男 1983年生,博士,研究方向为电力电子及新能源。|卢远宏男 1988年生,博士,研究方向为电力电子与光伏发电。
基金资助:
国家自然科学基金面上项目(51277086)

Programmable Grid Simulator Power System in MW Power Level

Ma Liang¹,Lu Yuanhong²,Sun Linlin¹,Yuan Zhongzheng¹

1.Beijing Jingyi Renewable Energy Engineering Co.,Ltd. Beijing 100009 China
2.Beijing Jiaotong University Beijing 100044 China

Received:2015-03-24 Online:2015-07-25 Published:2015-07-25

摘要/Abstract

摘要：

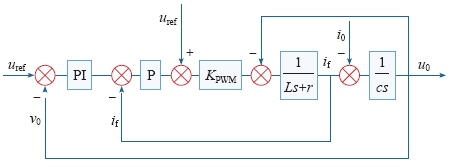

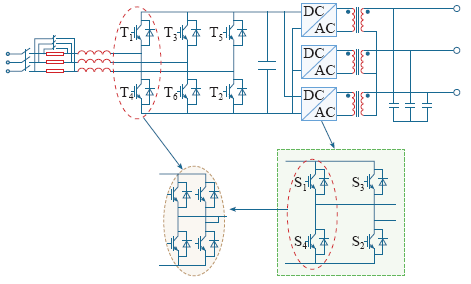

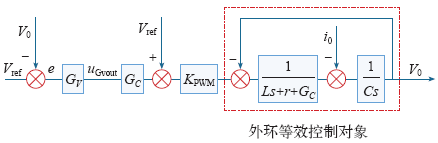

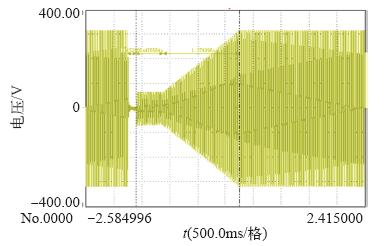

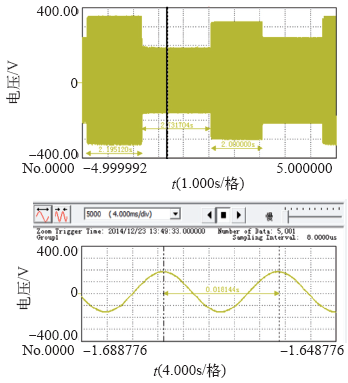

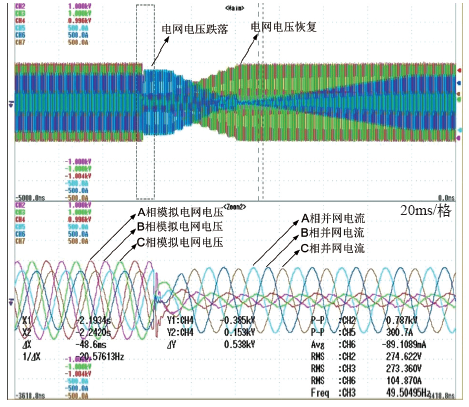

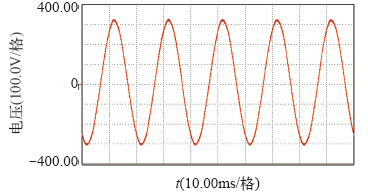

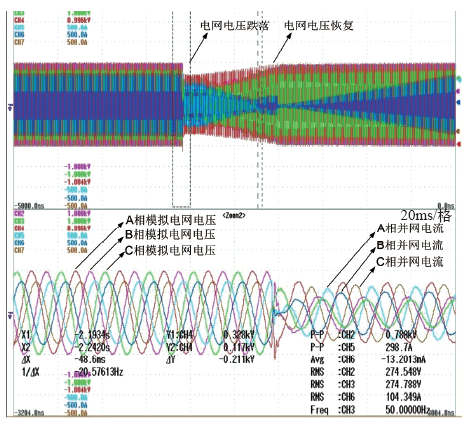

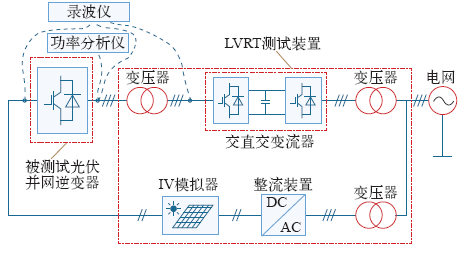

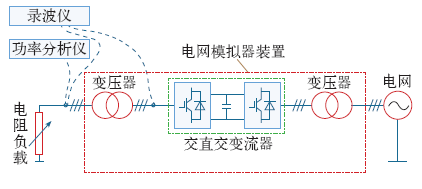

为研究和测试分布式发电系统并网故障穿越能力,提出一种可模拟不同电网故障类型的大功率电网故障模拟电源方案。主电路采用双PWM变流器拓扑结构以实现能量的双向流动。软件设计了通用、步阶、低电压穿越和谐波等工作模式,通过简单人机界面的选择便可获得期望的工作模式。采用瞬时电压电流双环加前馈控制结构,可实现对指令电压的快速跟踪。1MW样机实验结果证明了该设计方案的正确性和有效性。

关键词: 电网模拟电源, 可编程, 低电压穿越, 双环控制

Abstract:

For the purpose of researching and testing on the fault ride through capacity of distributed power generation system, a high-power grid simulator is proposed in this paper. This simulator can provide different types of fault simulating voltage. The main circuit adopts double PWM converter topology in order to realize the bidirectional power flow. Different operation modes, such as normal mode, step mode, low voltage ride through (LVRT) mode and harmonic mode etc., are designed in the software. The desired opertaion mode can be chosen by a simple interface. Instantaneous voltage and current double loop with feedforward voltage control strategy can track the reference voltage quickly. Experimental results about the prototype of the 1MW grid simulator verify the effectiveness and validity of the design.

Key words: Grid simulator, programmable, LVRT, double loop control

中图分类号:

TM464

马亮,卢远宏,孙琳琳,袁中正. 兆瓦级可编程电网模拟电源[J]. 电气工程学报, 2015, 10(7): 57-62.

Ma Liang,Lu Yuanhong,Sun Linlin,Yuan Zhongzheng. Programmable Grid Simulator Power System in MW Power Level[J]. Journal of Electrical Engineering, 2015, 10(7): 57-62.

图/表 15

图1

图2

图3

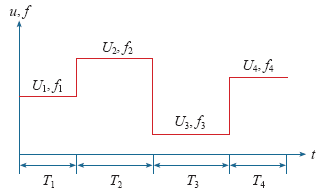

图4

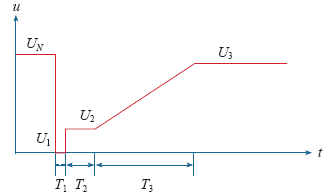

图5

图6

图7

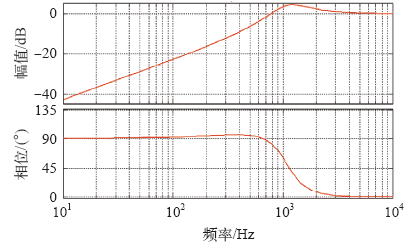

图8

图9

图10

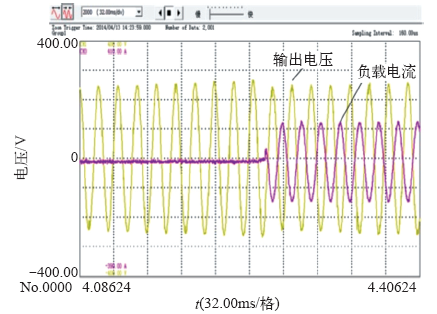

图11

图12

图13

图14

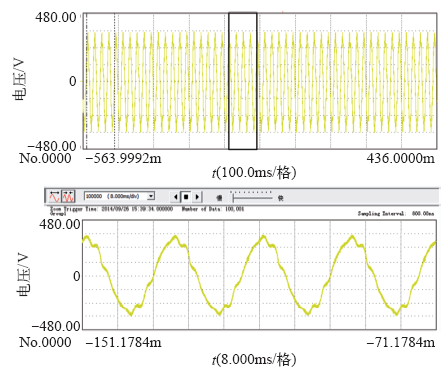

图15

参考文献 11

[1]	E ON Netz GmbH B. Germany. Grid code-high and extra high voltage[S]. 2006.
[2]	National Grid Electricity Transmission plc, UK. The grid code, issue 3, rev. 24[S]. 2008.
[3]	Energinet D . Grid connection of wind turbines to networks with voltages below 100 kV, regulation TF 3.2.6[S]. 2004.
[4]	Transenergie H Q . Transmission provider technical requirements for the connection of power plants to the Hydro-Quebec transmission system[S]. 2006.
[5]	Federal Energy Regulatory Commission. U. Inter-connection for wind energy, final rule[S]. 2005.
[6]	State Grid. Electric Power Research Institute (2012) GB/T 29319—2012 Technical requirements for connecting photovoltaic power system to distribution network[S].
[7]	Zhang R, Cardinal M, Paul S , et al. A grid simulator with control of single-phase power converters in D-Q rotating frame[C]. IEEE Power Electronics Specialists Conference, 2002, 1431-1436.
[8]	胡书举, 李建林, 梁亮 , 等. 风力发电用电网跌落发生器研究综述[J]. 电力自动化设备, 2008,21(2):101-103.
	Hu Shuju, Li Jianlin, Liang Liang , et al. Review of voltage sag generator for wind power[J]. Power System Automation Equipment, 2008,21(2):101-103.
[9]	王定国, 陈卓, 姚为正 , 等. 光伏并网逆变器低电压穿越检测方案分析[J]. 电力系统保护与检测, 2014,42(12):143-147.
	Wang Dingguo, Chen Zhuo, Yao Weizheng , et al. Analysis of grid-connected PV inverter low voltage ride through testing scheme[J]. Power System Protection and Detection, 2014,42(12):143-147.
[10]	王莹, 李洁斯, 刘芳 , 等. 多功能电网模拟器研究[J]. 电力电子技术, 2011,45(3):29-34.
	Wang Ying, Li Jiesi, Liu Fang , et al. Research of multi-functional grid simulator[J]. Power Electronics, 2011,45(3):29-34.
[11]	徐海亮, 章玮, 胡家兵 , 等. 可编程电网故障模拟电源的设计[J]. 电工技术学报, 2012,27(10):91-97.
	Xu Hailiang, Zhang Wei, Hu Jiabing , et al. Design of a programmable grid-fault emulating power supply[J]. Transactions of China Electrotechnical Society, 2012,27(10):91-97.
