空–空冷中型异步电机流体场与温度场计算及分析

摘要/Abstract

摘要：

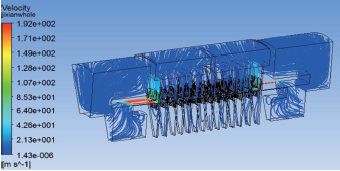

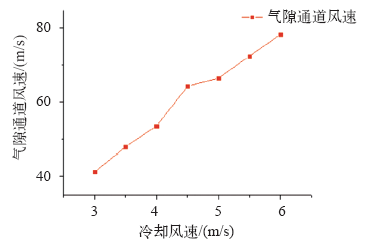

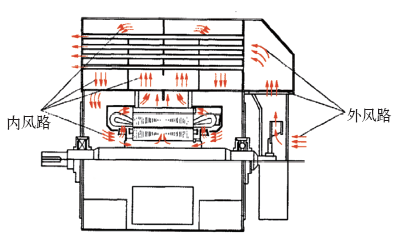

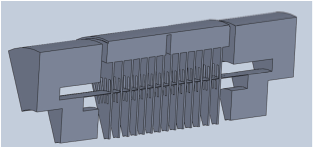

针对某中型空–空冷异步电机,为研究电机内部各通风道的冷却空气流量分布与内部流场特征,建立了电机内部冷却空气的物理模型。依据流体动力学原理,采用有限体积法,利用工程计算得到压力入、出口边界条件,对计算域内的三维湍流流场进行了数值模拟。并以流体场计算得到的结果作为边界条件,对电机进行了温度场计算。另外还研究了在不同的冷却风速条件下,冷却通道内空气流速的变化情况及其对温度场计算结果的影响。最终发现靠近两端的通风道内的冷却风速要比靠近中间的通风道高,这造成定子铁心两端的温升比中间低;而电机的最高温升出现在下层绕组端部。

关键词: 流体场, 温度场, 有限体积法, 空–空冷

Abstract:

For a medium air-cooled asynchronous motor, the physical model of cooling air inside the motor was established to research the air flow distribution and characteristics of the internal flow of the medium motor. By the finite volume method according to the computational fluid mechanics (CFD) principle, the three-dimensional turbulent flow field in computational domain was simulated numerically using boundary conditions of the pressure inlet and outlet obtained from engineering calculations. Eventually found the cooling wind speed near the ends of the ventilation is higher than which near the middle of the ventilation, it makes the temperature rise in both ends of the stator core is lower than in the middle of the stator core; and the maximum temperature rise of the motor occurs at the end of the lower winding.

Key words: Fluid field, thermal field, finite volume method, air-air cooled

中图分类号:

TM315

胡田,唐任远,李岩. 空–空冷中型异步电机流体场与温度场计算及分析[J]. 电气工程学报, 2015, 10(7): 11-17.

Hu Tian,Tang Renyuan,Li Yan. Calculation of Fluid Field and Thermal Field for Air-Air Cooled Medium-Size Motor[J]. Journal of Electrical Engineering, 2015, 10(7): 11-17.

图/表 15

表1

图1

图2

图3

表2

图4

表3

图5

表4

图6

表5

表6

表7

图7

图8

参考文献 15

[1]	吴桂珍, 孟大伟, 许明宇 . 高能量密度水冷电机冷却系统设计与热力计算[J]. 防爆电机, 2008,43(3):1-3.
	Wu Guizhen, Meng Dawei, Xu Mingyu . Design of cooling system and calculation of heating on water-cooled motor with high-energy density[J]. Explosion Proof Electric Machine, 2008,43(3):1-3.
[2]	Mohamed Amine Fakhfakh, Moez Hadj, Souhir Tounsi , et al. Thermal analysis of a permanent magnet synchronous motor for electric vehicles[J]. Journal of Electric Vehicle, 2008,6(2):1145-1151.
[3]	李伟力, 李勇, 杨雪峰 , 等. 大型空冷汽轮发电机定子端部温度场与流体场的计算与分析[J]. 中国电机工程学报, 2009,29(36):80-87.
	Li Weili, Li Yong, Yang Xuefeng , et al. Temperature and fluid flow field calculation and analysis of stator end of air cooled turbo-generator[J]. Proceedings of the CSEE, 2009,29(36):80-87.
[4]	李伟力, 袁世鹏, 霍菲阳 , 等. 基于流体传热理论永磁风力发电机组温度场计算[J]. 电机与控制学报, 2011,15(9):56-62.
	Li Weili, Yuan Shipeng, Huo Feiyang , et al. Calculation of tempera-ture field of PM generator for wind turbine based on theory of fluid heat transfer[J]. Electric Machines and Control, 2011,15(9):56-62.
[5]	孔晓光, 王凤翔, 邢军强 . 高速永磁电机的损耗计算与温度场分析[J]. 电工技术学报, 2012,27(9):166-173.
	Kong Xiaoguang, Wang Fengxiang, Xing Junqiang . Losses calculation and temperature field analysis of high speed permanent magnet machines[J]. Transactions of China Electrotechnical Society, 2012,27(9):166-173.
[6]	路义萍, 陈朋飞, 邓海燕 , 等. 某新型通风方式空冷汽轮发电机转子三维温度场[J]. 电工技术学报, 2010,25(11):29-35.
	Lu Yiping, Chen Pengfei, Deng Haiyan , et al. Temperature field of one air-cooled turbo-generator rotor with new ventilation type[J]. Transactions of China Electrotechnical Society, 2010,25(11):29-35.
[7]	裴宇龙, 柴风, 程树康 . 旋转电磁致热器热网络模型及其温升计算[J]. 微电机, 2010,43(3):1-4.
	Pei Yulong, Cai Feng, Cheng Shukang . Lumped parameter thermal model and computation of temperature rise of rotational electromagnetic heater[J]. Micromotors, 2010,43(11):1-4.
[8]	丁树业, 孙兆琼 . 永磁风力发电机流场与温度场耦合分析[J]. 电工技术学报, 2012,27(11):118-124.
	Ding Shuye, Sun Zhaoqiong . Investigation of fluid field and thermal field coupled for permanent magnet wind generator[J]. Transactions of China Electrotechnical Society, 2013,28(3):122-126.
[9]	胡田, 唐任远, 李岩 , 等. 永磁风力发电机三维温度场计算及分析[J]. 电工技术学报, 2013,28(3):122-126.
	Hu Tian, Tang Renyuan, Li Yan , et al. Thermal analysis and calculation of permanent magnet wind generators[J]. Transactions of China Electrotechnical Society, 2013,28(3):122-126.
[10]	李人宪 . 有限体积法基础[M]. 北京: 国防工业出版社, 2008.
[11]	刘双, 迟速, 安志华 . 典型空-空冷电机通风冷却系统研究[J]. 大电机技术, 2008,12(8):86-89.
	Liu Shuang, Chi Su, An Zhihua . Analysis and development on ventilation system of AC/DC motors[J]. Large Electric Machine and Hydraulic Turbine, 2008,12(8):86-89.
[12]	李伟力, 陈玉红, 霍菲阳 . 大型水轮发电机转子旋转状态下磁极间流体流动与温度场分析[J]. 中国电机工程学报, 2012,32(9):132-139.
	Li Weili, Chen Yuhong, Huo Feiyang . Fluid flow and temperature field analysis between two poles of a large air-cooled hydro-generator rotor in rotation[J]. Proceedings of the CSEE, 2012,32(9):132-139.
[13]	丁舜年 . 大型电机的发热与冷却[M]. 北京: 机械工业出版社, 1998.
[14]	Brisset S, Vizireanu D . Design and optimization of a nine-phase axial-flux PM synchronous generator with concentrated winding for direct-drive wind turbine[J]. IEEE Transaction on Industry Applications, 2008,44(3):707-715. doi: 10.1109/TIA.2008.921379
[15]	陈世坤 . 电机设计[M]. 北京: 机械工业出版社, 2000.

参数	数值	参数	数值
额定功率/kW	2 500	转子内径/mm	350
额定转速/ (r/min)	1 494	气隙长度/mm	2.8
机座外径/mm	1 280	额定电压/V	6 000
定子外径/mm	1 060	额定电流/A	276
定子内径/mm	700	效率（%）	96.9

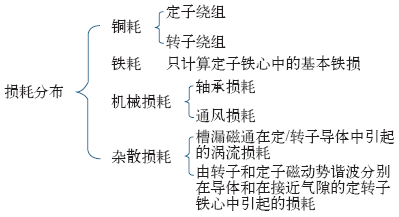

损耗名称	损耗	损耗名称	损耗
定子轭部损耗	11.11	导条损耗	10.198
定子齿部损耗	8.73	机械损耗	19.89
定子铜耗	17.675	杂散损耗	12.50

部件名称	导热系数/（W/（m·K））
部件名称	x方向	y方向	z方向（轴向）
定子铁心	39	39	4.43
空气	0.030 5	0.030 5	0.030 5
定子绕组	385	385	385
槽楔	0.2	0.2	0.2
机壳	39.2	39.2	39.2
转子轭部	45	45	45

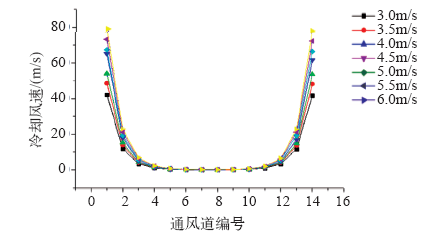

位置	风速/（m/s）
通风道1	65.2
通风道2	18.0
通风道3	4.82
通风道4	1.33
通风道5	0.35
通风道6	0.09
通风道7	0.03
通风道8	0.04
通风道9	0.08
通风道10	0.32
通风道11	1.31
通风道12	4.8
通风道13	18.1
通风道14	65.0

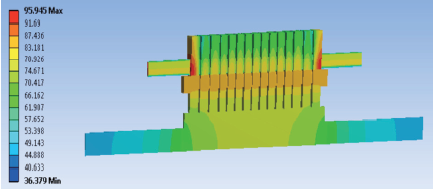

区域	温升/K
最高温升	72.4
定子绕组最高温升	72.4
定子绕组平均温升	61.3
定子铁心平均温升	50.8
转子铁心平均温升	52.7
