磁耦合谐振无线输电系统不同拓扑结构的分析

摘要/Abstract

摘要：

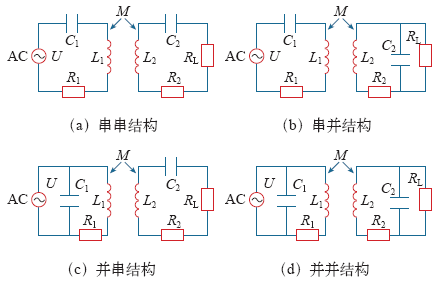

无线输电系统中,工作频率和距离是主要的输入变量,而较高的输出功率和传输效率是目标。对于磁耦合谐振无线输电系统,输入变量与目标的关系取决于磁耦合谐振无线输电系统的拓扑结构,磁耦合谐振无线输电系统的拓扑结构可分为串串结构、串并结构、并串结构和并并结构,本文应用等效电路方法对这四种拓扑结构进行了详细的分析,得到了输出功率和传输效率的表达式,研究了功率和效率关于频率、距离的关系,并进行了比较。通过研究和仿真分析发现,在谐振频率点附近四种拓扑结构的系统均达到最优匹配,并且得到了最佳传输距离。还证明了系统最大传输效率只与接收端电路结构有关,与发射端电路结构没有必然联系。本文还制作了串并结构的实验模型,验证了理论分析和仿真结论的正确性。

关键词: 磁耦合谐振, 拓扑结构, 输出功率, 传输效率

Abstract:

The man input variables in the wireless power transmission (WPT) system are the working frequency and the transmission distance while the goal is to obtain high output power and transmission efficiency. For WPT systems based on magnetic coupling resonance (MCR), the relations between input variables and the target depend on the topology. Using the method of equivalent circuit to analyze, in detail, four topological structures applied in MCR-based WPT systems-serial-serial (SS) structure, serial-parallel (SP) structure, parallel-serial (PS) structure and parallel-parallel (PP) structure -this paper obtains the expressions to calculate the output power and the transmission efficiency, studies and compares relations of the power and efficiency versus frequency and distance. It is found from theoretical study and simulation analysis that all of these four topological structures reach the optimal matching around the resonant frequency, and subsequently the best transmission distance is obtained. It is also proved that the maximum transmission efficiency of the system is associated with the structure of the circuit at the receiving end and has no necessary link with the structure of the circuit at the transmitting end. This paper also presents an experiment using the serial-parallel structure which has demonstrated that the result from both theoretical analysis and simulation are correct.

Key words: Magnetic coupling resonance, topologies, output power, transmission efficiency

中图分类号:

TM72

田子建,杜欣欣,樊京,曹阳阳. 磁耦合谐振无线输电系统不同拓扑结构的分析[J]. 电气工程学报, 2015, 10(6): 47-57.

Tian Zijian,Du Xinxin,Fan Jing,Cao Yangyang. Analysis on Different Topology Structures in Magnetic Coupling Resonant Wireless Power Transmission System[J]. Journal of Electrical Engineering, 2015, 10(6): 47-57.

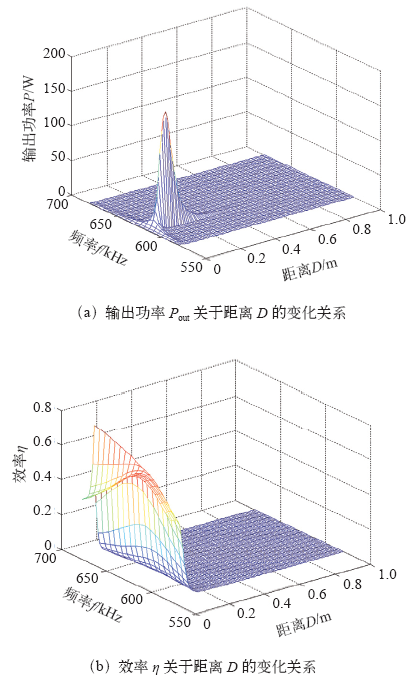

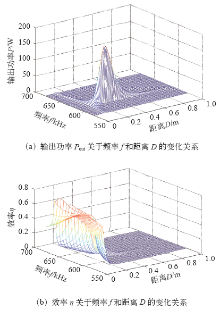

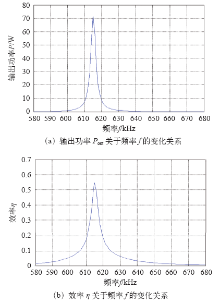

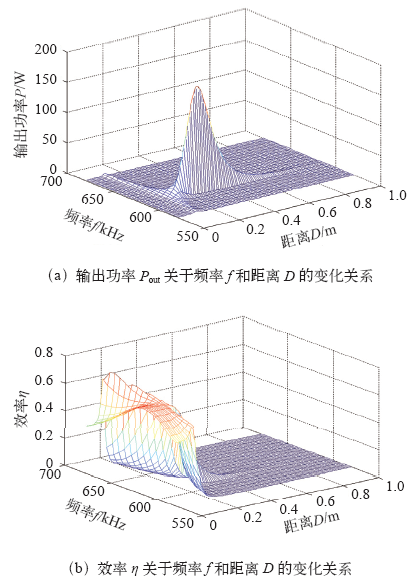

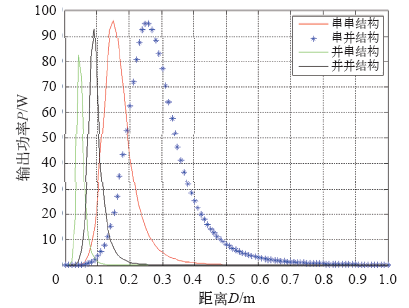

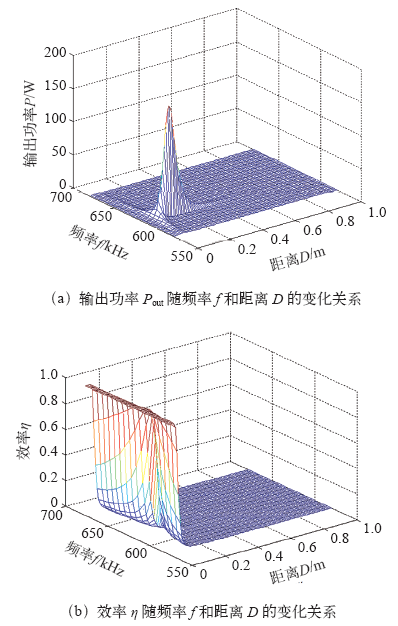

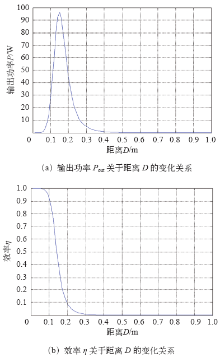

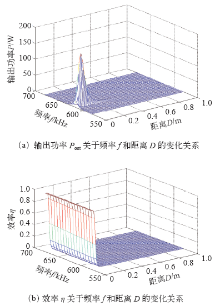

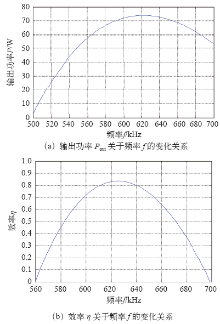

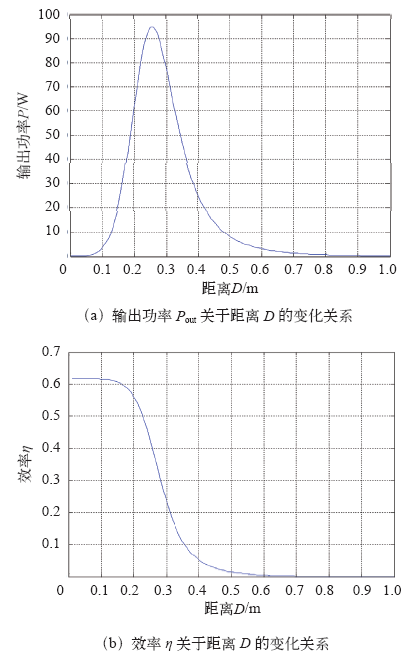

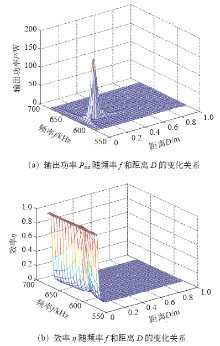

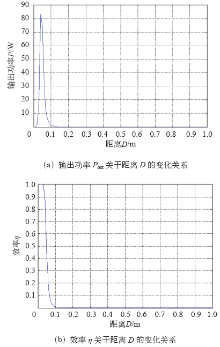

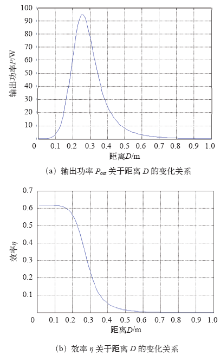

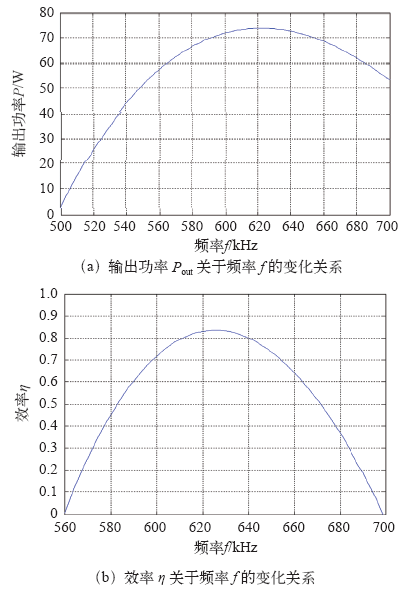

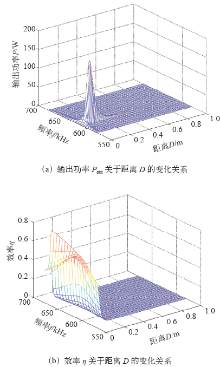

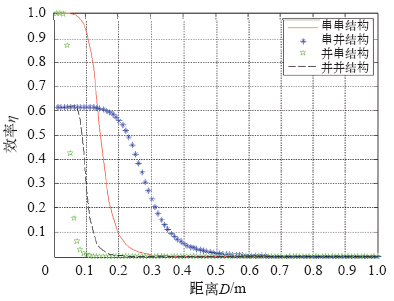

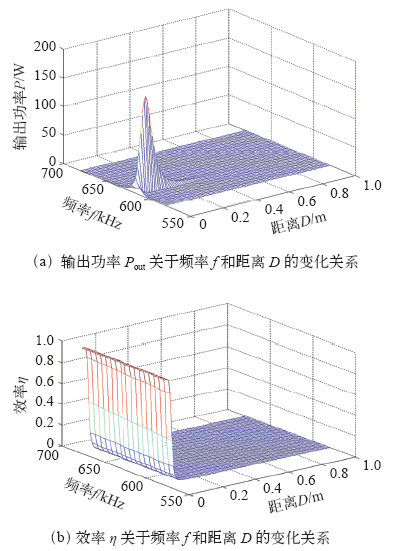

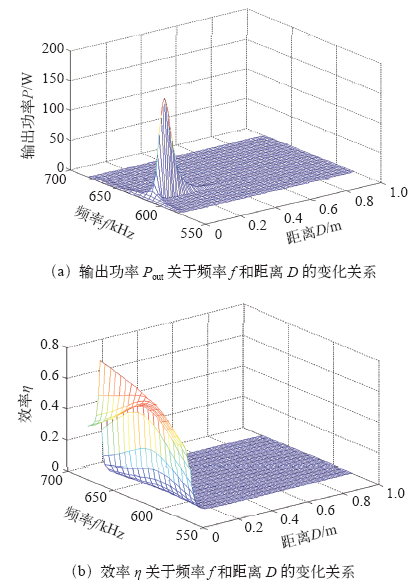

图/表 21

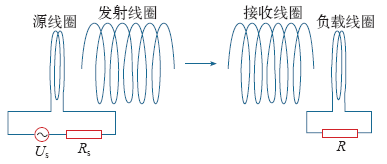

图1

图2

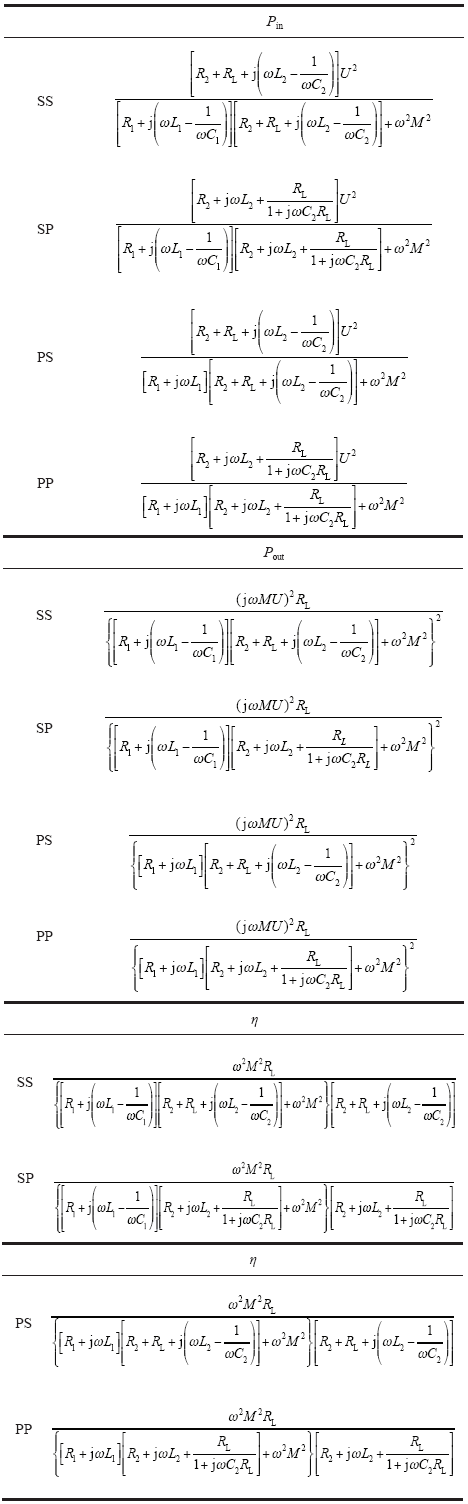

表2

图3

图4

图5

图6

图7

图8

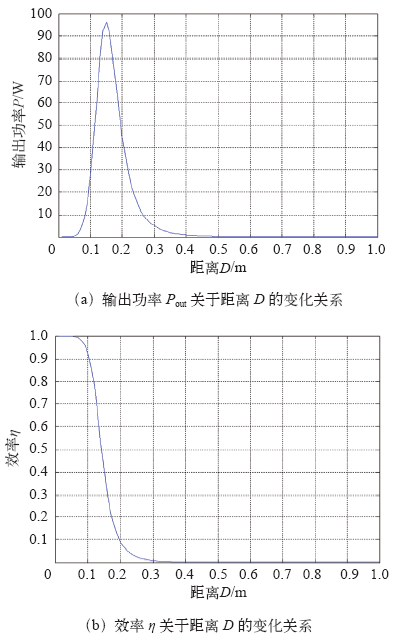

图9

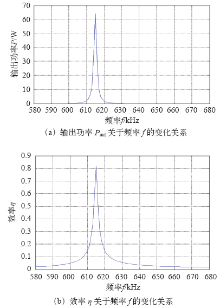

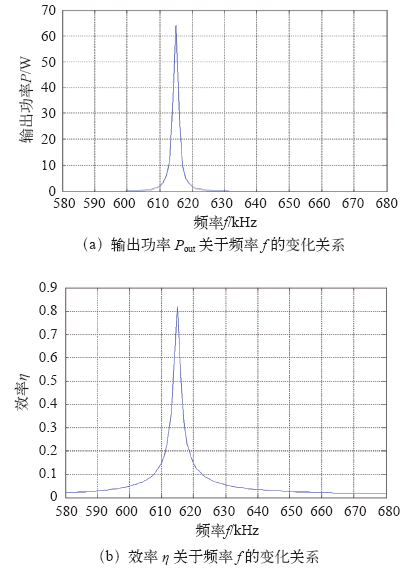

图10

图11

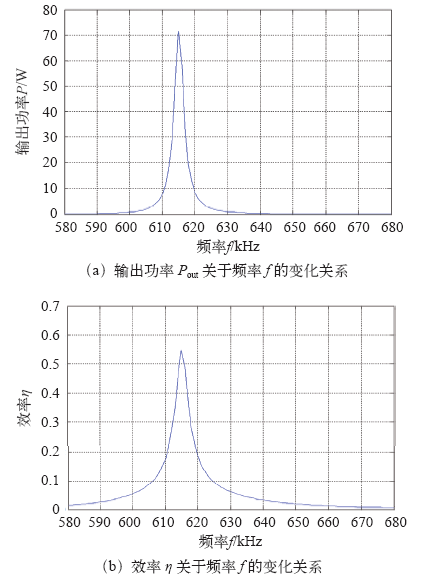

图12

图13

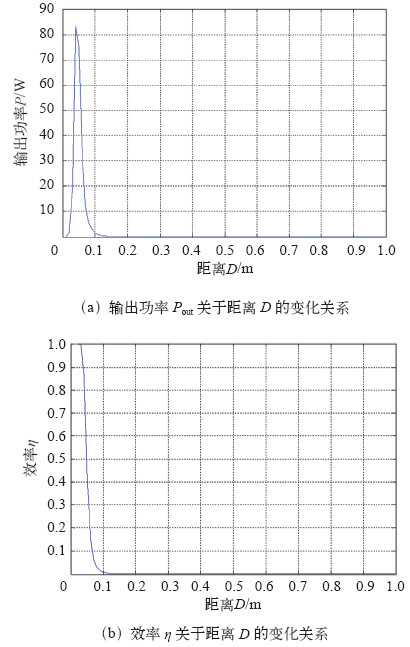

图14

图15

图16

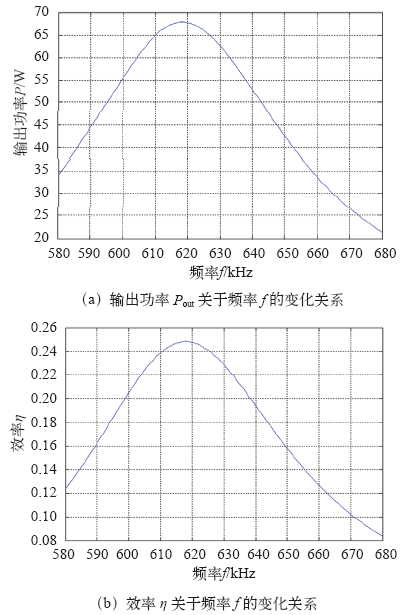

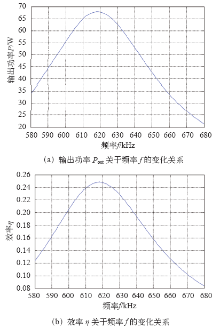

图17

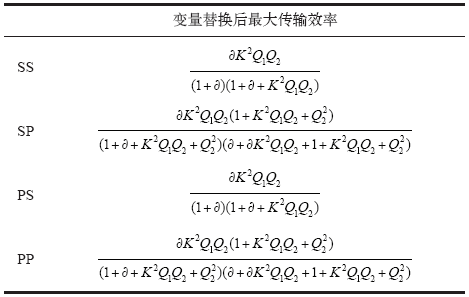

表3

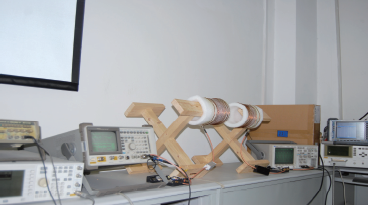

图18

参考文献 11

[1]	Kurs A, Karalis A, Moffatt R , et al. Wireless power transfer via strongly coupled magnetic resonances[J]. Science, 2007,317(5834):83-86. doi: 10.1126/science.1143254 pmid: 17556549
[2]	陈琛, 黄学良, 孙文慧 , 等. 金属障碍物对磁耦合谐振无线电能传输系统的影响[J]. 电工技术学报, 2014,29(4):22-26.
	Chen Shen, Huang Xueliang, Sun Wenhui , et al. Impact of metallic obstacles on MCR-based WPT systems[J]. Transactions of China Electrotechnical Society, 2014,29(4):22-26.
[3]	马爽 . 基于电磁场耦合模理论的空间无线能量传输技术研究[D]. 哈尔滨:哈尔滨工业大学, 2008.
[4]	Tan L L, Huang X L, Qiang H . Efficiency analysis and optimization on magnetic resonance coupled wireless transfer system[J]. Advanced Materials Research, 2011, 308-310:1345-1348. doi: 10.3390/s16081219 pmid: 27527169
[5]	Tan L L, Huang X L, Huang H , et al. Transfer efficiency optimal control of magnetic resonance coupled system of wireless power transfer based on frequency control[J]. Science China Technological Sciences, 2011,54(6):1428-1434. doi: 10.1007/s11431-011-4380-6
[6]	Sample A P, Meyer D A, Smith J R . Analysis, experimental results, and range adaptation of magnetically coupled resonators for wireless power transfer[J]. IEEE Transactions on Industrial Electronics, 2011,58(2):544-554. doi: 10.1109/TIE.2010.2046002
[7]	Imura T, Hori Y . Maximizing air gap and efficiency of magnetic resonant coupling for wireless power transfer using equivalent circuit and neumann formula[J]. IEEE Transactions on Industrial Electronics, 2011,58(10):4746-4752. doi: 10.1109/TIE.2011.2112317
[8]	黄学良, 吉青晶, 谭林林 , 等. 磁耦合谐振式无线电能传输系统串并式模型研究[J]. 电工技术学报, 2013,28(3):171-176.
	Huang Xueliang, Ji Qingjing, Tan Linlin , et al. Study on serial-parallel model in MCR-based WPT systems[J]. Transactions of China Electrotechnical Society, 2013,28(3):171-176.
[9]	侯佳, 陈乾宏, Wong Siu-Chung , 等. 非接触电能传输中输出增益对变压器参数变化的敏感度分析[C]. 2014无线电能传输技术与应用学术国际会议, 2014.
[10]	王宏健, 于乐, 陈江 . 无人水下航行器无线能量传输系统补偿网络研究[C]. 2014无线电能传输技术与应用学术国际会议, 2014.
[11]	周雯琪, 马皓, 何湘宁 . 感应耦合电能传输系统不同补偿拓扑的研究[J]. 电工技术学报, 2009,24(1):133-139.
	Zhou Wenqi, Ma Hao, He Xiangning . Study on topologies for different compensation in inducted coupling power transmission systems[J]. Transactions of China Electrotechnical Society, 2009,24(1):133-139.

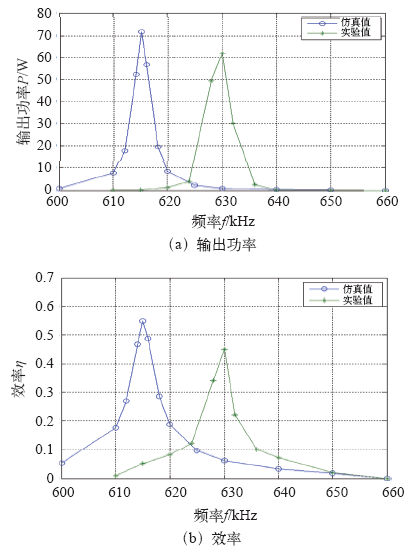

频率f / kHz	输出功率P_out/ W	效率η
610	0.08	0.01
615	0.23	0.05
620	1.34	0.08
624	3.78	0.12
628	49.3	0.34
630	62.3	0.451
632	30.2	0.22
636	2.54	0.1
640	0.15	0.07
650	0.01	0.02
660	0	0
