含双倍压DCM结构的高增益DC/DC变换器

doi:10.11985/2023.01.010

电气工程学报 ›› 2023, Vol. 18 ›› Issue (1): 94-103.doi: 10.11985/2023.01.010

扫码分享

含双倍压DCM结构的高增益DC/DC变换器

荣德生¹(), 刘磊¹(), 孙瑄瑨¹(), 胡举爽²()

1.辽宁工程技术大学电气与控制工程学院葫芦岛 125105
2.国网河北省电力有限公司石家庄供电分公司石家庄 050051

收稿日期:2021-05-17 修回日期:2021-07-09 出版日期:2023-03-25 发布日期:2023-04-19
通讯作者: 刘磊，男，1994年生，硕士研究生。主要研究方向为电力电子及其磁集成技术。E-mail：15670334452@163.com
作者简介:荣德生，男，1975年生，博士，教授。主要研究方向为节能型电力电子技术及应用。E-mail：rongdesheng0@163.com
孙瑄瑨，男，1993年生，博士研究生。主要研究方向为电力电子及其磁集成技术。E-mail：1419062334@qq.com
胡举爽，男，1990年生，硕士。主要研究方向为电力电子与电力传动。E-mail：1403436227@qq.com

High Gain DC/DC Converter with Double Voltage DCM Structure

RONG Desheng¹(), LIU Lei¹(), SUN Xuanjin¹(), HU Jushuang²()

1. Faculty of Electrical and Control Engineering, Liaoning Technical University, Huludao 125105
2. Shijiazhuang Power Supply Company, State Grid Hebei Electric Power Co., Ltd., Shijiazhuang 050051

Received:2021-05-17 Revised:2021-07-09 Online:2023-03-25 Published:2023-04-19

摘要/Abstract

摘要：

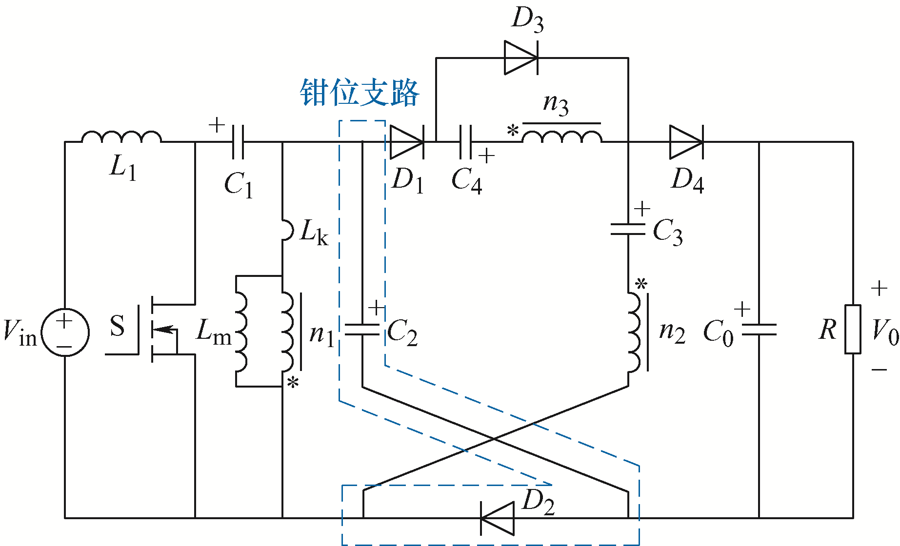

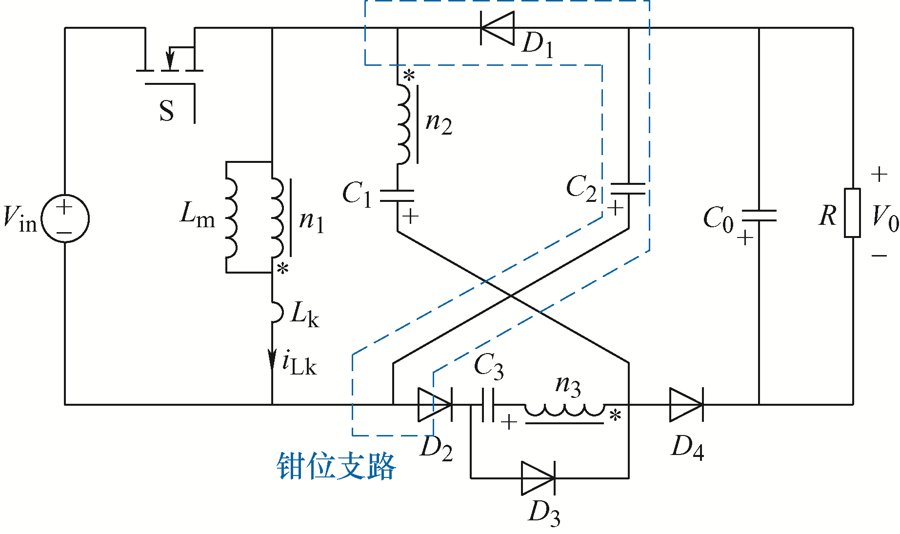

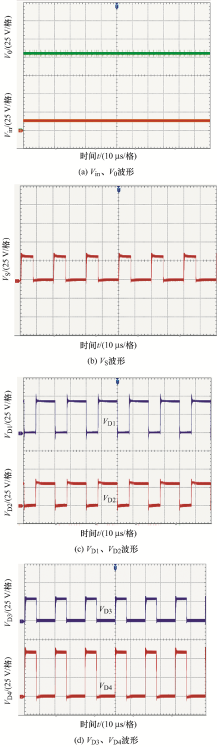

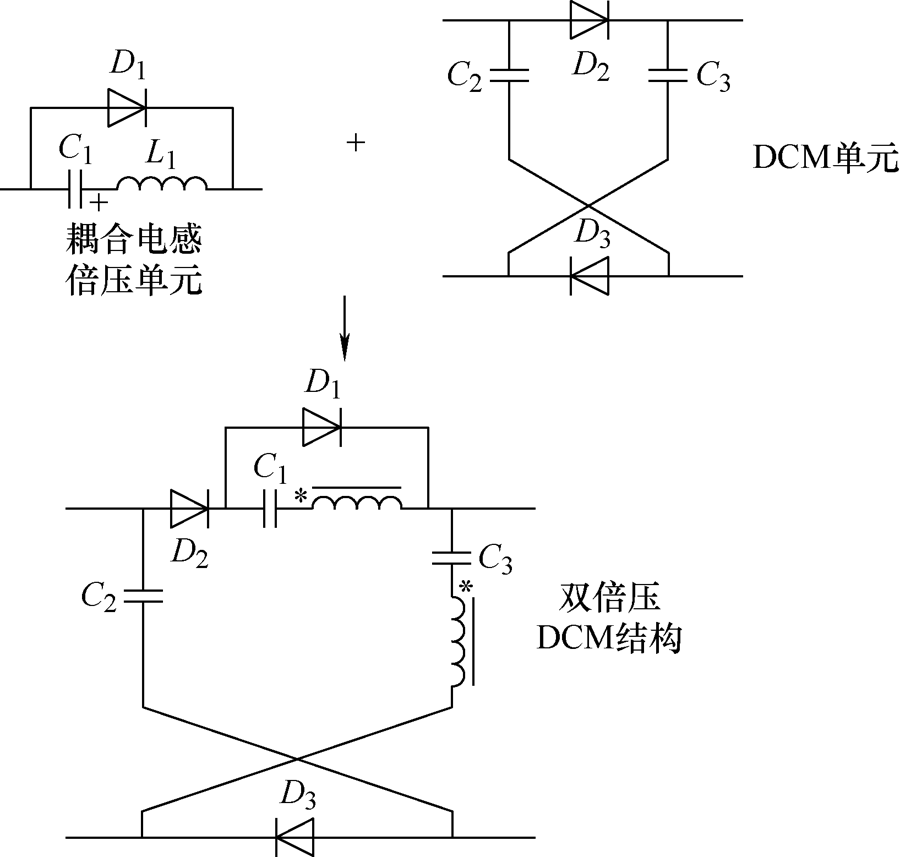

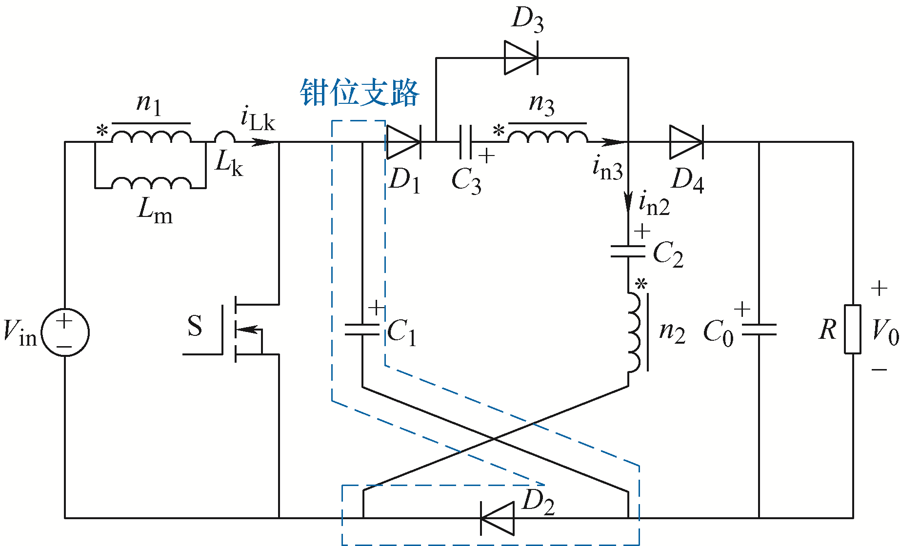

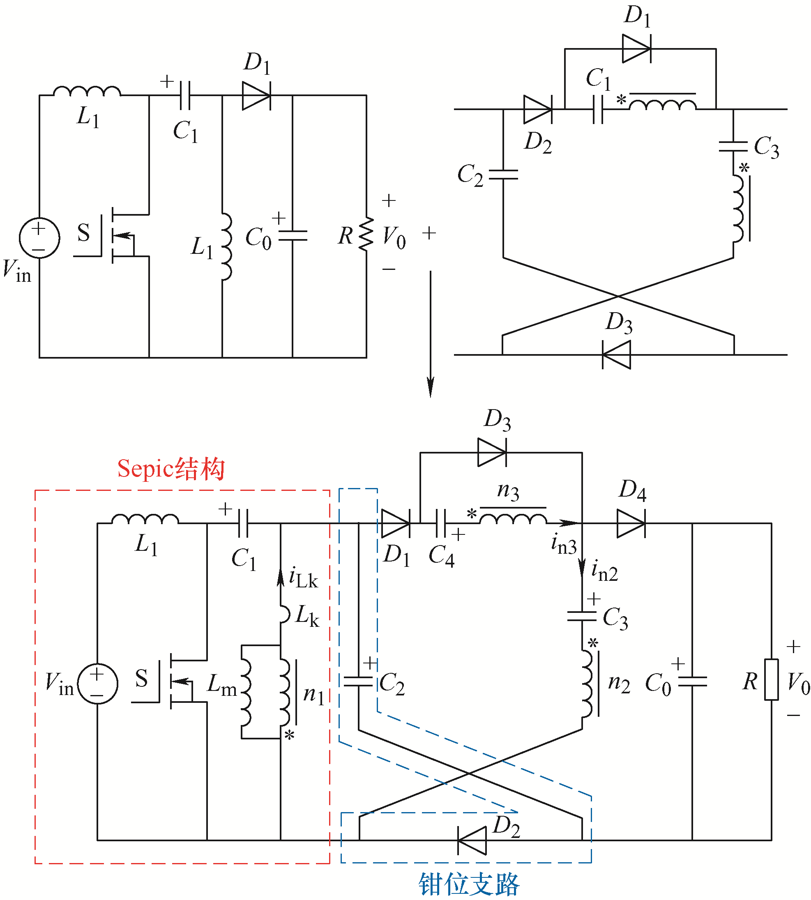

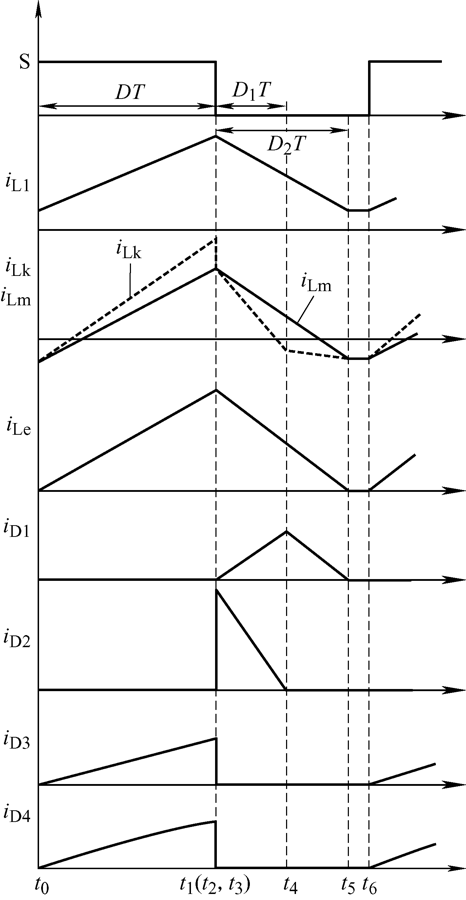

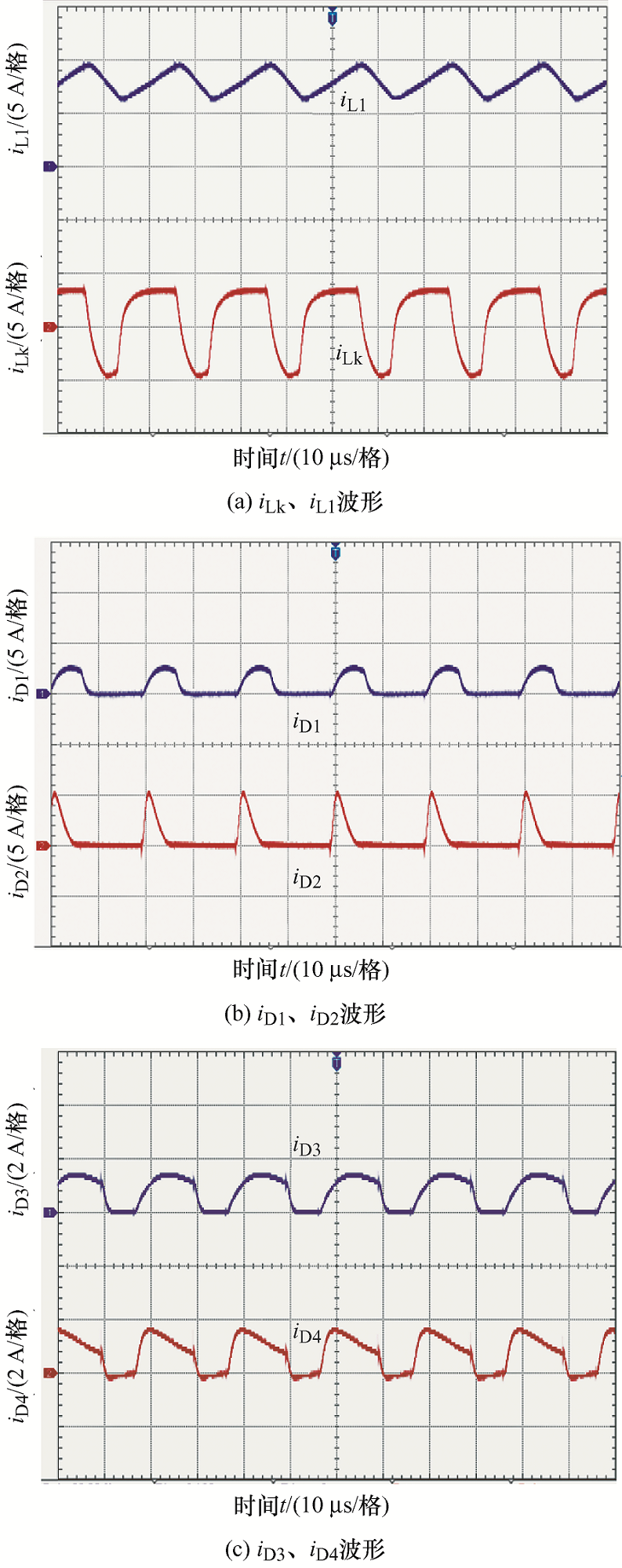

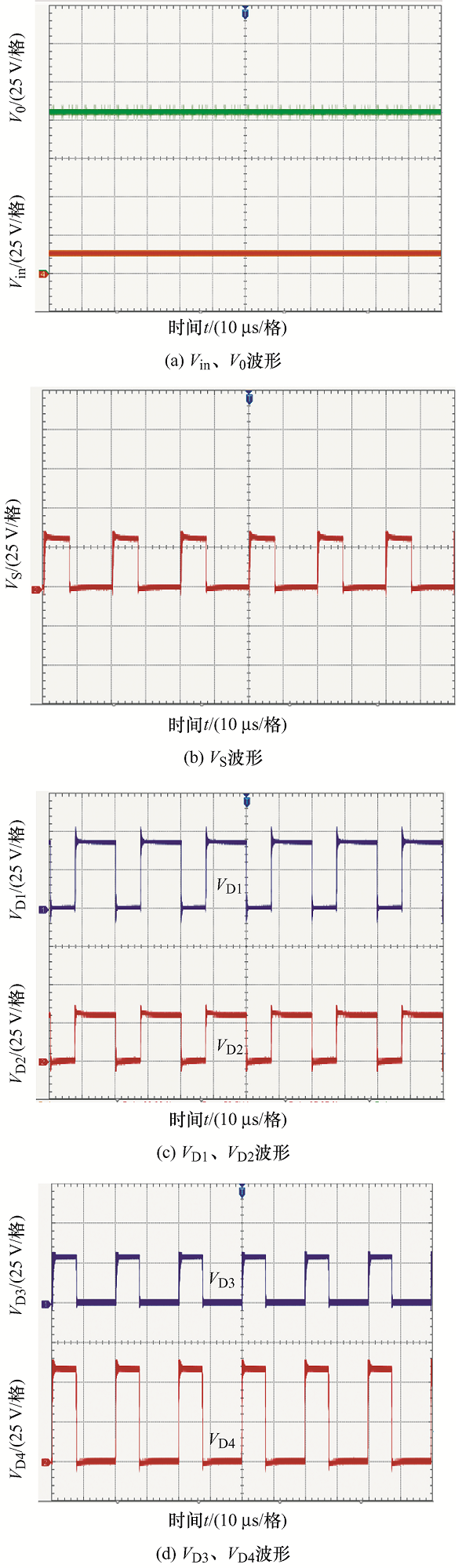

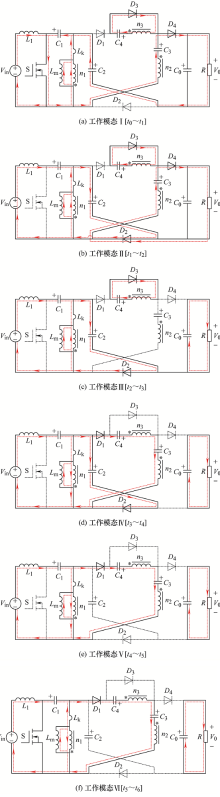

为了增加直流变换器的电压增益，减少开关管的电压应力，将耦合电感倍压单元与二极管-电容(Diode capacitor multiplier, DCM)单元进行组合，提出一种双倍压DCM结构，将该结构引入含输出二极管的非隔离变换器中，不仅能提升该类变换器的电压增益，有效降低器件的电压应力，同时利用结构中的二极管-电容支路作为无源钳位支路吸收漏感能量，提高变换器的效率。并以含双倍压DCM结构的Sepic变换器为例进行了工作模态和工作性能的分析，推导了电感电流临界的工作状态，与同类型变换器进行了对比分析，充分证明了该类变换器具有高增益、低应力的优势。最后，搭建了一个60 W的试验样机，验证了上述理论的正确性。

关键词: 双倍压DCM单元, 高增益, 低电压应力, 无源钳位

Abstract:

To increase the voltage gain of the DC-DC converter, reduce the voltage stress of the switch, combine the coupled inductor multiplier unit with the diode-capacitor multiplier(DCM) unit, and a double DCM structure is proposed and introduced into a non-isolated converter with output diode. Not only the voltage gain of the converter is improved, but also the voltage stress of the semiconductor is reduced. Meanwhile, the diode-capacitor branch in the structure is used as a passive clamping branch to absorb the leakage inductor energy and improve the efficiency of the converter. The working mode and working performance of the proposed SEPIC-based converter are analyzed, which containing a double DCM structure. The working state of the inductor current is analyzed. Compared with the same type converter, the advantages of proposed type of converter with high gain and low stress are fully proven. Finally, a 60 W experimental prototype is built to verify the correctness of the theory.

Key words: Double pressure DCM unit, high gain, low voltage stress, passive clamp

中图分类号:

TM46

荣德生, 刘磊, 孙瑄瑨, 胡举爽. 含双倍压DCM结构的高增益DC/DC变换器[J]. 电气工程学报, 2023, 18(1): 94-103.

RONG Desheng, LIU Lei, SUN Xuanjin, HU Jushuang. High Gain DC/DC Converter with Double Voltage DCM Structure[J]. Journal of Electrical Engineering, 2023, 18(1): 94-103.

图/表 19

图1

图2

图3

图4

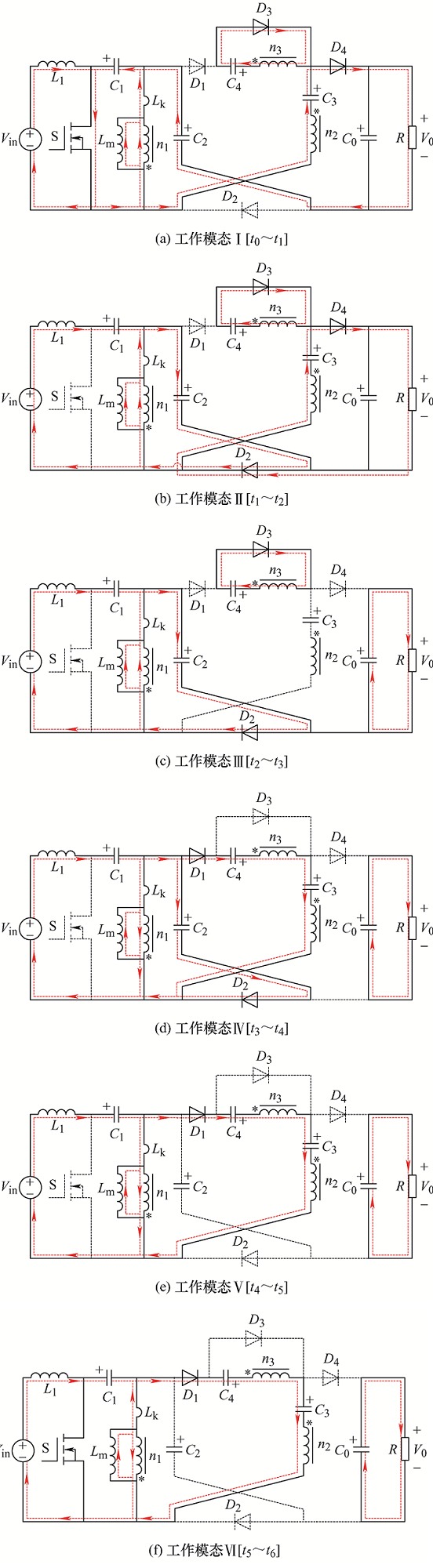

图5

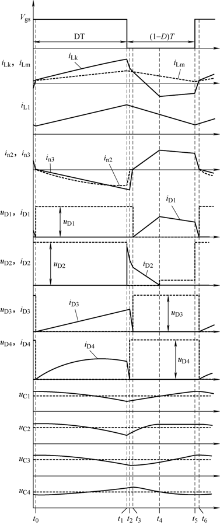

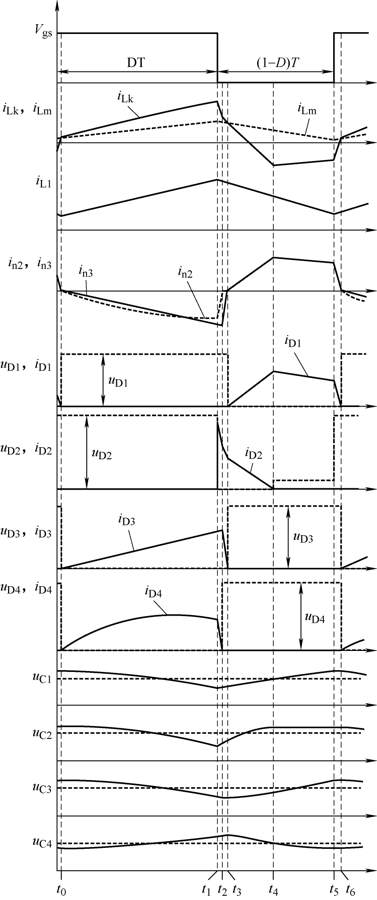

图6

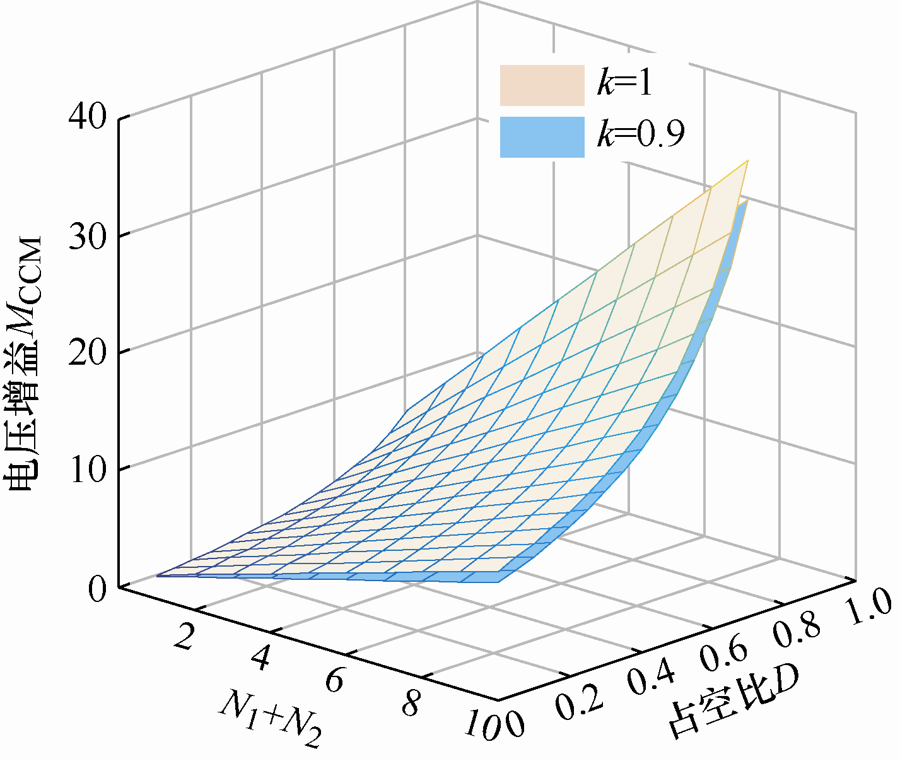

图7

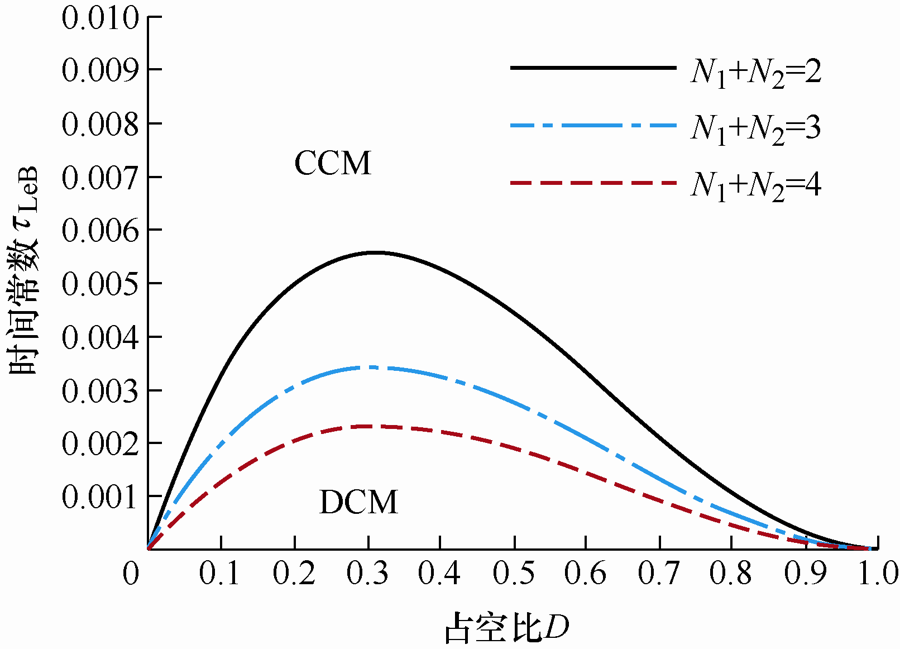

图8

图9

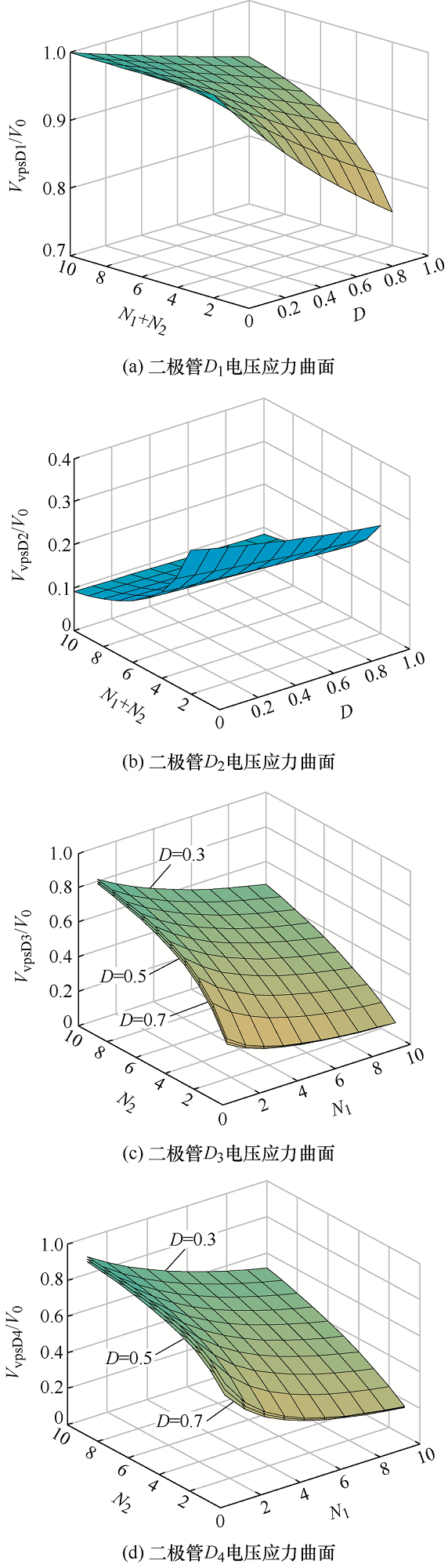

图10

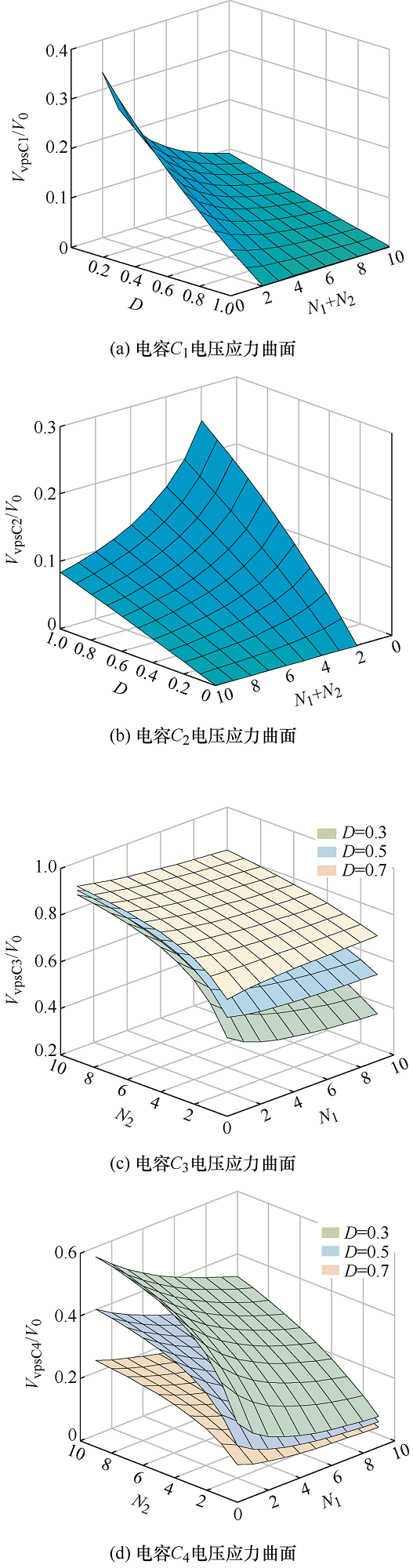

图11

图12

表1

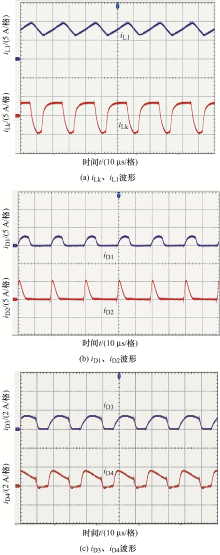

图13

图14

表2

表3

图15

图16

参考文献 17

[1]	SALVADOR M A, ANDRADE De J M. Nonisolated high-step-up DC-DC converter derived from switched-inductors and switched-capacitors[J]. IEEE Trans. Ind. Electron., 2020, 67(10):8506-8516. doi: 10.1109/TIE.41
[2]	BHASKAR M S, GUPTA N, SELVAM S, et al. A new hybrid zeta-boost converter with active quad switched inductor for high voltage gain[J]. IEEE Access, 2021, 9:20022-20034. doi: 10.1109/ACCESS.2021.3054393
[3]	KUMAR G G, SUNDARAMOORTHY K, KARTHI- KEYAN V, et al. Switched capacitor-inductor network based ultra-gain DC-DC converter using single switch[J]. IEEE Trans. Ind. Electron., 2020, 67(12):10274-10283. doi: 10.1109/TIE.41
[4]	李洪珠, 刘飞扬, 刘艳, 等. 一种新型磁集成高增益耦合电感倍压Boost变换器[J]. 电工技术学报, 2020, 35(2):450-460.
	LI Hongzhu, LIU Feiyang, LIU Yan, et al. A new magnetically integrated high gain coupled inductance voltage-doubled boost converter[J]. Transactions of China Electrotechnical Society, 2020, 35(2):450-460.
[5]	SCHMITZ L, MARTINS D C, ROBERTO F C, et al. Comprehensive conception of high step-up DC-DC converters with coupled inductor and voltage multipliers techniques[J]. IEEE Trans. Circuits Syst. I, 2020, 67(6):2140-2151. doi: 10.1109/TCSI.8919
[6]	ZHENG Y, SMEDLEY K M. Analysis and design of a single-switch high step-up coupled-inductor boost converter[J]. IEEE Trans. Power Electron., 2020, 35(1):535-545. doi: 10.1109/TPEL.63
[7]	荣德生, 黄鹤, 孙瑄瑨. 新型高增益耦合电感组合Sepic变换器[J]. 电源学报, 2022, 20(1):46-55.
	RONG Desheng, HUANG He, SUN Xuanjin. New high gain coupled inductance combination Sepic converter[J]. Journal of Power Supply, 2022, 20(1):46-55.
[8]	TSENG K C, LIN J T, HUANG C C. High step-up converter with three-winding coupled inductor for fuel cell energy source applications[J]. IEEE Trans. Power Electron., 2015, 30(2):574-581. doi: 10.1109/TPEL.2014.2309793
[9]	CHANGCHIEN S K, LIANG T J, CHEN J F, et al. Novel high step-up DC-DC converter for fuel cell energy conversion system[J]. IEEE Trans. Ind. Electron., 2010, 57(6):2007-2017. doi: 10.1109/TIE.2009.2026364
[10]	HU X, WANG J, LI L, et al. A three-winding coupledinductor DC-DC converter topology with high voltage gain and reduced switch stress[J]. IEEE Trans. Power Electron., 2018, 33(2):1453-1462. doi: 10.1109/TPEL.2017.2689806
[11]	荣德生, 孙瑄瑨. 高增益耦合电感组合Buck-Boost-Zeta变换器[J]. 中国电机工程学报, 2020, 40(14):4590-4601.
	RONG Desheng, SUN Xuanjin. High gain coupled inductance combination Buck-Boost-Zeta converter[J]. Proceedings of the CSEE, 2020, 40(14):4590-4601.
[12]	胡雪峰, 王琳, 代国瑞, 等. 单开关高增益 Boost-Sepic集成变换器[J]. 中国电机工程学报, 2015, 35(8):2018-2025.
	HU Xuefeng, WANG Lin, DAI Guorui, et al. High step-up Boost-Sepic integrated converters with a single switch[J]. Proceedings of the CSEE, 2015, 35(8):2018-2025.
[13]	KHALILZADEH M, ABBASZADEH K. Non-isolated high step-up DC-DC converter based on coupled inductor with reduced voltage stress[J]. IET Power Electron., 2015, 8(11):1755-4535.
[14]	MAHMOODREZA E A, FARZAD S, HOSSEIN S, et al. A high voltage gain DC-DC converter based on three winding coupled inductor and voltage multiplier cell[J]. IEEE Transactions on Power Electronics, 2022, 35(5):4558-4567. doi: 10.1109/TPEL.63
[15]	李洪璠, 刘歆俣, 李洪亮, 等. 新型磁集成组合式Sepic变换器研究[J]. 电源学报, 2019, 17(6):57-62. doi: 10.13234/j.issn.2095-2805.2019.6.57
	LI Hongfan, LIU Xinyu, LI Hongliang, et al. Research on novel magnetic integrated combined Sepic converter[J]. Journal of Power Supply, 2019, 17(6):57-62. doi: 10.13234/j.issn.2095-2805.2019.6.57
[16]	李洪璠, 李洪亮, 李洪珠, 等. 磁集成开关电感高增益Sepic变换器[J]. 电力电子技术, 2017, 12(2):53-55.
	LI Hongfan, LI Hongliang, LI Hongzhu, et al. High voltage gain sepic converter with integrated magnetic switch-inductor[J]. Power Electronics, 2017, 12(2):53-55.
[17]	罗全明, 高伟, 吕星宇, 等. 耦合电感型高增益 Boost变换器拓扑分析[J]. 中国电机工程学报, 2017, 37(24):7266-7275.
	LUO Quanming, GAO Wei, LÜ Xingyu, et al. Topology analysis of high step-up Boost converters with coupled inductors[J]. Proceedings of the CSEE, 2017, 37(24):7266-7275.

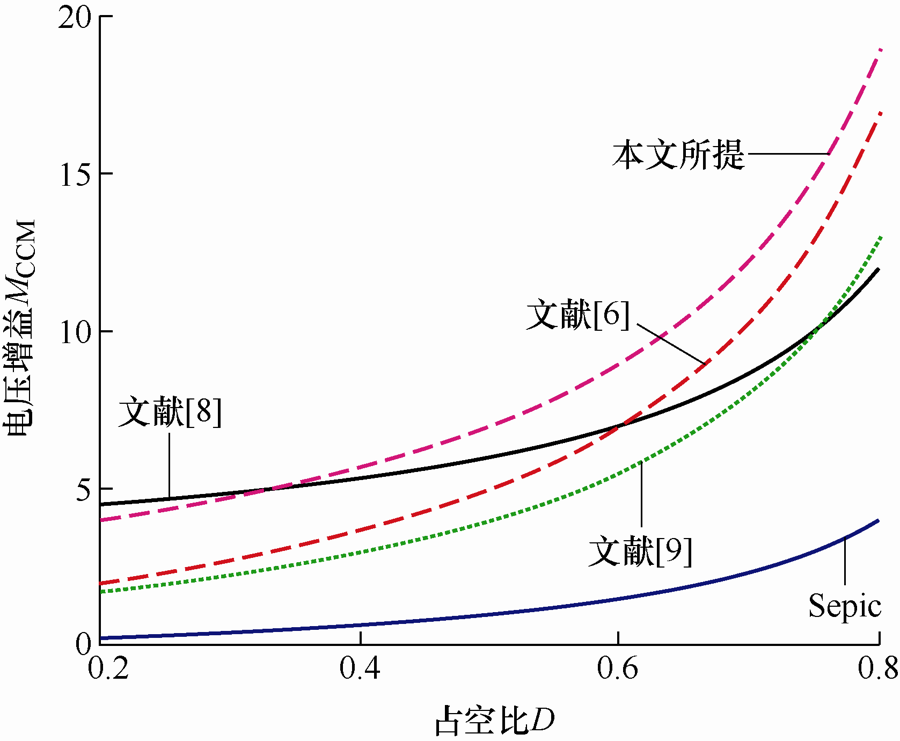

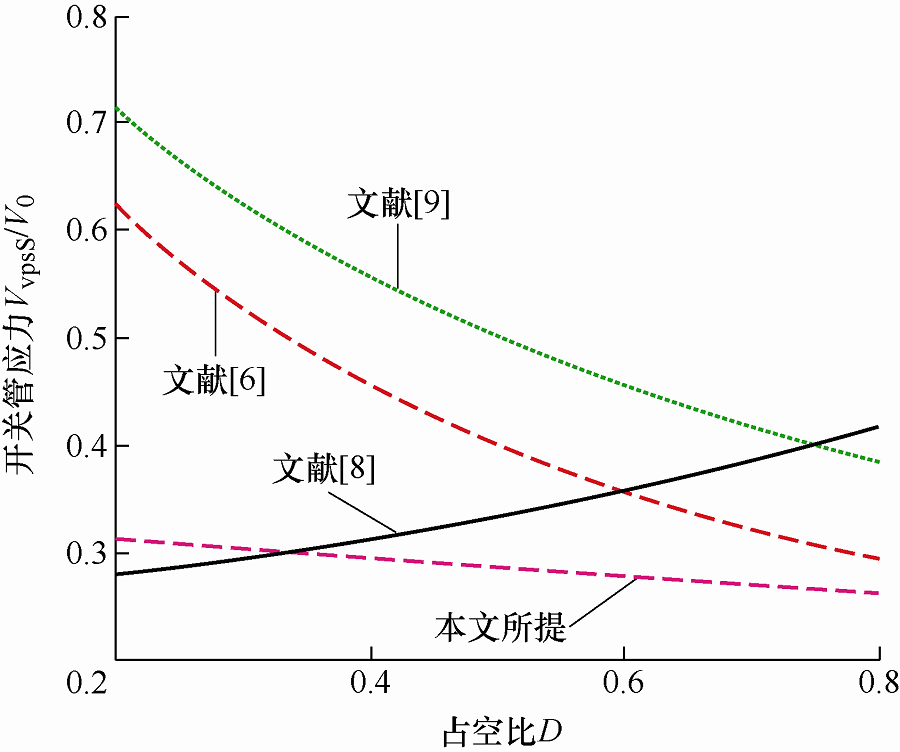

变换器	电压增益M_CCM(V_o/V_in)	开关管应力 (V_vpsS/V_o)	输出端二级管应力 (V_vpsD/V_o)
Sepic	$\frac{D}{1-D}$	$\frac{1}{D}$	$\frac{1}{D}$
文献[6]	$\frac{1+\left( N+1 \right)D}{1-D}$	$\frac{1}{1+\left( N+1 \right)D}$	$\frac{1+N}{1+\left( N+1 \right)D}$
文献[8]	${{N}_{1}}+\frac{2-D+{{N}_{2}}}{1-D}$	$\frac{1}{2-D+\left( 1-D \right){{N}_{1}}+{{N}_{2}}}$	$\frac{{{N}_{2}}}{2-D+\left( 1-D \right){{N}_{1}}+{{N}_{2}}}$
文献[9]	${{N}_{1}}+\frac{\left( 1+{{N}_{1}}+{{N}_{2}} \right)D}{1-D}$	$\frac{1}{{{N}_{1}}+D+{{N}_{2}}D}$	$\frac{{{N}_{1}}}{{{N}_{1}}+D+{{N}_{2}}D}$
本文	$\frac{1+{{N}_{1}}+{{N}_{2}}+D}{1-D}$	$\frac{1}{1+{{N}_{1}}+{{N}_{2}}+D}$	$\frac{{{N}_{2}}+1}{1+{{N}_{1}}+{{N}_{2}}+D}$

变换器	电压增益M_CCM(V_o/V_in)	开关管应力 (V_vpsS/V_o)
Buck-Boost变换器+双倍压DCM结构	$\frac{1+D+\left( {{N}_{1}}+{{N}_{2}} \right)}{1-D}$	$\frac{1}{1+\left( {{N}_{1}}+{{N}_{2}} \right)+D}$
Boost变换器+双倍压DCM结构	$\frac{2+\left( {{N}_{1}}+{{N}_{2}} \right)}{1-D}$	$\frac{1}{2+\left( {{N}_{1}}+{{N}_{2}} \right)}$
Sepic变换器+双倍压DCM结构	$\frac{1+D+\left( {{N}_{1}}+{{N}_{2}} \right)}{1-D}$	$\frac{1}{1+\left( {{N}_{1}}+{{N}_{2}} \right)+D}$

参数	数值和型号
输入电压V_in/V	12
输出电压V_o/V	105
额定功率P_o/W	60
耦合电感匝比n	1∶1∶1
励磁电感L_m/μH	65
漏感L_k/μH	1.2
前端电感L₁/μH	50
电容C₁、C₂、C₃、C₄	100 μF/160 V
输出电容C₀	100 μF/250 V
开关管S	IRF540N
二极管	MBR20100CT
开关频率f/kHz	50
占空比	0.6
