双负载磁谐振S-LCL无线充电系统频率分叉分析

doi:10.11985/2023.01.009

摘要/Abstract

摘要：

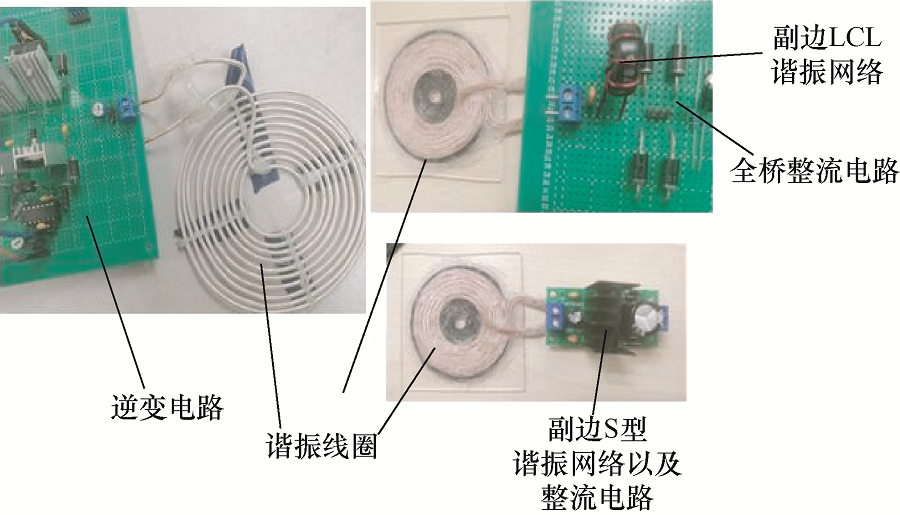

磁耦合无线充电系统在过耦合情况下会出现频率分叉现象，从而导致频率谐振点系统性能大幅降低。针对无线充电系统存在的频率分叉现象，目前已有文献大多都基于SS结构等基本拓扑进行研究，而缺少对S-LCL等复杂谐振结构频率分叉现象的研究，因此选择对双负载磁谐振S-LCL无线充电系统的频率分叉进行研究。首先分析了双负载系统输出特性随工作频率的变化情况。然后，利用谐振频率下的阻抗特征推导出双负载系统可以规避频率分叉现象的条件以及分叉谐振频率的表达式。仿真分析了耦合系数与负载阻值对双负载磁谐振S-LCL无线充电系统频率分叉临界点和输出特性的影响，得到了规避频率分叉现象的负载与耦合系数的取值范围。最后，搭建Matlab仿真模型和物理平台对所得结论进行验证。

关键词: 无线充电, 双负载, 磁耦合谐振, S-LCL拓扑网络, 频率分叉

Abstract:

The frequency bifurcation occurs in the magnetic coupling wireless charging system under the condition of over coupling, which leads to a significant reduction in the system performance of the frequency resonant point. In view of the frequency bifurcation phenomenon in wireless charging system, most of the existing literatures are based on the basic topology such as SS structure, and lack of research on the frequency bifurcation phenomenon of complex resonant structures such as S-LCL. Therefore, the frequency bifurcation of dual-load magnetic resonance S-LCL wireless charging system is studied. Firstly, the variation of output characteristics and system efficiency of dual-load system with operating frequency is analyzed. Secondly, the conditions under which the dual-load system can avoid the frequency bifurcation phenomenon and the expression of the bifurcated resonant frequency are derived by using the impedance characteristics at the resonant frequency. The influence of coupling coefficient and load resistance on the frequency bifurcation critical point and output characteristics of the dual-load magnetic resonance S-LCL wireless charging system is simulated and analyzed, and the value range of the load and coupling coefficient to avoid the frequency bifurcation phenomenon is obtained. Finally, Matlab simulation model and physical platform are built to verify the conclusions obtained.

Key words: Wireless charging, dual load, magnetic coupling resonance, S-LCL topology network, frequency bifurcation

中图分类号:

TM724

赖禹同, 郭锋, 唐自强, 郝伯强. 双负载磁谐振S-LCL无线充电系统频率分叉分析[J]. 电气工程学报, 2023, 18(1): 86-93.

LAI Yutong, GUO Feng, TANG Ziqiang, HAO Boqiang. Analysis of Frequency Bifurcation of Dual Load Magnetic Resonance S-LCL Wireless Charging System[J]. Journal of Electrical Engineering, 2023, 18(1): 86-93.

图/表 11

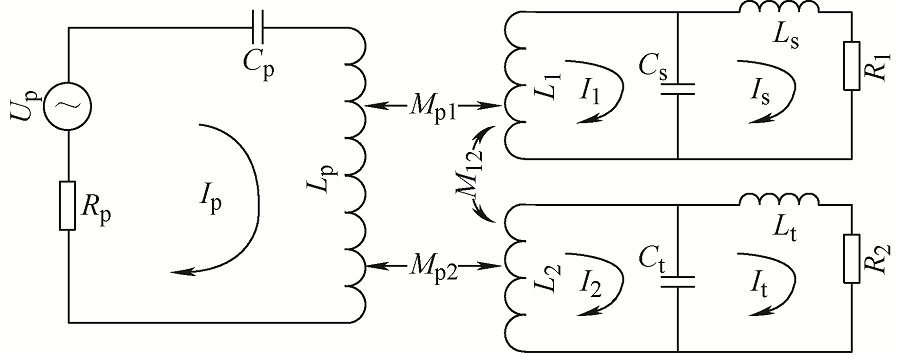

图1

表1

表2

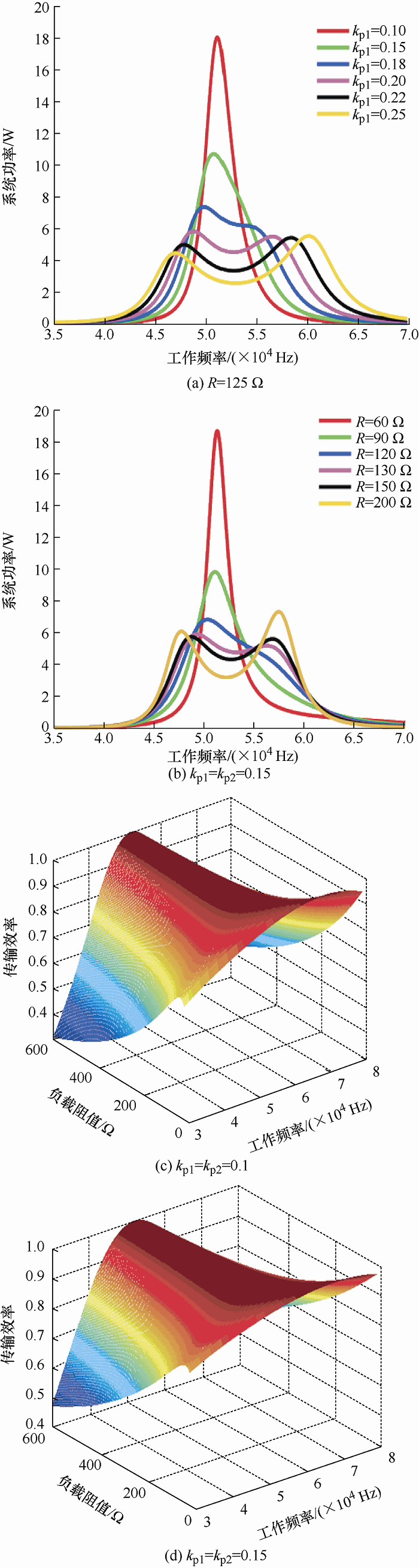

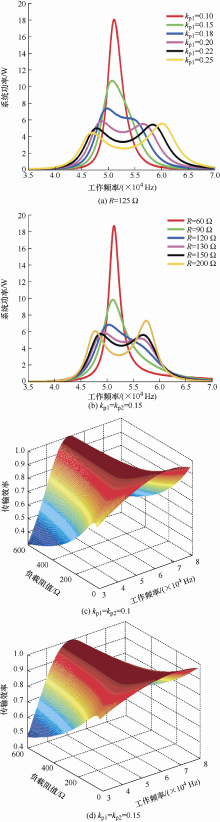

图2

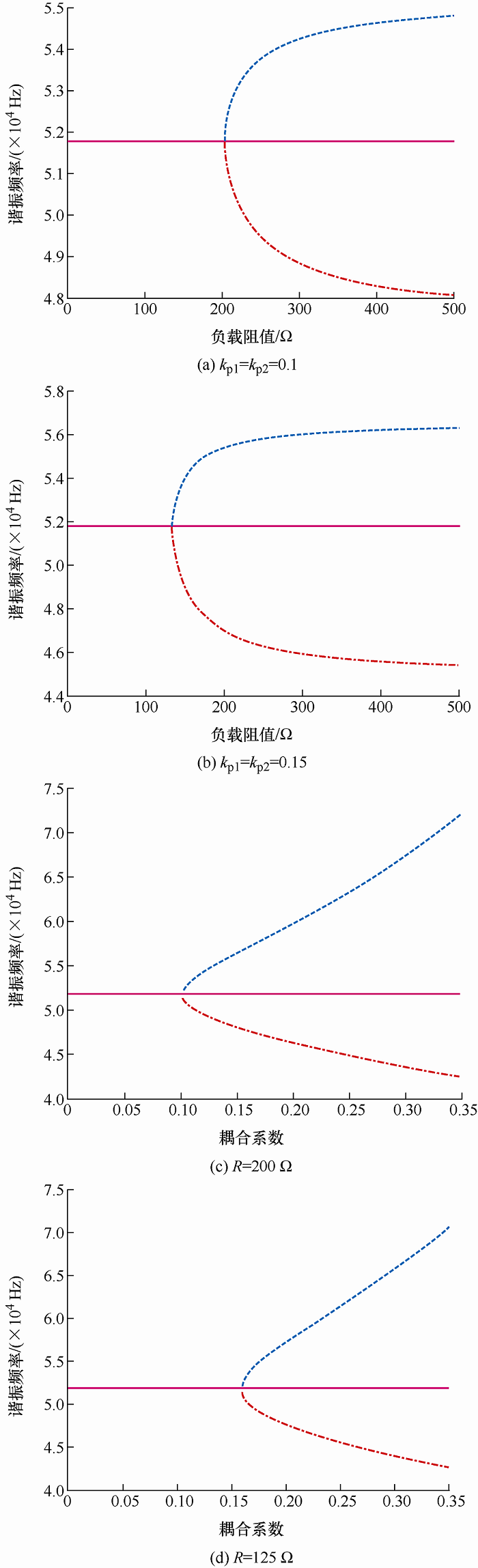

图3

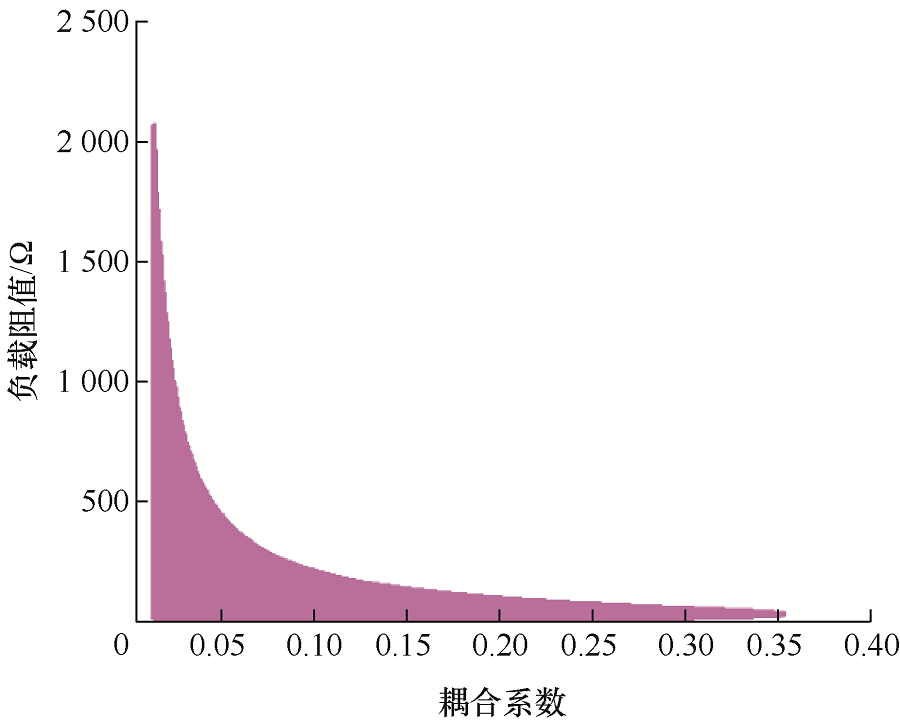

图4

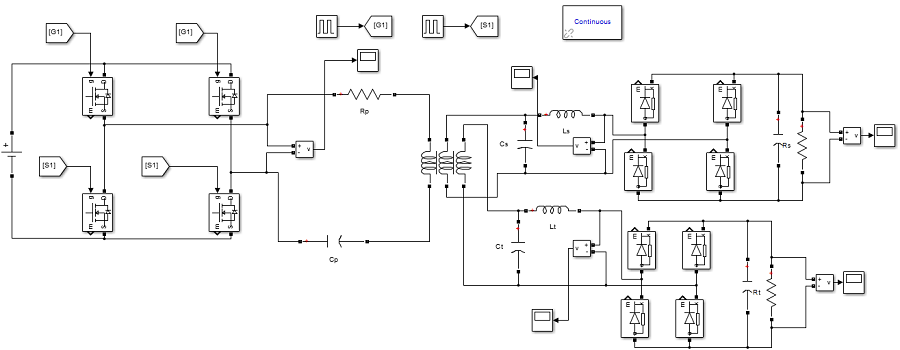

图5

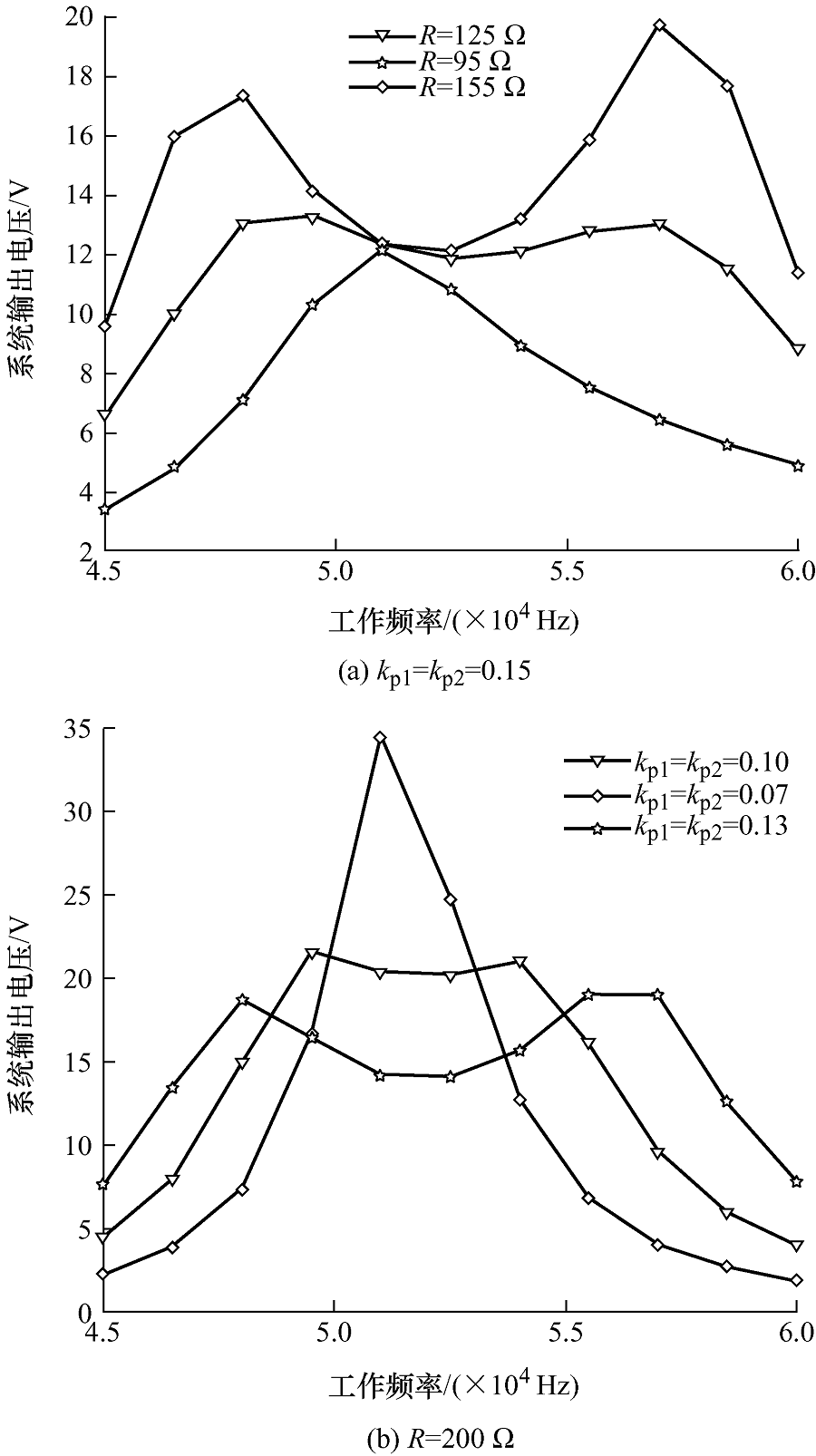

图6

图7

表3

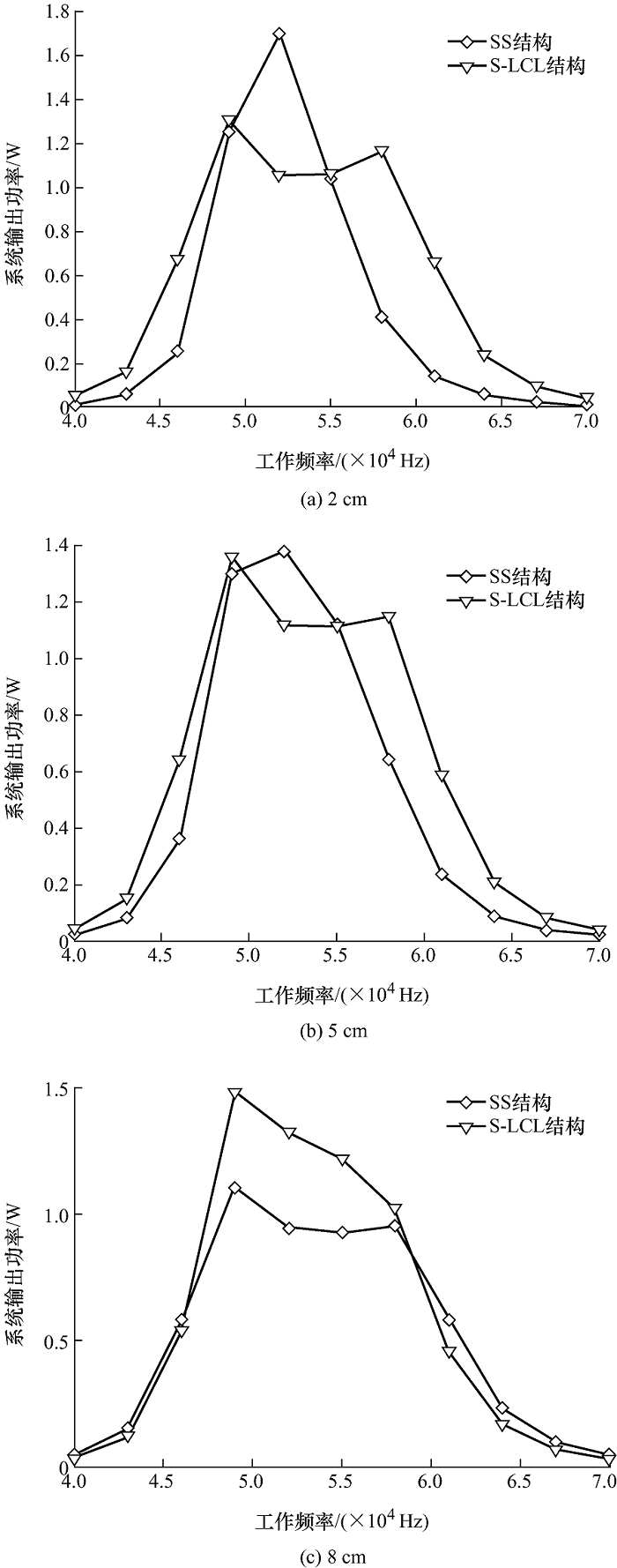

图8

参考文献 20

[1]	戴英花, 董林玺. 一种带负载识别的多负载无线充电系统设计[J]. 杭州电子科技大学学报, 2016, 36(1):21-26.
	DAI Yinghua, DONG Linxi. Design of a multi-load wireless charging system with load identification[J]. Journal of Hangzhou Dianzi University, 2016, 36(1):21-26.
[2]	FAN S, LIU Z, FENG G, et al. Dynamic process analysis and voltage stabilization control of multi-load wireless power supply system[J]. Energies, 2021, 14(5):1466. doi: 10.3390/en14051466
[3]	ZHANG Zhang, ZHOU Xiaojuan, XIE Yulei, et al. Multi-load constant current charging technology for wireless charging system[J]. International Journal of Electronics, 2020, 107(8):1254-1271. doi: 10.1080/00207217.2020.1726487
[4]	鲁丽航, 宋卫平, 宁爱平, 等. 双负载无线充电系统交叉耦合分析[J]. 太原科技大学学报, 2020, 41(4):264-269,274.
	LU Lihang, SONG Weiping, NING Aiping, et al. Cross-coupling analysis of dual-load wireless charging system[J]. Journal of Taiyuan University of Science and Technology, 2020, 41(4):264-269,274.
[5]	LI Zhenjie, ZHU Chunbo, JIANG Jinhai, et al. A 3-kW wireless power transfer system for sightseeing car supercapacitor charge[J]. IEEE Transactions on Power Electronics, 2016, 32(5):3301-3316. doi: 10.1109/TPEL.2016.2584701
[6]	SAMPI A P, MEYER D A, SMITH J R. Analysis,experimental result,and range adaptation of magnetically coupled resonators for wireless oower transfer[J]. IEEE Trans. on Industrial Electronics, 2011, 58(2):544-554. doi: 10.1109/TIE.2010.2046002
[7]	李中启, 黄守道, 易吉良, 等. 磁耦合谐振式无线电能传输系统频率分裂抑制方法[J]. 电力系统自动化, 2017, 41(2):21-27.
	LI Zhongqi, HUANG Shoudao, YI Jiliang, et al. Suppression method for frequency splitting of magnetic coupling resonance wireless power transmission system[J]. Automation of Electric Power Systems, 2017, 41(2):21-27.
[8]	李凤娥. 磁共振无线电能传输系统最大传输距离的电路参数分析[J]. 南昌航空大学学报, 2012, 26(3):48-51,62.
	LI Fenge. Analysis of the circuit parameters of the maximum transmission distance of the magnetic resonance wireless power transmission system[J]. Journal of Nanchang Hangkong University, 2012, 26(3):48-51,62.
[9]	杨世亮, 汪宁, 柳俊岗, 等. 磁耦合谐振串串式补偿结构分析[J]. 自动化技术与应用, 2020, 39(10):11-13,30.
	YANG Shiliang, WANG Ning, LIU Jungang, et al. Analysis of string compensation structure of magnetic coupling resonant string[J]. Technology of Automation and Applications, 2020, 39(10):11-13,30.
[10]	郝会东, 章小斌, 郭咏. 串并式无线电能传输系统的研究与设计[J]. 电子设计工程, 2019, 27(18):133-137.
	HAO Huidong, ZHANG Xiaobin, GUO Yong. Research and design of serial-parallel wireless power transmission system[J]. Electronic Design Engineering, 2019, 27(18):133-137.
[11]	GUAN Z, ZHANG B, QIU D. Influence of asymmetric coil parameters on the output power characteristics of wireless power transfer systems and their applications[J]. Energies, 2019, 12(7):1-19. doi: 10.3390/en12010001
[12]	MATTHEW S, VIRGILIO V, ANDREAS D. Frequency splitting analysis and compensation method for inductive wireless powering of implantable biosensors[J]. Sensors, 2016, 16(8):1229-1242. doi: 10.3390/s16081229
[13]	李炜昕, 张合, 李长生, 等. 磁耦合共振单发双收系统传输特性分析[J]. 电工技术学报, 2014, 29(2):191-196.
	LI Weixin, ZHANG He, LI Changsheng, et al. Analysis of transmission characteristics of magnetic coupling resonance single-transmit and double-receiving system[J]. Transactions of China Electrotechnical Society, 2014, 29(2):191-196.
[14]	李新恒, 龚立娇, 冯力, 等. 三线圈磁耦合谐振式无线电能传输系统频率特性分析[J]. 工矿自动化, 2018, 44(3):91-96.
	LI Xinheng, GONG Lijiao, FENG Li, et al. Analysis of frequency characteristics of three-coil magnetic coupling resonance wireless power transmission system[J]. Industry and Mine Automation, 2018, 44(3):91-96.
[15]	NARAYANAMOORTHI R, JULIET A V, BHARATIRAJA C. Cross interference minimization and simultaneous wireless power transfer to multiple frequency loads using frequency bifurcation approach[J]. IEEE Transactions on Power Electronics, 2019:10898-10909.
[16]	雷阳. 用于家用电器的双负载无线电能传输系统的研究[D]. 哈尔滨: 哈尔滨工业大学, 2014.
	LEI Yang. Research on dual-load wireless power transmission system for household appliances[D]. Harbin:Harbin Institute of Technology, 2014.
[17]	王龙飞. 基于S-LCL补偿的磁共振无线电能传输效率研究[J]. 电力电子技术, 2019, 53(6):23-26.
	WANG Longfei. Study on the efficiency of magnetic resonance wireless power transmission based on S-LCL compensation[J]. Power Electronics, 2019, 53(6):23-26.
[18]	MENG X, QIU D, LIN M. Output voltage identification based on transmitting side information for implantable wireless power transfer system[J]. IEEE Access, 2018, 7:2938-2946. doi: 10.1109/ACCESS.2018.2886424
[19]	SHU X, ZHANG B, RONG C. Frequency bifurcation in a series-series compensated fractional-order inductive power transfer system[J]. Journal of Advanced Research, 2020, 25:235-242. doi: 10.1016/j.jare.2020.04.010 pmid: 32922990
[20]	WANG X, YANG J. A privacy image encryption algorithm based on piecewise coupled map lattice with multi dynamic coupling coefficient[J]. Information Sciences, 2021, 569:217-240. doi: 10.1016/j.ins.2021.04.013

参数名称	接收端1	接收端2	发射端
耦合系数	${{k}_{\mathrm{p}1}}=\frac{{{M}_{\mathrm{p}1}}}{\sqrt{{{L}_{1}}{{L}_{\mathrm{p}}}}}$	${{k}_{\mathrm{p}2}}=\frac{{{M}_{\mathrm{p}2}}}{\sqrt{{{L}_{2}}{{L}_{\mathrm{p}}}}}$	${{k}_{12}}=-\frac{{{M}_{12}}}{\sqrt{{{L}_{2}}{{L}_{1}}}}$
谐振频率	${{\omega }_{1}}\text{=}\frac{1}{\sqrt{{{L}_{1}}{{C}_{\mathrm{S}}}}}$	${{\omega }_{2}}\text{=}\frac{1}{\sqrt{{{L}_{2}}{{C}_{\mathrm{t}}}}}$	${{\omega }_{\mathrm{P}}}\text{=}\frac{1}{\sqrt{{{L}_{\mathrm{P}}}{{C}_{\mathrm{P}}}}}$
品质因素	${{Q}_{\mathrm{s}1}}=\frac{{{\omega }_{1}}{{L}_{1}}}{{{R}_{\mathrm{S}}}}$	${{Q}_{\mathrm{s}2}}=\frac{{{\omega }_{2}}{{L}_{2}}}{{{R}_{\mathrm{t}}}}$	${{Q}_{\mathrm{P}}}=\frac{{{\omega }_{\mathrm{P}}}{{L}_{\mathrm{P}}}}{{{R}_{\mathrm{P}}}}$

参数	数值
原级谐振电容C_P/nF	28.65
原级线圈等效电感L_p/μH	329.88
内阻R_p/Ω	0.20
次级线圈等效电感L₁/μH	90.00
次级谐振电容C_S/nF	105.00
次级谐振电感L_S/μH	90.00
次级线圈等效电感L₂/μH	90.00
次级谐振电容C_t/nF	105.00
次级谐振电感L_t/μH	90.00
等效输入电源U_p/V	5.00
谐振工作频率f/kHz	51.70

线圈	外径/mm	内径/mm	利兹线线径/mm	匝数	利兹线间距/mm
原边线圈	75	25	2	12	1
副边线圈	30	10	2	6	0
