微型光伏储能系统的并网调峰控制研究

doi:10.11985/2017.03.006

电气工程学报 ›› 2017, Vol. 12 ›› Issue (3): 41-47.doi: 10.11985/2017.03.006

• 北方工业大学专刊（二） • 上一篇

微型光伏储能系统的并网调峰控制研究

朴政国,张明

北方工业大学北京电动车辆协同创新中心北京 100144

收稿日期:2016-05-16 出版日期:2017-03-25 发布日期:2020-04-11
作者简介:朴政国,男 1979年生,博士,讲师,研究方向光伏发电系统设计、光伏逆变器和开关电源等电力电子变换技术相关领域。|张明,男 1988年生,硕士研究生,研究方向为分布式光伏发电,电力电子。
基金资助:
北京市教育委员会科技计划项目(KM201510009003)

Research of Grid-Connected Peak Shaving Control for Micro Photovoltaic Energy Storage System

Zhengguo Piao,Ming Zhang

Collaborative Innovation Center of Electric Vehicles in Beijing North China University of Technology Beijing 100144 China

Received:2016-05-16 Online:2017-03-25 Published:2020-04-11

摘要/Abstract

摘要：

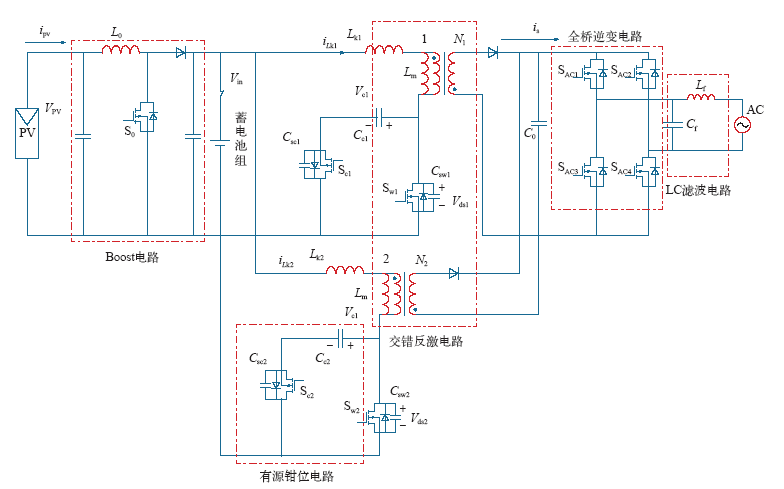

本文针对新能源发电中的分布式光伏并网系统进行研究,主要研究了并网发电系统的核心逆变器部分,设计了一种新型的含储能装置的两级式并网逆变器;并在新型并网逆变器的设计基础上,针对配电网负荷需求变化引起的电力峰谷问题,进一步研究了含储能装置的分布式光伏并网系统对配电网削峰填谷的控制策略;提出基于并网点电压补偿的调峰控制策略;最终完成了整个系统的参数设计,并分别通过软件仿真和硬件实验平台验证了所设计的两级式并网逆变器的合理性;提升了光伏并网系统的运行效率,有效解决了调峰和稳定并网运行问题,为分布式光伏并网发电系统的设计提供了一种技术参考。

关键词: 分布式光, 伏反激逆变, 软开关, 储能装置, 负荷调峰

Abstract:

Aiming at the new energy power generation of distributed photovoltaic (PV) grid system, this paper mainly studied the core of the inverter part in grid connected power generation system. Design a new kind of two-stage grid connected inverter with energy storage device. In addition, aiming at the problem of electricity peak valley when the distribution network load demand change, studies a peak shaving control strategy for the distributed grid-connected PV system with energy storage devices. Present a peak load shaving control strategy based on Point of common coupling voltage compensation. Finally, the parameter design of the whole system is finished, and through software simulation and hardware experiment, the rationality of the two-stage grid connected inverter design is verified. Improve the operation efficiency of PV system, effectively solve the problem of peak load shaving and system stability. Provides technical reference for the design of the distributed photovoltaic grid power system.

Key words: Distributed photovoltaic, flyback inverter, soft switch, battery energy storage system, peak load shaving

中图分类号:

TM464

朴政国,张明. 微型光伏储能系统的并网调峰控制研究[J]. 电气工程学报, 2017, 12(3): 41-47.

Zhengguo Piao,Ming Zhang. Research of Grid-Connected Peak Shaving Control for Micro Photovoltaic Energy Storage System[J]. Journal of Electrical Engineering, 2017, 12(3): 41-47.

图/表 12

图1

表

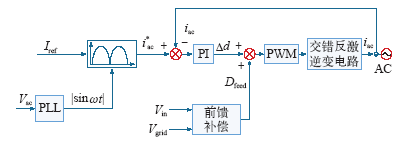

图2

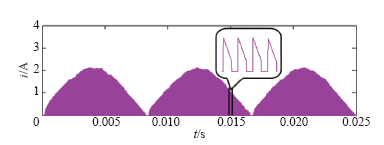

图3

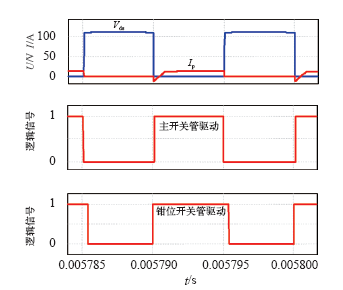

图4

图5

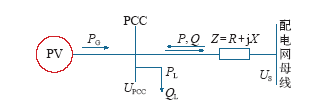

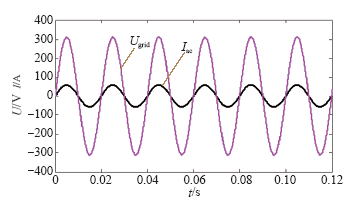

图6

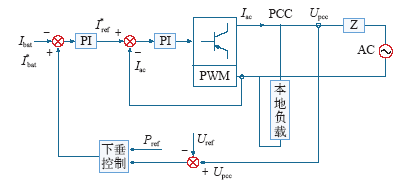

图7

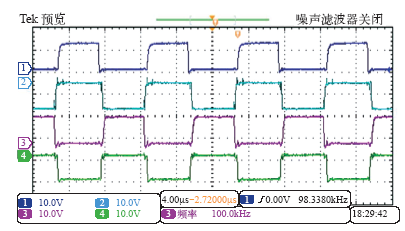

图8

图9

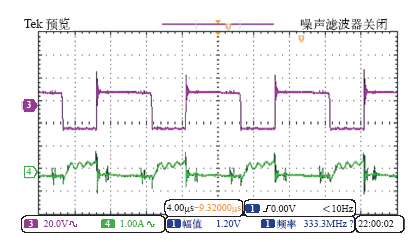

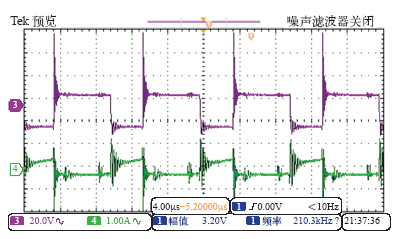

图10

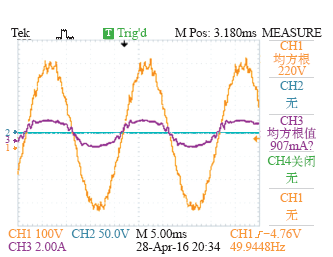

图11

参考文献 18

[1]	张兴, 曹仁贤 . 太阳能光伏并网发电及其逆变控制[M]. 北京: 机械工业出版社, 2010.
[2]	王晓曦 . 光伏并网发电系统的研究[D]. 哈尔滨:哈尔滨工业大学, 2009.
[3]	何道清, 何涛, 丁宏林 . 太阳能光伏发电系统原理与应用技术[M]. 北京: 化学工业出版社, 2012.
[4]	周林, 黄勇, 郭珂 , 等. 微电网储能技术研究综述[J]. 电力系统保护与控制, 2011,39(7):147-152.
	Zhou Lin, Huang Yong, Guo Ke , et al. A survey of energy storage technology for micro grid[J]. Power System Protection and Control, 2011,39(7):147-152.
[5]	丁明, 陈忠, 苏建徽 , 等. 可再生能源发电中的电池储能系统综述[J]. 电力系统自动化, 2013,37(1):19-26.
	Ding Ming, Chen Zhong, Su Jianhui , et al. An overview of battery energy storage system for renewable energy generation[J]. Automation of Electric Power Systems, 2013,37(1):19-26.
[6]	高明杰, 惠东, 高宗和 , 等. 国家风光储输示范工程介绍及其典型运行模式分析[J]. 电力系统自动化, 2013,37(1):59-64.
	Gao Mingjie, Hui Dong, Gao Zonghe , et al. Presentation of national wind photovoltaic energy storage and transmission demonstration project and analysis of typical operation modes[J]. Automation of Electric Power Systems, 2013,37(1):59-64.
[7]	田军, 朱永强, 陈彩虹 . 储能技术在分布式发电中的应用[J].电气技术, 2010(8):28-32.
	Tian Jun, Zhu Yongqiang, Chen Caihong . Application of energy storage technologies in distributed generation[J].Electrical Engineering, 2010(8):28-32.
[8]	王成山, 武震, 李鹏 . 分布式电能存储技术的应用前景与挑战[J]. 电力系统自动化, 2014,38(16):1-8.
	Wang Chengshan, Wu Zhen, Li Peng . Prospects and chal lenges of distributed electricity storage technology[J]. Automation of Electric Power System, 2014,38(16):1-8.
[9]	林少伯 . 含光伏电源的微电网储能控制技术研究[D]. 北京:华北电力大学, 2013.
[10]	丁明, 徐宁舟, 毕锐 . 用于平抑可再生能源功率波动的储能电站建模及评价[J]. 电力系统自动化, 2011,35(2):66-72.
	Ding Ming, Xu Ningzhou, Bi Rui . Modeling of BESS for smoothing renewable energy output fluctuations[J]. Automation of Electric Power System, 2011,35(2):66-72.
[11]	张文亮, 丘明, 来小康 . 储能技术在电力系统中的应用[J]. 电网技术, 2008,32(7):1-9.
	Zhang Wenliang, Qiu Ming, Lai Xiaokang . Application of energy storage technologies in power grids[J]. Power System Technology, 2008,32(7):1-9.
[12]	张锦吉, 王小彬, 毛行奎 . 交错反激微功率光伏并网逆变器的设计[J]. 电力电子技术, 2013,47(4):43-45.
	Zhang Jinji, Wang Xiaobin, Mao Xingkui . Design of photovoltaic grid-connected interleaved flyback inverter[J]. Power Electronics, 2013,47(4):43-45.
[13]	Li Y, Oruganti R . A low cost flyback CCM inverter for AC module application[J]. IEEE Transactions on Power Electronics, 2012,27(3):1295-1303.
[14]	Zengin S, Boztepe M. Evaluation of two-stage soft switched flyback micro-inverter for photovoltaic applications[C]. Electrical and Electronics Engineering, 2013: 92-96.
[15]	莫琼 . 有源钳位反激式光伏并网逆变器的研究[D]. 杭州:浙江大学, 2012.
[16]	黄欣科, 王环, 王一波 , 等. 光伏发电系统并网点电压升高调整原理及策略[J]. 电力系统自动化, 2014,38(3):112-117.
	Huang Xinke, Wang Huan, Wang Yibo , et al. Principle and strategies of voltage rise regulation for grid-connected photovoltaic generation system at point of common coupling[J]. Automation of Electric Power Systems, 2014,38(3):112-117.
[17]	Povlsen A F . Impacts of power penetration from pho-tovoltaic power systems in distribution networks[M]. International Energy Agency, 2002.
[18]	杨玉青, 牛利勇, 田立亭 , 等. 考虑负荷优化控制的区域配电网储能配置[J]. 电网技术, 2015,39(4):1019-1025.
	Yang Yuqing, Niu Liyong, Tian Liting , et al. Configuration of energy storage devices in regional distribution network considering optimal load control[J]. Power System Technology, 2015,39(4):1019-1025.

	参数类别	取值范围	额定值
Boost电路	光伏电池板电压V_PV/V	20~50	36
	最大功率点电压V_MPP/V	25~45	36
	Boost电压V_Boost/V	46~60	48
反激逆变电路	逆变输出电压V_out/V	210~242	220
	并网输出频率f_out/Hz	49.3~50.7	50
	额定输出功率P_out/W	–	200
	谐波含量THD(%)	4.5<	–
	逆变效率η(%)	–	93
蓄电池	蓄电池电压V_bat/V	–	48
蓄电池	蓄电池容量C/A·h	–	20
