非理想电网条件下基于多目标约束的中压直挂型储能变流器并网电流改善研究*

doi:10.11985/2022.01.018

电气工程学报 ›› 2022, Vol. 17 ›› Issue (1): 137-147.doi: 10.11985/2022.01.018

扫码分享

非理想电网条件下基于多目标约束的中压直挂型储能变流器并网电流改善研究^*

李高宁¹(), 吕建国¹(), 叶善堃²(), 姚凯¹^,², 孙状¹

1.南京理工大学自动化学院南京 210094
2.南瑞集团有限公司智能电网保护和运行控制国家重点实验室南京 211106

收稿日期:2021-07-13 修回日期:2021-11-20 出版日期:2022-03-25 发布日期:2022-05-06
通讯作者: 叶善堃 E-mail:li15256971761@163.com;jianguolyu@njust.edu.cn;yeshankun@sgepri.sgcc.com.cn
作者简介:李高宁,男,1998年生,硕士研究生。主要研究方向为分布式发电与微电网技术。E-mail： li15256971761@163.com;
吕建国,男,1987年生,博士,副教授。主要研究方向为分布式发电与微电网技术、电力电子变换器控制技术。E-mail： jianguolyu@njust.edu.cn
基金资助:
*智能电网保护和运行控制国家重点实验室资助项目(SGNR0000KJJS2007620)

Research on Control Method of Medium Voltage Direct-mounted Energy Storage Converter under Non-ideal Grid Conditions

LI Gaoning¹(), LÜ Jianguo¹(), YE Shankun²(), YAO Kai¹^,², SUN Zhuang¹

1. School of Automation, Nanjing University of Science and Technology, Nanjing 210094
2. State Key Laboratory of Smart Grid Protection and Control, NARI Group, Nanjing 211106

Received:2021-07-13 Revised:2021-11-20 Online:2022-03-25 Published:2022-05-06
Contact: YE Shankun E-mail:li15256971761@163.com;jianguolyu@njust.edu.cn;yeshankun@sgepri.sgcc.com.cn

摘要/Abstract

摘要：

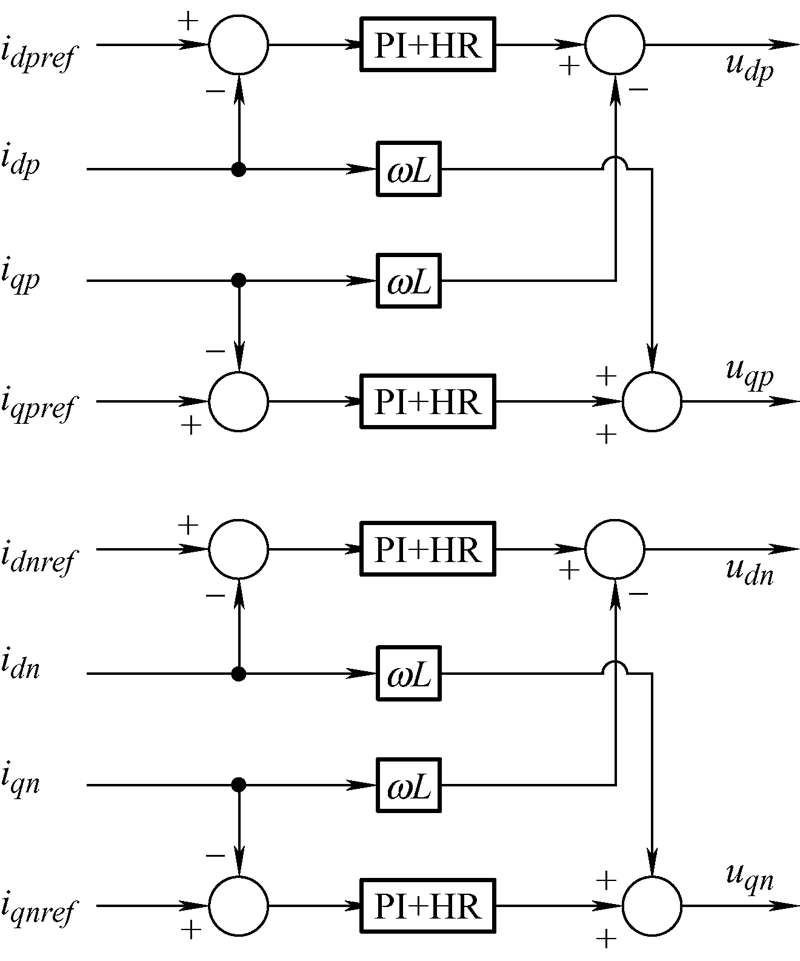

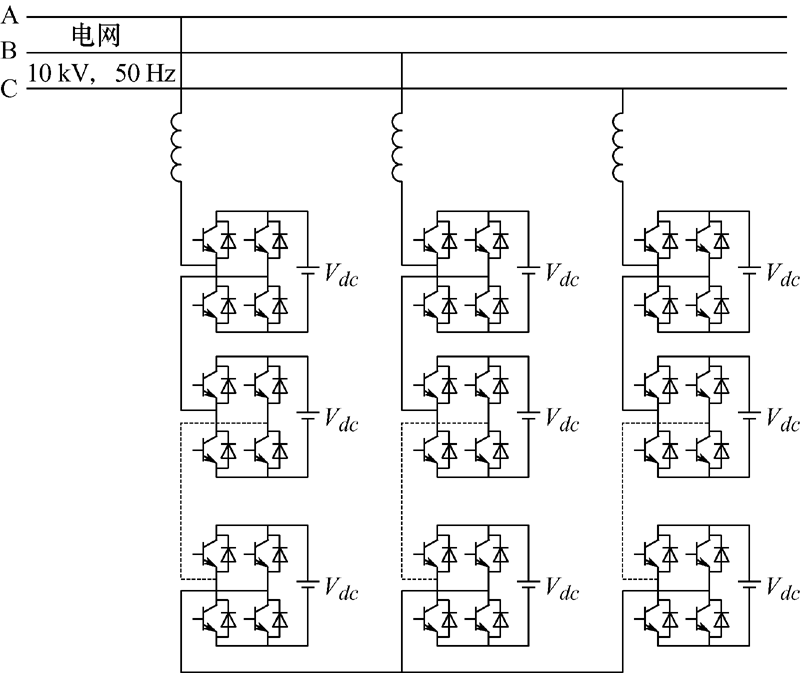

针对非理想电网电压条件下造成的级联H桥光伏逆变器并网电流畸变、低次谐波含量高等问题,主要对中压直挂型级联H桥储能变流器在非理想电网条件下的控制策略进行研究。首先分析介绍了三相级联H桥储能变流器的拓扑结构以及数学模型,其次建立了电网电压处于不平衡以及谐波污染时基于准比例积分谐振(Proportional integral-harmonic resonance,PI-HR)调节器的同步旋转坐标系下双电流闭环控制系统,给出了具体的控制结构框图,并从系统的稳定性考虑,以系统的相位裕度、幅值裕度、基频增益作为稳定性约束条件,联合建立了对控制器参数的约束方程,构建了比较系统完整的控制器参数设计方法。最后搭建了一套三相级联H桥多电平储能变流器系统的Matlab/Simulink仿真模型,通过仿真分析验证了所设计控制策略的正确性和有效性。

关键词: 级联H桥, 储能变流器, 非理想电网, 低次谐波, PI-HR调节器

Abstract:

Aiming at the problems of grid-connected H-bridge photovoltaic inverter grid-connected current distortion and high low-order harmonic content caused by non-ideal grid voltage conditions, the control strategy of energy storage converter of cascaded H-bridge under the condition of non-ideal grid is studied. First, the topology and mathematical model of the three-phase cascaded H-bridge energy storage converter are analyzed and introduced. Secondly, on the basis of quasi-proportional integral-harmonic resonance(PI-HR) regulator, when the grid voltage is unbalanced and harmonic- pollution, the dual current closed-loop control system under the synchronous rotating coordinate system is established, a specific control structure block diagram is given, and considering the stability of the system, the phase margin, amplitude margin, and fundamental frequency gain of the system are taken as the stability constraint conditions, the constraint equations for the controller parameters are established. Finally, a Matlab/Simulink simulation model of three-phase cascaded H-bridge multilevel energy storage converter system is built. Simulation analysis verifies the correctness and effectiveness of the control strategy designed in this paper.

Key words: Cascaded H-bridge, energy storage converter, non-ideal power grid, low-order harmonics, PI-HR regulator

中图分类号:

TM464

李高宁, 吕建国, 叶善堃, 姚凯, 孙状. 非理想电网条件下基于多目标约束的中压直挂型储能变流器并网电流改善研究^*[J]. 电气工程学报, 2022, 17(1): 137-147.

LI Gaoning, LÜ Jianguo, YE Shankun, YAO Kai, SUN Zhuang. Research on Control Method of Medium Voltage Direct-mounted Energy Storage Converter under Non-ideal Grid Conditions[J]. Journal of Electrical Engineering, 2022, 17(1): 137-147.

图/表 18

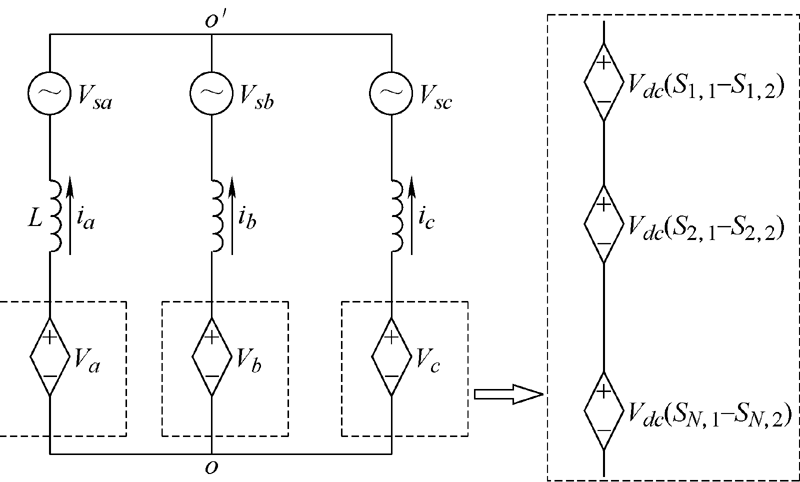

图1

图2

表1

图3

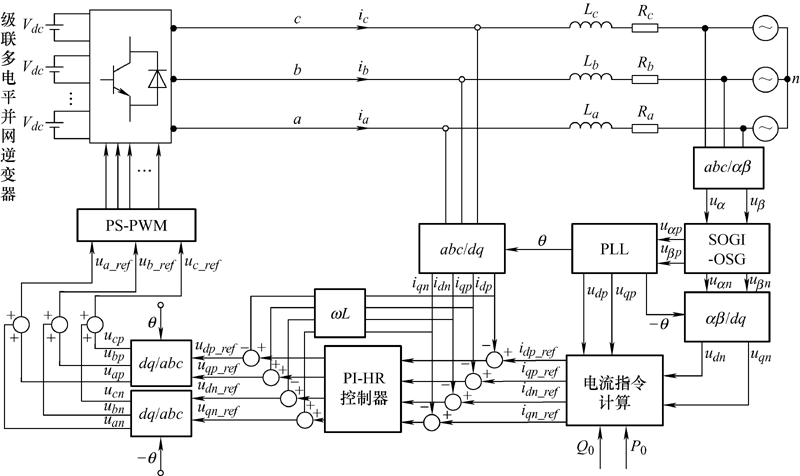

图4

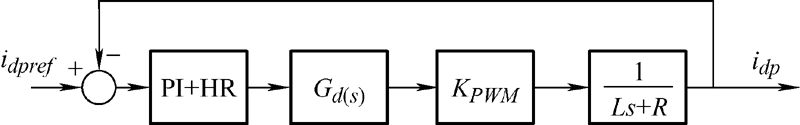

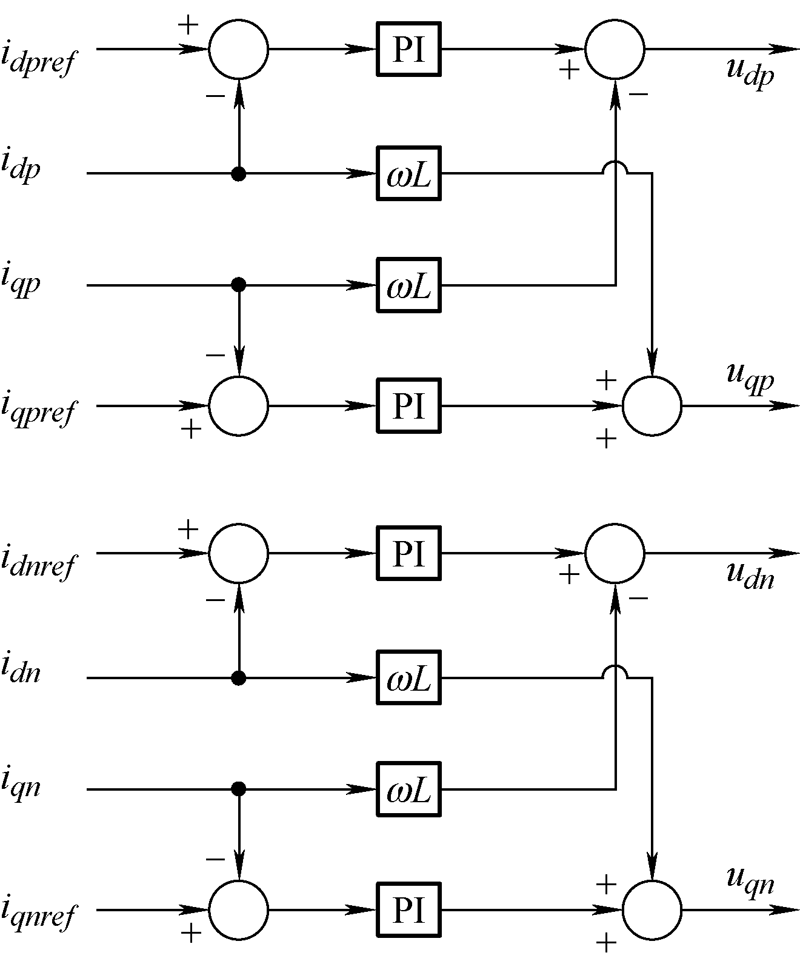

图5

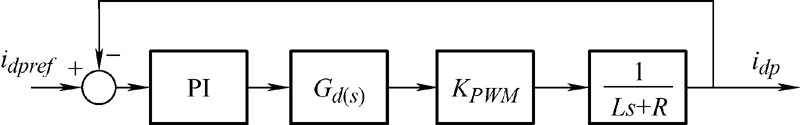

图6

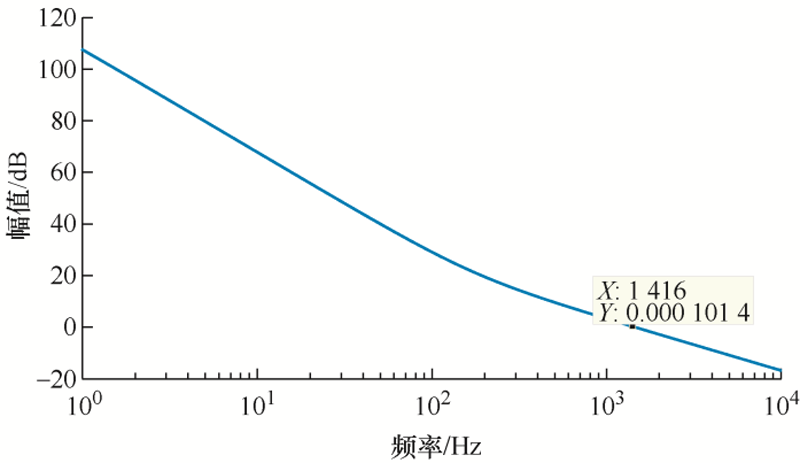

图7

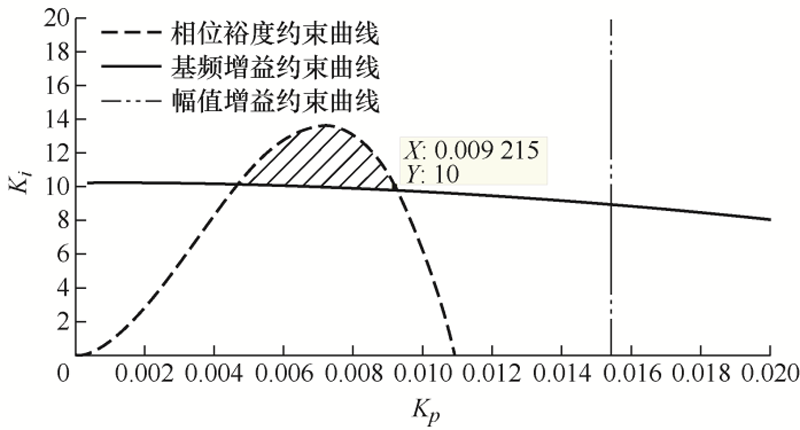

图8

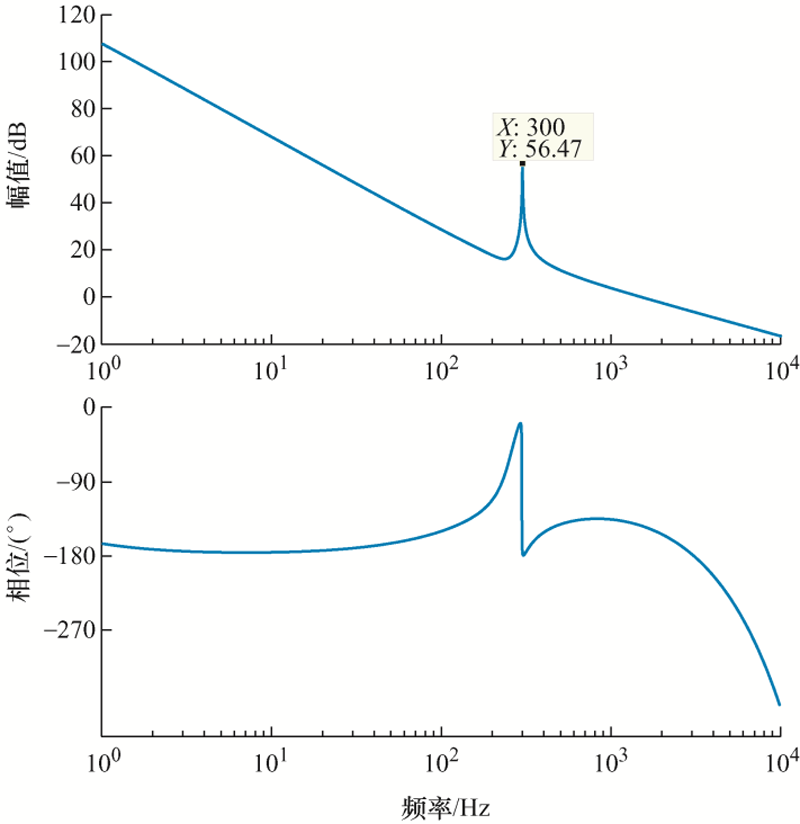

图9

图10

图11

表2

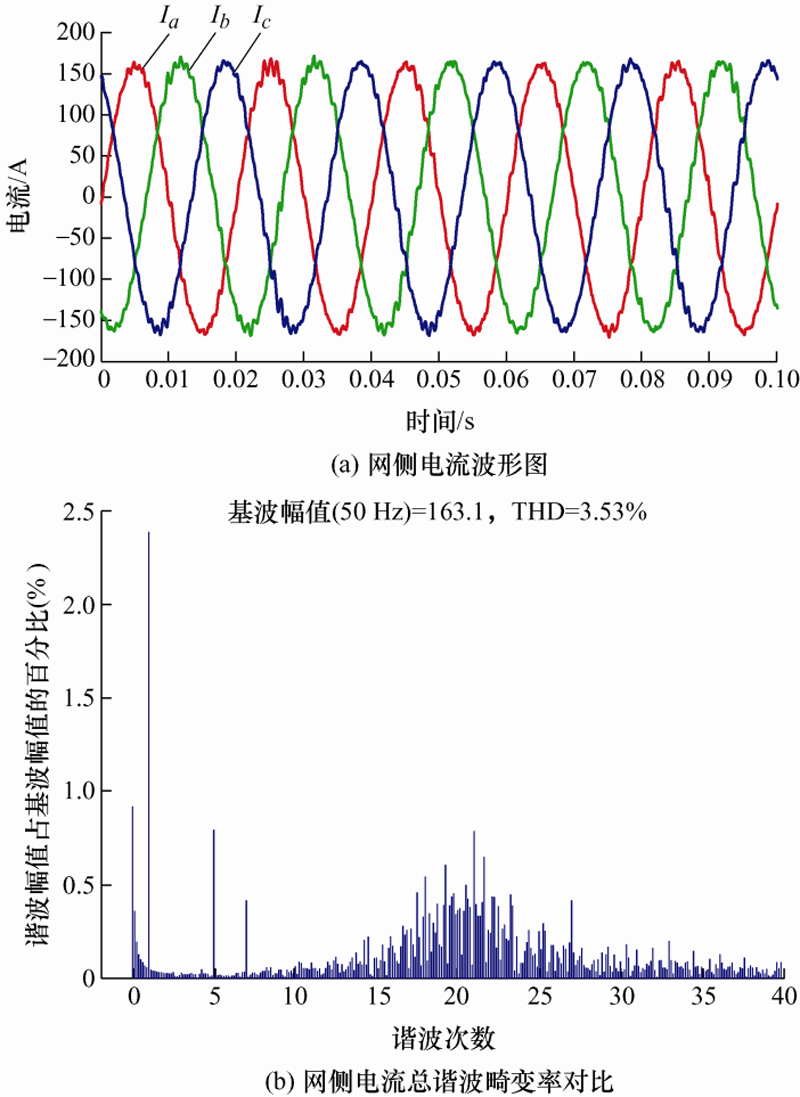

图12

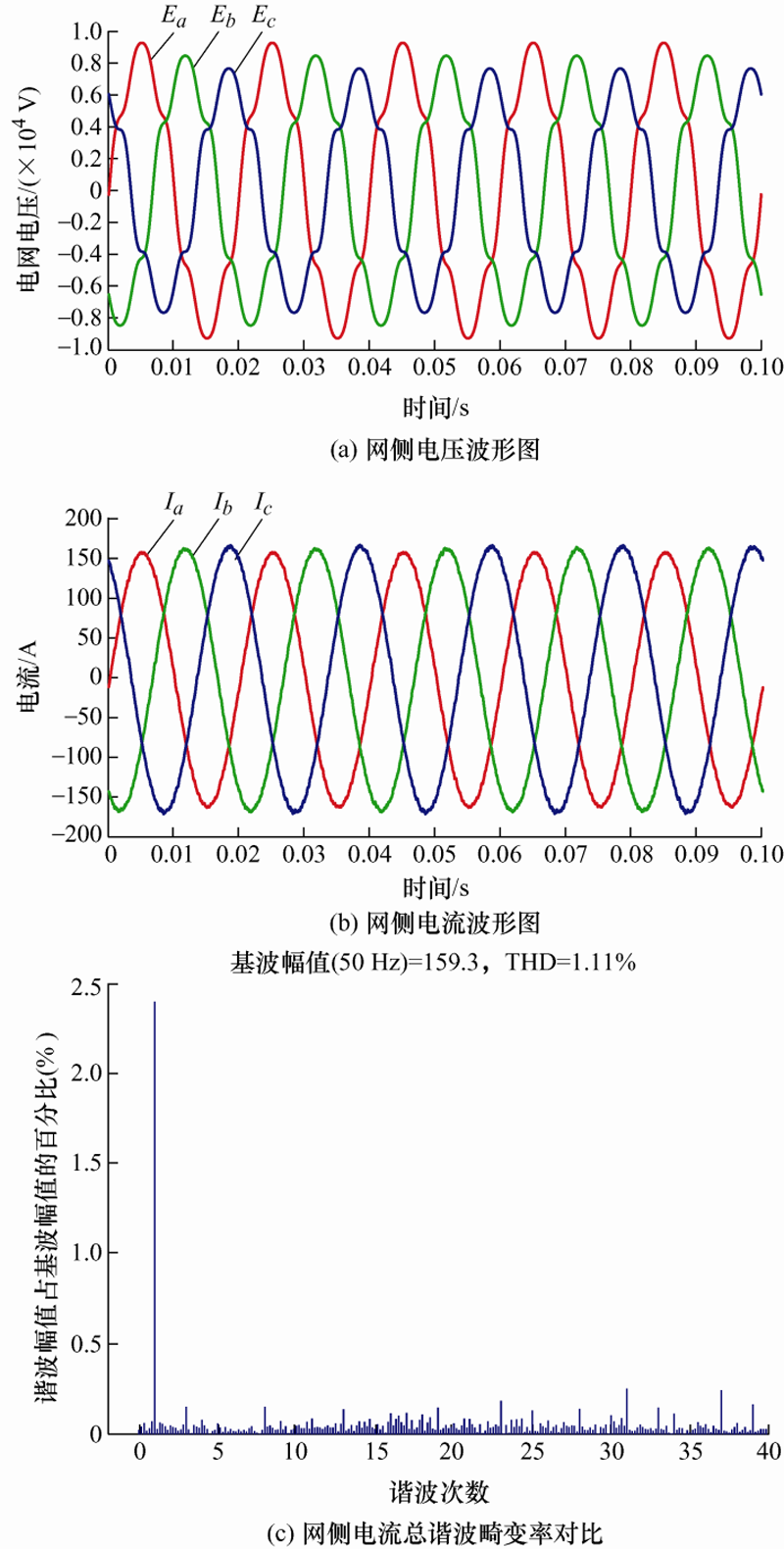

图13

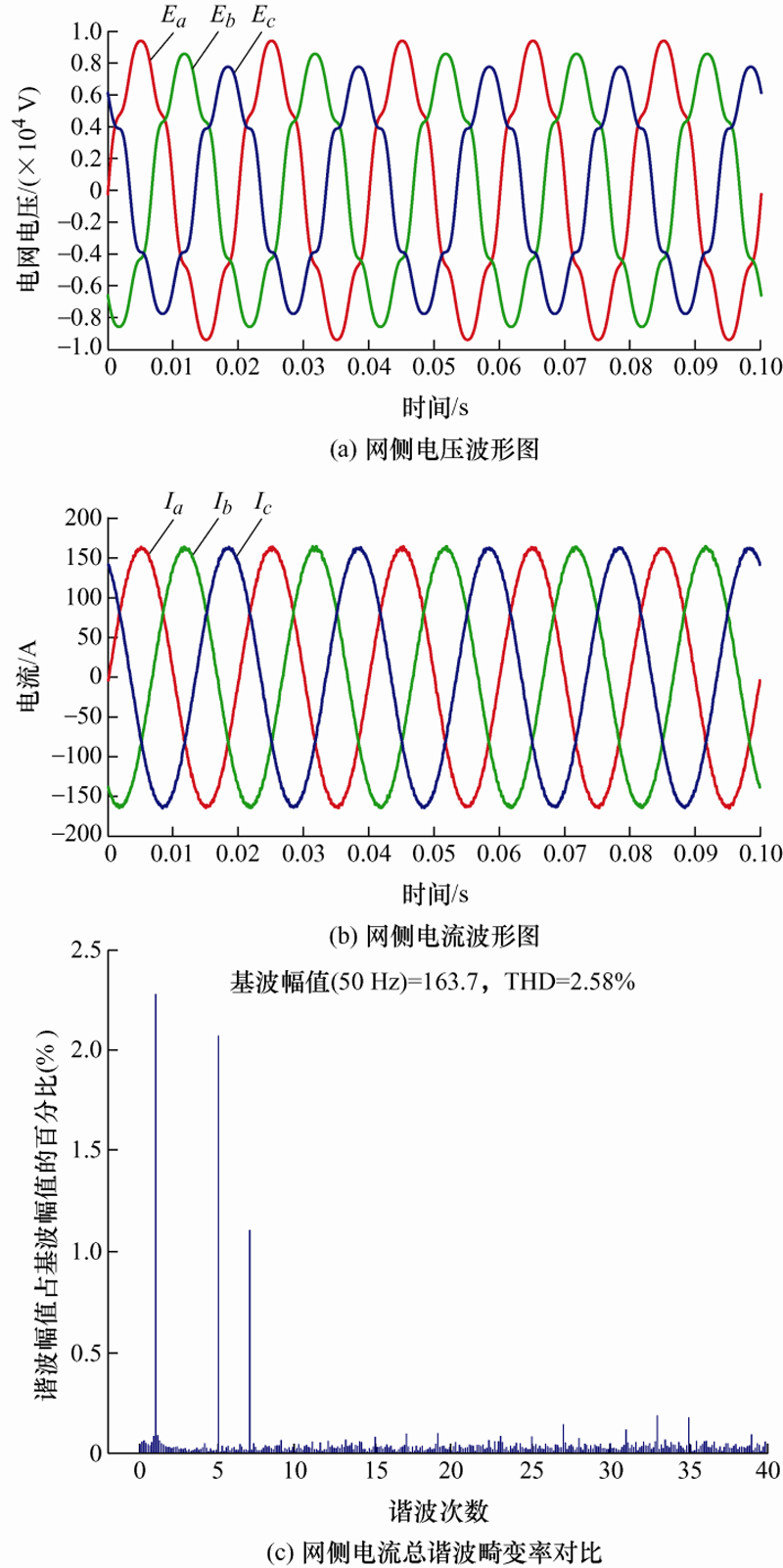

图14

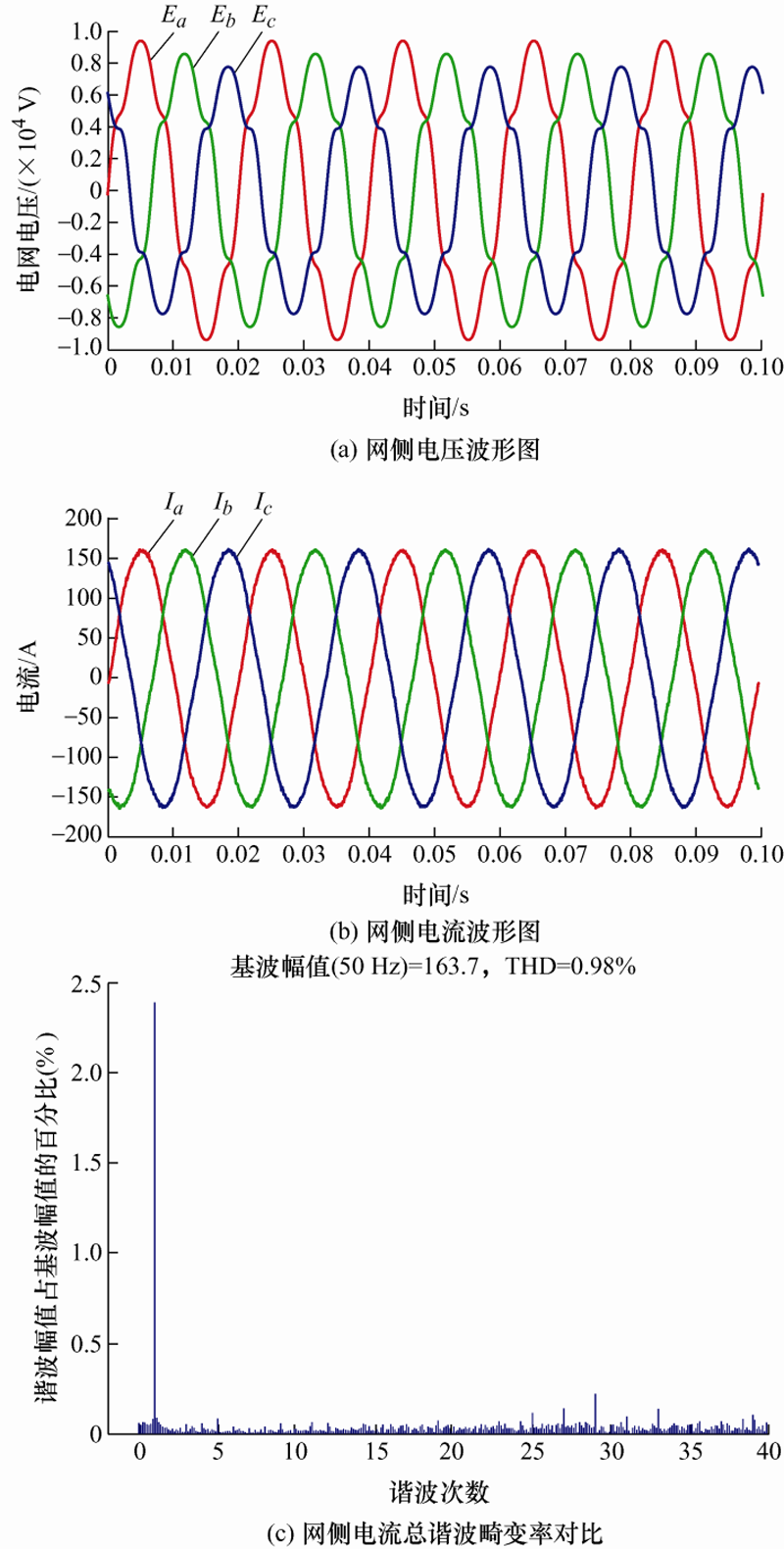

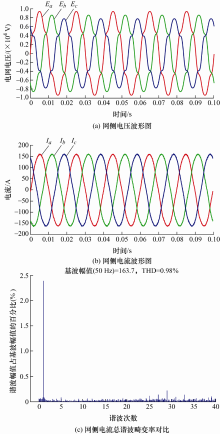

图15

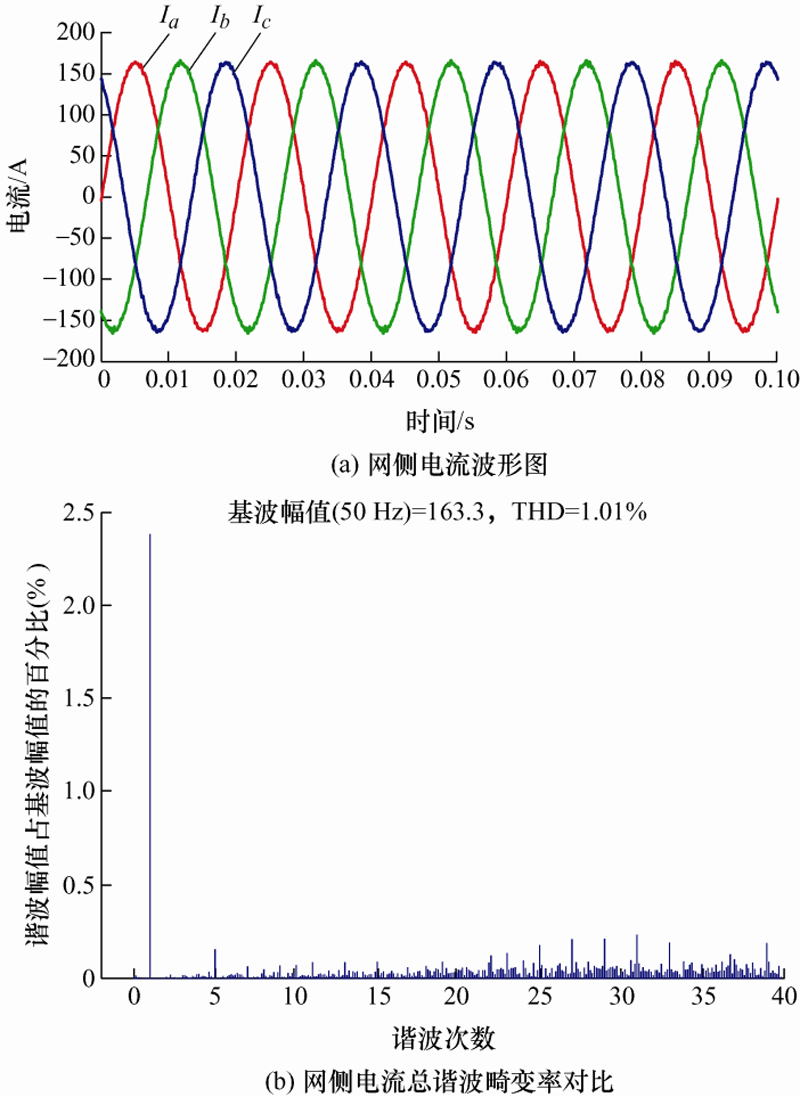

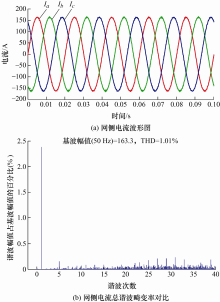

图16

参考文献 23

[1]	龚秋英, 马鑫金, 李艳. 一种级联型多电平并网逆变器控制策略的研究[J]. 电气传动, 2020, 50(11):13-16.
	GONG Qiuying, MA Xinjin, LI Yan. Research on a cascaded multilevel grid-connected inverter control strategy[J]. Electric Drive, 2020, 50(11):13-16.
[2]	YU Y, KONSTANTINOU G, HREDZAK B, et al. Power balance optimization of cascaded H-bridge multilevel converters for large-scale photovoltaic integration[J]. IEEE Transactions on Power Electronics, 2016, 31(2):1108-1120. doi: 10.1109/TPEL.2015.2407884
[3]	RODRIGUEZ J, LAI J S, FANG Zhengpeng. Multilevel inverters:A survey of topologies,controls,and applications[J]. IEEE Transactions on Industrial Electronics, 2007, 49(4):724-738. doi: 10.1109/TIE.2002.801052
[4]	DAHER S, SCHMID J, ANTUNES F L M. Multilevel inverter topologies for stand-alone PV systems[J]. IEEE Transactions on Industrial Electronics, 2008, 55(7):2703-2712. doi: 10.1109/TIE.2008.922601
[5]	MALINOWSKI M, GOPAKUMAR K, RODRIGUEZ J, et al. A survey on cascaded multilevel inverters[J]. IEEE Transactions on Industrial Electronics, 2010, 57(7):2197-2206. doi: 10.1109/TIE.2009.2030767
[6]	毛苏闽, 蔡旭. 大容量链式电池储能功率调节系统控制策略[J]. 电网技术, 2012, 36(9):226-231.
	MAO Sumin, CAI Xu. Large-capacity chain battery energy storage power regulation system control strategy[J]. Power System Technology, 2012, 36(9):226-231.
[7]	蔡旭, 李睿, 刘畅, 等. 高压直挂储能功率变换技术与世界首例应用[J]. 中国电机工程学报, 2020, 40(1):200-211,387.
	CAI Xu, LI Rui, LIU Chang, et al. High-voltage direct-mounted energy storage power conversion technology and the world’s first application[J]. Proceedings of the Chinese Society for Electrical Engineering, 2020, 40(1):200-211,387.
[8]	LI Y, WANG Y, LI B Q. Generalized theory of phase-shifted carrier pwm for cascaded H-bridge converters and modular multilevel converters[J]. IEEE Journal of Emerging and Selected Topics in Power Electronics, 2016, 4(2):589-605. doi: 10.1109/JESTPE.2015.2476699
[9]	刘力, 于佳丽. 不对称电网电压下光伏并网逆变器控制策略研究[J]. 太阳能学报, 2017, 38(10):2848-2856.
	LIU Li, YU Jiali. Research on control strategy of photovoltaic grid-connected inverter under asymmetric grid voltage[J]. Acta Solar Energy, 2017, 38(10):2848-2856.
[10]	MIRHOSSEINI M, POU J, AGELIDIS V G, et al. A three-phase frequency-adaptive phase-locked loop for independent single-phase operation[J]. IEEE Transactions on Power Electronics, 2014, 29(12):6255-6259. doi: 10.1109/TPEL.2014.2328657
[11]	陈红生, 杨苹, 曾晓生. 单相并网逆变器准比例谐振控制器的设计[J]. 低压电器, 2012(22):19-23,59.
	CHEN Hongsheng, YANG Ping, ZENG Xiaosheng. Design of quasi-proportional resonant controller for single-phase grid-connected inverter[J]. Low Voltage Electrical Apparatus, 2012(22):19-23,59.
[12]	TRINH Q, LEE H. An enhanced grid current compensator for grid-connected distributed generation under nonlinear loads and grid voltage distortions[J]. IEEE Transactions on Industrial Electronics, 2014, 61(12):6528-6537. doi: 10.1109/TIE.2014.2320218
[13]	许运华, 王清, 孟红秀. 电网畸变级联H桥逆变器控制研究[J]. 电气传动, 2019, 49(10):44-47.
	XU Yunhua, WANG Qing, MENG Hongxiu. Research on the control of power grid distortion cascaded H-bridge inverter[J]. Electric Drive, 2019, 49(10):44-47.
[14]	杨浩, 宋国杰, 滕馥遥, 等. 基于双序前馈解耦的光伏逆变器并网控制策略[J]. 太阳能学报, 2021, 42(1):77-84.
	YANG Hao, SONG Guojie, TENG Fuyao, et al. Grid-connected photovoltaic inverter control strategy based on double-sequence feedforward decoupling[J]. Acta Solar Energy, 2021, 42(1):77-84.
[15]	JIANG W, MA W, WANG J, et al. Deadbeat control based on current predictive calibration for grid-connected converter under unbalanced grid voltage[J]. IEEE Transactions on Industrial Electronics, 2017, 64(7):5479-5491. doi: 10.1109/TIE.2017.2674620
[16]	张馨予, 张钢, 钱江林, 等. 具有低次谐波抑制能力的PIR控制器设计[J]. 电工技术学报, 2016, 31(S2):19-27.
	ZHANG Xinyu, ZHANG Gang, QIAN Jianglin, et al. Design of PIR controller with low-order harmonic suppression ability[J]. Transactions of China Electrotechnical Society, 2016, 31(S2):19-27.
[17]	AGUILERA R P, ACUNA P, YU Yifan, et al. Predictive control of cascaded H-bridge converters under unbalanced power generation[J]. IEEE Transactions on Industrial Electronics, 2017, 64(1):4-13. doi: 10.1109/TIE.2016.2605618
[18]	李大海, 陈素. 多电平级联H桥逆变器的模型预测控制策略[J]. 电力电容器与无功补偿, 2021, 42(1):159-165.
	LI Dahai, CHEN Su. Model predictive control strategy for multi-level cascaded H-bridge inverters[J]. Power Capacitors and Reactive Power Compensation, 2021, 42(1):159-165.
[19]	金涛, 沈学宇, 苏泰新, 等. 不平衡电网下并网逆变器的模型预测电流限幅灵活控制[J]. 电工技术学报, 2019, 34(11):2342-2353.
	JIN Tao, SHEN Xueyu, SU Taixin, et al. Model-predicted current limiting flexible control of grid-connected inverters in unbalanced grids[J]. Transactions of China Electrotechnical Society, 2019, 34(11):2342-2353.
[20]	代攀. 永磁同步电机电流环谐波抑制技术研究[D]. 武汉: 华中科技大学, 2014.
	DAI Pan. Research on current loop harmonic suppression technology of permanent magnet synchronous motor[D]. Wuhan: Huazhong University of Science and Technology, 2014.
[21]	姜卫东, 吴志清, 佘阳阳, 等. 电网不平衡时抑制有功功率二次波动的并网逆变器控制策略[J]. 电力系统自动化, 2014, 38(15):106-111.
	JIANG Weidong, WU Zhiqing, SHE Yangyang, et al. Grid-connected inverter control strategy for restraining the secondary fluctuation of active power when the grid is unbalanced[J]. Automation of Electric Power Systems, 2014, 38(15):106-111.
[22]	HOLMES D G, LIPO T A, MCGRATH B P, et al. Optimized design of stationary frame three phase AC current regulators[J]. IEEE Trans. Power Electron., 2009, 24(11):2417-2426. doi: 10.1109/TPEL.2009.2029548
[23]	QIANG Q, XIE S, HUANG L, et al. Harmonic suppression and stability enhancement for parallel multiple grid-connected inverters based on passive inverter output impedance[J]. IEEE Trans. Power Electron., 2017, 64(9):7587-7598.

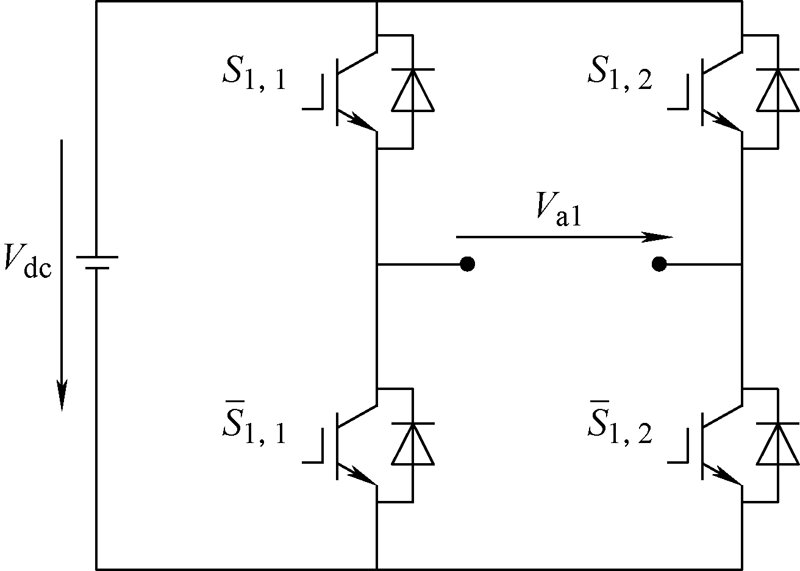

S_1,1	S_1,2	${{\bar{S}}_{1,1}}$	${{\bar{S}}_{1,2}}$	输出电压
1	0	0	1	V_dc
0	1	0	1	0
1	0	1	0	0
0	1	1	0	-V_dc

参数	数值
系统总功率/MW	2
电网相电压幅值/V	8 165
H桥直流侧电压/V	960
每相H桥单元个数	12
滤波电感L/mH	12
采样频率/kHz	20
电网-5次谐波相电压幅值/V	816.5
电网+7次谐波相电压幅值/V	408.25
