电气工程学报 ›› 2021, Vol. 16 ›› Issue (3): 54-61.doi: 10.11985/2021.03.008
徐攀腾1(), 朱博1(), 喻文翔2(), 宋述波1, 李建勋1, 樊友平2
收稿日期:
2021-02-05
修回日期:
2021-05-21
出版日期:
2021-09-25
发布日期:
2021-10-29
通讯作者:
喻文翔
E-mail:xupanteng1@163.com;tiger861220@163.com;1353011792@qq.com
作者简介:
* 喻文翔,男,1999年生,硕士研究生。主要研究方向为多端柔性直流输电系统。E-mail: 1353011792@qq.com基金资助:
XU Panteng1(), ZHU Bo1(), YU Wenxiang2(), SONG Shubo1, LI Jianxun1, FAN Youping2
Received:
2021-02-05
Revised:
2021-05-21
Online:
2021-09-25
Published:
2021-10-29
Contact:
YU Wenxiang
E-mail:xupanteng1@163.com;tiger861220@163.com;1353011792@qq.com
摘要:

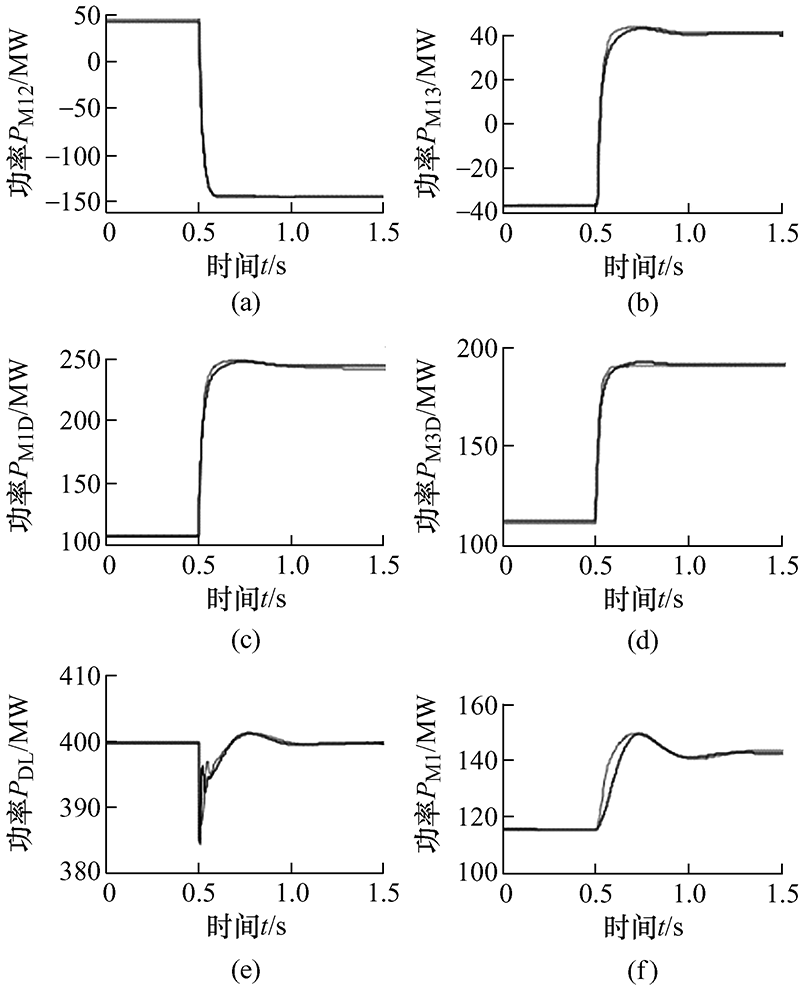

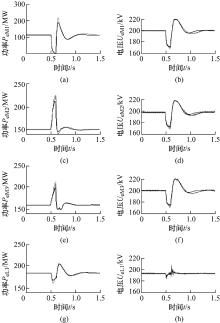

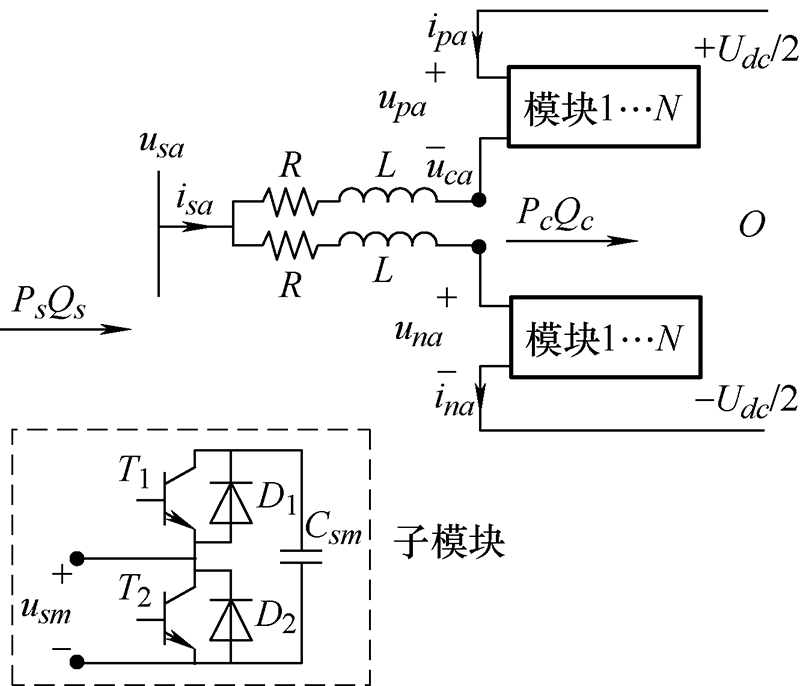

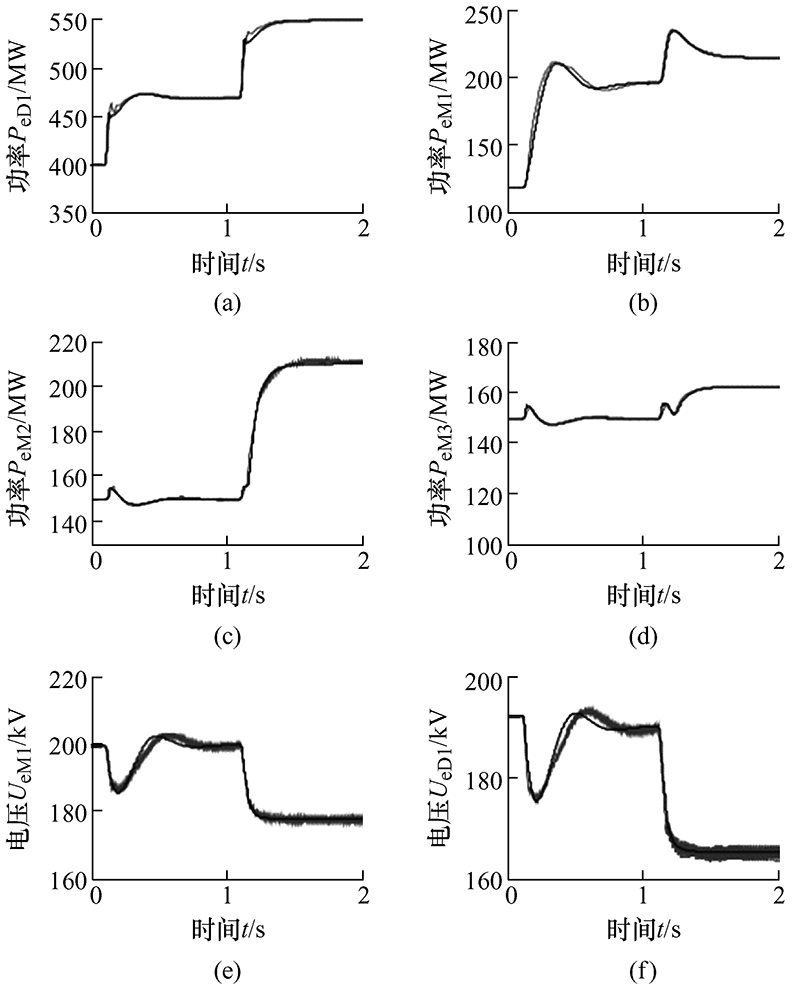

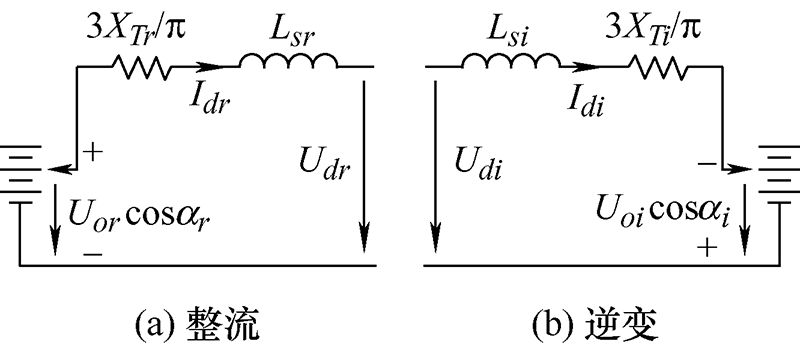

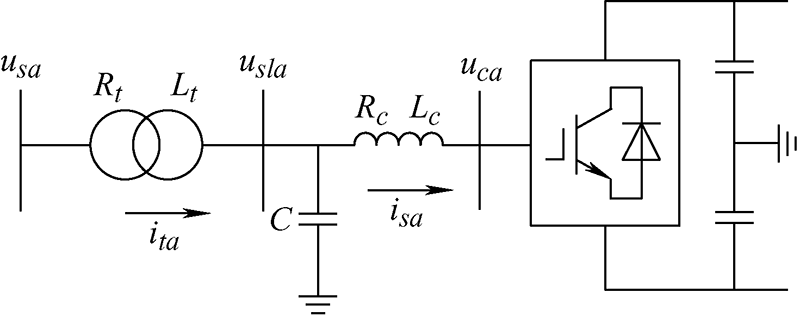

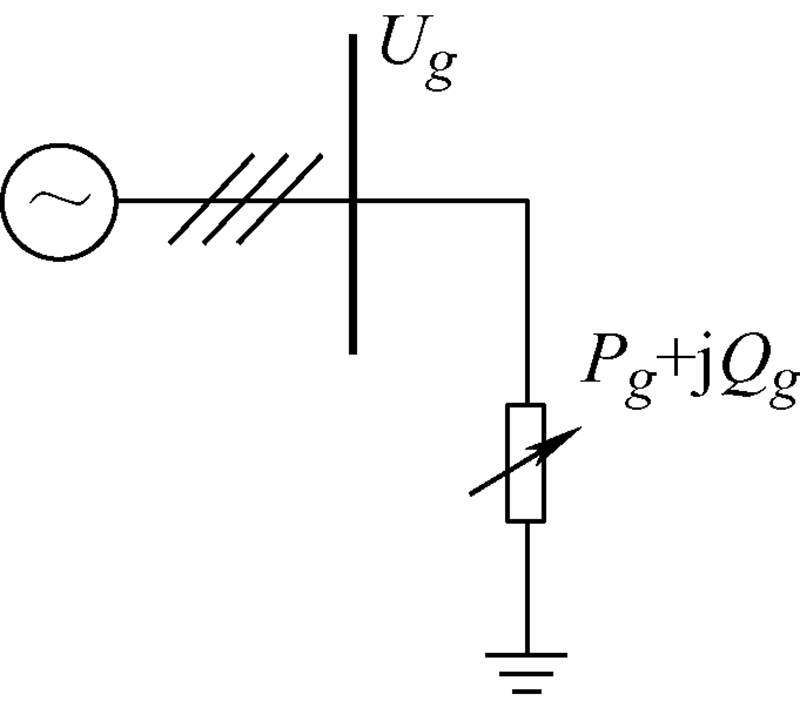

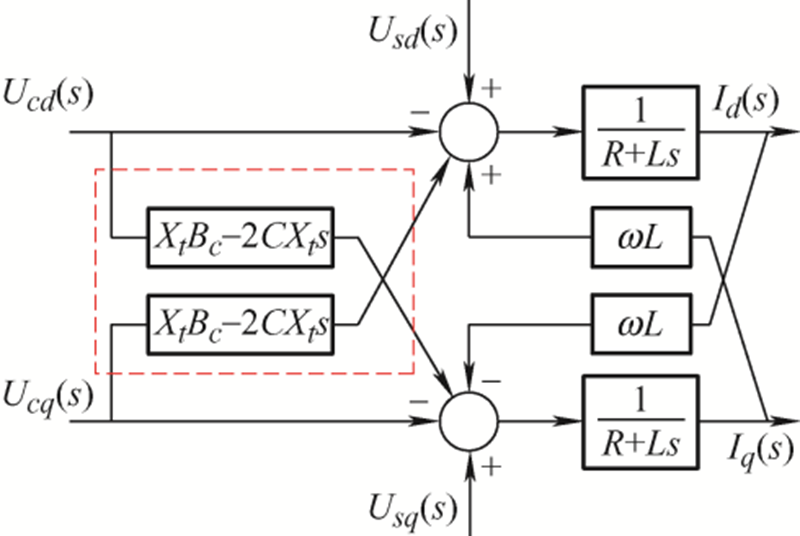

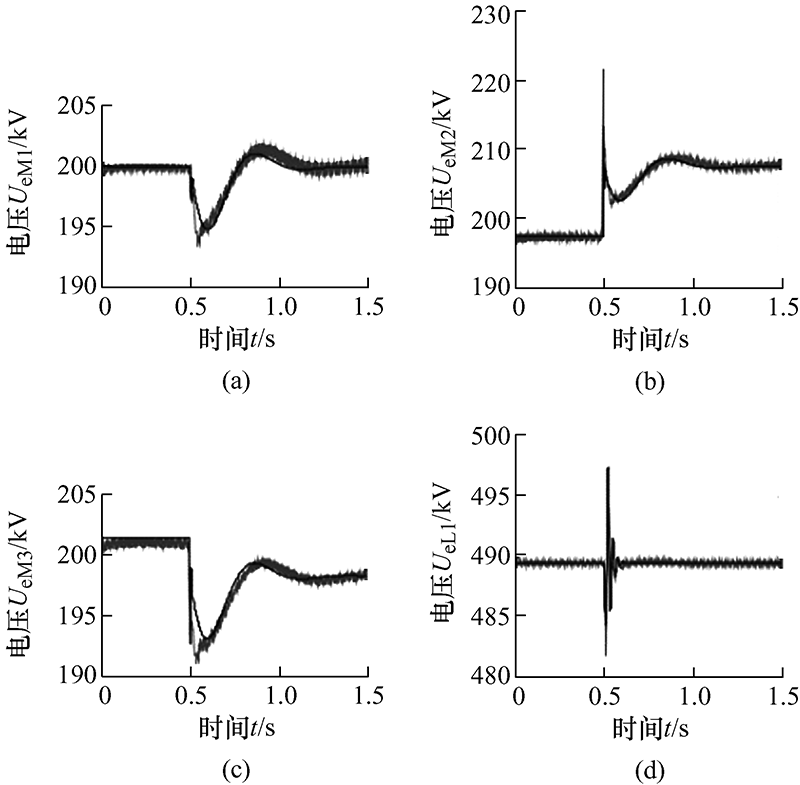

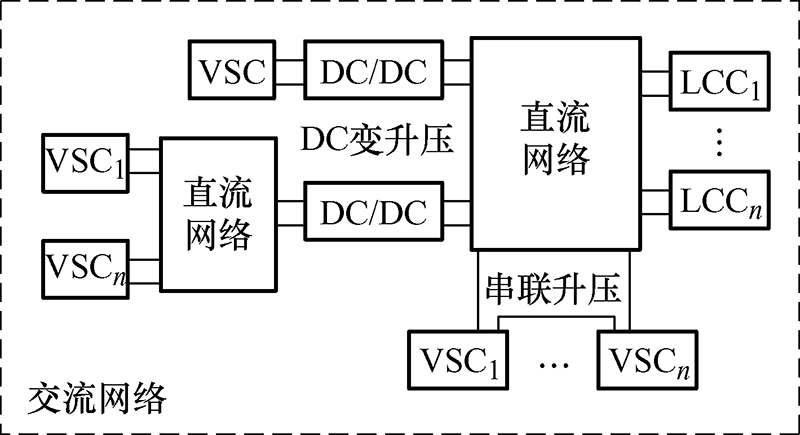

由电网换相换流器(Line commutated converter, LCC)与电压源型换流器(Voltage source converter, VSC)构成的混合直流电网有望成为未来直流网络中一种新的表现形式,针对混合直流电网中的各类型组成元件,提出了一种较为全面的混合直流电网机电暂态建模方法。首先分析了混合直流电网中的组成元件,并建立了各组成元件的机电暂态模型;随后分析了各类型换流器的控制系统模型;最终将所建立的机电暂态模型应用在四端混合直流电网算例仿真中,将3种工况下的机电暂态与电磁暂态仿真结果进行对比分析,验证了所提出的混合直流电网机电暂态建模方法的可行性。
中图分类号:
徐攀腾, 朱博, 喻文翔, 宋述波, 李建勋, 樊友平. 多类型元件混合直流电网机电暂态建模仿真*[J]. 电气工程学报, 2021, 16(3): 54-61.
XU Panteng, ZHU Bo, YU Wenxiang, SONG Shubo, LI Jianxun, FAN Youping. Electromechanical Transient Modeling and Simulation of Multi-type Component Hybrid DC Grid[J]. Journal of Electrical Engineering, 2021, 16(3): 54-61.

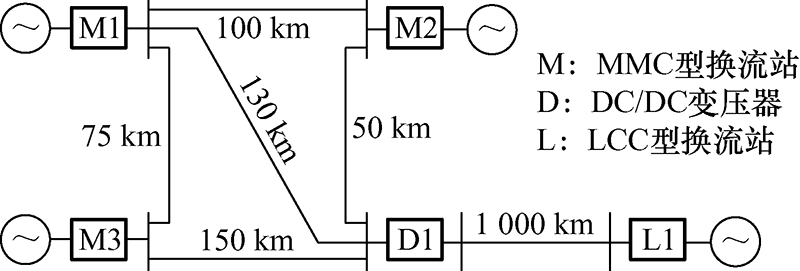

表1
混合直流电网仿真系统基本参数"
换流器参数 | Mi(i=1, 2, 3) | L1 |
---|---|---|
交流母线电压/kV | 230 | 230 |
换流变压器变比 | 230 kV/100 kV | 230 kV/209.2 kV×2 |
电平数/脉动数 | 31 | 12 |
额定容量 | 200 MVA | 591.8 MVA×2 |
直流电压/kV | ±100 | 500 |

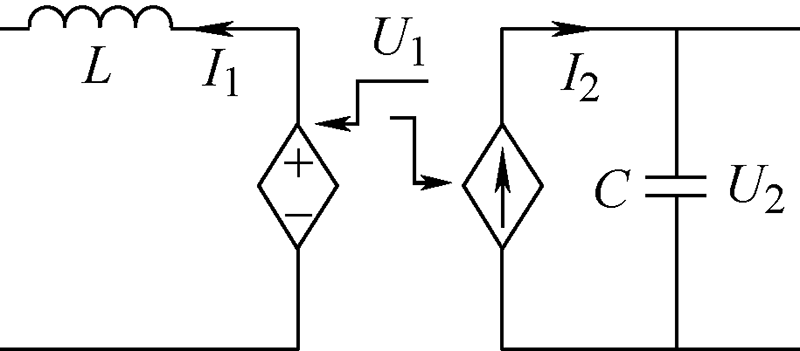

直流变压器参数 | D1 | |
变比 | 200 kV/500 kV | |
低压侧电感/H | L=0.8 | |
高压侧电容/μF | C=7.812 5 | |

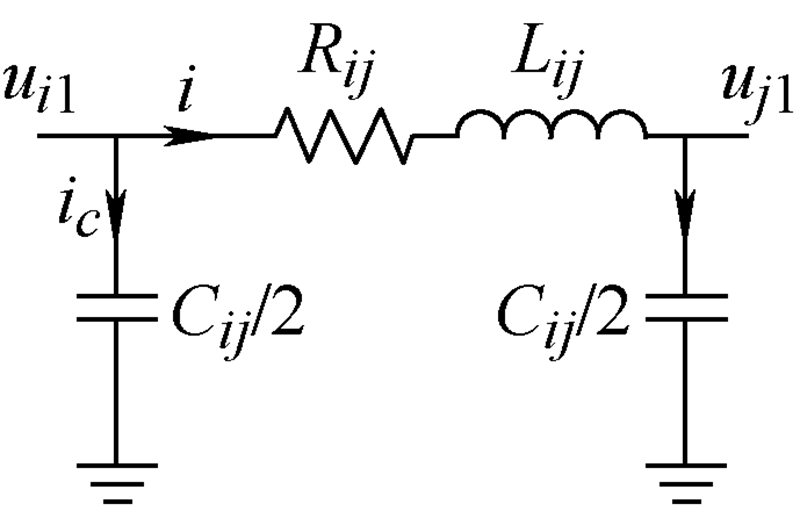

直流线路参数 | 电缆 | 架空线(LCC) |
电阻/(Ω/km) | R=0.054 83 | R=0.01 |
电感/(mH/km) | L=0.176 | L=1.25 |
电容/(μF/km) | C=0.267 | 忽略 |

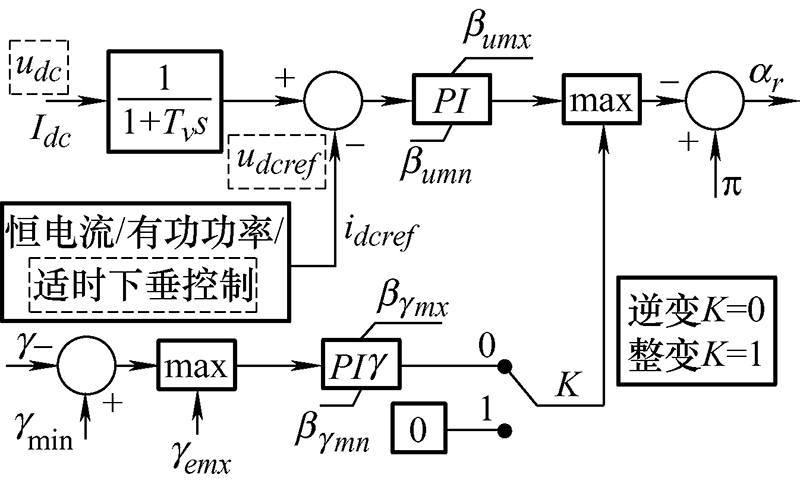

表2
混合直流电网仿真系统控制策略"
控制方式(有功/无功) | 参考值 |
---|---|
定直流电压控制/定无功功率M1 | Udcref=200 kV,Qref=30 MVar |
定交流有功/无功功率M2 | Pref=150 MW,Qref=30 MVar |
定交流有功/无功功率M3 | Pref=150 MW,Qref=0 MVar |
定支路功率控制D1 | Pdcref=400 MW |
考虑关断角限值定直流电压控制L1 | Udcref=500 kV,γmin=15° |
考虑功率边界的恒电压控制M1 | Udcref=200 kV |
适时下垂控制M2 | Pref=150 MW,Qref=10 MVar |
适时下垂控制M3 | Udch=220 kV,Udcl=180 kV |
恒有功功率控制D1 | Pdcref=400 MW |
考虑关断角限值的恒电压控制L1 | Udcref=500 kV,γmin=15° |
[1] | 徐政, 肖晃庆, 张哲任, 等. 柔性直流输电系统[M]. 2版. 北京: 机械工业出版社, 2017. |
XU Zheng, XIAO Huangqing, ZHANG Zheren, et al. Flexible DC transmission system[M]. 2nd ed. Beijing: China Machine Press, 2017. | |
[2] | 徐政, 刘高任, 张哲任. 柔性直流输电网的故障保护原理研究[J]. 高电压技术, 2017, 43(1):1-8. |
XU Zheng, LIU Gaoren, ZHANG Zheren. Research on fault protection principle of DC grids[J]. High Voltage Engineering, 2017, 43(1):1-8. | |
[3] | 李清波, 林佳壕. 基于混合型柔性限流器直流配网故障暂态特性研究[J]. 电气工程学报, 2020, 15(4):65-74. |
LI Qingbo, LIN Jiahao. DC distribution network failure based on hybrid flexible current limiter Research on transient characteristics[J]. Journal of Electrical Engineering, 2020, 15(4):65-74. | |
[4] | 訾振宁, 何永君, 赵东元. 新一代电力系统灵活柔性特征研究[J]. 电气工程学报, 2019, 14(3):1-8. |
ZI Zhenning, HE Yongjun, ZHAO Dongyuan. Research on flexible characteristics of new generation power system[J]. Journal of Electrical Engineering, 2019, 14(3):1-8. | |
[5] | 訾鹏, 赵铮, 陈兴雷, 等. LCC-VSC混合直流电网机电暂态建模方法研究[J]. 中国电机工程学报, 2015, 35(24):6265-6274. |
ZI Peng, ZHAO Zheng, CHEN Xinglei, et al. Electromechanical transient modeling of hybrid DC grid based on LCC and VSC converter[J]. Proceedings of CSEE, 2015, 35(24):6265-6274. | |
[6] | 熊华强, 杨程祥, 马亮, 等. 含分层接入特高压直流的交直流混联电网机电-电磁暂态混合仿真研究[J]. 电力系统保护与控制, 2020, 48(24):145-153. |
XIONG Huaqiang, YANG Chengxiang, MA Liang, et al. Study on electromechanical-electromagnetic transient hybrid simulation of AC/DC hybrid power grid with hierarchical access to UHV DC[J]. Power System Protection and Control, 2020, 48(24):145-153. | |
[7] | 王永平, 赵文强, 杨建明, 等. 混合直流输电技术及发展分析[J]. 电力系统自动化, 2017, 41(7):156-167. |
WANG Yongping, ZHAO Wenqiang, YANG Jianming, et al. Hybrid high-voltage direct current transmission technology and its development analysis[J]. Automation of Electric Power Systems, 2017, 41(7):156-167. | |
[8] | 吴亚楠, 安婷, 庞辉, 等. LCC/VSC混合多端直流输电系统模型研究[J]. 中国电机工程学报, 2016, 36(8):2077-2083. |
WU Yanan, AN Ting, PANG Hui, et al. Study on hybrid line com-mutated converter/voltage source converter DC grid test model[J]. Proceedings of the CSEE, 2016, 36(8):2077-2083. | |
[9] | 李威, 牛拴保, 吕亚洲, 等. 直流机电暂态仿真建模及与电磁暂态仿真的对比[J]. 高压电器, 2018, 54(8):155-160. |
LI Wei, NIU Shuanbao, LÜ Yazhou, et al. Modeling of DC electromechanical transient simulation and its comparison with electromagnetic transient simulation[J]. High Voltage Electrical Apparatus, 2018, 54(8):155-160. | |
[10] | 肖亮, 王国腾, 徐雨哲, 等. LCC-MMC混合多端直流输电系统的潮流计算和机电暂态建模方法[J]. 高电压技术, 2019, 45(8):2578-2586. |
XIAO Liang, WANG Guoteng, XU Yuzhe, et al. Power flow calculation and electromechanical transient modeling method of LCC-MMC hybrid multi-terminal DC transmission system[J]. High Voltage Engineering, 2019, 45(8):2578-2586. | |
[11] | 刁守斌, 于涛, 王建建. 基于保留非线性算法的直流配电网潮流计算[J]. 电气工程学报, 2020, 15(4):75-84. |
DIAO Shoubin, YU Tao, WANG Jianjian. Power flow calculation of DC distribution network based on preserving nonlinear algorithm[J]. Journal of Electrical Engineering, 2020, 15(4):75-84. | |
[12] | 李亚楼, 穆清, 安宁, 等. 直流电网模型和仿真的发展与挑战[J]. 电力系统自动化, 2014, 38(4):127-135. |
LI Yalou, MU Qing, AN Ning, et al. Development and challenges of DC grid model and simulation[J]. Automation of Electric Power Systems, 2014, 38(4):127-135. | |
[13] | 郭春义, 刘文静, 赵成勇. 电压源电流源混合型高压直流输电控制方法研究[J]. 中国科学, 2013, 43(11):1281-1288. |
GUO Chunyi, LIU Wenjing, ZHAO Chengyong. Research on the control method for voltage-current source hybrid-HVDC system[J]. Science China: Technological Sciences, 2013, 43(11):1281-1288. | |
[14] | 唐庚, 徐政, 薛英林. LCC-MMC混合高压直流输电系统[J]. 电工技术学报, 2013, 28(10):301-310. |
TANG Geng, XU Zheng, XUE Yinglin. A LCC-MMC hybrid HVDC transmission system[J]. Transactions of China Electrotechnical Society, 2013, 28(10):301-310. | |
[15] |
XU J Z, ZHAO C Y, LIU W J, et al. Accelerated model of modular multilevel converters in PSCAD/EMTDC[J]. IEEE Trans. on Power Delivery, 2013, 28(1):129-136.
doi: 10.1109/TPWRD.2012.2201511 |
[16] | SAAD H, OULD-BACHIR T, MAHSEREDJIAN J, et al. Real-time simulation of MMCs using CPU and FPGA[J]. IEEE Trans. on Power Electronics, 2013, 30(1):259-267. |
[17] | WANG C, LI W, BELANGER J. Real-time and faster-thanreal-time simulation of modular multilevel converters using standard multicore CPU and FPGA chip[C]// IECON2013,Vienna,Austria, 2013. |
[18] | 赵利刚, 洪潮, 涂亮, 等. 多端直流输电系统机电暂态建模研究与实现[J]. 南方电网技术, 2017, 11(7):26-31. |
ZHAO Ligang, HONG Chao, TU Liang, et al. Research and realization of electromechanical transient modeling of multi-terminal DC transmission system[J]. Southern Power System Technology, 2017, 11(7):26-31. | |
[19] | 杨林超, 应超楠, 徐政, 等. 大规模交直流混联电网RTDS快速建模方法[J]. 电力自动化设备, 2019, 39(9):192-198. |
YANG Linchao, YING Chaonan, XU Zheng, et al. Rapid RTDS modeling method for large-scale AC/DC hybrid power grids[J]. Electric Power Automation Equipment, 2019, 39(9):192-198. | |
[20] | 唐亚南, 叶华, 裴玮, 等. MMC-MTDC系统的电磁-机电暂态建模与实时仿真分析[J]. 电力自动化设备, 2019, 39(11):99-106. |
TANG Yanan, YE Hua, PEI Wei, et al. Electromagnetic-electromechanical transient modeling and real-time simulation analysis of MMC-MTDC system[J]. Electric Power Automation Equipment, 2019, 39(11):99-106. | |
[21] | HAHN C, GEUB A, LUTHER M. Modeling and control design of hybrid-LCC and VSC based-HVDC systems[C]//2016 IEEE/PES Transmission and Distribution Conference and Exposition(T&D). Dallas,USA:IEEE, 2016:1-6. |
