高压大功率非线性电流型STATCOM在输电网中的应用研究

doi:10.11985/2017.08.006

电气工程学报 ›› 2017, Vol. 12 ›› Issue (8): 34-41.doi: 10.11985/2017.08.006

高压大功率非线性电流型STATCOM在输电网中的应用研究

赵建阳^1,²,张福民²,刘福贵²,刘永和³

^1. 中国能源建设集团天津电力设计院有限公司天津 300400
^2. 河北工业大学电磁场与电器可靠性省部共建重点实验室天津 300130
^3. 内蒙古工业大学电力学院呼和浩特 010080

收稿日期:2016-11-22 出版日期:2017-08-25 发布日期:2019-12-11
作者简介:赵建阳男 1985年生,博士,研究方向为电力系统及其自动化。|张福民男 1965年生,博士,副教授,研究方向为电力电子与电气传动、柔性交流输电和高压直流输电。

Research on High-Voltage High-Power Nonlinear Current-Source STATCOM Applied in Power Transmission System

Zhao Jianyang^1,²,Zhang Fumin²,Liu Fugui²,Liu Yonghe³

^1. China Energy Engineering Group Tianjin Electric Power Design Institute Co.,Ltd. Tianjin 300400 China
^2. Province-Ministry Joint Key Laboratory of Electromagnetic Field and Electrical Apparatus Reliability Hebei University of Technology Tianjin 300130 China
^3. Faculty of Electric Power Inner Mongolia University of Technology Hohhot 010080 China

Received:2016-11-22 Online:2017-08-25 Published:2019-12-11

摘要/Abstract

摘要：

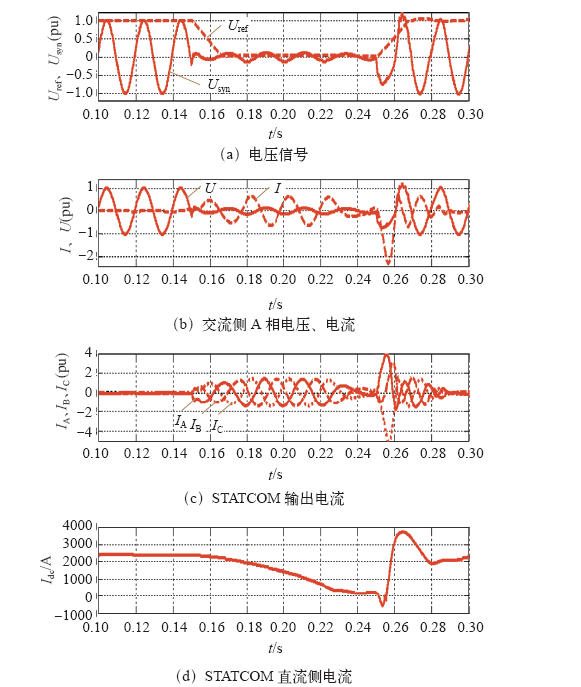

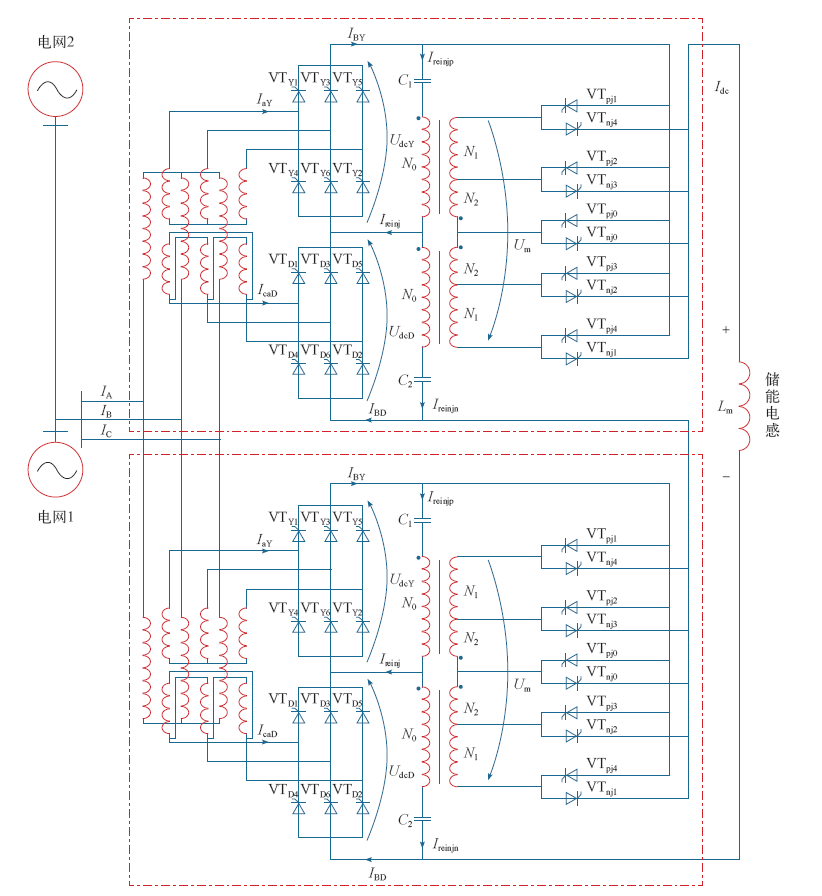

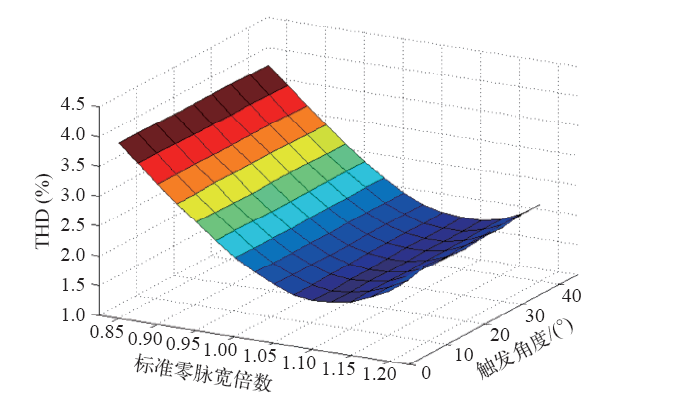

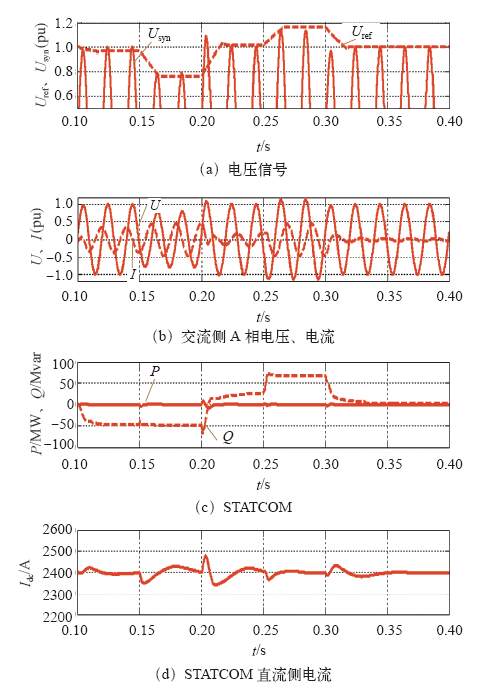

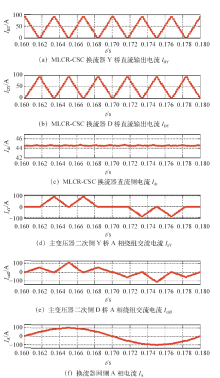

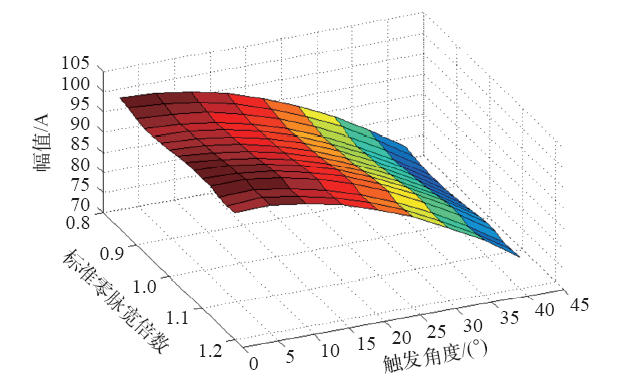

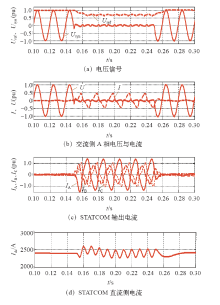

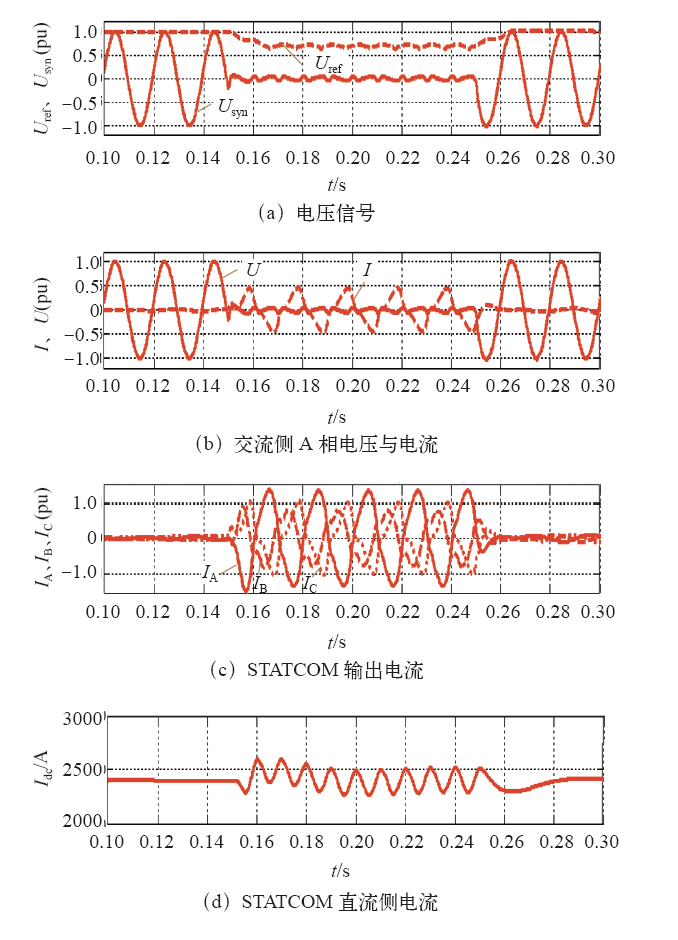

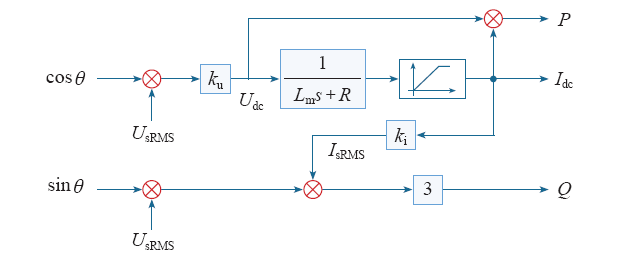

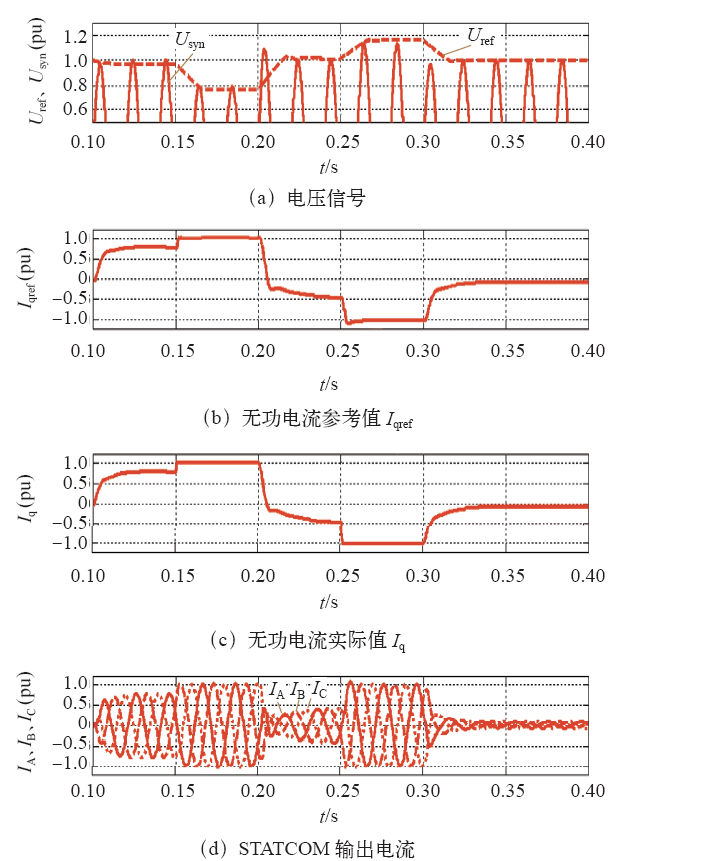

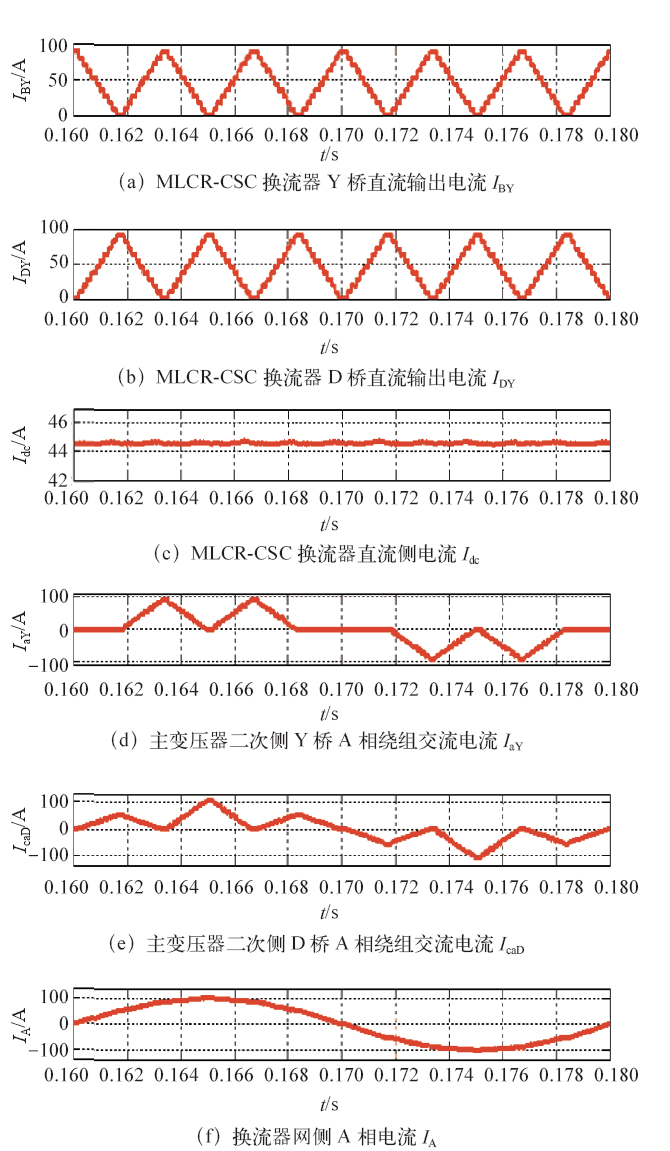

大功率STATCOM可以为电网电力传输提供大量无功功率,然而其控制系统具有很强的非线性。为了实现STATCOM无功功率输出的线性控制,本文提出了一种基于多电平电流重注入式电流型换流器（MLCR-CSC）的电流型STATCOM,阐述了MLCR-CSC的拓扑结构和新型STATCOM的工作原理,设计了直接电流控制系统。仿真结果表明,MLCR-CSC的谐波含量低于4%,基波周期内有6个零电流时刻实现大电流过零关断。电流直接控制方式不但满足输电网对无功功率的需求,而且对不对称故障响应迅速。

关键词: 电流型STATCOM MLCR-CSC, 非线性控制模型, 直接电流控制, 零电流关断

Abstract:

High power STATCOM can provide a large amount of reactive power for power transmission, however, its control system is highly nonlinear. In order to realize linear control reactive power of STATCOM, a new type is proposed based on MLCR-CSC. The STATCOM working principle is introduced, and the direct current control strategy is designed with double closed loop control system. The simulation results show that MLCR-CSC harmonic content is lower than 4%, and six zero current pulse realized large zero current switching. STATCOM satisfied the demand of reactive power in power grid and gave a quick responds during asymmetric fault.

Key words: Current-source STATCOM, MLCR-CSC, nonlinear control model, direct current control strategy, zero current switching

中图分类号:

TM315

赵建阳,张福民,刘福贵,刘永和. 高压大功率非线性电流型STATCOM在输电网中的应用研究[J]. 电气工程学报, 2017, 12(8): 34-41.

Zhao Jianyang,Zhang Fumin,Liu Fugui,Liu Yonghe. Research on High-Voltage High-Power Nonlinear Current-Source STATCOM Applied in Power Transmission System[J]. Journal of Electrical Engineering, 2017, 12(8): 34-41.

图/表 10

图1

图2

图3

图4

图5

图6

图7

图8

图9

图10

参考文献 17

[1]	王雅婷, 郑彬, 申洪 , 等. 西北新能源外送系统多FACTS协调控制方法[J]. 中国电机工程学报, 2013,33(34):162-170.
	Wang Yating, Zheng Bin, Shen Hong , et al. A coordinated control method of multiple FACTS on the norwest new energy-delivery system[J]. Proceedings of the CSEE, 2013,33(34):162-170.
[2]	马为民, 吴方劼, 杨一鸣 , 等. 柔性直流输电技术的现状及应用前景分析[J]. 高电压技术, 2014,40(8):2429-2439.
	Ma Weimin, Wu Fangjie, Yang Yiming , et al. Flexible HVDC transmission technology’s today and tomorrow[J]. High Voltage Engineering, 2014,40(8):2429-2439.
[3]	饶宏, 陈俊, 许树楷 , 等. 输电系统用STATCOM 多电平主回路方案选择[J]. 电力系统自动化, 2013,37(13):83-87. doi: 10.7500/AEPS201210145
	Rao Hong, Chen Jun, Xu Shukai , et al. Selection of multilevel main circuit schemes of STATCOM for transmission system[J]. Automation of Electric Power Systems, 2013,37(13):83-87. doi: 10.7500/AEPS201210145
[4]	杨晓峰, 范文宝, 王晓鹏 , 等. 基于模块组合多电平变换器的STATCOM及其控制[J]. 电工技术学报, 2011,26(8):7-13.
	Yang Xiaofeng, Fan Wenbao, Wang Xiaopeng , et al. Static synchronous compensator based on modular multilevel convertor based STATCOM and its control[J]. Proceedings of the CSEE, 2011,26(8):7-13.
[5]	黄伟雄, 胡广振, 王永源 , 等. 南方电网35kV±200Mvar链式STATCOM现场试运行[J]. 电力系统自动化, 2013,37(19):122-131. doi: 10.7500/AEPS201212173
	Huang Weixiong, Hu Guangzhen, Wang Yongyuan , et al. On-side commission of 35kV±200Mvar cascade STATCOM in China southeast power gride[J]. Automation of Electric Power Systems, 2013,37(19):122-131. doi: 10.7500/AEPS201212173
[6]	黄伟雄, 刘锦宁, 王永源 , 等. 35kV±200Mvar STATCOM系统总体设计[J]. 电力系统自动化, 2013,37(10):136-142.
	Huang Weixiong, Liu Jinning, Wang Yongyuan , et al. Overall design of 35kV±200Mvar STATCOM system[J]. Automation of Electric Power Systems, 2013,37(10):136-142.
[7]	张勇军, 姚智聪, 王京 , 等. 一种级联H 桥型静止无功发生器电容电压平衡控制策略[J]. 中国电机工程学报, 2014,34(27):4621-4628. doi: 10.13334/j.0258-8013.pcsee.2014.27.009
	Zhang Yongjun, Yao Zhicong, Wang Jing , et al. A direct current capacitor voltage balancing control strategy for H-bridge cascaded static var generator[J]. Proceedings of the CSEE, 2014,34(27):4621-4628. doi: 10.13334/j.0258-8013.pcsee.2014.27.009
[8]	杜少通, 杨擎, 汪山林 , 等. 五电平H桥级联型STATCOM脉冲轮换控制策略研究[J]. 电力系统保护与控制, 2014,42(21):17-22.
	Du Shaotong, Yang Qing, Wang Shanlin , et al. Research on pulse rotation control strategy for 5-level cascaded H-bridge STATCOM[J]. Power System Protection and Control, 2014,42(21):17-22.
[9]	Enrique Acha, Behzad Kazemtabrizi . A new STATCOM model for power flows using the Newton-Raphson method[J]. IEEE Transactions on Power Delivery, 2013,28(3):2455-2465.
[10]	Takayuki Kawaguchi, Tsukasa Sakazaki, Takanori Isobe , et al. Off shore-wind-farm configuration using diode rectifier with MERS in current link topology[J]. IEEE Transactions on Industrial Electronics, 2013,60(7):2930-2937.
[11]	Gimenez R B, Villalba S A, D’Derlee J R , et al. Diode-based HVDC link for the connection of large offshore wind farms[J]. IEEE Trans. on Energy Convers., 2011,26(2):615-626.
[12]	Baird J F, Arrilaga J . Harmonic reduction in dc-ripple reinjection[J]. IEE Proceedings, Generation, Transmission and Distribution, 1980,127(5):294-303.
[13]	Bhaba Das, Neville Watson, Yonghe Liu . DC ripple reinjection: a review[J]. International Journal of Emerging Electric Power Systems, 2011,12(5):15-23.
[14]	Arrillaga J, Liu Y H, Perera L B , et al. A current reinjection scheme that adds self-commutation and pulse multiplication to the thyristor converter[J]. IEEE Transactions on Power Delivery, 2006,21(3):1593-1599.
[15]	Wang Y Z, Cheng D Z, Li C W . Dissipative Hamiltonian realization and energy-based L2-disturbance attenuation control of multi-machine power systems[J]. IEEE Transactions on Automatic Control, 2003,48(8):1428-1433.
[16]	阎博, 汪可友, Mariesa L CROW, 等. UPFC 状态反馈精确线性化潮流控制策略[J]. 中国电机工程学报, 2012,32(19):42-48.
	Yan Bo, Wang Keyou, Mariesa L CROW , et al. UPFC power flow control strategy based on exact linearization via feedback[J]. Proceedings of the CSEE, 2012,32(19):42-48.
[17]	査晓明, 张茂松, 孙建军 .链式 D-STATCOM 建模及其状态反馈精确线性化解耦控制[J]. 中国电机工程学报, 2010,30(28):107-113.
	Zha Xiaoming, Zhang Maosong, Sun Jianju . Modeling of cascade D-STATCOM with decoupled state variable feedback linearization control[J]. Proceedings of the CSEE, 2010,30(28):107-113.
