建筑物防雷系统中分支导体在雷电流作用下的温升计算

doi:10.11985/2017.07.001

摘要/Abstract

摘要：

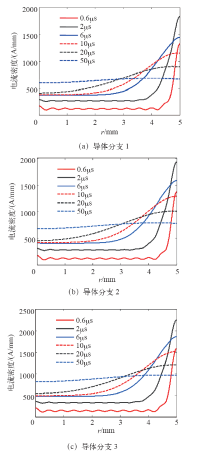

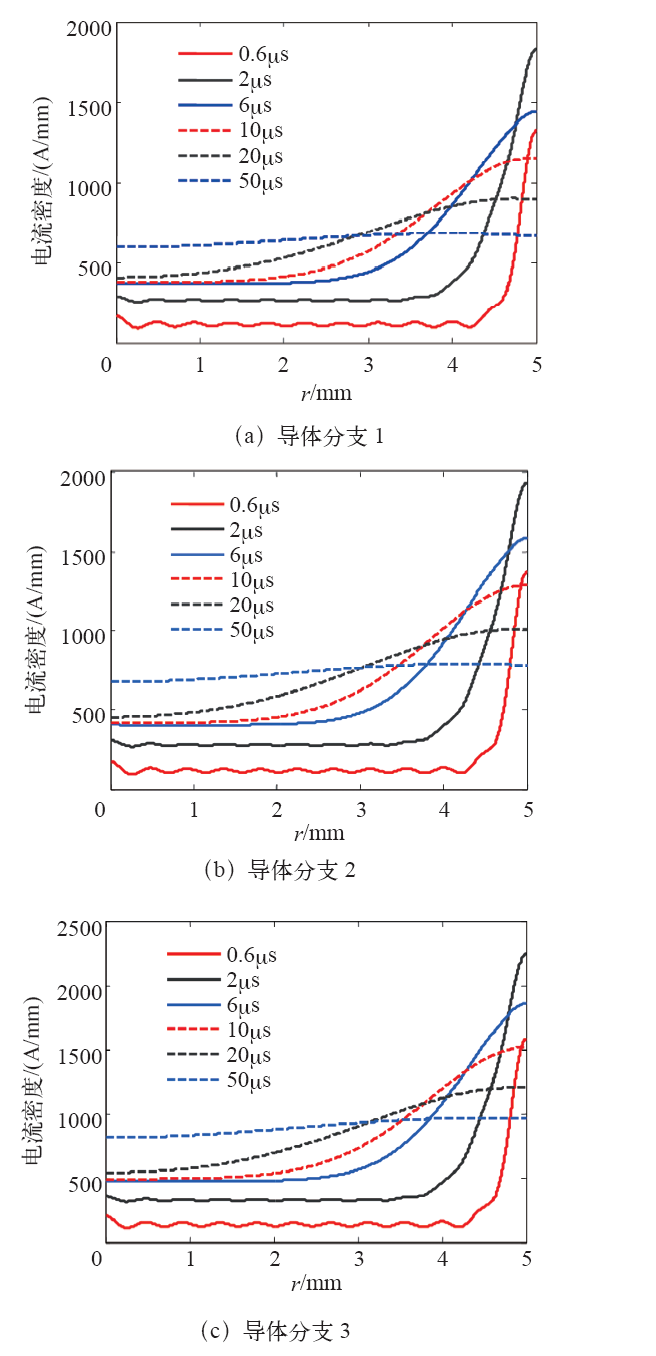

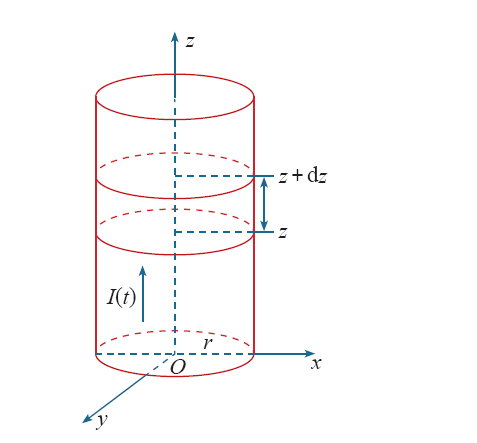

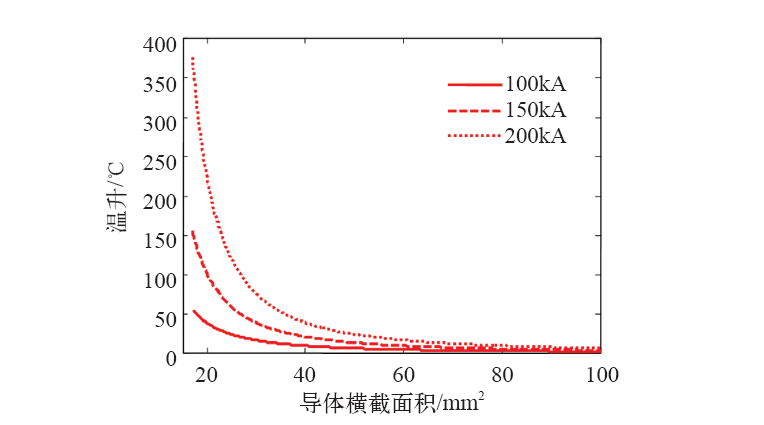

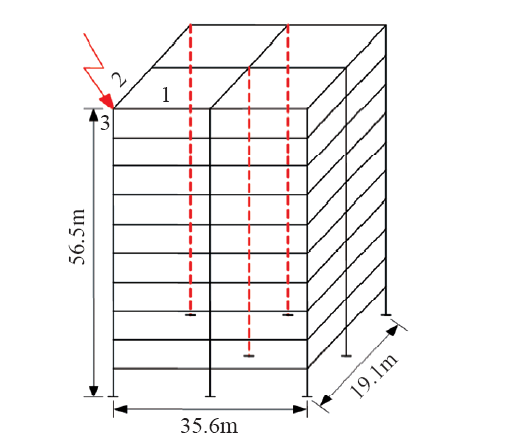

为对建筑物防雷系统中分支导体在雷电流作用下的温升进行估算,提出了两种计算导体温升的数学模型。该模型用于估算在假设电流密度均匀分布在导体横截面内以及考虑到暂态趋肤效应下电流密度非均匀分布两种情况下圆柱导体的温升。根据以上两种数学模型,分别估算出了分支导体3在不同雷电流幅值作用下的温升：幅值为100kA时,其温升分别为2.25℃和2.75℃;当幅值为150kA时,其温升分别为5.1℃和6.18℃;当幅值为200kA时,其温升分别为9.19℃和11℃。本文还验证了该数学模型的研究结果。分析表明：文献中给出的测量数据与该模型计算得出的数据基本一致;防雷系统中各分支导体的温升确实会受到暂态趋肤效应的影响;该部分引起的导体额外温度上升很小可以忽略不计。

关键词: 防雷系统, 雷电流, 分支导体, 温升, 电流密度, 暂态趋肤效应

Abstract:

In order to estimate the temperature rise of conducting branches in a lightning protection system of a building under lightning current, two mathematical models for the temperature rise of conductors were proposed. The models used to estimate the temperature rise in cylindrical conductors assumed both a uniform and non-uniform current density distribution by taking into account the transient skin effect. According to the two models, the temperature rise of the third conducting branch subjected to three different amplitude lightning currents was worked out. When the amplitude of lighting currents is 100kA, 150kA and 200kA, respectively, the temperature rise of the conductor calculated based on the first model is 2.25, 5.1 and 9.19 degree centigrade, respectively, and the temperature rise under the second model is 2.75, 6.18 and 11 degree centigrade, respectively. In addition, verification of the mathematical results were studied. The measured results in the literature are consistent with the results from the mathematical models. It is convincingly shown that conducting branches can be influenced by the transient skin effect. The additional temperature rise however, caused by the transient skin effect, is minimal, and can be neglected.

Key words: Lightning protection system, lightning current, temperature rise, conducting branches, current density, transient skin effect

中图分类号:

TM863

王杰,盛财旺,童达,杨雷,王俊杰,杨文宝. 建筑物防雷系统中分支导体在雷电流作用下的温升计算[J]. 电气工程学报, 2017, 12(7): 1-7.

Wang Jie,Sheng Caiwang,Tong Da,Yang Lei,Wang Junjie,Yang Wenbao. Calculation of the Temperature Rise of Conducting Branches in a Lightning Protection System of a Building Subjected to Lightning Current Impulses[J]. Journal of Electrical Engineering, 2017, 12(7): 1-7.

图/表 8

图1

图2

图3

图4

图5

图6

图7

表

参考文献 24

[1]	中国机械工业联合会主编. 中华人民共和国国家标准GB50057—2010建筑物防雷设计规范[S]. 北京: 中国计划出版社, 2010.
[2]	雷成华, 刘刚, 李钦豪 . BP神经网络模型用于单芯电缆导体温度的动态计算[J]. 高电压技术, 2011,37(1):184-189.
	Lei Chenghua, Liu Gang, Li Qinhao . Dynamic calculation of conductor temperature of single-cable using BP neural network[J]. High Voltage Engineering, 2011,37(1):184-189.
[3]	李亚西, 张慧媛, 范霄汉 , 等. 高温超导电缆在故障状态下的温升计算[J]. 超导技术, 2013,41(9):37-42.
	Li Yaxi, Zhang Huiyuan, Fan Xiaohan , et al. Temperature rise calculation of high temperature superconducting cable under fault conditions[J]. Super Conductivity, 2013,41(9):37-42.
[4]	王羽, 李晓萍, 罗思敏 , 等. 垂直型直流接地极暂态温升计算与试验[J]. 中国电机工程学报, 2013,33(1):1-7.
	Wang Yu, Li Xiaoping, Luo Simin , et al. Test and computation for vertical ground electrode's transient temperature rise[J]. Proceedings of CSEE, 2013,33(1):1-7.
[5]	Rakov V A, Uman M A. Lightning physics and effects[M]. Cambridge University Press, 2003.
[6]	Paisios M P, Karagiannopoulos C G, Bourkas P D . Estimation of the temperature rise in cylindrical conductors subjected to heavy 10/350μs lightning current impulses[J]. Electric Power Systems Research, 2008,78(1):80-87.
[7]	张小青 . 建筑物内电子设备的防雷保护[M]. 北京: 电子工业出版社, 2000.
[8]	Zhang Xiaoqing . A circuit approach to the calculation of lightning transients in cage-like multiconductor systems[J]. International Journal of Electrical Engineering Education, 2010,47(2):213-222.
[9]	曹玉胜, 陈允平 . 图形化电磁暂态仿真软件EMTP-RV及其应用[J]. 高电压技术, 2007,33(7):154-158.
	Cao Yusheng, Chen Yunping . Application of EMTP-RV graphic software of electromagnetic transient simulation[J]. High Voltage Engineering, 2007,33(7):154-158.
[10]	Horvarth T. Computation of lightning protection[M]. Research Studies Press, 1991.
[11]	Heidler F . Calculation of lightning current parameters[J]. IEEE Transactions Power Delivery, 1999,14(2):399-404.
[12]	Miller K W . Diffusion of electric current into rods, tubes and flat surfaces[J]. AIEE Trans. 1947,66(1):1496-1502.
[13]	Valese L M . Diffusion of pulsed current in conductors[J]. Journal of Applied Physics, 1954,25(2):225-228.
[14]	Rusck S . The losses in linear systems energized by exponential impulses[J]. American Society of Engineers and Architects Research, 1961,10(6):45-49.
[15]	Polykrati A D, Paisios M P, Karagiannopoulos C G , et al. Model for temperature estimation of electric couplings suffering heavy lightning currents[J]. IET Proceedings Generation Transmission and Distribution, 2004,151(1):90-94.
[16]	包科达 . 热物理学基础[M]. 北京: 高等教育出版社, 2004.
[17]	Cengel Y A . Introduction to thermodynamics and heat transfer[M]. Mc Graw-Hill, 1997.
[18]	Bowman F . Introduction to bessel functions[M]. Dover Publications, 1958.
[19]	Kreyszig E . Advanced engineering mathematics[M]. 8th Edition,John Wiley &Sons, Incorporated, 1999.
[20]	Kupfmuller K . Einfuhrung in die theoretische elektrotechnik, auflage[J]. Springer-Verlag, 1984,11(2):153-162.
[21]	Greenwood A . Electrical transients in power systems[M]. Wiley-Interscience, 1971.
[22]	李竹英 . 杜哈梅尔积分的全解析算法[J]. 华中理工大学学报, 1994,22(4):30-35.
	Lin Zhuying . An analytic algorithm for DuHamel integral by generalized functions[J]. Journal of Huazhong University of Science and Technology, 1994,22(4):30-35.
[23]	Maksiejewski J L . Losses in conductors due to current surges taking the skin effect into account[J]. IET Proceedings Generation Transmission and Distribution, 1990,137(2):80-84.
[24]	Maksiejewski J L . Evaluation of thermal characteristics of conductors under surge currents taking the skin effect into account[J]. IET Proceedings Generation Transmission and Distribution, 1990,137(2):85-91.

导体分支编号	1			2			3
雷电流幅值I_m/kA	100	150	200	100	150	200	100	150	200

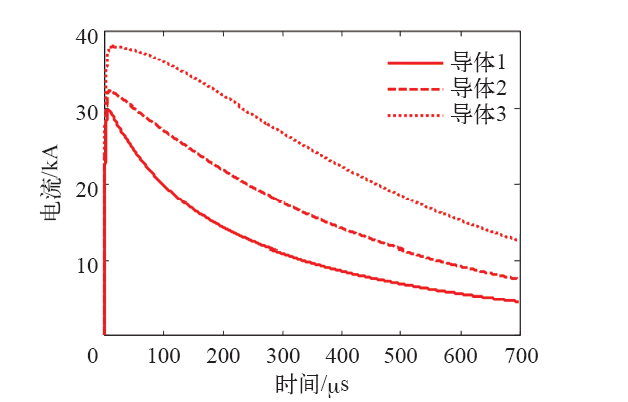

分支电流幅值I_m/kA	29.824	44.736	59.649	32.262	48.393	64.524	38.176	57.264	76.352

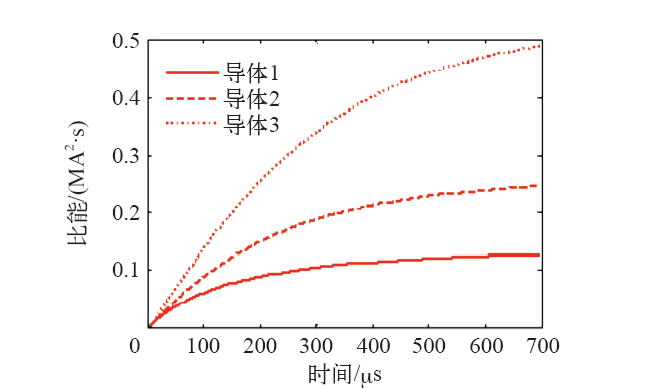

比能w/(A²·s)	127 267	286 351	509 069	246 607	554 866	986 428	488 932	1 100 100	1 955 730
热损耗P/(W·s/m)	189.0	425.2	756.0	337.7	759.7	1 350.6	744.2	1 674.5	2 976.8

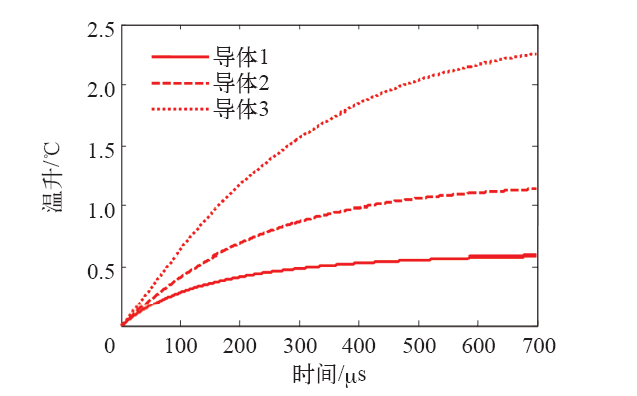

温升ΔT/℃,公式（12）	0.58	1.31	2.34	1.13	2.55	4.57	2.25	5.10	9.19
温升ΔT/℃,公式（31）	0.70	1.57	2.79	1.25	2.80	4.98	2.75	6.18	11.0
ΔT/℃,测量值[6]	0.6	1.3	2.3	1.1	2.6	4.6	2.1	5.0	9.1
