基于分层控制的并网控制策略研究

doi:10.11985/2016.11.003

电气工程学报 ›› 2016, Vol. 11 ›› Issue (11): 19-25.doi: 10.11985/2016.11.003

基于分层控制的并网控制策略研究

胡长斌^1,^2,³,陈凯雨^1,²

^1. 北方工业大学电气与控制工程学院北京 100144
^2. 北京市电力节能关键技术协同创新中心北京 100144
^3. 北京电动车辆协同创新中心北京 100144

收稿日期:2016-05-16 出版日期:2016-11-20 发布日期:2019-11-22
作者简介:胡长斌男 1982年生,博士,讲师,主要研究方向为新能源先进控制技术、微电网协调控制技术和工业先进控制技术。|陈凯雨男 1993年生,硕士研究生,研究方向为微电网控制与新能源发电技术。

Research on Grid-Connected Operation Control Strategy Based on Hierarchical Control

Hu Changbin^1,^2,³,Chen Kaiyu^1,²

^1. North China University of Technology Beijing 100144 China
^2. Collaborative Innovation Center of Key Energy Saving Technologies in Beijing Beijing 100144 China
^3. Collaborative Innovation Center of Electric Vehicles in Beijing Beijing 100144 China

Received:2016-05-16 Online:2016-11-20 Published:2019-11-22

摘要/Abstract

摘要：

传统分层控制结合主从控制与对等控制两者的诸多优点,但微源层与能量管理层之间结构的连接与并网过程的控制细节仍有缺陷。为了完善分层控制策略,在传统分层控制基础上提出了两个改进点：下垂控制中加入并网功率调节,通过PI控制器,实现对三级控制指令的下达;在并网预同步器中加入了相角偏差判定环节,减小相角变化过程带来的频率波动。在Simulink平台下,对传统和改进分层控制策略进行仿真分析,结果表明该方法改善了传统分层控制的层间衔接,且并网表现良好,能够提高系统稳定性。

关键词: 微网, 分层控制, 下垂控制, 三级指令, 相角判定

Abstract:

The traditional hierarchical control combines the advantages of master-slave control strategy and peer control strategy, but the connections between the control layer of distributed generation and the energy management system and details of the transition between grid-connected and islanding operation is still flawed. In order to improve the hierarchical control strategy, based on the traditional hierarchical control proposed two improvements: The grid-connected power regulation was added in Droop control through the PI controller to achieve the instruction of tertiary control issued. The decision process of phase deviation was added in grid-connected pre-synchronizer to reduce frequency fluctuation when phase changed. In the Simulink platform, the improved hierarchical control strategy and the traditional hierarchical control strategy was simulated and analyzed. The results show that the method can improve the layer’s connectivity of the traditional hierarchical control and improve the stability of the system.

Key words: Microgrid, hierarchical control, droop control, instruction of tertiary control, determination of phase angle

中图分类号:

TM732

胡长斌,陈凯雨. 基于分层控制的并网控制策略研究[J]. 电气工程学报, 2016, 11(11): 19-25.

Hu Changbin,Chen Kaiyu. Research on Grid-Connected Operation Control Strategy Based on Hierarchical Control[J]. Journal of Electrical Engineering, 2016, 11(11): 19-25.

图/表 13

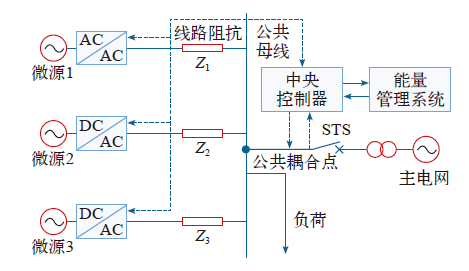

图1

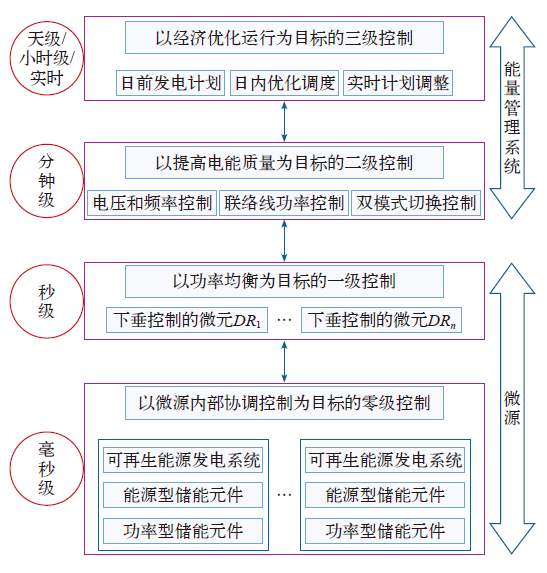

图2

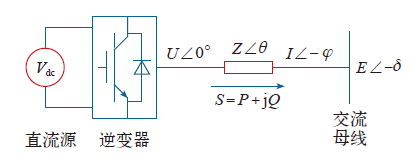

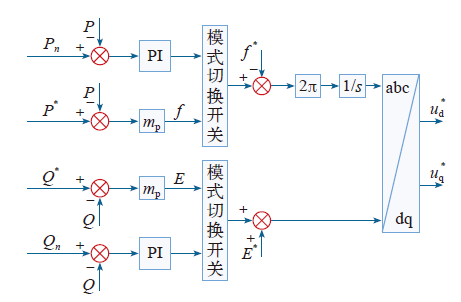

图3

图4

图5

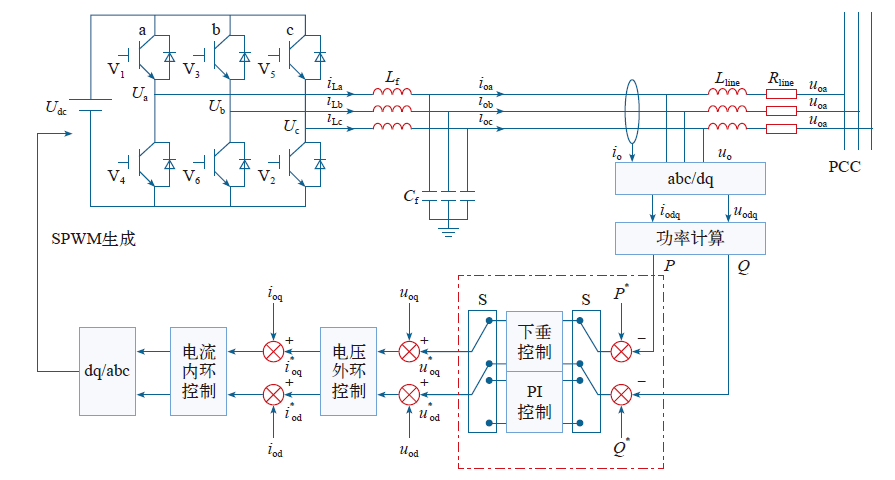

图6

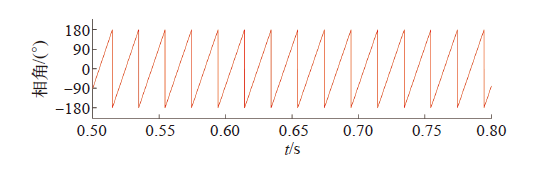

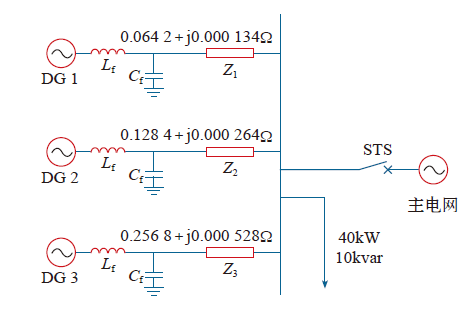

图7

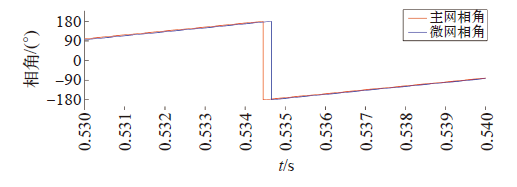

图8

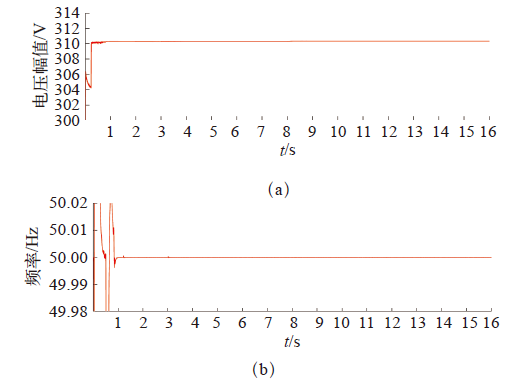

图9

图10

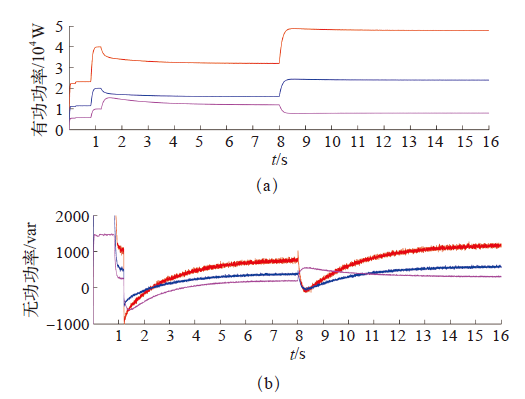

图11

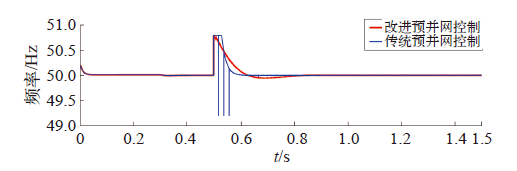

图12

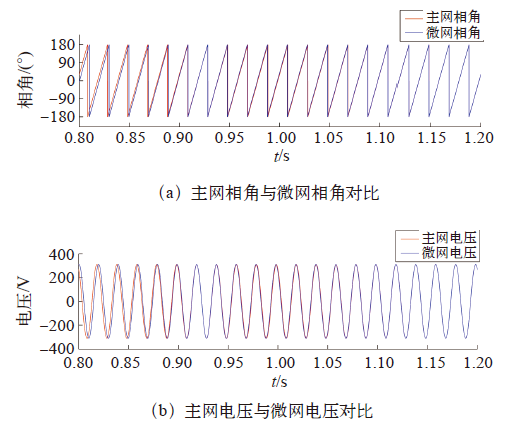

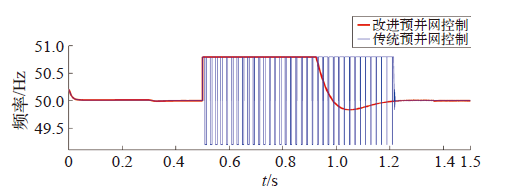

图13

参考文献 13

[1]	赵宏伟, 吴涛 . 基于分布式电源的微网技术[J]. 电力系统及其自动化学报, 2008,20(1):121-128.
	Zhao Hongwei, Wu Tao . Review of distributed generation based microgrid technology[J]. Proceedings of the Chinese Society of Universities for Electric Power System and its Automation, 2008,20(1):121-128.
[2]	Guerrero Josep M, Member Senior . Hierarchical control of droop controlled AC and DC microgrids-a general approach toward standardization[J]. IEEE Transactions on Industrial Electronics, 2011,58(1):158-172. doi: 10.1109/TIE.2010.2066534
[3]	许守平, 侯朝勇, 王坤洋 , 等. 分层控制在微网中的应用研究[J]. 电网与清洁能源, 2013,29(6):39-45.
	Xu Shouping, Hou Chaoyong, Wang Kunyang , et al. Application research of hierarchical control in microgrid[J]. Power System and Clean Energy, 2013,29(6):39-45.
[4]	赵冬梅, 张楠, 刘燕华 , 等. 基于储能的微网并网和孤岛运行模式平滑切换综合控制策略[J]. 电网技术, 2013,37(2):301-306.
	Zhao Dongmei, Zhang Nan, Liu Yanhua , et al. Synthetical control strategy for smooth switching between grid-connected and islanded operation modes of microgrid based on energy storage system[J]. Power System Technology, 2013,37(2):301-306.
[5]	唐西胜, 邓卫, 齐智平 . 基于储能的微网并网/离网无缝切换技术[J]. 电工技术学报, 2011,26(1):279-284.
	Tang Xisheng, Deng Wei, Qi Zhiping . Research on grid-connected/islanded seamless transition of microgrid based on energy storage[J]. Transactions of China Electrotechnical Society, 2011,26(1):279-284.
[6]	唐芬 , Guerrero Josep M, 周啸,等.一种可实现微网系统快速平滑并网的主动同步控制策略[J]. 电力系统自动化, 2014,38(8):15-22. doi: 10.7500/AEPS20130816010
	Tang Fen, Guerrero Josep M, Zhou Xiao , et al. An active synchronization control strategy for fast and smooth integration of microgrid[J]. Automation of Electric Power Systems, 2014,38(8):15-22. doi: 10.7500/AEPS20130816010
[7]	Mohamed Yasser A I, Radwan Amr A . Hierarchical control system for robust microgrid operation and seamless mode transfer in active distribution systems[J]. IEEE Transactions on Smart Grid, 2011,2(2):352-362. doi: 10.1109/TSG.2011.2136362
[8]	马玉娟, 杨国华, 周鑫 , 等. 基于改进下垂法的微网并网控制策略研究[J]. 电测与仪表, 2015,52(16):61-66. doi: 10.1080/01658107.2019.1566384 pmid: 31741674
	Ma Yujuan, Yang Guohua, Zhou Xin , et al. Research on control strategy of micro-grid-connected based on the improved droop method[J]. Electrical Measurement & Instrumentation, 2015,52(16):61-66. doi: 10.1080/01658107.2019.1566384 pmid: 31741674
[9]	郑竞宏, 王燕廷, 李兴旺 , 等. 微电网平滑切换控制方法及策略[J]. 电力系统自动化, 2011,35(18):17-24.
	Zheng Jinghong, Wang Yanting, Li Xingwang , et al. Control methods and strategies of microgrid smooth switchover[J]. Automation of Electric Power Systems, 2011,35(18):17-24.
[10]	杨苹, 许志荣, 郑群儒 , 等. 微电网平滑切换中变流器的控制策略仿真研究[J]. 可再生能源, 2015,33(11):1625-1629.
	Yang Ping, Xu Zhirong, Zheng Qunru , et al. Research on control strategy of converter for micro-grid smooth switching[J]. Renewable Energy Resources, 2015,33(11):1625-1629.
[11]	Yao W, Chen M, Matas J , et al. Design and analysis of the droop control method for parallel inverters considering the impact of the complex impedance on the power sharing[J]. IEEE Transactions on Industrial Electronics, 2011,58(2):576-587. doi: 10.1109/TIE.2010.2046001
[12]	Guerrero Josep M, Vicuna Luis G, Matas J , et al. Output impedance design of parallel-connected UPS inverters with wireless load-sharing control[J]. IEEE Transactions on Industrial Electronics, 2005,52(4):1126-1135. doi: 10.1109/TIE.2005.851634
[13]	鲍薇, 胡学浩, 李光辉 , 等. 基于同步电压源的微电网分层控制策略设计[J]. 电力系统自动化, 2013,37(23):20-26. doi: 10.7500/AEPS201212009
	Bao Wei, Hu Xuehao, Li Guanghui , et al. Synchronous voltage source based design of hierarchical control strategy for microgrid[J]. Automation of Electric Power Systems, 2013,37(23):20-26. doi: 10.7500/AEPS201212009
