振动条件下铁路继电器寿命预测研究

doi:10.11985/2017.07.002

摘要/Abstract

摘要：

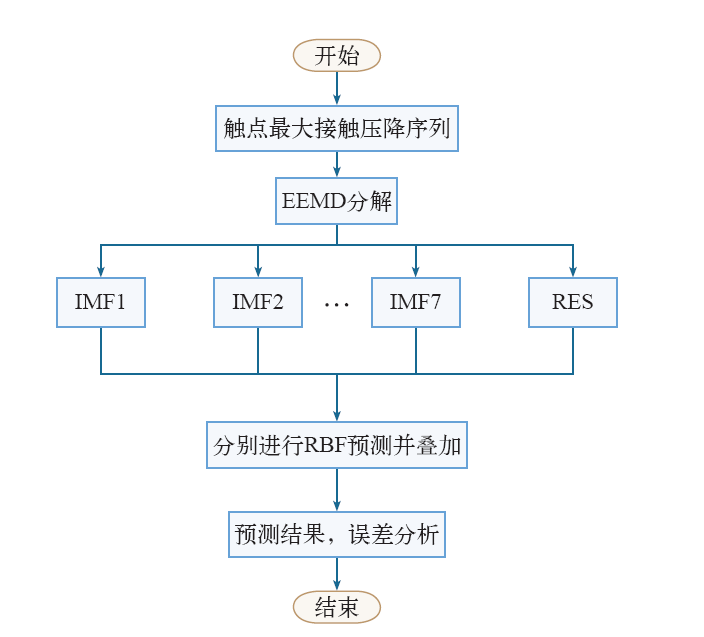

铁路继电器工作中的可靠性与安全性是确保各种铁路设备正常工作的必须要求,在列车控制方面发挥着重要的作用。本文根据加速试验原理与试验条件制定了在振动应力下铁路继电器的加速寿命试验方案,并通过加速寿命试验获得了铁路继电器触点接触压降的数据。选择接触压降作为继电器性能退化特征参数,利用小波阈值法对得到的接触压降数据进行去噪处理,并建立了EEMD-RBF预测模型对继电器寿命进行预测。对EEMD-RBF与RBF的误差进行对比分析,结果表明EEMD-RBF模型预测精度更高。最后,根据预测出来的寿命,运用逆幂律方程预测出正常振动应力水平下铁路继电器的寿命。

关键词: 铁路继电器, 振动应力, 失效试验, 小波阈值去噪, EEMD-RBF寿命预测

Abstract:

Reliability and safety of railway relay in its work is a must to ensure that the various railway equipment can work normally. As a result, railway relay plays an important role in the train control. In this paper, according to the test conditions and the principle of accelerated test, the accelerated life test plan of railway relay under vibration has been made, also the relay contact point voltage data are acquired in the accelerated life test. The contact voltage is chosen as the relay characteristic parameter indicating performance degradation and wavelett hreshold method is introduced in order to improve the quality of contact point voltage data. At the same time, EEMD-RBF model is established to predict the life of relay. By analyzing the errors between EEMD-RBF and RBF, it shows that the EEMD-RBF model has a better prediction accuracy. Finally, based on the predicted life, the inverse power law equation is used to extrapolate railway relay life under the normal vibration stress.

Key words: Railway relay, vibration stress, degradation test, wavelet threshold denoising, EEMD-RBF life prediction

中图分类号:

TM581

李文华,马思宁,沈培根,王楠. 振动条件下铁路继电器寿命预测研究[J]. 电气工程学报, 2017, 12(7): 8-15.

Li Wenhua,Ma Sining,Shen Peigen,Wang Nan. Study on Life Prediction of Railway Relay under Vibration[J]. Journal of Electrical Engineering, 2017, 12(7): 8-15.

图/表 20

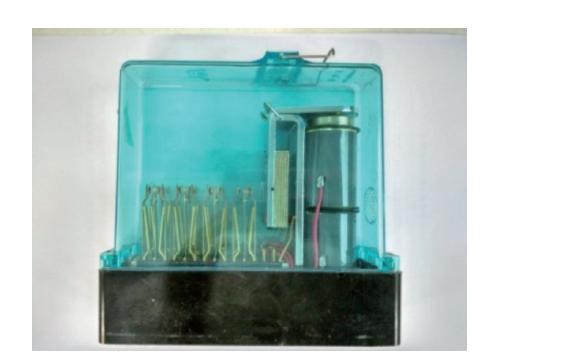

图1

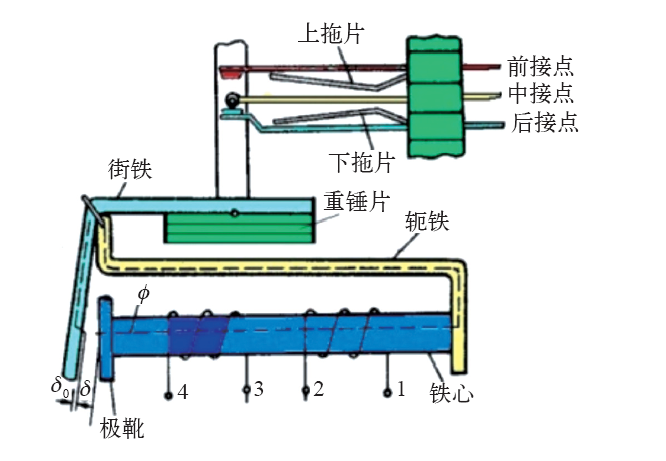

图2

图3

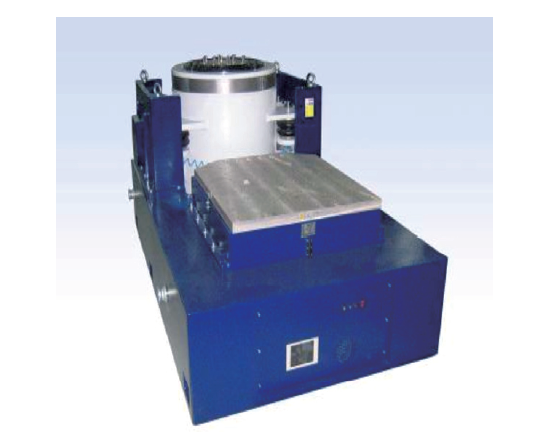

图4

表1

表2

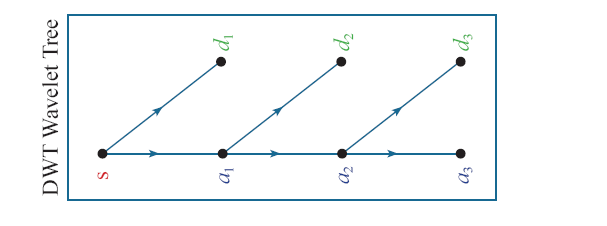

图5

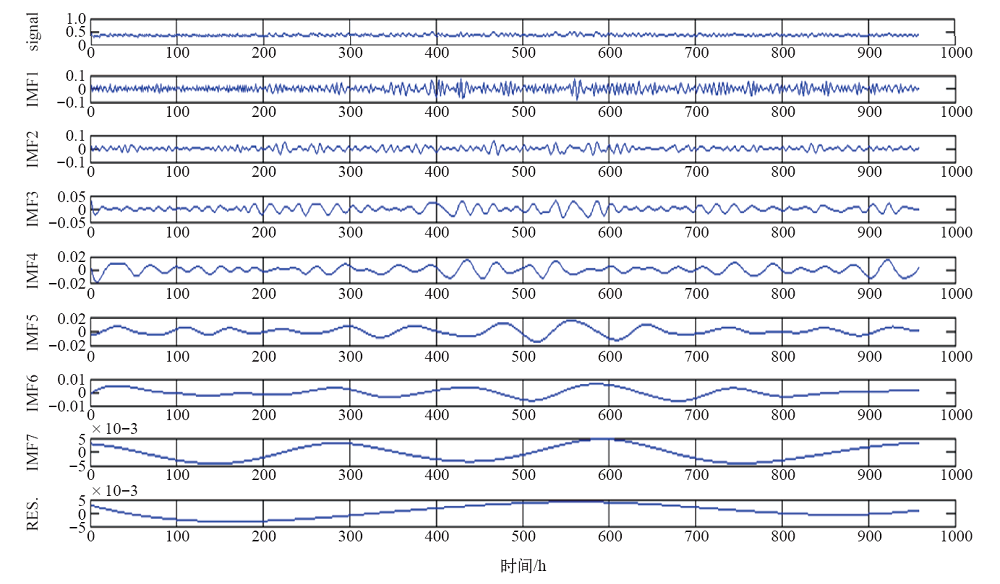

图6

图7

图8

图9

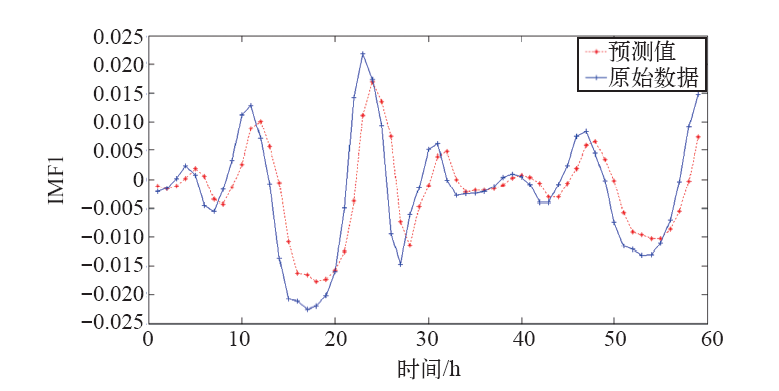

图10

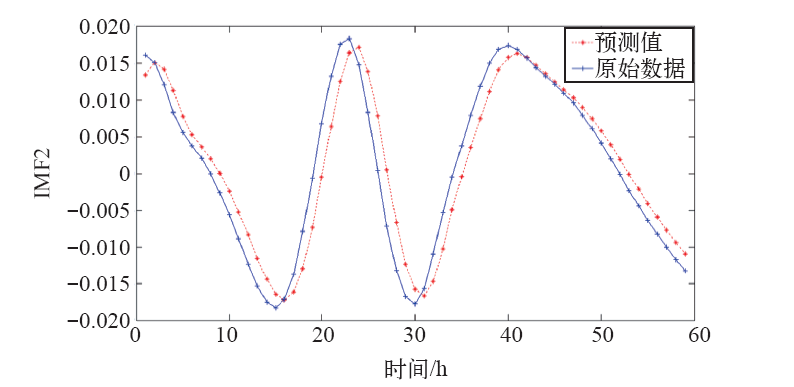

图11

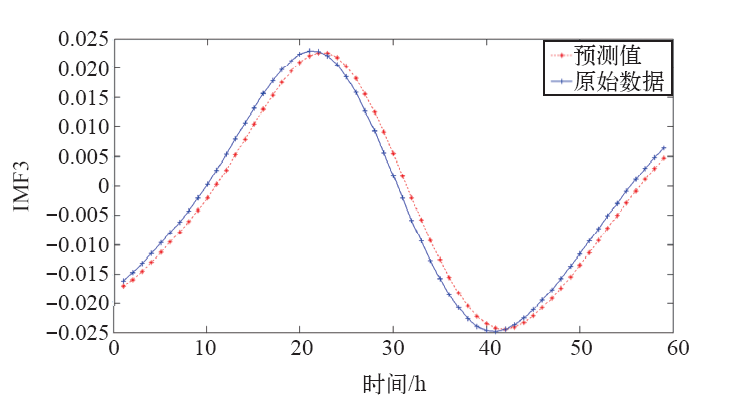

图12

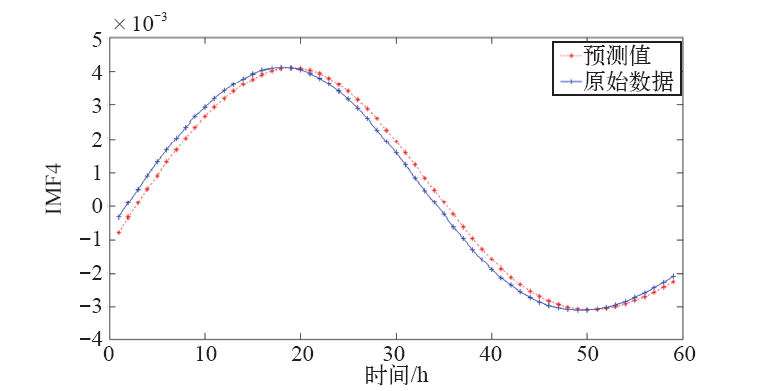

图13

图14

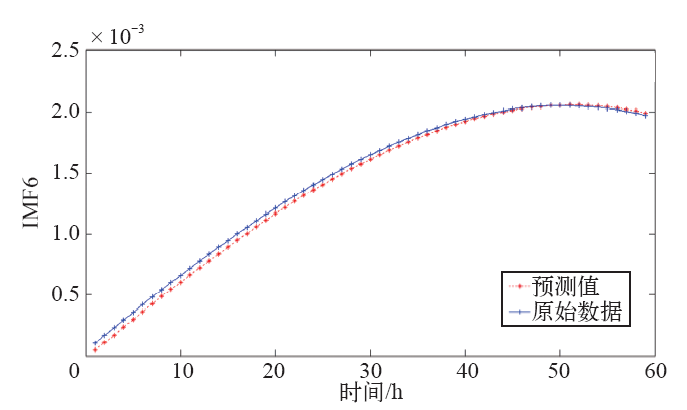

图15

表3

表4

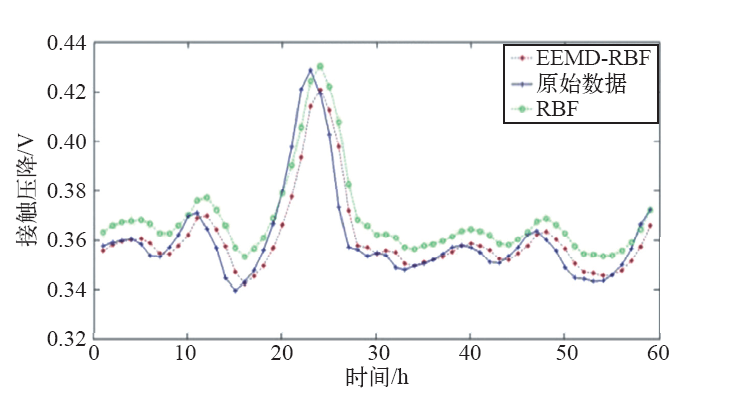

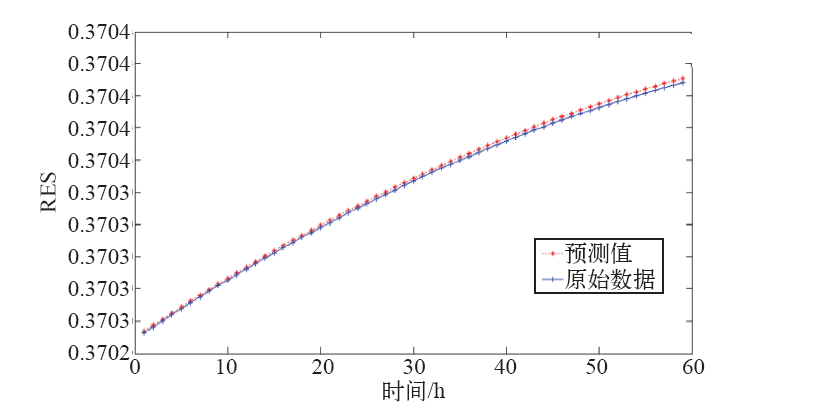

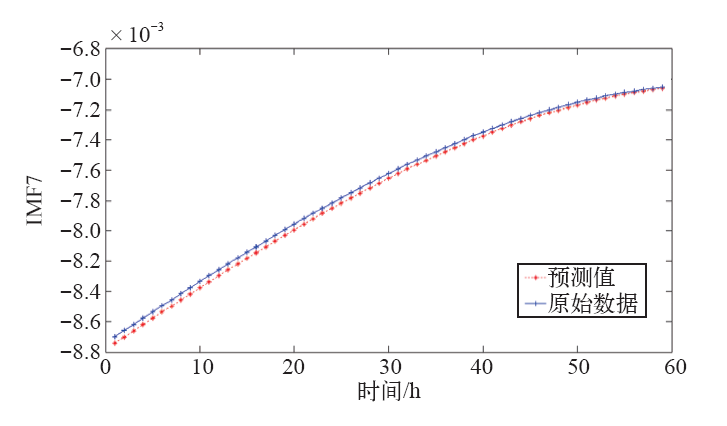

图16

参考文献 11

[1]	聂畅 . 提高地铁车辆继电器可靠性的方法探讨[J]. 电力机车与城轨车辆, 2012,35(2):78-79, 84.
[2]	钟强晖, 张志华, 梁胜杰 . 基于多元退化数据的可靠性分析方法[J]. 系统工程理论与实践, 2011,31(3):544-551.
	Zhong Qianghui, Zhang Zhihua, Liang Shengjie . Reliability analysis approach based on multivariate degradation data[J]. Systems Engineering-Theory & Practice, 2011,31(3):544-551.
[3]	陈循, 张春华, 汪亚顺 , 等. 加速寿命试验技术与应用[M]. 北京: 国防工业出版社, 2013.
[4]	陈文华, 崔杰, 潘骏 , 等. 航天电连接器振动可靠性试验与分析[J]. 航空学报, 2003,24(4):342-345.
	Chen Wenhua, Cui Jie, Pan Jun , et al. Reliability test and statistical analysis of electrical connector under vibration stress[J]. Acta Aeronautica et Astronautica Sinica, 2003,24(4):342-345.
[5]	骆燕燕, 王兴贵, 陆俭国 , 等. 电磁继电器贮存寿命预测理论与试验方案的研究[J]. 低压电器, 2005(9):49-54.
	Luo Yanyan, Wang Xinggui, Chen Jianguo , et al. Study on the prediction theory and test plan of storage life for electromagnetic relays[J]. Low Voltage Apparatus, 2005(9):49-54.
[6]	刘帼巾, 陆俭国, 王海涛 , 等. 接触器式继电器的失效分析[J]. 电工技术学报, 2011,26(1):81-85.
	Liu Guojin, Chen Jianguo, Wang Haitao , et al. Failure analysis of contactor relay[J]. Transactions of China Eletrotechnical Soiety, 2011,26(1):81-85.
[7]	许文博, 武晓春, 邢建平 . 一种新的小波阈值去噪方法[J]. 兰州交通大学学报, 2012,31(3):120-124.
	Xu Wenbo, Wu Xiaochun, Xing Jianping . A new method for wavelet threshold denoising[J]. Journal of Lanzhou Jiaotong University, 2012,31(3):120-124.
[8]	章浙涛, 朱建军, 匡翠林 , 等. 小波包多阈值去噪法及其在形变分析中的应用[J]. 测绘学报, 2014,43(1):13-20.
	Zhang Zhetao, Zhu Jianjun, Kuang Cuilin , et al. Multi-threshold wavelet packet de-noising methodand its application in deformation analysis[J]. Acta Geodaeticaet Cartographica Sinica, 2014,43(1):13-20.
[9]	吴光文, 王昌明, 包建东 , 等. 基于自适应阈值函数的小波阈值去噪方法[J]. 电子与信息学报, 2014,36(6):1340-1347. doi: 10.3724/SP.J.1146.2013.00798
	Wu Guangwen, Wang Changming, Bao Jiandong , et al. A wavelet threshold de-noising algorithm based on adaptive threshold function[J]. Journal of Electronics & Information Technology, 2014,36(6):1340-1347. doi: 10.3724/SP.J.1146.2013.00798
[10]	朱建军, 章浙涛, 匡翠林 , 等. 一种可靠的小波去噪质量评价指标[J]. 武汉大学学报, 2015,40(5):688-694.
	Zhu Jianjun, Zhang Zhetao, Kuang Cuilin , et al. A reliable evaluation indicator of wavelet de-noising[J]. Geomatics and Information Science of Wuhan University, 2015,40(5):688-694.
[11]	杨永锋, 吴亚锋 . 经验模态分解在振动分析中的应用[M]. 北京: 国防工业出版社, 2013.

时间/h	触点接触压降U_j/V
时间/h	原始值	去噪后
1	0.409	0.396
2	0.427	0.37
3	0.379	0.36
…	…	…

评价指标			试品
评价指标	1#	2#	3#	4#	5#
SNR/dB	55.915 6	46.973 9	48.597 6	53.743 8	50.878 5
RMSE	0.022 2	0.035 2	0.037 4	0.025 1	0.032 2

预测模型	RBF模型	EEMD-RBF模型
SSE	2.39	0.69
MSE	0.040 5	0.011 7

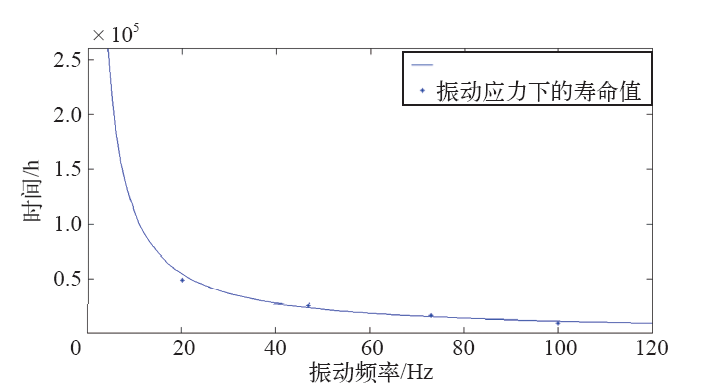

振动频率/Hz			试品
振动频率/Hz	1#	2#	3#	4#	5#
100	8 909	8 910	9 003	9 010	9 015
75	15 876	15 884	15 903	16 005	15 892
45	25 198	25 256	25 203	25 491	25 247
20	49 001	49 056	49 125	49 106	49 013
