基于云遗传策略的永磁电机表贴式双曲极靴优化设计

doi:10.11985/2016.09.002

摘要/Abstract

摘要：

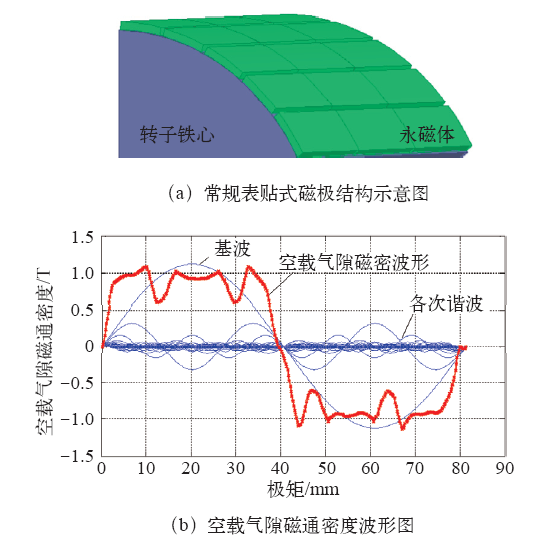

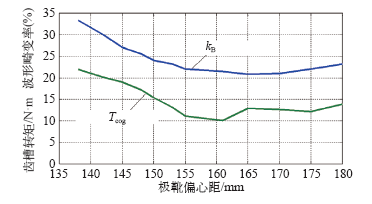

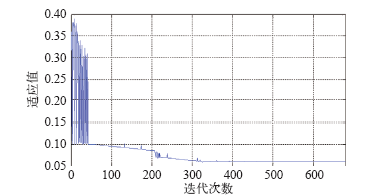

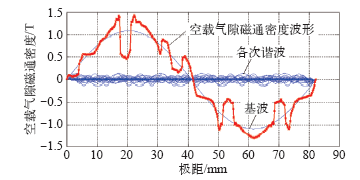

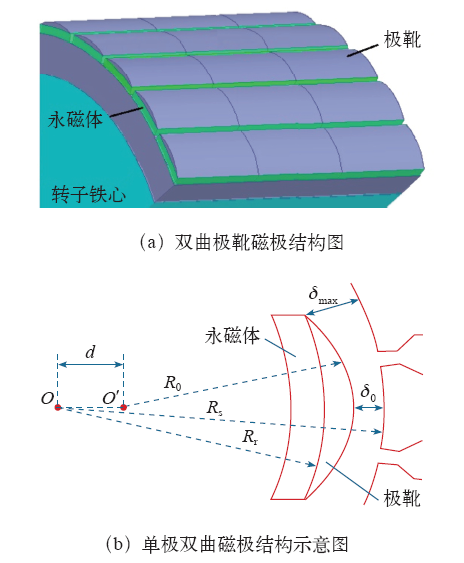

针对常规瓦形表贴式磁极产生近似矩形的空载气隙磁密,导致感应电势谐波含量较高、转矩脉动大,以及表贴式永磁体在转子装配过程中易磕碰受损等问题,提出一种在瓦片形永磁体表面加装导磁极靴的双曲磁极结构。通过对双曲磁极的空载气隙磁密波形畸变率和齿槽转矩波形的分析,建立双曲磁极结构参数化模型。以齿槽转矩最小化和电磁转矩最大化为优化目标,采用云遗传策略（CGS）优化设计一台表贴式双曲磁极永磁电机,优化结果表明电机的齿槽转矩等各项指标都有所改善。最后,利用有限元仿真方法以及样机测试的方法进行验证,结果均证明了双曲极靴磁极结构及其优化设计方法的正确性。

关键词: 云遗传策略, 永磁电机, 表贴式双曲极靴, 转矩脉动

Abstract:

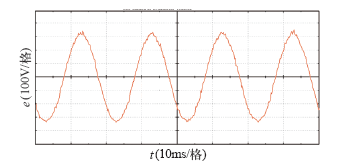

Approximately rectangular no-load air-gap flux density waveform of traditional tile surface mounted permanent magnet motor had high harmonic content in the back EMF, large torque ripple and easy to bump damage in the rotor assembly process, a novel surface mount hyperboloidal pole structure composed of permanent magnet and magnetic metal shoe was presented. Then, no-load air-gap flux density and cogging torque was calculated, and the corresponding harmonics and sinusoidal distortion rate of air-gap flux density were obtained by Fourier decomposition. Build the hyperbolidal pole structure parameters of the mode. Taking minimizing the cogging torque and maximizing the electromagnetic torque as the target, this paper design a surface mounted hyperboloidal pole permanent magnet motor by cloud genetic strategies (CGS). The design results show that cogging torque and other performance are better than initial model. At last, the simulation is made according to finite element method. The no-load and load test also made after built the prototype motor. Both the results of finite-element simulation and test are verified the design modeling and the optimal method correctly.

Key words: Cloud genetic strategy, permanent magnet motor, surface mounted hyperboloidal pole-shoe, torque ripple

中图分类号:

TM315

王帅,张炳义,陈亚千,牛英力,张霄霆. 基于云遗传策略的永磁电机表贴式双曲极靴优化设计[J]. 电气工程学报, 2016, 11(9): 8-14.

Shuai Wang,Bingyi Zhang,Yaqian Chen,Yingli Niu,Xiaoting Zhang. Optimal Design of Surface Mounted Hyperboloidal Pole Permanent Magnet Motor Based on Cloud Genetic Strategy[J]. Journal of Electrical Engineering, 2016, 11(9): 8-14.

图/表 10

图1

图2

图3

表1

图5

表2

图6

图7

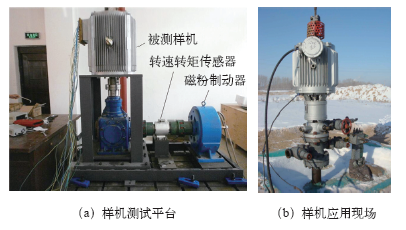

图8

参考文献 16

[1]	方程, 许海平, 薛劭申 , 等. 直驱型多相永磁同步电机定子磁动势与气隙磁通密度特性分析[J]. 中国电机工程学报, 2013,33(24):106-113.
	Fang Cheng, Xu Haiping, Xue Shaoshen , et al. Analysis of stator MMF and air gap flux density characteristics of direct-drive multi-phase permanent synchronous machines[J]. Proceeding of the CSEE, 2013,33(24):106-113.
[2]	夏加宽, 彭兵, 王成元 , 等. 近极槽永磁电动机齿顶漏磁对转矩的影响[J]. 电工技术学报, 2012,27(11):97-103.
	Xia Jiakuan, Peng Bing, Wang Chengyuan . Influence of the zigzag leakage flux on torque in surface-mounted PM synchronous motors with similar number of poles and slots[J]. Transactions of China Electrotechnical Society 2012,27(11):97-103.
[3]	杨玉波, 王秀和, 朱常青 . 组合磁极削弱永磁同步电动机转矩脉动方法研究[J]. 电机与控制学报, 2013,17(2):34-38.
	Yang Yubo, Wang Xiuhe, Zhu Changqing . Research of modular pole on the reduction of torque ripple of permanent magnet synchronous motor[J]. Electric Machines and Control, 2013,17(2):34-38.
[4]	Mourad Chabcchoub, Ibrahim Ben Salah, Guilaume Krebs, et al. PMSM Cogging Torque Reduction: Comparison between different shapes of magnet[C]. The First International Conference on Renewable Energies and Vehicular Technology, Tunisia, 2012: 206-211.
[5]	Chen Zhenfei, Xia Changliang, Geng Qiang , et al. Modeling and analyzing of surface-mounted permanent magnet synchronous machines with optimized magnetic pole shape[J]. IEEE Transactions on Industry Electronics, 2015,62(6):3438-3447.
[6]	Liu Weiliang, Pei Yulong, Li Cuiping, et al. Influence of rotor structure on the performance of permanent magnet wind generator[C]. IEEE International Conference on Electrical Machines and Systems, 2011.
[7]	李辉, 许艮, 杨超 , 等. 汽车天窗电机设计参数对齿槽转矩影响及优化[J]. 电机与控制学报, 2012,16(1):18-22, 30.
	Li Hui, Xu Gen, Yang Chao , et al. Influences of design parameters on cogging torque and potimization of low noise sunroof motor[J]. Electric Machines and Control, 2012,16(1):18-22, 30.
[8]	Zhao Wenliang, Zhao Fei, Thomas A Lipo , et al. Optimal design of a novel v-type interior permanent magnet motor with assisted barriers for the improvement of torque characteristics[J]. IEEE Transactions on Magnetics, 2014,50(11):1-4.
[9]	陈云云, 全力, 朱孝勇 , 等. 双凸极永磁双转子电机优化设计与电磁特性分析[J]. 中国电机工程学报, 2014,34(12):1912-1921.
	Cheng Yunyun, Quan Li, Zhu Xiaoyong , et al. Optimal design and electromagnetic performance analysis of double-salient permanent-magnet doubel-rotor motors[J]. Proceedings of the CSEE, 2014,34(12):1912-1921.
[10]	刘禹, 李德毅 . 正态云模型雾化性质统计分析[J]. 北京航空航天大学学报, 2010,36(11):1320-1324.
	Liu Yu, Li Deyi . Statistics on atomized feature of normal cloud model[J]. Journal of Beijing University of Aeronautics and Astronautics, 2010,36(11):1320-1324.
[11]	戴朝华, 朱云芳, 陈维荣 , 等. 云遗传算法及其应用[J]. 电子学报, 2007,35(7):1419-1424.
	Dai Chaohua, Zhu Yunfang, Chen Weirong , et al. Cloud model based genetic algorithm and its application[J]. Acta Electronica Sinica, 2007,35(7):1419-1424.
[12]	郑小强, 刘敏, 孔繁荣 , 等. 基于云遗传算法的MRO服务调度[J]. 计算机集成制造系统, 2013,19(9):2348-2354.
	Zheng Xiaoqiang, Liu Min, Kong Fanrong , et al. Cloud genetic algorithm based MRO services scheduling model[J]. Computer Integrated Manufacturing Systems, 2013,19(9):2348-2354.
[13]	张炳义, 冯桂宏, 王凤翔 , 等. SPWM电源供电下低速大扭矩永磁同步电动机设计研究[J]. 电工技术学报, 2001,16(6):85-90.
	Zhang Bingyi, Feng Guihong, Wang Fengxiang . Study on low speed and high torque PMSM design with SPWM power supply[J]. Transactions of China Electrotechnical Society, 2001,16(6):85-90.
[14]	王秀和, 杨玉波, 丁婷婷 , 等. 基于极弧系数选择的实心转子永磁同步电动机齿槽转矩削弱方法研究[J]. 中国电机工程学报, 2005,25(15):146-149.
	Wang Xiuhe, Yang Yubo, Ding Tingting , et al. The method for reducing cogging torque by suitable selection of pole-arc coefficient in solid-rotor PM synchronous motors[J]. Proceeding of the CSEE, 2005,25(15):146-149.
[15]	曲广龙, 杨洪耕 . 基于梯形云模型的电能质量数据关联性挖掘方法[J]. 电力系统自动化, 2015,39(7):145-150.
	Qu Guanglong, Yang Honggeng . A correlation mining method for power quality data based on trapezoidal cloud model[J]. Automation of Electric Power Systems, 2015,39(7):145-350.
[16]	雷将锋, 彭敏放, 沈美娥 , 等. 基于云遗传算法的接地网优化设计[J]. 电力自动化设备, 2012,32(7):119-123.
	Lei Jiangfeng, Peng Minfang, Shen Meie , et al. Optimal design of grounding grid based on cloud genetic algorithm[J]. Electric Power Automation Equipment, 2012,32(7):119-123.

参数	数值	参数	数值
额定转速/(r/min)	200	额定功率/kW	22
定子槽数	72	转子极数	30
定子外径/mm	520	磁钢厚度/mm	6
定子内径/mm	390	气隙长度/mm	0.8（最小值）

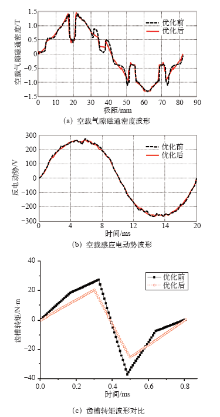

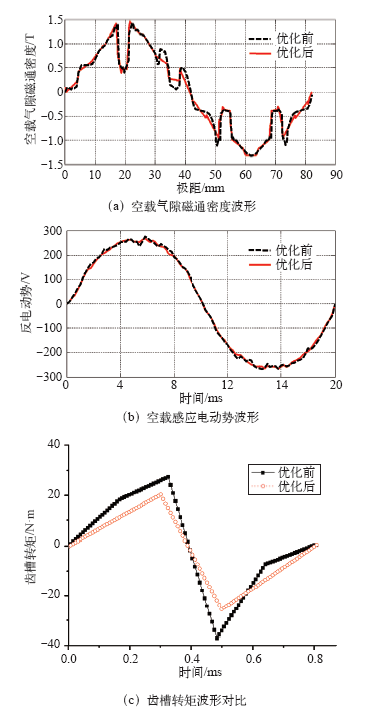

参数	优化前	优化后
d/mm	161	152
αp	0.886	0.898
Tem/(N·m)	1142	1163
Tcog/(N·m)	38.2	25.0
