轴向多段式高速外永磁转子爪极电机的电磁场与温度场分析

doi:10.11985/2015.09.001

摘要/Abstract

摘要：

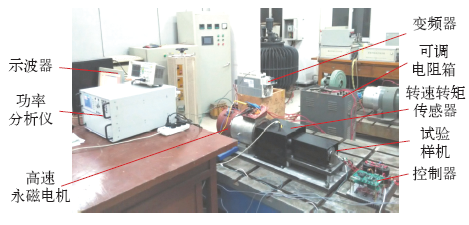

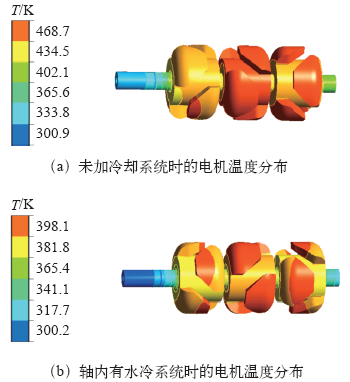

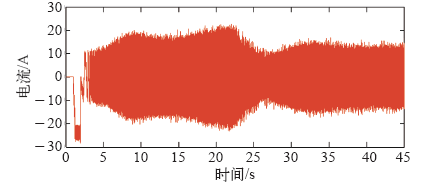

高速永磁电机可与负载直接相连,省去了传统的机械增速装置,在工业应用与航空航天等领域得到越来越多的应用。传统高速永磁电机采用内转子结构,为避免永磁体受高速旋转带来的拉应力需要采取特殊的保护措施,由此带来永磁体用量大、气隙磁密偏低、涡流损耗严重等突出问题。高速外永磁转子结构电机则可避免上述问题。本文基于一台3kW、20 000r/min的高速外永磁转子爪极电机,对高速外转子爪极电机的电磁方案进行了设计与分析,利用有限元软件验证了电磁设计的合理性;针对高速永磁电机损耗密度大、散热困难等问题,本文设计了轴内水冷系统并建立了三维有限元模型,利用流-固耦合法对电机的温度分布进行了详细分析,最后加工了一台样机,并通过实验验证了本文理论分析的正确性。

关键词: 高速永磁电机, 电磁设计, 温度分布, 有限元法

Abstract:

High speed permanent magnet motor can connect with the load without any medium and get rid of conventional speed-up gear boxes. Hence, the motor is more extensive used in industrial manufacturing and aerospace equipments recently. Inner punch rotor is widely adopted in conventional high speed permanent magnet motor, and in order to diminish pull stress of permanent magnet, a protection method is often used, which makes permanent magnet volume big, air-gap flux small and eddy-current loss great. But outer rotor high speed permanent magnet motor could avoid the problem. Based on a 3kW, 20 000r/min outer rotor high speed permanent magnet motor, electromagnetic parameters of the motor is designed in this paper, and finite element simulation is used to verify the rationality of electromagnetic design. Aiming at the great loss destiny and difficulty of heat dissipation, a inside-shaft water cooling system is designed and a 3D temperature field model is set up. Two-phase flow method is used to analyze the temperature distribution of the motor in detail. Finally, a prototype is manufactured and the correctness of this paper theoretical analysis is confirmed by prototype test.

Key words: High speed permanent magnetic motor, electromagnetic design, temperature distribution, finite element method

中图分类号:

TM355

王双翼,张凤阁,刘光伟. 轴向多段式高速外永磁转子爪极电机的电磁场与温度场分析[J]. 电气工程学报, 2015, 10(9): 1-7.

Wang Shuangyi,Zhang Fengge,Liu Guangwei. Electromagnetic Design and Temperature Field Analysis of a High Speed Claw Motor with Outer Permanent Magnetic Rotor[J]. Journal of Electrical Engineering, 2015, 10(9): 1-7.

图/表 13

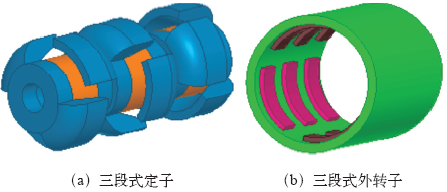

图1

表1

表2

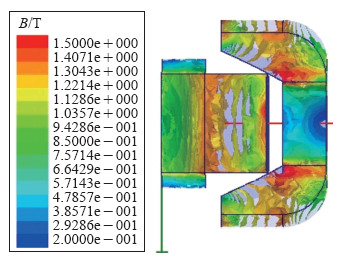

图2

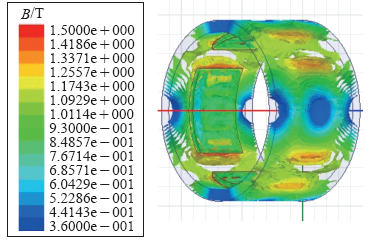

图3

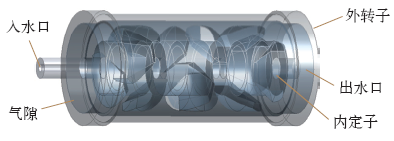

图4

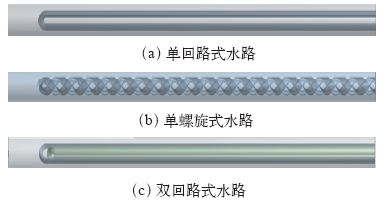

图5

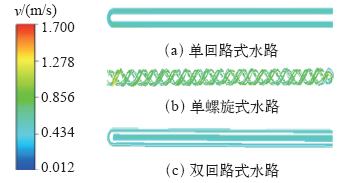

图6

图7

图8

图9

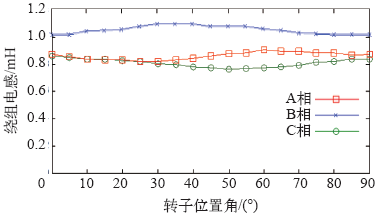

图10

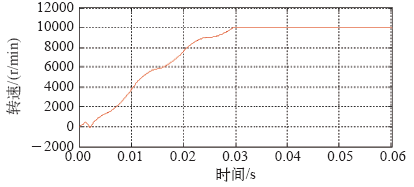

图11

参考文献 16

[1]	王凤翔 . 高速电机的设计特点及相关技术研究[J]. 沈阳工业大学学报, 2006,28(3):258-263.
	Wang Fengxiang . Study on design feature and related technology of high speed electrical machines[J]. Journal of Shenyang University of Technology, 2006,28(3):258-263.
[2]	Gieras , Jacek F . Design of permanent magnet brushless motors for high speed applications[C]. 17th International Conference on Electrical Machines and Systems (ICEMS), 2014.
[3]	董剑宁, 黄允凯, 金龙 , 等. 高速永磁电机设计与分析技术综述[J]. 中国电机工程学报, 2014,34(27):4640-4653. doi: 10.13334/j.0258-8013.pcsee.2014.27.011
	Dong Jianning, Huang Yunkai, Jin Long , et al. Review on high speed permanent magnet machines including design and analysis technologies[J]. Proceedings of the CSEE, 2014,34(27):4640-4653. doi: 10.13334/j.0258-8013.pcsee.2014.27.011
[4]	沈建新, 李鹏, 郝鹤 , 等. 高速永磁无刷电机电磁损耗的研究概况[J]. 中国电机工程学报, 2012,33(3):62-74.
	Shen Jianxin, Li Peng, Hao He , et al. Study on electromagnetic losses in high-speed permanent magnet brushless machines-the state of the art[J]. Proceedings of the CSEE, 2012,33(3):62-74.
[5]	Aleksandar Borisavljevic, Henk Polinder, Jan Abraham Ferreira . On the speed limits of permanent-magnet machines[J]. IEEE Transactions on Industrial Electronics, 2010,57(1):220-227. doi: 10.1109/TIE.2009.2030762
[6]	Jason D Ede, Zhu Z Q, David Howe . Rotor resonances of high-speed permanent magnet brushless machines[J]. IEEE Transactions on Industry Applications, 2000,38(6):1542-1548. doi: 10.1109/TIA.2002.804765
[7]	David Gerada, Abdeslam Mebarki, Neil L Brown , et al. Design aspects of high-speed high-power-density laminated-rotor induction machines[J]. IEEE Transactions on Industrial Electronics, 2011,58(9):4039-4047. doi: 10.1109/TIE.2010.2098364
[8]	Han Wook Cho, Kyoung Jin Ko, Jang Young Choi , et al. Rotor natural frequency in high-speed permanent-magnet synchronous motor for turbo-compressor application[J]. IEEE Transactions on Magnetic, 2011,47(10):4258-4261. doi: 10.1109/TMAG.20
[9]	Liu Guangwei, Zhang Fengge , et al. Analytic model of no-load air gap magnetic field for claw pole motor with outer permanent magnet rotor[J]. Transactions of China Electrotechnical Society, 2014,29(1):52-59.
[10]	魏永田, 孟大伟, 温嘉斌 . 电机内热交换[M]. 北京: 机械工业出版社, 1998.
[11]	任钦 . 高功率密度永磁电机磁场与温度场计算[D]. 哈尔滨:哈尔滨工业大学, 2009.
[12]	程树康, 李翠萍, 柴凤 . 不同冷却结构的微型电动车用感应电机三维稳态温度场分析[J]. 中国电机工程学报, 2012,32(30):82-90.
	Cheng Shukang, Li Cuiping, Chai Feng . Analysis of the 3D steady temperature field of induction motors with different cooling structures in mini electric vehicles[J]. Proceedings of the CSEE, 2012,32(30):82-90.
[13]	袁世鹏 . 兆瓦级永磁半直驱风力发电机电磁与传热的数值计算[D]. 哈尔滨:哈尔滨理工大学. 2011.
[14]	李伟力, 李守法, 谢颖 , 等. 感应电动机定转子全域温度场数值计算及相关敏感性分析[J]. 中国电机工程学报, 2007,27(24):85-91.
	Li Weili, Li Shoufa, Xie Ying , et al. Stator-rotor coupled thermal field numerical calculation of induction motors and correlated factors sensitivity analysis[J]. Proceedings of the CSEE, 2007,27(24):85-91.
[15]	Rajagopal M S, Seetharamu K N, PA A N . Finite element analysis of radial cooled rotating electrical machines[J]. International Journal of Numerical Methods for Heat and Fluid Flow, 1999,9(1):18-38. doi: 10.1108/09615539910251086
[16]	李翠萍, 柴凤, 程树康 . 冷却水流速对汽车水冷电机温升影响研究[J]. 电机与控制学报, 2012,16(9):3-8.
	Li Cuiping, Chai Feng, Cheng Shukang . Research on the effects of cooling water velocity on temperature rise of the water-cooled motor in electric vehicles[J]. Electric Machines and Control, 2012,16(9):3-8.

名称	数值	名称	数值/mm
转子外径/mm	100	转子内径/mm	88
气隙长度/mm	2	定子外径/mm	79

名称	数值
额定功率P_N/W	3 000
极对数p	2
功率因数cos φ	0.85
效率η	0.8
