单端反激有源钳位光伏并网微逆变器设计

doi:10.11985/2016.04.004

电气工程学报 ›› 2016, Vol. 11 ›› Issue (4): 22-28.doi: 10.11985/2016.04.004

• 合肥工业大学电气与自动化工程学院专刊（一） • 上一篇下一篇

单端反激有源钳位光伏并网微逆变器设计

赵坚¹,汪海宁¹,张晓安²

1.合肥工业大学教育部光伏系统工程研究中心能源研究所安徽 230009
2.合肥工业大学智能制造技术研究院安徽 230088

收稿日期:2016-01-20 出版日期:2016-04-25 发布日期:2020-01-02
作者简介:赵坚男 1990年生,硕士研究生,研究方向为电力系统及其自动化。|汪海宁女 1978年生,副教授,硕士生导师,研究方向为新能源发电和电力传动。
基金资助:
广东省引进创新科研团队计划资助(2011N015)

Design of Active Clamp Grid-Connected Micro-Inverter Based on Single-Ended Flyback Topology

Zhao Jian¹,Wang Haining¹,Zhang Xiaoan²

1.Research Center for Photovoltaic System Engineering of MOE Energy Institute Hefei University of Technology Anhui 230009 China
2.Intelligent Manufacturing Institute Hefei University of Technology Anhui 230088 China

Received:2016-01-20 Online:2016-04-25 Published:2020-01-02

摘要/Abstract

摘要：

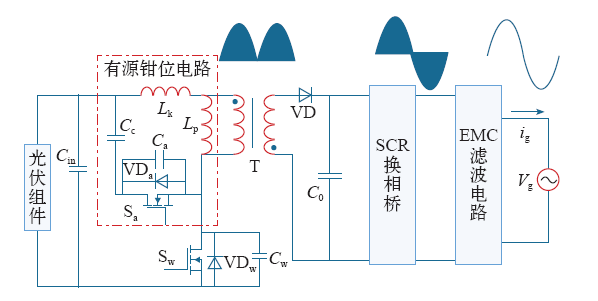

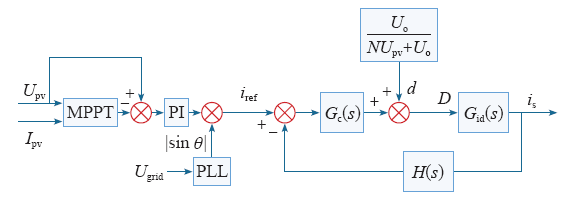

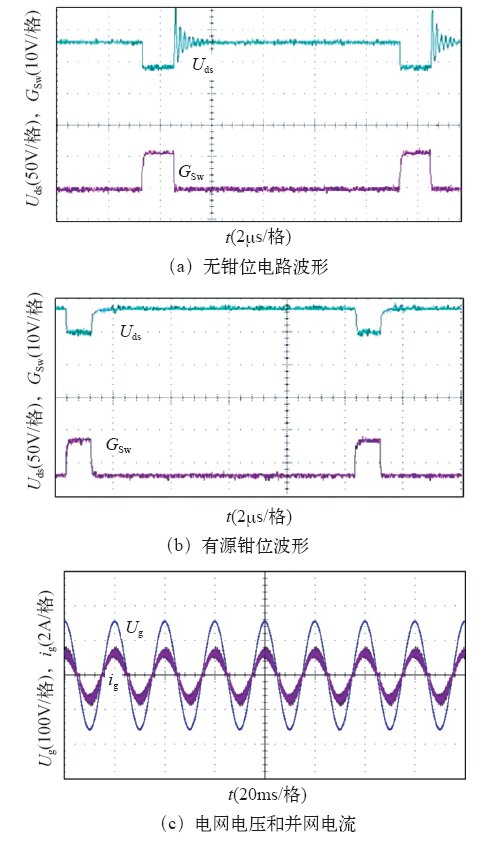

本文以反激型并网微逆变器为研究对象,首先简述了单相并网微逆变器的电路构成和原理,详细分析了反激变换器在加入有源钳位电路后电路的工作原理;其次对反激型并网微逆变器的控制系统进行了建模分析,并对主功率电路中的参数进行了设计;最后,通过样机验证了有源钳位电路不仅有效地抑制了反激变换器一次侧主开关管关断时的电压尖峰,能够实现主开关管ZVS,而且不会影响并网发电功能。

关键词: 反激型微逆变器, 有源钳位电路, 参数设计, 零电压开关

Abstract:

In this paper, considering the flyback grid-conneted micro-inverter, the structure and principle of the single-phase grid-conneted micro-inverter are described firstly, and the working principle of flyback converter is analyzed in detail when the active clamp circuit is joined. Secondly, the control system modeling of flyback micro-inverter is analyzed and the parameters of the main power circuitare are designed. Finally, through this prototype verify the active clamp circuit not only the voltage spikes are effeetively limited when the main switch of the flyback is turn-off and achieve the zero voltage switch (ZVS), but also does not affect the function of power generation.

Key words: Flyback micro-inverter, the active clamp circuit, parameters design, zero voltage switch

中图分类号:

TM464

赵坚,汪海宁,张晓安. 单端反激有源钳位光伏并网微逆变器设计[J]. 电气工程学报, 2016, 11(4): 22-28.

Zhao Jian,Wang Haining,Zhang Xiaoan. Design of Active Clamp Grid-Connected Micro-Inverter Based on Single-Ended Flyback Topology[J]. Journal of Electrical Engineering, 2016, 11(4): 22-28.

图/表 8

图1

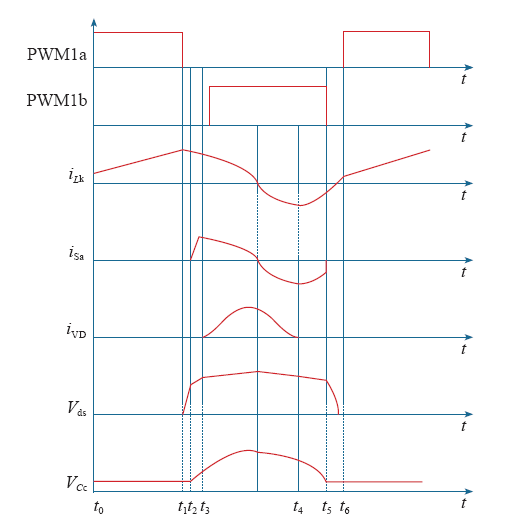

图2

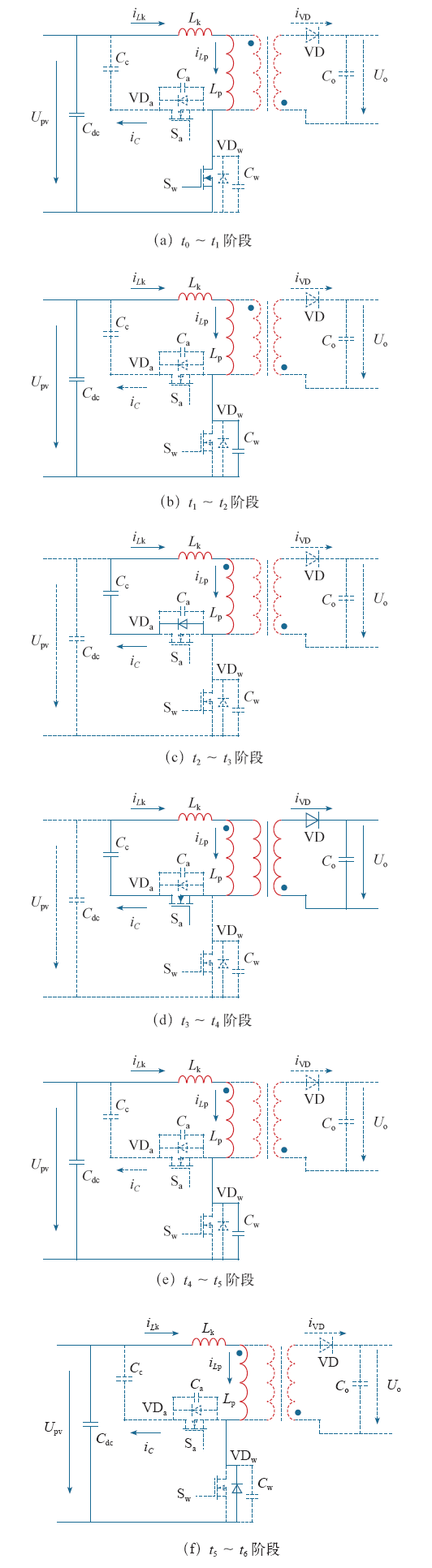

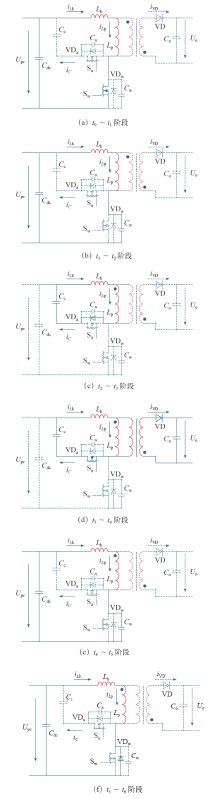

图3

图4

图5

表

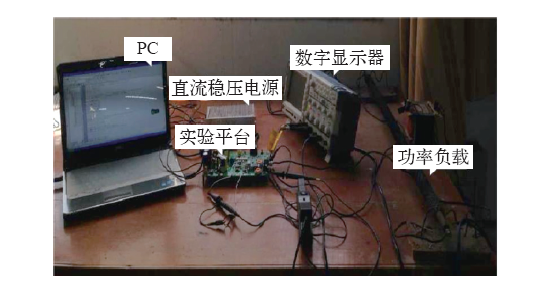

图6

图7

参考文献 17

[1]	Sukesh N, Pahlevaninezhad M, Jain P K . Analysis and implementation of a single-stage flyback PV microinverter with soft switching[J]. IEEE Transactions on Industrial Electronics, 2014,61(4):1819-1833. doi: 10.1109/TIE.2013.2263778
[2]	张兴, 曹仁贤 , 等. 太阳能光伏并网发电及其逆变控制[M]. 北京: 机械工业出版社, 2011.
[3]	Kjaer S B, Pedersen J K, Blaabjerg F . Power inverter topologies for photovoltaic modules—a review[C]. IEEE 37th IAS Annual Meeting, Pittsburgh, USA, 2002: 782-788.
[4]	Kasa N, Iida T . Flyback type inverter for small scall photovoltaic power system[C]. IEEE IECON02, 2002: 1089-1094.
[5]	高文祥, 王明渝, 王立健 , 等. 光伏微型逆变器研究综述[J]. 电力系统保护与控制, 2012,40(21):147-155. doi: 10.7667/j.issn.1674-3415.2012.21.026
	Gao Wenxiang, Wang Mingyu, Wang Lijian , et al. Review of research on photovoltaic micro-inverter[J]. Power System Protection and Control, 2012,40(21):147-155. doi: 10.7667/j.issn.1674-3415.2012.21.026
[6]	Do H L . A soft-switching DC/DC converter with high voltage gain[J]. IEEE Transactions on Power Electronics, 2010,25(5):1193-1200. doi: 10.1109/TPEL.2009.2039879
[7]	程德荣, 肖岚, 胡望淼 . 一种反激型光伏并网微逆变器的研究[J]. 电力电子技术, 2014,48(1):9-11.
	Cheng Derong, Xiao Lan, Hu Wangmiao . Research on a flyback type photovoltaic grid-connected micro-inverter[J]. Power Electronics, 2014,48(1):9-11.
[8]	Choi C T, Li C K, Kok S K . Modeling of an active clamp discontinuous conduction mode flyback converter under variation of operating conditions[C]. IEEE 1999 International Conference on PEDS, 1999: 730-733.
[9]	Watson R, Lee F C, Hua G C . Utilization of an active-clamp circuit to achieve soft switching in flyback converters[J]. IEEE Transactions on Power Electronics, 1996,11(1):162-169. doi: 10.1109/TPEL.63
[10]	黄秀成 . 非互补有源箝位反激变流器的研究[D]. 杭州:浙江大学, 2011.
[11]	Huang X, Du W, Yuan W , et al. A high efficiency flyback converter with new active clamp technique[C]. Applied Power Electronics Conference and Exposition (APEC), 2010 Twenty-Fifth Annual IEEE, 2010: 823-828.
[12]	Kang J S, Kim Y H, Youn S J , et al. Active clamp flyback inverter considering leakage inductance of transformer for photovoltaic AC modules[C]. Vehicle Power and Propulsion Conference(VPPC), 2012 IEEE, 2012: 1379-1383.
[13]	张锦吉, 王小彬, 毛行奎 . 交错反激微功率光伏并网逆变器的设计[J]. 电力电子技术, 2013,47(4):43-45.
	Zhang Jinji, Wang Xiaobin, Mao Xingkui . Design of photovoltaic grid-connected interleaved flyback inverter[J]. Power Electronics, 2013,47(4):43-45.
[14]	石林, 牟龙华 . 反激型光伏微型逆变器不同工作模式的分析与比较[J]. 通信电源技术, 2012,29(4):1-4.
	Shi Lin, Mu Longhua . The analysis and comparison in different mode of flyback micro-inverter for PV module[J]. Telecom Power Technology, 2012,29(4):1-4.
[15]	张凤阁, 朱仕禄, 殷孝雎 , 等. 交错反激式光伏并网微逆变器的控制器实现[J]. 电工技术学报, 2013,28(5):142-147.
	Zhang Fengge, Zhu Shilv, Yin Xiaoju , et al. Controller design of grid-connected micro-inverter based on interleaved flyback structure[J]. Transactions of China Electrotechnical Society, 2013,28(5):142-147.
[16]	张超, 韦庭, 张舒辉 . 具备高压解耦电路的新型无电解电容微逆变器研究[J]. 电气工程学报, 2015(4):82-90.
	Zhang Chao, Wei Ting, Zhang Shuhui . A novel electrolytic capacitor-less micro-inverter with high voltage gain power decoupling circuit[J]. Journal of Electrical Engineering, 2015(4):82-90.
[17]	莫琼 . 有源钳位反激式光伏并网逆变器的研究[D]. 杭州:浙江大学, 2012.

主要实验参数	参数值
开关频率f_s/kHz	100
变压器匝比N	7
光伏电池输入电压/V	25~45
激磁电感L_p/μH	55
漏感L_k/μH	0.6

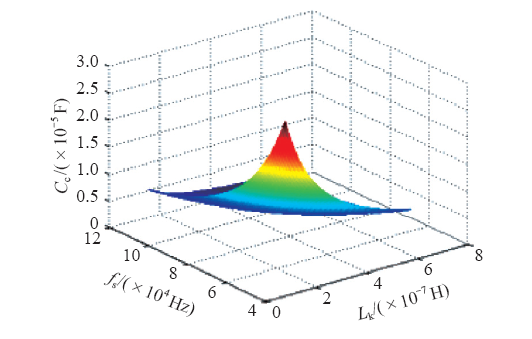

钳位电容C_c/μF	2
电网频率f_g/Hz	50
电网电压U_g/V	110
