一种分段式变步长爬山法最大功率追踪控制策略

doi:10.11985/2015.11.002

摘要/Abstract

摘要：

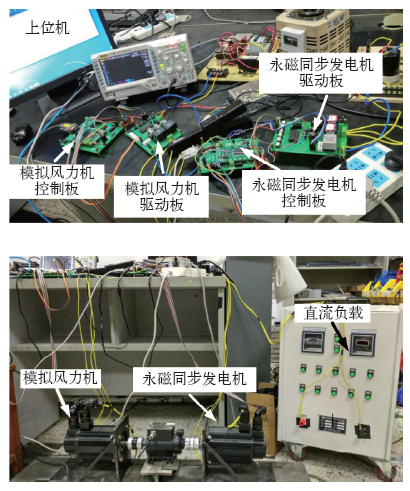

为提高小型永磁同步风力发电系统最大功率追踪的性能,结合小型风力发电机工作特性,在两种经典爬山法的基础上,提出一种更加适合小型风力发电机的分段式变步长爬山法,该算法能快速稳定地使系统运行在最大功率点。在此基础上,搭建了基于Matlab/Simulink的模型进行仿真分析,并构建了以TMS320F28335 DSP为控制核心的直驱式永磁同步风力发电模拟实验平台,通过实验和仿真结果验证了分段式变步长爬山法的有效性和优越性。

关键词: 直驱式风力发电系统, 最大功率追踪, 变步长爬山法, 分段式变步长, 永磁同步发电机

Abstract:

In order to improve the maximum power point tracking performance of the small-scale permanent magnet synchronous wind power system(WPS), combing with the small-scale wind generator operating characteristics, a segmented variable step hill-climbing method suitable for the small-scale WPS is proposed based on the two classic hill-climbing method, which can fast stabilize the system at the maximum power point. Based on it, the simulation system is built by using Matlab/Simulink. And then the direct-driven WPS experimental platform is constructed with the TMS 320F28335 DSP core. The effectiveness and superiority of the proposed hill-climbing method is verified by simulation and experiment.

Key words: Direct-driven wind power generation system, maximum power tracing, variable step climbing method, segmented variable step, permanent magnet synchronous generator

中图分类号:

TM614

颜建虎, 刘丹, 李强, 冯承超. 一种分段式变步长爬山法最大功率追踪控制策略[J]. 电气工程学报, 2015, 10(11): 11-18.

Yan Jianhu , Liu Dan , Li Qiang , Feng Chengchao . A Maximum Power Point Tracking Control Strategy Based on Segmented Variable Step Hill-Climbing Method[J]. Journal of Electrical Engineering, 2015, 10(11): 11-18.

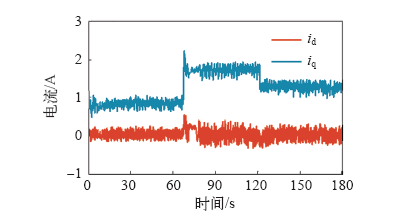

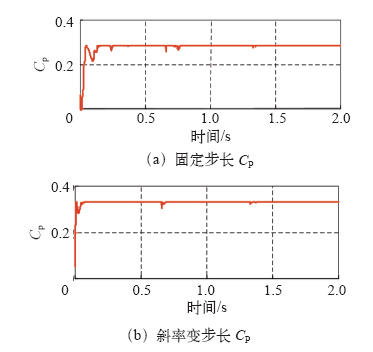

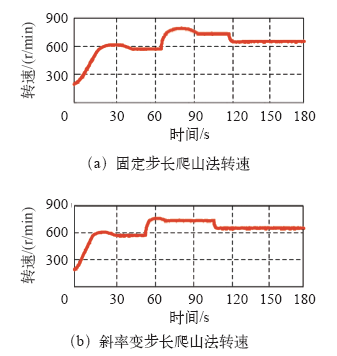

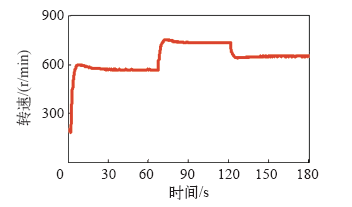

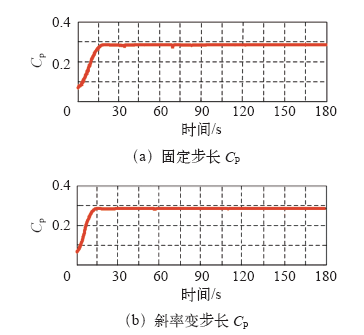

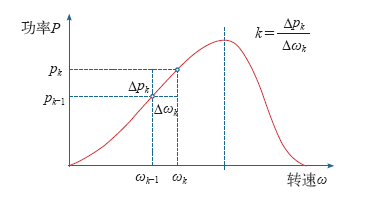

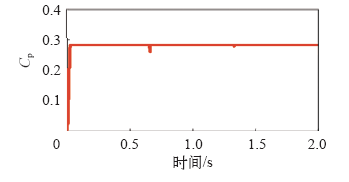

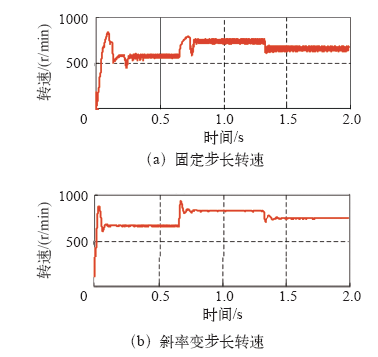

图/表 18

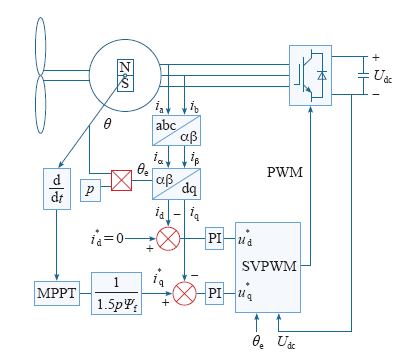

图2

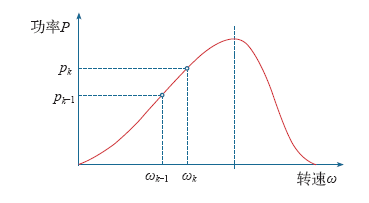

图3

图4

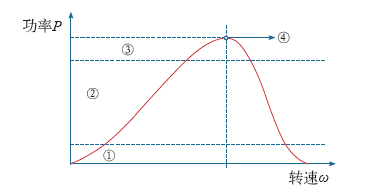

图5

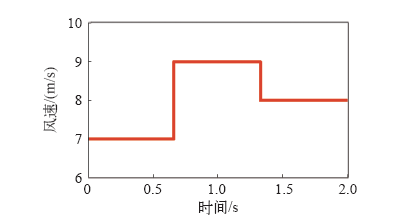

图6

图7

图8

图9

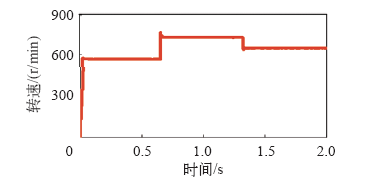

图10

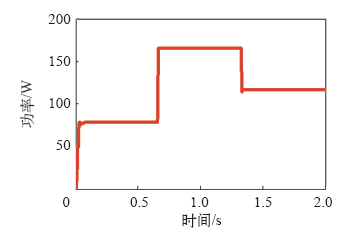

图11

图12

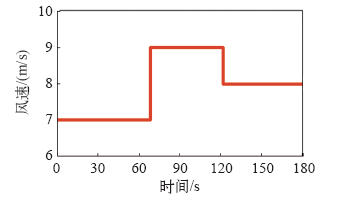

图13

图14

图15

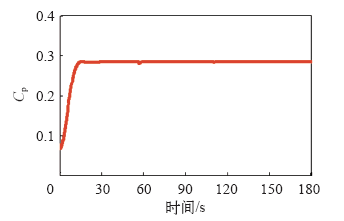

图16

图17

表1

参考文献 16

[1]	Yamakura S, Kesamaru K. Dynamic simulation of PMSG small wind turbine generation system with HCS-MPPT control [C]. IEEE 15th International Conference on Electrical Machines and Systems, 2012: 1-4.
[2]	杨勇, 朱彬彬, 赵方平 , 等. 一种电流预测控制的自适应变步长最大功率跟踪方法[J]. 中国电机工程学报, 2014,34(6):855-862. doi: 10.13334/j.0258-8013.pcsee.2014.06.005
	Yang Yong, Zhu Binbin, Zhao Fangpin , et al. An adaptive and variable step MPPT method based on current predictive controllers[J]. Proceedings of CSEE, 2014,34(6):855-862. doi: 10.13334/j.0258-8013.pcsee.2014.06.005
[3]	Wai R J, Lin C Y, Chang Y R . Novel maximum-power-extraction algorithm for PMSG wind generation system[J]. IET Electric Power Applications, 2007,1(2):275-283. doi: 10.1049/iet-epa:20050514
[4]	胡义华, 陈昊, 徐瑞东 , 等. 一种两阶段变步长最大功率点控制策略[J]. 电工技术学报, 2010,25(8):161-166.
	Hu Yihua, Chen Hao, Xu Ruidong , et al. A two stage variable step-size maximum power point tracking control[J]. Transactions of China Electrotechnical Society, 2010,25(8):161-166.
[5]	刘其辉, 贺益康, 张建华 . 并网型交流励磁变速恒频风力发电系统控制研究[J]. 中国电机工程学报, 2006,26(23):109-114.
	Liu Qihui, He Yikang, Zhang Jianhua . Investigaiton of contorl for AC-exited VSCF wind power generation system connected to grid[J]. Proceedings of the CSEE, 2006,26(23):109-114.
[6]	陈杰, 陈家伟, 陈冉 , 等. 基于永磁同步电机的风力机动静态特性模拟[J]. 中国电机工程学报, 2011,31(15):41-46.
	Chen Jie, Chen Jiawei, Chen Ran , et al. Static and dynamic behaviour simulation of wind turbine based on PMSM[J]. Proceedings of the CSEE, 2011,31(15):41-46.
[7]	沈建新, 缪冬敏 . 变速永磁同步发电机系统及控制策略[J]. 电工技术学报, 2013,28(3):1-8.
	Shen Jianxin, Miao Dongmin . Variable speed permanent magnet synchronous generator systems and control strategies[J]. Transactions of China Electrotechnical Society, 2013,28(3):1-8.
[8]	吴子双, 于继来, 彭喜云 . 高风速段次优功率追踪方式的风电调频方法[J]. 电工技术学报, 2013,28(5):112-119.
	Wu Zishuang, Yu Jilai , Peng xiyun. DFIG’s frequency regulation method only for high wind speed with suboptimal power tracking[J]. Transactions of China Electrotechnical Society, 2013,28(5):112-119.
[9]	赵仁德, 王永军, 张加胜 . 直驱式永磁同步风力发电系统最大功率追踪控制[J]. 中国电机工程学报, 2009,29(27):106-111.
	Zhao Rende, Wang Yongjun, Zhang Jiasheng . Maximum power point tracking control of the wind energy generation system with direct-driven permanent magnet synchronous generators[J]. Proceedings of the CSEE, 2009,29(27):106-111.
[10]	张小莲, 李群, 殷明慧 , 等. 一种引入停止机制的改进爬山算法[J]. 中国电机工程学报, 2012,32(14):128-134.
	Zhang Xiaolian, Li Qun, Yin Minghui , et al. An improved hill-climbing searching method based on halt mechanism[J]. Proceedings of the CSEE, 2012,32(14):128-134.
[11]	Kshirsagar P, Burgos R P, Lidozzi A , et al. Implementation and sensorless vector-control design and tuning strategy for SMPM machines in fan-type applications[J]. IEEE Transactions on Industry Applications, 2012,48(6):2402-2413. doi: 10.1109/TIA.2012.2227135
[12]	Kim J S, Sul S K . New approach for high-performance PMSM dives without rotational position sensors[J]. IEEE Transactions on Power Electronics, 1997,12(5):904-911. doi: 10.1109/TPEL.63
[13]	唐西胜, 苗福丰, 齐智平 , 等. 风力发电的调频技术研究综述[J]. 中国电机工程学报, 2014,34(25):4304-4314. doi: 10.13334/j.0258-8013.pcsee.2014.25.013
	Tang Xisheng, Miao Fufeng, Qi Zhiping , et al. Survey on frequency control of wind power[J]. Proceedings of the CSEE, 2014,34(25):4304-4314. doi: 10.13334/j.0258-8013.pcsee.2014.25.013
[14]	夏长亮 . 永磁风力发电系统及其功率变换技术[J]. 电工技术学报, 2012,27(11):1-13.
	Xia Changliang . Wind energy conversion system based on PMSG and its power converter technology[J]. Transactions of China Electrotechnical Society, 2012,27(11):1-13.
[15]	Ishaque K, Salam Z . A deterministic particle swarm optimization maximum power point tracker for photovoltaic system under partial shading condition[J]. IEEE Transactions on Industrial Electronics, 2013,60(8):3195-3206. doi: 10.1109/TIE.2012.2200223
[16]	Hsieh G C, Hsieh H I, Tsai C Y , et al. Photovoltaic power-increment-aided incremental-conductance MPPT with two-phased tracking[J]. IEEE Transactions on Power Electronics, 2013,28(6):2895-2911. doi: 10.1109/TPEL.2012.2227279

参数	数值
风力机半径R/m	0.65
风力机桨距角β/rad	10
空气密度ρ/(kg/m³)	1.28
额定风速v_n/(m/s)	9
启动风速v_st/(m/s)	3
最佳叶尖速比λ_opt	5.54
最大风能利用系数C_pmax	0.28
磁链Ψ_f/Wb	0.125
定子绕组电阻R_s/Ω	0.62
dq轴电感L_d,L_q/mH(L_d= L_q)	835
发电机极对数p	4
最大电磁转矩T_max/(N·m)	5
转动惯量J /(kg·m²)	0.000 16
摩擦系数F	0.000 544
