无刷双馈感应风电机组无功范围研究

doi:10.11985/2016.12.004

摘要/Abstract

摘要：

确定无刷双馈感应发电机（BDFIG）无功范围,是其参与电网电压控制和安全调度的基础。本文提出不同风速和运行模式时BDFIG无功范围的解析算法。在最大功率点跟踪（MPPT）和有功调度模式下,分别求取无功上下限对风速和有功功率的偏导数,分析不同风速和调度方式对无功范围的影响。发现BDFIG铜耗影响有功出力和无功范围,用其量化后者误差。仿真结果表明,在MPPT模式下,风速越大,BDFIG无功范围越宽。在有功调度模式下,与转速调节相比,相同有功功率参考值时采用桨距角调节有功损耗小,无功范围宽。

关键词: 无刷双馈发电机, 无功范围, 风速, 转差率, 最大功率点跟踪, 有功调度

Abstract:

Quantification of reactive power capability (RPC) is necessary for the brushless doubly-fed induction generator (BDFIG) participating in voltage control and security dispatch of power system. The analytical model of the RPC of the BDFIG with different wind speeds and operation modes is newly quantified. Following the maximum power point tracking (MPPT), derivatives of the upper/lower var limits to the slip are derived to validate effect of wind speeds on RPC. Following active power dispatch, the derivatives of var limits to the active output of the BDFIG are quantified to validate effect of power regulations on the RPC. The copper loss affects active output and var region, thus it is applied to quantify the error of the latter. Numerical results show that under MPPT mode, higher wind speed yields lower rotor slip and a wider RPC. Under active power dispatch with the same power references, the pitch angle regulation has lower copper loss and wider RPC compared with the rotor speed regulation.

Key words: Brushless doubly fed induction generator, reactive power capability, wind speed, slip, maximum power point tracking, active power dispatch

中图分类号:

TM614

李生虎,安锐,吴正阳. 无刷双馈感应风电机组无功范围研究[J]. 电气工程学报, 2016, 11(12): 22-29.

Li Shenghu,An Rui,Wu Zhengyang. Reactive Power Capability of Brushless Doubly Fed Induction Generators[J]. Journal of Electrical Engineering, 2016, 11(12): 22-29.

图/表 9

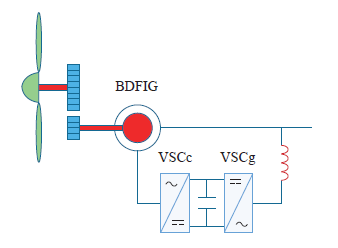

图1

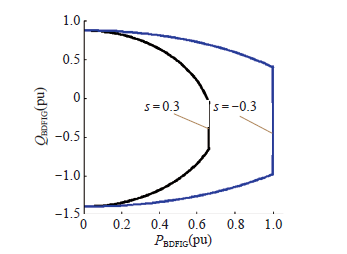

图2

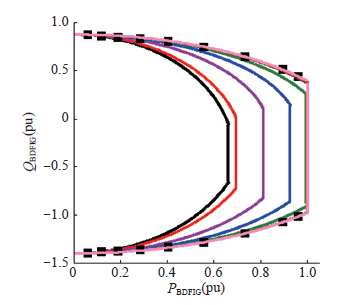

图3

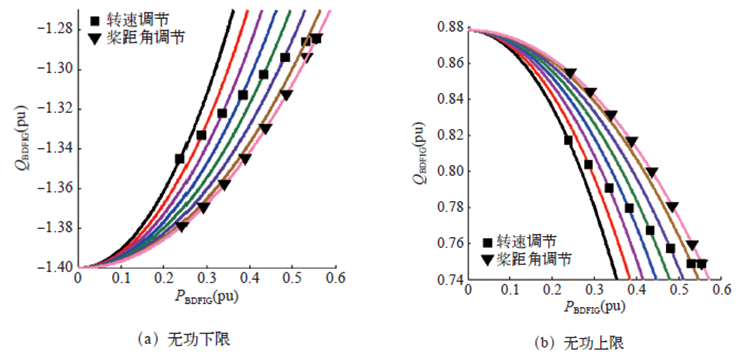

图4

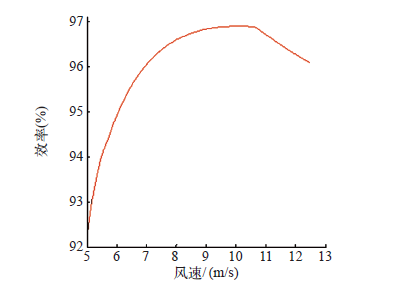

图5

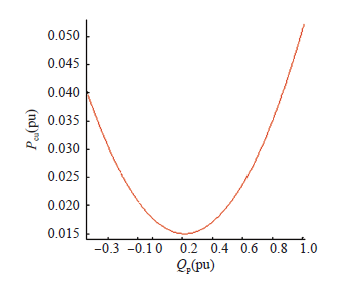

图A1

图A2

表A1

表A2

参考文献 15

[1]	程源, 王雪帆, 熊飞 , 等. 绕线转子无刷双馈电机开环控制下的稳定性研究[J]. 中国电机工程学报, 2013,33(s):203-210.
	Cheng Yuan, Wang Xuefan, Xiong Fei , et al. Investigation of stability for a wound-rotor brushless doubly-fed machine under open-loop control[J]. Proceedings of the CSEE, 2013,33(s):203-210.
[2]	Basic D, Zhu J G, Boardman G , et al. Transient performance study of a brushless doubly fed twin stator induction generator[J]. IEEE Trans. Energy Conversion, 2003,18(3):400-408.
[3]	李生虎, 华玉婷, 朱婷涵 . 无刷双馈异步电机潮流建模和收敛性研究[J]. 电力系统保护与控制, 2014,42(5):90-97.
	Li Shenghu, Hua Yuting, Zhu Tinghan . Power flow modeling and convergence analysis to brushless doubly-fed induction machines[J]. Power System Protection and Control, 2014,42(5):90-97.
[4]	Protsenko K, Xu D . Modeling and control of brushless doubly-fed induction generators in wind energy applications[J]. IEEE Trans. Power Electronics, 2008,23(3):1191-1197.
[5]	Tohidi S, Oraee H, Zolghadri M R , et al. Analysis and enhancement of low-voltage ride-through capability of brushless doubly fed induction generator[J]. IEEE Trans. Industrial Electronics, 2013,60(3):1146-1155.
[6]	Long T, Shao S , Malliband, et al. Crowbarless fault ride-through of the brushless doubly fed induction generator in a wind turbine under symmetrical voltage dips[J]. IEEE Trans. Industrial Electronics, 2013,60(7):2833-2841.
[7]	Dorrell D G, Jovanovic M. On the possibilities of using a brushless doubly-fed reluctance generator in a 2 MW wind turbine [C]. IEEE Industry Applications Society Annual Meeting, Edmonton, Canada, 2008: 1-8.
[8]	邓先明, 姜建国, 伍小杰 , 等. 笼型转子无刷双馈电机的无功功率和稳定性[J]. 电工技术学报, 2008,23(1):40-47.
	Deng Xianming, Jiang Jianguo, Wu Xiaojie , et al. Reactive power and stability of brushless doubly-fed machine with cage rotor[J]. Transactions of China Electrotechnical Society, 2008,23(1):40-47.
[9]	Abdi E, Mcmahon R, Malliband P , et al. Performance analysis and testing of a 250kW medium speed brushless doubly-fed induction generator[J]. IET Renewable Power Generation, 2013,7(6):631-638.
[10]	Jovanovic M G, Betz r E. Power factor control using brushless doubly fed reluctance machines [C]. IEEE Industry Applications Conference, Rome, Italy, 2000: 523-530.
[11]	阮景峰 . 无刷双馈风力发电机变速恒频控制技术研究[D]. 沈阳:沈阳工业大学, 2007.
[12]	Mcmahon R A, Roberts P C, Wang X , et al. Performance of BDFM as generator and motor[J]. IET Electric Power Applications, 2006,153(2):289-299.
[13]	Li S . Operation region of doubly fed induction generators based on rotor slip under maximum power point tracking control and power dispatch[J]. Electric Power Components and Systems, 2014,42(8):808-817.
[14]	Valenciaga F, Puleston P F . Variable structure control of a wind energy conversion system based on a brushless doubly-fed reluctance generator[J]. IEEE Trans. Energy Conversion, 2007,22(2):499-506.
[15]	Tohidi S, Tavner P, Mcmahon R , et al. Low voltage ride-through of DFIG and brushless DFIG: similarities and differences[J]. Electric Power Systems Research, 2014,110:64-72.

v/(m/s)	s	P_wt(pu)	P_BDFIG(pu)	Q_BDFIGmin(pu)	Q_BDFIGmax(pu)
5.00	0.300 0	0.064 2	0.059 2	-1.395 7	0.873 6
6.00	0.266 6	0.123 8	0.117 5	-1.385 2	0.862 1
7.00	0.144 4	0.196 5	0.188 8	-1.376 0	0.851 5
8.00	0.022 2	0.293 3	0.283 4	-1.361 1	0.834 4
9.00	-0.100 1	0.417 7	0.404 5	-1.334 5	0.804 4
10.00	-0.222 3	0.572 9	0.555 2	-1.284 3	0.749 0
11.00	-0.300 0	0.758 5	0.733 6	-1.191 9	0.646 8
12.00	-0.300 0	0.928 8	0.894 3	-1.076 1	0.513 2
12.49	-0.300 0	1.000 0	0.960 9	-1.016 7	0.442 8

P_BDFIG,set(pu)	转速调节
P_BDFIG,set(pu)	s	P_BDFIG(pu)	Q_BDFIGmin(pu)	Q_BDFIGmax(pu)
0.25	0.238 5	0.238 8	-1.344 9	0.817 3
0.30	0.192 3	0.287 0	-1.333 1	0.803 7
0.35	0.145 5	0.335 3	-1.322 2	0.790 7
0.40	0.096 4	0.383 7	-1.312 8	0.779 6
0.45	0.042 6	0.432 2	-1.302 5	0.767 3
0.50	-0.021 0	0.481 2	-1.293 8	0.757 2
0.55	-0.110 8	0.530 8	-1.286 1	0.749 0
0.5729	-0.222 3	0.555 2	-1.284 3	0.749 0
P_BDFIG,set(pu)	桨距角调节
P_BDFIG,set(pu)	β/(°)	P_BDFIG(pu)	Q_BDFIGmin(pu)	Q_BDFIGmax(pu)
0.25	4.146 4	0.242 9	-1.378 6	0.854 7
0.30	3.234 8	0.291 8	-1.369 1	0.844 1
0.35	2.464 1	0.340 5	-1.357 7	0.831 4
0.40	1.796 4	0.388 9	-1.344 5	0.816 7
0.45	1.207 5	0.437 2	-1.329 5	0.799 9
0.50	0.680 7	0.485 3	-1.312 6	0.780 9
0.55	0.240 1	0.533 3	-1.293 7	0.759 6
0.5729	0	0.555 2	-1.284 3	0.749 0
