Analysis of High Speed Permanent Magnet Motor for Different Rotor Sheath

doi:10.11985/2018.10.004

Abstract

Abstract:

In this paper, 300kW, 15 000r/min high speed permanent magnet synchronous motor is designed. For surface mounted respectively on high speed rotor structure, carbon fiber and alloy steel sheath of permanent magnet synchronous motor motor are analyzed. For high power and high speed permanent magnet motor, the parameters are designed and the temperature field and the loss are analyzed. Based on the finite element analysis, the software is used to simulate the motor, and the data such as iron loss are obtained, and the data obtained are analyzed. By comparing the simulation results, it is found that the heating of the motor under the alloy steel sheath is more serious.

Key words: Permanent magnet synchronous motor, temperature field, loss analysis, sheath, carbon fiber, alloy steel

CLC Number:

TM315

Wang Dapeng,Zhao Guangtai. Analysis of High Speed Permanent Magnet Motor for Different Rotor Sheath[J]. Journal of Electrical Engineering, 2018, 13(10): 17-21.

Figures/Tables 16

Fig.1

Tab.1

Fig.2

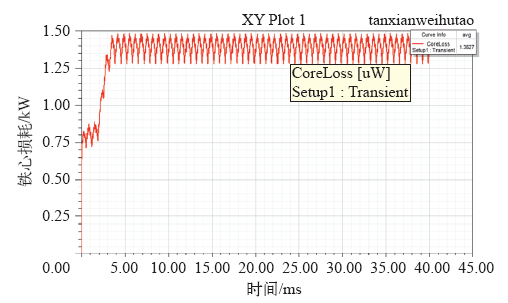

Fig.3

Fig.4

Fig.5

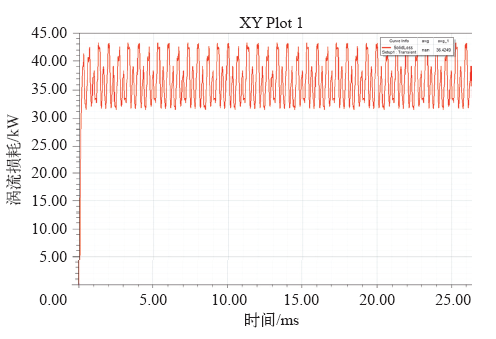

Fig.6

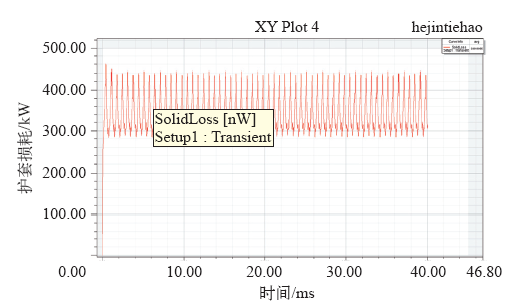

Fig.7

Tab.2

Fig.8

Fig.9

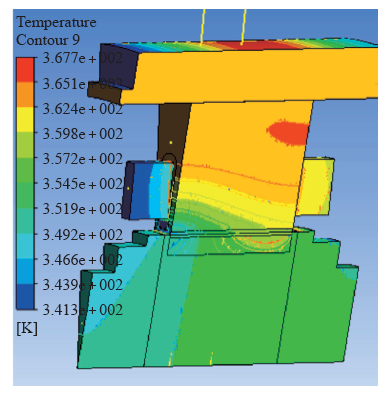

Fig.10

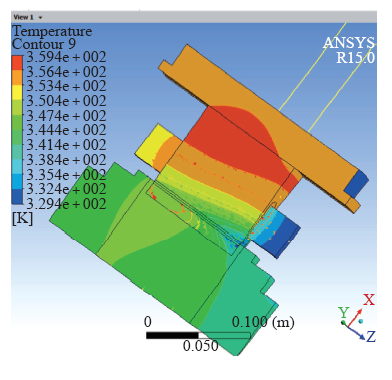

Fig.11

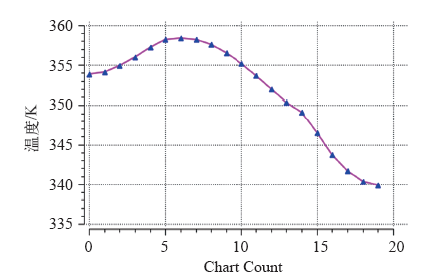

Fig.12

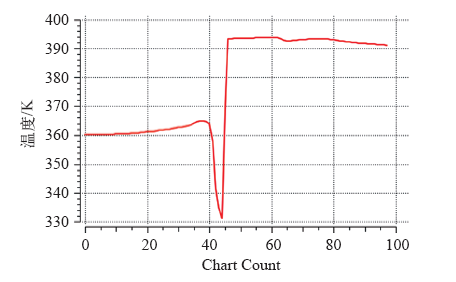

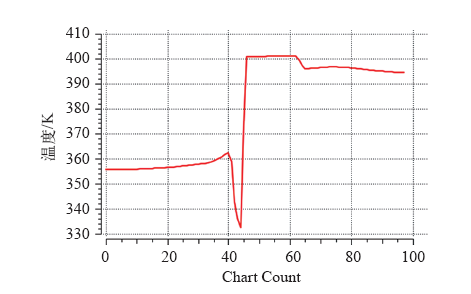

Fig.13

Tab.3

References 10

[1]	Emanuele Fornasiero . Slot harmonic impact on rotor losses in fractional-slot permanent-magnet machines[J]. IEEE Transactions on Industrial Electronics, 2012,59(6):2557-2564. doi: 10.1109/TIE.2011.2168794
[2]	王凤翔 . 高速电机的设计特点及相关技术研究[J]. 沈阳工业大学学报, 2006,28(3):258-259.
	Wang Fengxiang . Study on design feature and related technology of high speed electrical machines[J]. Journal of Shenyang University of Technology, 2006,28(3):258-259.
[3]	Baile C . Design of high-speed direct-connected permanent-magnet motors and generators for the petrochemical industry[J]. IEEE Transactions on Industry Application, 2009,45(3):1159-1165. doi: 10.1109/TIA.2009.2018964
[4]	邱洪波 . 高速永磁发电机转子涡流损耗优化及对温升分布影响的研究[D]. 哈尔滨:哈尔滨理工大学, 2014.
[5]	唐任远 , 等. 现代永磁电机理论与设计[M]. 北京: 机械工业出版社, 2007.
[6]	王秀和 . 永磁电机[M]. 北京: 中国电力出版社, 2007.
[7]	张殿海 . 高速永磁电机流体场分析与温升计算[D]. 沈阳:沈阳工业大学, 2009.
[8]	Deng F. Improved analytical modeling of commutation losses including space harmonic effects in permanent magnet brushless DC motors [C]. Proceedings of the 1998 IEEE Industry Applications Conference, St. Louis, MO, USA, 1998: 380-386.
[9]	王继强, 王凤翔, 孔晓光 . 高速永磁发电机设计与电磁性能分析[J]. 中国电机工程学报, 2008,28(20):105-110.
	Wang Jiqiang, Wang Fengxiang, Kong Xiaoguang . Design and analysis of electromagnetic properties for high speed PM generator[J]. Proceeding of the CESS, 2008,28(20):105-110.
[10]	Reddy P B, Zhu Z Q, Han S H, et al. Strand-level proximity losses in PM machines designed for high-speed operation [C]. 2008 International Conference on Electrical Machines, Vilamoura, Algarve, Portugal, 2008: 1-6.

名称	数值
定子外径D₁/mm	355
定子内径D_I1/mm	190
转子外径D₂/mm	176
转子内径D_I2/mm	70
定子铁心长度L/mm	130
定子槽数Z₁	36

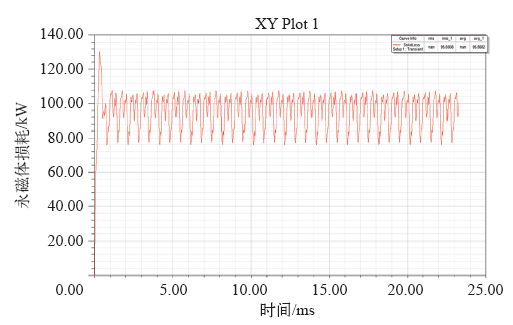

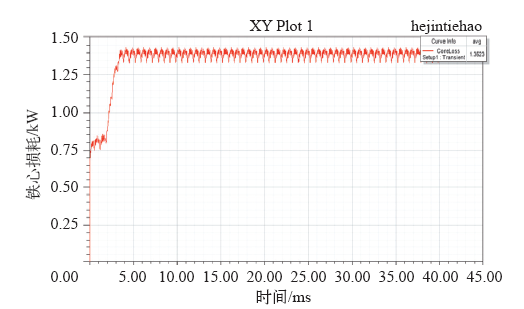

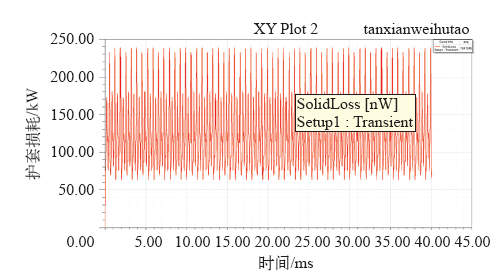

	定子铁心损耗/kW	护套涡流损耗/W	永磁体涡流损耗/W	铜耗 /W	总损耗 /W
碳纤维	1.4	125	96	1 788	3 232
合金钢	1.4	340	36	1 788	3 517

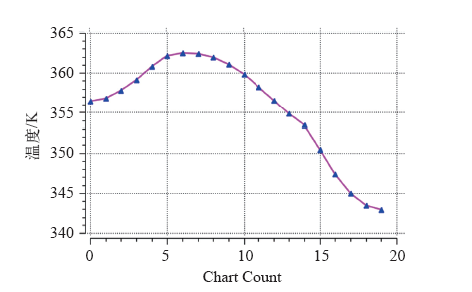

部件	纤维护套	合金护套
转轴	334	335
转子铁心	332	335
永磁体	334	337
护套	335	338
绕组	338	356
定子铁心	362	370
机壳	385	398
