Simulation Research Based on a New High Gain Boost Converter

doi:10.11985/2018.10.003

Abstract

Abstract:

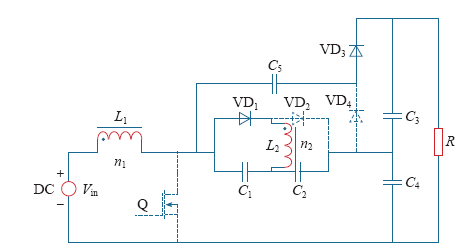

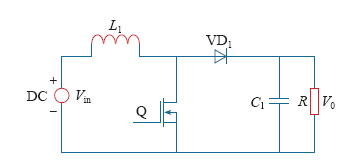

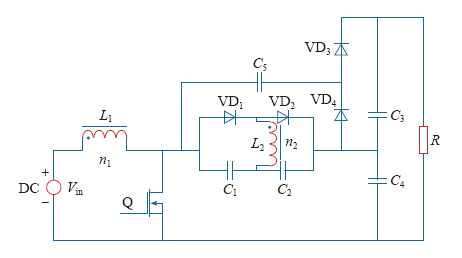

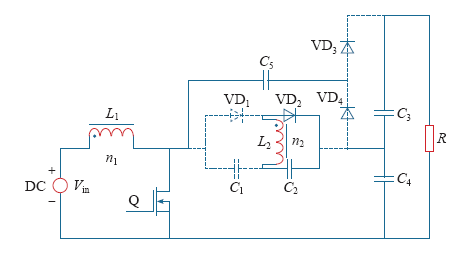

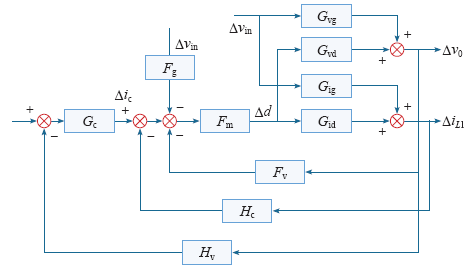

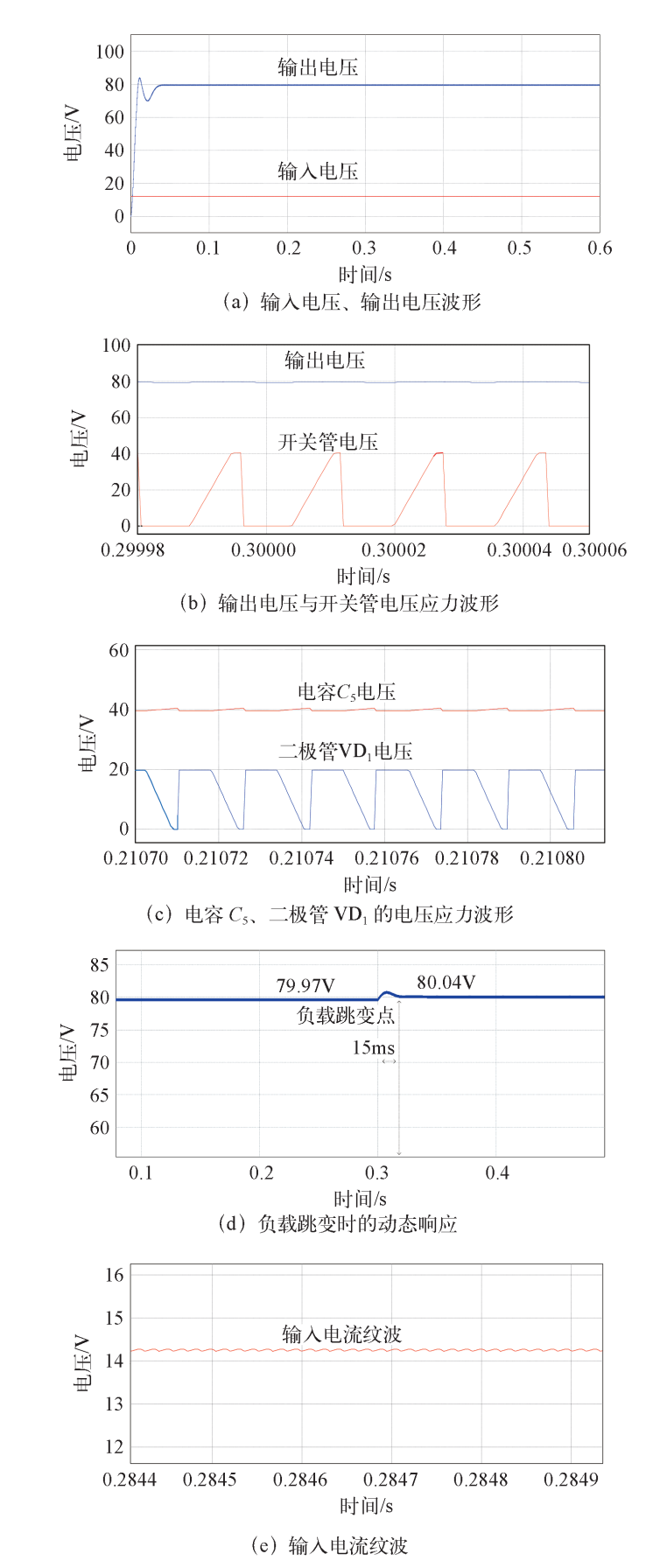

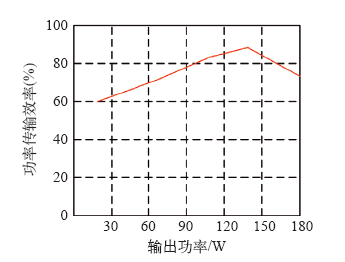

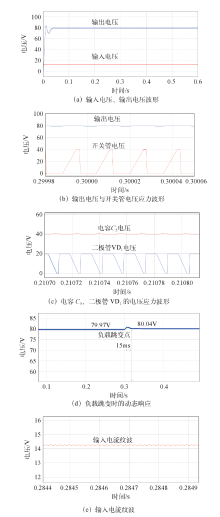

High gain DC/DC converters have been widely used in photovoltaic, new energy, aerospace and other fields. In order to improve the reliability of Boost circuits in high gain applications, a new high gain Boost converter is proposed. The new converter added the switched capacitor unit and the coupling inductor lift unit on the traditional Boost circuit. The circuit can get the high output voltage with a reasonable duty cycle, and also reduce the voltage stress and the input current ripple of the switch tube, thus improving the efficiency of the converter. In this paper, the working principle and steady state characteristics of the circuit are analyzed in detail, and the control strategy of the circuit is given. On the basis of the theory, the experimental verification is carried out by using PSIM simulation software. The simulation results show that the new high gain Boost converter is theoretically correct and feasible.

Key words: High gain Boost circuits, coupled inductor, simulation

CLC Number:

TM46

Ding Min,Wu Guiqing,Hu Jin. Simulation Research Based on a New High Gain Boost Converter[J]. Journal of Electrical Engineering, 2018, 13(10): 11-16.

Figures/Tables 10

Fig.1

Fig.2

Fig.3

Fig.4

Fig.5

Tab.1

Fig.6

Tab.2

Fig.7

Fig.8

References 6

[1]	吴贵洋, 章家岩, 李永超 , 等. 一种单管双电感高增益Boost变换器[J]. 电力电子技术, 2017,51(5):14-16.
	Wu Guiyang, Zhang Jiayan, Li Yongchao , et al. Single-switch high step-up converter with double-inductor[J]. Power Electronics, 2017,51(5):14-16.
[2]	陆治国, 郑璐瑶, 马召鼎 , 等. 带开关电容网络的交错并联高增益Boost变换器[J]. 电工技术学报, 2012,27(11):153-159.
	Lu Zhiguo, Zheng Luyao, Ma Zhaoding . Interleaved high gain Boost converter with switch capacitor network[J]. Transactions of China Eletrtechnical Society, 2012,27(11):153-159.
[3]	张士宇, 许建平, 杨平 . 新型单开关高增益Boost变换器研究[J]. 电工电能新技术, 2013,32(3):12-15.
	Zhang Shiyu, Xu Jianping, Yang Ping . Research on a new single-switch high gain Boost converter[J]. Advanced Technology of Electrical Engineering and Energy, 2013,32(3):12-15.
[4]	唐丽, 曾怡达, 谭金练 , 等. 新型高效高增益Boost变换器的研究[J]. 电力电子技术, 2017,51(11):17-23.
	Tang Li, Zeng Yida, Tan Lianjin , et al. Research on a novel high efficiency high gain Boost converter[J]. Power Electronics, 2017,51(11):17-23.
[5]	高伟, 罗全明, 张阳 , 等. 一种零输入电流纹波高增益DC-DC变换器[J]. 电工技术学报, 2018,33(2):284-292.
	Gao Wei, Luo Quanming, Zhang Yang , et al. A high step-up DC-DC converter with zero input current ripple[J]. Transactions of China Eletrtechnical Society, 2018,33(2):284-292.
[6]	马智文, 曾怡达, 杨辉金 . 一种新型开关电感、开关电容的高增益Boost变换器[J]. 电源学报, 2018,16(2):119-123.
	Ma Zhiwen, Zeng Yida, Yang Huijin . A new high-gain Boost converter based on switched inductor/capacitance[J]. Journal of Power Supply, 2018,16(2):119-123.

增益提高方法	电路增益M
基于开关电容网络与并联交错结构	3/(1 - D)
自举升压与二次变换相结合	1 + 1/(1 - D)
开关电感、开关电容与自举升压相结合	3(1 + D)/(1 - D)
本文提出的方法	2[1/N² + 1/(1 - D)]

参数	指标	参数	指标
输入电压V_in/V	12	储能电容C₃/μF	270
输出电压V₀/V	80±5	储能电容C₄/μF	68
输出功率P₀/W	140	储能电容C₅/μF	68
开关频率f /kHz	63	储能电感L₁/mH	0.5
储能电容C₁/μF	10	储能电感L₂/mH	1
储能电容C₂/μF	10	负载电阻R/Ω	57
