基于电气特性分析的中压配电网拓扑变动分段辨识*

doi:10.11985/2023.04.024

摘要/Abstract

摘要：

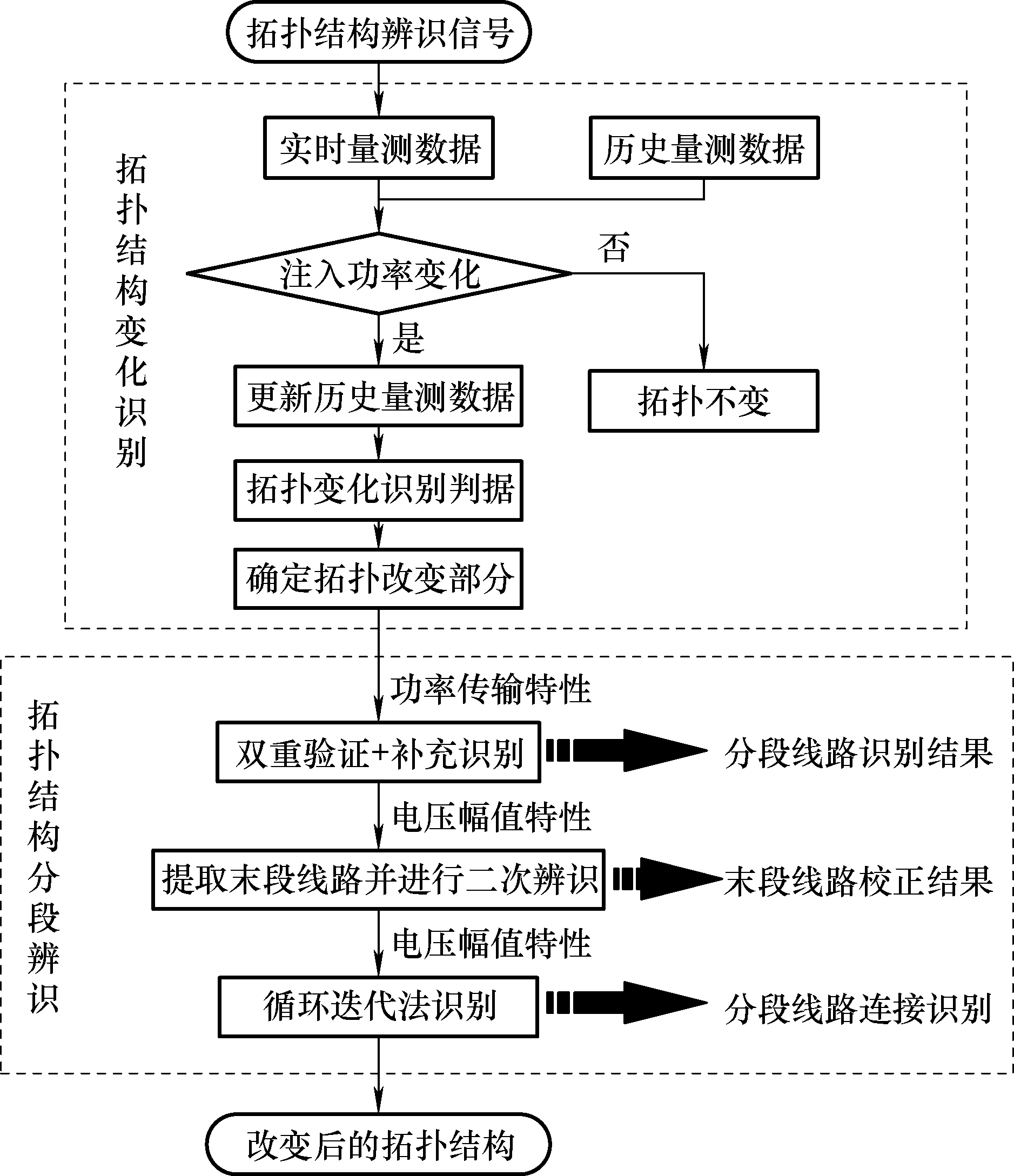

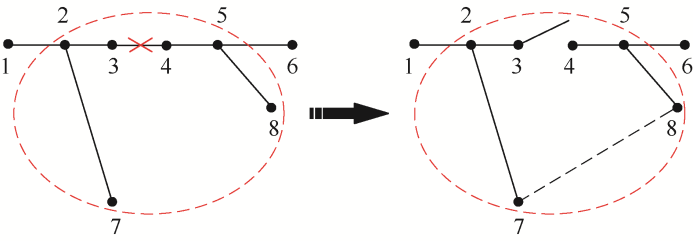

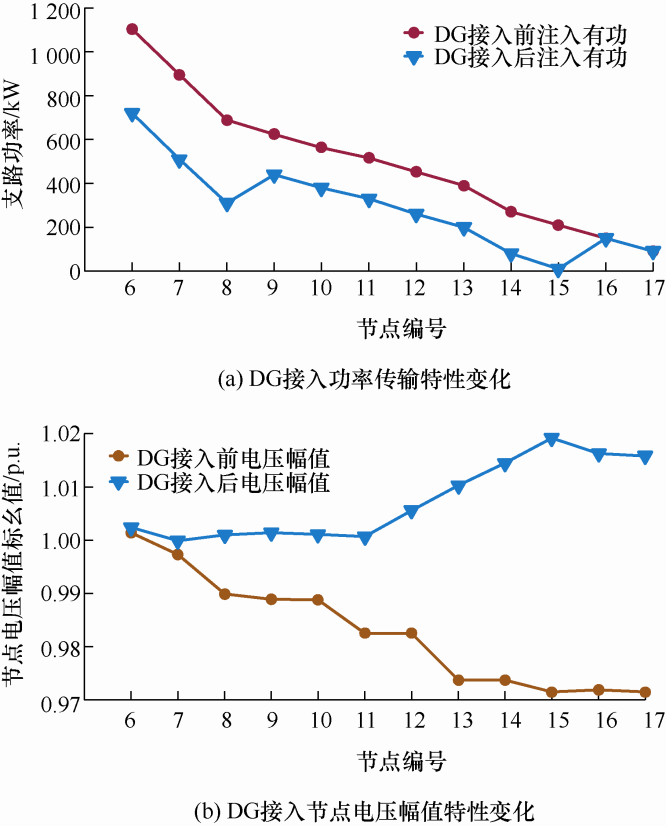

针对量测数据不足且大量分布式电源接入的配电网难以进行拓扑结构辨识的问题，提出了一种基于电气特性分析的拓扑结构分段辨识方法，以提高拓扑结构辨识准确度。首先将“超节点”概念引入配电网，通过分析拓扑改变后节点注入功率的变化，确定发生改变的拓扑范围。通过对分布式电源接入时配电网功率传输特性和电压幅值特性的分析，利用双重验证和补充识别辨识分段线路，并采用二次辨识校正末段线路，最后采用循环迭代法识别分段线路连接关系。仿真结果表明所提方法能够提高拓扑辨识准确度，在量测装置允许的误差范围内鲁棒性好。

关键词: 配电网, 拓扑辨识, 电气特性, 超节点, 分段辨识

Abstract:

In order to solve the problem of topology identification in distribution networks with insufficient measurement data and large number of distributed power sources, a segmentation identification method of topology structure based on electrical characteristic analysis is proposed to improve the accuracy of topology structure identification. Firstly, the concept of “super node” is introduced into the distribution network, and the scope of topology change is determined by analyzing the change of node injected power after topology change. Through the analysis of the power transmission characteristics and voltage amplitude characteristics of the distribution network when the distributed generation is connected, the segmented lines are identified by double verification and supplementary identification, and the final line is corrected by secondary identification. Finally, the loop iteration method is used to identify the connection relationship of the segment line. Simulation results show that the proposed method can improve the accuracy of topology identification and has good robustness within the allowable error range of the measurement device.

Key words: Distribution network, topology identification, electrical characteristics, super node, segment identification

中图分类号:

TM711

杨舒航, 李诗伟, 吴红斌, 蒋思成, 魏英杰. 基于电气特性分析的中压配电网拓扑变动分段辨识^*[J]. 电气工程学报, 2023, 18(4): 217-227.

YANG Shuhang, LI Shiwei, WU Hongbin, JIANG Sicheng, WEI Yingjie. Segment Identification of Topology Changes in Medium Voltage Distribution Network Based on Electrical Characteristics Analysis[J]. Journal of Electrical Engineering, 2023, 18(4): 217-227.

图/表 23

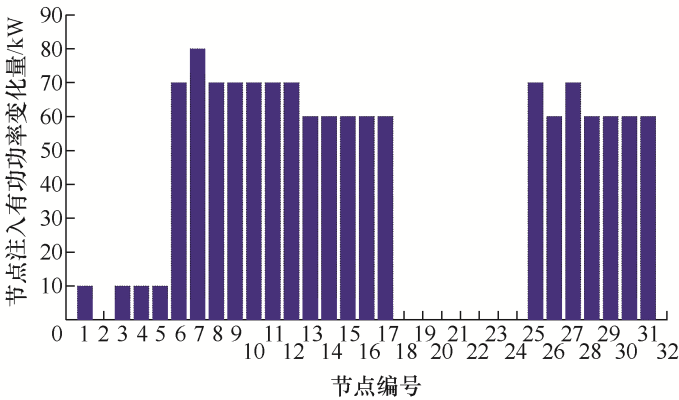

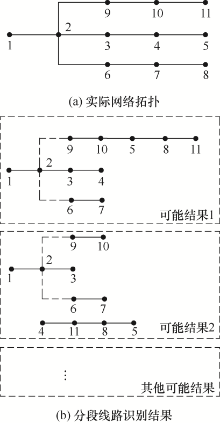

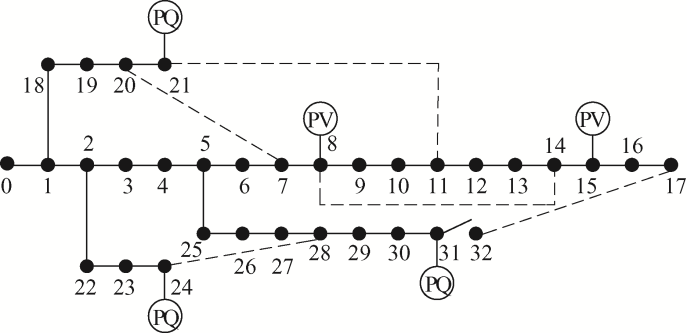

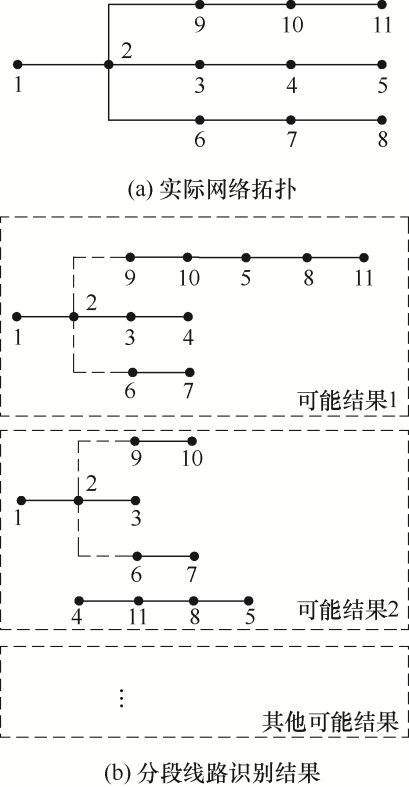

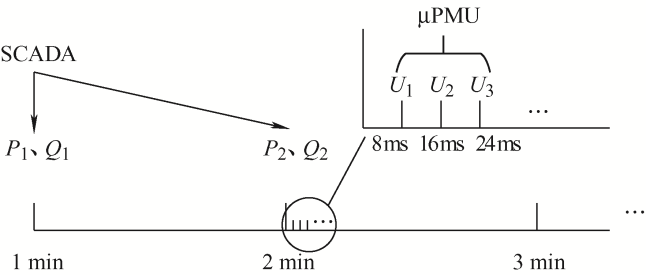

图1

图2

图3

图4

图5

图6

图7

图8

图9

图10

图11

表1

表2

表3

表4

图12

表5

表6

表7

图13

表8

表9

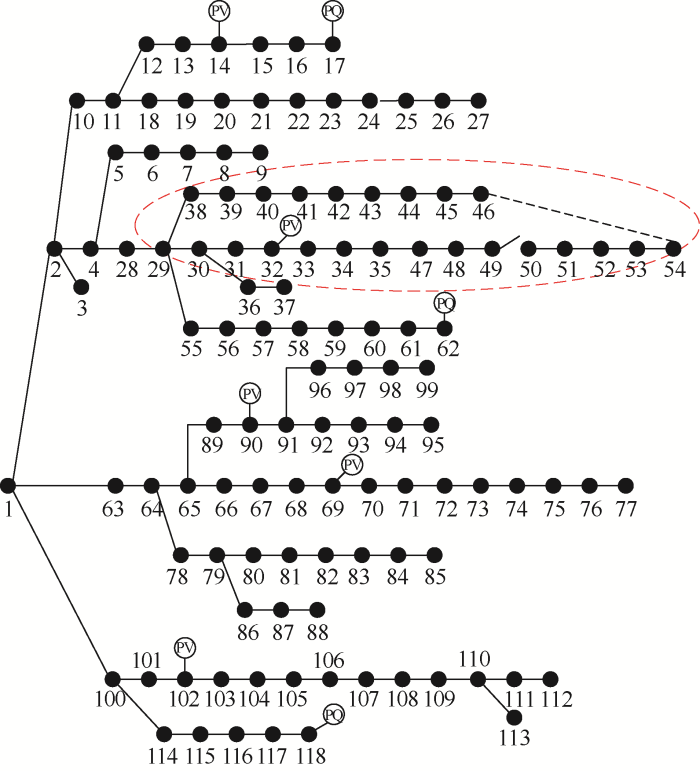

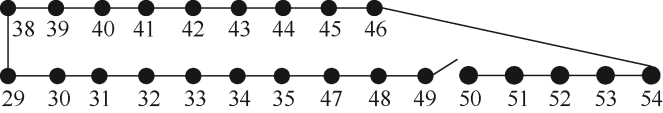

图14

参考文献 23

[1]	赵金焕, 马平. 计及DG功率不确定性的配电网多目标无功优化[J]. 电气工程学报, 2020, 15(3):65-71.
	ZHAO Jinhuan, MA Ping. Multi-objective reactive power optimization of distribution network considering the uncertainty of DG power[J]. Journal of Electrical Engineering, 2020, 15(3):65-71
[2]	ARDAKANIAN O, WONG V W S, DOBBE R, et al. On identification of distribution grids[J]. IEEE Transactions on Control of Network Systems, 2019, 6(3):950-960. doi: 10.1109/TCNS.6509490
[3]	宁家鑫, 刘羽霄, 章家维, 等. 数据驱动的三相配电网络拓扑与线路参数辨识[J]. 中国电机工程学报, 2021, 41(8):2615-2628.
	NING Jiaxin, LIU Yuxiao, ZHANG Jiawei, et al. Data-driven topology and line parameter identification of three-phase distribution grid[J]. Proceedings of the CSEE, 2021, 41(8):2615-2628.
[4]	唐捷, 蔡永智, 李其霖, 等. 基于三相表特征约束聚类的低压台区用户相序识别方法[J]. 电力系统自动化, 2022, 46(8):60-67.
	TANG Jie, CAI Yongzhi, LI Qilin, et al. Phase sequence identification method for users in low-voltage distribution-station area based on feature constraint clustering of three-phase meter[J]. Automation of Electric Power Systems, 2022, 46(8):60-67.
[5]	闫卫国, 王高猛, 林济铿, 等. 基于AMI量测信息的低压配电网拓扑校验方法[J]. 中国电力, 2019, 52(2):125-133.
	YAN Weiguo, WANG Gaomeng, LIN Jikeng, et al. Method for LV distribution network topology verification based on AMI metering data[J]. Electric Power, 2019, 52(2):125-133.
[6]	PAPPU S J, BHATT N, PASUMARTHY R, et al. Identifying topology of low voltage distribution networks based on smart meter data[J]. IEEE Transactions on Smart Grid, 2018, 9(5):5113-5122. doi: 10.1109/TSG.5165411
[7]	周苏荃, 柳焯. 新息图法拓扑错误辨识[J]. 电力系统自动化, 2000, 24(4):23-27.
	ZHOU Suquan, LIU Zhuo. An innovation graph approach to topology error identification[J]. Automation of Electric Power Systems, 2000, 24(4):23-27.
[8]	王彬, 王治华, 周宁慧, 等. 基于集合论估计的电网状态辨识(五)拓扑错误识别[J]. 电力系统自动化, 2016, 40(9):9-15.
	WANG Bin, WANG Zhihua, ZHOU Ninghui, et al. Power system state identification based on set theory estimation part five topology error identification[J]. Automation of Electric Power Systems, 2016, 40(9):9-15.
[9]	WENG Yang, LIAO Yizheng, RAJAGOPAL R. Distributed energy resources topology identification via graphical modeling[J]. IEEE Transactions on Power Systems, 2017, 32(4):2682-2694. doi: 10.1109/TPWRS.2016.2628876
[10]	LIAO Yizheng, WENG Yang, LIU Guangyi, et al. Urban MV and LV distribution grid topology estimation via group lasso[J]. IEEE Transactions on Power Systems, 2019, 34(1):12-27. doi: 10.1109/TPWRS.2018.2868877
[11]	梅睿, 余昆, 陈星莺. 基于节点注入功率的配电网运行拓扑辨识[J]. 电力建设, 2017, 38(11):41-47. doi: DOI： 10.3969/j.issn.1000－7229.2017.11.006
	MEI Rui, YU Kun, CHEN Xingying. Topology identification of distribution network based on nodal power injection[J]. Electric Power Construction, 2017, 38(11):41-47. doi: DOI： 10.3969/j.issn.1000－7229.2017.11.006
[12]	刘超, 杨扬, 梁栋, 等. 基于AMI潮流匹配的中压配电网两阶段拓扑辨识[J]. 电力系统及其自动化学报, 2020, 32(3):123-128.
	LIU Chao, YANG Yang, LIANG Dong, et al. Two-stage topology identification of medium-voltage distribution network based on power flow matching of AMI measurements[J]. Proceedings of the CSU-EPSA, 2020, 32(3):123-128.
[13]	何欣, 井天军, 田昀, 等. 基于支路有功功率的拓扑错误辨识方法[J]. 电子器件, 2020, 43(3):505-510.
	HE Xin, JING Tianjun, TIAN Yun, et al. Topology error identification method based on branches active power[J]. Chinese Journal of Electron Devices, 2020, 43(3):505-510.
[14]	范开俊, 徐丙垠, 董俊, 等. 基于智能终端逐级查询的馈线拓扑识别方法[J]. 电力系统自动化, 2015, 39(11):180-186.
	FAN Kaijun, XU Bingyin, DONG Jun, et al. Identification method for feeder topology based on successive polling of smart terminal unit[J]. Automation of Electric Power Systems, 2015, 39(11):180-186.
[15]	卢虹宇, 蔡月明, 刘明祥, 等. 低压配电台区拓扑辨识及校核方法[J]. 电气自动化, 2020, 42(3):95-98.
	LU Hongyu, CAI Yueming, LIU Mingxiang, et al. Topology identification and check method for low-voltage distribution areas[J]. Electrical Automation, 2020, 42(3):95-98.
[16]	王宗晖, 陈羽, 徐丙垠, 等. 基于逻辑节点的分布式馈线自动化拓扑识别[J]. 电力系统自动化, 2020, 44(12):124-130.
	WANG Zonghui, CHEN Yu, XU Bingyin, et al. Logical node based topology identification of distributed feeder automation[J]. Automation of Electric Power Systems, 2020, 44(12):124-130.
[17]	孙伟, 朱世睿, 杨建平, 等. 基于图卷积网络的微电网拓扑辨识[J]. 电力系统自动化, 2022, 46(5):71-81.
	SUN Wei, ZHU Shirui, YANG Jianping, et al. Topology identification of microgrid based on graph convolutional network[J]. Automation of Electric Power Systems, 2022, 46(5):71-81.
[18]	任鹏哲, 刘友波, 刘挺坚, 等. 基于互信息贝叶斯网络的配电网拓扑鲁棒辨识算法[J]. 电力系统自动化, 2021, 45(9):55-62.
	REN Pengzhe, LIU Youbo, LIU Tingjian, et al. Robust identification algorithm for distribution network topology based on mutual-information Bayesian network[J]. Automation of Electric Power Systems, 2021, 45(9):55-62.
[19]	叶剑华, 罗凤章, 杨理. 基于改进蝠鲼觅食优化SVM的配电网拓扑辨识[J]. 电力系统及其自动化学报, 2021, 33(10):43-50.
	YE Jianhua, LUO Fengzhang, YANG Li. Distribution network topology identification based on SVM optimized by improved manta ray foraging optimization algorithm[J]. Proceedings of the CSU-EPSA, 2021, 33(10):43-50.
[20]	唐捷, 蔡永智, 周来, 等. 基于数据驱动的低压配电网线户关系识别方法[J]. 电力系统自动化, 2020, 44(11):127-134.
	TANG Jie, CAI Yongzhi, ZHOU Lai, et al. Data-driven based identification method of feeder-consumer connectivity in low-voltage distribution network[J]. Automation of Electric Power Systems, 2020, 44(11):127-134.
[21]	李坤, 周来, 张勇军, 等. 基于量测数据质量的低压台区拓扑识别结果可信度评价[J]. 电力系统自动化, 2021, 45(17):99-107.
	LI Kun, ZHOU Lai, ZHANG Yongjun, et al. Credibility evaluation of topology identification results in low-voltage distribution network based on quality of measured data[J]. Automation of Electric Power Systems, 2021, 45(17):99-107.
[22]	王贺飞, 李洪涛, 余昆, 等. 基于DSCADA和μPMU数据融合的配电网运行拓扑辨识[J]. 电力建设, 2019, 40(6):123-131. doi: 10.3969/j.issn.1000-7229.2019.06.014
	WANG Hefei, LI Hongtao, YU Kun, et al. Identification of distribution network operation topology based on DSCADA and μPMU telemetry data fusion[J]. Electric Power Construction, 2019, 40(6):123-131. doi: 10.3969/j.issn.1000-7229.2019.06.014
[23]	李虹, 张占龙, 高亚静. 一种配电网拓扑结构辨识方法的探讨[J]. 中国电力, 2015(5):133-138,143.
	LI Hong, ZHANG Zhanlong, GAO Yajing. Research and discussion on a method for topology identification of distribution system[J]. Electric Power, 2015(5):133-138,143.

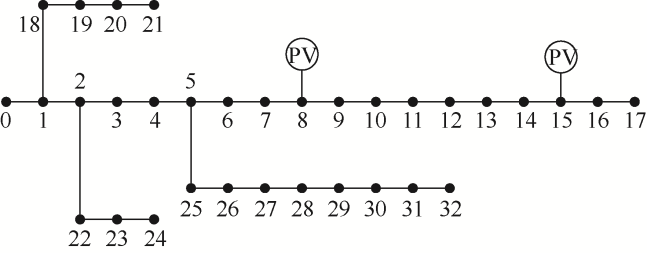

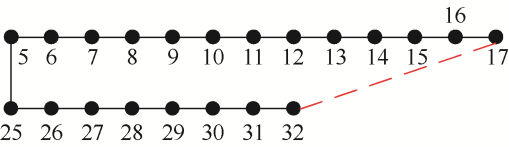

分段线路编号	无DG接入	DG接入
①	5	5
②	6-7	6
③	8-13	7
④	25-29	8-15
⑤	30-14-15-16-31-17-32	25-29
⑥		30-16-17-31
⑦		32

分段线路编号	无DG接入	DG接入
⑤	14-17-32	16-17-32
⑥	30-31	30-31

分段线路编号	无DG接入	DG接入
①	5	5
②	6-7	6
③	8-13	7
④	25-29	8-15
⑤	14-17-32	25-29
⑥	30-31	16-17-32
⑦		30-31

配置	本文方法	回路功率法	电压偏差方差法
断开支路	28-29	29-30	5-6、11-12、28-29
投入联络线	17-32	17-32	17-32

辨识方法	辨识准确率(%)
辨识方法	无DG接入时	DG接入时
本文方法	99.78	99.69
回路功率法	99.74	95.66
电压偏差方差法	94.53	92.72
