面向韧性提升的配电网开关优化配置模型*

doi:10.11985/2020.03.017

摘要/Abstract

摘要：

安装开关设备能够提升配电网抵御极端灾害下大规模故障的能力,综合考虑分布式电源和可控负荷的作用,提出了面向韧性提升的配电网开关优化配置模型。首先,梳理了韧性、可靠性和自愈能力之间的关系,描述了配电网韧性的分析过程与量化方法;其次,考虑分布式电源和可控负荷的作用,提出了适用于多重故障的极端灾害下配电网停电负荷量计算方法,以韧性指标最大为目标建立了混合整数线性规划形式的配电网开关优化配置模型,并提出了开关优化配置的整体流程;最后,通过算例分析表明在配电网中安装开关能够与本地分布式电源和负荷削减手段相配合显著提升配电网韧性,减小灾害中负荷损失量。

关键词: 配电网, 韧性, 配电自动化, 开关优化配置, 配电孤岛

Abstract:

The installation of switch equipment can improve the ability of the distribution network to withstand large-scale failures under extreme disasters. Therefore, an optimal configuration model for distribution network switches that improves resilience is proposed with comprehensive consideration of the role of distributed power and controllable loads. First, the relationship between resilience, reliability, and self-healing ability is sorted out, and the analysis process and quantification method of the resilience are described. Secondly, considering the role of distributed generation and controllable loads, a calculation method for power outage load in distribution networks with multiple faults is proposed. The optimal configuration model of distribution network switches is established in the form of mixed integer linear programming with the goal of maximum resilience index, and the overall process of switch optimal configuration is proposed. Finally, an example analysis shows that the switch installation in the distribution network can work with distributed generation and load reduction methods to significantly improve the resilience and reduce the amount of load loss in extreme disaster.

Key words: Distribution network, resilience, distribution automation, switch optimized configuration, distribution island

中图分类号:

TM727

赵晓琦,张智,姚琪,倪坤,马伟. 面向韧性提升的配电网开关优化配置模型^*[J]. 电气工程学报, 2020, 15(3): 128-134.

ZHAO Xiaoqi,ZHANG Zhi,YAO Qi,NI Kun,MA Wei. Optimal Configuration Model of Switch for Distribution Network Based on Resilience Improvement[J]. Journal of Electrical Engineering, 2020, 15(3): 128-134.

图/表 9

表1

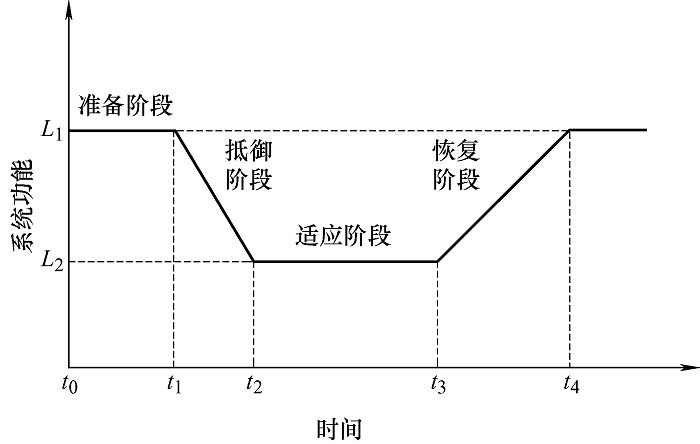

图1

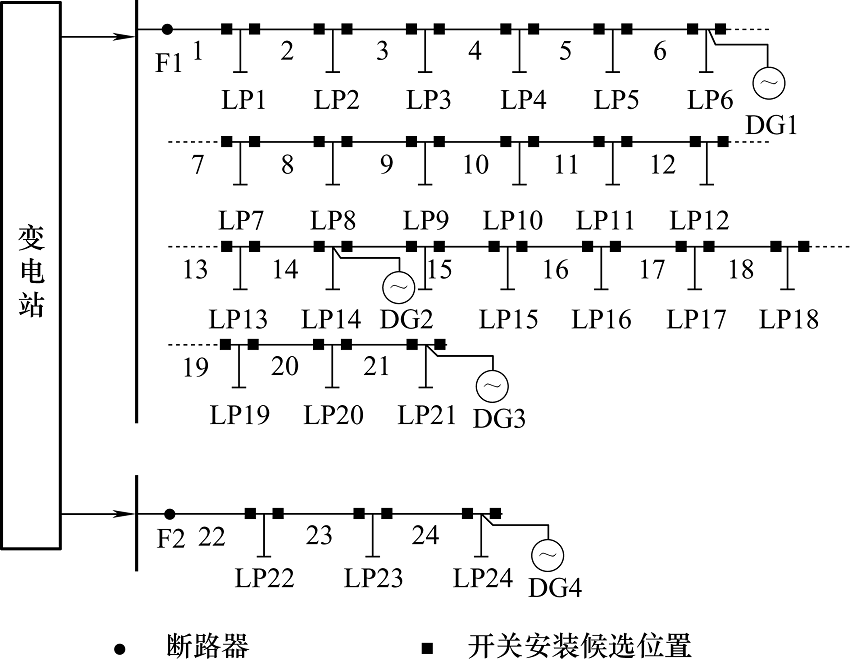

图2

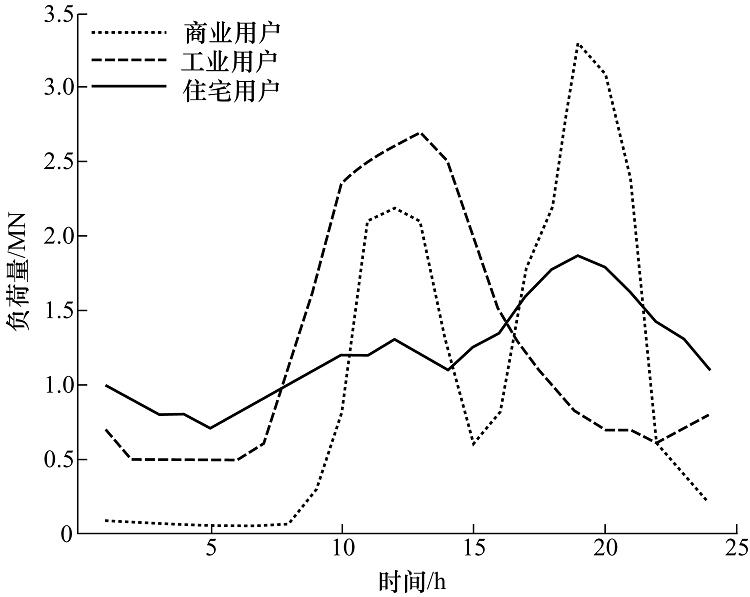

图3

表2

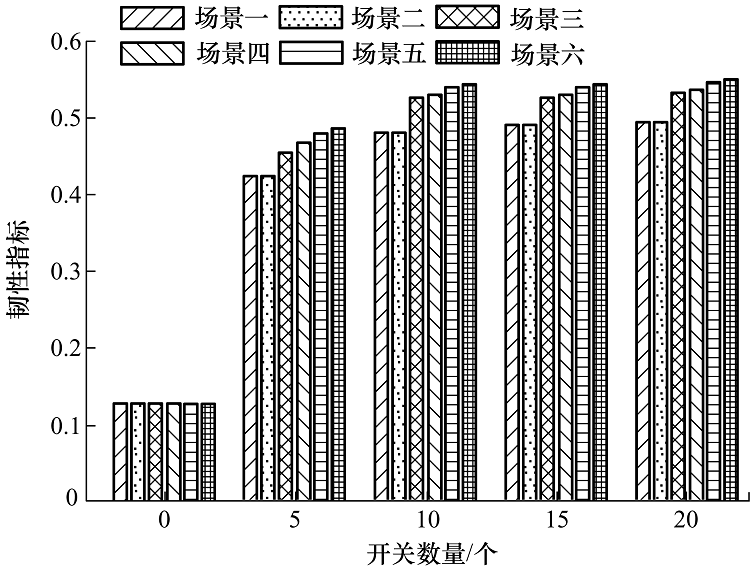

图4

表3

表4

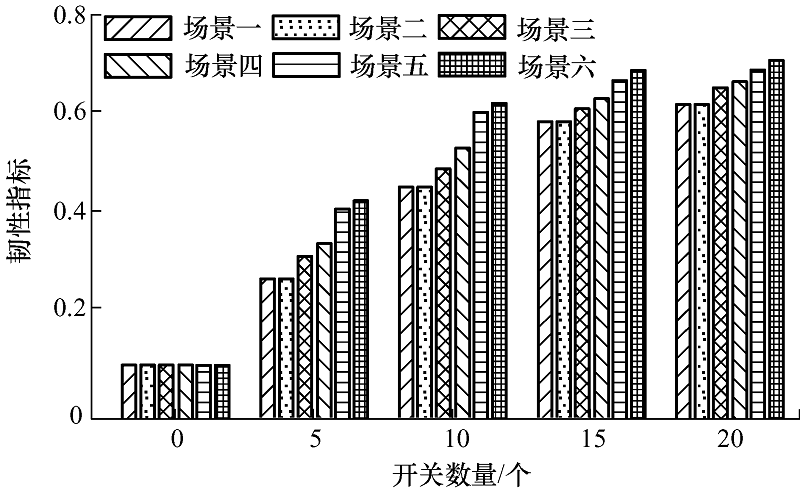

图5

参考文献 20

[1]	别朝红, 林雁翎, 邱爱慈. 弹性电网及其恢复力的基本概念与研究展望[J]. 电力系统自动化, 2015,39(12):1-9.
	BIE Zhaohong, LIN Yanling, QIU Aici. Concept and researchprospects of power system resilience[J]. Automation of Electric Power Systems, 2015,39(12):1-9.
[2]	BIE Z, LIN Y, LI G, et al. Battling the extreme:A study on the power system resilience[J]. Proceedings of the IEEE, 2017,105(7):1253-1266. doi: 10.1109/JPROC.2017.2679040
[3]	周晓敏, 葛少云, 李腾, 等. 极端天气条件下的配电网韧性分析方法及提升措施研究[J]. 中国电机工程学报, 2018,38(2):505-513.
	ZHOU Xiaomin, GE Shaoyun, LI Teng, et al. Assessing and boosting resilience of distribution system under extreme weather[J]. Proceedings of the CSEE, 2018,38(2):505-513.
[4]	周生海, 尹航, 顾颖, 等. 基于POP NSGA-Ⅱ的配电网故障恢复重构[J]. 电气工程学报, 2018,13(6):28-35.
	ZHOU Shenghai, YIN Hang, GU Ying, et al. Service restoration reconfiguration in distribution systems based on pareto optimizing path NSGA-II[J]. Journal of Electrical Engineering, 2018,13(6):28-35.
[5]	WANG Y, XU Y, HE J, et al. Coordinating multiple sources for service restoration to enhance resilience of distribution systems[J]. IEEE Transactions on Smart Grid, 2018,41(3):256-261.
[6]	张安龙, 翟学, 李艳, 等. 含光伏电源的配电网故障定位策略研究[J]. 电测与仪表, 2015,52(16):123-128.
	ZHANG Anlong, ZHAI Xue, LI Yan, et al. Research on fault location strategy of distribution network with PV[J]. Electric Measuring & Instrumentation, 2015,52(16):123-128.
[7]	姜惠兰, 钱广超, 范中林, 等. 考虑负荷控制的有源配电网故障恢复策略[J]. 中国电力, 2017,50(3):101-106.
	JIANG Huilan, QIAN Guangchao, FAN Zhonglin, et al. A service restoration strategy considering influence of load management for distribution system with DG[J]. Electric Power, 2017,50(3):101-106.
[8]	LUTH J. Four rules to help locate protective devices[J]. Electric World, 1991,205(7):36-37.
[9]	于腾凯, 李晓军. 基于LCC和改进BDE法的配电网开关优化配置[J]. 电测与仪表, 2015,52(13):96-100.
	YU Tengkai, LI Xiaojun. Optimal switching configuration of distribution network based on LCC and improved BDE[J]. Electrical Measurement & Instrumentation, 2015,52(13):96-100.
[10]	李子韵, 成乐祥, 王自桢, 等. 配电自动化终端布局规划方法[J]. 电网技术, 2016,40(4):1271-1276. doi: 10.13335/j.1000-3673.pst.2016.04.043
	LI Ziyun, CHENG Lexiang, WANG Zizhen, et al. A method of layout planning for distribution automation terminal[J]. Power System Technology, 2016,40(4):1271-1276. doi: 10.13335/j.1000-3673.pst.2016.04.043
[11]	BEZERRA J R, BARROSO G C, LEAO R P S, et al. Multi-objective optimization algorithm for switch placement in radial power distribution networks[J]. IEEE Transactions on Power Delivery, 2015,30(2):545-552. doi: 10.1109/TPWRD.2014.2317173
[12]	袁月, 王守相, 蒋菱, 等. 适应自愈要求的配电网开关优化配置[J]. 中国电力, 2016,49(3):76-82.
	YUAN Yue, WANG Shouxiang, JIANG Ling, et al. Switch configuration optimization based on self-healing requirement of distribution network[J]. Electric Power, 2016,49(3):76-82.
[13]	郑玲玲, 王铮, 杨丽徙. 不同网络结构及可靠性要求环境下FTU的最优配置[J]. 电力系统保护与控制, 2015,43(24):69-74. doi: 10.7667/j.issn.1674-3415.2015.24.011
	ZHENG Lingling, WANG Zheng, YANG Lixi. FTU optimal configuration under different distribution network structures and reliability requirement[J]. Power System Protection and Control, 2015,43(24):69-74. doi: 10.7667/j.issn.1674-3415.2015.24.011
[14]	孙磊, 杨贺钧, 丁明. 配电系统开关优化配置的混合整数线性规划模型[J]. 电力系统自动化, 2018,42(16):87-95.
	SUN Lei, YANG Hejun, DING Ming. Mixed integer linear programming model of optimal placement for switching devices in distribution system[J]. Automation of Electric Power Systems, 2018,42(16):87-95.
[15]	ABIRI-JAHROMI A, FOTUHI-FIRUZABAD M, PARVANIA M, et al. Optimized sectionalizing switch placement strategy in distribution systems[J]. IEEE Transactions on Power Delivery, 2016,27(1):362-370. doi: 10.1109/TPWRD.2011.2171060
[16]	SIIRTO O, SAFDARIAN A, LEHTONEN M, et al. Optimal distribution network automation considering earth fault events[J]. IEEE Transactions on Smart Grid, 2018,6(2):1010-1018. doi: 10.1109/TSG.2014.2387471
[17]	IZADI M, SAFDARIAN A. Financial risk evaluation of RCS deployment in distribution systems[J]. IEEE Systems Journal, 2018,6(3):1-10. doi: 10.1109/JSYST.2012.2187570
[18]	HEIDARI A, AGELIDIS V, KIA M. Considerations of sectionalizing switches in distribution networks with distributed generation[J]. IEEE Transactions on Power Delivery, 2017,30(3):1401-1409. doi: 10.1109/TPWRD.2014.2385654
[19]	赵丽敬. 电网的弹性建模与评估[D]. 武汉:华中科技大学, 2015.
	ZHAO Lijing. Resilience modeling and evaluation of power grid[D]. Wuhan:Huazhong University of Science and Technology, 2015.
[20]	ALLAN R N, BILLINTON R, SJARIEF I, et al. A reliability test system for educational purposes-basic distribution system data and results[J]. IEEE Transaction on Power System, 1991,6(2):813-820. doi: 10.1109/59.76730

内容	韧性	自愈能力	可靠性
时间尺度	小时	毫秒、秒、分钟	年
故障持续时间	配电网受极端灾害影响时间	主要针对短时故障,配电网动作时间很短	故障隔离和修复时间
故障类型与影响范围	主要为多重故障,影响范围大	主要为单重故障,影响范围小	主要为单重故障,影响范围小
发生概率	与极端事件的发生频率相关,发生概率小	与元件故障率相关,发生概率大	与元件故障率相关,发生概率大
应用地点	极端灾害多发区域的配电网	所有配电网	所有配电网

场景	DG有功/kW	DG无功/kVar	负荷削减方式
一	0	0	方式1
二	0	0	方式1、方式2
三	300	300	方式1
四	300	300	方式1、方式2
五	600	600	方式1
六	600	600	方式1、方式2

场景	开关位置
一	2B-7B-16B-19B-23B
二	2B-7B-16B-19B-23B
三	6B-10B-14E-17B-23B
四	6B-10B-14E-17B-23B
五	6B-10B-14E-17B-23B
六	5B-8B-14E-17B-23B

场景	开关位置
一	2B-4B-6B-7B-10B-13B-16B-17B-19B-23B
二	2B-4B-6B-7B-10B-13B-16B-17B-19B-23B
三	2B-6B-10B-14E-16B-19B-19E-22E-23B-23E
四	2B-6B-10B-14E-16B-19B-19E-22E-23B-23E
五	2B-5B-6E-10B-14E-16B-19B-19E-22E-23B
六	2B-3E-6B-10B-14E-16B-19B-19E-22E-23B
