基于组合赋权和改进灰色关联分析的配电网可靠性影响因素研究

doi:10.11985/2022.01.006

电气工程学报 ›› 2022, Vol. 17 ›› Issue (1): 41-48.doi: 10.11985/2022.01.006

所属专题：特邀专栏：电力电子化配电网关键设备和运行控制

• 特邀专栏: 电力电子化配电网关键设备和运行控制 • 上一篇下一篇

扫码分享

基于组合赋权和改进灰色关联分析的配电网可靠性影响因素研究

王梦帆¹(), 郑建勇¹(), 梅飞²()

1.东南大学电气工程学院南京 210096
2.河海大学能源与电气学院南京 211100

收稿日期:2021-12-04 修回日期:2022-02-20 出版日期:2022-03-25 发布日期:2022-05-06
通讯作者: 郑建勇 E-mail:wangmengfan117@163.com;jy_zheng@seu.edu.cn;meifei@hhu.edu.cn
作者简介:王梦帆,女,1997年生,硕士研究生。主要研究方向为配电网可靠性。E-mail： wangmengfan117@163.com;
梅飞,男,1982年生,博士,讲师。主要研究方向为新能源发电技术、电气设备在线监测与故障诊断。E-mail： meifei@hhu.edu.cn

Research on Influencing Factors of Distribution Network Reliability Based on Combination Empowerment and Improved Grey Correlation Analysis

WANG Mengfan¹(), ZHENG Jianyong¹(), MEI Fei²()

1. School of Electrical Engineering, Southeast University, Nanjing 210096
2. College of Energy and Electrical Engineering, Hohai University, Nanjing 211100

Received:2021-12-04 Revised:2022-02-20 Online:2022-03-25 Published:2022-05-06
Contact: ZHENG Jianyong E-mail:wangmengfan117@163.com;jy_zheng@seu.edu.cn;meifei@hhu.edu.cn

摘要/Abstract

摘要：

为了对配电网可靠性进行准确、快速评估,为合理选择可靠性提升措施提供依据,构建了基于组合赋权和改进灰色关联分析的可靠性评估及其影响因素分析模型。首先,采用G1-CRITIC法(Order relation analysis method-criteria importance though intercrieria correlation,G1-CRITIC)并结合基于最小二乘的组合赋权模型进行合理赋权,确定可靠性综合评价指标。其次,选取关键因素构建可靠性影响因素指标体系。然后,引入动态分辨系数增强数据差异性以弥补传统灰色关联分析的不足,并结合理想解法(Technique for order preference by similarity to an ideal solution,TOPSIS)思想,计算各影响因素相对于可靠性综合评价指标的综合灰色关联度并排序,作为可靠性提升措施参考依据。最后,通过实际算例验证所提方法的有效性。

关键词: 配电网可靠性, 组合赋权, 灰色关联分析, 动态分辨系数, 理想解法

Abstract:

In order to accurately and quickly evaluate the reliability of distribution network and provide a basis for reasonable selection of improvement measures, a reliability evaluation and influencing factor analysis model based on empowerment and improved grey correlation analysis is constructed. Firstly, the G1-CRITIC method (Order relation analysis method-criteria importance though intercrieria correlation) and the least squares-based empowerment model are used to determine the comprehensive reliability evaluation index. Secondly, the key factors are selected to construct the reliability influencing factor index system. Then, the dynamic resolution coefficient is introduced to enhance the data difference to make up for the shortcomings of the traditional grey correlation analysis. Combined with the idea of TOPSIS (Technique for order preference by similarity to an ideal solution), the comprehensive gray correlation degree of each influence factor relative to the reliability comprehensive evaluation index is calculated and ranked as the reference basis for reliability improvement measures. Finally, the effectiveness of the proposed method is verified by a practical example.

Key words: Distribution network reliability, empowerment, grey correlation analysis, dynamic resolution coefficient, TOPSIS

中图分类号:

TM732

王梦帆, 郑建勇, 梅飞. 基于组合赋权和改进灰色关联分析的配电网可靠性影响因素研究[J]. 电气工程学报, 2022, 17(1): 41-48.

WANG Mengfan, ZHENG Jianyong, MEI Fei. Research on Influencing Factors of Distribution Network Reliability Based on Combination Empowerment and Improved Grey Correlation Analysis[J]. Journal of Electrical Engineering, 2022, 17(1): 41-48.

图/表 7

表1

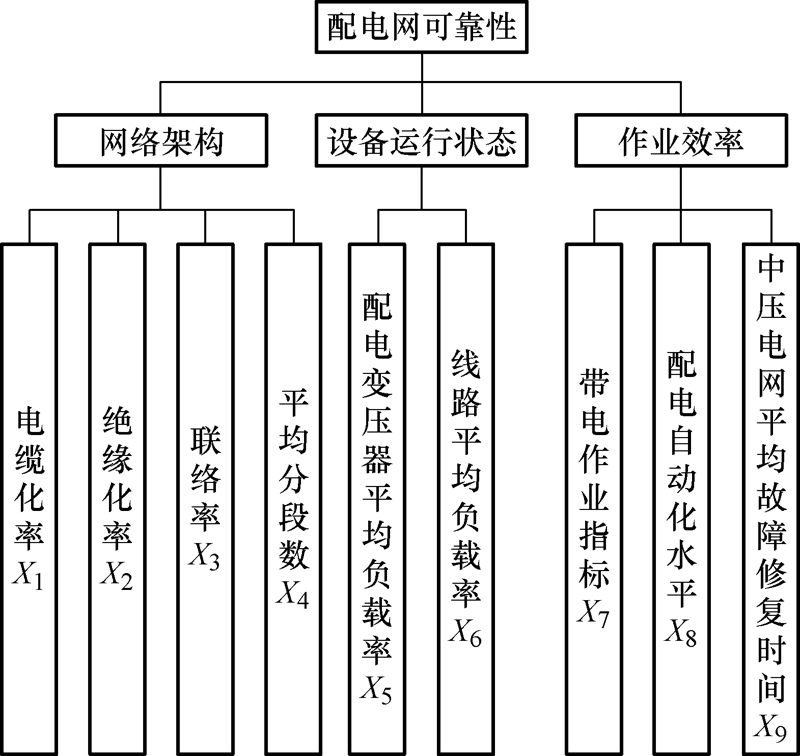

图1

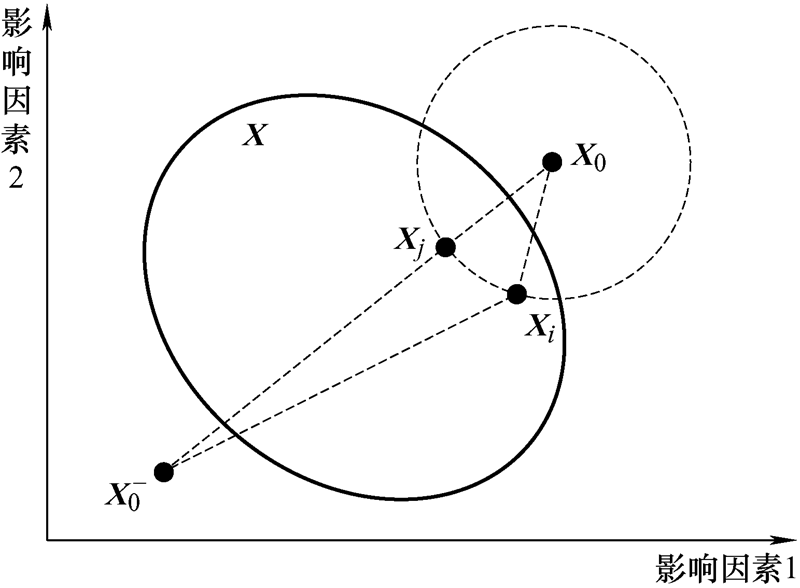

图2

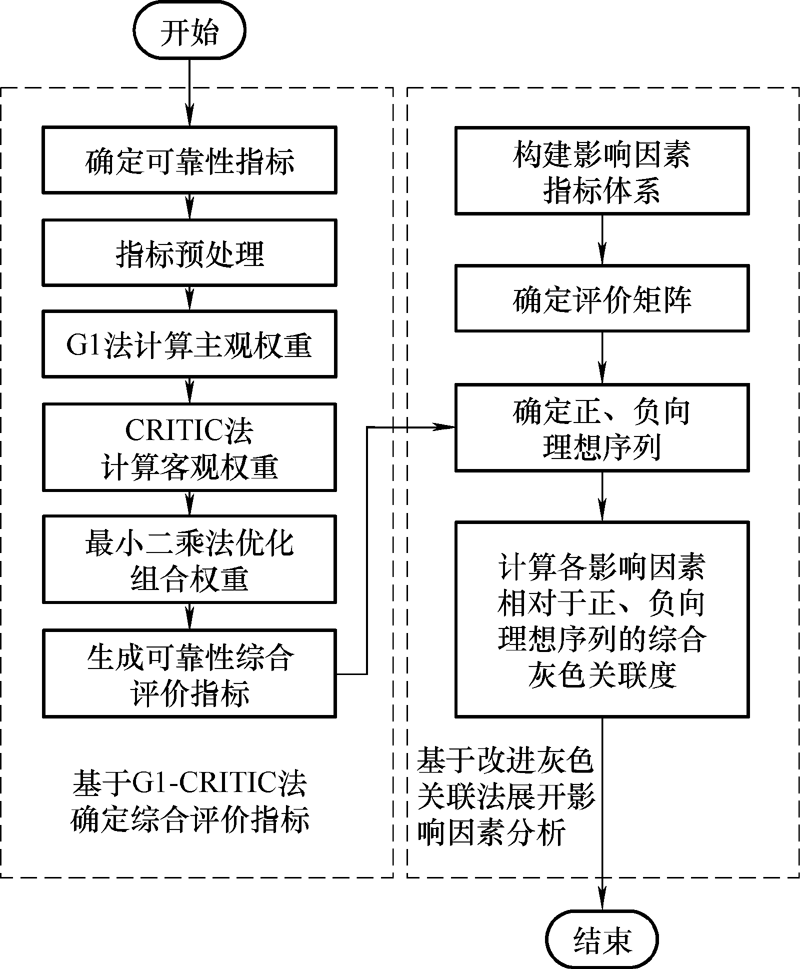

图3

表2

表3

表4

参考文献 20

[1]	刘凯诚, 钟鸣, 曾平良, 等. 考虑分布式可再生电源和储能的智能配电网可靠性评估综述[J]. 电测与仪表, 2021, 58(7):1-11.
	LIU Kaicheng, ZHONG Ming, ZENG Pingliang, et al. Review on reliability assessment of smart distribution networks considering distributed renewable energy and energy storage[J]. Electrical Measurement & Instrumentation, 2021, 58(7):1-11.
[2]	许悦, 余涛. 网络拓扑结构与供电可靠性的数学关系分析[J]. 电力系统自动化, 2019, 43(2):168-175.
	XU Yue, YU Tao. Mathematical relation between network topology and power supply reliability[J]. Automation of Electric Power Systems, 2019, 43(2):168-175.
[3]	吴亚雄, 高崇, 曹华珍, 等. 配电网全寿命周期可靠性评估和管理问题研究[J]. 电测与仪表, 2020, 57(13):6-11.
	WU Yaxiong, GAO Chong, CAO Huazhen, et al. Research on life-cycle reliability assessment and management of distribution network[J]. Electrical Measurement & Instrumentation, 2020, 57(13):6-11.
[4]	马钰, 韦钢, 李扬, 等. 考虑孤岛源-荷不确定性的直流配电网可靠性评估[J]. 电工技术学报, 2021, 36(22):4726-4738.
	MA Yu, WEI Gang, LI Yang, et al. Reliability evaluation of DC distribution network considering islanding source-load uncertainty[J]. Transactions of China Electrotechnical Society, 2021, 36(22):4726-4738.
[5]	LI Zihao, WU Wenchuan, ZHANG Boming, et al. Analytical reliability assessment method for complex distribution networks considering post-fault network reconfiguration[J]. IEEE Transactions on Power Systems, 2020, 35(2):1457-1467. doi: 10.1109/TPWRS.2019.2936543
[6]	商海涛, 吴林, 赵渊, 等. 计及集中式馈线自动化的配电网可靠性评估模型[J]. 电力自动化设备, 2017, 37(5):129-135,141.
	SHANG Haitao, WU Lin, ZHAO Yuan, et al. Reliability evaluation model of distribution network incorporating centralized feeder automation[J]. Electric Power Automation Equipment, 2017, 37(5):129-135,141.
[7]	高立艾, 霍利民, 黄丽华, 等. 基于贝叶斯网络时序模拟的含微网配电系统可靠性评估[J]. 中国电机工程学报, 2019, 39(7):2033-2041.
	GAO Liai, HUO Limin, HUANG Lihua, et al. Reliability evaluation based on Bayesian networks time sequence simulation for distribution systems containing microgrid[J]. Proceedings of the CSEE, 2019, 39(7):2033-2041.
[8]	HANNA R, DISFANI V R, KLEISSL J. Reliability evaluation for microgrids using cross-entropy Monte Carlo simulation[C]// 2018 IEEE International Conference on Probabilistic Methods Applied to Power Systems (PMAPS),Boise ID:IEEE, 2018:1-6.
[9]	杜孟珂, 任燕峰, 刘金涛, 等. 电力市场环境下发输电组合系统可靠性评估[J]. 电力科学与技术学报, 2019, 34(4):21-28.
	DU Mengke, REN Yanfeng, LIU Jintao, et al. Reliability evaluation of generation and transmission composite system in power market environment[J]. Journal of Electric Power Science and Technology, 2019, 34(4):21-28.
[10]	BORGES C L T. An overview of reliability models and methods for distribution systems with renewable energy distributed generation[J]. Renewable and Sustainable Energy Reviews, 2012, 16(6):4008-4015. doi: 10.1016/j.rser.2012.03.055
[11]	张瀛, 谢宁, 王承民, 等. 考虑时变潮流的配电系统规划-运行可靠性精细化评估研究[J]. 电网与清洁能源, 2021, 37(11):1-8.
	ZHANG Ying, XIE Ning, WANG Chengmin, et al. Research on distribution system planning-operation reliability refined evaluation considering time varying power flow[J]. Power System and Clean Energy, 2021, 37(11):1-8.
[12]	高倩, 朱佳明, 林其友, 等. 考虑孤岛供需波动的多DG配电系统可靠性评估[J]. 电力科学与技术学报, 2019, 34(3):136-142.
	GAO Qian, ZHU Jiaming, LIN Qiyou, et al. Reliability evaluation of multi DG distribution system considering islanding fluctuation[J]. Journal of Electric Power Science and Technology, 2019, 34(3):136-142.
[13]	罗宁, 陈露东, 卢嗣斌, 等. 基于聚类分析和改进灰色关联的配电网运行可靠性评价[J]. 武汉大学学报, 2020, 53(7):636-642.
	LUO Ning, CHEN Ludong, LU Sibin, et al. Reliability evaluation of distribution network operation based on cluster analysis and improved grey relation[J]. Journal of Wuhan University, 2020, 53(7):636-642.
[14]	胡丽娟, 刁赢龙, 刘科研, 等. 基于大数据技术的配电网运行可靠性分[J]. 电网技术, 2017, 41(1):265-271.
	HU Lijuan, DIAO Yinglong, LIU Keyan, et al. Operational reliability analysis of distribution network based on big data technology[J]. Power System Technology, 2017, 41(1):265-271.
[15]	孙艺新, 秦超, 张玮, 等. 基于故障树方法的供电可靠性灰色关联分析[J]. 中国电力, 2016, 49(5):14-19,156.
	SUN Yixin, QIN Chao, ZHANG Wei, et al. Power supply reliability grey correlation analysis based on fault tree method[J]. Electric Power, 2016, 49(5):14-19,156.
[16]	安佳坤, 贺春光, 韩璟琳, 等. 基于配网特征指标的网格可靠性评估方法[J]. 电测与仪表, 2019, 56(20):1-8.
	AN Jiakun, HE Chunguang, HAN Jinglin, et al. Grid reliability evaluation method based on distribution network characteristic indexes[J]. Electrical Measurement & Instrumentation, 2019, 56(20):1-8.
[17]	南钰, 宋瑞卿, 陈鹏, 等. 基于改进熵权-灰色关联法的配电网可靠性影响因素分析[J]. 电力系统保护与控制, 2019, 47(24):101-107.
	NAN Yu, SONG Ruiqing, CHEN Peng, et al. Study on the factors influencing the reliability analysis in distribution network based on improved entropy weight gray correlation analysis algorithm[J]. Power System Protection and Control, 2019, 47(24):101-107.
[18]	万凌云, 王主丁, 伏进, 等. 中压配电网可靠性评估技术规范研究[J]. 电网技术, 2015, 39(4):1096-1100.
	WAN Lingyun, WANG Zhuding, FU Jin, et al. Research on technical standard for reliability assessment of medium voltage distribution networks[J]. Power System Technology, 2015, 39(4):1096-1100.
[19]	郭亚军. 综合评价理论、方法及应用[M]. 北京: 科学出版社, 2007.
	GUO Yajun. Integrated evaluation theory, methods and applications[M]. Beijing: Science Press, 2007.
[20]	林冠强, 莫天文, 叶晓君, 等. 基于TOPSIS和CRITIC法的电网关键节点识[J]. 高电压技术, 2018, 44(10):3383-3389.
	LIN Guanqiang, MO Tianwen, YE Xiaojun, et al. Critical node identification of power networks based on TOPSIS and CRITIC methods[J]. High Voltage Engineering, 2018, 44(10):3383-3389.

标度	说明
1.0	指标y_j_-1和指标y_j同等重要
1.2	指标y_j_-1比指标y_j稍微重要
1.4	指标y_j_-1比指标y_j明显重要
1.6	指标y_j_-1比指标y_j强烈重要
1.8	指标y_j_-1比指标y_j极端重要

配网编号	SAIDI/ (h/户·年)	SAIFI/ (次/户·年)	AENS/ (kW·h/户·年)
1	10.01	0.89	3.52
2	7.07	0.86	3.28
3	8.92	1.03	3.09
4	9.51	0.89	3.04
5	9.39	1.06	3.39
6	6.67	1.70	3.23
7	9.49	1.10	3.28
8	6.33	1.76	3.48

配网编号	X₁	X₂	X₃	X₄	X₅
1	51.33	68.11	80.34	2.86	0
2	56.51	70.17	82.05	3.96	7.92
3	61.41	72.56	88.35	4.06	21.59
4	64.82	76.25	95.00	4.15	53.91
5	75.53	94.75	85.61	3.49	0
6	78.31	95.00	88.67	4.53	27.03
7	80.15	95.00	95.00	4.53	51.52
8	85.08	95.00	95.00	4.53	65.50
配网编号	X₆	X₇	X₈	X₉
1	23.90	2.38	34.64	289.75
2	26.05	21.99	34.55	280.25
3	28.18	35.39	35.49	269.80
4	31.97	38.60	34.73	265.05
5	31.89	2.76	36.63	274.55
6	33.67	27.89	36.55	264.10
7	32.54	39.28	37.60	251.75
8	34.07	53.64	37.50	240.35

影响因素	方法1	方法2	方法3	方法4	方法5	本文方法
X₁	0.853 1	0.804 5	0.803 4	0.830 1	0.802 3	0.715 7
X₂	0.712 3	0.827 7	0.816 3	0.848 9	0.787 7	0.839 8
X₃	0.771 9	0.836 5	0.899 4	0.856 2	0.839 2	0.861 1
X₄	0.628 3	0.799 8	0.850 6	0.831 7	0.773 4	0.776 5
X₅	0.758 2	0.498 9	0.522 7	0.372 9	0.423 7	0.412 3
X₆	0.790 1	0.853 2	0.822 2	0.891 2	0.889 1	0.907 1
X₇	0.530 7	0.603 1	0.664 8	0.403 4	0.543 6	0.571 2
X₈	0.830 7	0.902 6	0.842 1	0.869 3	0.891 1	0.943 6
X₉	0.811 1	0.870 5	0.862 4	0.906 8	0.863 3	0.865 8
