含电动汽车的不确定性微电网鲁棒优化调度方法*

doi:10.11985/2023.02.020

摘要/Abstract

摘要：

针对大规模电动汽车接入微电网造成的负荷压力以及用户电动汽车充电的强不确定性，分别建立了电动汽车无序充电和有序充放电两种模型。同时，考虑微电网中新能源发电及负荷需求的间歇不确定性，在日前计划阶段设计了一种基于电动汽车入网的鲁棒优化经济调度方法。模型以微电网最小运行成本为目标，分别在电动汽车无序充电和有序充放电两种模式下，通过列约束生成算法决策出不确定场景集中的最恶劣场景及该场景下的经济最优日前调度方案，并得出日前计划的运行成本。随后在日内调度阶段，利用可再生能源发电和负荷需求的实时数据，在微电网系统不同保守度水平下，针对预测误差对日前计划方案和运行成本进行补偿微调。最终通过算例仿真验证了所提方法的有效性和合理性。

关键词: 微电网, 电动汽车, 无序充电, 有序充放电, 鲁棒优化, 列约束生成

Abstract:

Aiming at the load pressure caused by large-scale electric vehicle access to microgrid and the strong uncertainty of users’ electric vehicle charging, models of disordered charging and ordered charging/discharging of electric vehicles are established. At the same time, considering the uncertainty of new energy generation and load demand in the microgrid, a robust optimal dispatch method based on electric vehicles entering the grid is designed in the planning stage. Taking the minimum operating cost as the goal, the model finds the worst scenarios in the uncertain scenes and the operating cost in the two modes of disordered charging and orderly charging/discharging of electric vehicles. In the intraday dispatch stage, the real-time data of renewable energy generation and load demand are used to compensate and fine-tune the day-ahead planning scheme and operating cost under different conservative levels of the microgrid system for forecast errors. Finally, the validity and rationality of the proposed method are verified by simulation examples.

Key words: Microgrid, electric vehicle, disordered charging, ordered charging and discharging, robust optimization, column constraint generation

中图分类号:

TM73

邵嗣杨, 马翔, 袁伟, 张开宇, 傅晓飞, 黄晨宏. 含电动汽车的不确定性微电网鲁棒优化调度方法^*[J]. 电气工程学报, 2023, 18(2): 201-209.

SHAO Siyang, MA Xiang, YUAN Wei, ZHANG Kaiyu, FU Xiaofei, HUANG Chenhong. Robust Optimal Dispatching Method for Uncertain Microgrid Including Electric Vehicles[J]. Journal of Electrical Engineering, 2023, 18(2): 201-209.

图/表 13

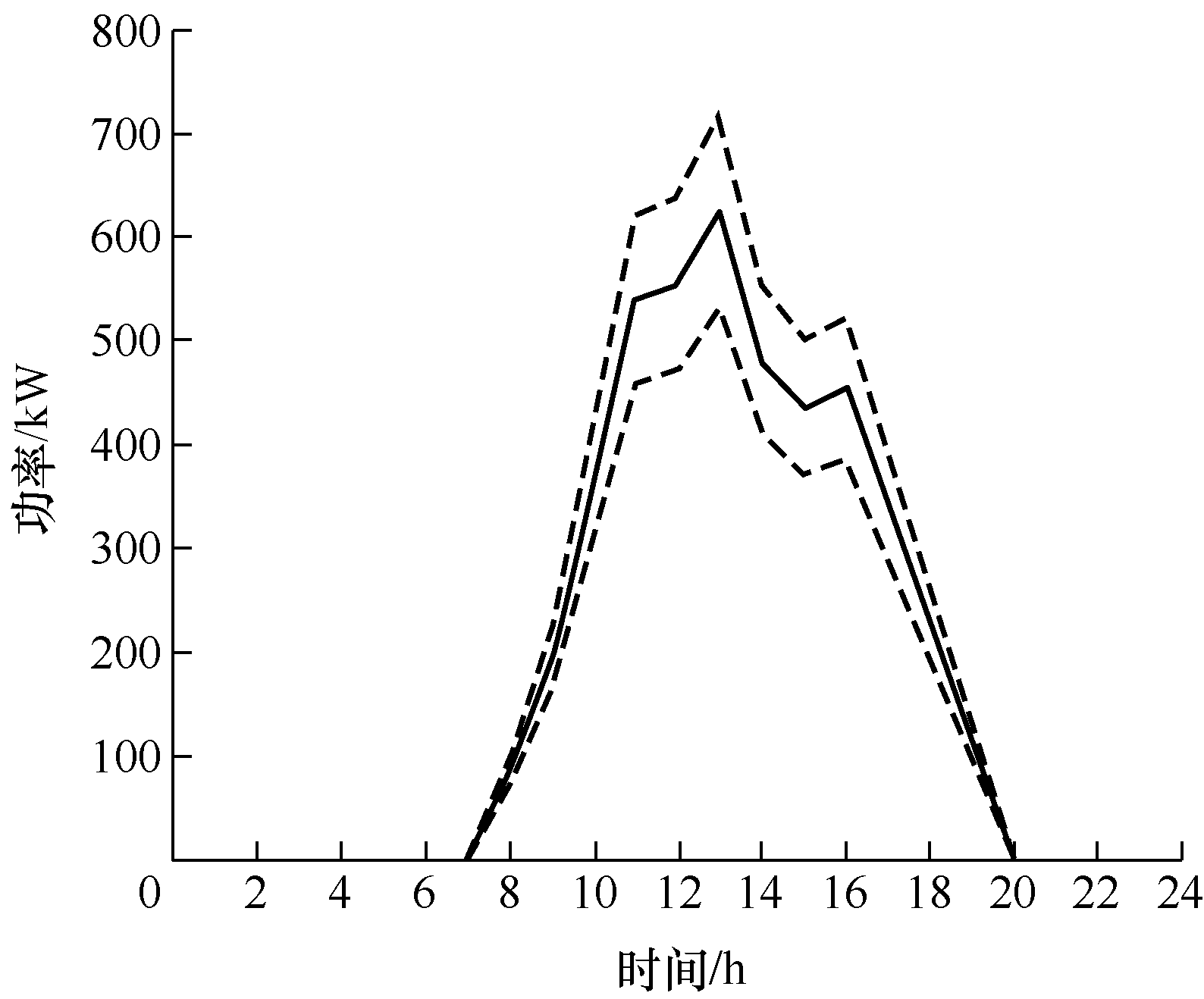

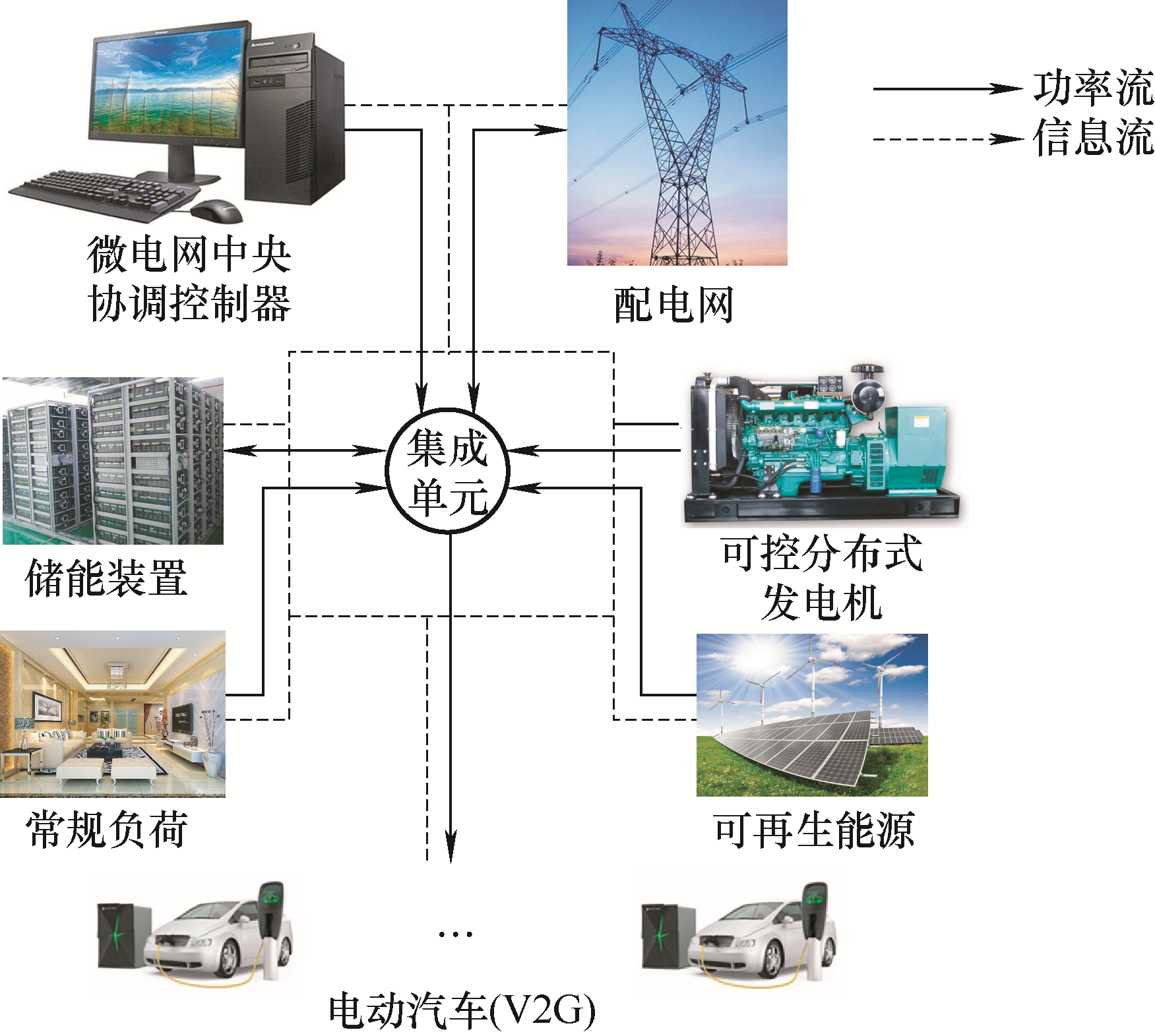

图1

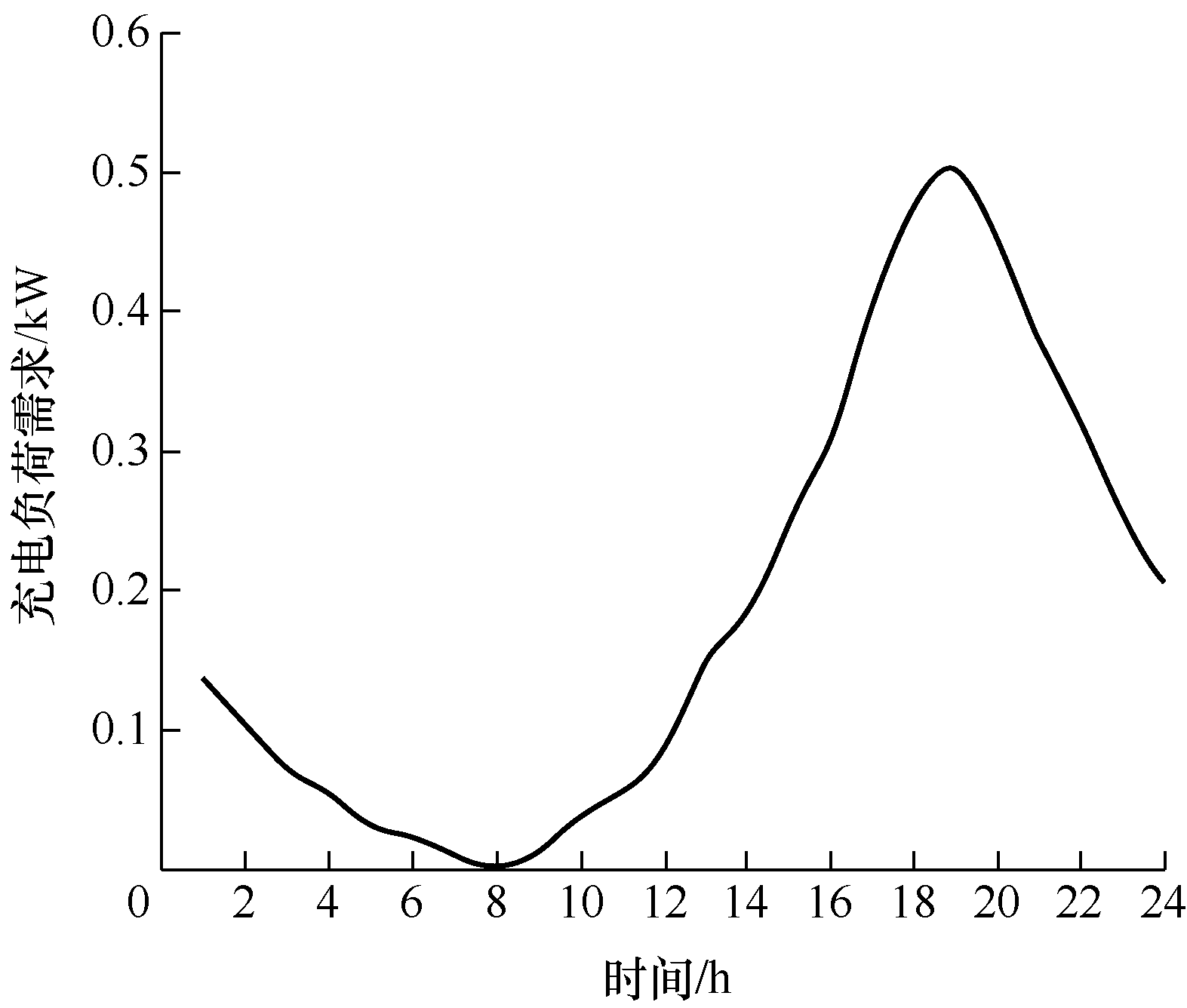

图2

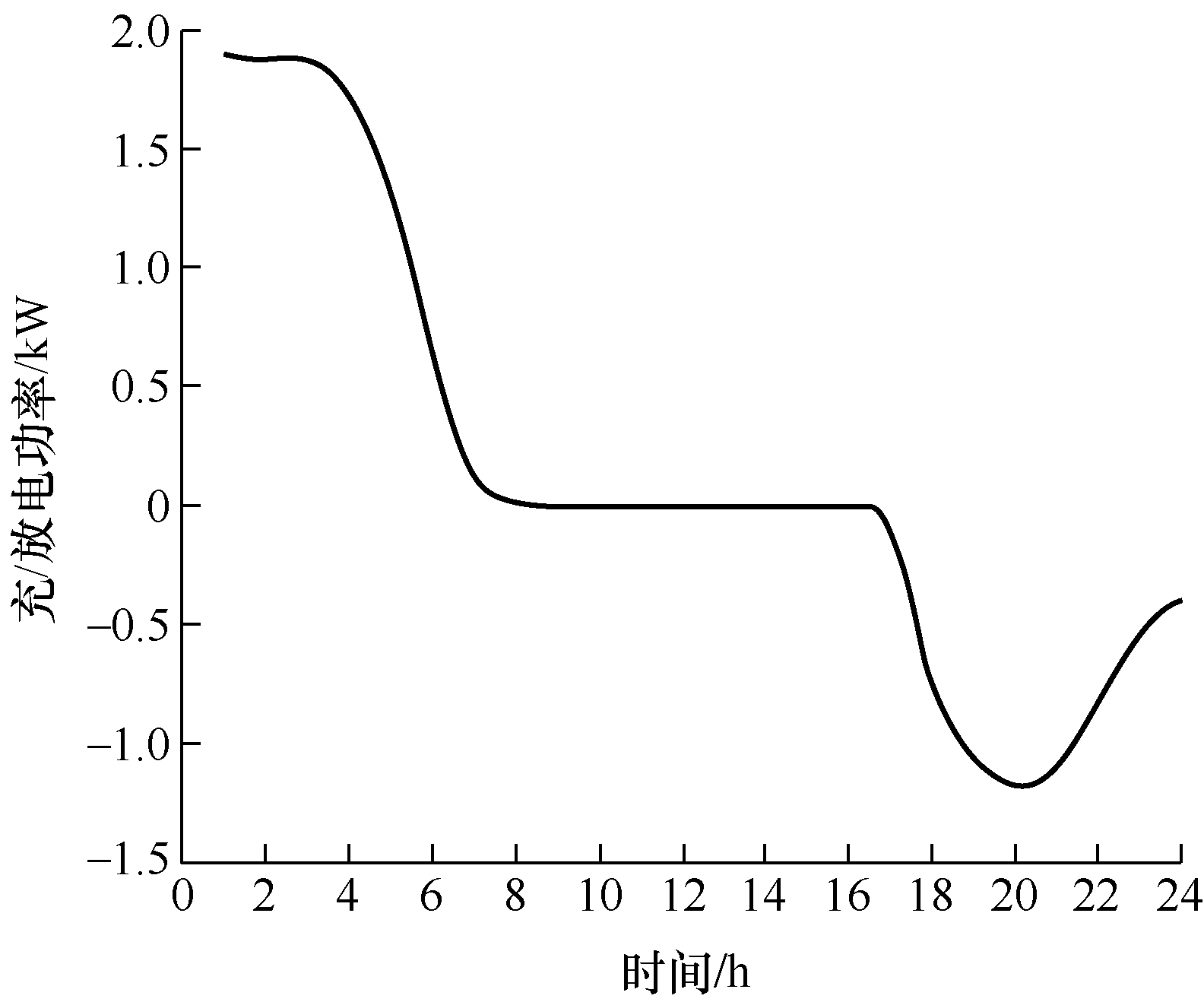

图3

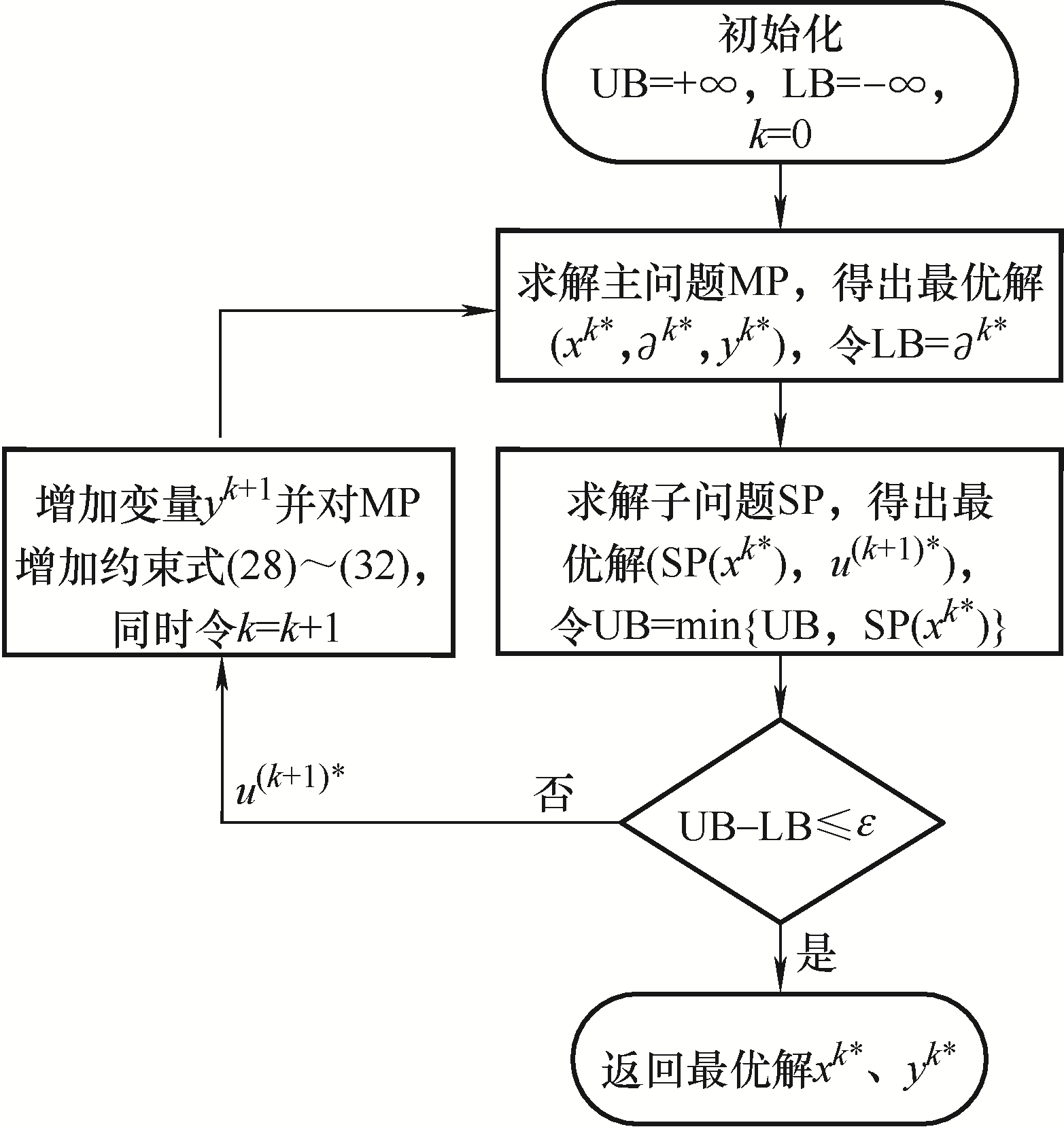

图4

表1

表2

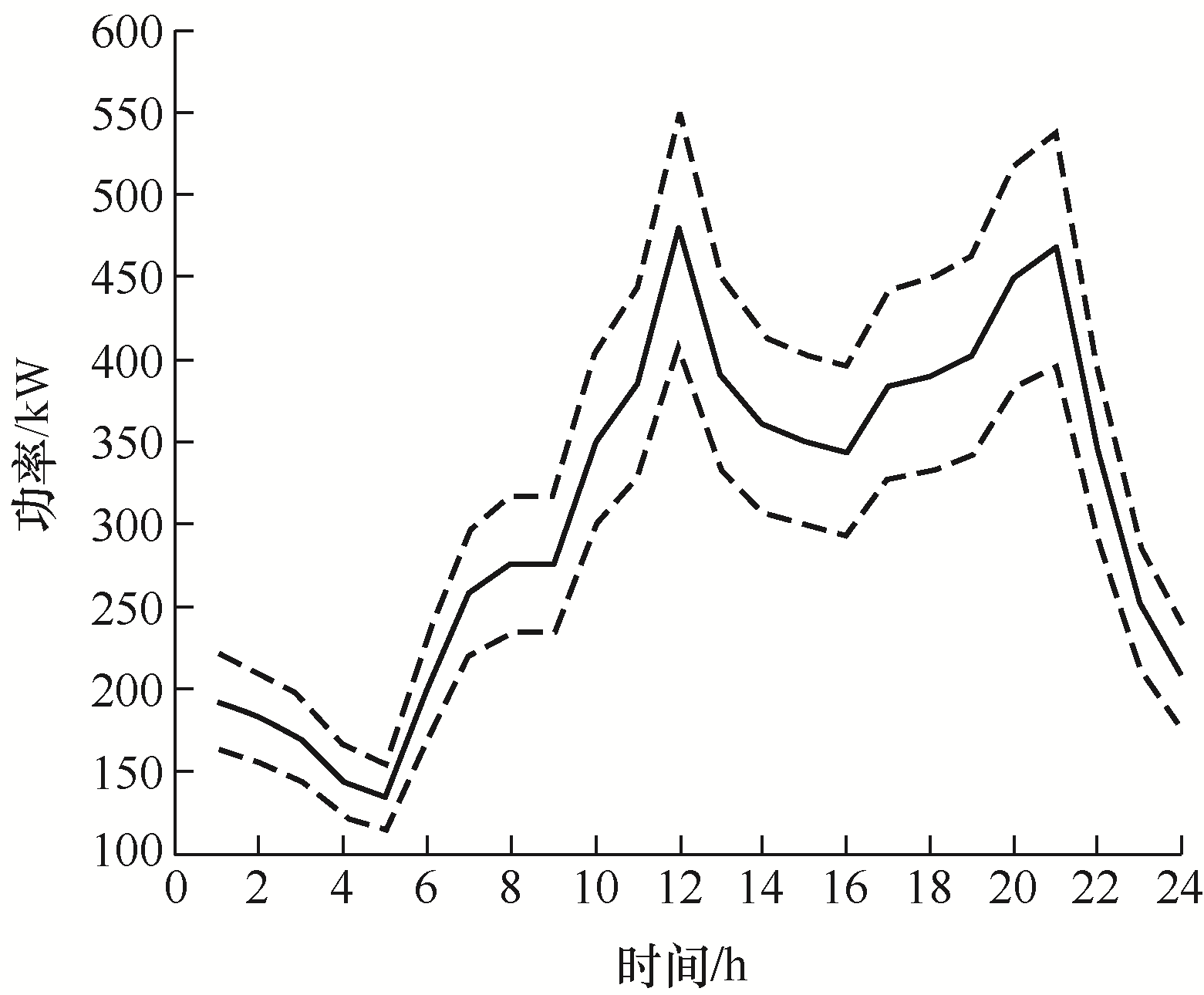

图5

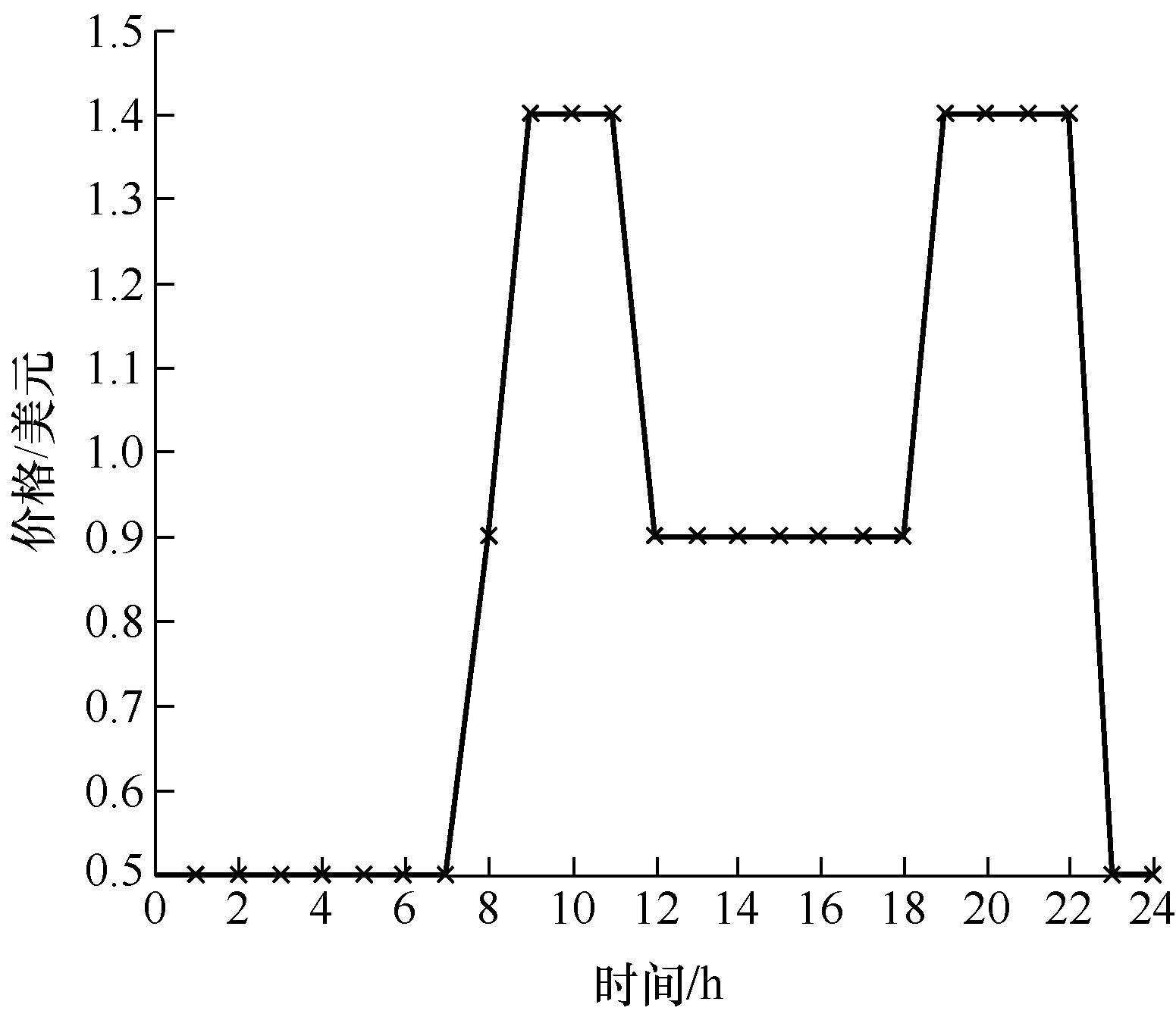

图6

图7

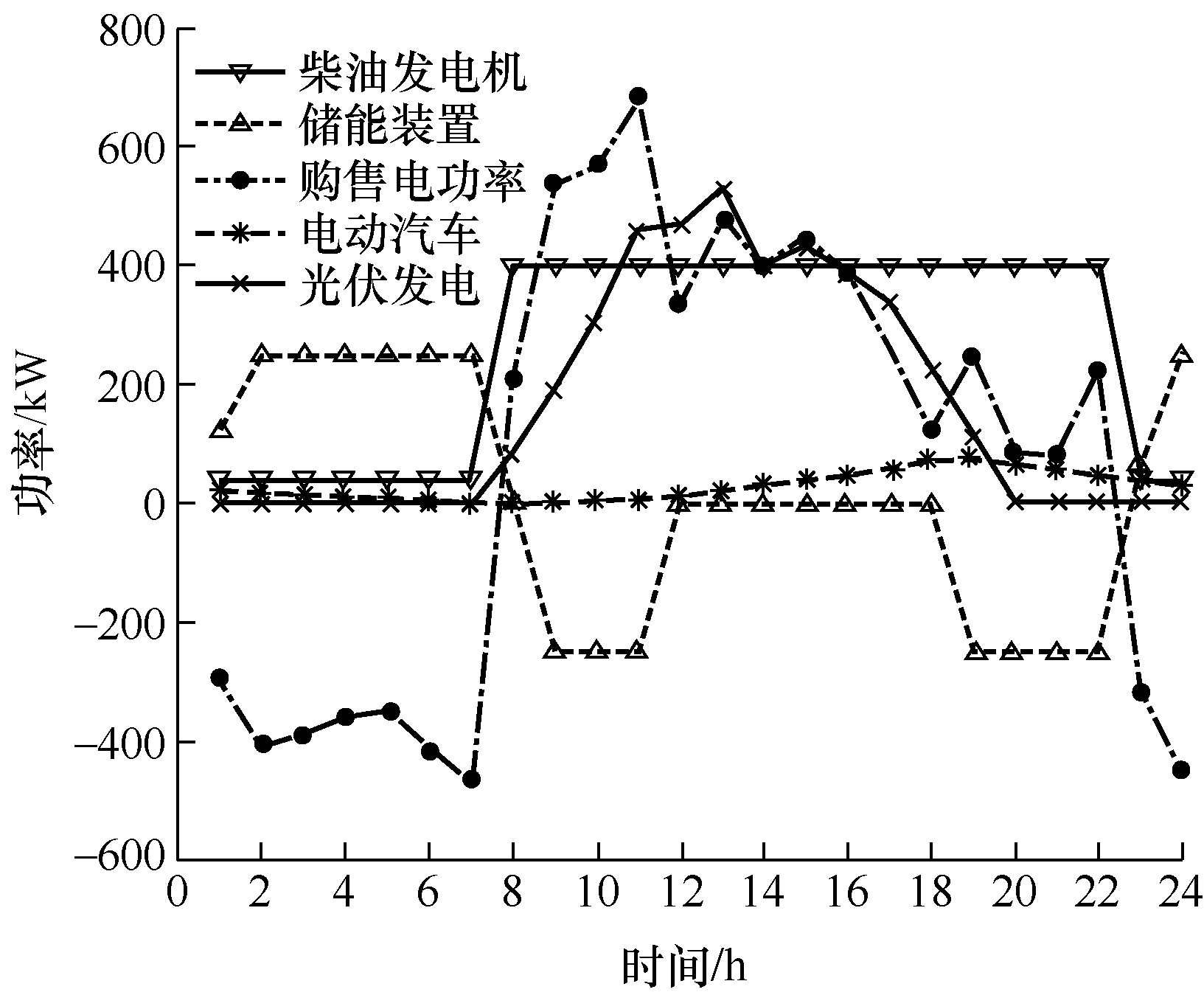

图8

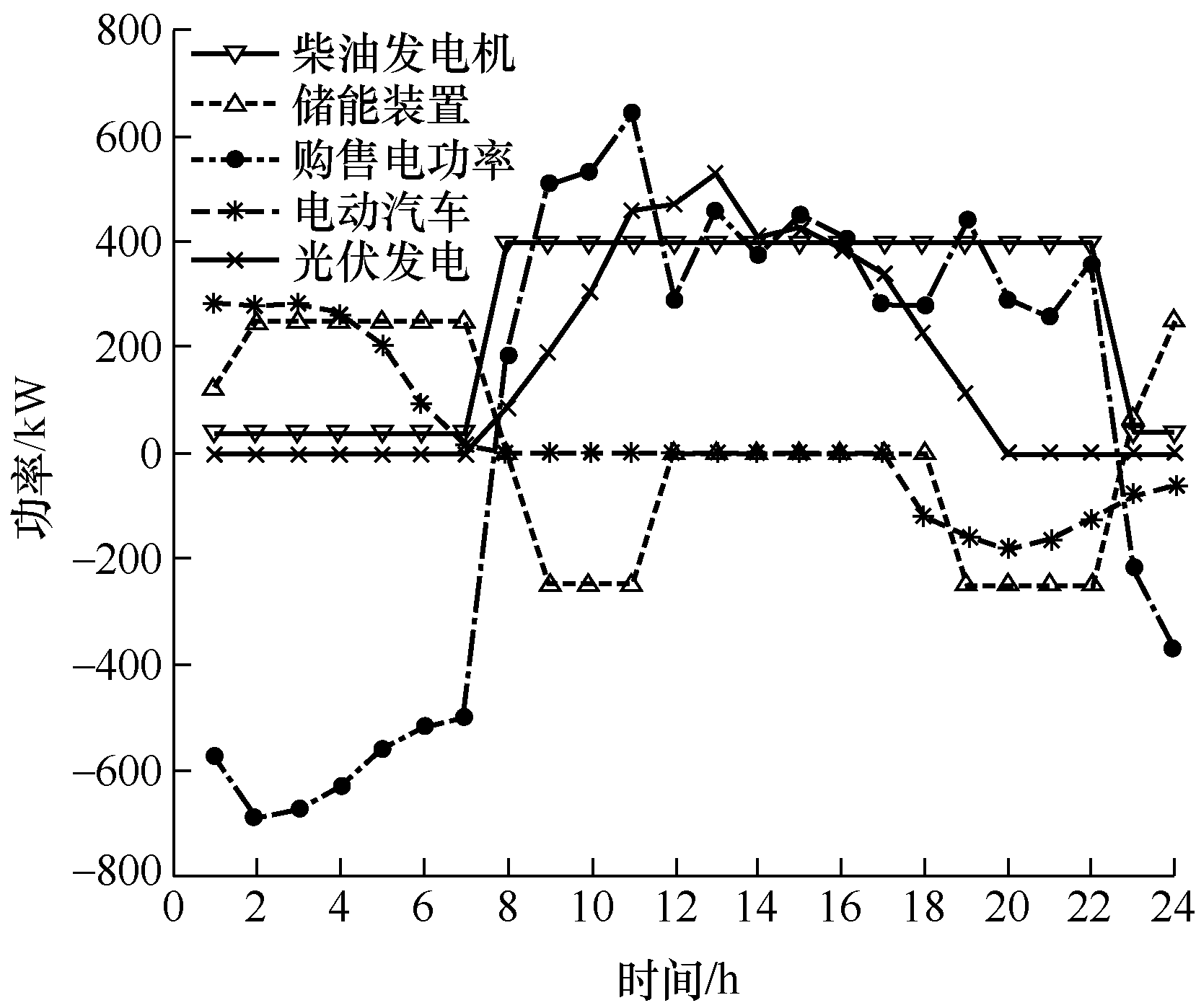

图9

表3

表4

参考文献 22

[1]	KEMPTON W, TOMIĆ J. Vehicle-to-grid power fundamentals:Calculating capacity and net revenue[J]. Journal of Power Sources, 2005, 144(1):268-279. doi: 10.1016/j.jpowsour.2004.12.025
[2]	肖湘宁, 陈征, 刘念. 可再生能源与电动汽车充放电设施在微电网中的集成模式与关键问题[J]. 电工技术学报, 2013, 28(2):1-14.
	XIAO Xiangning, CHEN Zheng, LIU Nian. Integrated mode and key issues of renewable energy sources and electric vehicles’ charging and discharging facilities in micro grid[J]. Transactions of China Electrotechnical Society, 2013, 28(2):1-14.
[3]	张文亮, 武斌, 李武峰, 等. 我国纯电动汽车的发展方向及能源供给模式的探讨[J]. 电网技术, 2009, 33(4):1-5.
	ZHANG Wenliang, WU Bin, LI Wufeng, et al. Discussion on development trend of battery electric vehicles in China and its energy supply mode[J]. Power System Technology, 2009, 33(4):1-5.
[4]	杨俊, 文福拴, 汪震, 等. 电动汽车与电力系统的交互作用[J]. 电力建设, 2015, 36(7):14-24. doi: 10.3969/j.issn.1000-7229.2015.07.002
	YANG Jun, WEN Fushuan, WANG Zhen, et al. Interactions between electric vehicles and power systems[J]. Electric Power Construction, 2015, 36(7):14-24. doi: 10.3969/j.issn.1000-7229.2015.07.002
[5]	庄怀东, 吴红斌, 刘海涛, 等. 含电动汽车的微网系统多目标经济调度[J]. 电工技术学报, 2014, 29(S1):365-373.
	ZHUANG Huaidong, WU Hongbin, LIU Haitao, et al. Multi-objective economic dispatch of microgrid system including electric vehicles[J]. Transactions of China Electrotechnical Society, 2014, 29(S1):365-373.
[6]	姚伟锋, 赵俊华, 文福拴, 等. 基于双层优化的电动汽车充放电调度策略[J]. 电力系统自动化, 2012, 36(11):30-37.
	YAO Weifeng, ZHAO Junhua, WEN Fushuan, et al. A charging and discharging dispatching strategy for electric vehicles based on bi-level optimization[J]. Automation of Electric Power Systems, 2012, 36(11):30-37.
[7]	王杰, 唐菁敏, 刘思淼. 基于用户响应度的电动汽车有序充放电策略[J]. 电子测量技术, 2021, 44(1):31-36.
	WANG Jie, TANG Jingmin, LIU Simiao. Orderly charging and discharging strategies for electric vehicles based on user responsiveness[J]. Electronic Measurement Technology, 2021, 44(1):31-36.
[8]	桑博, 张涛, 刘亚杰, 等. 期望场景下的并网型微电网两阶段鲁棒优化调度[J]. 中国电机工程学报, 2020, 40(19):6161-6173.
	SANG Bo, ZHANG Tao, LIU Yajie, et al. Two-stage robust optimal scheduling of grid-connected microgrid under expected scenarios[J]. Proceedings of the CSEE, 2020, 40(19):6161-6173.
[9]	王佳颖, 史俊祎, 文福拴, 等. 计及需求响应的光热电站热电联供型微网的优化运行[J]. 电力系统自动化, 2019, 43(1):1000-1026.
	WANG Jiaying, SHI Junyi, WEN Fushuan, et al. Optimal operation of combined heat and power microgrid in CSP station considering demand response[J]. Automation of Electric Power Systems, 2019, 43(1):1000-1026.
[10]	杨里, 丁智华, 林纲, 等. 冷热电联供微电网的网络损耗优化调度策略[J]. 电测与仪表, 2020, 57(7):74-81.
	YANG Li, DING Zhihua, LIN Gang, et al. Optimization of network loss scheduling strategy for CCHP micro-grid[J]. Electrical Measurement and Instrumentation, 2020, 57(7):74-81.
[11]	AN Y, ZENG B. Exploring the modeling capacity of two-stage robust optimization:Variants of robust unit commitment model[J]. IEEE Transactions on Power Systems, 2014, 30(1):109-122. doi: 10.1109/TPWRS.2014.2320880
[12]	谢鹏, 彭春华, 于蓉. 大规模间歇式电源接入电网多目标鲁棒优化调度[J]. 电网技术, 2014, 38(6):1479-1484.
	XIE Peng, PENG Chunhua, YU Rong. Multi-objective robust optimized scheduling of power grid connected with large-scale intermittent power sources[J]. Power System Technology, 2014, 38(6):1479-1484.
[13]	向月, 刘俊勇, 魏震波, 等. 考虑可再生能源出力不确定性的微电网能量优化鲁棒模型[J]. 中国电机工程学报, 2014, 34(19):3063-3072.
	XIANG Yue, LIU Junyong, WEI Zhenbo, et al. Robust model of microgrid energy optimization with uncertain renewable energy sources[J]. Proceedings of the CSEE, 2014, 34(19):3063-3072.
[14]	徐秋实, 邓长虹, 赵维兴, 等. 含风电电力系统的多场景鲁棒调度方法[J]. 电网技术, 2014, 38(3):653-661.
	XU Qiushi, DENG Changhong, ZHAO Weixing, et al. A multi-scenario robust dispatch method for power grid integrated with wind farms[J]. Power System Technology, 2014, 38(3):653-661.
[15]	常小强, 宋政湘, 王建华. 基于蒙特卡罗算法的电动汽车充电负荷预测及系统开发[J]. 高压电器, 2020, 56(8):1-5.
	CHANG Xiaoqiang, SONG Zhengxiang, WANG Jianhua. Electric vehicle charging load prediction and system development based on Monte Carlo algorithm[J]. High Voltage Apparatus, 2020, 56(8):1-5.
[16]	VYAS A, SANTINI D. Use of national surveys for estimating ‘full’ PHEV potential for oil use reduction[EB/OL]. [2008-07-21]. http://www.transportation.anl.gov/pdfs/HV/525.
[17]	LI X, TAN Y, LIU X, et al. A cost-benefit analysis of V2G electric vehicles supporting peak shaving in Shanghai[J]. Electric Power Systems Research, 2020, 179:106058. doi: 10.1016/j.epsr.2019.106058
[18]	魏韡, 刘锋, 梅生伟. 电力系统鲁棒经济调度(一)理论基础[J]. 电力系统自动化, 2013, 37(17):37-43.
	WEI Wei, LIU Feng, MEI Shengwei. Robust economic dispatch of power system (Ⅰ):Theoretical foundation[J]. Automation of Electric Power Systems, 2013, 37(17):37-43.
[19]	WEI W, LIU F, MEI S, et al. Robust energy and reserve dispatch under variable renewable generation[J]. IEEE Transactions on Smart Grid, 2015, 6(1):369-380. doi: 10.1109/TSG.2014.2317744
[20]	ZENG B, ZHAO L. Solving two-stage robust optimization problems using a column-and-constraint generation method[J]. Operations Research Letters, 2013, 41(5):457-461. doi: 10.1016/j.orl.2013.05.003
[21]	BOYD S, VANDENBERGHE L. Convex optimization[M]. Beijing: World Book Incorporation, 2013.
[22]	GUPT A, AHMED S, CHEON M S, et al. Solving mixed integer bilinear problems using MILP formulations[J]. SIAM Journal on Optimization, 2013, 23(2):721-744. doi: 10.1137/110836183

参数	数值
Pmin g/kW	40
Pmax g/kW	400
co g, cm g/(元/kW)	0.52, 0.15

参数	数值	参数	数值
Pmax ec/kW	250	Emax e/(kW·h)	1 000
Pmax ed/kW	250	η_ec, η_ed	0.95, 0.95
Emin e/(kW·h)	300	co e/(元/kW)	0.32

指标	Γ_r=0, Γ₁=0		Γ_r=6, Γ₁=12
指标	策略1	策略2	策略1	策略2
日前计划/元	602.4	219.4	1 629.4	1 297.4
日内调整/元	1 279.8	1 336.8	108.9	103.8
总计/元	1 882.2	1 527.0	1 738.3	1 398.3
