计及电转气和碳捕集的数据中心微电网“源-荷”低碳优化调度方法*

doi:10.11985/2022.03.010

电气工程学报 ›› 2022, Vol. 17 ›› Issue (3): 85-94.doi: 10.11985/2022.03.010

• 特邀专栏：储能(储氢)材料、技术、装置及新能源综合应用 • 上一篇下一篇

扫码分享

计及电转气和碳捕集的数据中心微电网“源-荷”低碳优化调度方法^*

田明¹(), 张海峰¹(), 刘坤²()

1.上海工程技术大学机械与汽车工程学院上海 201620
2.西安交通大学智能网络与网络安全教育部重点实验室西安 710049

收稿日期:2022-06-11 修回日期:2022-08-15 出版日期:2022-09-25 发布日期:2022-10-28
通讯作者: 张海峰 E-mail:tianguangming0412@163.com;15901866629@163.com;kliu@sei.xjtu.edu.cn
作者简介:田明,男,1996年生,硕士研究生。主要研究方向为数据中心能量管理和智能电网等。E-mail： tianguangming0412@163.com
刘坤,男,1986年生,博士,助理研究员。主要研究方向为微电网能量管理、鲁棒优化等。E-mail： kliu@sei.xjtu.edu.cn
基金资助:
*国家自然科学基金资助项目(61903293)

“Source-load” Low-carbon Optimal Scheduling Method for Data Center Microgrids Considering Power to Gas and Carbon Capture

TIAN Ming¹(), ZHANG Haifeng¹(), LIU Kun²()

1. School of Mechanical and Automotive Engineering, Shanghai University of Engineering Science, Shanghai 201620
2. Key Laboratory of Intelligent Network and Network Security, Xi’an Jiaotong University, Xi’an 710049

Received:2022-06-11 Revised:2022-08-15 Online:2022-09-25 Published:2022-10-28
Contact: ZHANG Haifeng E-mail:tianguangming0412@163.com;15901866629@163.com;kliu@sei.xjtu.edu.cn

摘要/Abstract

摘要：

为促进数据中心多能互补以及低碳化,基于随机规划,提出了考虑电转气和碳捕集的数据中心微电网“源-荷”低碳优化调度模型。模型综合考虑了发电约束、数据负荷约束、电转气系统及碳捕集等约束,在发电侧引入碳捕集电厂-电转气-燃气机组(CCPP-P2G-CHP),将捕集的CO₂作为电转气系统合成甲烷的燃料;在负荷侧考虑即时型和可延迟型两种数据负荷,构建了数据中心功耗和数据负荷分配模型。仿真结果表明,所提模型在考虑碳排放的基础上,通过发电和数据中心数据负荷的优化调度,实现了数据中心微电网运行成本的最小化。

关键词: 电转气, 低碳优化调度, 碳捕集, 数据中心微电网, 随机规划

Abstract:

In order to promote multi energy complementary and low-carbon of data centers, a “source-load” low-carbon optimal scheduling model for data center microgrids is proposesd, which considers power to gas and carbon capture based on stochastic programming. The model considers the constraints of power generation, workloads, electricity to gas system and carbon capture. Carbon capture power plant, electric gas to gas, and combined heat power unit(CCPP-P2G-CHP) are introduced into the power generation side, the captured CO₂ is used as the fuel for the synthesis of methane in the electric gas to electric system. Considering the interactive and batch workloads on the load side, a data center power consumption and workload allocation model are constructed. The simulation results show that the proposed model can minimize the operation cost of the data center microgrid through the optimal scheduling of power generation and workload based on the consideration of carbon emission.

Key words: Power-to-gas, low-carbon optimal scheduling, carbon capture, data center microgrid, stochastic programming

中图分类号:

TM73

田明, 张海峰, 刘坤. 计及电转气和碳捕集的数据中心微电网“源-荷”低碳优化调度方法^*[J]. 电气工程学报, 2022, 17(3): 85-94.

TIAN Ming, ZHANG Haifeng, LIU Kun. “Source-load” Low-carbon Optimal Scheduling Method for Data Center Microgrids Considering Power to Gas and Carbon Capture[J]. Journal of Electrical Engineering, 2022, 17(3): 85-94.

图/表 16

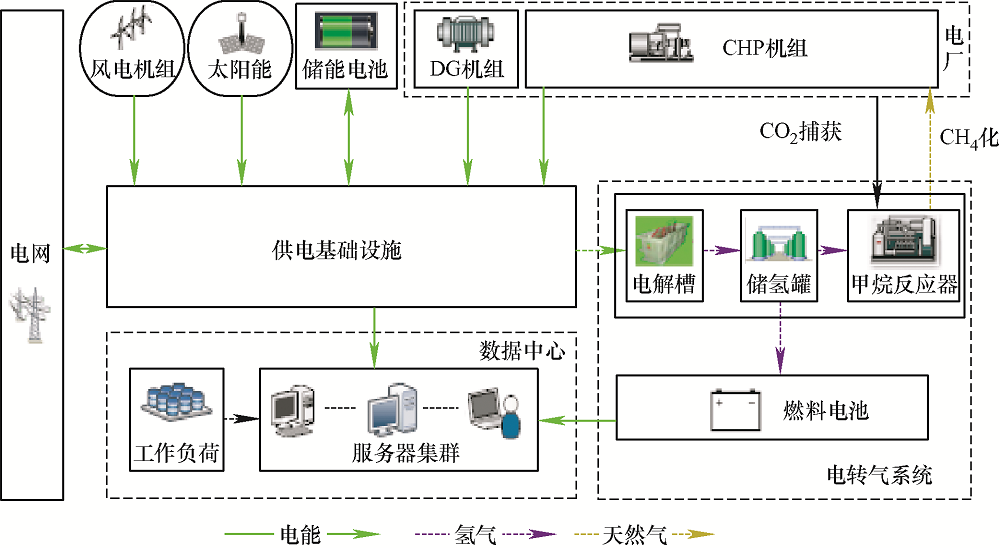

图1

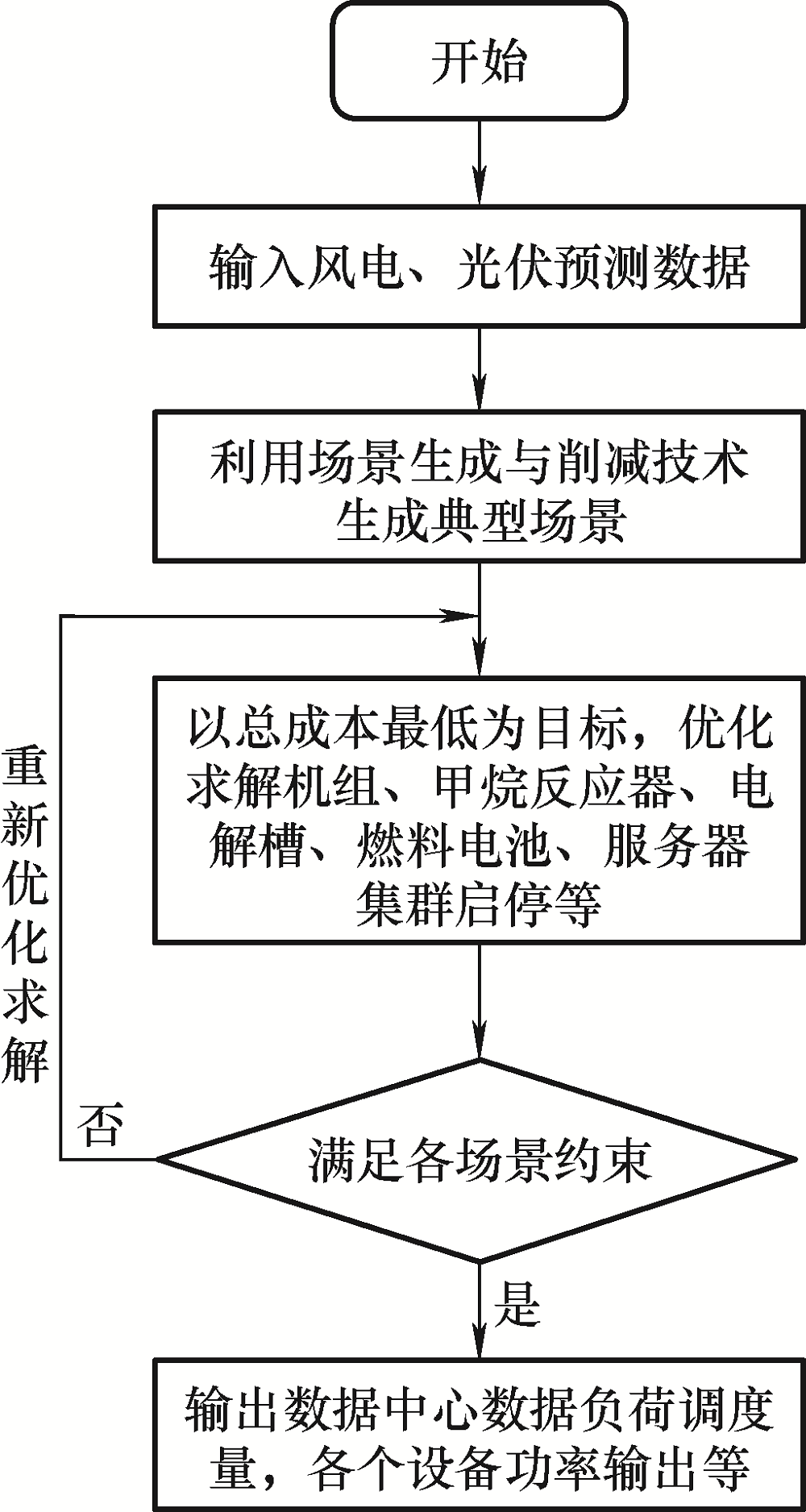

图2

表1

表2

表3

表4

表5

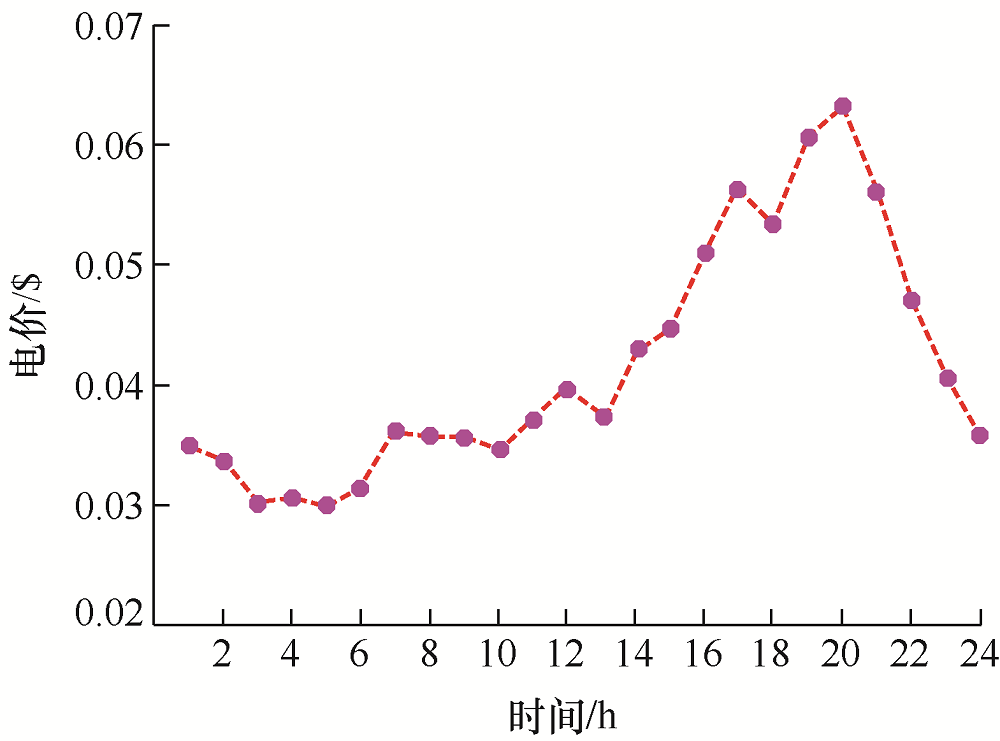

图3

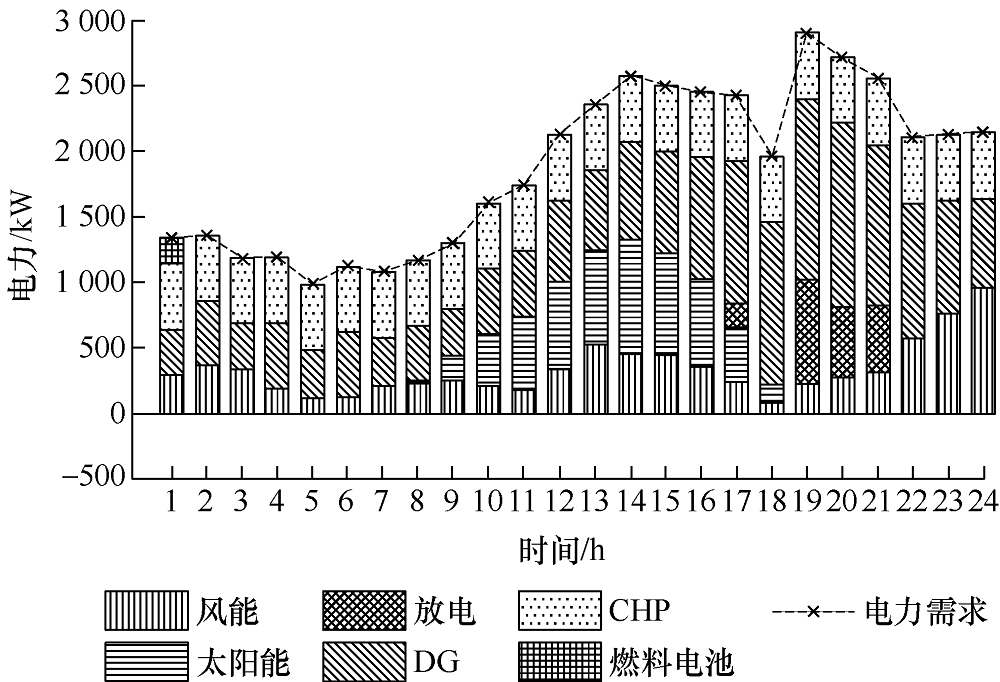

图4

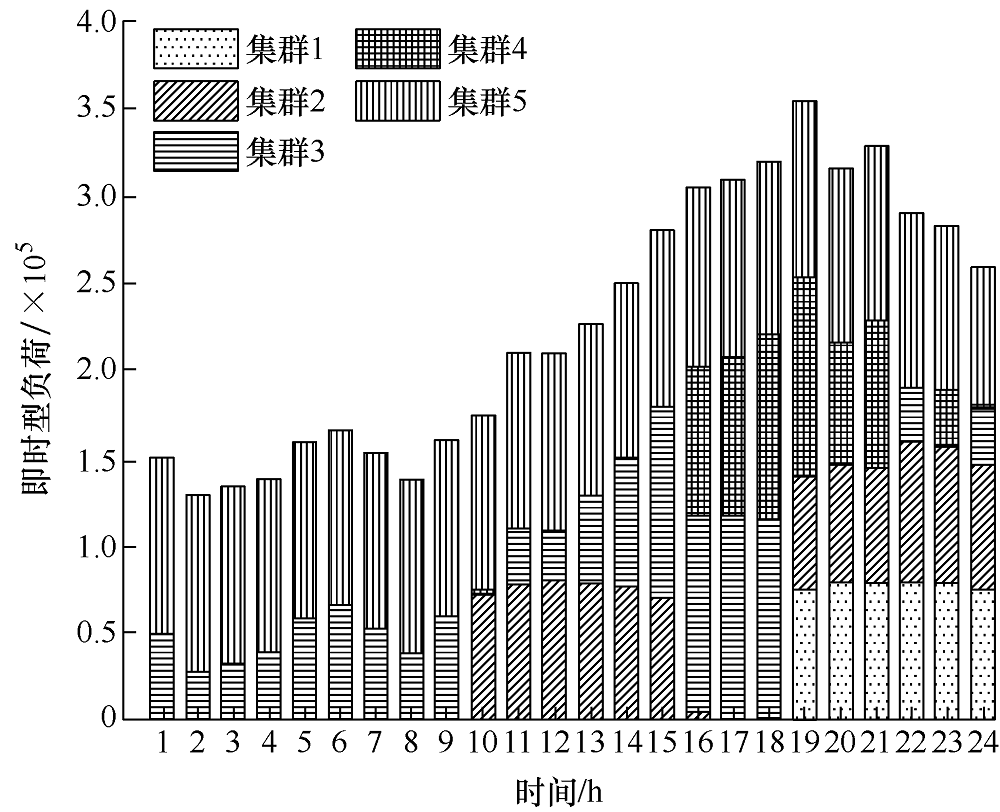

图5

图6

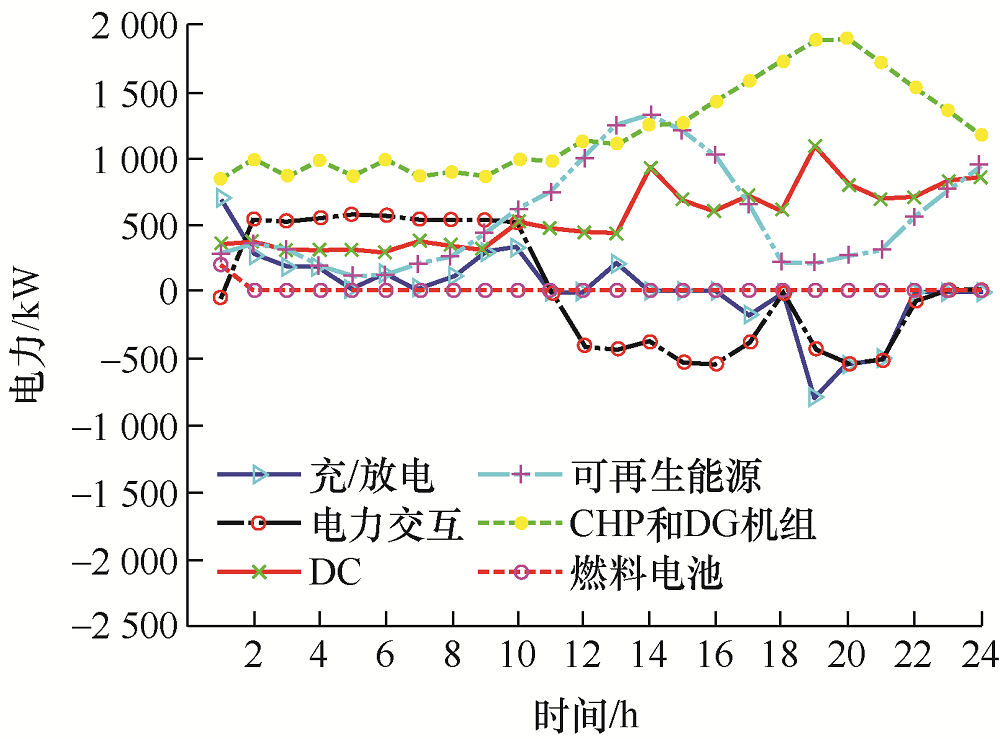

图7

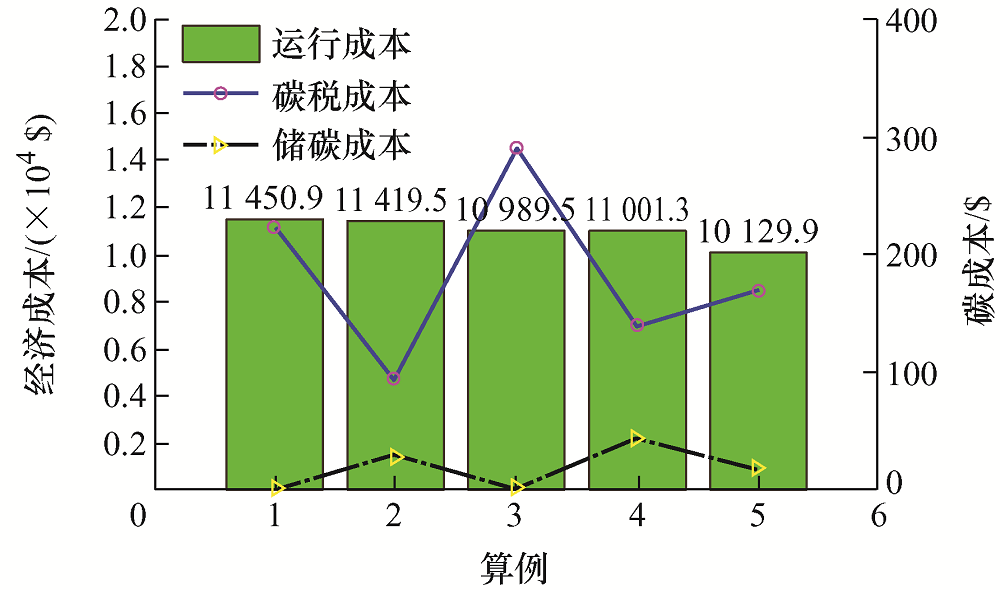

图8

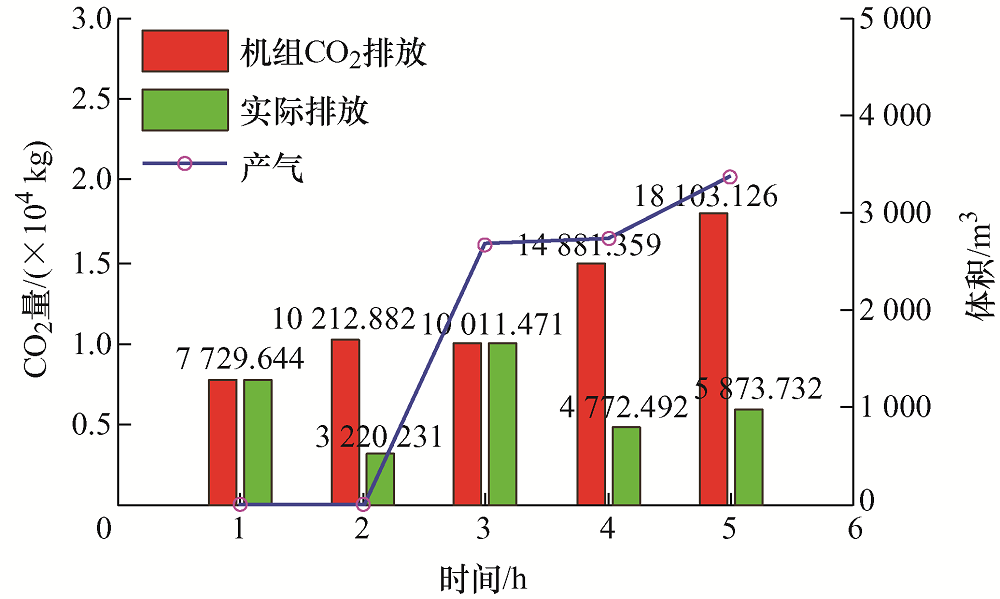

图9

表6

表7

参考文献 28

[1]	VASUDEVAN M, TIAN Y C, TANG M, et al. Profile-based application assignment for greener and more energy-efficient data centers[J]. Future Generation Computer Systems, 2017, 67:94-108. doi: 10.1016/j.future.2016.06.037
[2]	谷立静, 周伏秋, 孟辉. 我国数据中心能耗及能效水平研究[J]. 中国能源, 2010, 32(11):42-45.
	GU Lijing, ZHOU Fuqiu, MENG Hui. Research on energy consumption and energy efficiency of data center in our country[J]. Energy of China, 2010, 32(11):42-45.
[3]	DING Z, XIE L, LU Y, et al. Emission-aware stochastic resource planning scheme for data center microgrid considering batch workload scheduling and risk management[J]. IEEE Trans. on Industry Application, 2018, 54(6):5599-5608. doi: 10.1109/TIA.2018.2851516
[4]	叶瑞琪, 袁媛, 魏佳, 等. 中国数字基建的脱碳之路:数据中心与5G减碳潜力与挑战(2020-2035)[R]. 绿色和平与工业和信息化部电子第五研究所计量检测中心, 2021.
	YE Ruiqi, YUAN Yuan, WEI Jia, et al. Decarbonization of China’s digital infrastructure:Data center and 5G carbon reduction potential and challenges (2020-2035)[R]. Measurement and Testing Center of the Fifth Institute of electronics,Ministry of Greenpeace and Industry and Information Technology, 2021.
[5]	LUO J, RAO L, LIU X. Temporal load balancing with service delay guarantees for data center energy cost optimization[J]. IEEE Transactions on Parallel and Distributed Systems, 2013, 25(3):775-784. doi: 10.1109/TPDS.2013.69
[6]	GU L, ZENG D, BARNAWI A, et al. Optimal task placement with QoS constraints in geo-distributed data centers using DVFS[J]. IEEE Transactions on Computers, 2015, 64(7):2049-2059. doi: 10.1109/TC.2014.2349510
[7]	HE H, SHEN H. Minimizing the operation cost of distributed green data centers with energy storage under carbon capping[J]. Journal of Computer and System Sciences, 2021, 118:28-52. doi: 10.1016/j.jcss.2020.11.004
[8]	CHEN Z, WU L, LI Z. Electric demand response management for distributed large-scale internet data centers[J]. IEEE Transactions on Smart Grid, 2013, 5(2):651-661. doi: 10.1109/TSG.2013.2267397
[9]	TRAN N H, TRAN D H, REN S, et al. How geo-distributed data centers do demand response:A game-theoretic approach[J]. IEEE Transactions on Smart Grid, 2015, 7(2):937-947.
[10]	WANG Y,LINX, PEDRAM M. A. Stackelberg game-based optimization framework of the smart grid with distributed PV power generations and data centers[J]. IEEE Transactions on Energy Conversion, 2014, 29(4):978-987. doi: 10.1109/TEC.2014.2363048
[11]	DING Z, CAO Y, XIE L, et al. Integrated stochastic energy management for data center microgrid considering waste heat recovery[J]. IEEE Transactions on Industry Applications, 2019, 55(3):2199-2207.
[12]	ZHANG H, XU T, WU H, et al. Risk-based stochastic day-ahead operation for data center virtual power plants[J]. IET Renewable Power Generation, 2019, 13(10):1660-1669. doi: 10.1049/iet-rpg.2018.5736
[13]	刘成运, 孟超, 景锐, 等. A级数据中心综合能源系统多目标优化设计和调度[J]. 电力系统自动化, 2019, 43(14):136-142.
	LIU Chengyun, MENG Chao, JING Rui, et al. Muti-objective optimization design and scheduling of integrated energy system in A-level data center[J]. Automation of Electric Power Systems, 2019, 43(14):136-142.
[14]	YANG J, ZHANG N, CHENG Y, et al. Modeling the operation mechanism of combined P2G and gas-fired plant with CO₂ recycling[J]. IEEE Transactions on Smart Grid, 2018, 10(1):1111-1121. doi: 10.1109/TSG.2018.2849619
[15]	周任军, 肖钧文, 唐夏菲, 等. 电转气消纳新能源与碳捕集电厂碳利用的协调优化[J]. 电力自动化设备, 2018, 38(7):61-67.
	ZHOU Renjun, XIAO Junwen, TANG Xiafei, et al. Coordinated optimization of carbon utilization between power-to-gas renewable energy accommodation and carbon capture power plant[J]. Electric Power Automation Equipment, 2018, 38(7):61-67.
[16]	李建林, 牛萌, 周喜超, 等. 能源互联网中微能源系统储能容量规划及投资效益分析[J]. 电工技术学报, 2020, 32(4):874-884.
	LI Jianlin, NIU Meng, ZHOU Xichao, et al. Energy storage capacity planning and investment benefit analysis of micro-energy system in energy interconnection[J]. Transactions of China Electrotechnical Society, 2020, 32(4):874-884.
[17]	LI J, BAO Z, LI Z, et al. Modeling demand response capability by internet data centers processing batch computing jobs[J]. IEEE Transactions on Smart Grid, 2014, 6 (2):737-747. doi: 10.1109/TSG.2014.2363583
[18]	崔帅, 唐晓宁, 张彬, 等. 合成气甲烷化过程热力学分析[J]. 计算机与应用化学, 2015, 32(4):419-425.
	CUI Shuai, TANG Xiaoning, ZHANG Bin, et al. Thermodynamic analysis for the synthesis process of methane[J]. Computers & Applied Chemistry, 2015, 32(4):419-425.
[19]	刘继春, 周春燕, 高红均, 等. 考虑氢能-天然气混合储能的电-气综合能源微网日前经济调度优化[J]. 电网技术, 2018, 42(1):170-179.
	LIU Jichun, ZHOU Chunyan, GAO Hongjun, et al. A day-ahead economic dispatch optimization model of integrated electricity-natural gas system considering hydrogen-gas energy storage system in microgrid[J]. Power System Technology, 2018, 42(1):170-179.
[20]	徐立中, 杨光亚, 许昭, 等. 考虑风电随机性的微电网热电联合调度[J]. 电力系统自动化, 2011, 35(9):53-60,66.
	XU Lizhong, YANG Guangya, XU Zhao, et al. Combined scheduling of electricity and heat in a microgrid with volatile wind power[J]. Automation of Electric Power Systems, 2011, 35 (9):53-60,66.
[21]	林琳, 高雪, 甄钊. 考虑含热电联产机组及可再生能源优先消纳的风-光-水-火联合优化调度[J]. 电气工程学报, 2021, 16(3):85-91.
	LIN Lin, GAO Xue, ZHEN Zhao. Optimal dispatch of wind-photovoltaic-hydro-thermal power system based on CHP units and priority given to renewable energy[J]. Journal of Electrical Engineering, 2021, 16(3):85-91.
[22]	张鹏, 徐文宝. 基于多场景随机规划的电热联合系统日前经济调度[J]. 电气工程学报, 2020, 15(2):85-91.
	ZHANG Peng, XU Wenbao. Day-ahead economic dispatch of combined electro-thermal system based on multi-scenario stochastic programming[J]. Journal of Electrical Engineering, 2020, 15(2):85-91.
[23]	California ISO. Hourly breakdown of renewable resources[EB/OL]. [2018-04-10]. http://content.caiso.com/green/renewrpt/20150806_DailyRenewablesWatch.txt.
[24]	California OASIS. Locational marginal prices[EB/OL]. [2018-04-10]. http://oasis.caiso.com/mrioasis/logon.do.
[25]	LI J, LI Z, REN K, et al. Towards optimal electric demand management for internet data centers[J]. IEEE Transactions on Smart Grid, 2011, 3(1):183-192. doi: 10.1109/TSG.2011.2165567
[26]	QIU J, MENG K, ZHENG Y, et al. Optimal scheduling of distributed energy resources as a virtual power plant in a transactive energy framework[J]. IET Generation,Transmission & Distribution, 2017, 11(13):3417-3427. doi: 10.1049/iet-gtd.2017.0268
[27]	李奇, 赵淑丹, 蒲雨辰, 等. 考虑电氢耦合的混合储能微电网容量配置优化[J]. 电工技术学报, 2021, 36(3):486-495.
	LI Qi, ZHAO Shudan, PU Yuchen, et al. Capacity optimization of hybrid energy storage microgrid considering electricity-hydrogen coupling[J]. Transactions of China Electrotechnical Society, 2021, 36(3):486-495.
[28]	孙惠娟, 刘昀, 彭春华, 等. 计及电转气协同的含碳捕集与垃圾焚烧虚拟电厂优化调度[J]. 电网技术, 2021, 45(9):3534-3545.
	SUN Huijuan, LIU Yun, PENG Chunhua, et al. Optimization scheduling of virtual power plant with carbon capture and waste incineration considering power-to-gas coordination[J]. Power System Technology, 2021, 45(9):3534-3545.

机组	最小出力/kW	最大出力/kW	最小开启/h	最小关闭/h	向下爬坡	向上爬坡
DG1	100	1 400	5	2	210	120
DG2	200	1 000	2	3	150	180
CHP1	200	600	6	2	150	420
CHP2	300	800	8	3	250	480

参数	数值
电池容量/(kW·h)	2 800
充电功率上限/kW	700
放电功率上限/kW	800
初始电量/(kW·h)	300
荷电上限	0.9
荷电下限	0.1
充电频率	0.91

设备	参数	数值
电解槽	电解槽效率电解槽功率上限/kW	0.65 1 000
燃料电池	燃料电池效率燃料电池放电上限/kW	0.75 200
甲烷反应器	甲烷反应器效率甲烷反应器功率上限	0.85 750
储氢罐	储氢罐容量上限/kmol 储氢罐容量下限/kmol	0 1 000

数据负荷	执行时长/h	执行周期/h	是否连续	GPU 频率/GHz
1	16	24	否	2 000
2	15	24	否	2 000
3	19	24	是	1 800
4	12	24	否	1 800
5	10	24	否	2 000
6	12	24	否	2 000

集群	空闲功耗/kW	满负载功耗/kW	最大负载量/个	开机功耗/kW	关机功耗/kW
1	80	145	80 000	100	90
2	68	126	80 000	90	80
3	106	200	120 000	160	150
4	120	180	120 000	160	150
5	88	150	100 000	120	110

计及电转气和碳捕集的数据中心微电网“源-荷”低碳优化调度方法^*

“Source-load” Low-carbon Optimal Scheduling Method for Data Center Microgrids Considering Power to Gas and Carbon Capture

RichHTML

PDF

可视化

摘要/Abstract

引用本文

使用本文

图/表 16

参考文献 28

相关文章 2

编辑推荐

Metrics

本文评价

集群	状态
1	0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1
2	0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
3	1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
4	0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1
5	1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

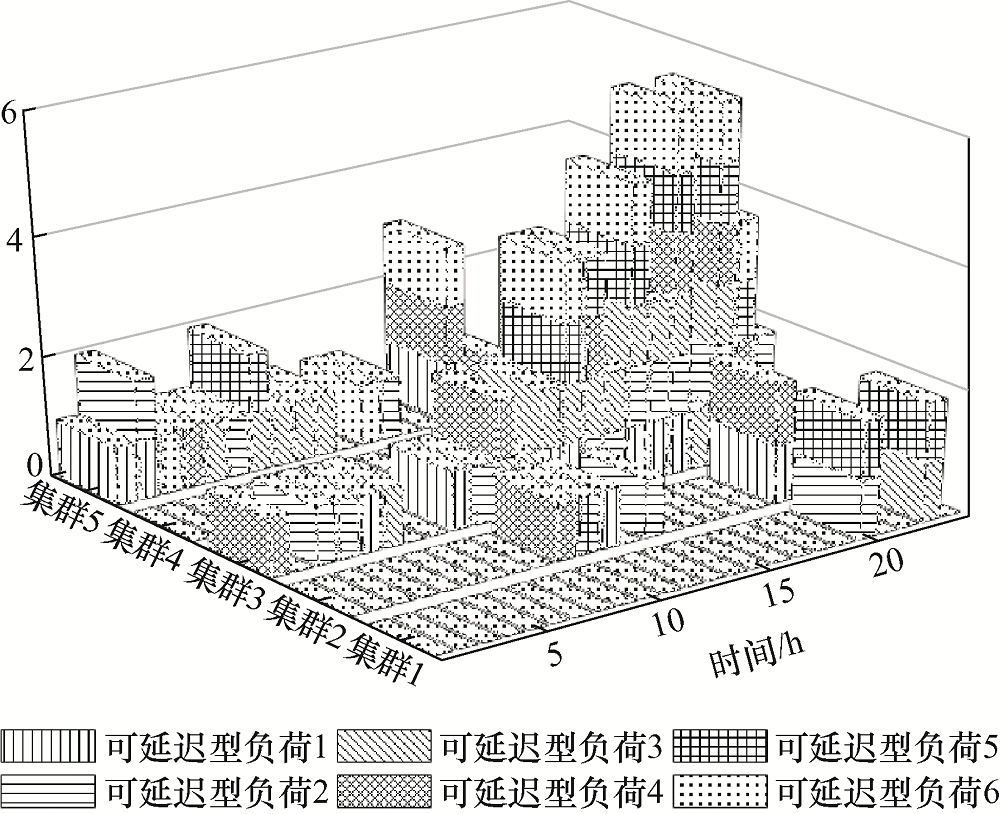

数据负荷	状态
数据负荷1	1 1 0 0 1 1 0 0 1 0 0 1 1 1 0 1 1 1 1 1 1 1 1 0
数据负荷2	0 1 1 1 0 0 0 0 0 1 0 0 1 1 1 1 1 1 1 1 1 1 1 0
数据负荷3	0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0
数据负荷4	1 0 0 1 0 0 0 0 0 1 1 0 0 0 1 1 0 1 1 1 1 1 1 0
数据负荷5	0 0 0 0 0 0 1 0 0 0 1 0 0 1 1 0 1 0 1 1 1 1 1 0
数据负荷6	0 0 1 0 0 0 0 0 0 0 0 1 0 1 1 1 1 1 1 1 1 1 1 0
