基于决策树和支持向量机的智能变电站二次系统防误方法*

doi:10.11985/2023.01.013

电气工程学报 ›› 2023, Vol. 18 ›› Issue (1): 118-125.doi: 10.11985/2023.01.013

扫码分享

基于决策树和支持向量机的智能变电站二次系统防误方法^*

周凯¹(), 曹林²(), 胡志坚², 严利雄¹, 毕如玉¹, 邓科¹, 李煜磊¹

1.国网湖北省电力有限公司检修公司武汉 430072
2.武汉大学电气与自动化学院武汉 430072

收稿日期:2021-06-10 修回日期:2021-08-22 出版日期:2023-03-25 发布日期:2023-04-19
通讯作者: 曹林，男，1998年生，硕士研究生。主要研究方向为电力系统继电保护。E-mail：lcao_whu@163.com
作者简介:周凯，男，1991年生，博士。主要研究方向为变电站远方控制及安全分析技术。E-mail：zhouktian@163.com
基金资助:
*国家自然科学基金(51977156);国网湖北电力科技(52152020003K)

Anti-error Method of Intelligent Substation Secondary System Based on Decision Tree and Support Vector Machine

ZHOU Kai¹(), CAO Lin²(), HU Zhijian², YAN Lixiong¹, BI Ruyu¹, DENG Ke¹, LI Yulei¹

1. Maintenance Company, State Grid Hubei Electric Power Co., Ltd., Wuhan 430072
2. School of Electrical Engineering and Automation, Wuhan University, Wuhan 430072

Received:2021-06-10 Revised:2021-08-22 Online:2023-03-25 Published:2023-04-19

摘要/Abstract

摘要：

随着智能变电站的普及，电力系统的安全运行对变电站的二次检修提出了更高的要求。针对二次设备状态转换过程中易发生误操作的现问题，提出了一种新型二次系统防误方法。通过测量装置获取一二次设备状态值，构建初始样本数据集。为获取模型所需的特征向量集，采用了PCA法实现数据降维，特征向量集通过决策树实现二次操作分类。对分类后的样本集进行SVM训练和测试，实现二次设备操作的防误判别。最后构建了防误模型，用历史运行数据进行仿真测试，验证了此方法防误判别的有效性。

关键词: 智能变电站, 二次设备, 决策树, 支持向量机

Abstract:

With the popularization of intelligent substation, the safe operation of power system puts forward higher requirements for the secondary maintenance of substation. In order to solve the problem of misoperation in the process of state transition of secondary equipment, a new anti-misoperation method of secondary system is proposed. First and second equipment status values are obtained through the measuring device to construct the initial sample data set. In order to obtain the required feature vector set of the model, PCA method is adopted to achieve data dimensionality reduction, and the feature vector set is classified by decision tree for secondary operations. SVM training and testing are carried out on the classified sample set to realize the misjudgment prevention of secondary equipment operation. Finally, an anti-error model is constructed, and the simulation test is carried out with the historical operating data to verify the effectiveness of the proposed method.

Key words: Intelligent substation, secondary equipment, decision tree, support vector machine

中图分类号:

TM772

周凯, 曹林, 胡志坚, 严利雄, 毕如玉, 邓科, 李煜磊. 基于决策树和支持向量机的智能变电站二次系统防误方法^*[J]. 电气工程学报, 2023, 18(1): 118-125.

ZHOU Kai, CAO Lin, HU Zhijian, YAN Lixiong, BI Ruyu, DENG Ke, LI Yulei. Anti-error Method of Intelligent Substation Secondary System Based on Decision Tree and Support Vector Machine[J]. Journal of Electrical Engineering, 2023, 18(1): 118-125.

图/表 9

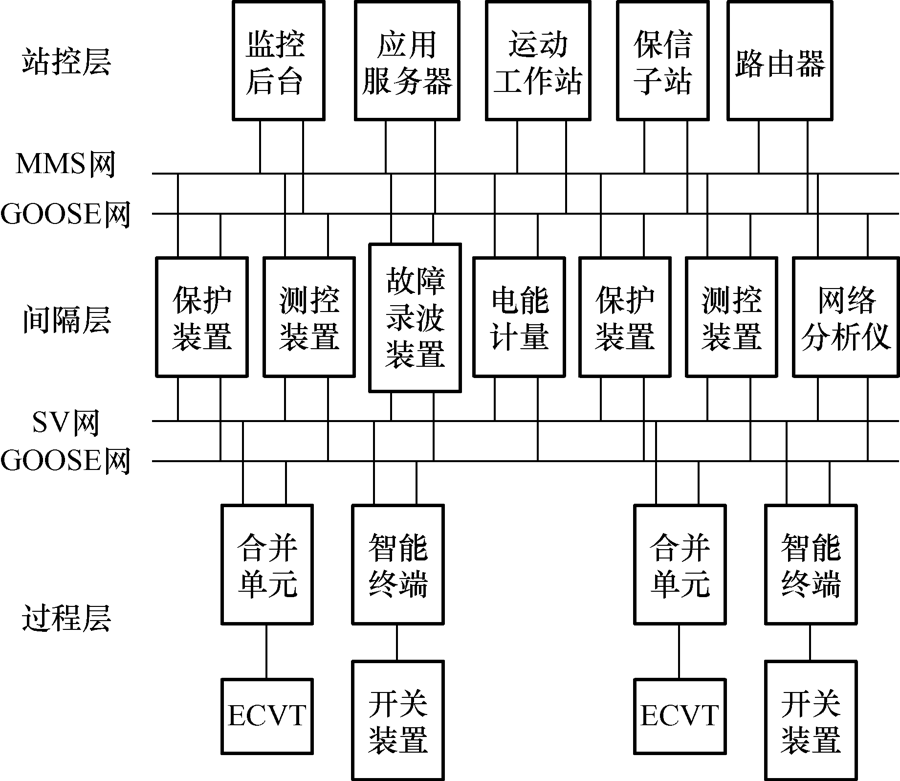

图1

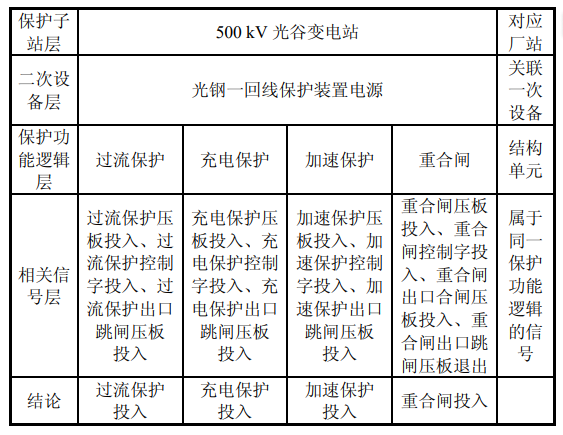

图2

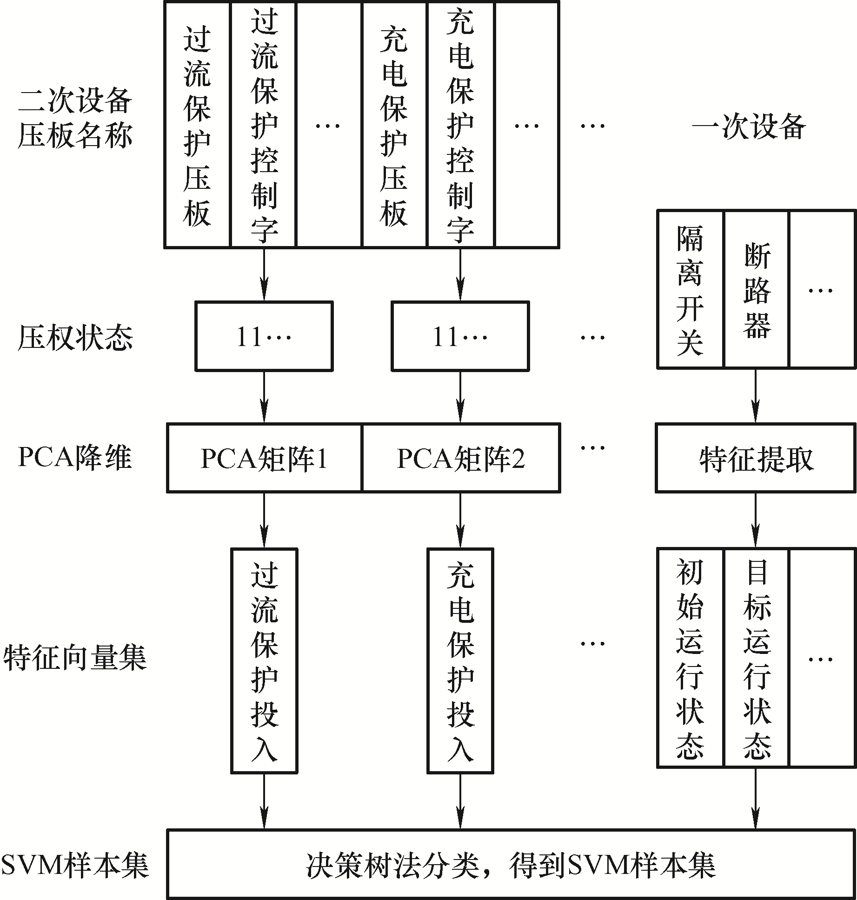

图3

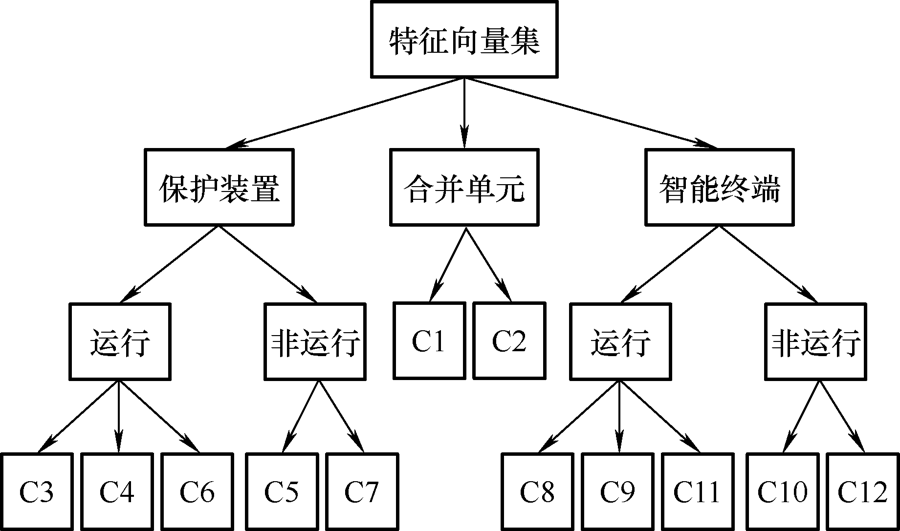

图4

表1

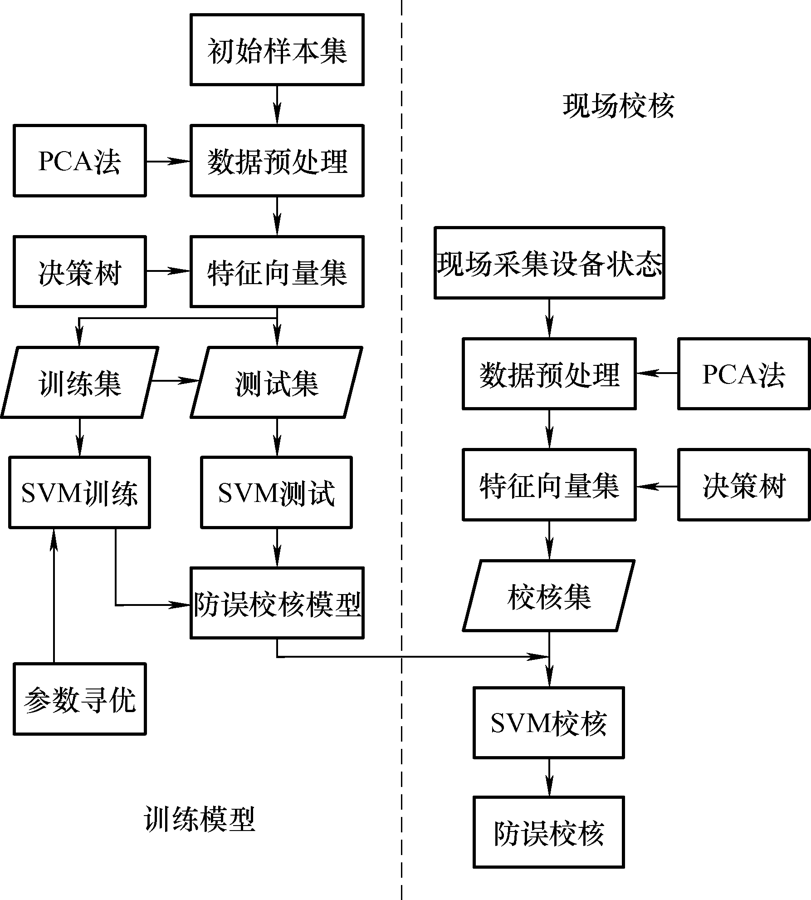

图5

表2

图6

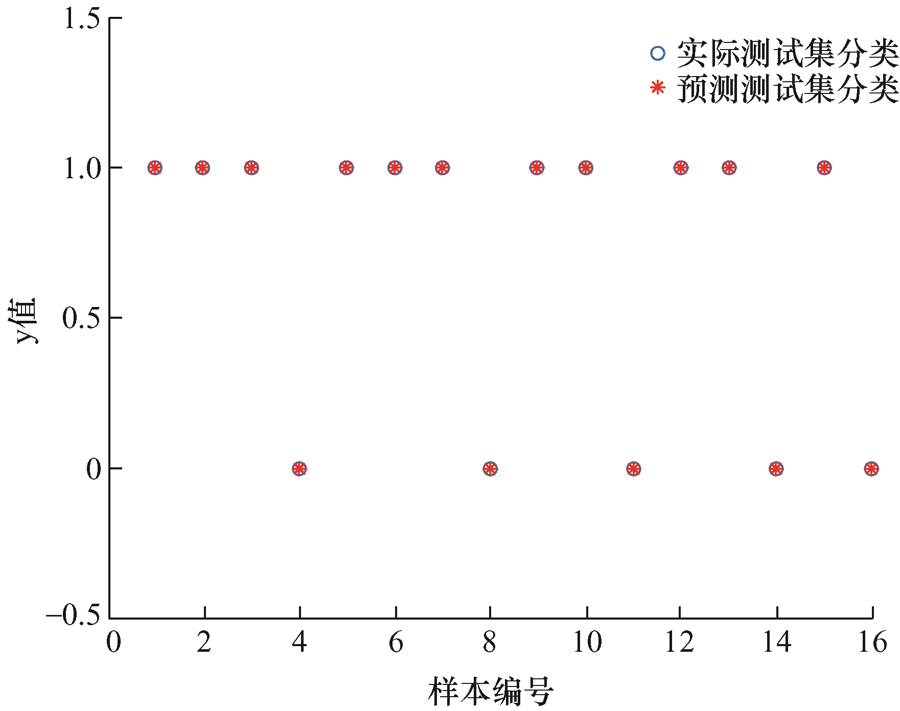

图7

参考文献 17

[1]	李鹏, 卫星, 郭利军, 等. 智能变电站继电保护运维防误技术研究及应用[J]. 电力系统保护与控制, 2017, 45(19):123-129.
	LI Peng, WEI Xing, GUO Lijun, et al. Study and application of relay protection maintenance anti- misoperation technology in smart substation[J]. Power System Protection and Control, 2017, 45(19):123-129.
[2]	HE Jinghan, LIU Lin, LI Wenli, et al. Development and research on integrated protection system based on redundant information analysis[J]. Protection and Control of Modern Power Systems, 2016, 1(1):13. doi: 10.1186/s41601-016-0024-y
[3]	于杰, 陈秋临, 吕鑫, 等. 基于Petri网的调控一体化智能防误系统的建模[J]. 浙江电力, 2014, 33(11):19-22,45.
	YU Jie, CHEN Qiulin, LÜ Xin, et al. Modeling of intelligent anti-misoperation system with integrated dispatching and control based on Petri net[J]. Zhejiang Electric Power, 2014, 33(11):19-22,45.
[4]	李功新, 黄文英, 任晓辉, 等. 调控一体化系统防误校核研究[J]. 电力系统保护与控制, 2015, 43(7):97-102.
	LI Gongxin, HUANG Wenying, REN Xiaohui, et al. Research on anti-misoperation check in integrated dispatching and control system[J]. Power System Protection and Control, 2015, 43(7):97-102.
[5]	张旭升, 李江林, 赵国喜. 智能变电站二次安措防误系统研究与应用[J]. 电力系统保护与控制, 2017, 45(11):141-146.
	ZHANG Xusheng, LI Jianglin, ZHAO Guoxi. Research and application of the anti-misoperation system for the intelligent station secondary equipment security measures[J]. Power System Protection and Control, 2017, 45(11):141-146.
[6]	车兵, 许家焰, 徐晓春, 等. 智能变电站二次检修安措防误技术研究[J]. 电力系统保护与控制, 2018, 46(2):150-156.
	CHE Bing, XU Jiayan, XU Xiaochun, et al. Research of secondary maintenance safety measures error proofing technology in smart substation[J]. Power System Protection and Control, 2018, 46(2):150-156.
[7]	王永明. 智能电网调度控制系统的二次设备防误技术[J]. 电力系统自动化, 2020, 44(14):94-100.
	WANG Yongming. Anti-misoperation technology of secondary devices for dispatching and control system of smart grid[J]. Automation of Electric Power Systems, 2020, 44(14):94-100.
[8]	袁明哲, 邹经鑫, 汪艮, 等. 基于PSO-SVM的智能变电站二次系统故障诊断方法[J]. 电力工程技术, 2020, 39(6):172-176,190.
	YUAN Mingzhe, ZOU Jingxin, WANG Gen, et al. Fault diagnosis method for secondary system of smart substation based on PSO-SVM[J]. Electric Power Engineering Technology, 2020, 39(6):172-176,190.
[9]	ZHU Jun, LUBKEMAN D L. Object-oriented development of software for power system simulations[J]. IEEE Transaction on Power Systems, 1997, 12(2):1002-1007. doi: 10.1109/59.589809
[10]	IEC 61850. Communication networks and system in substation[S]. International Electrotechnical Commission, 2004.
[11]	蔡骥然, 郑永康, 周振宇, 等. 智能变电站二次设备状态监测研究综述[J]. 电力系统保护与控制, 2016, 44(6):148-154.
	CAI Jiran, ZHENG Yongkang, ZHOU Zhenyu, et al. A survey of research on secondary device condition monitoring in smart substation[J]. Power System Protection and Control, 2016, 44(6):148-154.
[12]	贾嵘, 徐其惠, 李辉, 等. 最小二乘支持向量机多分类法的变压器故障诊断[J]. 高电压技术, 2007(6):110-113,132.
	JIA Rong, XU Qihui, LI Hui, et al. Fault diagnosis of transformer using multi-class least squares support vector machine[J]. High Voltage Engineering, 2007(6):110-113,132.
[13]	胡益, 王晓茹, 滕予非, 等. 基于多层支持向量机的交直流电网频率稳定控制方法[J]. 中国电机工程学报, 2019, 39(14):4104-4118.
	HU Yi, WANG Xiaoru, TENG Yufei, et al. Frequency stability control method of AC/DC power system based on multi-layer support vector machine[J]. Proceedings of the CSEE, 2019, 39(14):4104-4118.
[14]	SUN Wei, MA Guozhen. Condition assessment of power supply equipment based on Kernel principal component analysis and multi-class support vector machine[J]. IEEE Computer Society, 2009:485-488.
[15]	戴远航, 陈磊, 张玮灵, 等. 基于多支持向量机综合的电力系统暂态稳定评估[J]. 中国电机工程学报, 2016, 36(5):1173-1180.
	DAI Yuanhang, CHEN Lei, ZHANG Weiling, et al. Power system transient stability assessment based on multi-support vector machines[J]. Proceedings of the CSEE, 2016, 36(5):1173-1180.
[16]	范卫东, 董金星, 冯晓伟, 等. 智能变电站二次操作校核方法研究[J]. 电测与仪表, 2020, 57(13):40-46,54.
	FAN Weidong, DONG Jinxing, FENG Xiaowei, et al. Research on checking method of secondary operation in smart substation[J]. Electrical Measurement & Instrumentation, 2020, 57(13):40-46,54.
[17]	陈华丰, 张葛祥. 基于决策树和支持向量机的电能质量扰动识别[J]. 电网技术, 2013, 37(5):1272-1278.
	CHEN Huafeng, ZHANG Gexiang. Power quality disturbance identification using decision tree and support vector machine[J]. Power System Technology, 2013, 37(5):1272-1278.

设备名称	符号	状态转换	条件
合并单元	C1	运行转检修	检修压板投入“1”
合并单元	C2	检修转运行	检修压板退出“0”
保护装置	C3	运行转跳闸	满足差流跳闸条件
	C4	运行转检修	检修压板投入“1”
	C5	检修转运行	检修压板退出“0”
	C6	运行转闭锁	保护装置闭锁
	C7	闭锁转运行	保护装置正常
智能终端	C8	运行转跳闸	接收到跳闸信号
	C9	运行转检修	检修压板投入“1”
	C10	检修转运行	检修压板退出“0”
	C11	运行转闭锁	智能终端闭锁
	C12	闭锁转运行	智能终端正常

操作对象	类别	训练数量	测试数量	误判数量	准确率 (%)
合并单元	C1	660	160	0	100
合并单元	C2	500	120	0	100
保护装置	C3	420	100	0	100
	C4	780	200	2	99
	C5	320	80	0	100
	C6	640	160	1	99.4
	C7	800	200	0	100
智能终端	C8	1 200	300	2	99.3
	C9	2 000	500	1	99.8
	C10	1 780	450	2	99.6
	C11	1 520	380	2	99.5
	C12	1 600	400	1	99.8
