基于转子电流模型参考自适应的双馈电机无位置传感器预测功率控制

doi:10.11985/2021.04.013

电气工程学报 ›› 2021, Vol. 16 ›› Issue (4): 101-107.doi: 10.11985/2021.04.013

• 特邀专栏：高性能永磁电机驱动与控制 • 上一篇下一篇

扫码分享

基于转子电流模型参考自适应的双馈电机无位置传感器预测功率控制

张晟铵¹(), 张永昌²(), 焦健³(), 蒋涛²()

1.北方工业大学电力电子与电气传动北京市工程研究中心北京 100144
2.华北电力大学电气与电子工程学院北京 102206
3.北京交通大学电气工程学院北京 100044

收稿日期:2021-03-25 修回日期:2021-05-25 出版日期:2021-12-25 发布日期:2022-02-10
通讯作者: 张永昌 E-mail:zsa15531679188@163.com;zyc@ncut.edu.cn;79157937@qq.com;jiangtao1130@qq.com
作者简介:* 张永昌,男,1982年生,博士,教授,博士研究生导师。主要研究方向为电力电子与电机控制。E-mail： zyc@ncut.edu.cn
张晟铵,男,1995年生,硕士研究生。主要研究方向为双馈电机预测控制。E-mail： zsa15531679188@163.com
焦健,男,1993年生,博士研究生。主要研究方向为双馈电机预测控制。E-mail： 79157937@qq.com
蒋涛,男,1995年生,博士研究生。主要研究方向为双馈电机预测控制。E-mail： jiangtao1130@qq.com

Position Sensorless Predictive Power Control of Doubly-fed Induction Generator Based on Rotor Current Model Reference Adaptive System

ZHANG Shengan¹(), ZHANG Yongchang²(), JIAO Jian³(), JIANG Tao²()

1. Power Electronics and Motor Drive Engineering Research Center of Beijing, North China University of Technology, Beijing 100144
2. School of Electrical and Electronic Engineering, North China Electric Power University, Beijing 102206
3. School of Electrical Engineering, Beijing Jiaotong University, Beijing 100044

Received:2021-03-25 Revised:2021-05-25 Online:2021-12-25 Published:2022-02-10
Contact: ZHANG Yongchang E-mail:zsa15531679188@163.com;zyc@ncut.edu.cn;79157937@qq.com;jiangtao1130@qq.com

摘要/Abstract

摘要：

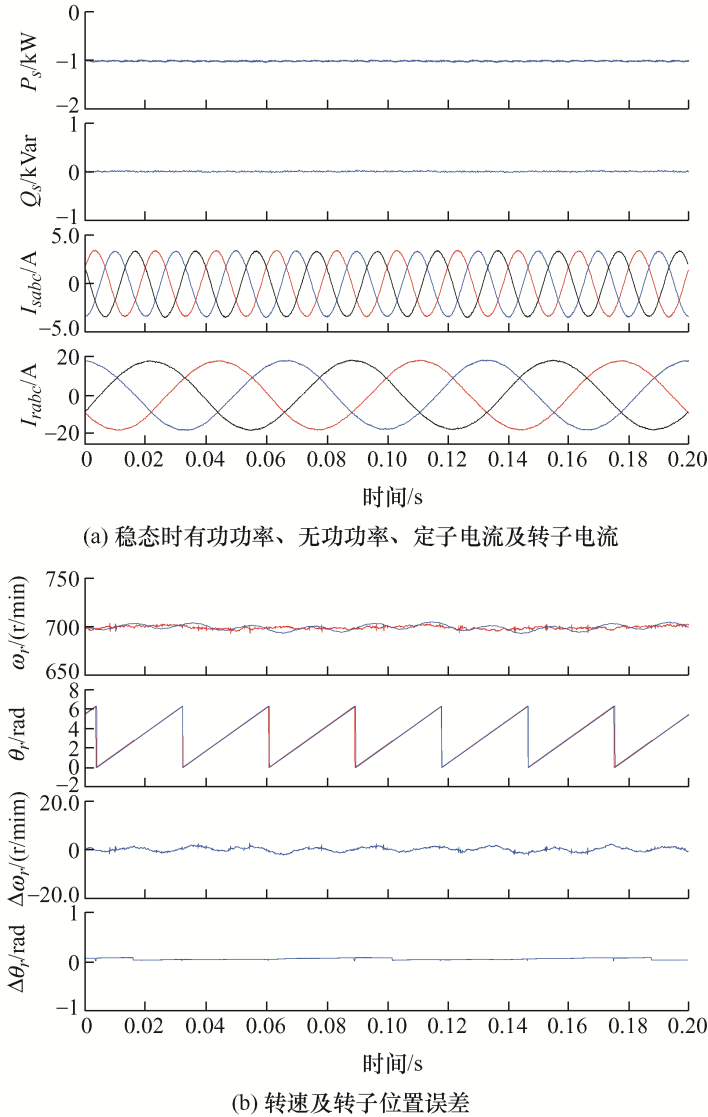

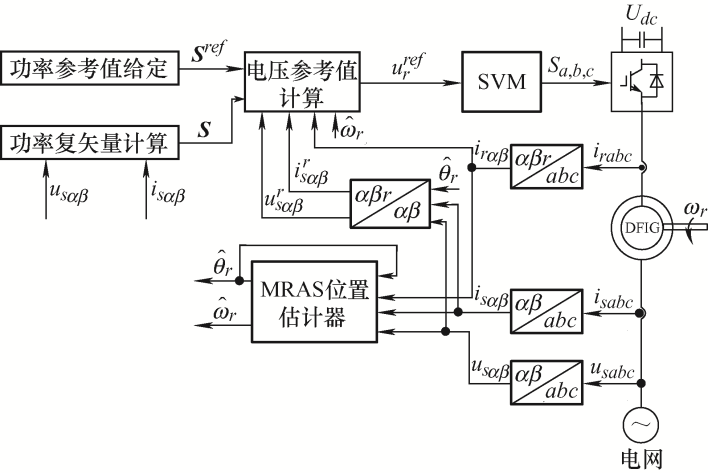

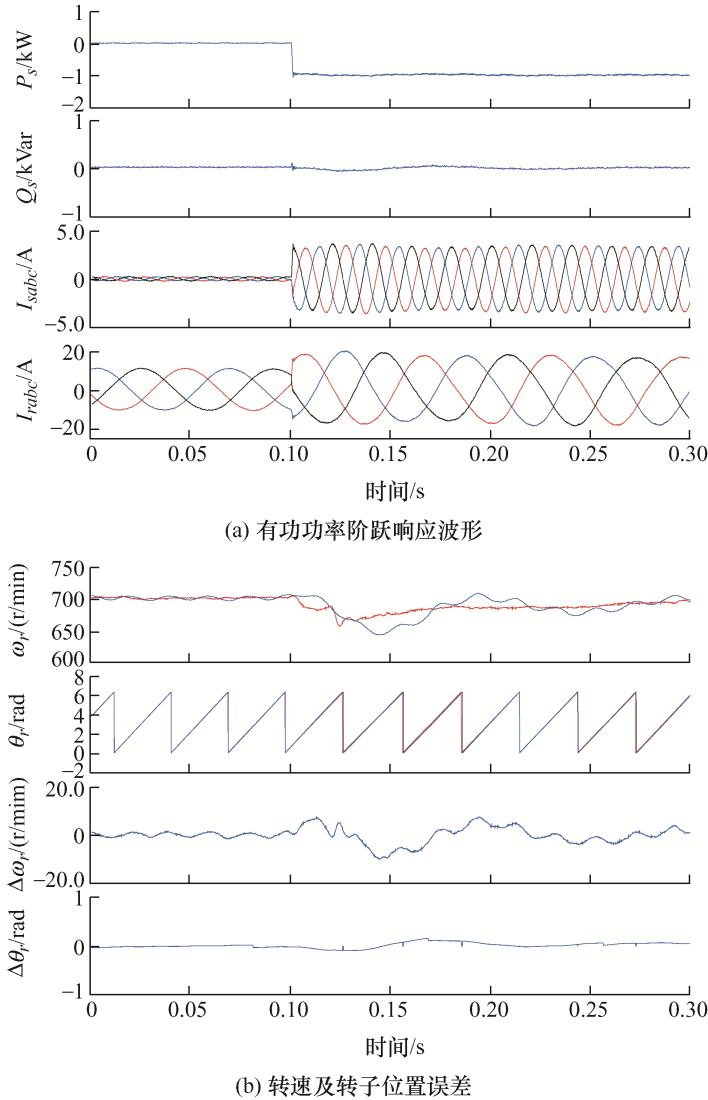

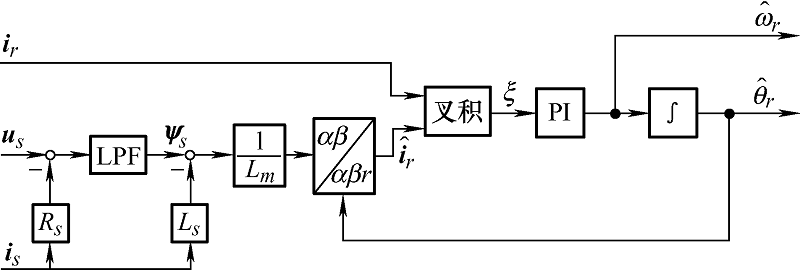

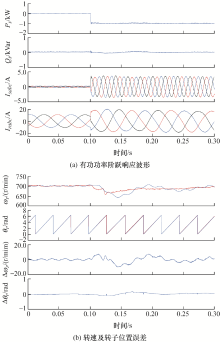

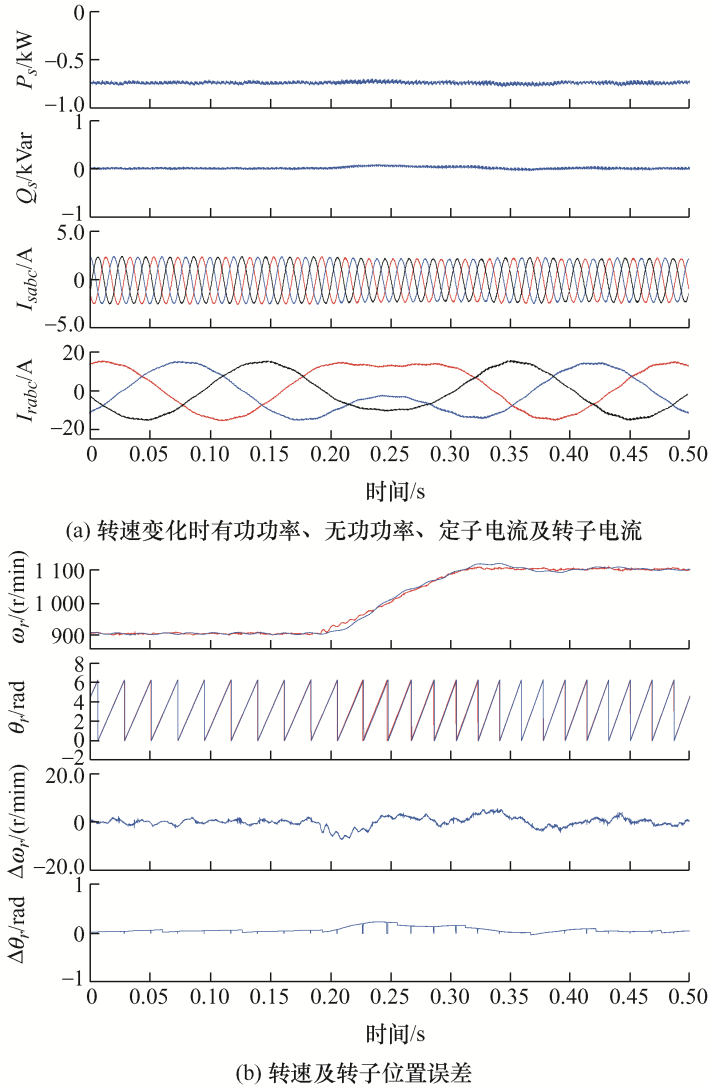

双馈电机以其变流器功率小、有功无功控制灵活、能量双向流动等优点在风力发电系统中得到了广泛应用。现有的矢量控制需要对多个PI系数进行整定,还需要安装位置传感器来获得转子位置和转速,在增大电机体积和成本的同时降低了系统的可靠性。为此,提出一种无需PI整定和安装位置传感器的新型解决方案。首先,在解析推导定子侧复功率微分的基础上,基于功率无差拍控制的思想直接计算得到转子侧的电压参考值,无需任何控制器整定工作。其次,通过比较实测转子电流和基于定子磁链电流模型的估计转子电流,构造了基于转子电流模型参考自适应的位置估计方法,从而实现了无位置传感器控制。试验结果表明,所提出的方法在次同步、超同步和功率阶跃等各种工况下都能够较好地跟踪实际位置和转速,并且具有优异的稳态性能和快速的动态响应,为双馈电机风力发电系统提供了一种低成本、高性能、易于应用的解决方案。

关键词: 双馈电机, 位置观测器, 无差拍预测控制

Abstract:

Doubly-fed induction generators have been widely used in wind power generation systems due to their low converter power, flexible active and reactive power control, and two way flow of energy. The existing vector control needs to tune multiple PI coefficients, and additionally needs to install a position sensor to obtain the rotor position and speed, which increases the volume and cost of the generator while reducing the reliability of the system. Therefore, a new solution that does not require PI setting and installation of position sensors is proposed. First, on the basis of analytically deriving the complex power differential on the stator side, the voltage reference value on the rotor side is directly calculated based on the idea of power deadbeat control without any controller setting work. Secondly, by comparing the measured rotor current with the estimated rotor current based on the stator flux current model, a position estimation method based on the rotor current model reference adaptive is constructed, thereby realizing the position sensorless control. The experimental results show that the method proposed can track the actual position and speed well under various working conditions such as sub-synchronization, super-synchronization and power step, and has excellent steady-state performance and fast dynamic response and provides the doubly-fed wind power generation system provides a low-cost, high-performance, and easy-to-apply solution.

Key words: Doubly-fed induction generator, position observer, deadbeat predictive control

中图分类号:

TM561

张晟铵, 张永昌, 焦健, 蒋涛. 基于转子电流模型参考自适应的双馈电机无位置传感器预测功率控制[J]. 电气工程学报, 2021, 16(4): 101-107.

ZHANG Shengan, ZHANG Yongchang, JIAO Jian, JIANG Tao. Position Sensorless Predictive Power Control of Doubly-fed Induction Generator Based on Rotor Current Model Reference Adaptive System[J]. Journal of Electrical Engineering, 2021, 16(4): 101-107.

图/表 8

图1

图2

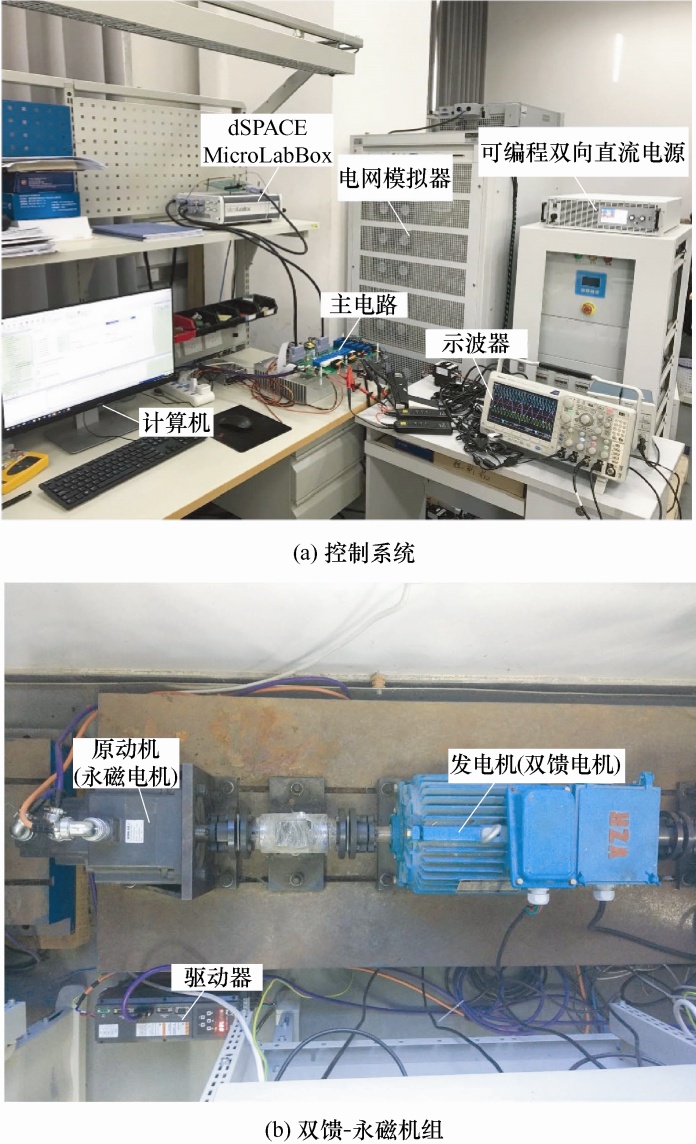

图3

表1

图4

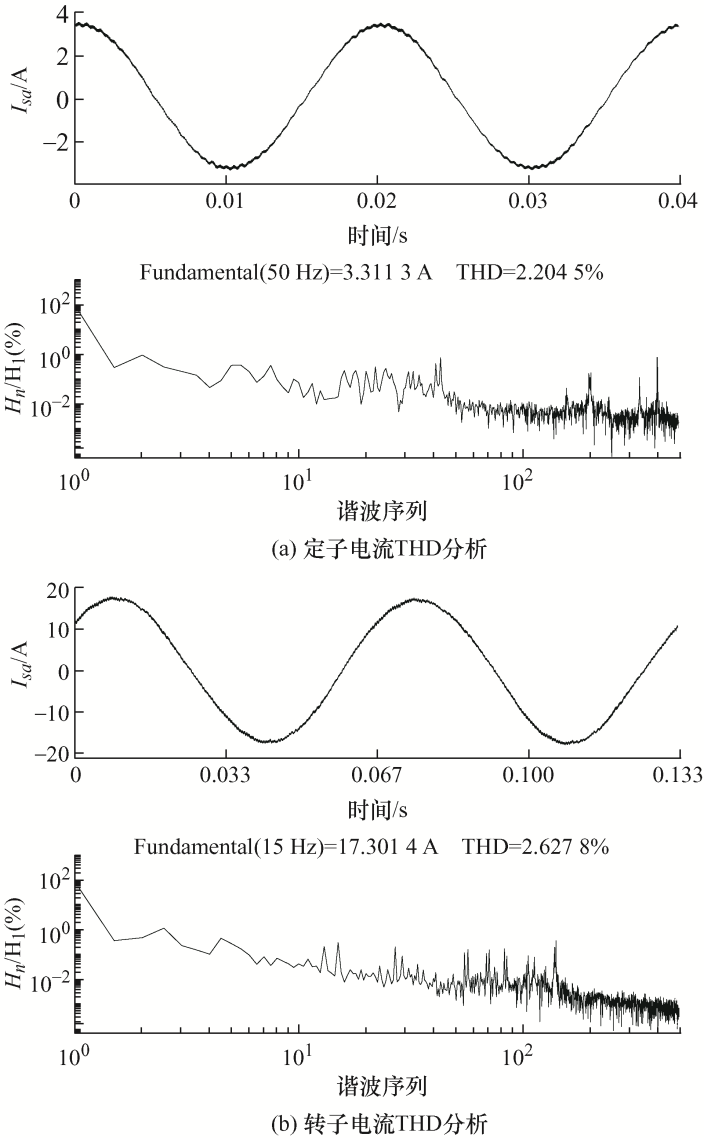

图5

图6

图7

参考文献 16

[1]	WANG X, SUN D. Three-vector-based low-complexity model predictive direct power control strategy for doubly fed induction generators[J]. IEEE Transactions on Power Electronics, 2017, 32(1):773-782. doi: 10.1109/TPEL.2016.2532387
[2]	JACOMINI R V, SGUAREZI FILHO A J. Finite control set applied to the direct power control of a DFIG operating under voltage sags[J]. IEEE Transactions on Sustainable Energy, 2019, 10(2):952-960. doi: 10.1109/TSTE.5165391
[3]	ZHANG Y, JIAO J, XU D. Direct power control of doubly fed induction generator using extended power theory under unbalanced network[J]. IEEE Transactions on Power Electronics, 2019, 34(12):12024-12037. doi: 10.1109/TPEL.63
[4]	KRZEMINSKI Z. Sensorless multiscalar control of double fed machine for wind power generators[C]// Proceedings of the Power Conversion Conference-Osaka 2002, 2002, 1(1):334-339.
[5]	TOUAITI B, AZZA H B, JEMLI M. A MRAS observer for sensorless control of wind-driven doubly fed induction generator in remote areas[C]// 2016 17th International Conference on Sciences and Techniques of Automatic Control and Computer Engineering (STA),Sousse,Tunisia, 2016:526-531.
[6]	IWANSKI G, SZYPULSKI M, LUSZCZYK T, et al. Cross and dot product based MRAS observer of the rotor position of doubly fed induction machine[C]// Proceedings of 2014 Ninth International Conference on Ecological Vehicles and Renewable Energies (EVER), 2014:1-5.
[7]	LU L, AVILA N F, CHU C, et al. Model reference adaptive back-electromotive-force estimators for sensorless control of grid-connected DFIGs[J]. IEEE Transactions on Industry Applications, 2018, 54(2):1701-1711. doi: 10.1109/TIA.28
[8]	MBUKANI M W K, GULE N. PLL-based sliding mode observer estimators for sensorless control of rotor-tied DFIG systems[J]. IEEE Transactions on Industry Applications, 2019, 55(6):5960-5970. doi: 10.1109/TIA.28
[9]	PUCHALAPALLI S, SINGH B. A novel control scheme for wind turbine driven DFIG interfaced to utility grid[J]. IEEE Transactions on Industry Applications, 2020, 56(3):2925-2937. doi: 10.1109/TIA.28
[10]	MARQUES G D, PIRES V F, SOUSA S, et al. A DFIG sensorless rotor-position detector based on a hysteresis controller[J]. IEEE Transactions on Energy Conversion, 2011, 26(1):9-17. doi: 10.1109/TEC.2010.2070507
[11]	陈燕东, 罗安, 彭自强, 等. 光伏并网发电与无功补偿的鲁棒预测控制[J]. 电工技术学报, 2013, 28(11):239-246,253.
	CHEN Yandong, LUO An, PENG Ziqiang, et al. Robust predictive control strategy for photovoltaic grid-connected generation and reactive power compensation[J]. Transactions of China Electrotechnical Society, 2013, 28(11):239-246,253.
[12]	孙丹, 方扬, 孙士涛, 等. 双馈异步风力发电机无差拍直接功率控制及延时补偿[J]. 电工技术学报, 2013, 28(11):70-77.
	SUN Dan, FANG Yang, SUN Shitao, et al. Dead-beat direct power control of doubly fed induction generators with delay compensation[J]. Transactions of China Electrotechnical Society, 2013, 28(11):70-77.
[13]	DATTA R, RANGANATHAN V T. Direct power control of grid-connected wound rotor induction machine without rotor position sensors[J]. IEEE Transactions on Power Electronics, 2001, 16(3):390-399. doi: 10.1109/TPEL.63
[14]	YANG S, AJJARAPU V. A speed-adaptive reduced-order observer for sensorless vector control of doubly fed induction generator-based variable-speed wind turbines[J]. IEEE Transactions on Energy Conversion, 2010, 25(3):891-900. doi: 10.1109/TEC.2009.2032589
[15]	ZHANG Y, ZHU J, XU W, et al. A simple method to reduce torque ripple in direct torque-controlled permanent-magnet synchronous motor by using vectors with variable amplitude and angle[J]. IEEE Transactions on Industrial Electronics, 2011, 58(7):2848-2859. doi: 10.1109/TIE.2010.2076413
[16]	杨俊华, 吕惠子, 吴捷, 等. 基于波波夫超稳定性的无刷双馈电机直接转矩控制[J]. 中国电机工程学报, 2009, 29(15):107-113.
	YANG Junhua, LÜ Huizi, WU Jie, et al. Direct torque control strategy for brushless doubly-fed machines based on Popov hyperstability theory[J]. Proceedings of the CSEE, 2009, 29(15):107-113.

系统参数	数值
电网电压u_g/V	150
额定功率P_s/W	1 500
额定频率f_s/Hz	50
极对数p	3
定子电阻R_s/Ω	4.57
定子漏感L_σs/mH	10.83
转子电阻R_r/Ω	3.228
转子漏感L_σr/mH	10.83
互感L_m/mH	214.57
定转子匝比k	3.36
直流母线电压U_dc/V	100
